ip67 complete surveying equipment V200 gnss rtk base and rover
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600475619328):
Product Overview
Description
Product details
Key Features
Hi-target V200 four-star RTK system, adhering to the characteristics of Hi-target brand focus, professional and expert, condenses the ultimate professional pursuit of people, integrates cutting-edge technology, and has better performance. Magnesium alloy structure, small size, high quality, built-in transceiver integrated radio, improve efficiency and reduce strength; equipped with a new generation of four core strong all solid Android notebook, equipped with Standard Rinex data and raw data recorded at the same time. Quick upgrade by USB.

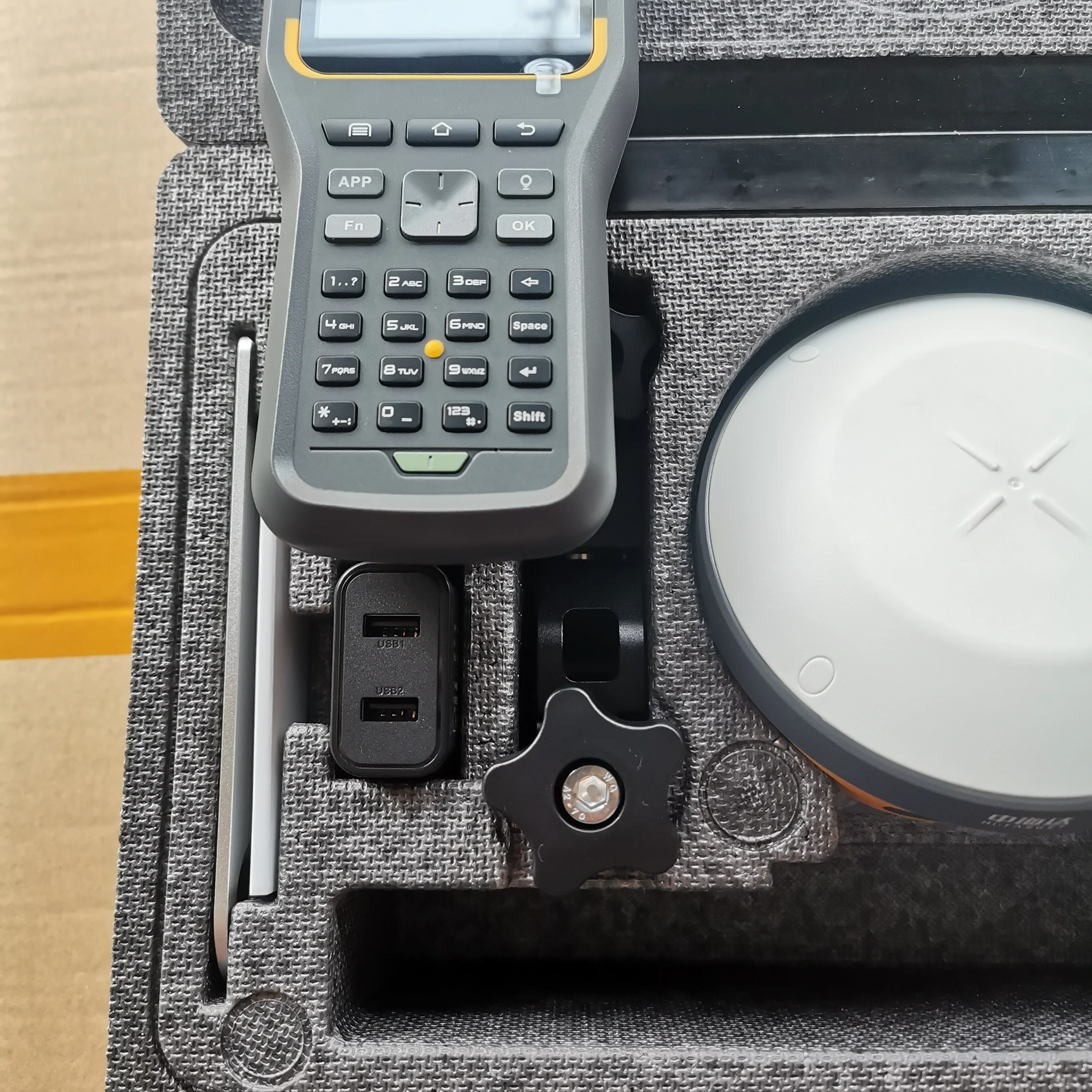

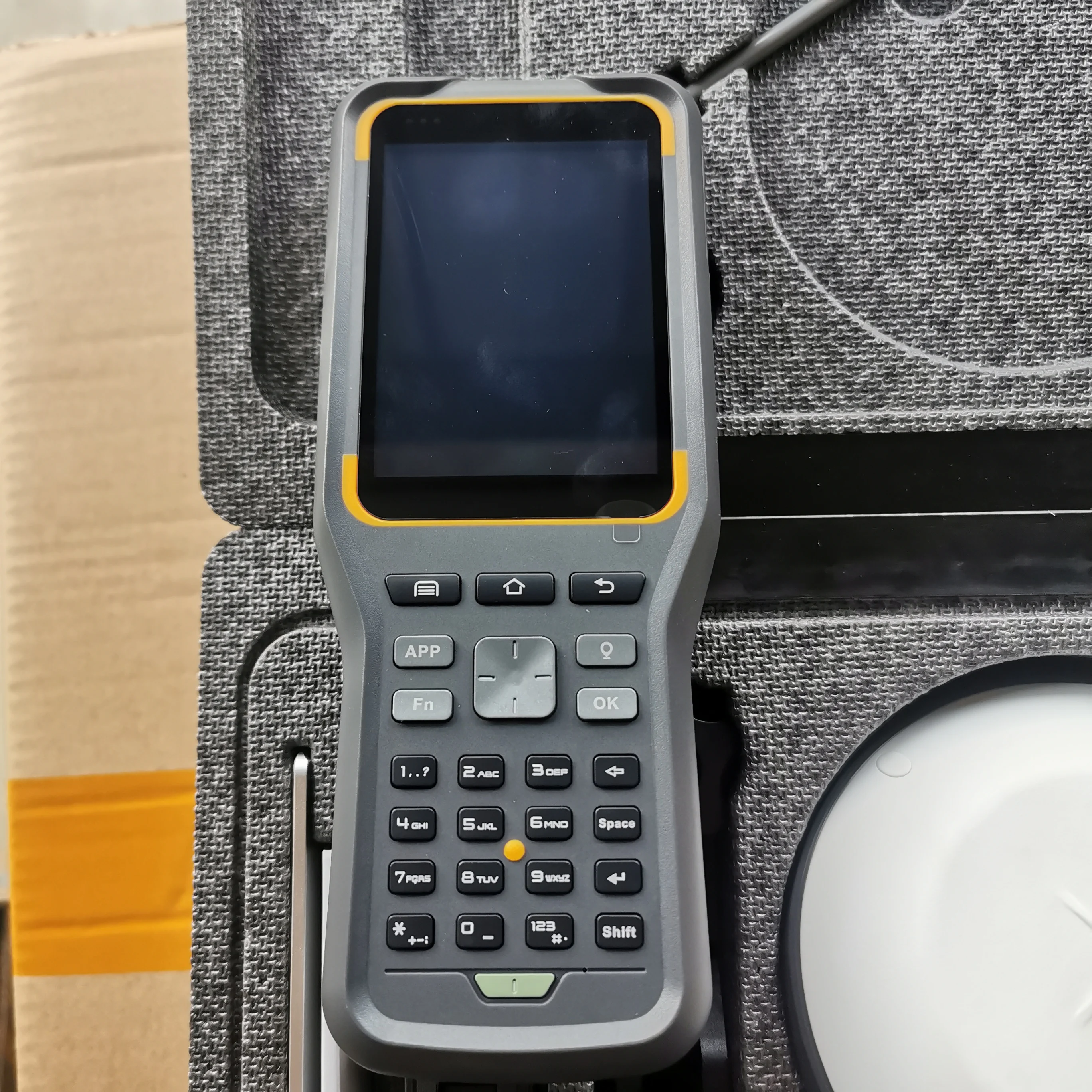

iHand30 Field Controller
The iHand30 is designed for intelligent RTK with NFC sensor, a durable keyboard,ultra-long battery life and sensitive touchscreen
preinstalled free and intelligent Hi-Survey
software.
preinstalled free and intelligent Hi-Survey
software.
Application
Hi-target V200 GNSS RTK GPS used for Intelligent substation personnel management solution and Airborne laser power line inspection.
Multi-constellation Tracking
● Visual LED screen and voice assistance guide your field operation quickly.
● Multi one-button operations. Auto base setup by one button without controller.
Product Description
Specification
Model | V200 | ||
System Configuration | Data storage | 8GB Internal storage (Support up to | |
32GB external SD card) | |||
Record GNS and RINEX fo | |||
rmat simultaneously | |||
Data Formats | 1Hz positioning output, up to 50Hz | ||
CMR: CMR, CMR+, sCMRx | |||
input and output | |||
RTCM: RTCM 2.1, 2.2,2.3, 3.0, | |||
3.1, 3.2 input and output | |||
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, | |||
ROT, GGK, GGA, GSA, ZDA, VTG, GST, | |||
PJT, PJK, BPQ, GLL, GRS, GBS | |||
Navigation outputs binary: GSOF | |||
Satellite Signals Tracked Simultaneously | Channels | 220 | |
BDS | B1,B2 | ||
GPS | Simultaneous L1C/A, L2C, L2E, L5 | ||
GLONASS | Simultaneous L1C/A, L1P, L2C/A | ||
(GLONASS M only), L2P | |||
SBAS | Simultaneous L1 C/A, L5 | ||
GALILEO | Simultaneous L1 BOC, E5A, | ||
E5B, E5AltBOC | |||
Static and Fast Static | Horizontal | 2.5mm+0.5ppm RMS | |
GNSS Surveying | Vertical | 5mm+0.5ppm RMS | |
Post Processing Kinematic | Horizontal | 1cm+1ppm RMS | |
(PPK / Stop & Go) | Vertical | 2.5cm+1ppm RMS | |
GNSS Surveying | Initialization time | Typically 10 minutes for base while | |
5minutes for rover | |||
Initialization reliability | Typically > 99.9% | ||
Network RTK | Horizontal | 8mm+1ppm RMS | |
Vertical | 15mm+0.5ppm RMS | ||
Initialization time | Typically < 8seconds | ||
Initialization reliability | Typically > 99.9% | ||
Code Differential GNSS | Horizontal | 25cm+1ppm RMS | |
Positioning | Vertical | 50cm+1ppm RMS | |
SBAS | 0.50m Horizontal, 0.85m Vertical | ||
Power and Battery | Power | 6V to 28V DC external power input, | |
Power consumption ≤3.5W | |||
Internal battery | Rechargeable, removable 7.4V, | ||
5000mAh Lithium-ion battery | |||
Internal battery life | Static 12hours | ||
RTK rover (UHF/GPRS/3G) 10 hours | |||
RTK base more than 8 hours | |||
I/O Interface | 1 xBluetooth, NFC ,1 x standard USB2.0 port | ||
1 x TNC antenna connector | |||
1 x RS232 serial port ,1 x DC power input (5-pin) , | |||
1 x MicroSD card port | |||
Physical | Dimensions (W x H) | 153mm x 83mm (6.02inch x 3.27inch) | |
Weight(without internal battery) | 950g (2.09lb) | ||
Operating temperature | -40ºC to +65ºC (-40ºF to +149ºF) | ||
Storage temperature | -55ºC to +85ºC (-67ºF to +185ºF) | ||
Humidity | 100%, considering | ||
Water/dustproof | IP67 dustproof, protected from temporary | ||
immersion to depth of 1m (3.28ft). | |||
Shock and vibration | Designed to survive a 3m(9.84ft) | ||
natural fall onto concrete. | |||
Packing & Delivery

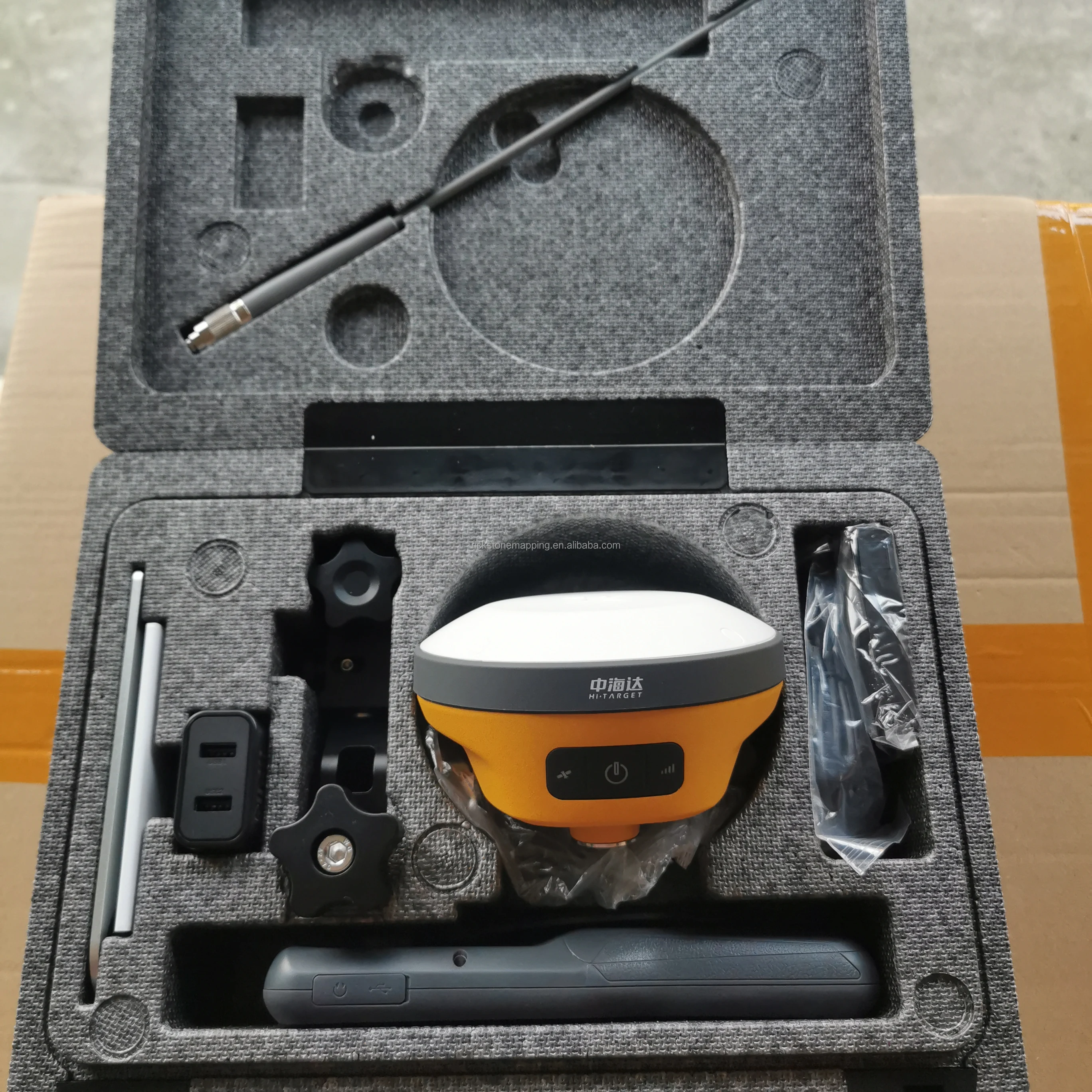

high precision smallest size Hi-target V200
GNSS RTK GPS with 30 degrees tilt survey 1 set packed in 2 cartons: 45*25*40cm (7kg)
45*25*40cm (7kg)
Why Choose Us
we are the OEM factory of Japan TAJIMA and Germany GEO-FENNEL and other famous worldwide brand.
And we are responsible for foreign trade business.We accept rebrand OEM and special design. And we can provide technology support.
We are willing to communicate with domestic and foreign companies to promote the progress and development of instrument technology.
Our Total Station is available in over 10 languages, including Chinese, Japanese, English, French, German,Italian, Russian, Ukrainian, Portuguese, Spanish, Czech, Turkish, etc. Moreover, We are now appointed as the production base of the well-known German instrument companies.We have a group of technicians who have been engaged in the research and development of photo-electric products for a long time.
FAQ
1.What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2.How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3.What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 2-3 days from payment receipt.
4.Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries
5.Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
6.Can your company help to purchase other kinds products ?
Yes, our company can help to purchase any kinds legal products for you.
7.Can your company accept factory check?
Yes, we accept any kinds factory check. You can arrange your staffs in China to come to our factory to check production and quality. If you want we can do the online video check too.
8.Can your company accept OEM rebrand?
Yes, we welcome all customers to come to our factory to talk about the rebrand services.
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2.How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3.What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 2-3 days from payment receipt.
4.Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries
5.Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
6.Can your company help to purchase other kinds products ?
Yes, our company can help to purchase any kinds legal products for you.
7.Can your company accept factory check?
Yes, we accept any kinds factory check. You can arrange your staffs in China to come to our factory to check production and quality. If you want we can do the online video check too.
8.Can your company accept OEM rebrand?
Yes, we welcome all customers to come to our factory to talk about the rebrand services.
