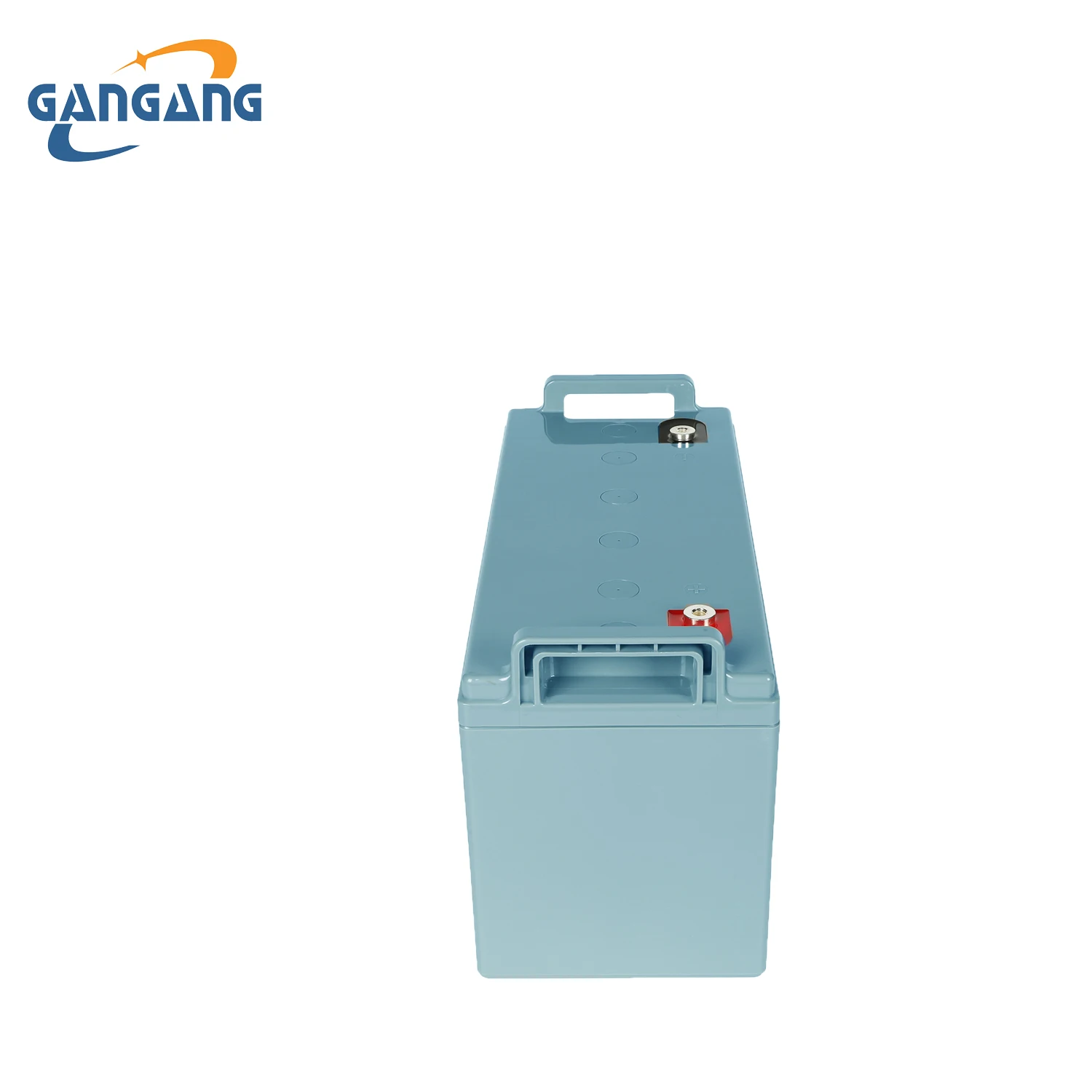

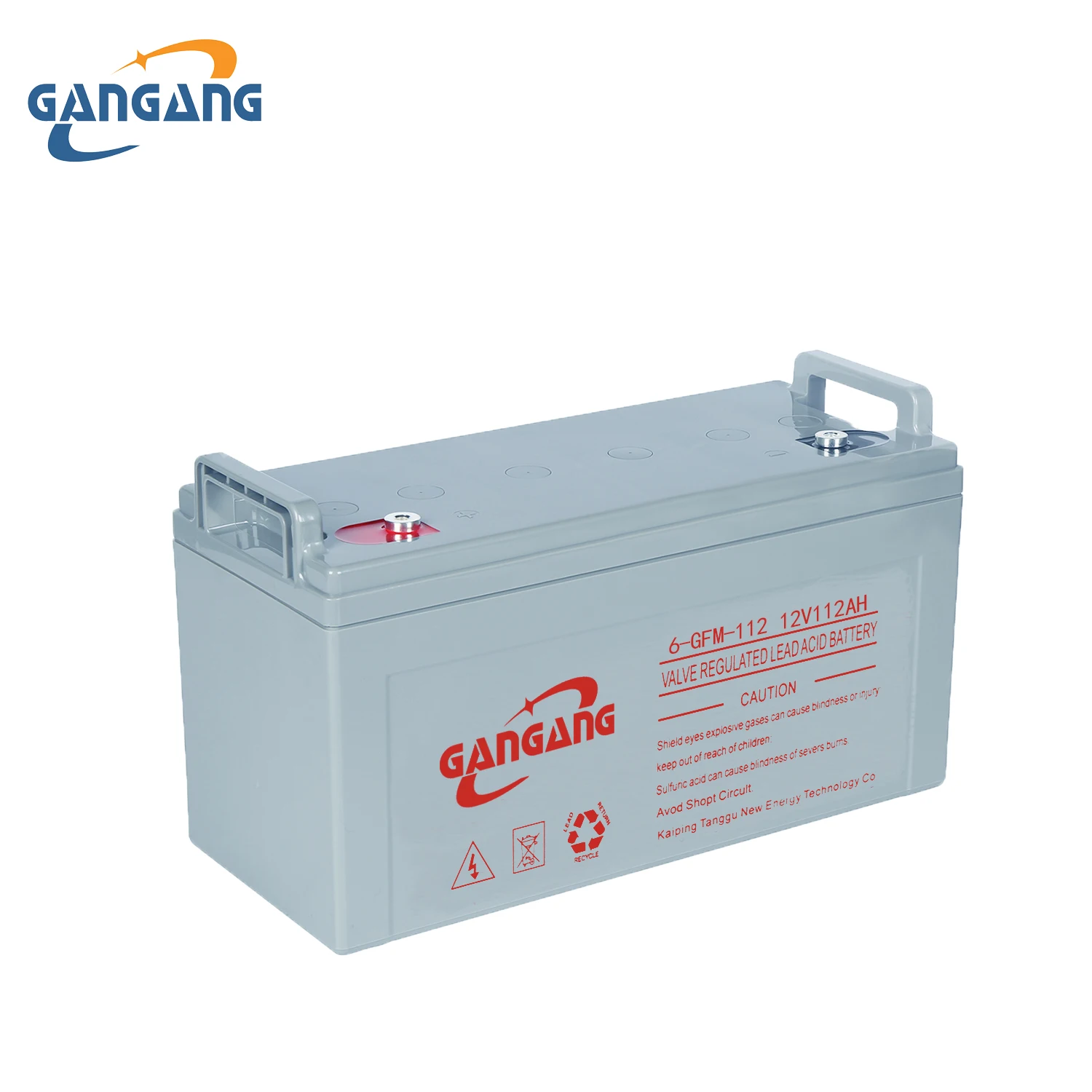

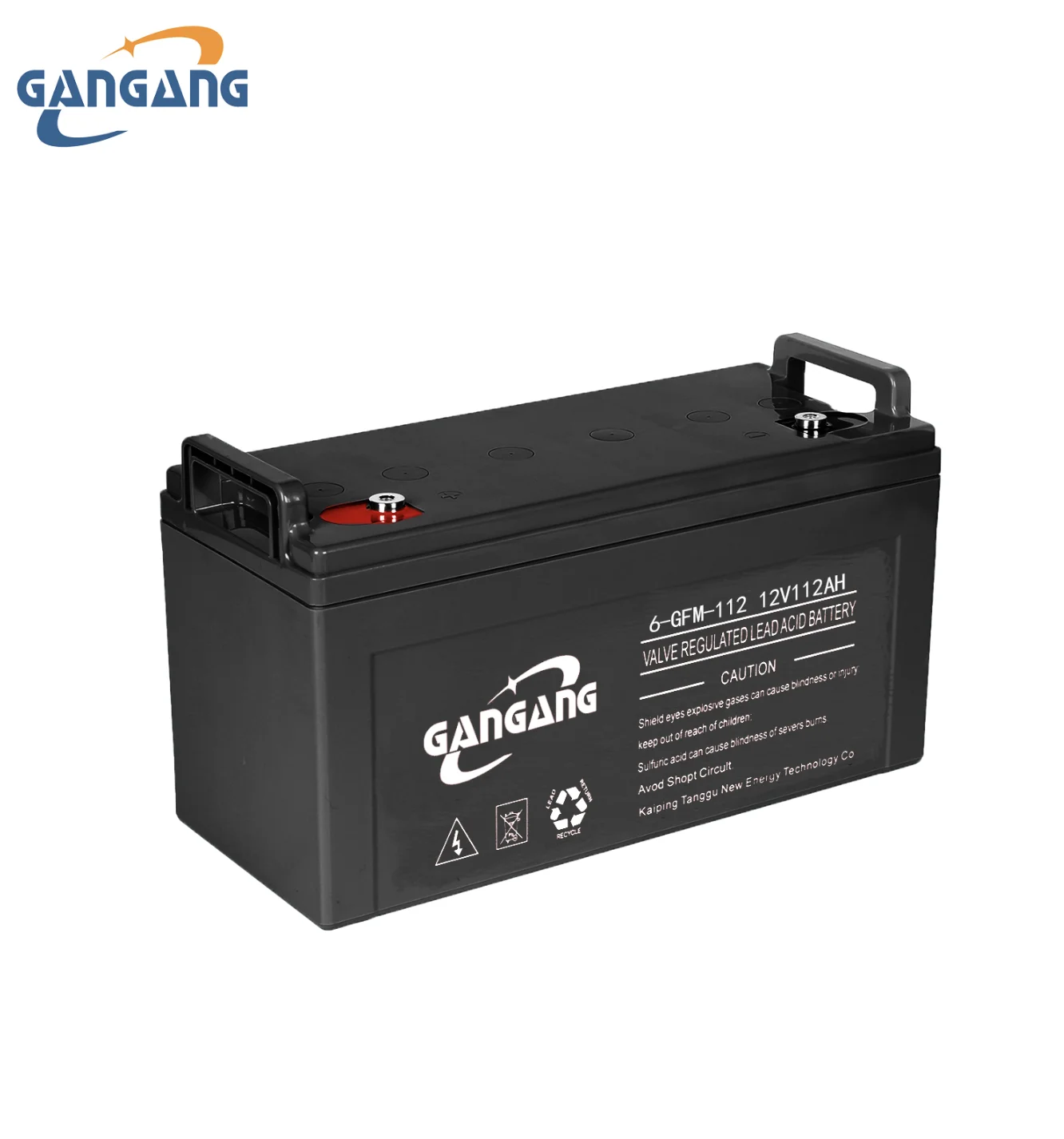

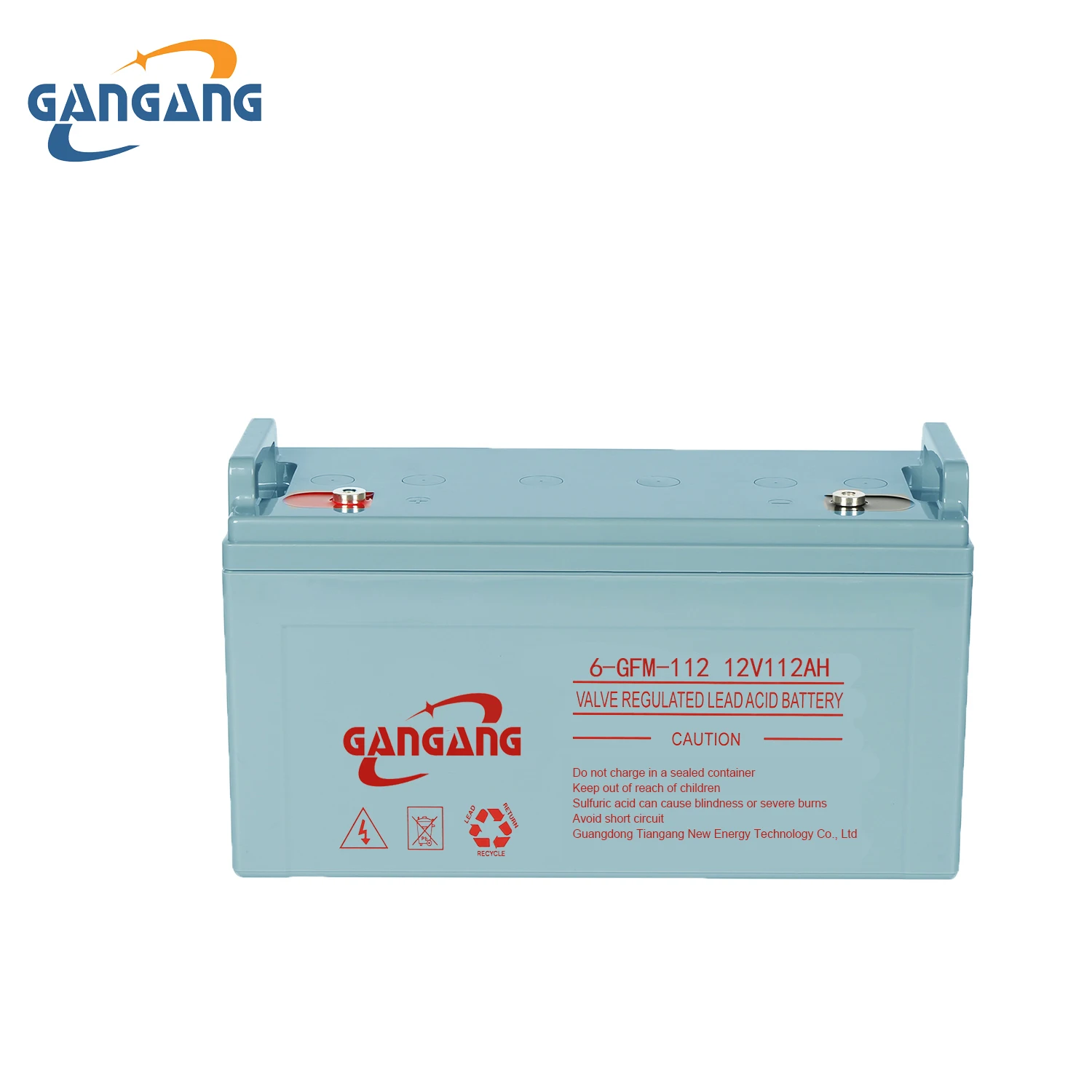

Rechargeable and Maintenance free 12V 112Ah AGM Sealed Lead Acid UPS Battery
- Category: >>>
- Supplier: Guangdong Tiangang New Energy Technology Co. Ltd.
Share on (1600475620374):
Product Overview
Description
Specification
Characteristics | |
Product name | 12V 112AH UPS Battery |
Model Number | 6-GFM-112-KU |
Application | Solar Energy Storage Systems, Uninterruptible Power Supplies |
Brand Name | GANGANG |
Battery Type | Deep Cycle: Sealed AGM |
Place of Origin | Guangdong China |
Chargeable | Yes |

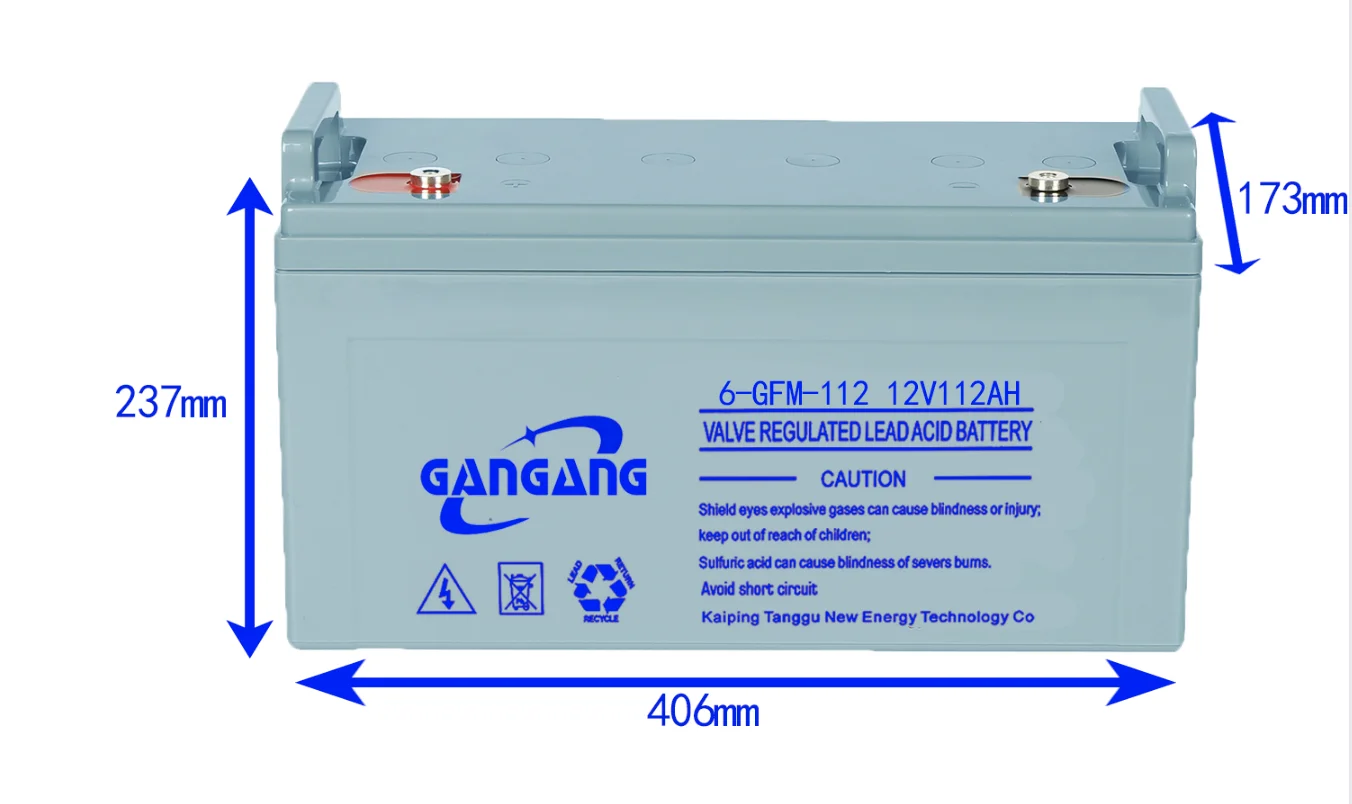

Battery Size | 406*173*237mm |
Weight | 32kgs |
Cyle life | 1200 times |
Storage Type | Maintenance Free |
The charging ratio | 10 hours |
The discharge rate | Low Discharging Rate |
Warranty | 3years |

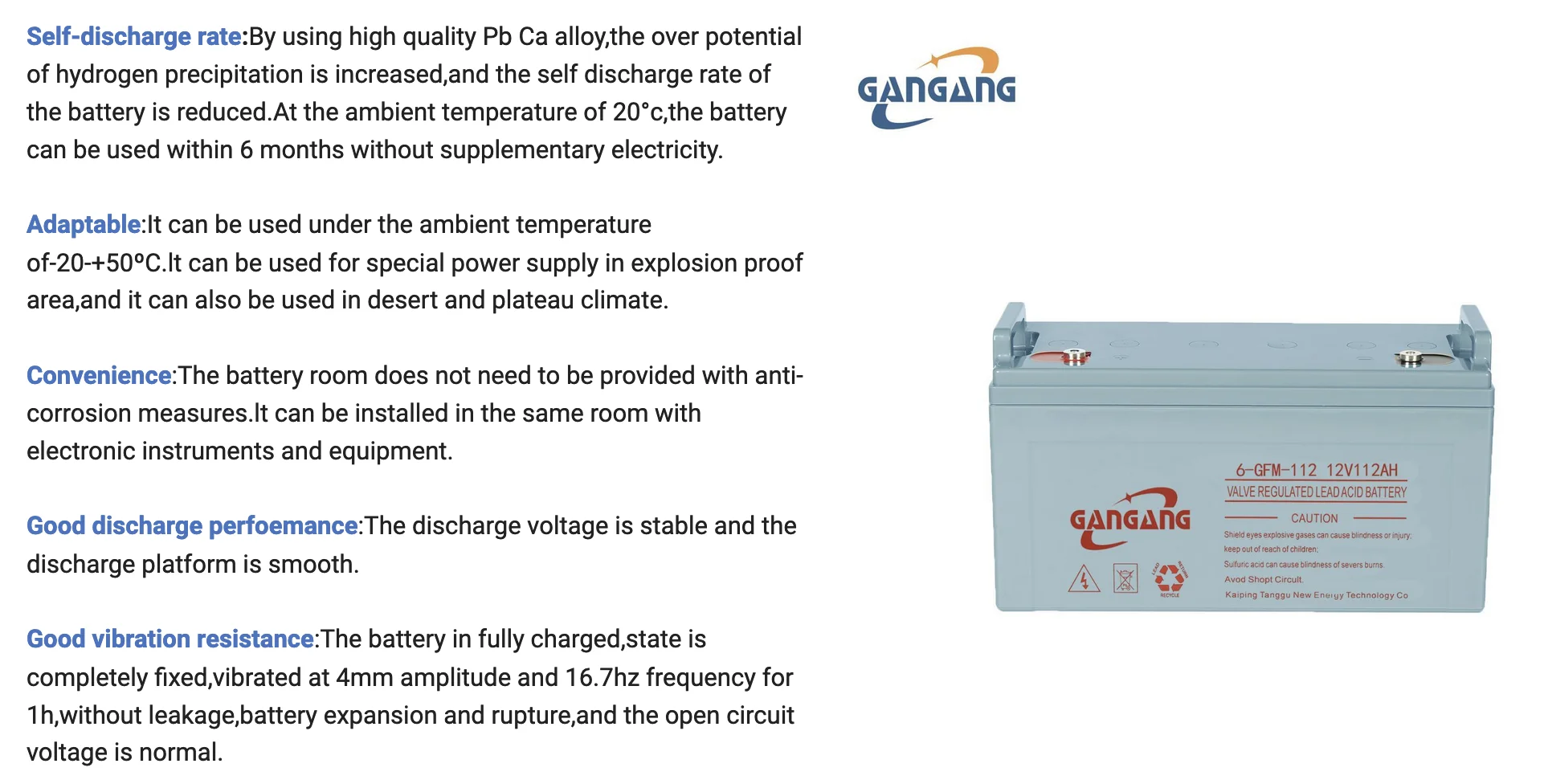

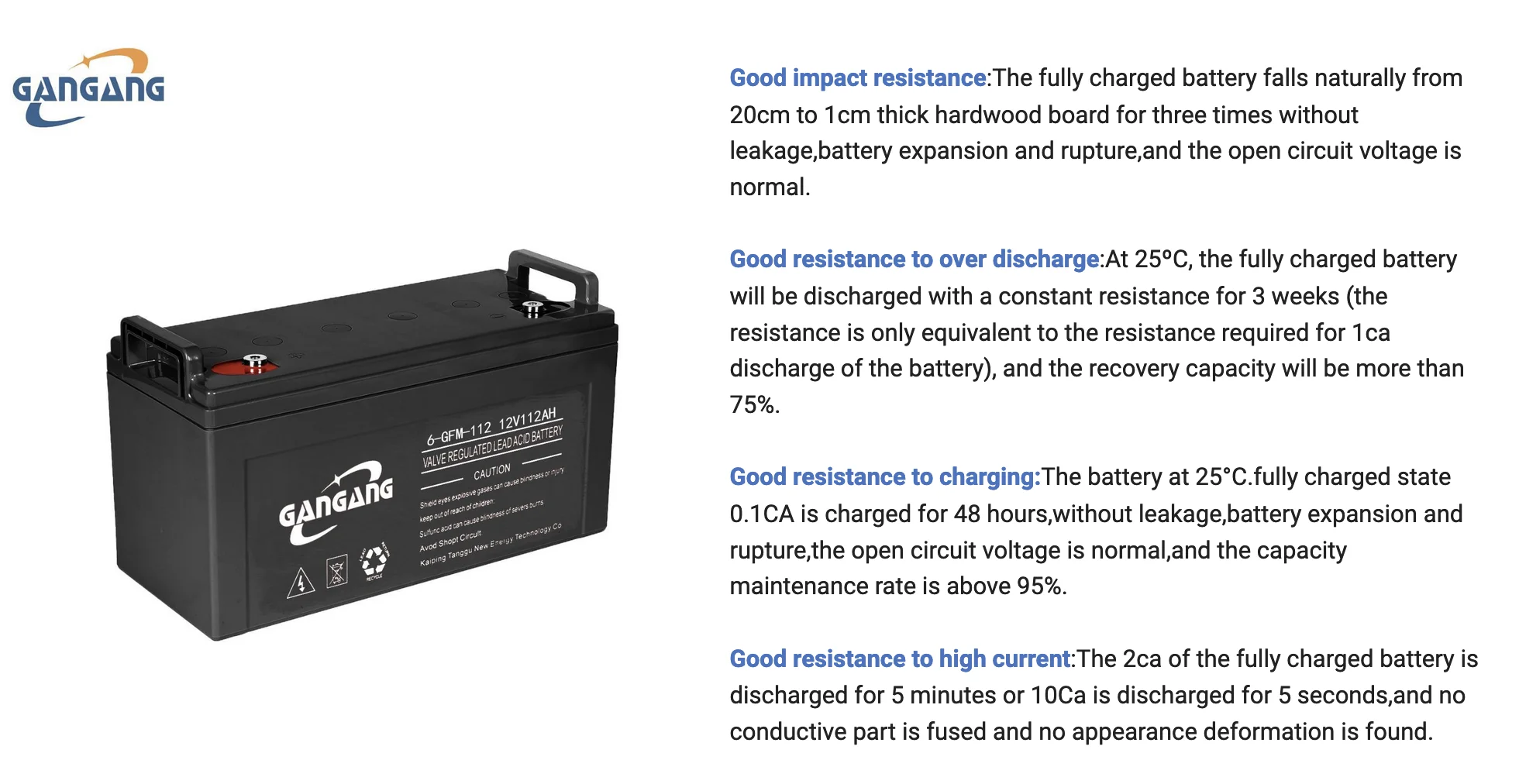

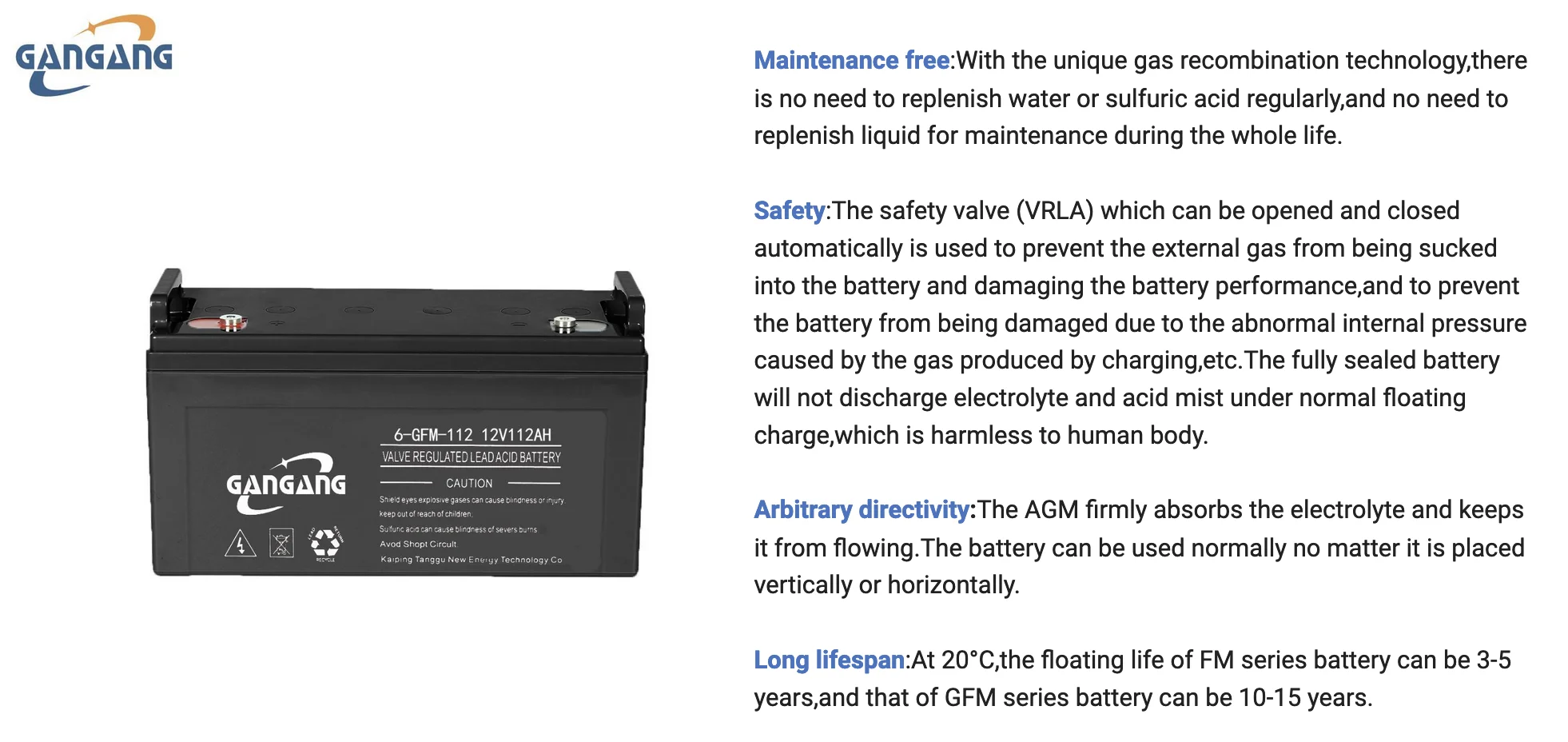

Battery Features
Product Description
Work principle
During the discharge, the lead dioxide in the anode and the spongy lead in the cathode react with the sulfuric acid in the
electrolyte to form lead sulfate and water, eleasing the chemical energy into olectrical energy.
When charged, the lead sulfate at the Yin and Yang Poles is converted into lead dioxide and spongy lead, respectively, and the electrical energy is converted intochemical energy for storage.But at the end of charging or over-charging, the overpotential of the chemical reaction between the cathode and the node increases, the negative electrode produces hydrogen and the positive electrode produces oxygen, the side reaction of oxygen will dominate, based on the positive electrode charging state reaches 70%when oxygen begins to be produced, when the charge state of the negative electrode reaches 90%,the mechanism of hydrogen production begins.Through the optimized design and the use of PB-CA multi-element alloy, the oxygen produced on the positive electrode can react with the living matter on the negative electrode to produce water, and the internal circulation of oxygen can be realized, at the same time the overpotential of hydrogen evolution is increased, so that the charge state of the negative electrode is always less than 90%, and the hydrogen evolution is well restrained.
electrolyte to form lead sulfate and water, eleasing the chemical energy into olectrical energy.
When charged, the lead sulfate at the Yin and Yang Poles is converted into lead dioxide and spongy lead, respectively, and the electrical energy is converted intochemical energy for storage.But at the end of charging or over-charging, the overpotential of the chemical reaction between the cathode and the node increases, the negative electrode produces hydrogen and the positive electrode produces oxygen, the side reaction of oxygen will dominate, based on the positive electrode charging state reaches 70%when oxygen begins to be produced, when the charge state of the negative electrode reaches 90%,the mechanism of hydrogen production begins.Through the optimized design and the use of PB-CA multi-element alloy, the oxygen produced on the positive electrode can react with the living matter on the negative electrode to produce water, and the internal circulation of oxygen can be realized, at the same time the overpotential of hydrogen evolution is increased, so that the charge state of the negative electrode is always less than 90%, and the hydrogen evolution is well restrained.

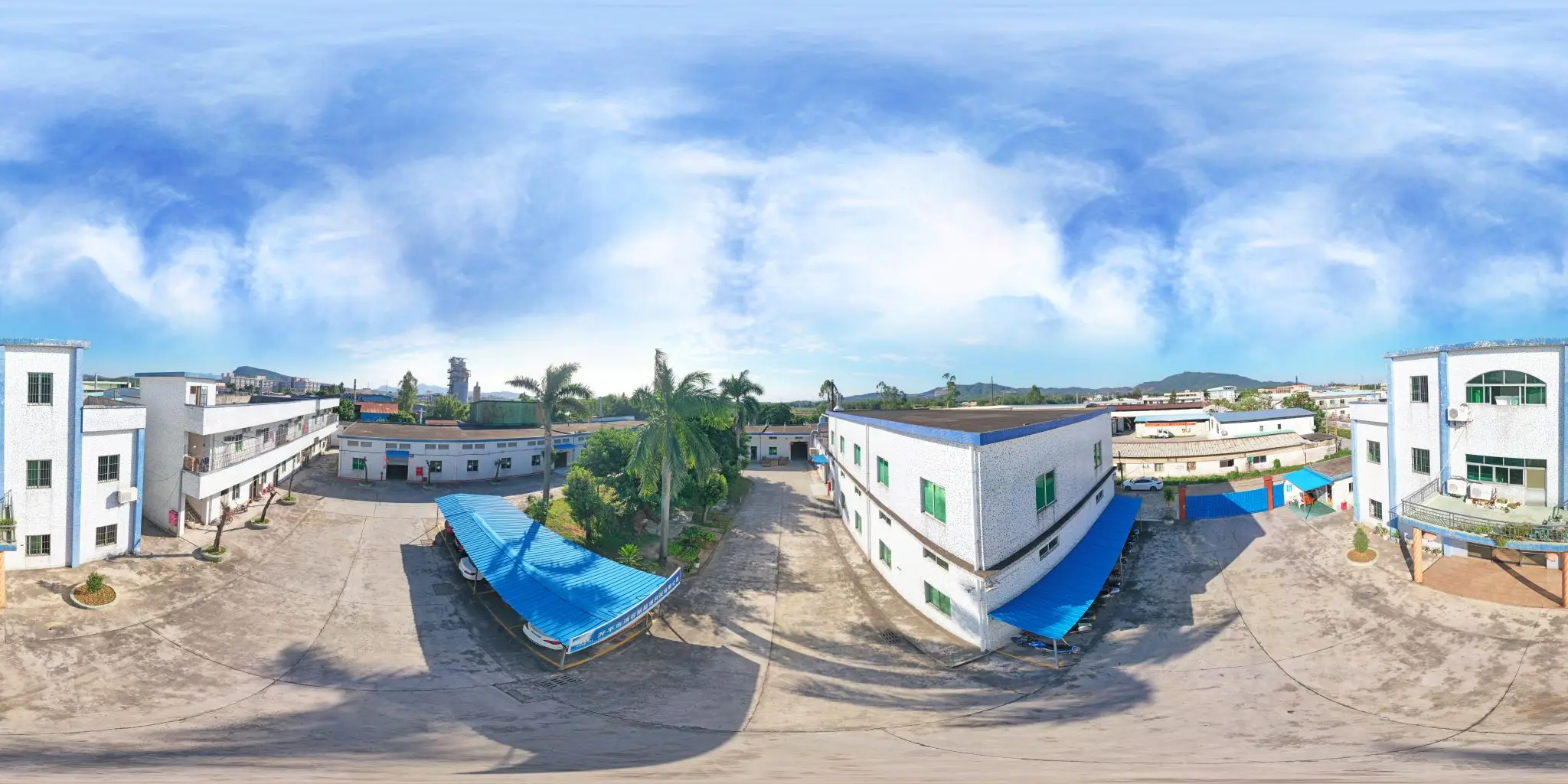

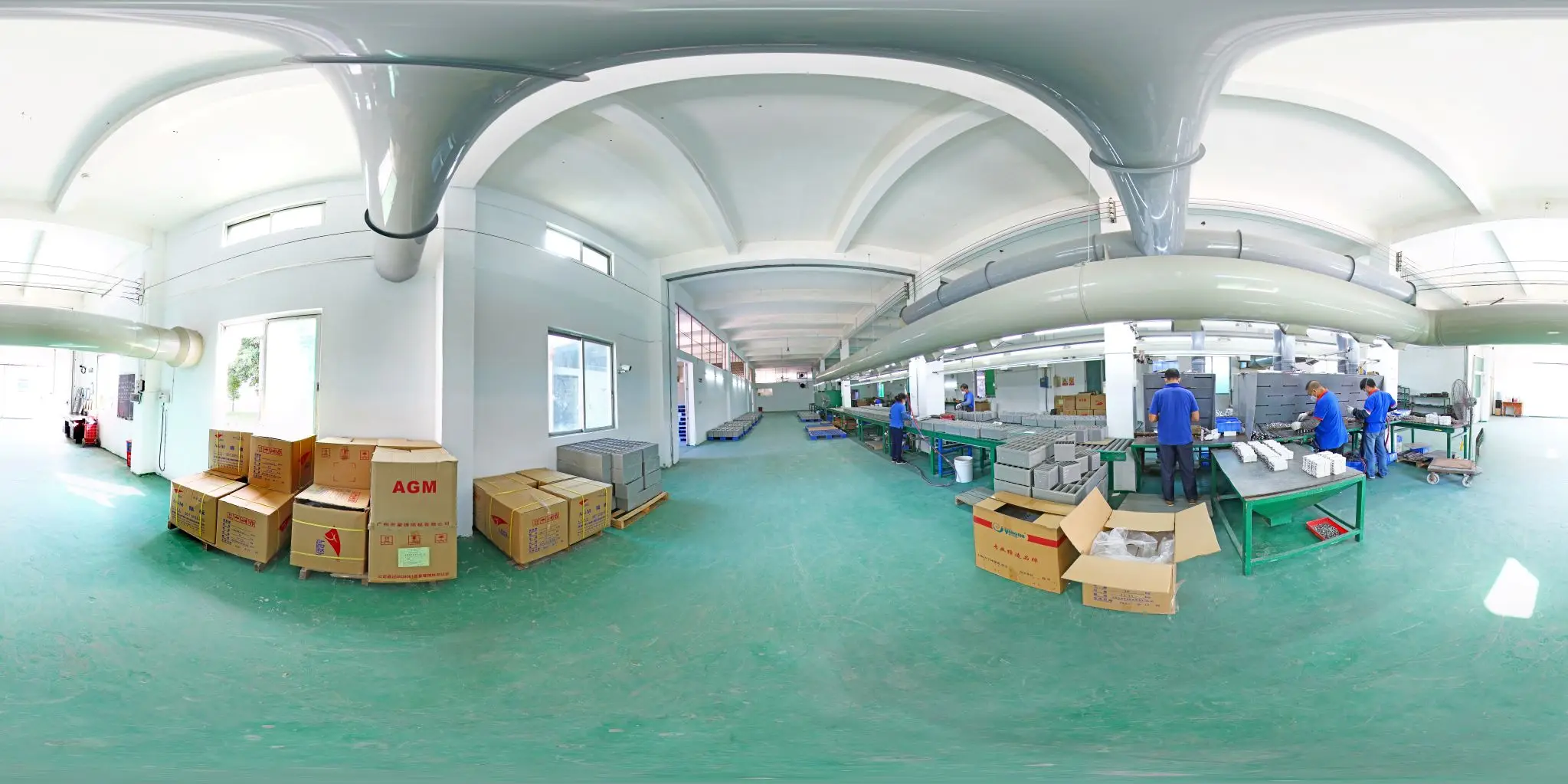

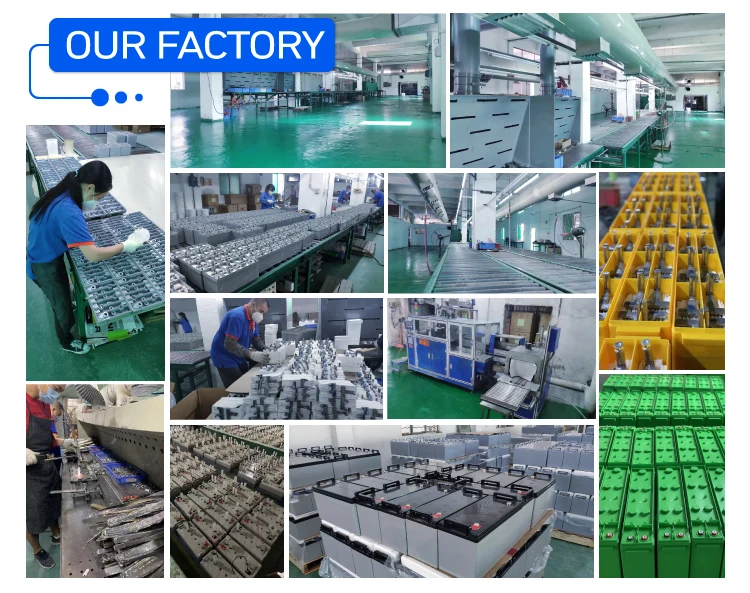

Company Profile
Guangdong Tiangang New Energy Technology Co., Ltd. is located in Kaiping City, Jiangmen City, Guangdong Province, China, the famous hometown of overseas Chinese. Our company is a high-tech enterprise, with research and development, design, production, sales and service as one of the professional production of battery enterprises. We focus on the research and development of lead-acid batteries, solar cells, deep cycle batteries and gel batteries. In addition, we also sell a full range of different capacities of 12 voltage, 6 voltage and 2 voltage batteries.
The battery is mainly used for UPS power supply; Telecom; Power; Solar and wind power systems; Aerospace and Navigation; Banking and health care; Scientific research; Systematic users such as manufacturing and the military.
Since its establishment more than 10 years, the company has been constantly improving its own conditions, with its superior quality, leading technology, perfect management and service, thus we have won the praise from domestic and foreign customers
The company also adhere to the "integrity, efficiency, mutual benefit" for the purpose of the enterprise; Continuous introduction of international advanced management system, so that the production management system, systematic testing process, product acceptance data, so as to form an effective quality management system; To "let us do the best" for the quality policy, to ensure that every product is in line with the standard, from pre-sale to after-sale, effectively provide customers with excellent products and intimate service.
The battery is mainly used for UPS power supply; Telecom; Power; Solar and wind power systems; Aerospace and Navigation; Banking and health care; Scientific research; Systematic users such as manufacturing and the military.
Since its establishment more than 10 years, the company has been constantly improving its own conditions, with its superior quality, leading technology, perfect management and service, thus we have won the praise from domestic and foreign customers
The company also adhere to the "integrity, efficiency, mutual benefit" for the purpose of the enterprise; Continuous introduction of international advanced management system, so that the production management system, systematic testing process, product acceptance data, so as to form an effective quality management system; To "let us do the best" for the quality policy, to ensure that every product is in line with the standard, from pre-sale to after-sale, effectively provide customers with excellent products and intimate service.
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Domestic Market(80.00%),Africa(8.00%),Mid East(5.00%),Southeast Asia(5.00%),South America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
12V and 2V UPS Batteries,AGM Batteries,Lead-acid Batteries,Solar Batteries, 3.2V Li-on Battery Cells
4. why should you buy from us not from other suppliers?
Monthly stocks were arranged for normal capacity makes most handover dates of urgent orders could be catched , every component suppliers are more than one makes no delay on raw materials purchasing and schedule will not be easily disturbed. Big warehouse in Guangzhou makes the logistics convenient and smooth to every ports or corners.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2021,sell to Domestic Market(80.00%),Africa(8.00%),Mid East(5.00%),Southeast Asia(5.00%),South America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
12V and 2V UPS Batteries,AGM Batteries,Lead-acid Batteries,Solar Batteries, 3.2V Li-on Battery Cells
4. why should you buy from us not from other suppliers?
Monthly stocks were arranged for normal capacity makes most handover dates of urgent orders could be catched , every component suppliers are more than one makes no delay on raw materials purchasing and schedule will not be easily disturbed. Big warehouse in Guangzhou makes the logistics convenient and smooth to every ports or corners.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
