Dc Motor 1:10 Reducer 15nm Torque Dc 12 V 160RPM Gear Motor for Lifting Cabinet / Wall Cabinet
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600475622438):
Product Overview
Description

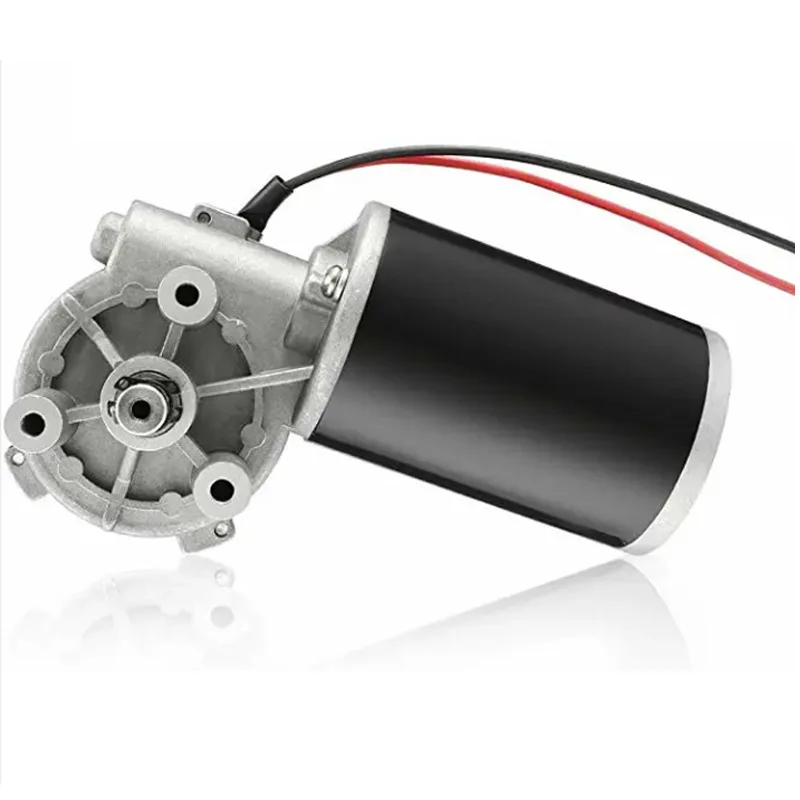

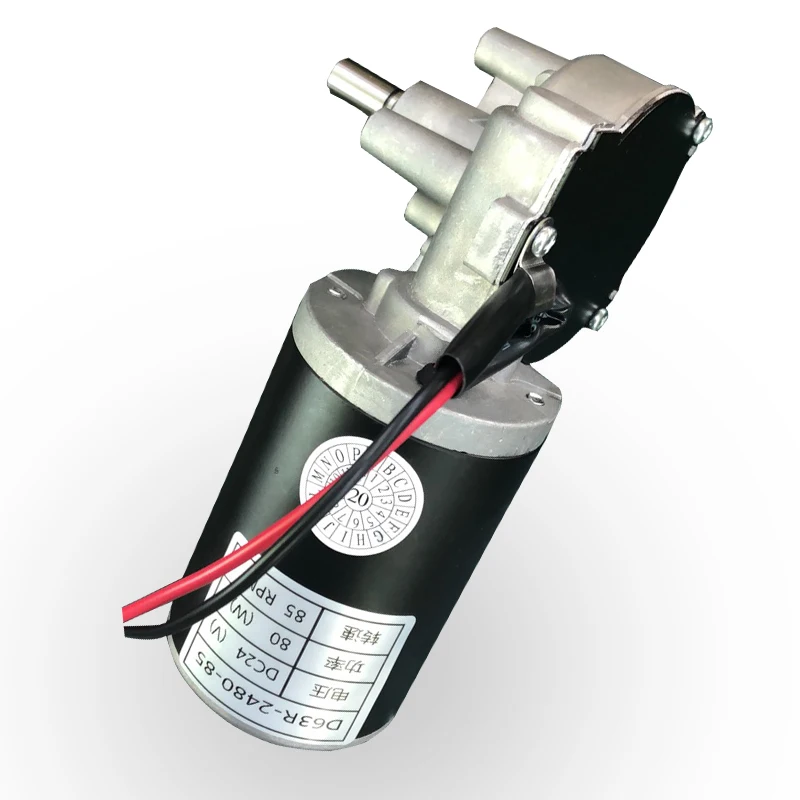

Small Dc Motor 1:10 Reducer 15nm Torque Dc 12 V 160RPM Gear Motor for Lifting Cabinet / Wall Cabinet

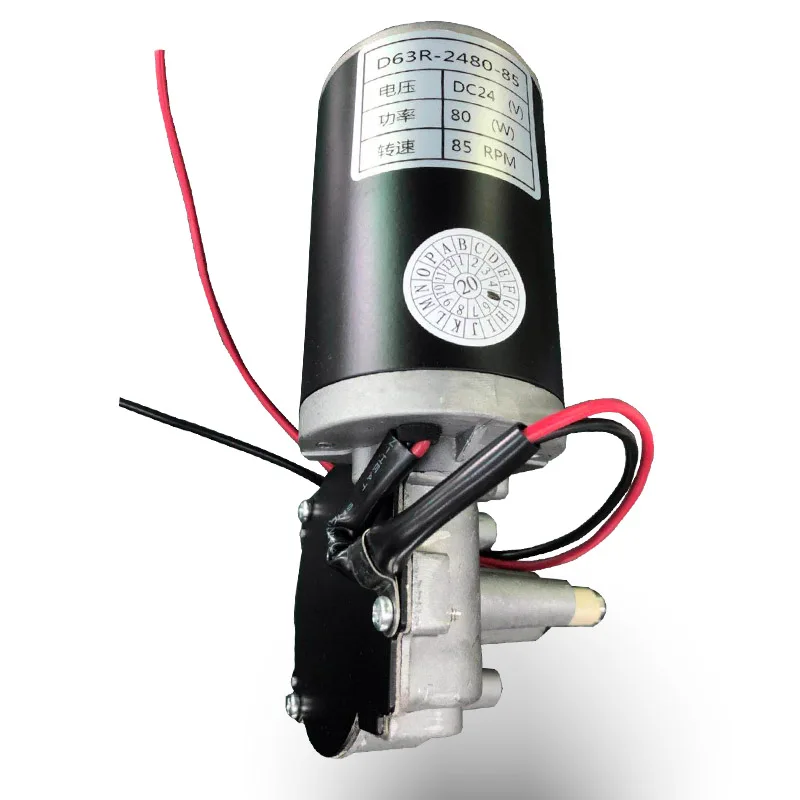

TYPE: D63R-24v80w-85rpm

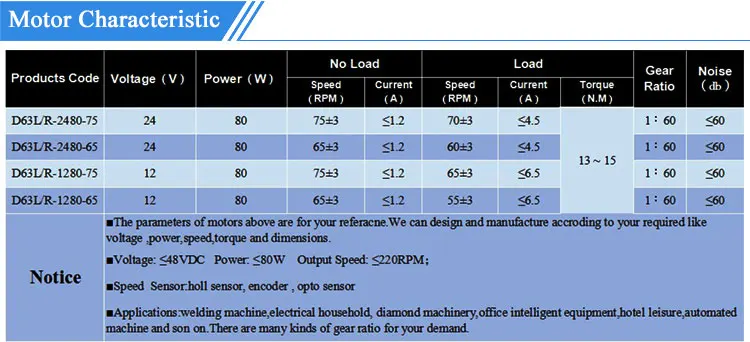

Specification:
| Size of motor | 49mm 59mm 63mm 76mm 88mm 110mm |
| Voltage | Dc 12V 24V 36V 48V |
| Output Power | 80W |
| No Load Speed | 85RPM |
| Load Speed | 80RPM |
| No Load Current | ≤1.0A |
| Load Current | ≤3.5A |
| Load Torque | ≥3.3Nm |
| Gear Ratio | 75:1 60:1 60:2 60:4 |
| Gear Modulus | 75:1 M=0.8 60:1 60:2 60:4 M=1 |
| Motor Length | 77-97mm |
| Motor gearbox | On left / on right |

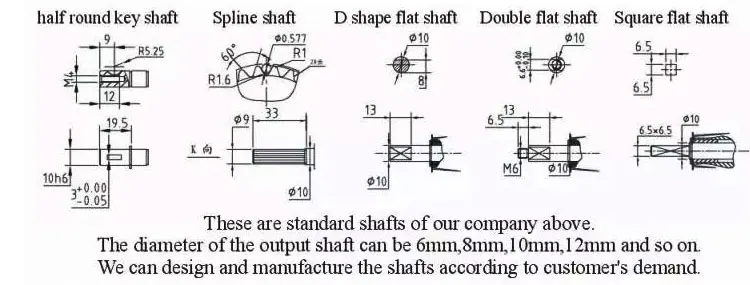

| Output shaft size | 6mm 8mm 10mm 12mm 14mm(optional) |
| Noise | Less 60db |

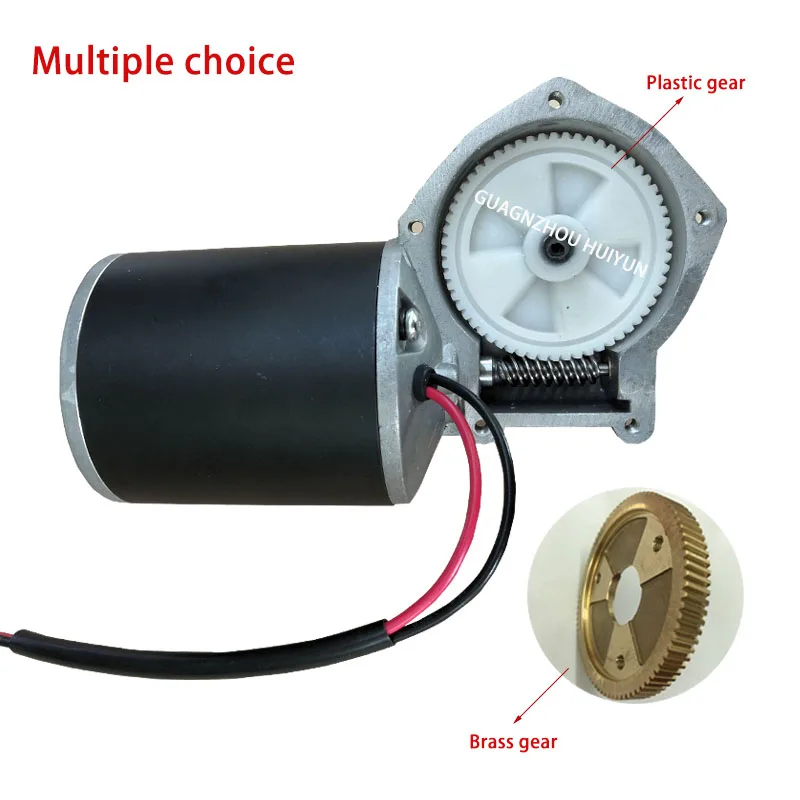

| Material of gear | Plastic / Copper |
| Factory Address | Guangzhou Huadu |
| OEM / ODM Service | Accept |

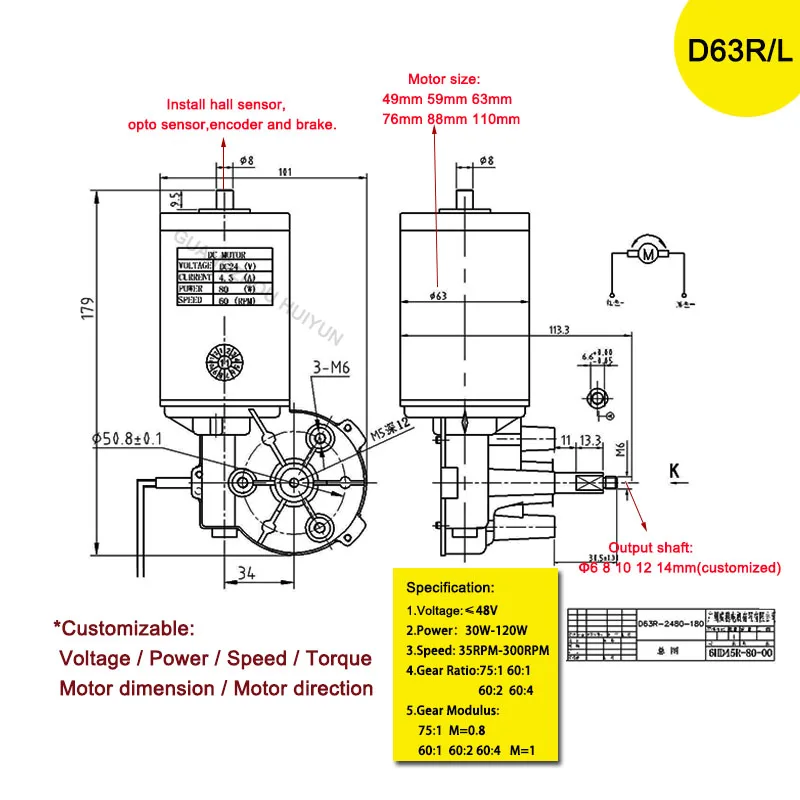

Detailed Images
Company Information
Guangzhou Huiyun Science & Technology Co.,Ltd is a subsidiary of Guangzhou Wewin Motor Co.,Ltd.The factory is located in Huadu,Guangzhou,We can design and manufacture of motors according to all our customers' demands so far,we can manufacture about 60,000 motors per month.
We owns high techonlogy support and advanced production equipment.And we have a team of specialists in engineering,manufacturing,quality control,production management and techology development.
Our main market:
Europe,America and Asia,including United Kingdom,Germany,Italy,France,Sweden, United State,Brazil,India,Korea and so on.
Product Uses
More Applications:
Car simulator ,garage door opener,gate operator, packing barrier,water pump,vending machine,food processor blender machine,office intelligent equipment,floor polisher,truck lift,stair lift,hospital bed ,hydraulic pump electric forklift.
Certifications
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in dc worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: The main products are brushed motor or motor without gear box,dc gear motor and dc micro motor .
-Welding equipment: Wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
