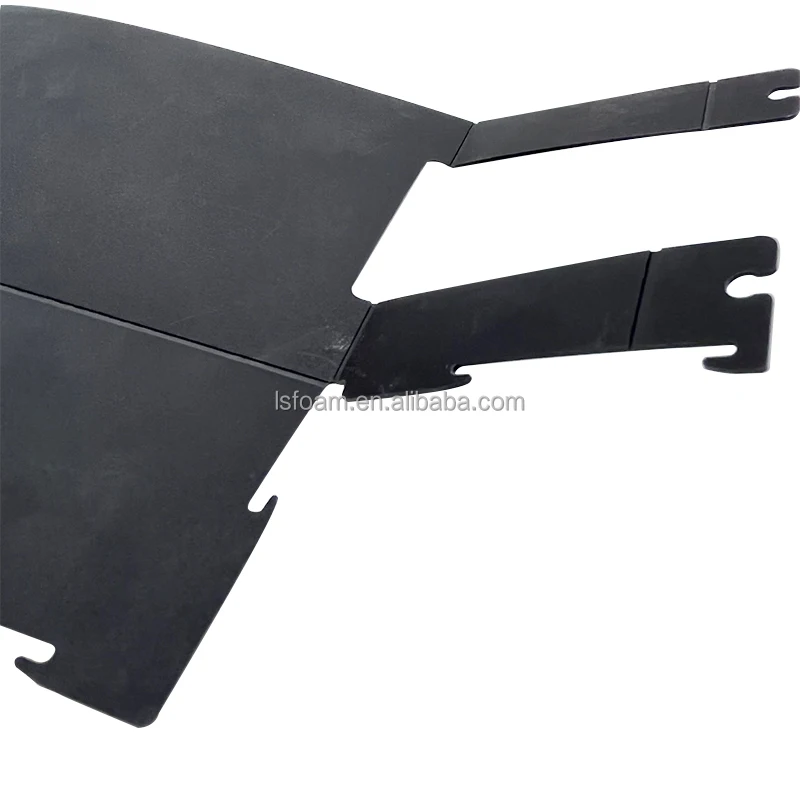

Bolide Custom Self Adhesive PVC PET PP PC Insulated Dupont Mylar Film Sheets 0.5mm
- Category: >>>
- Supplier: Huizhou Bolide Ls Adhesive Technology Co. Ltd.
Share on (1600475633322):
Product Overview
Description
Products Description
Bolide LS Manufacturer Custom Die Cut Self Adhesive or Non Adhesive PVC PET PP PC Mylar Film Sheet
Die Cut Mylar Film Sheet
Mylar comes in metal and nonmetal.
Metal mylar has copper foil mylar, aluminum foil mylar, the main role is conductive;
Nonmetal mylar is mostly for insulation, common materials are PC,PET,PP,PVC, used for membrane switch or electronic and electrical products surface protection, or local insulation.
Product Name | Die Cut Nonmetal Mylar |
Material | PET、PP、PVC、PC Polyester Film |
Adhesive Type | Silicone/Acrylic or 3M double sided tape like 467MP/468MP/9495MP and so on. |
Product Surface | glossy surface、matte surface、frosted surface |
Color | Transparent, black, sub-white, milky |
Thickness(mm) | 0.05、0.075、0.1、0.125、0.15、0.175、0.188、0.2、0.25、0.3、0.35、0.4、0.5、0.6、0.7、0.8、0.9、1、1.5、2 |
Dimension | Customized Die Cut To The Shape You Want |
Product Function | Insulation, high temperature resistance (-40~150℃), flame retardant, etc. |
Contact |
Technical Data
Bolide LS Manufacturer Custom Die Cut Self Adhesive or Non Adhesive PVC PET PP PC Mylar Film Sheet
Item | Unit | Parameter Values | Typical Values | ||
1.Tensile strength(TD&MD) | 25μm—100μm | Mpa | ≥150 | 200 | |
＞100μm—190μm | ≥140 | 170 | |||
＞190μm | ≥110 | 160 | |||
2.Elongation at break(TD&MD) | 25μm—50μm | % | ≥60 | 100 | |
＞50μm—350μm | ≥80 | 120 | |||
3.Shrinkage(TD&MD) | 25μm—190μm | % | ≥3.0 | 1.6 | |
＞190μm | ≥2.0 | 1.5 | |||
4.Power frequency electrical strength | V/μm | See table 2 | See table 2 | ||
5.Volume resistivity | Ω.m | ≥1.0×10^14 | 3.0×10^14 | ||
6.Relative permittivity | — | 2.9—3.4 | 3.2 | ||
7.Medium loss factor | — | ≤5.0×10^-3 | 2.3×10^-3 | ||
8.Density | kg/m³ | 1390±10 | 1392 | ||
1400+10/-2 | 1408 | ||||
9.Melting point | ℃ | ≥256 | 260 | ||
10.Surface resistivity | Ω | ≥1.0×10^13 | 5×10^14 | ||
11.Electrolytic corrosion | Visual | Level | A1 | A1 | |
Metallic wire tensile strength method | % | ≤2 | 1.4 | ||
12.Dimensional stability at high temp | Under tension | ℃ | ≤200 | ≤200 | |
Table 2—Power frequency electrical strength | ||||
Nominal Thickness（mm） | Parameter Values （V/μm） | Typical Values （V/μm） | ||
25 | ≥170 | 220 | ||
50 | ≥130 | 210 | ||
75 | ≥105 | 180 | ||
100 | ≥90 | 160 | ||
125 | ≥75 | 110 | ||
150 | ≥70 | 95 | ||
188 | ≥65 | 85 | ||
250 | ≥60 | 70 | ||
300 | ≥55 | 60 | ||
350 | ≥50 | 57 | ||

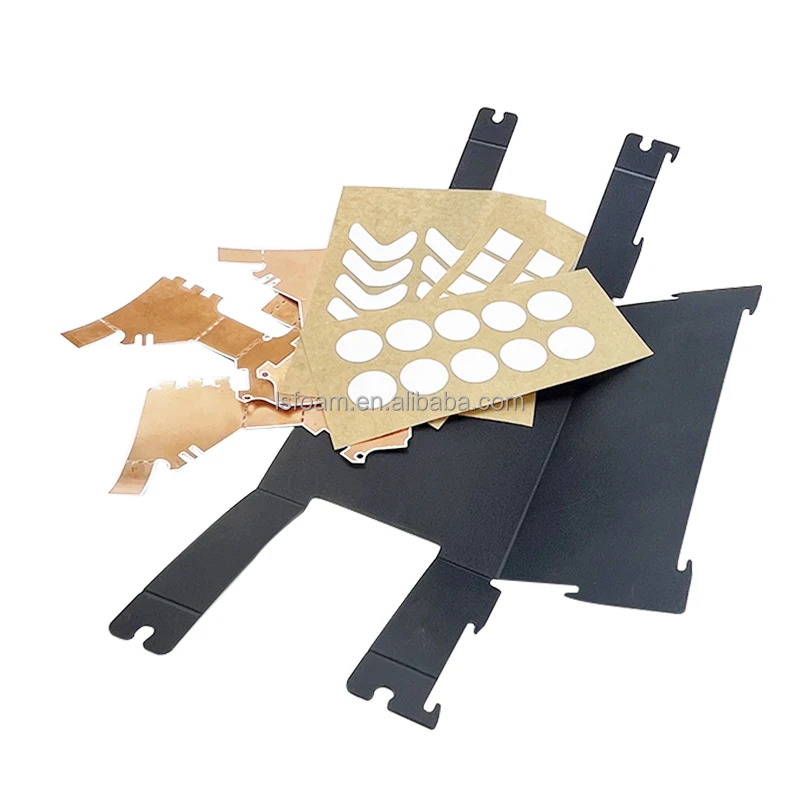

Product Details
Bolide LS Manufacturer Custom Die Cut Self Adhesive or Non Adhesive PVC PET PP PC Mylar Film Sheet

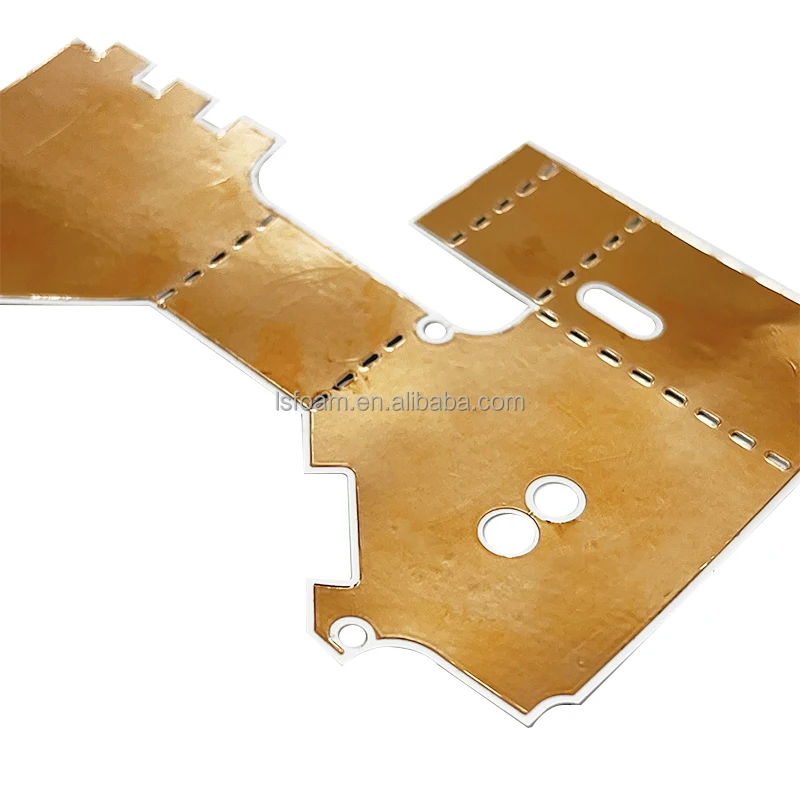

Metal Mylar

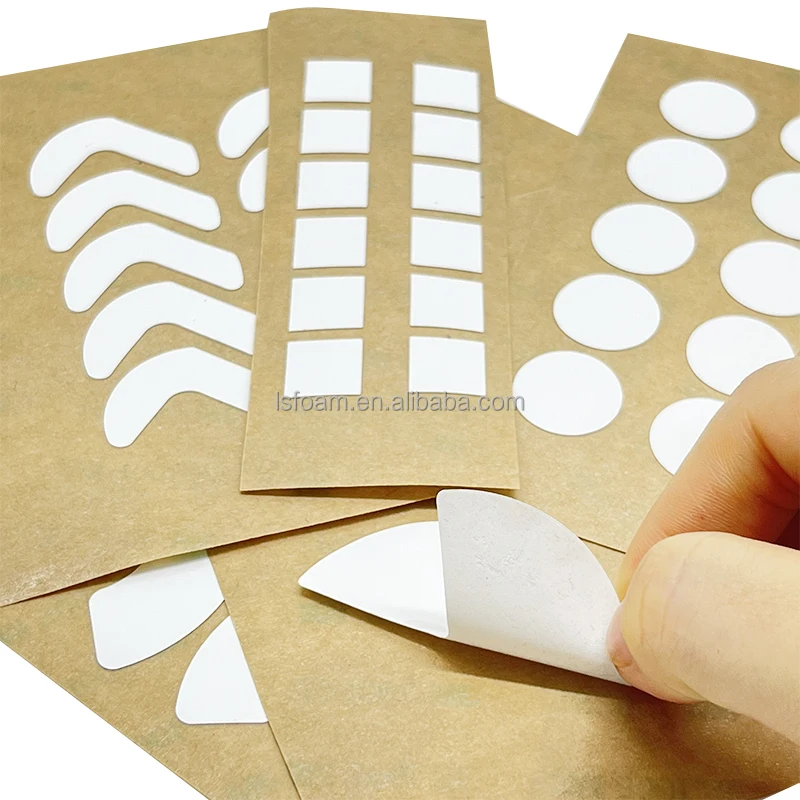

Nonmetal PVC PET Mylar

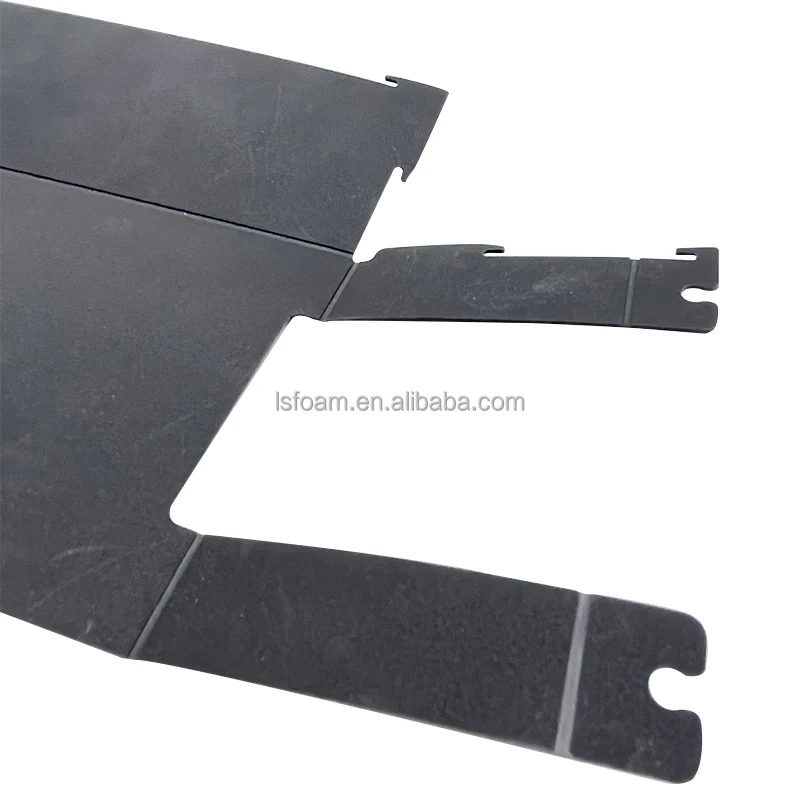

Nonmetal Formex PP Mylar
Nonmetal Formex PP Mylar
Contact Info

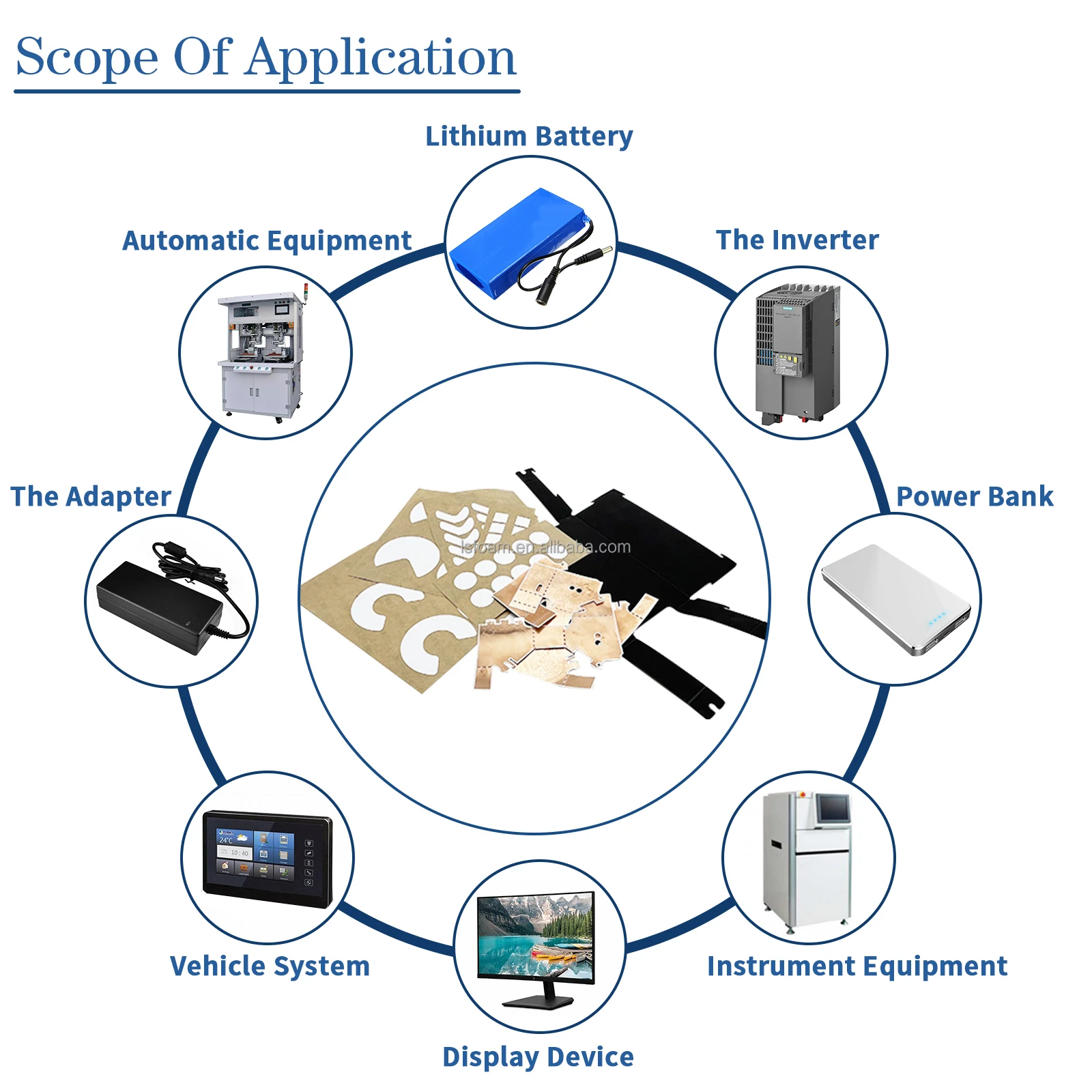

Application
Bolide LS Manufacturer Custom Die Cut Self Adhesive or Non Adhesive PVC PET PP PC Mylar Film Sheet
FEATURES AT A GLANCE

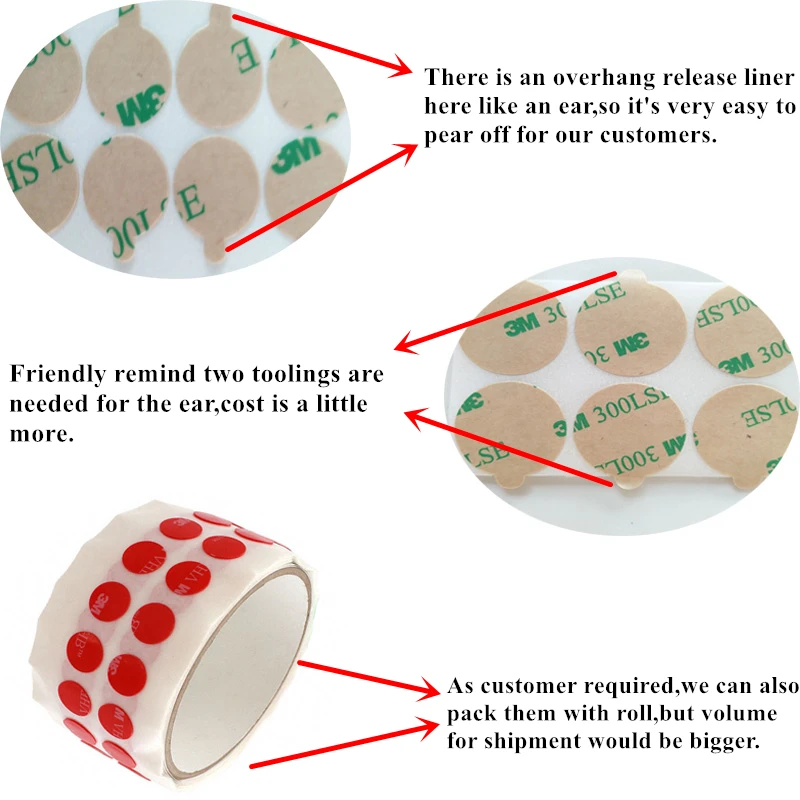

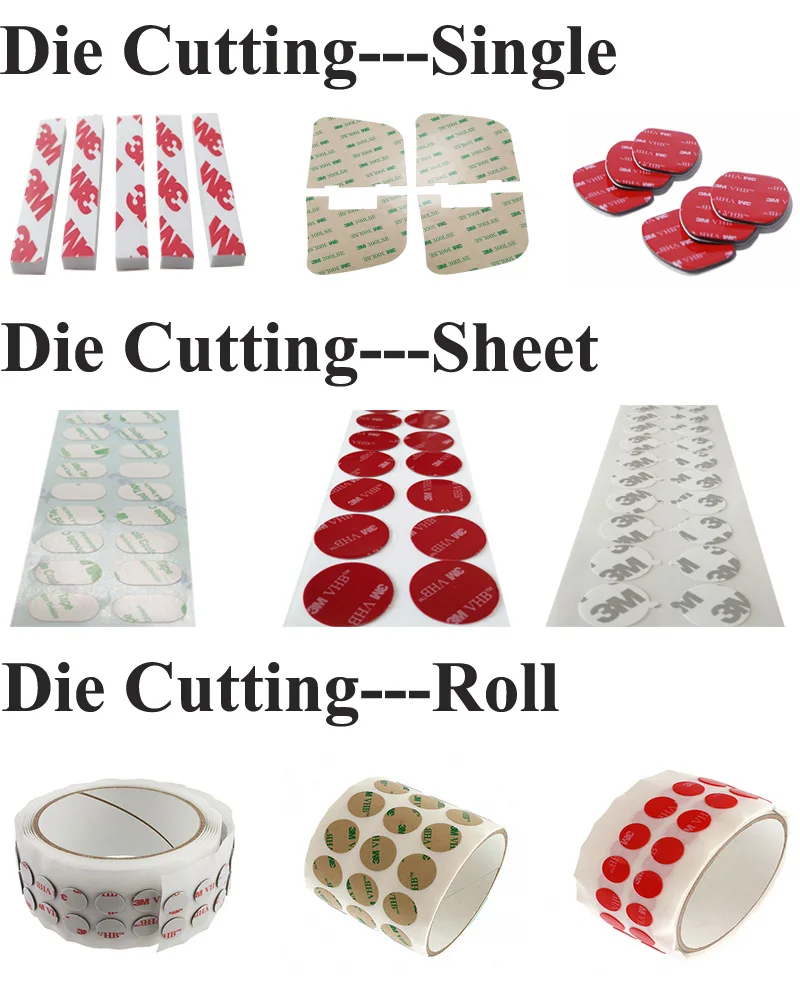

Through cutting-Kiss cutting-By Roll
1.Through cutting
Each one produced individually and pack them with clear opp bag,marked with LS label to show how many pieces there.
2.Kiss Cutting
Several pieces on one release paper/film sheet according to customer's CAD/PDF/3D drawings.
3.By Roll
Tens or thousands of pieces on one roll according to customer's CAD/PDF/3D drawings.
