HT300 Cast Iron 3d Welding Working Table Measuring Tools On Sale
- Category: >>>
- Supplier: Guangzhou Xuanchi Import & Export Co. Ltd.Guangzhou Ltd.
Share on (1600475635426):
Product Overview
Description
Products Description
Details Images

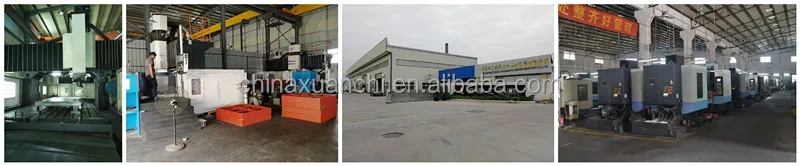

Manufacturing Technique

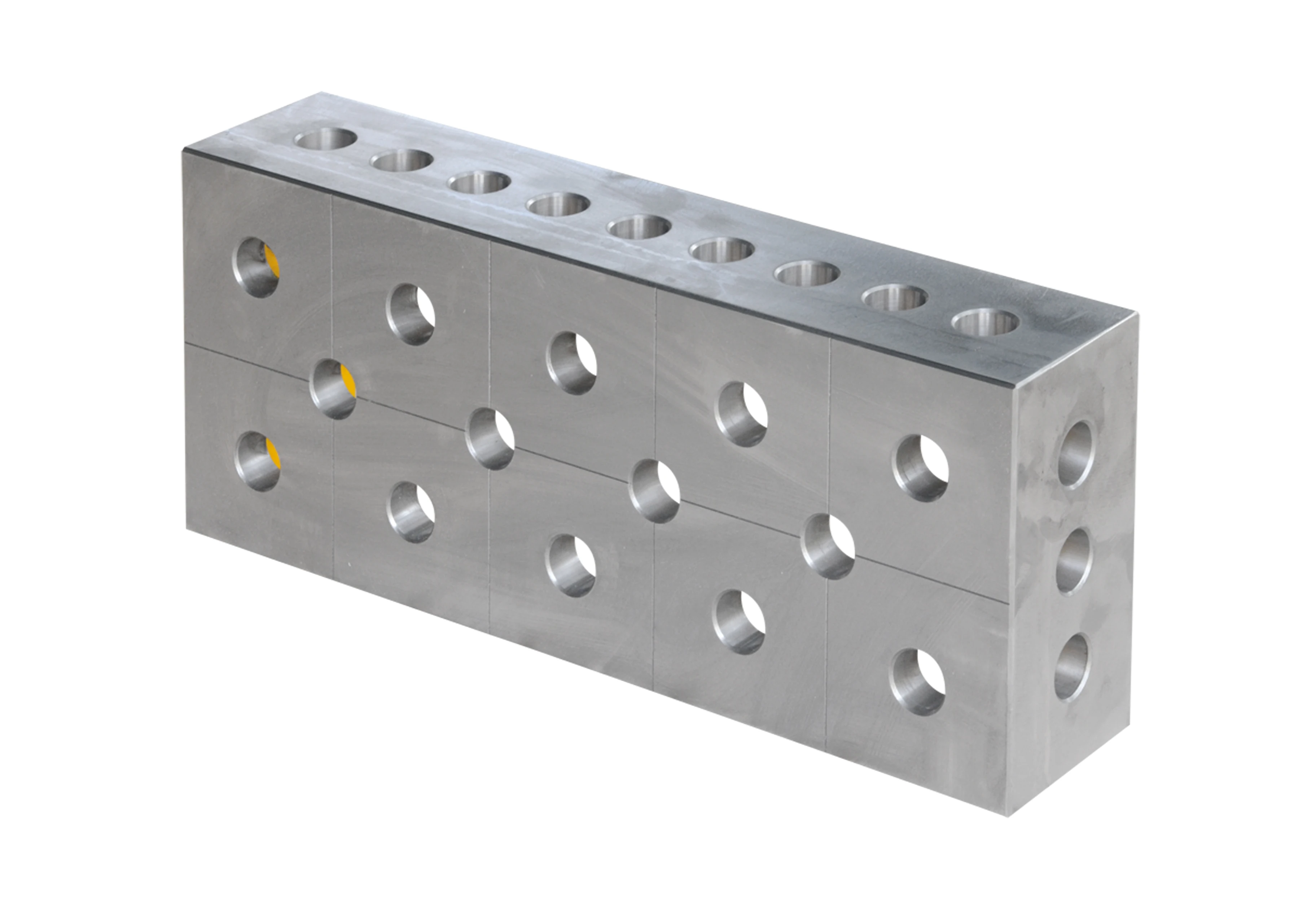

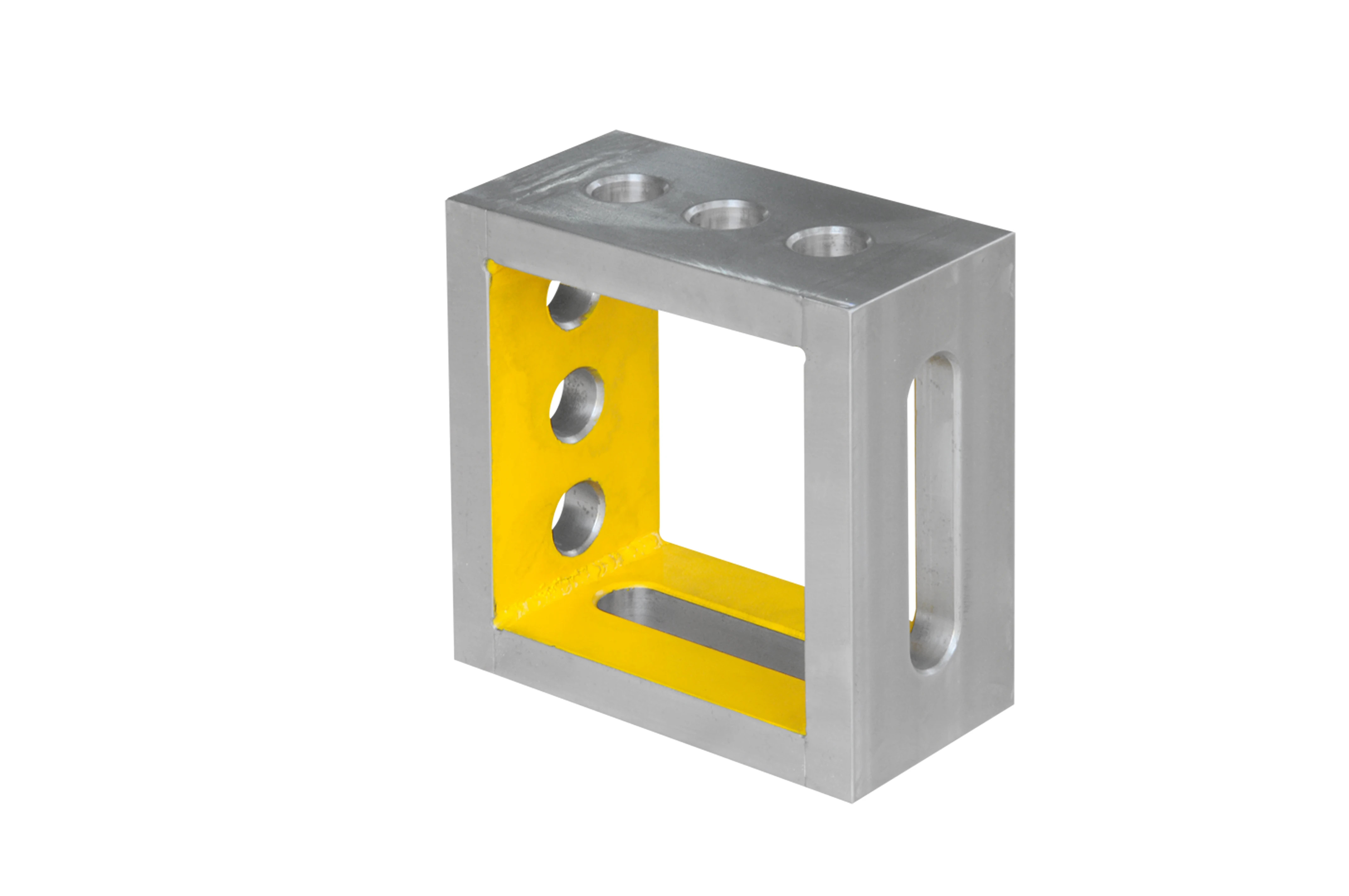

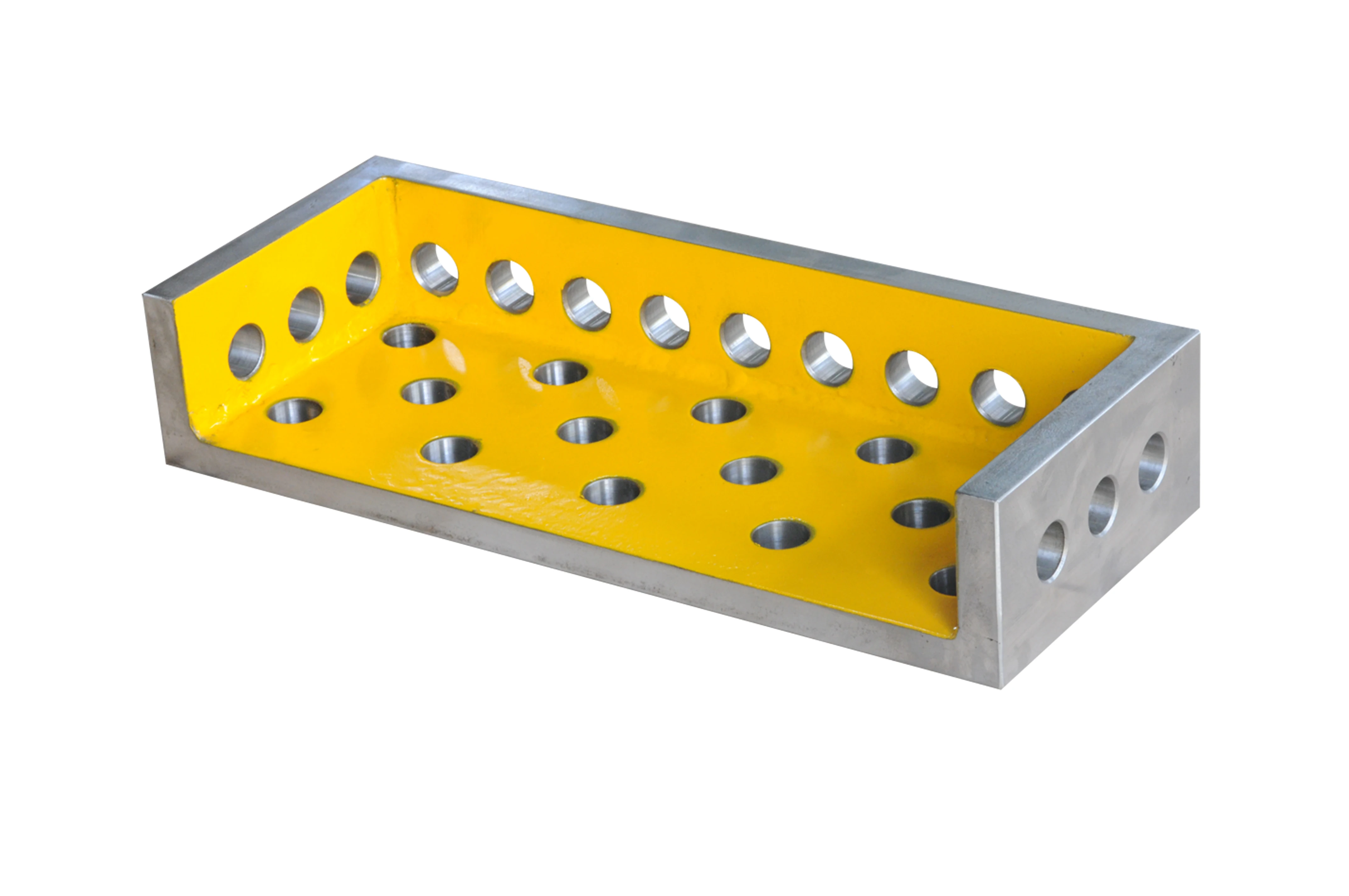

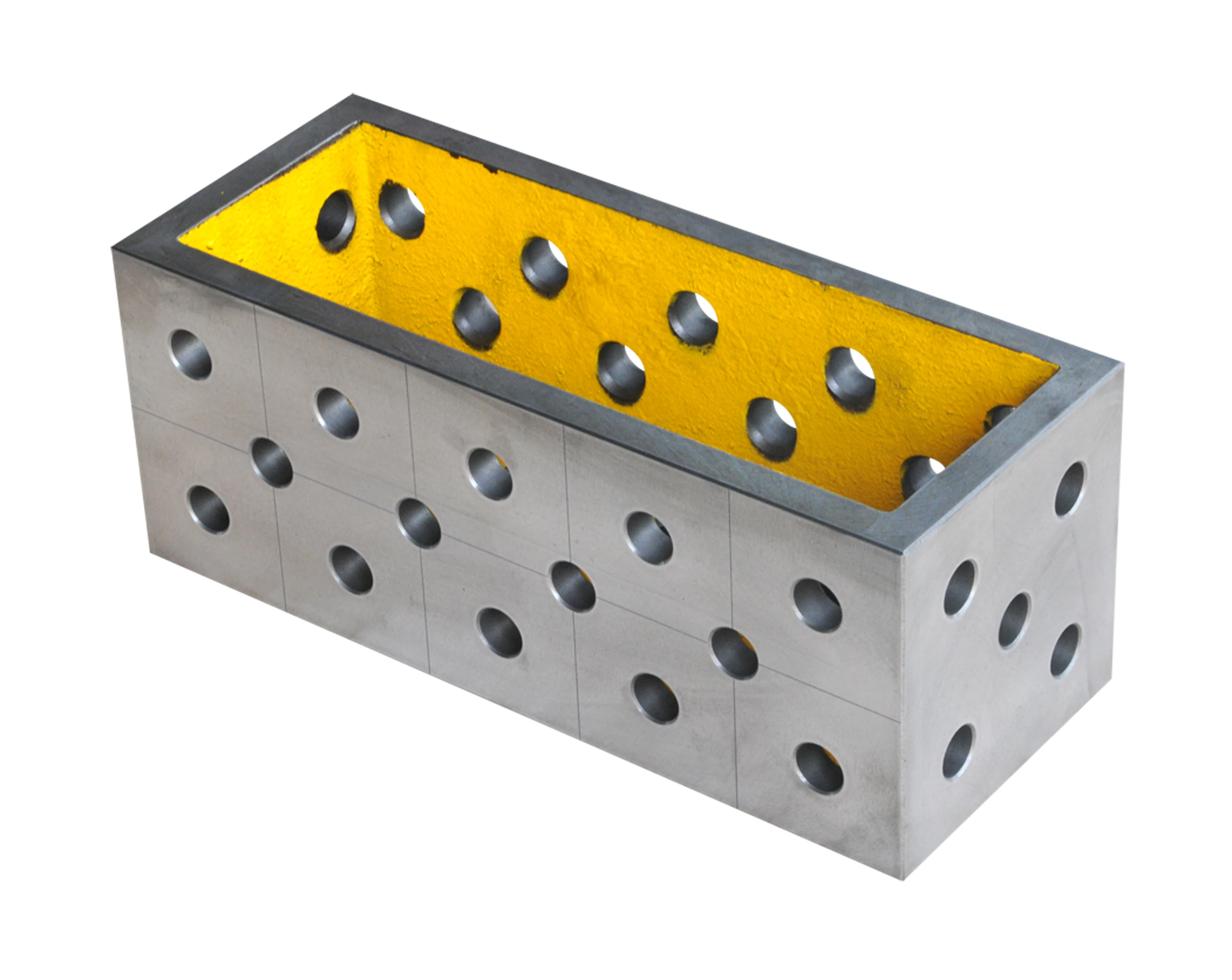

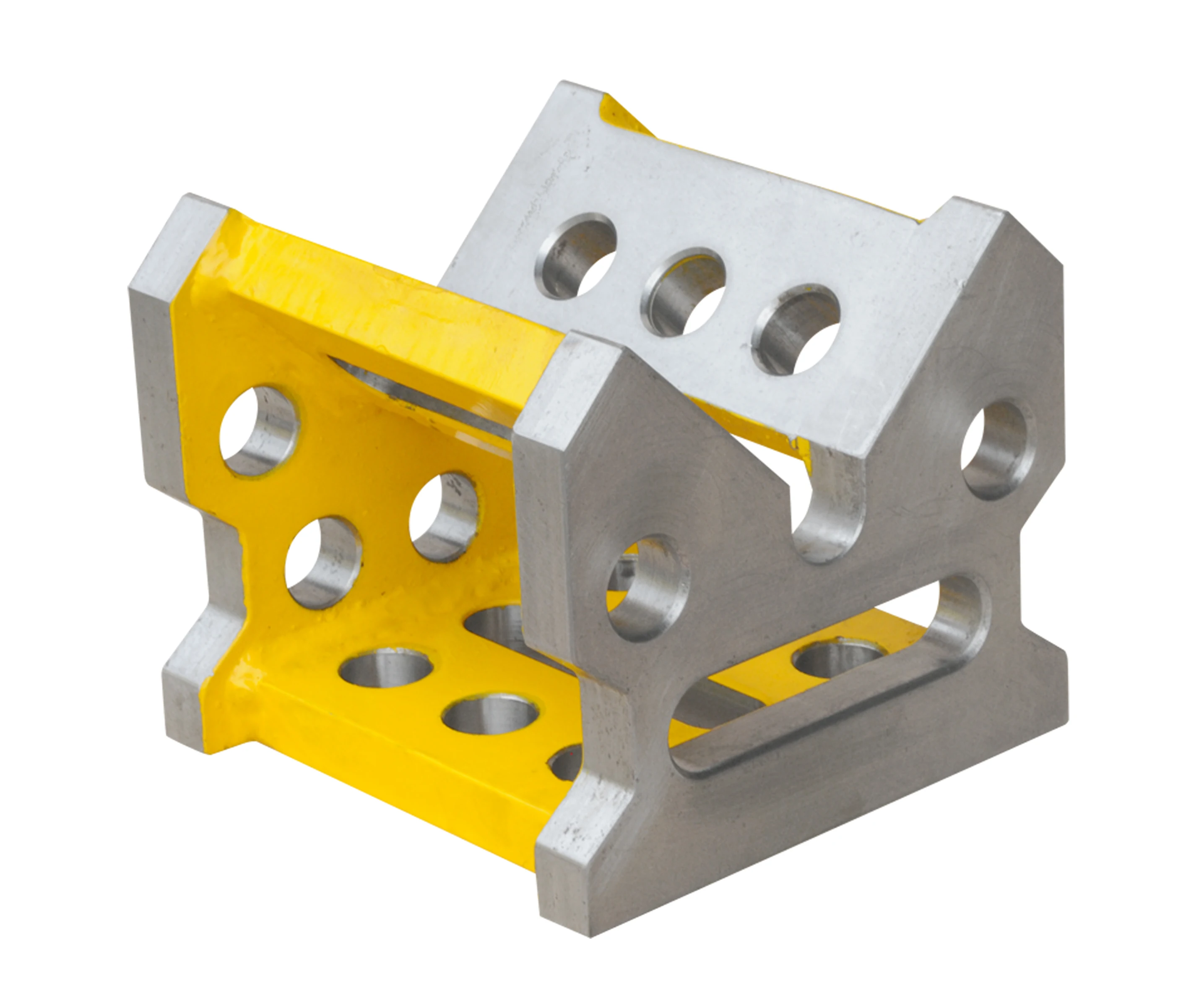

Product Name | 3D Welding Table Supporting Angles |
1. Material | ① U/L type square box: Low alloy steel（Q345B）/ Gray cast iron (HT300) ② Supporting angles : Nodular graphite cast iron (QT500) |
2. Blank manufacturing | 1） Nodular graphite cast iron (QT500): ① After the casting is completed, the whole annealing process is adopted, Shot peening to remove the casting impurities; and then, put it in the open air, the natural aging time is longer than 6 months, in order to completely eliminate the casting internal stress . ② No pores, trachoma, cold laps, cracks and other defects. 2） Low alloy steel（Q345B）: ① The whole annealing process is adopted, Shot peening to remove the welding impurities. ② There are no defects such as blowhole, leakage welding, cold crack, welding and so on. |
3. Manufacturing precision | a) The pore size and precision: φ28.15±0.03mm (D28 series)/φ16.08±0.02mm (D16 series) b) hole spacing: 50±0.03mm (D28 series) /25±0.02mm (D16 series) c) Plane degree:0.01mm/100mm2 d) Verticality:0.03mm/100mm e) Parallel degree: 0.05mm/500mm f) Parallelism and perpendicularity (adjacent two sides):0.05/500mm Surface finish of platform: 3.2μm |
Company Profile
Guangzhou Xuanchi Import&Export Co., Limited is one of a exporting company for our factory , which has own our factory ,which is a professional manufacturer in 3D flexible modular fixture for 10 years experiences our main business are good welding platform,robot flexible welding platform, 3D flexible welding fixture platform, automatic turning and changing machine, robot automatic welding workstation.... Our core area of expertise is finding the best solution for our customers by providing professional advice. We have China's first batch technology team dedicated to three-dimensional flexible modular fixture design and development and manufacturing. Set R & D design, production, sales and service in one of the modern science and technology enterprises, Is one of the most professional R & D and operation team of flexible intelligent welding process equipment and Solutions. We always adhere to the "Integrity, Cooperation and Win-win" business purposes, in innovation and development, seize the opportunity in the competition.
（Cost Saving; Increased Accuracy; Increased efficiency and quality;Increased Repeatability; Enhanced Safety; Innovative 3D tables and clamping system-That’s our goals）
（Cost Saving; Increased Accuracy; Increased efficiency and quality;Increased Repeatability; Enhanced Safety; Innovative 3D tables and clamping system-That’s our goals）
Recommend Products

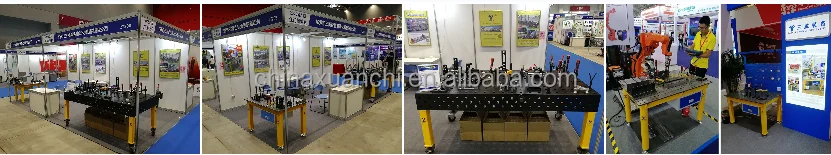

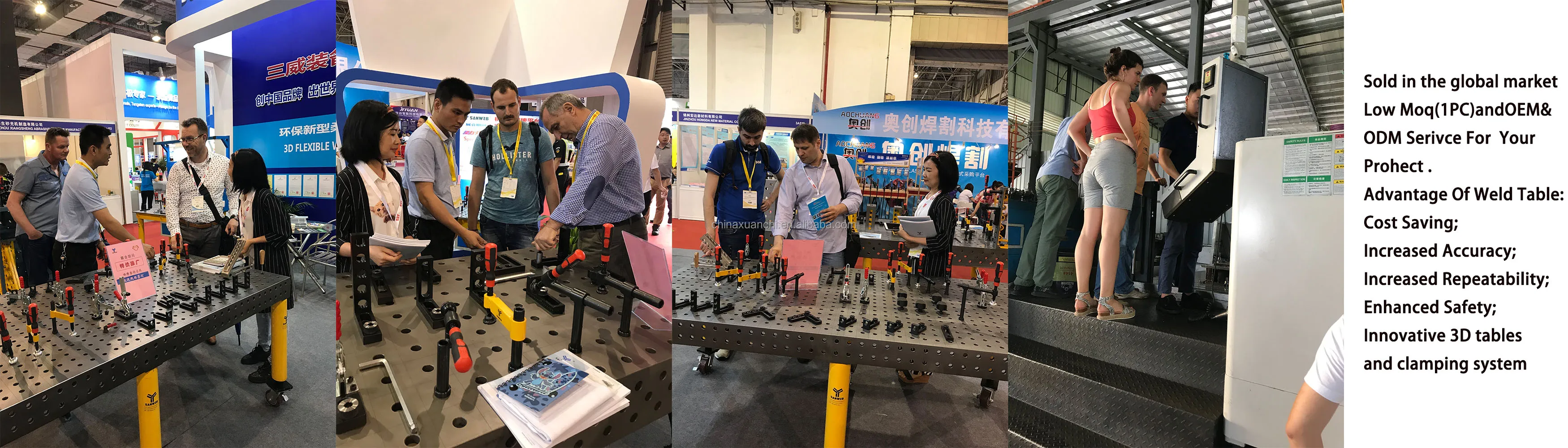

Exhibition
Certifications
FAQ
1. Q ： Are you a factory or trading company ?
A : We are a 100% weld table factory ,this company name just only for import&export .
2. Q:How to know if it is a real weld table factory ?
A : Checking the company’s website ,which have many different equipment ,that;s trading company ;if only have weld table line ,that;s a factory ,real factory is impossible to produce many different equipment.
5. Q: Why should we choose your company ?
A :（1）CE Certified/ISO company
（2）Various exhibition show every year ,especially Essen Exhibition Show
（3）3D CDR design draw provide you after sale and technical
（4）supporting advanced ,strictly quality management system .
（5）High-efficiency and timely service by Email ,Whatsapp,Skype,etc.........
A : We are a 100% weld table factory ,this company name just only for import&export .
2. Q:How to know if it is a real weld table factory ?
A : Checking the company’s website ,which have many different equipment ,that;s trading company ;if only have weld table line ,that;s a factory ,real factory is impossible to produce many different equipment.
3. Q:How long is the warranty period ?
A: 1 year
A: 1 year
4. Q:How about the installation ? do you have after-sale serivce ?
A : We will provide installation video and 3D CDR drawer or instruction book . and the after-sales customer service will always,guide the use of the table onlie .
A : We will provide installation video and 3D CDR drawer or instruction book . and the after-sales customer service will always,guide the use of the table onlie .
5. Q: Why should we choose your company ?
A :（1）CE Certified/ISO company
（2）Various exhibition show every year ,especially Essen Exhibition Show
（3）3D CDR design draw provide you after sale and technical
（4）supporting advanced ,strictly quality management system .
（5）High-efficiency and timely service by Email ,Whatsapp,Skype,etc.........
6. Q：How to if it;s good quality ?
A: （1）Look at the appearance: surface roughness, defects, wall thickness, cast iron tooling platform also have to see whether there are casting holes and sand holes and repair welding traces and so on;
（2）Volume size: THREE-DIMENSIONAL size (length, width and height), surface finish (≤1.6)/size tolerance (verticality ≤0.05mm, parallelism ≤0.05mm, flatness ≤0.1mm/m2, aperture tolerance D7, hole distance tolerance ≤0.05mm), etc.
（3）Material report, can provide material report (Q345 steel, HT300 cast iron, SUS304 stainless steel, etc.) and know welding, heat treatment and other processes;
A: （1）Look at the appearance: surface roughness, defects, wall thickness, cast iron tooling platform also have to see whether there are casting holes and sand holes and repair welding traces and so on;
（2）Volume size: THREE-DIMENSIONAL size (length, width and height), surface finish (≤1.6)/size tolerance (verticality ≤0.05mm, parallelism ≤0.05mm, flatness ≤0.1mm/m2, aperture tolerance D7, hole distance tolerance ≤0.05mm), etc.
（3）Material report, can provide material report (Q345 steel, HT300 cast iron, SUS304 stainless steel, etc.) and know welding, heat treatment and other processes;

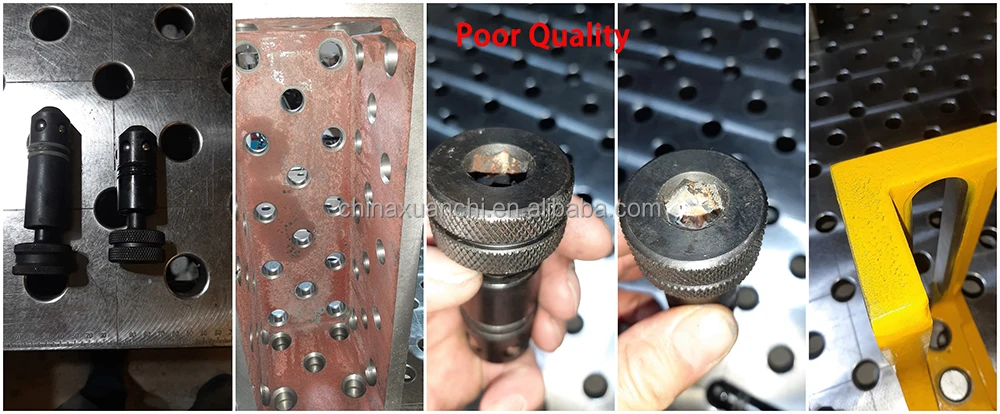

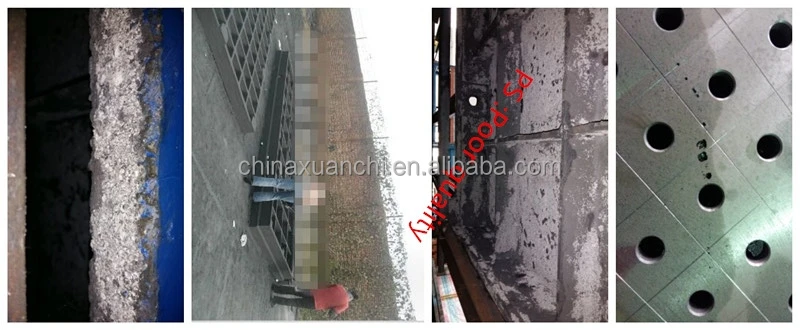

7. Q: Inferior 3D flexible cast iron tooling platform
A：（1）The surface of low grade cast iron is not bright and dark gray (in order to reduce the cost and pursue profits, HT100-150 inferior materials are used, almost clay iron slag) 。
（2）3d platform panel thickness is insufficient, uneven thickness; The back stiffeners are few and thin, rough and unclean .
（3）The surface wear resistance is poor, a large number of casting pores and trachoma, the surface is easy to oxidation corrosion(even if the repair welding, will see obvious traces of different colors)
（4）Perhaps in order to reduce the cost of heat treatment and aging, deformation and easy to fracture; Machining accuracy is not guaranteed, flatness, verticality, hole spacing, etc
（5）Non-working face did not do shot blasting sand cleaning, and only do a simple spray, the paint is easy to fall off.
A：（1）The surface of low grade cast iron is not bright and dark gray (in order to reduce the cost and pursue profits, HT100-150 inferior materials are used, almost clay iron slag) 。
（2）3d platform panel thickness is insufficient, uneven thickness; The back stiffeners are few and thin, rough and unclean .
（3）The surface wear resistance is poor, a large number of casting pores and trachoma, the surface is easy to oxidation corrosion(even if the repair welding, will see obvious traces of different colors)
（4）Perhaps in order to reduce the cost of heat treatment and aging, deformation and easy to fracture; Machining accuracy is not guaranteed, flatness, verticality, hole spacing, etc
（5）Non-working face did not do shot blasting sand cleaning, and only do a simple spray, the paint is easy to fall off.
