10L Multi Function Lab Chemical Double Agitated Layer Glass Reactor
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (1600475649213):
Product Overview
Description
Product Description

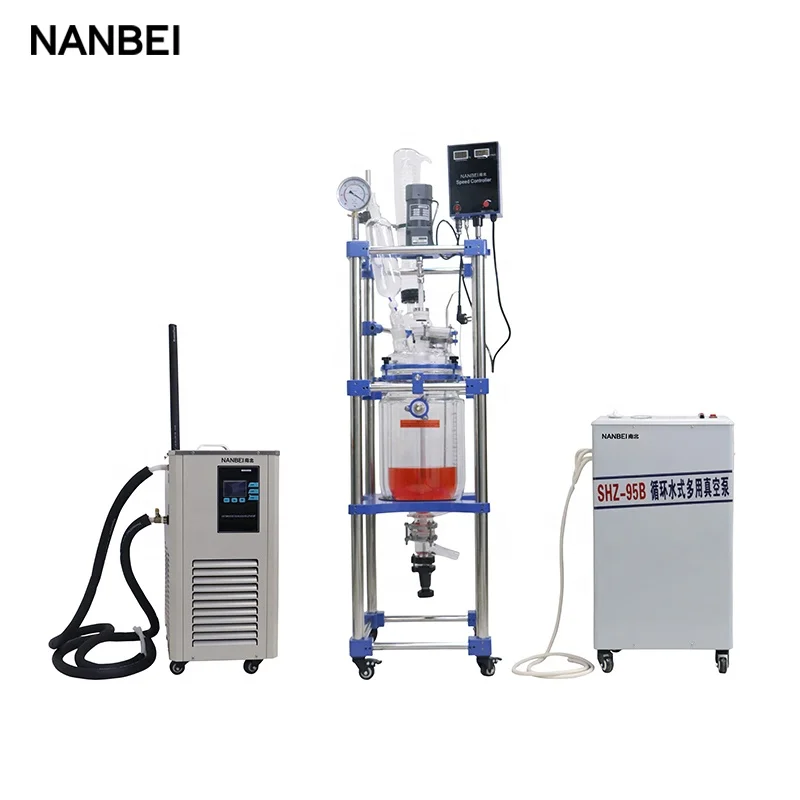

Double jacketed chemical 10L glass reactor

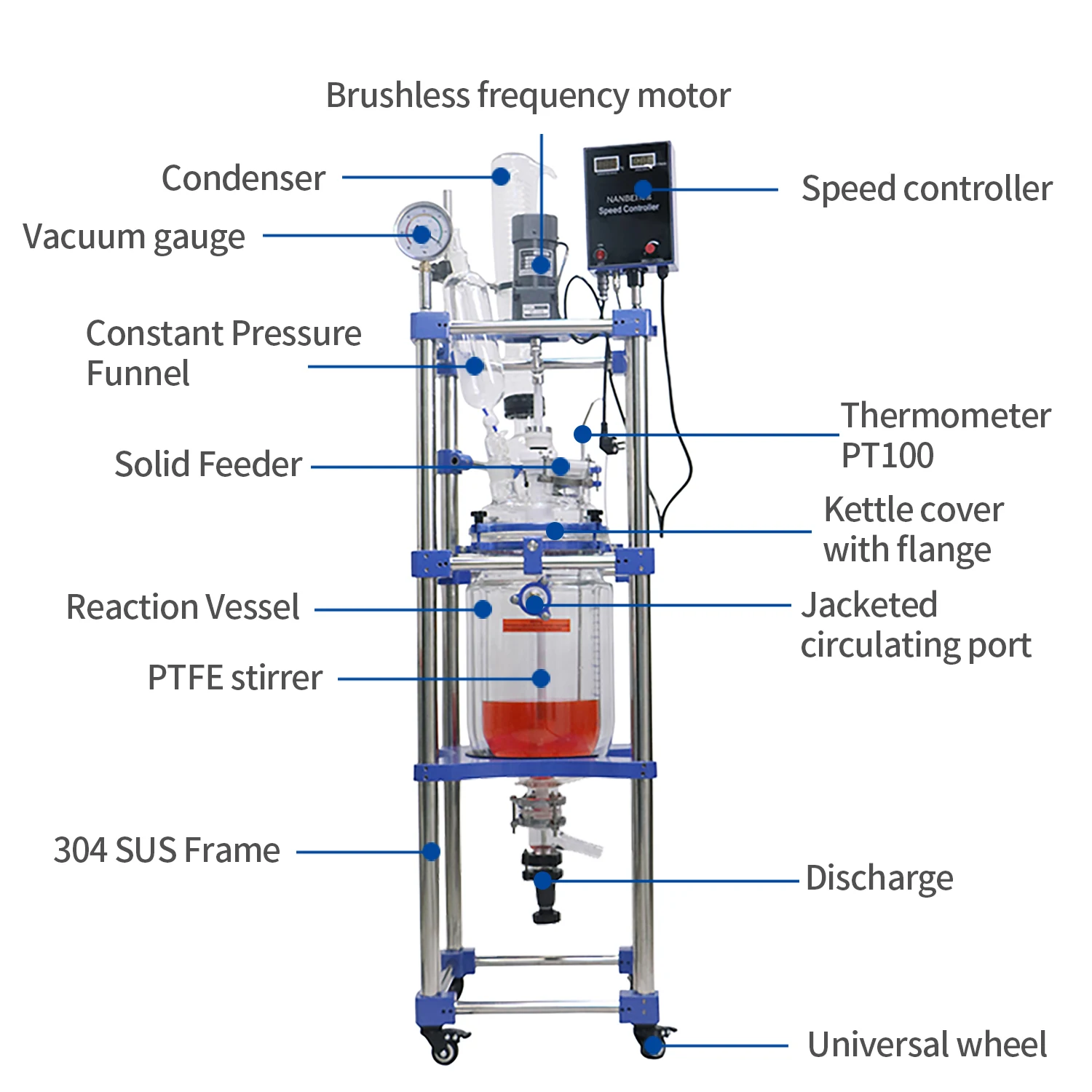

Working Principle ：
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
Application:
Double layer jacketed glass reactor mainly used for distillation, extraction, widely used in medicine, food, chemical industry, fuel, etc. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

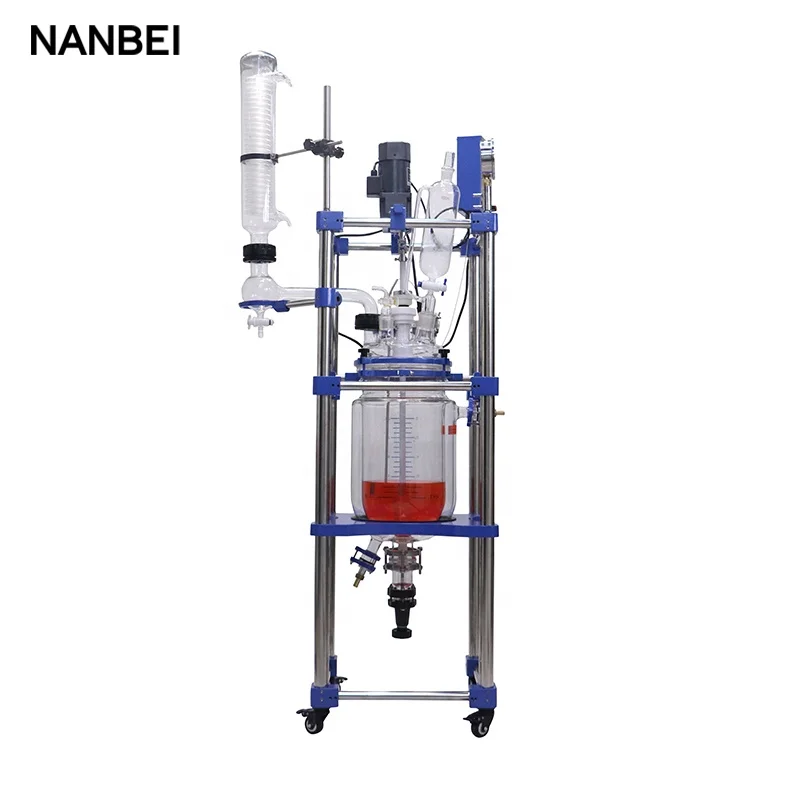

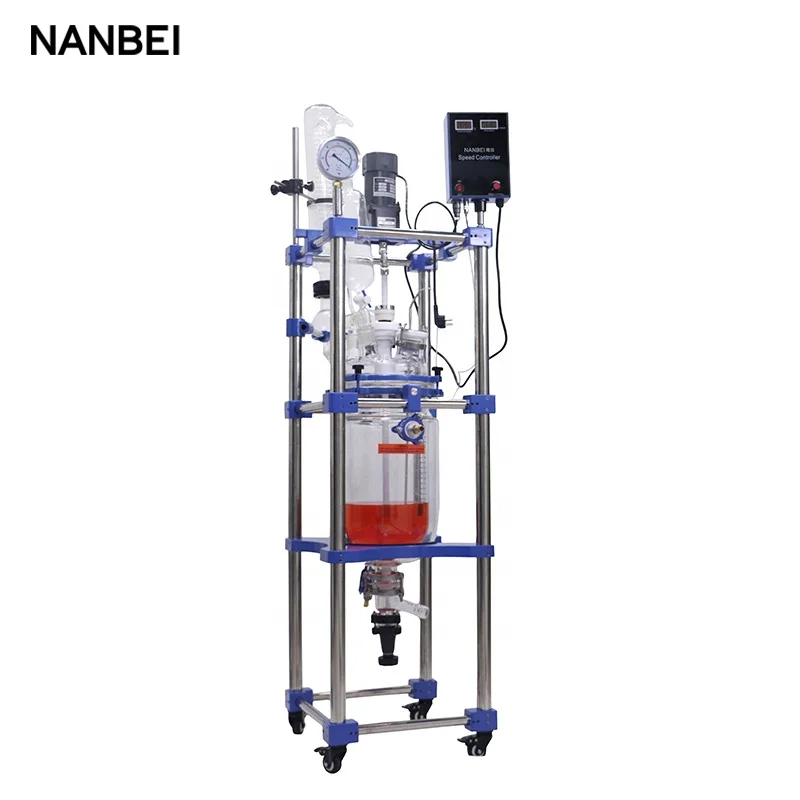

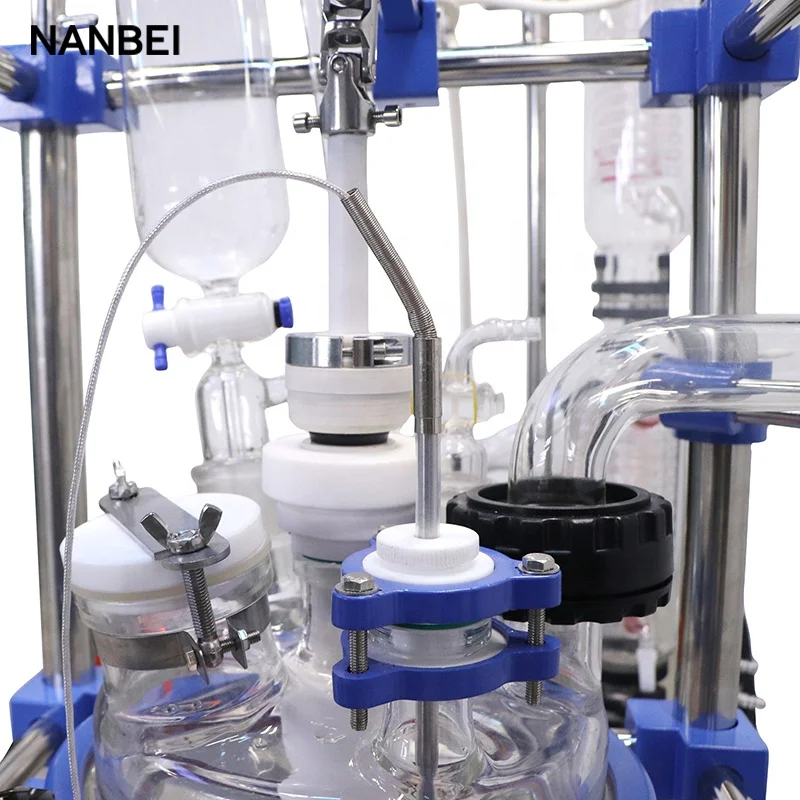

More Details Photos
Features
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

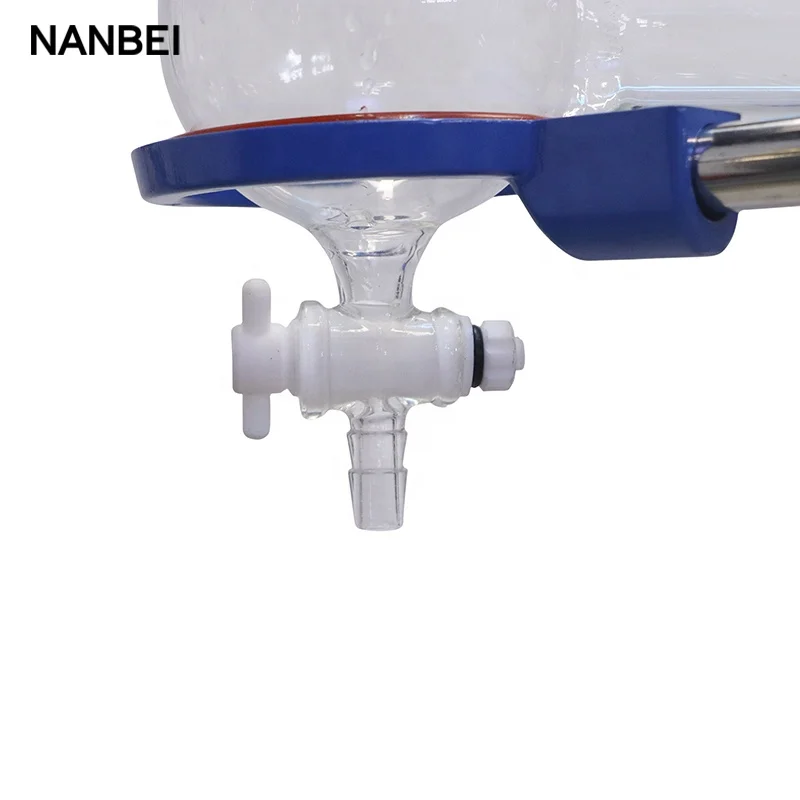

7. The bottom flanged discharge port, aluminum parts flange fixed container no dead ends.
Specification
Model | NB-10L | NB-20 | NB-25L | NB-30L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 10L | 20L | 25L | 30L |
Jacketed Capacity | 6L | 8L | 8L | 10L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 12mm | 12mm |
Stirring power | 90W1/3 | 120W1/3 | 120W1/3 | 120W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 520*520*2000 | 560*560*2100 | 560*560*2300 | 760*560*2300 |
Packing size(mm) | 1370*590*800 | 1480*660*810 | 1670*670*860 | 1720*680*850 |
Packign weight（KG） | 68kg | 80kg | 88kg | 88 |
