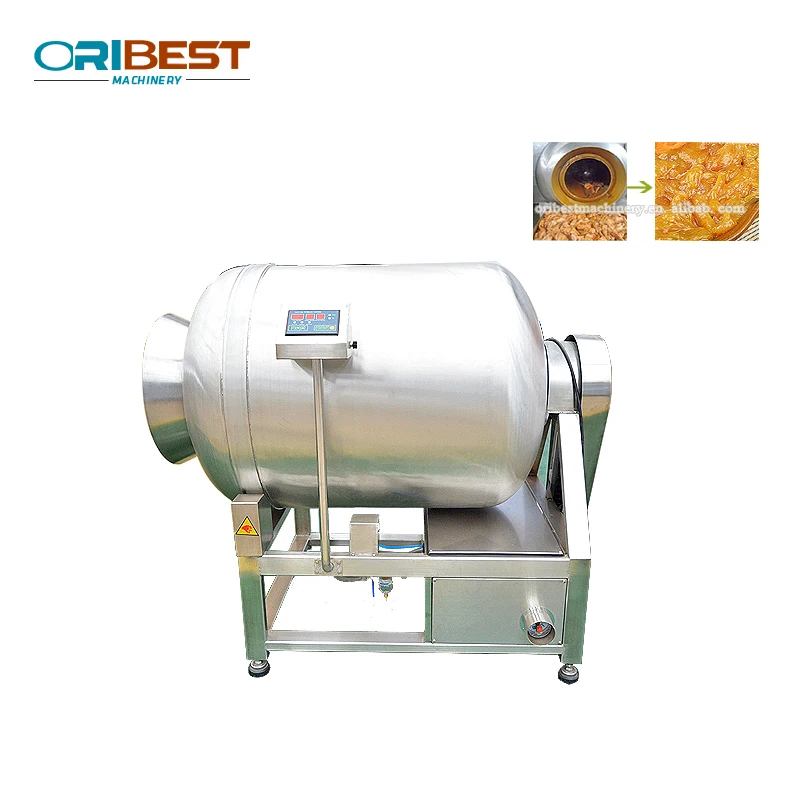

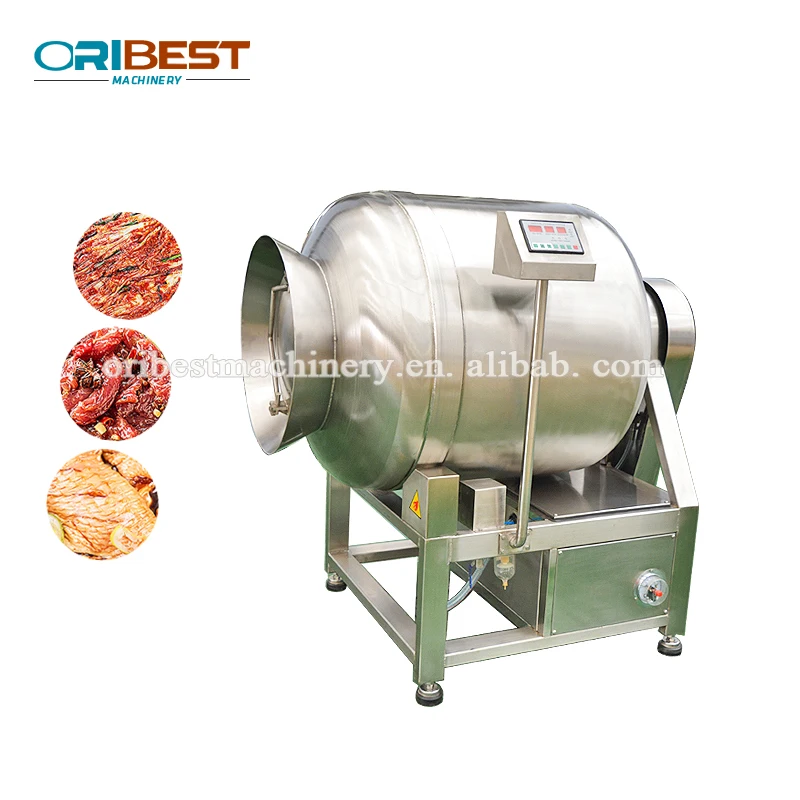

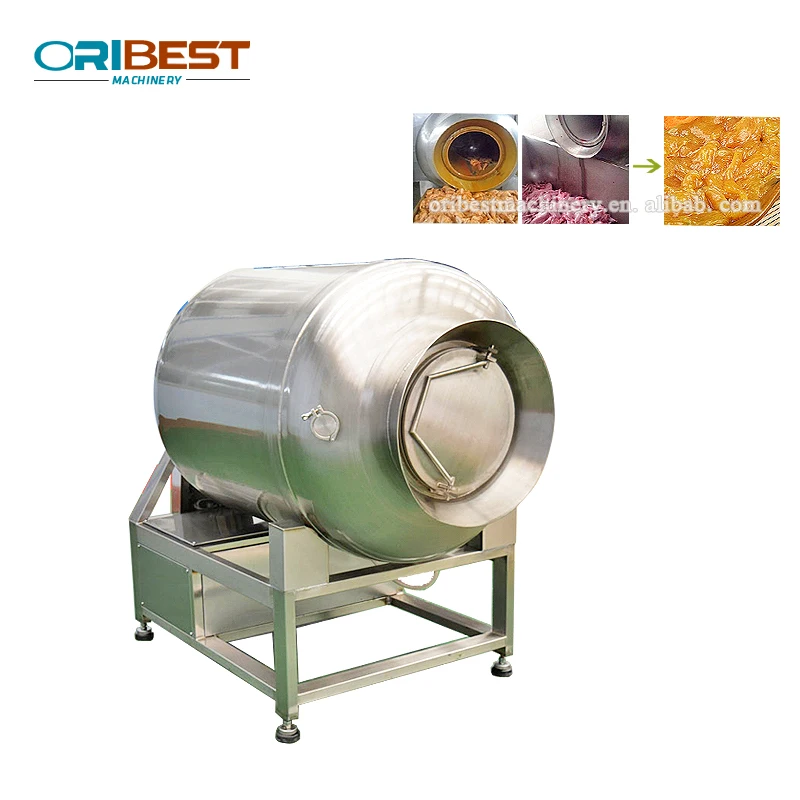

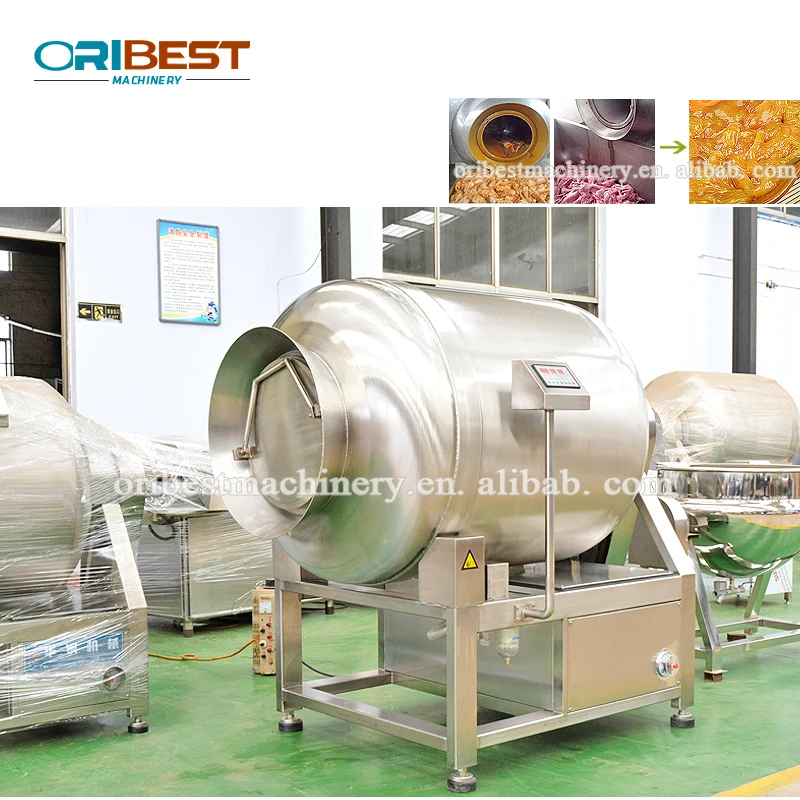

Powerful chicken beef pork vacuum meat tumbler machine/ chicken beef vacuum tumbler machine/ commercial meat marinator machine

Product Overview

Description

♦Durable service chicken meat marinating machine vacuum meat tumbler machine for fish pork duck mutton beef

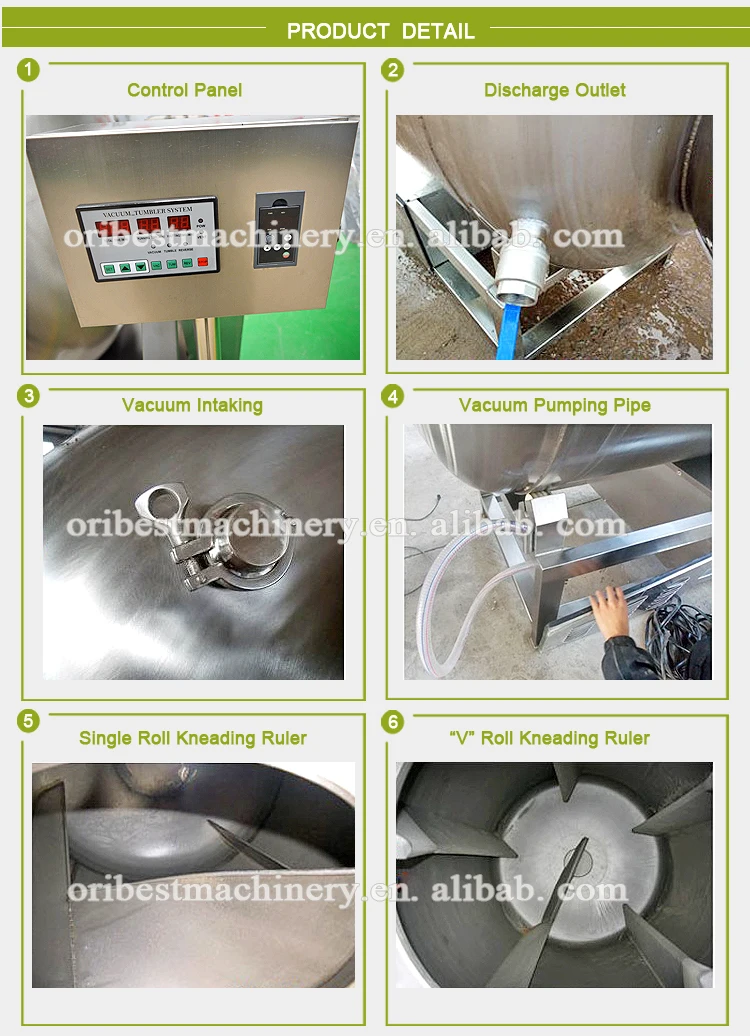

Product detail:

1. control panel

2. discharge outlet

3. vacuum intaking

4. vacuum pumping pipe

5. single Roll kneading ruler

6. “V” Roll Kneading Ruler



I.Brief description

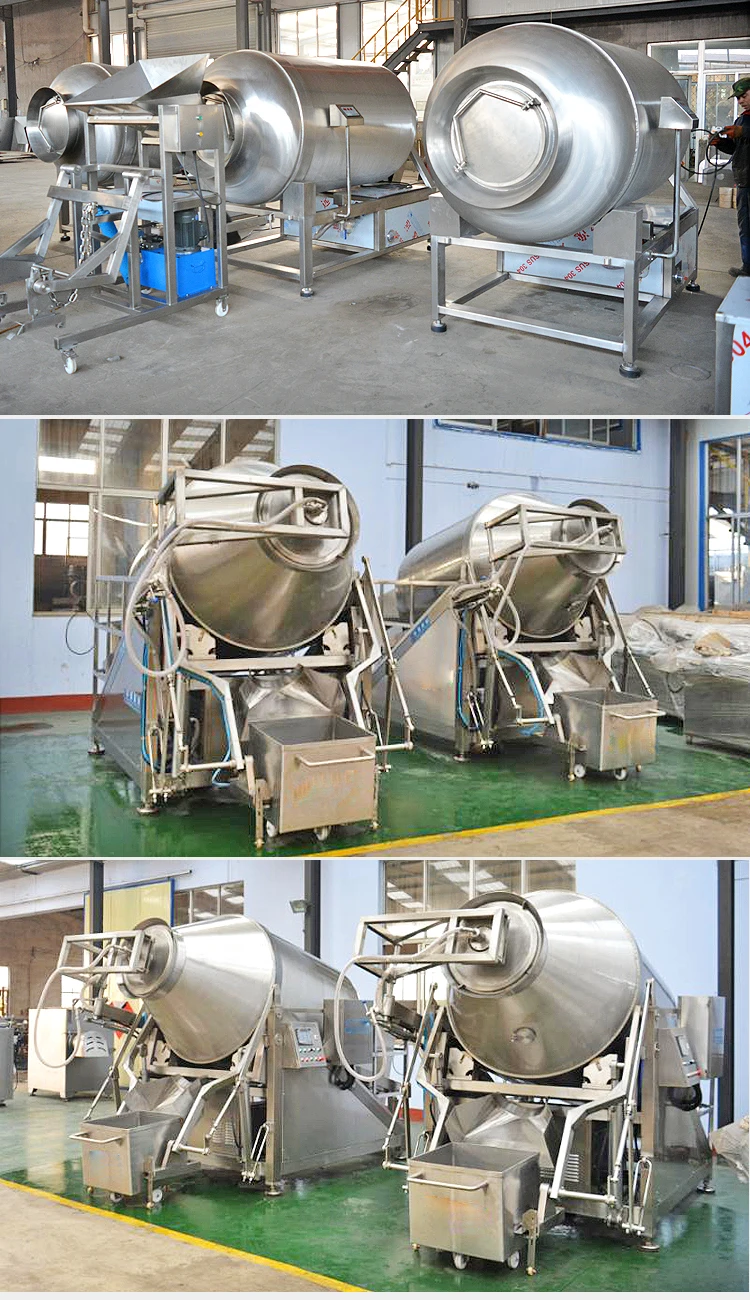

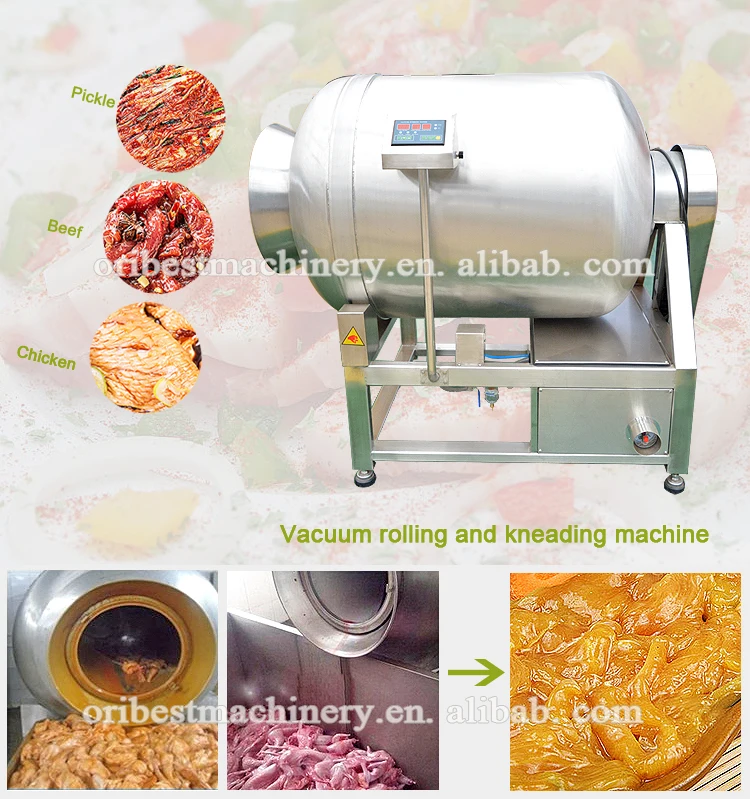

1. The vacuum roll kneading machine is to put the processed meat and fish into vacuum barrel to knead, massage, and roll. It can improve the speed for meat to absorb salt and seasoning, and keep the meat moisture maximum.

2. This vacuum roll kneading machine can exhaust air from meat through vacuumize, so as to not have thermal expansion at subsequent heat process for the meat. It can also improve the appearance color, elasticity, and tenderness of salted meats.

3. This vacuum roll kneading machine can absorb the salt and other seasoning uniformly.

4. This whole vacuum roll kneading machine adopts stainless steel materials, with high quality and reach health standard.

5. It designes the flow forming seal capping, with good sealing effect.



Technical  Data

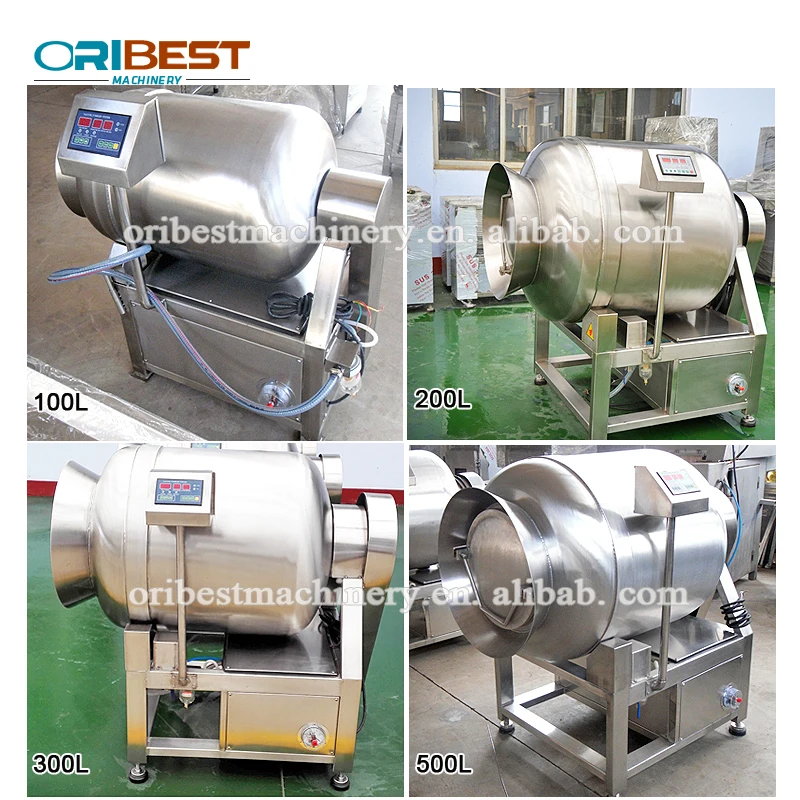

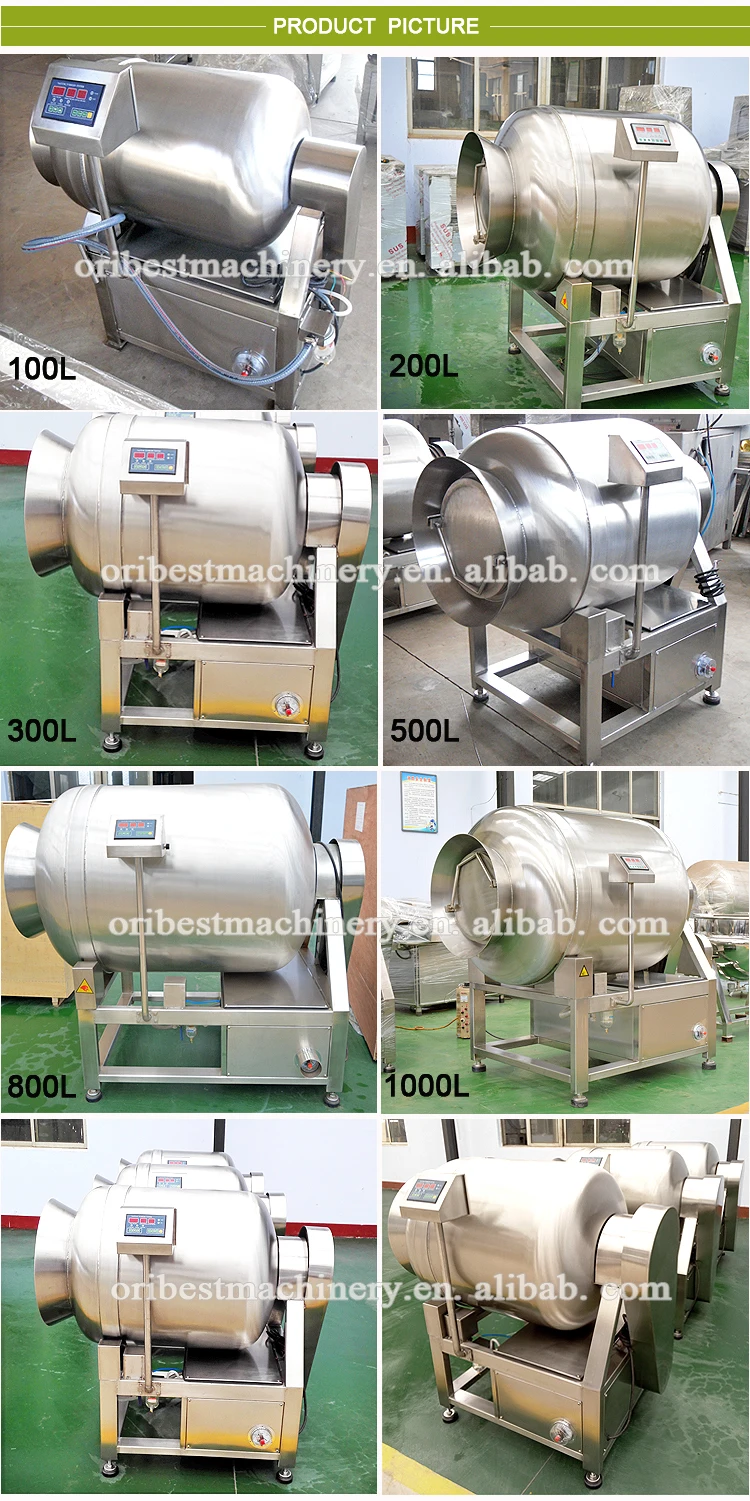

Model	Volume	Capacity	Power	Rotate speed	Size
OBGR-50	50L	25kg/batch	1KW	13 r/min	835X535X980mm
OBGR-100	100L	50kg/batch	1.5KW	13 r/min	980X630X1060mm
OBGR-200	200L	100kg/batch	1.5KW	8 r/min	1350x830x1350mm
OBGR-300	300L	150kg/batch	2.25KW	8 r/min	1400x930x1350mm
OBGR-500	500L	250kg/batch	2.25KW	8 r/min	1420x1025x1450mm
OBGR-600	600L	300kg/batch	2.95KW	8 r/min	1570x1025x1450mm
OBGR-800	800L	400kg/batch	2.95KW	6 r/min	1780x1130x1550mm
OBGR-1000	1000L	500kg/batch	3.7KW	8 r/min	1865X1305X1715mm
OBGR-1200	1200L	500-800kg/batch	4.5KW	8 r/min	2265X1420X1805mm
OBGR-1700	1700L	1000kg/batch	3.7KW	2-12r/min	2900X1380X2100mm
OBGR-2500	2500 L	1500kg/batch	5.2KW	2-12r/min	3270X1640X2240mm
OBGR-3500	3500L	2000kg/batch	7KW	2-12r/min	3760X1760X2210mm
Note.   1. All models can be customized.  2. Please choose the right machine according to your needs.   3. Information on this website is subject to change. To obtain accurate dimensions and equipment configurations,  please contact customer service.

II. The features of vacuum roll kneading machine

1. This machine can be set freely tumbling working hours, intermittent tumbling, the vacuum tumbling time, to achieve truly continuous tumbling, intermittent tumbling arbitrarily set.
2. The control panels are made of waterproof touch screen control.
3. Both ends of the drum spinning sealing cap structure, so that the the tumbling space larger and more reasonable.
4. The arc-shaped blades made of unique design, make the marinade more uniform distribution of the
product surface.
