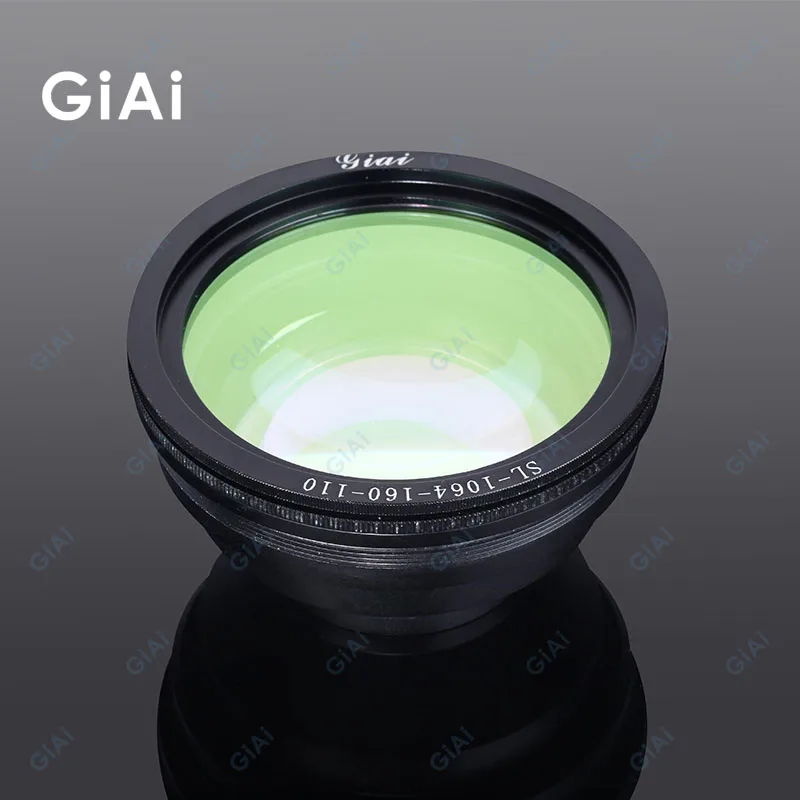

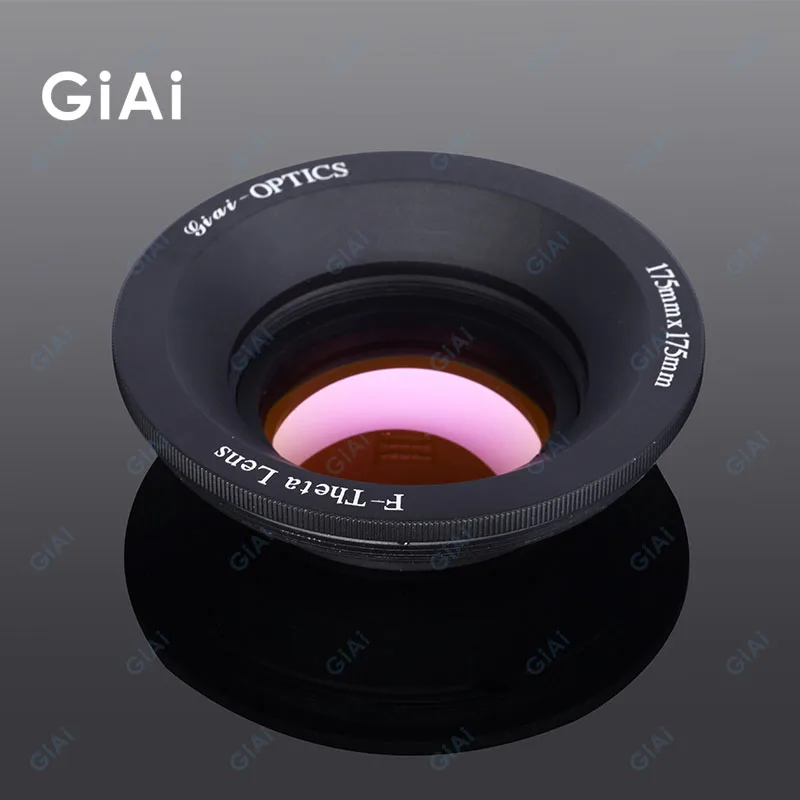

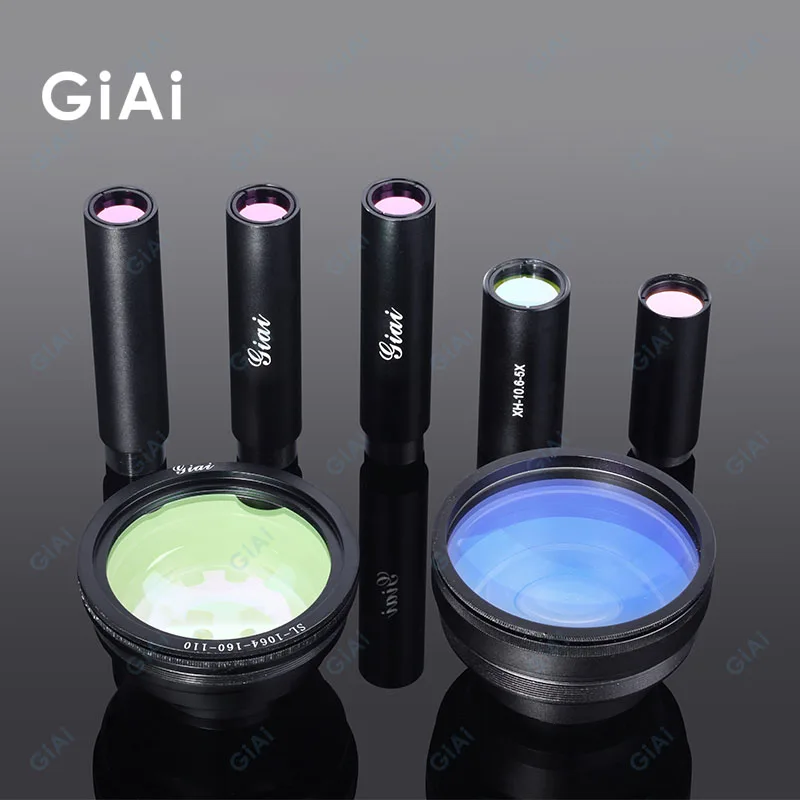

GiAi New technology scanning lens 1064nm 355nm 355nm 532nm field mirror F Theta Scan Lenses For Laser Engraving Machine
- Category: >>>
- Supplier: Giai Photonics Co. Ltd.
Share on (1600475725748):
Product Overview
Description
product description:
Scanning field lens is a professional lens system, the purpose is to form a focused spot of uniform size in the entire marking plane, so as to solve the off-axis deflection phenomenon after the laser beam passes through the focusing lens system in the marking system. , is one of the most important accessories of laser marking machine. F-theta lenses are mainly used in laser marking machines for industrial applications. In the case of no deformation, the position of the focus point depends on the focal length of the lens and the tangent of the deflection angle, and the position of the focus point only depends on the focal length and deflection angle, which simplifies the calculation method of focus positioning. In the case of certifying the accuracy, the cost of the enterprise is reduced.
Features:
1. Simultaneously produce CO2 field mirror and YAG field mirror.
2. High power bearing capacity.
3. Factory direct sales.
4. The company independently designs and processes, and can be customized.
5. Double-sided anti-reflection coating, high anti-laser damage threshold.
2. High power bearing capacity.
3. Factory direct sales.
4. The company independently designs and processes, and can be customized.
5. Double-sided anti-reflection coating, high anti-laser damage threshold.
Specification
Product Name | Material | Scan range | Focal length |
1064 Fiber Lens | Quartz glass | 70*70 | F=100 |
1064 Fiber Lens | Quartz glass | 110*110 | F=160 |
1064 Fiber Lens | Quartz glass | 150*150 | F=210 |
1064 Fiber Lens | Quartz glass | 175*175 | F=254 |
1064 Fiber Lens | Quartz glass | 220*220 | F=330 |
1064 Fiber Lens | Quartz glass | 300*300 | F=420 |
355 Fiber Lens | Quartz glass | 110*110 | F=160 |
532 Fiber Lens | Quartz glass | 110*110 | F=160 |
Co2 F-Theta Scan Lenses | ZnSe | 70*70 | F=100 |
Co2 F-Theta Scan Lenses | ZnSe | 90*90 | F=100 |
Co2 F-Theta Scan Lenses | ZnSe | 110*110 | F=160 |
Co2 F-Theta Scan Lenses | ZnSe | 140*140 | F=210 |
Co2 F-Theta Scan Lenses | ZnSe | 175*175 | F=266 |
Co2 F-Theta Scan Lenses | ZnSe | 200*200 | F=330 |
Co2 F-Theta Scan Lenses | ZnSe | 300*300 | F=430 |
Product Description
Customer Feedback
Company Profile
FAQ
1. Who are we?
We are 13 year old optical filter/optical lens manufacturer based in Shenzhen, China since 2008. At present,
4. Why should you buy from us not from other suppliers?
Giai photonics Co.,Ltd is a leading supplier of precision camera Fliter, ND Filter,CPL Filter,GND Filter,UV Filter for 13 years.
We are 13 year old optical filter/optical lens manufacturer based in Shenzhen, China since 2008. At present,
We have exported to North/South America(35.00%),Southeast Asia(20.00%),Mid East(15.00%),Europe(30.00%). There are total about 400-500 people in our Shenzhen factory(200-300) & Anshan factory(150-200) with annual turnover of more than USD 15Million (Alibaba Verified).
2. How can we guarantee quality?
90% of our raw material suppliers belongs to top brand internationally brands. Like we import top grade Optorun coating machines from Japan.Our glass raw materials all comes from American Corning etc.
3. Do you have reference customers?
Because of our stable optical filter & lens quality,many international brands also join in our customer list.
2. How can we guarantee quality?
90% of our raw material suppliers belongs to top brand internationally brands. Like we import top grade Optorun coating machines from Japan.Our glass raw materials all comes from American Corning etc.
3. Do you have reference customers?
Because of our stable optical filter & lens quality,many international brands also join in our customer list.
There are 3M,Huawei,Dji,Hikvision etc. brands.We warmly welcome serious new customers join Giai family.
4. Why should you buy from us not from other suppliers?
Giai photonics Co.,Ltd is a leading supplier of precision camera Fliter, ND Filter,CPL Filter,GND Filter,UV Filter for 13 years.
We have 5 doctor degree Photonics specialist. High quality coating machine imported from Japan & well trained staffs &
Every pc of filter glass & lens needs undergoing 7 QC steps before shipping.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
