W&F onefind Spectrum analyzer WF4024C 9kHz 9GHz frequency range Handheld Spectrum analyzer same as RS
- Category: Spectrum Analyzers >>>
- Supplier: Beijing W&f Technology Co. Ltd.
Share on (1600475731185):
Product Overview
Description

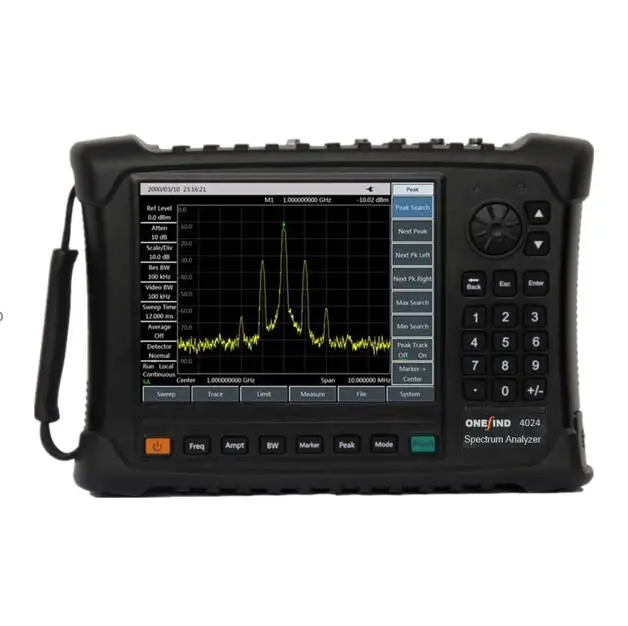

Onefind WF4024C 9kHz~32GHz cover 20Mhz-30Ghz frequency range
Handheld Spectrum analyzer
(9kHz~9GHz)
WF4024 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
1.Wide frequency range: from 9kHz to 44GHz, 7 models
2.Low displayed average noise level: -163dBm@1Hz RBW(typical)
3.Excellent phase noise performance:-112dBc/Hz@100kHz frequency offset@1GHz carrier(4024A/B/C) -106dBc/Hz@100kHz frequency offset@1GHz carrier(4024D/E/F/G)
4.High sweep speed: for 1GHz span, shortest sweep time <20ms
5.Resolution bandwidth: 1Hz~10MHz
6.Full-band pre-amplifier: standard configuration
7.Various measurement functions: spectrum analyzer, interference analyzer(spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzer etc.
8.Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask.
9.Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc.

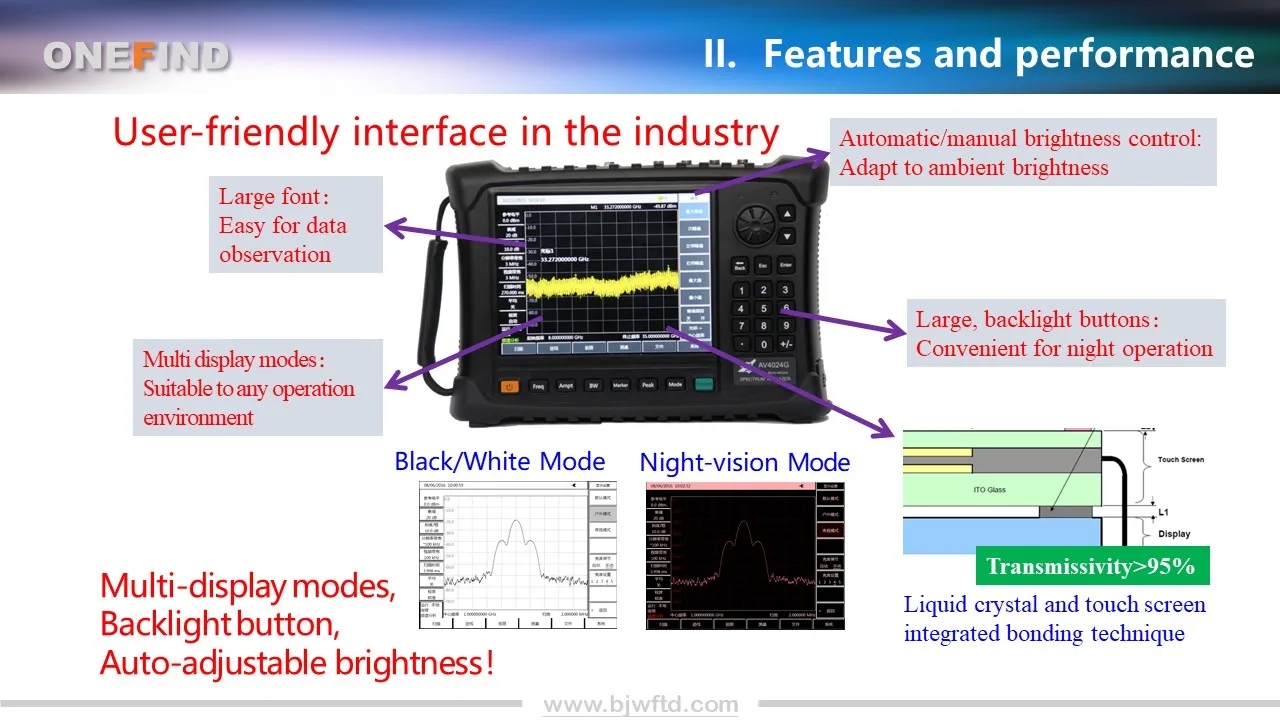

10.Easy & convenient user operation: 8.4 inch high definition LCD and large font display,convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes etc.
11.Working temperature range: -10℃~50℃, Power supplied by battery or adapter.
Model | 4024A/B/C/D/E/F/G |

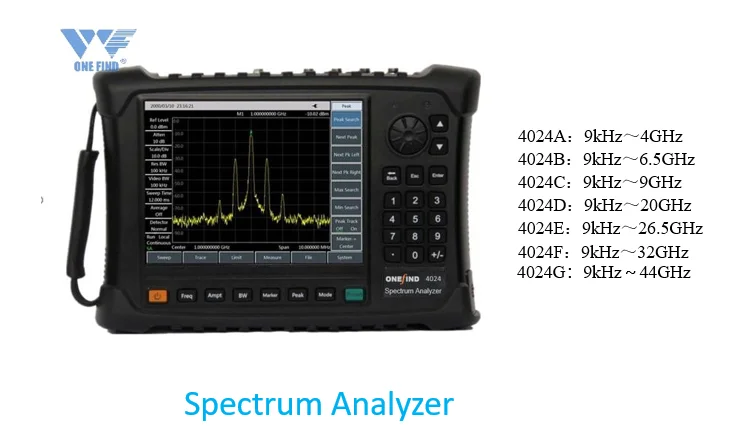

Frequency Range | 4024A:9kHz~4GHz 4024B:9kHz~6.5GHz 4024C:9kHz~9GHz 4024D:9kHz~20GHz 4024E:9kHz~26.5GHz 4024F:9kHz~32GHz 4024G:9kHz~44GHz Tuning Resolution:1Hz |
Frequency Reference | Frequency: 10MHz Aging: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0.1ppm(-10~50℃, Comparative to 25℃) |
Sweep Time | Range: 10μs~600s (Zero Span) Accuracy: ±2.00% (Zero Span) |
Frequency Readout Accuracy | ±(Frequency Readout× frequency Reference +2%× Span +10%× |
Resolution Bandwidth) | ||
Frequency Span | Range: 100Hz~Upper Frequency Limit of Corresponding Model or 0Hz Accuracy: ±2.0% | |
Resolution Bandwidth | 1Hz~10MHz (1-3 Times of Stepping) | |
Video Bandwidth | 1Hz~10MHz (1-3 Times of Stepping) | |
SSB Phase Noise (Carrier 1GHz) | 4024A/B/C: ≤-108dBc/Hz@ Frequency Offset 10kHz ≤-112dBc/Hz@ Frequency Offset 100kHz ≤-118dBc/Hz@ Frequency Offset 1MHz ≤-129dBc/Hz@ Frequency Offset 10MHz | 4024D/E/F/G: ≤-102dBc/Hz@ Frequency Offset 10kHz ≤-106dBc/Hz@ Frequency Offset 100kHz ≤-111dBc/Hz@ Frequency Offset 1MHz ≤-123dBc/Hz@ Frequency Offset 10MHz |
Displayed Average Noise Level | Pre-amp Off: ≤-138dBm(10MHz~20GHz) ≤-135dBm(20GHz~32GHz) ≤-127dBm(32GHz~40GHz) Pre-amp On: ≤-157dBm(10MHz~20GHz) ≤-154dBm(20GHz~32GHz) ≤-148dBm(32GHz~40GHz) | |
Residual Response | 4024A/B/C: Pre-amp Off: ≤-82dBm(10MHz~9GHz)
Pre-amp On: ≤-95dBm(10MHz~9GHz)
(Exceptional Frequency: 3200MHz) | 4024D/E/F/G: Pre-amp Off: ≤-90dBm(10MHz~13GHz) ≤-85dBm (13GHz~20GHz) ≤-80dBm (20GHz~44GHz) Pre-amp On: ≤-100dBm (10MHz ~ 32GHz) ≤-95dBm (32GHz~44GHz) (Exceptional Frequency: 3200MHz) |
Second Harmonic Distortion | <-60dBc (Attenuation 0dB, -30dBm Input Signal) | |
Absolute Amplitude Accuracy (20℃~30℃, 30 Minutes of Preheating) | ±1.8dB (10MHz~13GHz) ±2.3dB (13GHz~40GHz) | |
Input Attenuator | 4024A/B/C: Attenuation Range: 0dB~30dB, 5dB Stepping | 4024D/E/F/G: Attenuation Range: 0dB~50dB, 10dB Stepping |
Maximum Continuous Input | 4024A/B/C: +27dBm Peak Typical(≥10dB Attenuation) +20dBm Peak Typical(<10dB Attenuation) | 4024D/E/F/G: +30dBm Peak Typical(≥10dB Attenuation) +23dBm Peak Typical(<10dB Attenuation) |
+10dBm Peak Typical(Pre-amp ON) | +13dBm Peak Typical(Pre-amp ON) | |
Reference Level | Range: -120dBm~+30dBm Conversion Uncertainty: ±1.20dB | |
Battery Power Supply | 4024A/B/C: About 3h | 4024D/E/F/G: About 2.5h |
Dimension | 314mm (W)×218mm (H)×91mm (D) (Excluding Handle, Stand) 338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand) | |
Weight | 4024A/B/C: about 4.5kg | 4024D/E/F/G: about 5kg |
Working Temperature | -10℃~+50℃ | |
Storage Temperature | -40℃~+70℃ | |
Electromagnetic Compatibility | Conforms to GJB3947A-2009 3.9.1 Requirements | |
Power Consumption | 4024A/B/C: ≤25W | 4024D/E/F/G:≤30W |
Test Interface | 4024A/B/C/D/E: Type-N Connector(female) 4024F/G: 2.4mm Connector(male) | |
Other Interfaces | 10MHz Reference Input/Output: BNC Female Connector External Triggering Input: BNC Female Connector IF Output: BNC Female Connector GPS Antenna Input: BNC Female Connector | |
Various Measurement Functions:

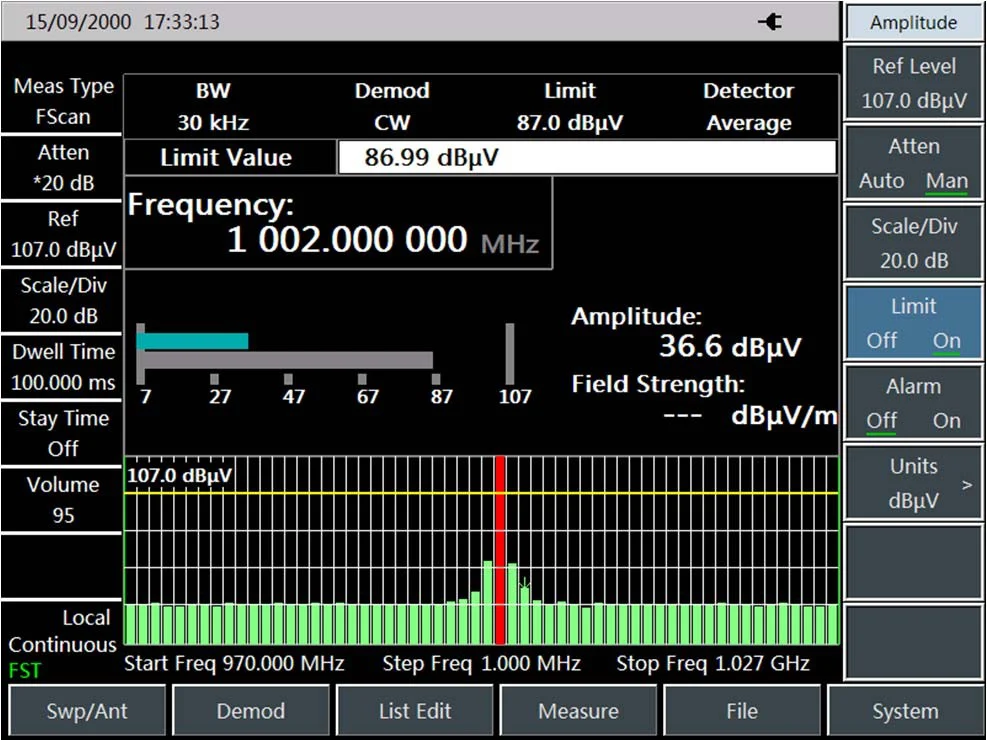

Field Strength
Interference Analyzer (Spectrogram)

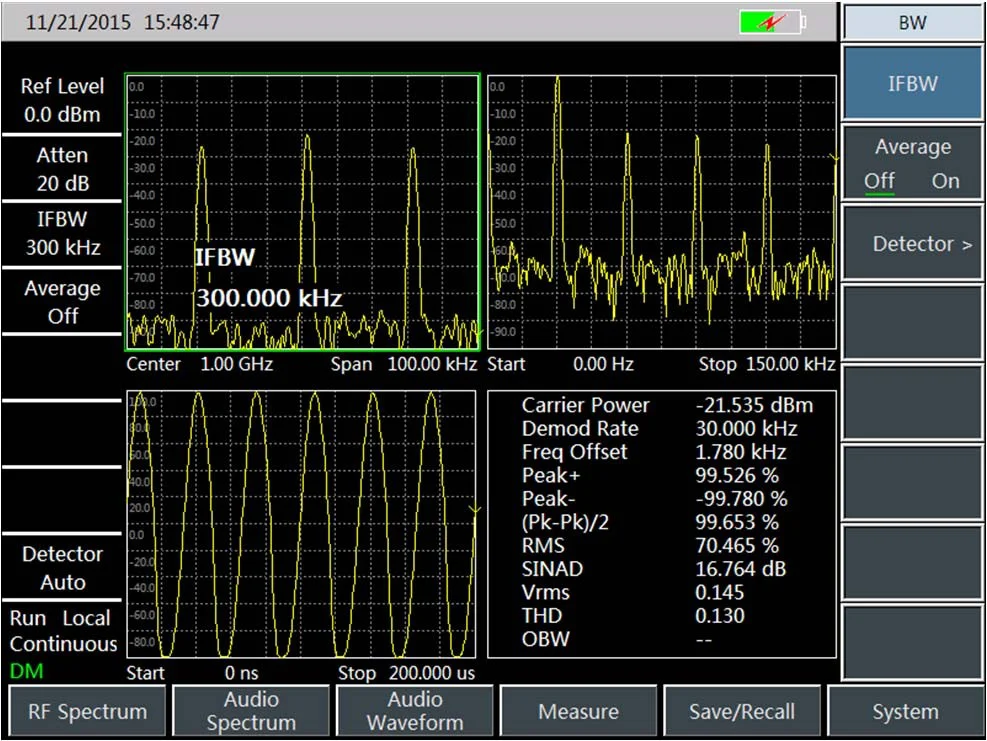

AM/FM/PM Demodulation

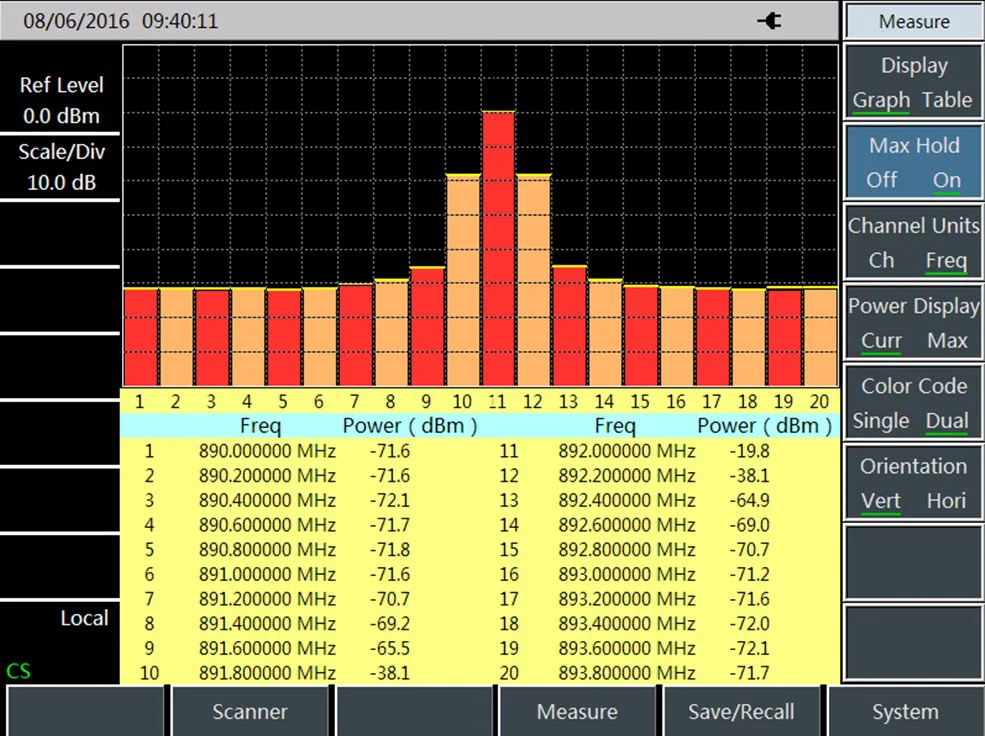

Channel Scanner
Power Meter (USB Power Probe)
