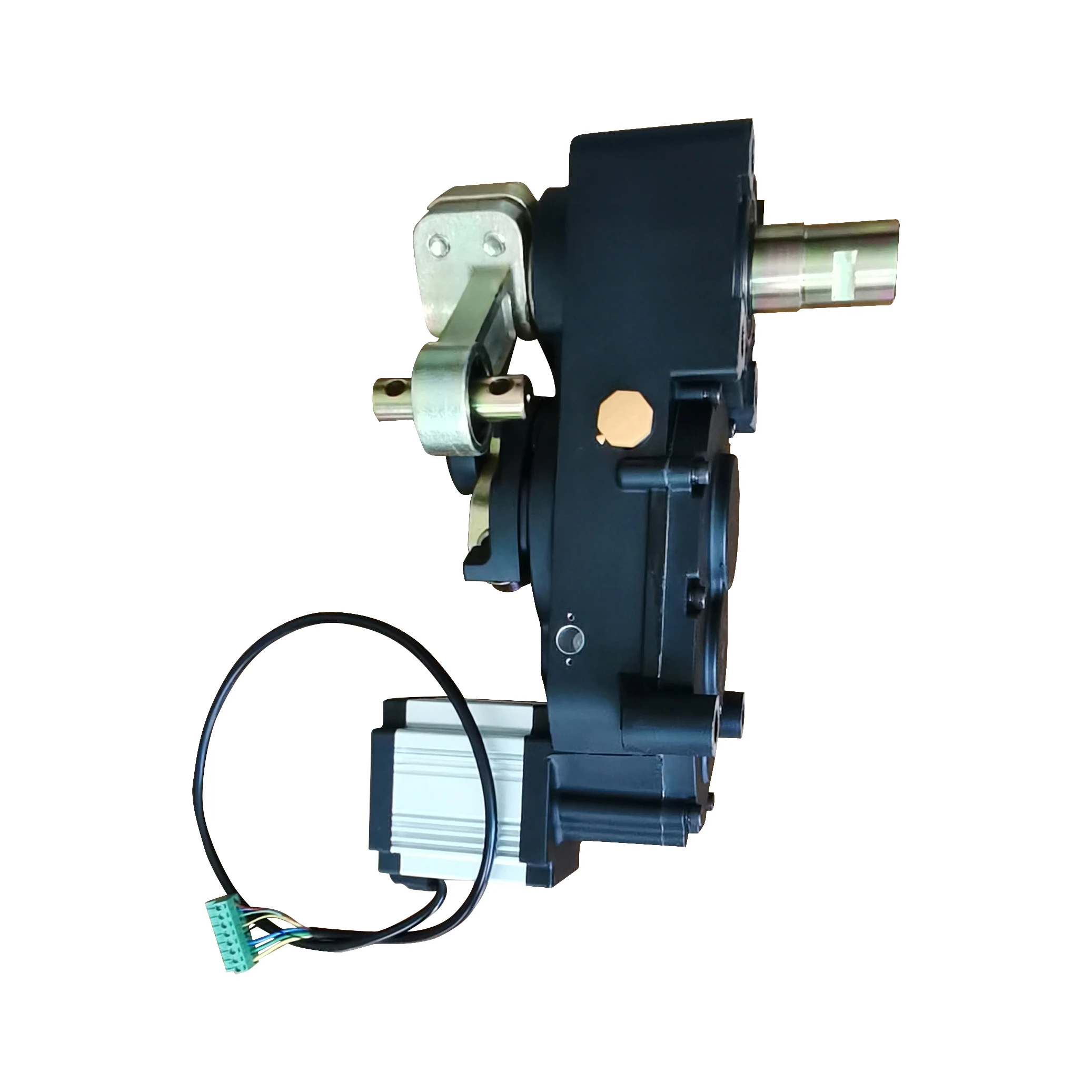

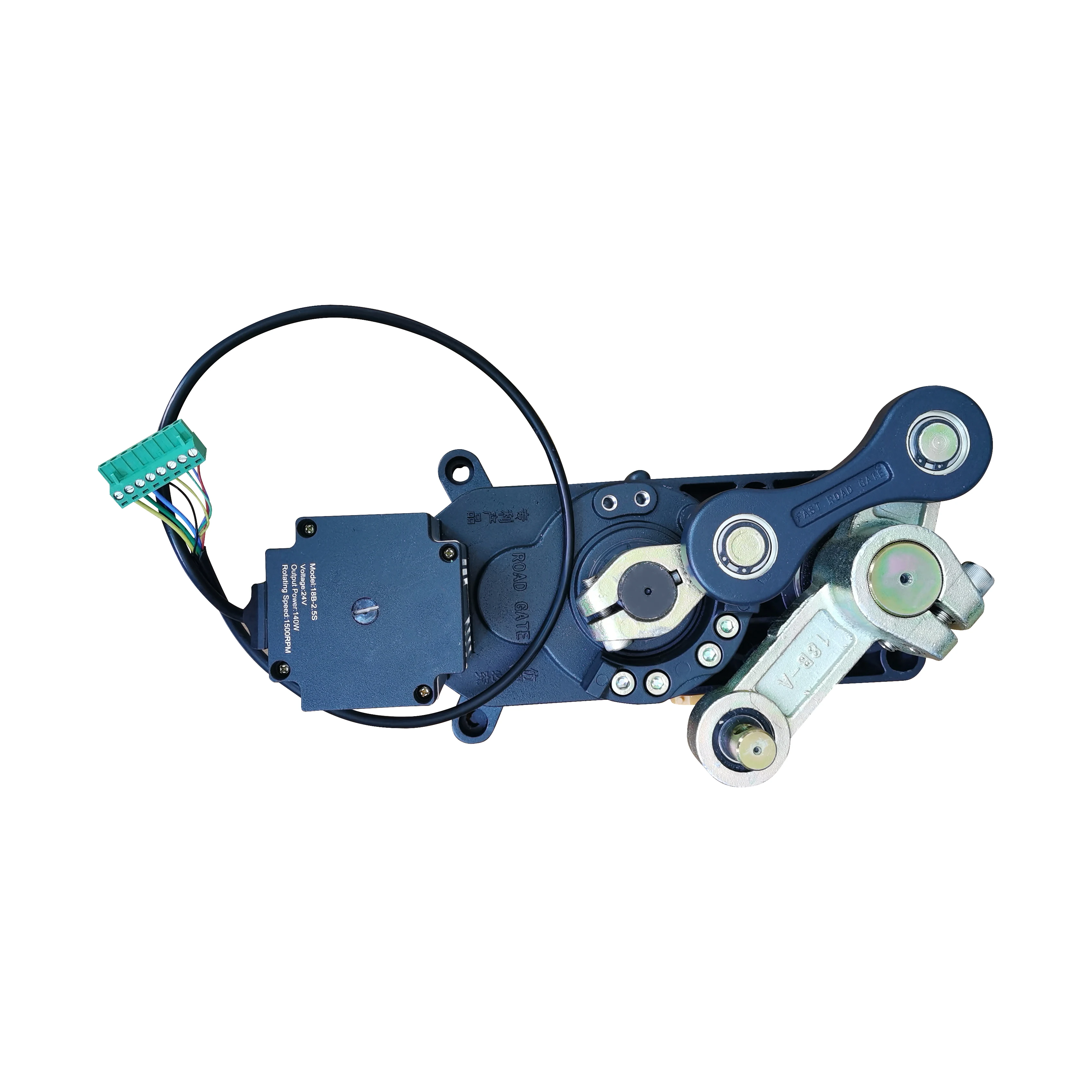

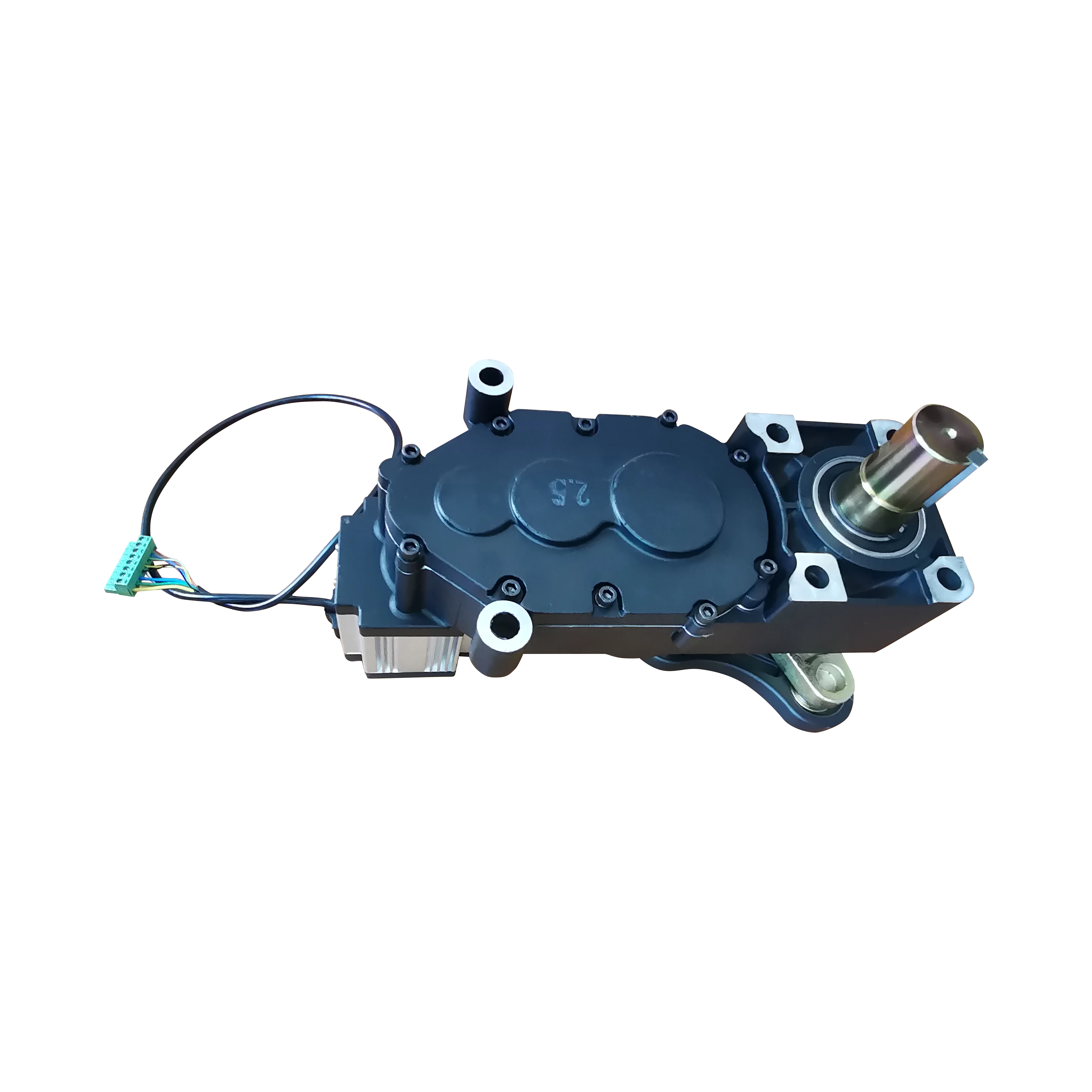

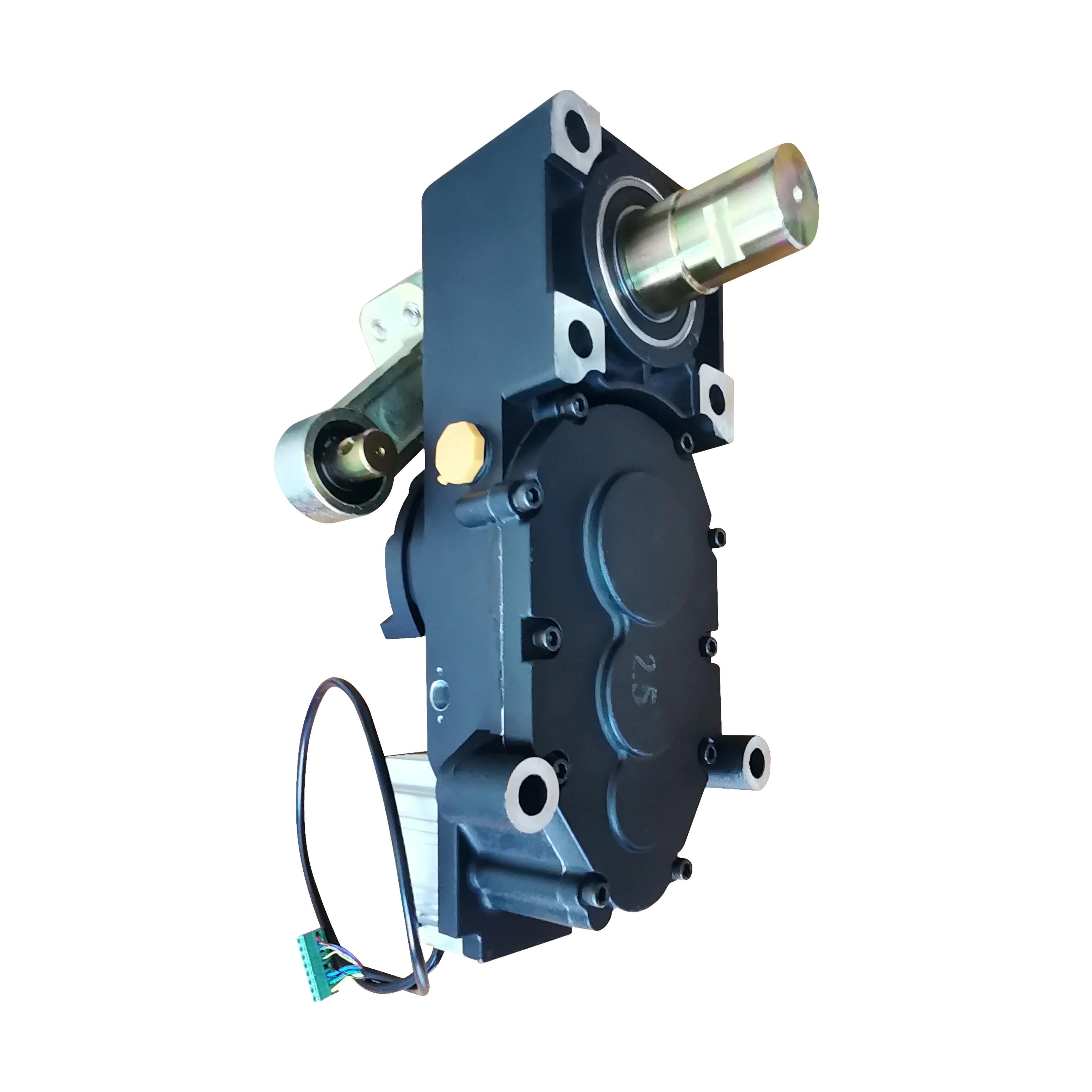

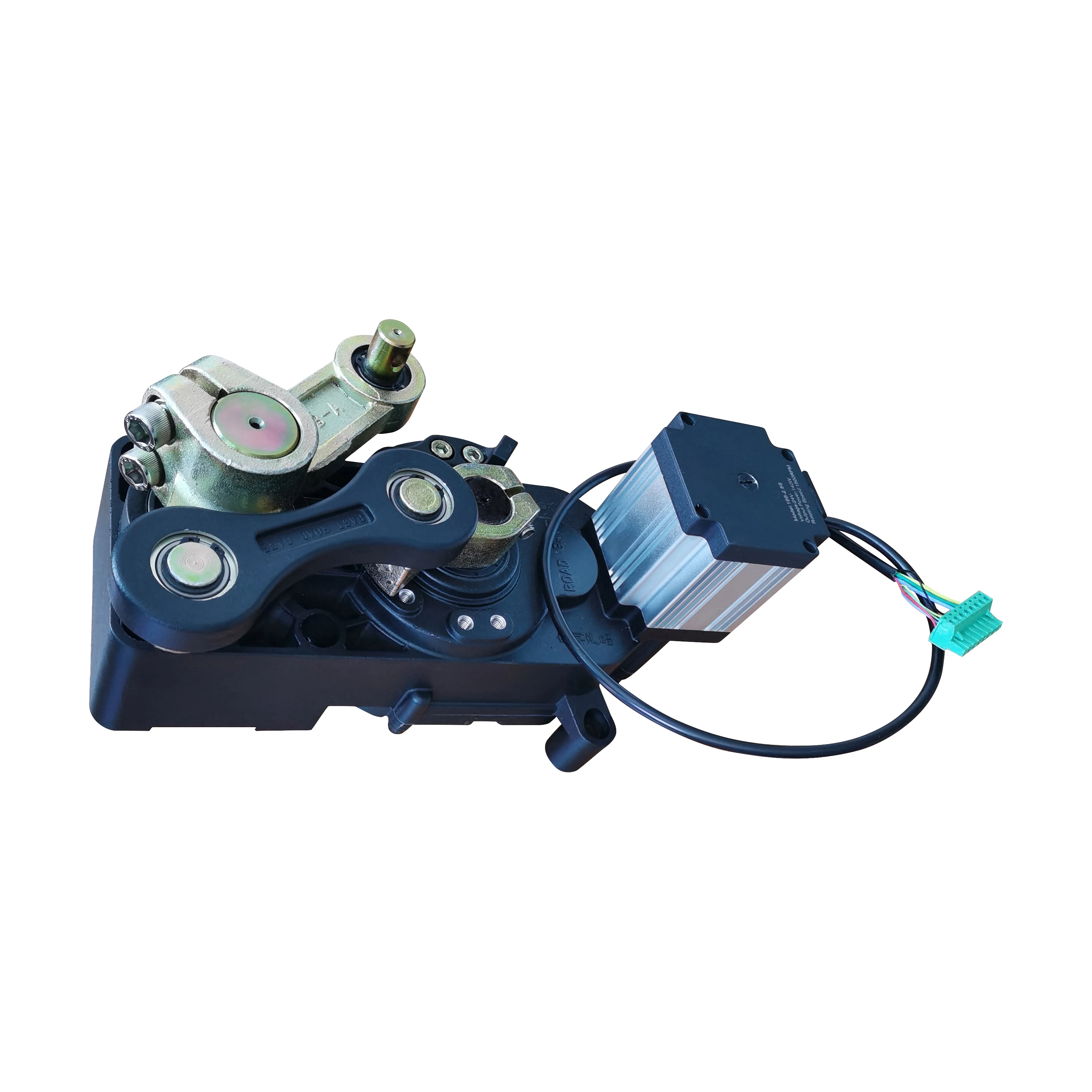

110v 220v 150w Parking System Boom Barrier Motor
- Category: >>>
- Supplier: Shenzhen Karsun Access Technology Co. Ltd.
Share on (1600475734092):
Product Overview
Description
Product Description

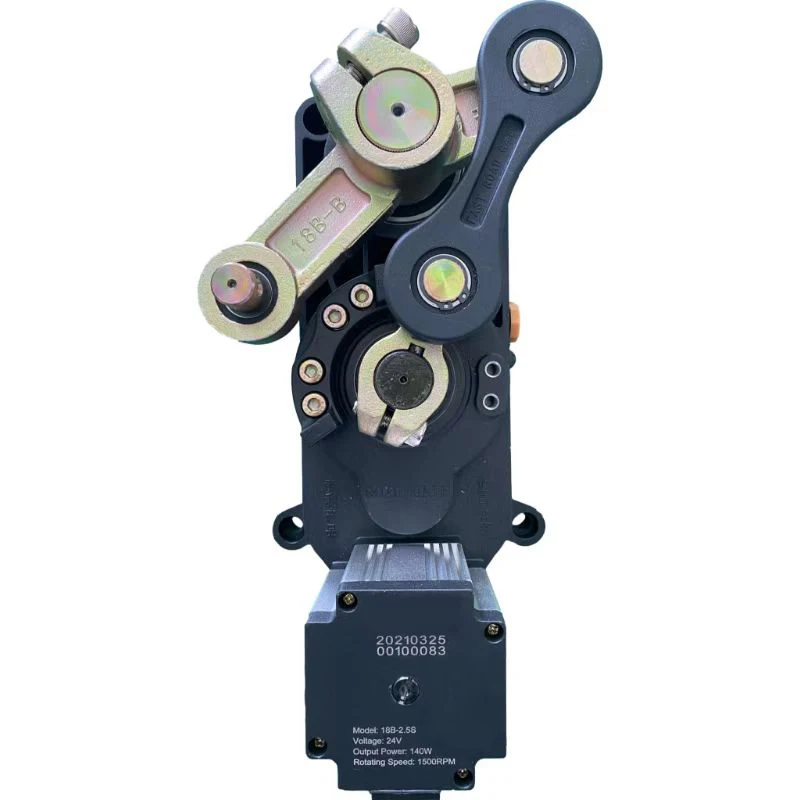

DC 24V brushless motor
This brush-less 24VDC was designed in 2018, which adopts three-stage reduction to realize adjustable the direction, adjustable speed, automatic speed reduction. In this way, make the barrier operation more stable and more reliable.
2.Functions and Features

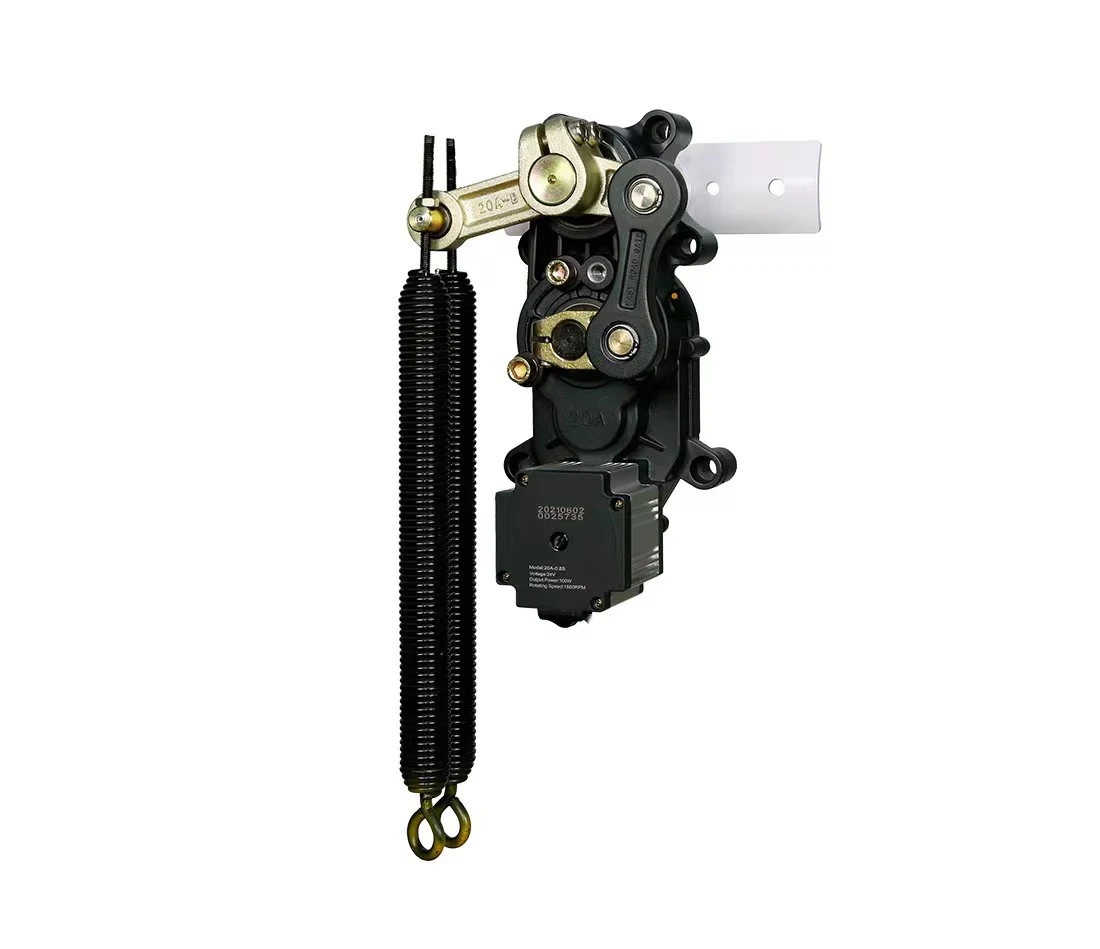

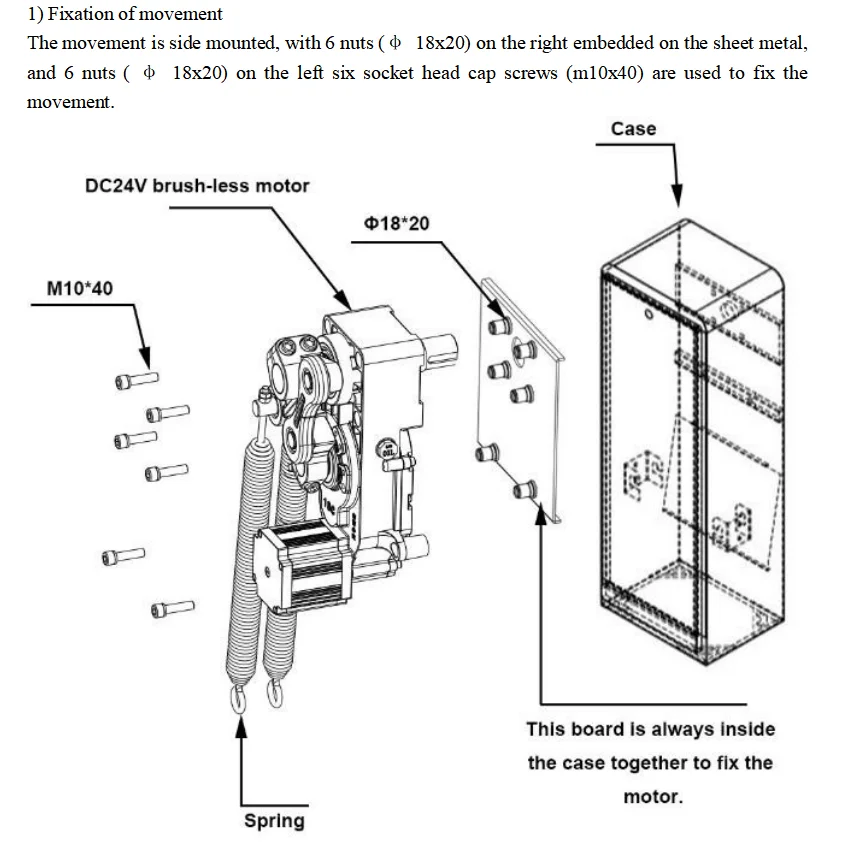

1)The movement adopts side stick installation, which is convenient for installation and compact in structure.
2)When power off, we can lift up the boom arm by hand directly
3)The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
4)The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
5)The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
6)DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.
1)The movement adopts side stick installation, which is convenient for installation and compact in structure.
2)When power off, we can lift up the boom arm by hand directly
3)The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
4)The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
5)The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
6)DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.

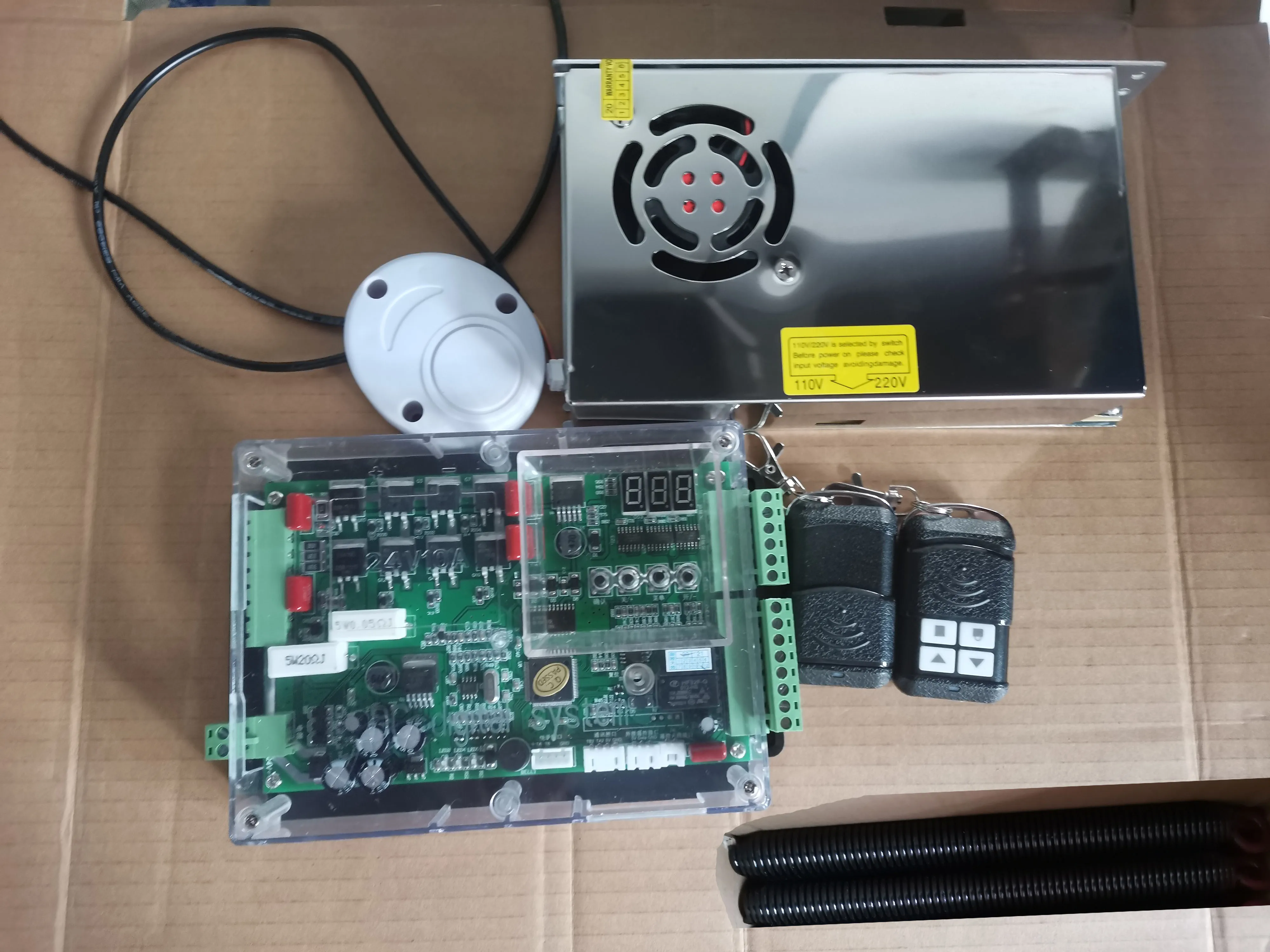

ACCESSORIES Include:
1. power supply
2. control board
3. detector
4. remote control
5. spring
Support OEM and ODM
