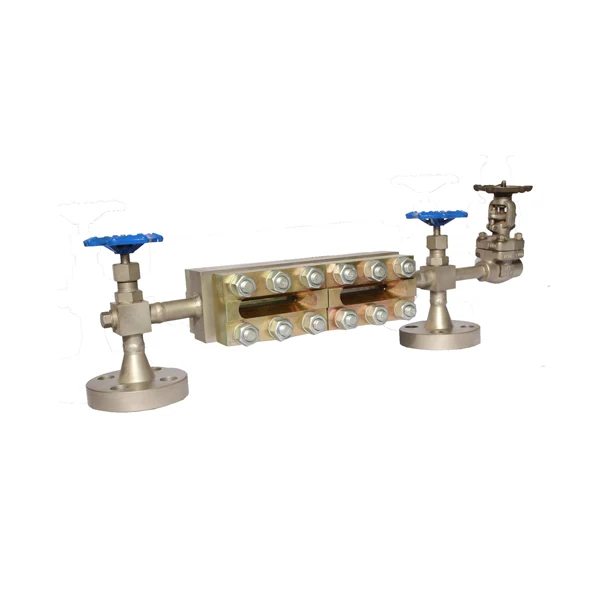

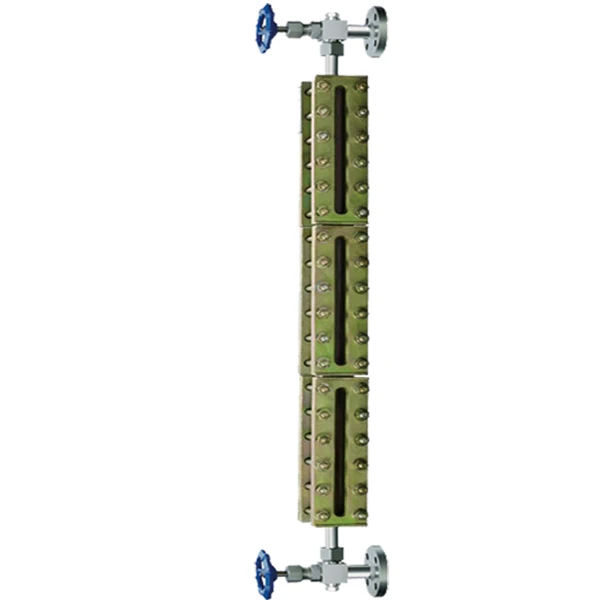

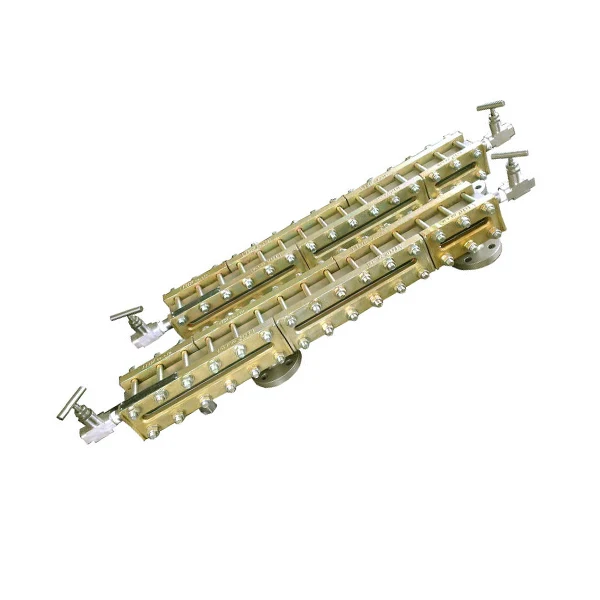

ULB-W High Temperature Glass Plate Level Gauge

Summary

ULB-W high temperature class plate level gauge is manufactured with high temperature glass and other high temperature materials. It is mainly used in petroleum, chemical, pharmaceutical industries for indicating liquid level in high temperature vessel. It can be used for high temperature medium lower than 450℃.

Main technical parameters

Range (the distance between the flanges’ center L): 500mm, 800mm, 1100mm, 1400mm, 1700mm or on request

Visual range: H=L-260;

Needle valve automatically close pressure: ≥ 0.3 MPa;

Wetted material: 20, 304, 316 or on request

Non-wetted material: Carbon steel

Nominal pressure: ≤4.0MPa;

Operating temperature: ≤450℃;

Heating steam jacket joints: R3/8 (male thread) or on request;

Heating steam pressure: ≤1.0MPa;

Flange: HG/T20592-2009, HG/T20615-2009 or on request;

Order requirements

Model and specification

Distance between flanges’ center

Medium

Operating pressure

Operating temperature

Flange standard

Wetted material

Other requirements
