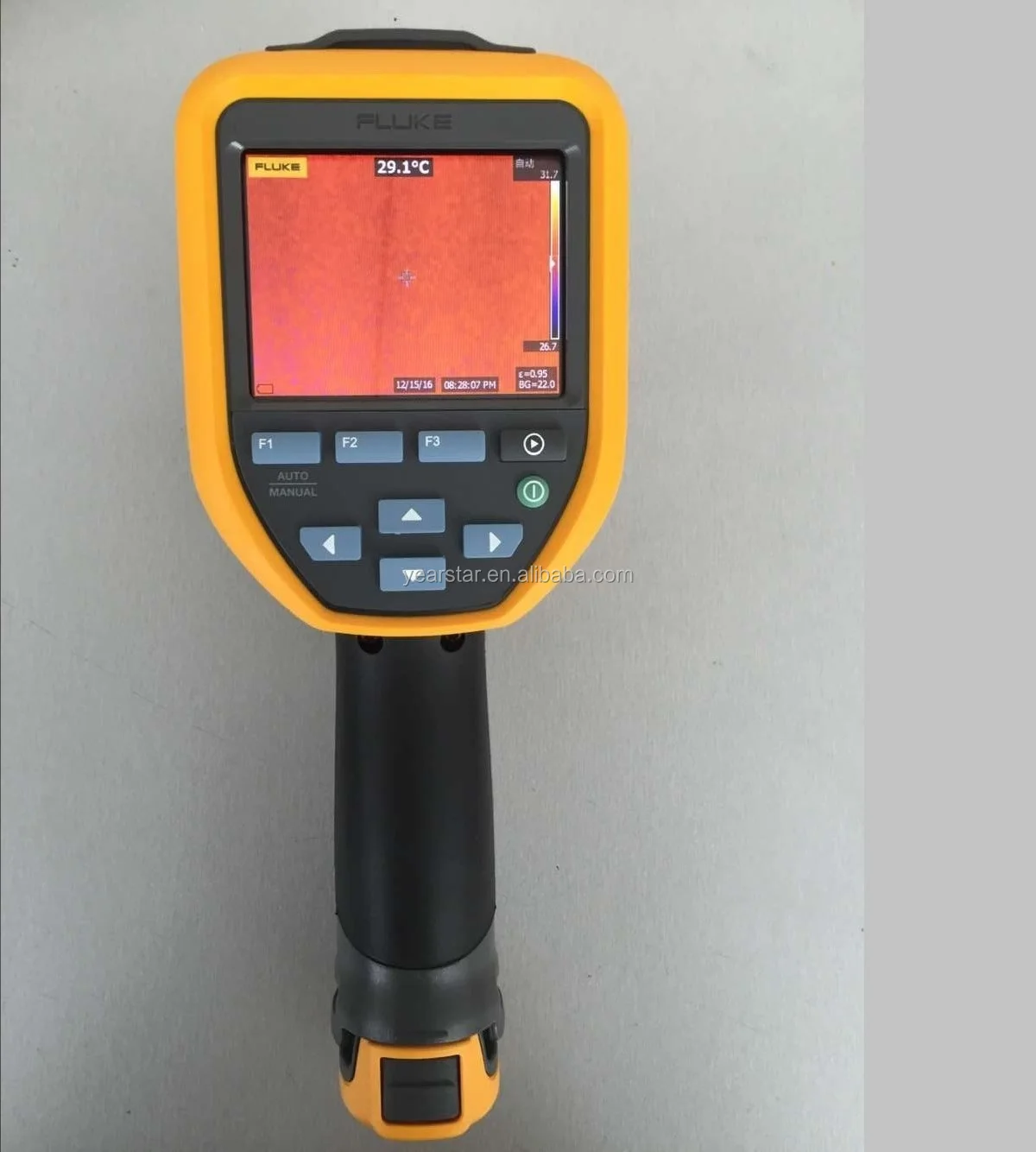

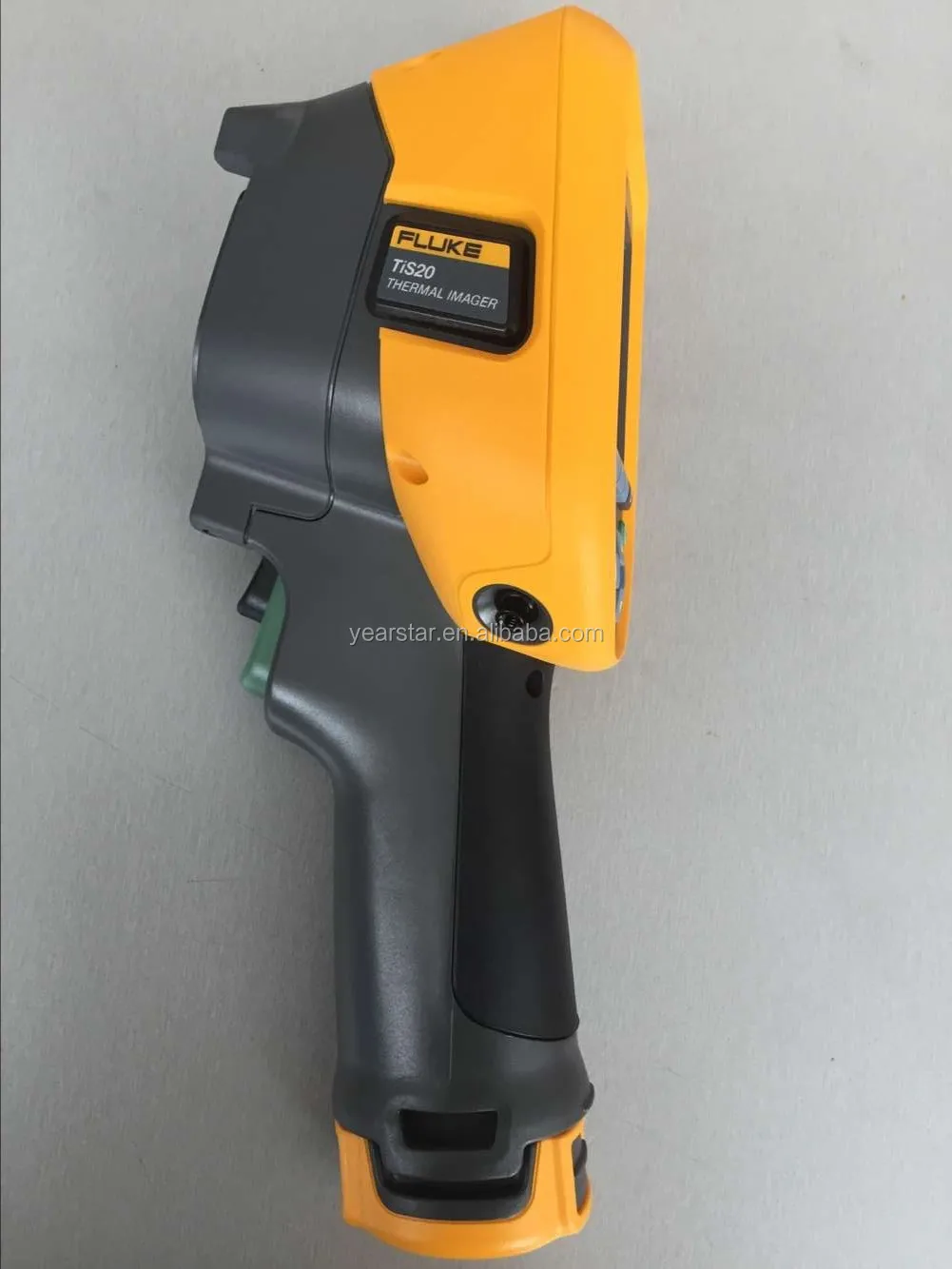

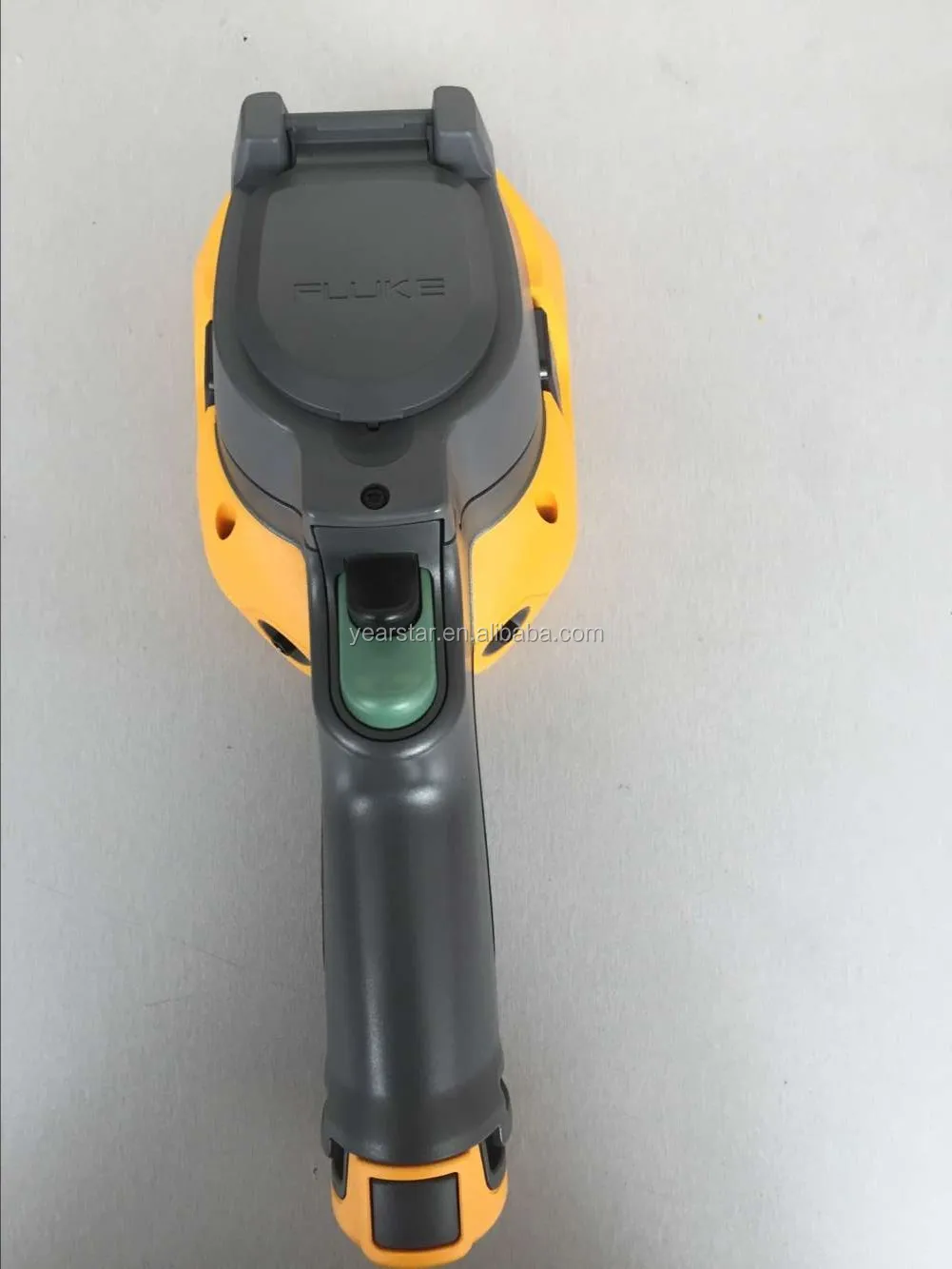

Fluke TiS20+ Infrared Camera:
Product Description
Key features
- Affordable, fixed focus infrared camera with 120x90 resolution (10,800 pixels)
- Quickly scans large areas with point and shoot simplicity
- Offers three presets of IR-Fusion® with AutoBlend to help find problems fast
- Provides a D:S of 193:1
- Features a 3.5 inch, 320x240 LCD
- Captures visible light images with built-in 5 megapixel digital camera
- Offers temperature measurement range from -20 °C to 350 °C (-4 °F to 662 °F)
- Includes a smart battery system that allows you to easily monitor your battery charge level with five-segment LED display
- Allows real-time communication by email from your smart phone with Fluke Connect®*
- Stores thousands of images—4 GB internal memory and optional 4 GB micro SD card
Specifications: Fluke TiS20 Infrared Camera
| Key Features | |
|---|---|
| IFOV (spatial resolution) | 5.2 mRad |
| Detector resolution | 120x90 |
| Field of view | 35.7 ° x 26.8 ° |
| Distance to spot | 193:1 |
| Wireless connectivity | Yes |
| Fluke Connect® app compatible | Yes (where available) |
| IR-Fusion® Technology | |
| AutoBlend™ mode | 3 presets (0%, 50%, 100%) |
| Picture-In-Picture (PIP) | - |
| Focus system | Fixed focus, Minimum focus distance 0.45 m (1.5 ft) |
| Ruggedized display | 3.5 inch (landscape) 320x240 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Thermal sensitivity (NETD) | ≤0.10 °C at 30 °C target temp (100 mK) |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +350 °C (–4 °F to 662 °F) |
| Level and span | Smooth auto and manual scaling |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (manual mode) | 2.5 °C |
| Minimum span (auto mode) | 5 °C |
| Built-in digital camera (visible light) | 5 MP |
| Frame rate | 9 Hz |
| Laser pointer | - |
| Data storage and Image Capture | |
| Extensive SD memory system | Internal 4 GB (optional 4 GB micro SD card sold separately) |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files |
| Instant Upload | Instantly upload captured images to Fluke Connect server with the use of a WiFi connection |
| Memory review | Thumbnail review |
| Software | SmartView® software - full analysis and reporting software and Fluke Connect® (where available) |
| Export file formats with SmartView® software | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Voice annotation | - |
| IR-PhotoNotes™ | - |
| Standard video recording | - |
| Radiometric video recording | - |
| Video file formats | - |
| Streaming video (remote display) | - |
| Battery | |
| Batteries (field-replaceable, rechargeable) | One lithium ion smart battery pack with five-segment LED display to show charge level |
| Battery life | Four+ hours |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | In-imager charging (optional external charger sold separately) |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Temperature Measurement | |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Color Palettes | |
| Standard palettes | 6: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale |
| Ultra Contrast™ palettes | - |
| General Specifications | |
| Color alarms (temperature alarms) | - |
| Infrared spectral band | 7.5 μm to 14 μm |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Relative humidity | 10% to 95%, non-condensing |
| Center-point temperature measurement | - |
| Spot temperature | Yes |
| User-definable spot markers | - |
| Center box | - |
| Safety standards | EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility | EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| C Tick | IEC/EN 61326-1 |
| US FCC | EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop | Engineered to withstand 2 m (6.5 ft) drop |
| Size (H x W x L) | 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in) |
| Weight (battery included) | Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Models: Fluke TiS20 Infrared Camera
FLK-TiS20 9Hz
Fluke TiS20 Infrared Camera 9Hz
Includes:
- Thermal imager
- AC charger/power supply with mains adapters for battery charging and AC operation
- One rugged lithium ion smart battery

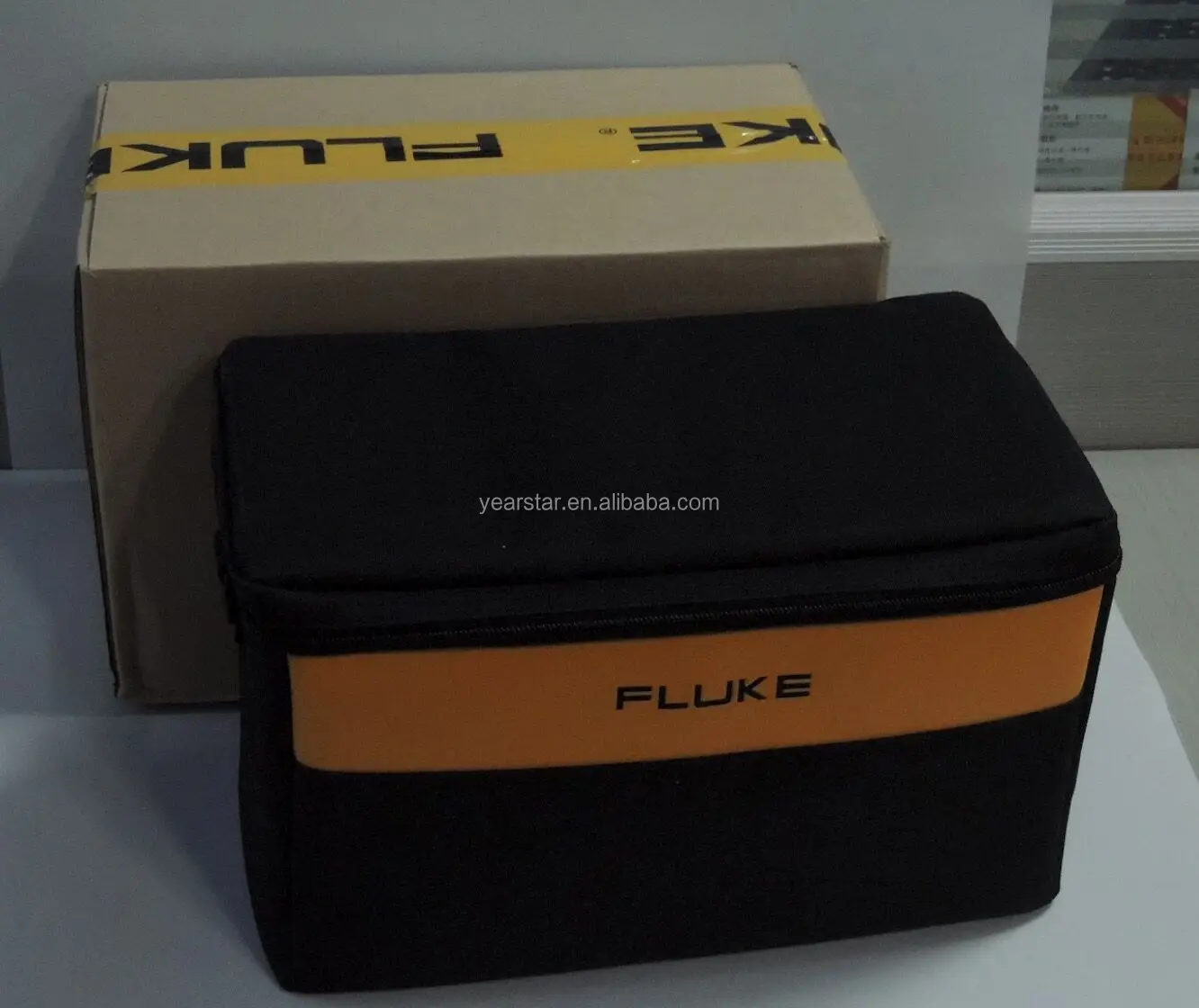

- Soft transport bag
- Statement of factory calibration
- Quick start guide
- Safety sheet
