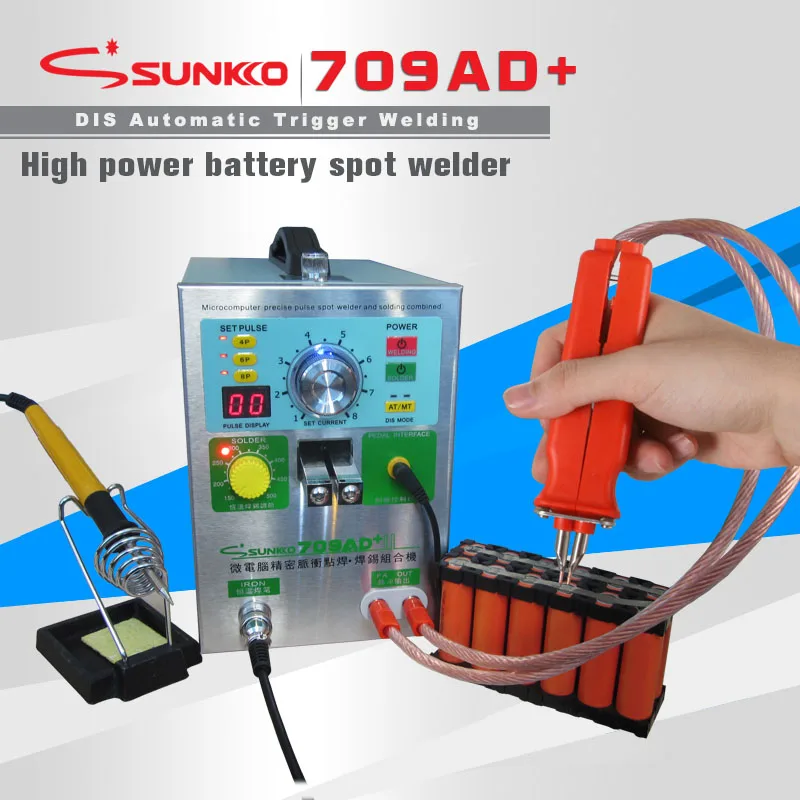

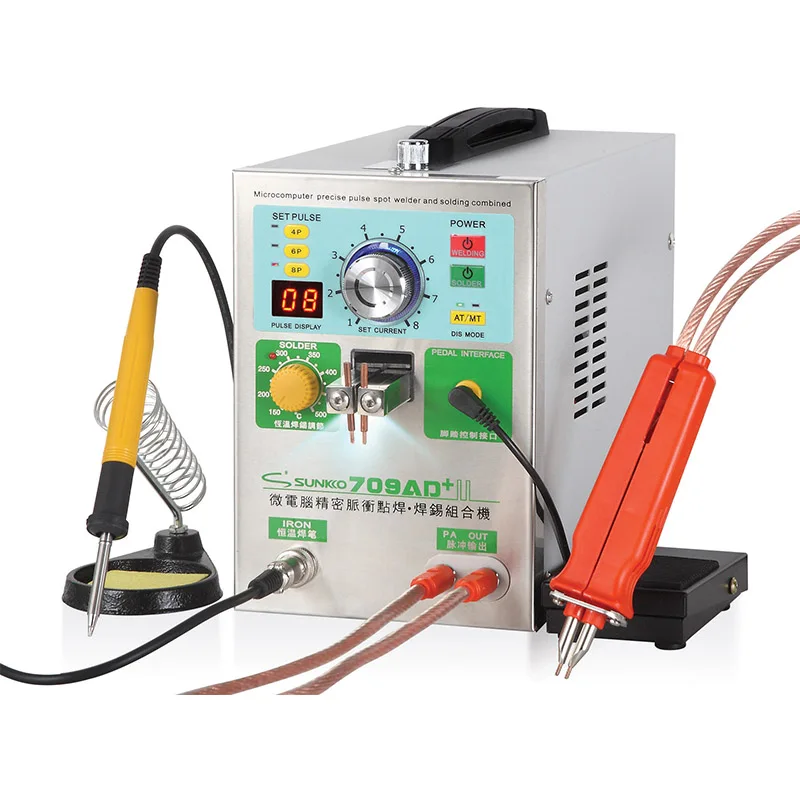

S709AD Induction automatic spot welding machine 3.8kw high power Pulse Spot Welder 18650 power lithium battery welding machine
- Category: Spot Welders >>>
- Supplier: Shenzhen Chuang Xin Jia Technology Co. Ltd.
Share on (1600475865545):
Product Overview
Description
Welcome to our store
3.8kw high power Pulse Spot Welder S709AD+ Induction automatic spot welding machine 18650 power lithium battery welding machines
Description:

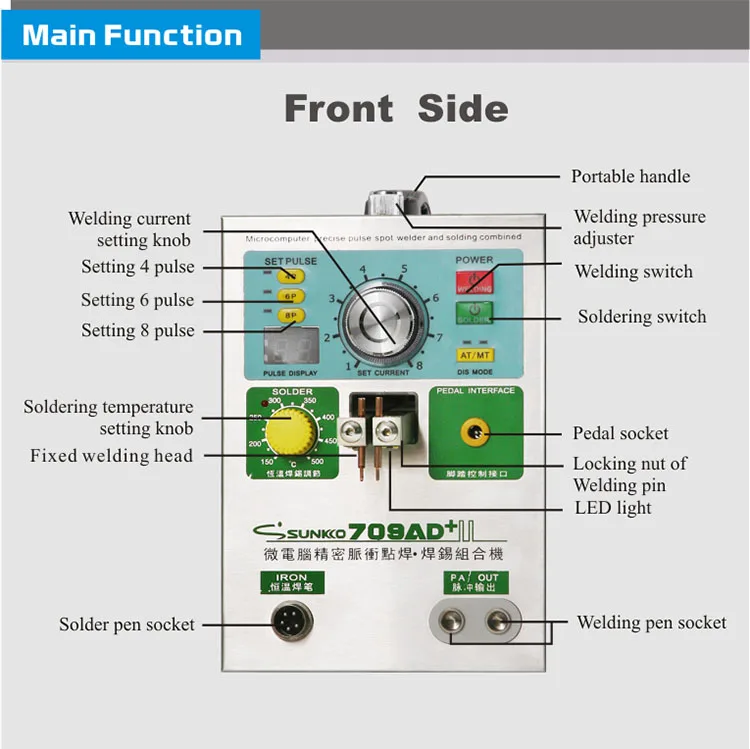

Characteristic
4 in 1 machine
1.Fixed pulse welding 2.Constant temperature soldering
3.Inductive discharging welding 4.Moveable pulse welding

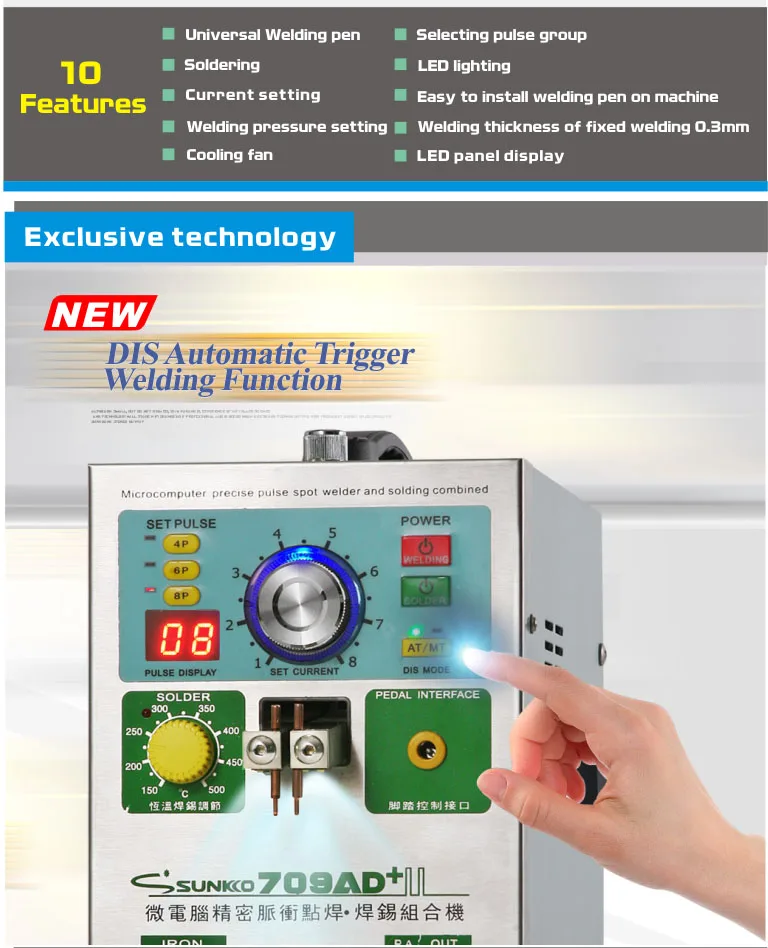

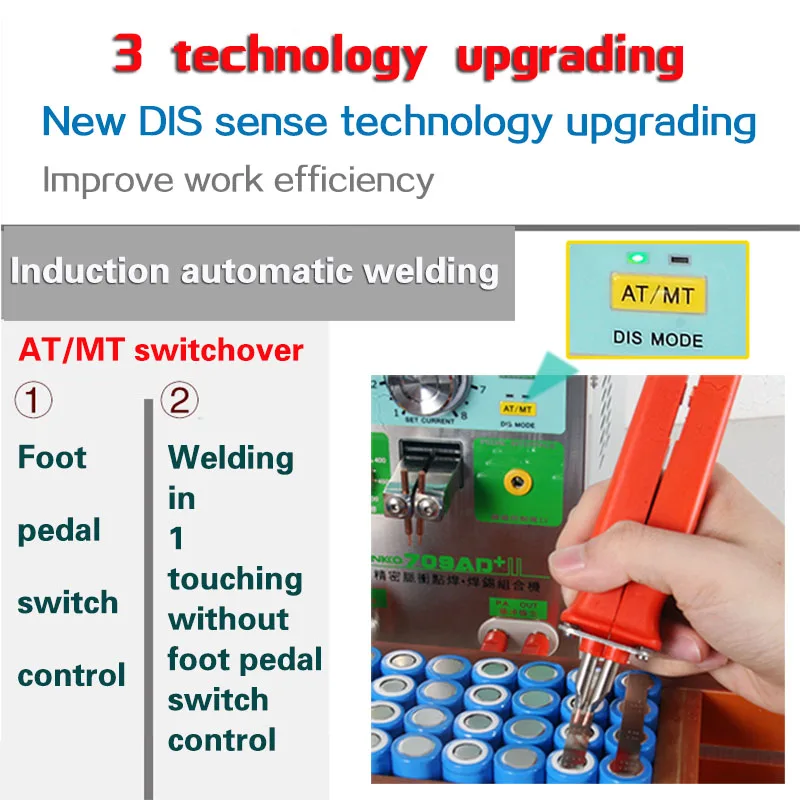

1.The whole new inductive discharging welding mode. It is no need to be controlled by pedal control to weld.
2.It will weld immediately when welding head touch welding object.
3.It is controlled by micro-computer for precise welding and increased welding consistency in welding power controller.
4.4 in 1 design for welding and soldering in one machine with multi function to make electronic product.
5.There are fixed welding head and moveable welding pen mode to suit for little component and large parts to weld.

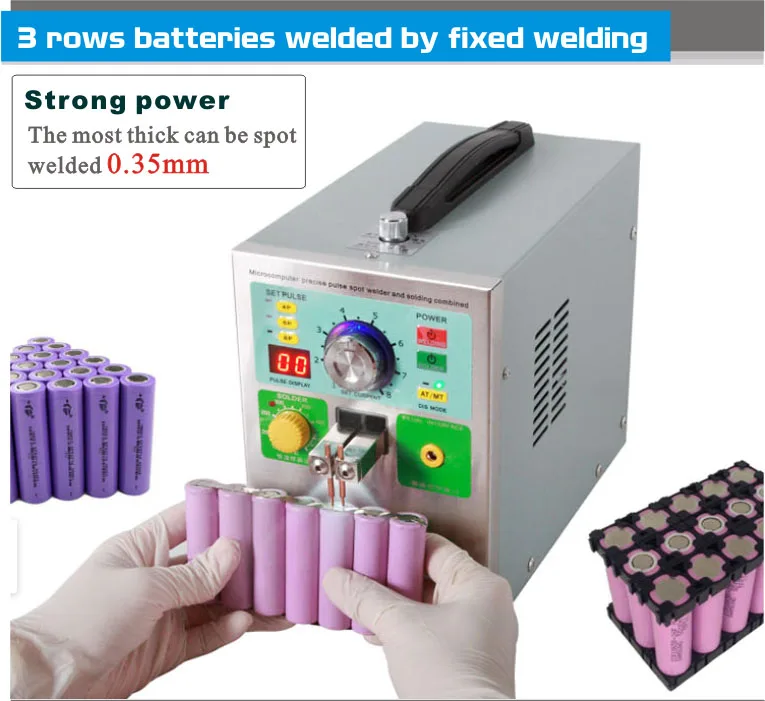

6.It can be adjusted high power in 1200A for welding head to weld 0.35mm nickle plating.
7.It is energy management and save energy output.
8.There are 2-18 pulse to select that can weld different thickness.

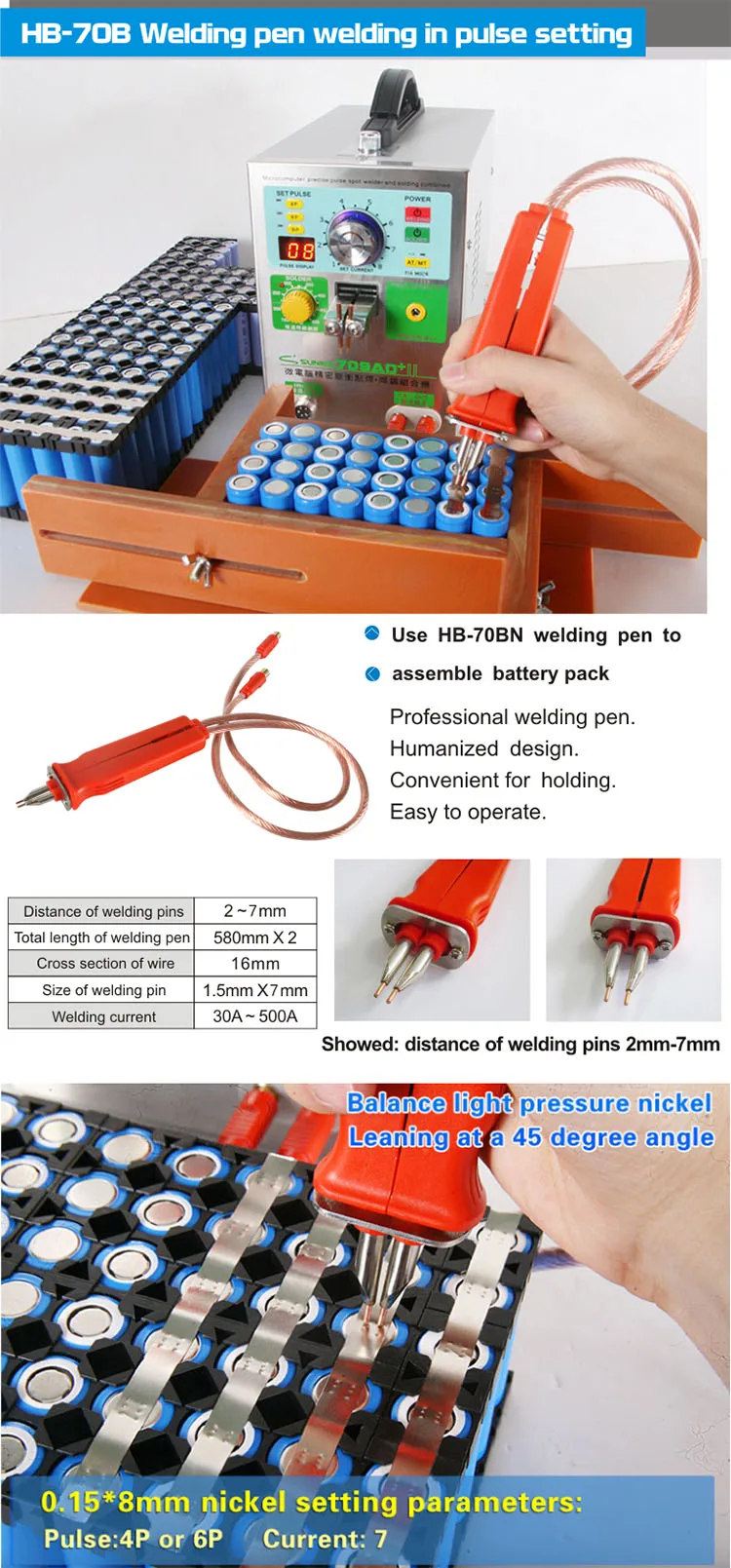

9.The welding pen is very easy and convenient to use.

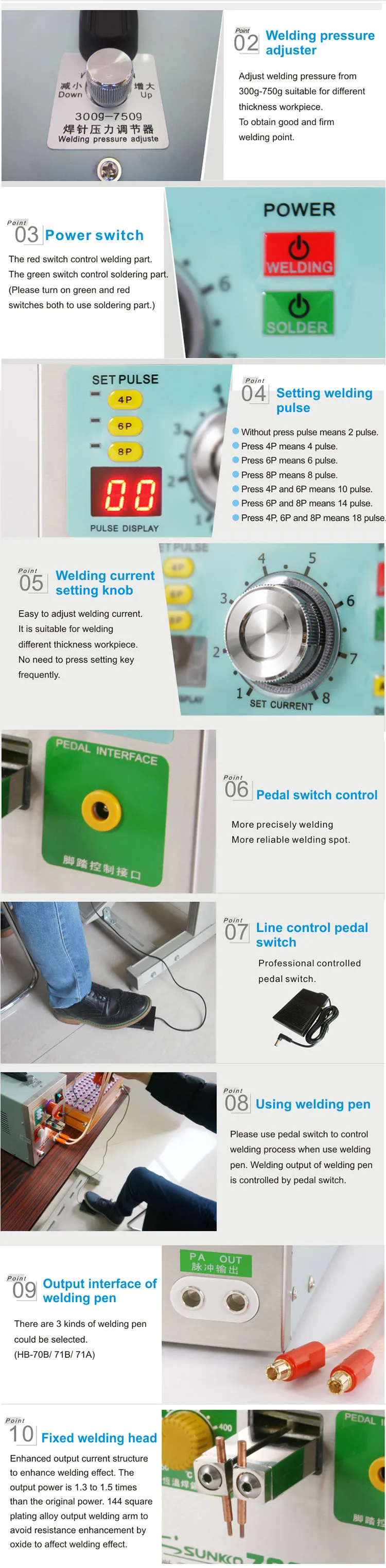

10.The knob for adjusting pulse and electric current is convenient to change pulse and electric current.
11.Double row with LED display is clearly to detect data.

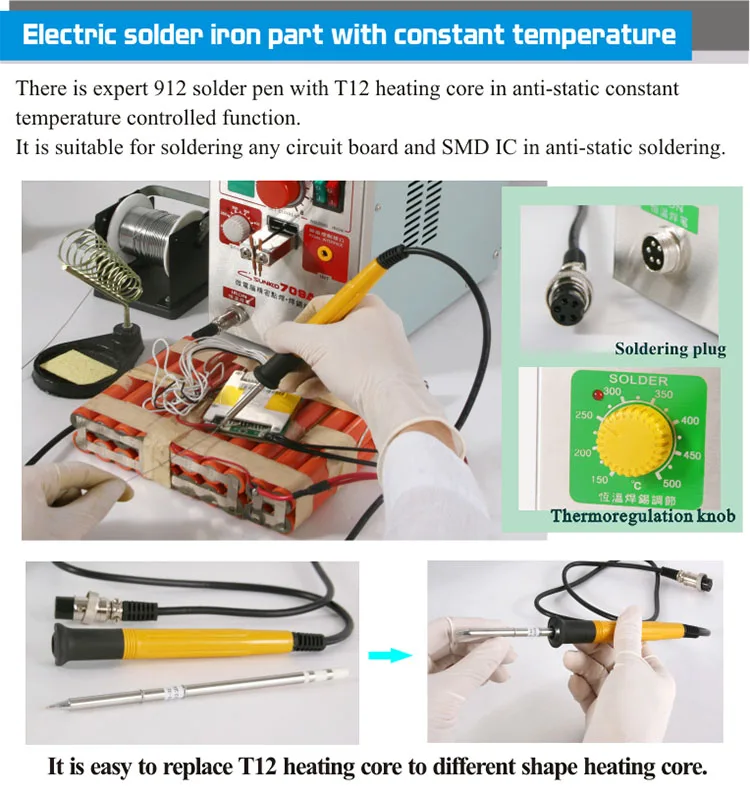

12.T12 soldering iron can solder in fast and use longer.
13.It is suitable for welding different nickle material.
14.It is suitable for any luminance of lighting circumstance with LED illumination design.

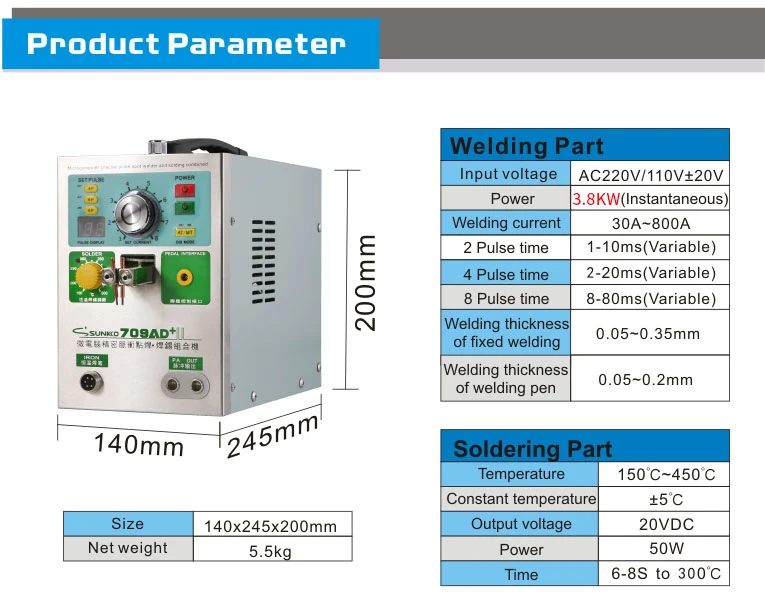

Welding Part:
Supply voltage AC 220V/110V±20V
Power 3.2KW(Instantaneous)
Welding Current 50~800A
Time of 2 pulse 1-10ms(Adjust)
Time of 4 pulse 2-20ms(Adjust)
Time of 8 pulse 8-80ms(Adjust)
Soldering Part:
Soldering Temperature 150℃~450℃
Temperature Accuracy ±5℃
Output voltage 20VDC
Power 50W
Heating up time 6~8S to 300℃
Size 140x245x200 mm
Net Weight 7 kg

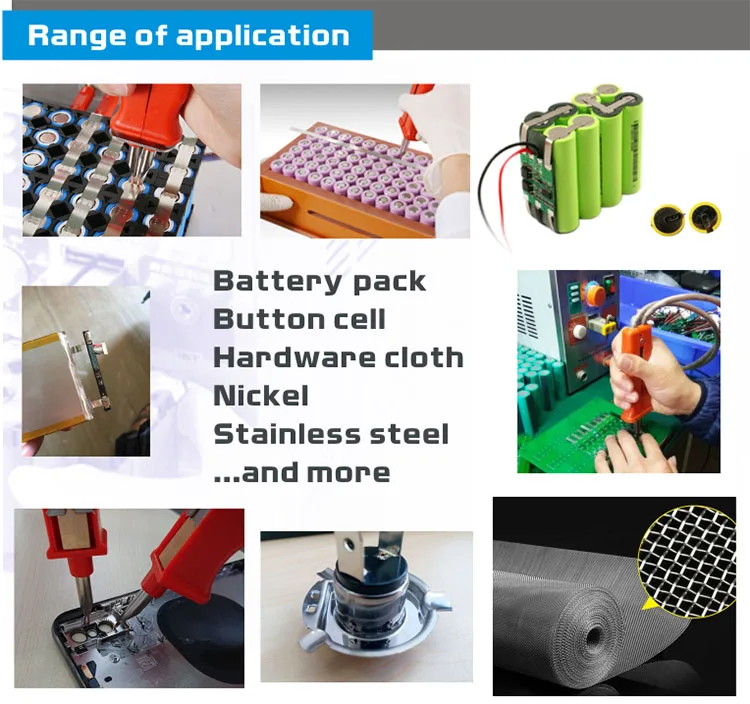

Use Range
Range of Application
1.Welding different rechargeable batteries wire in fixed welding and moveable welding.
2.Welding lithium battery and moveable battery pack for assembling.
Welding electronic component wire and precision hardware parts.
Product Description
Packaging & Shipping
1.Generally, after payment , about 5-8 days can be sent, Usually send by express (such as DHL ,UPS ,TNT ,FEDEX and so on )
2.For the big cargo send by sea or air transport nearly ,but if you want it urgency please contact us to offer good price to send by express .
3.The package is wooden box or carton box.(Depending on the product)
Notice : Due to the different national policy, The customs tax is not same, So the Custom duties and import taxes are NOT included. when the parcel arrived to your customs ,please pay the custom tax and pick up the parcel ,we are not responsible for any customs duty or import tax ,if your city is a remote city ,maybe need to add 36 USD remote fee to the express.thanks
