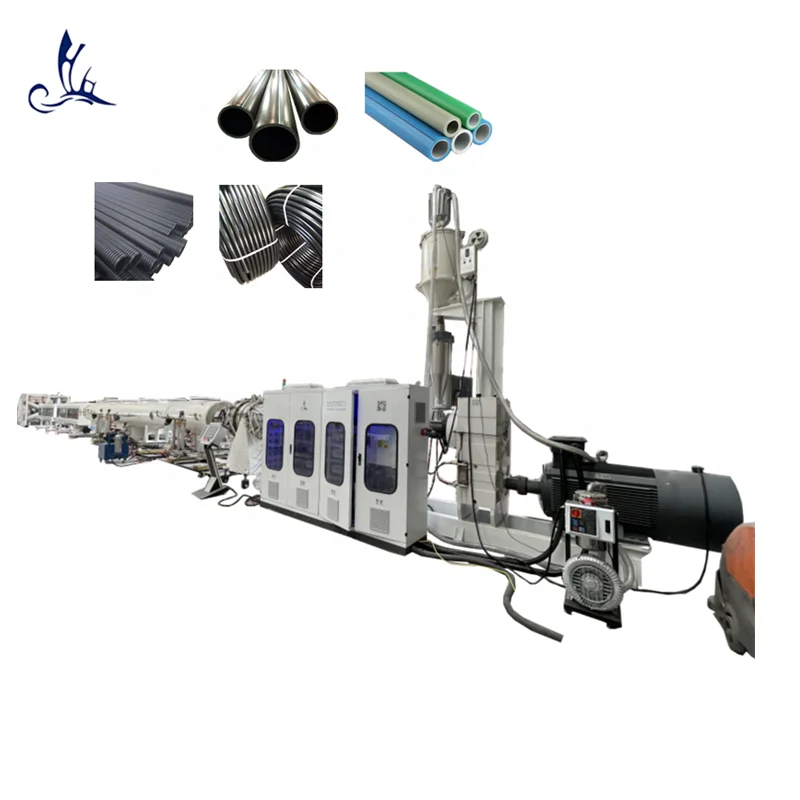

High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line
1.Characteristic:
excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage.
2.Process Flow:
Raw material + additive → mixing →automatic feeding system → single screw extruder→ mould → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
Raw material + additive → mixing →automatic feeding system → single screw extruder→ mould → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
3.Main List:
High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line consists of the following six parts:
NO. | Name | Quantity |
1 | Single screw extruder with automatic feeding device | 1set/2sets |
2 | Mould | 1set |
3 | Vacuum Calibrating and Cooling Tank | 1set/2sets |
4 | Haul off Machine | 1set |
5 | Cutting machine | 1set/2sets |
6 | Stacker | 1set |
Different models of production lines can produce PPR PE PERT pipes with different diameter.
Extruder Model | Pipe Diameter(mm) | Production Capacity(kg/h) | Total Power (kw/h) |
SJ50 | 16~63 | 100~150 | 75 |
SJ65 | 75~160 | 300~350 | 160 |
SJ75 | 200~400 | 600~700 | 280 |
SJ90 | 450~630 | 800~850 | 350 |
SJ120 | 710~1200 | 1200~1300 | 700 |
SJ150 | 1200~2000 | 1400~1500 | 1000 |
Company Profile
Details Images

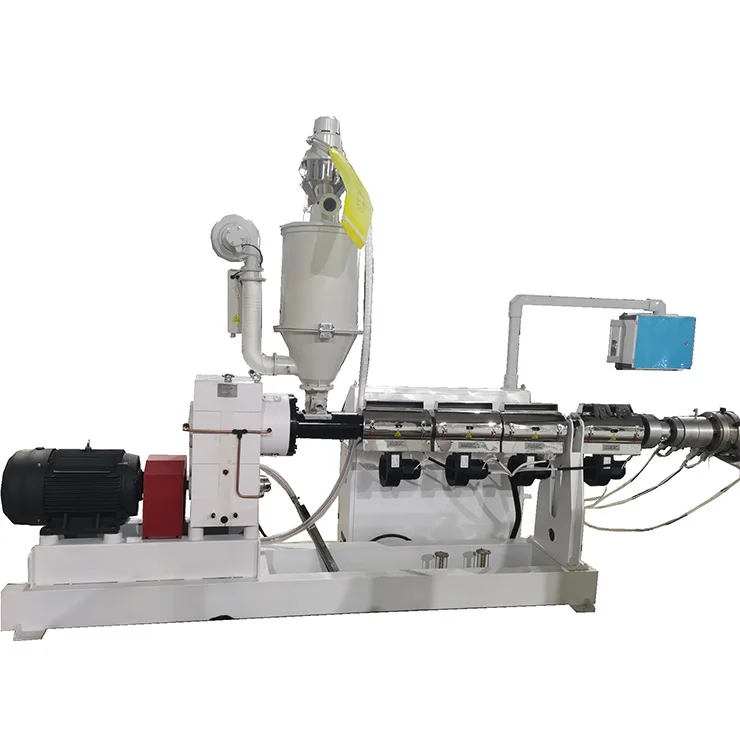

1.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Single screw extruder with automatic feeding device
(1) Motor brand: Siemens
(2) Inverter brand: ABB/Delta
(3) Contactor brand: Siemens
(4)Relay brand: Omron
(5) Breaker brand: Schneider
(6) Heating method: Ceramic or cast
aluminum heating
aluminum heating

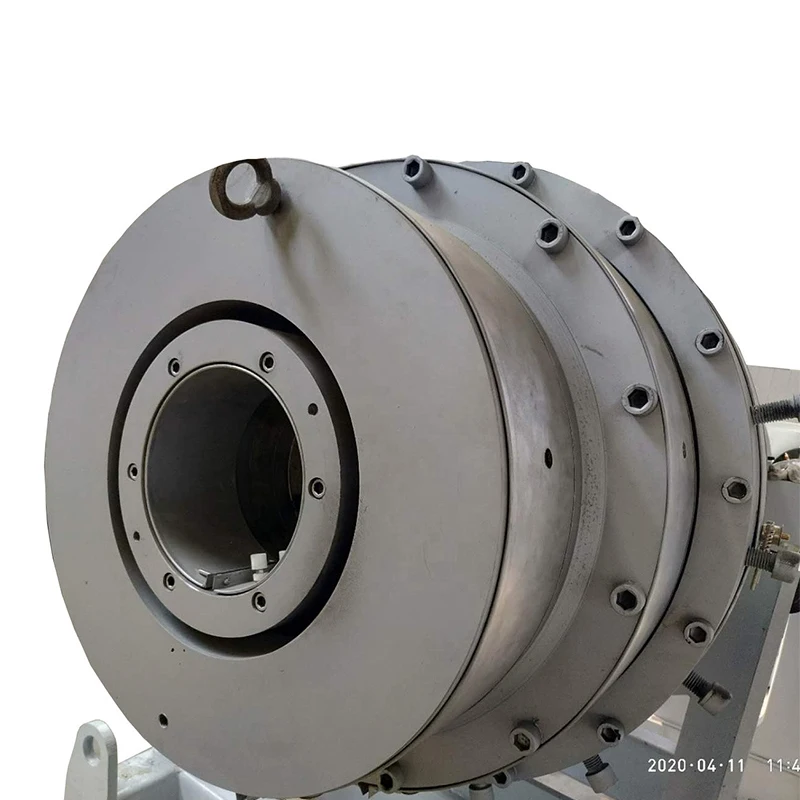

2.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Mould
(1) Material: 40GR
(2) Size: Customizable
(2) Size: Customizable

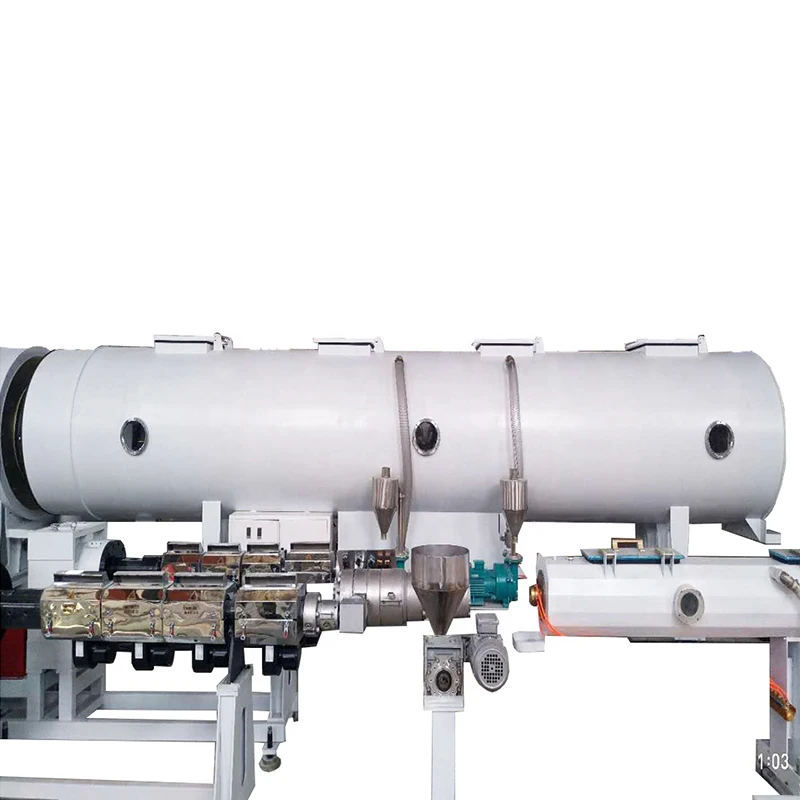

3.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Vacuum calibrating and water cooling tank
(1) Vacuum pump power : 4 kw
(2) Water pump power: 4 kw
(3) Material: Stainless steel
(4) Method: Enforced spraying
(5) Diameter: Customized
(6) Length of tank: 6 m
(3) Material: Stainless steel
(4) Method: Enforced spraying
(5) Diameter: Customized
(6) Length of tank: 6 m

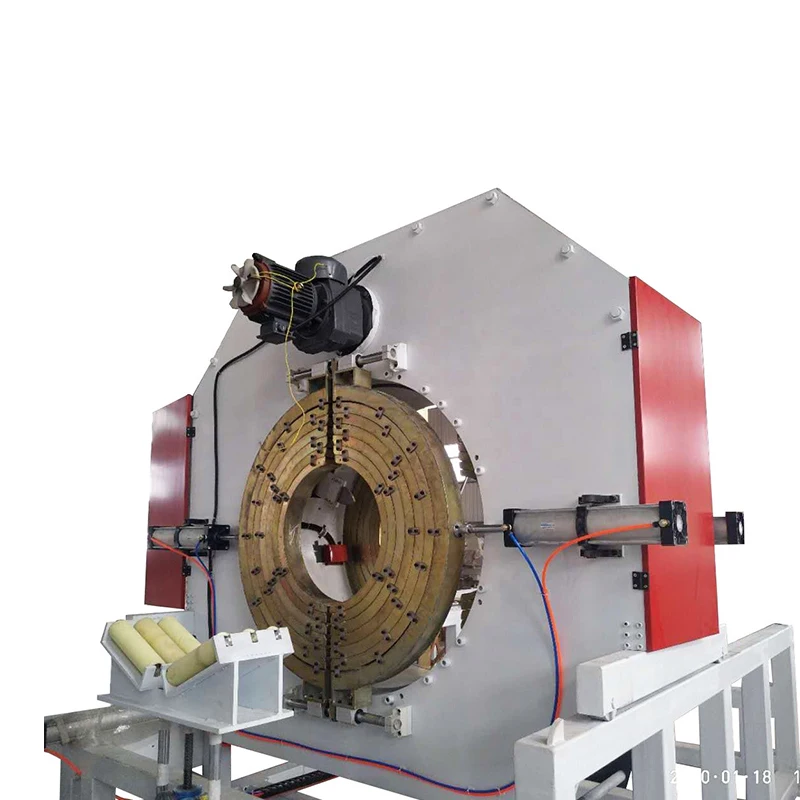

4.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Haul off Machine
(1) Driving motor power: 2.2 kw
(2) Transducer: Siemens transducer
(3) hauling track type：110 plastic block
(4) Pressing method: Pneumatic pressing
(5) Effective clamping length:1800 mm
(3) hauling track type：110 plastic block
(4) Pressing method: Pneumatic pressing
(5) Effective clamping length:1800 mm
5.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Cutting Machine
(1) Motor power: 2.2 kw or standard
(2) Method: Saw cutting
(3) Cutting scope: 8-65 mm
(4) PLC control system, using meter counter or sensor switch for the setting of desired length.
(3) Cutting scope: 8-65 mm
(4) PLC control system, using meter counter or sensor switch for the setting of desired length.
6.High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line Stacker
(1) Length: 6 m
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
(3) Unloading method: Pneumatic unloading
Final products
1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;
(3) Field maintenance and repair service ;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
Packing & Delivery
High Quality HDPE Plastic Pipe Single Screw Extruder Water Supply Tube Single Wall Making Machine Production Line internal inspection,boot test,Moisture proof processing,composite material box,load container.
