Factory Series Fire Safety Monitor Automatic Fire Cannon Electric Control Fire Monitor
- Category: >>>
- Supplier: Baian Fire Protection Technology Co. Ltd.
Share on (1600475921911):
Product Overview
Description

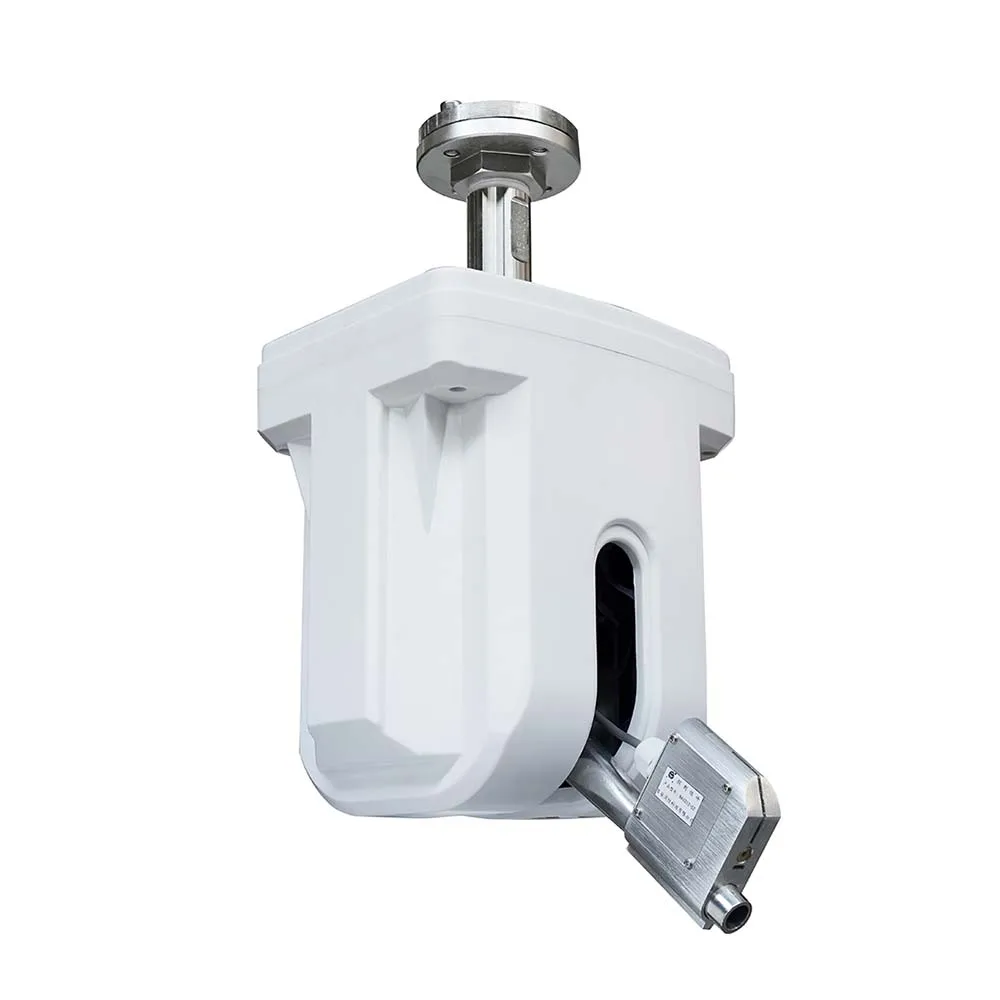

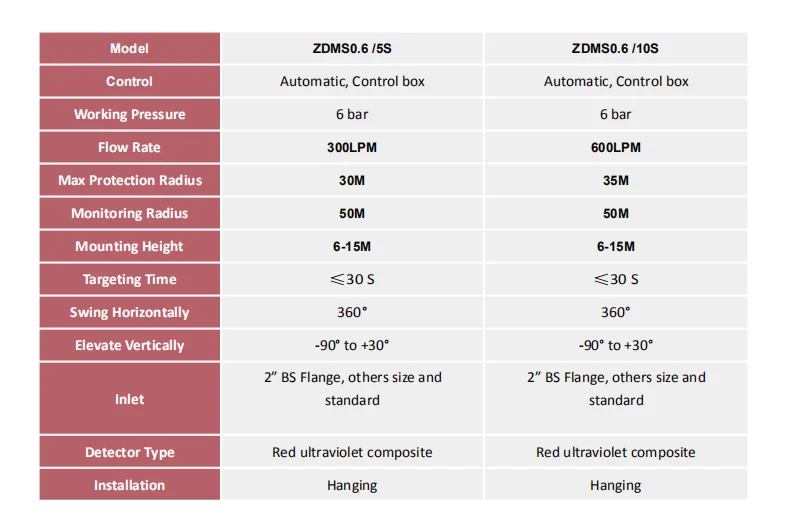

Automatic Fire Monitor--ZDMS0.6/5S /ZDMS0.6/10S(300-600LPM)
Single strand incoming line, anti-winding design;
Integrated design without junction box;
Single tube spherical appearance, smaller size;
Hard anodized surface, more suitable for harsh environments;
Made of high-strength nylon material, fire retardant;
Ring alarm lamp;
Removable sensor guard case;
Laser positioning indication, high-definition screen monitoring;
Integrated design without junction box;
Single tube spherical appearance, smaller size;
Hard anodized surface, more suitable for harsh environments;
Made of high-strength nylon material, fire retardant;
Ring alarm lamp;
Removable sensor guard case;
Laser positioning indication, high-definition screen monitoring;
The automatic fire monitoris an intelligent automatic fire extinguishing and fire fighting system newly developed and produced by BAIAN Fire Protection Technology Co.,ltd .It is a new generation of fireproof and fire extinguishing weapon.
The automatic tracking and positioning jet fire extinguishing device aims to utilize the large amount of red ultraviolet radiation emitted by the combustible material during combustion, and uses the device sensitive to the fire radiation to sense its occurrence and existence through a complete set of intelligent electronic control circuits. The automatic fire extinguishing system is constructed. It can perform omnidirectional scanning and tracking in a protected three-dimensional space, and drive the fire extinguishing device to quickly and accurately aim the injection port to the fire source, and then automatically open the valve and start the pump, and spray the fire extinguishing agent to the fire point in time. You can put out the fire of the initial combustion, and ensure that the signs of the fire are extinguished in the initial state, so that it can not become a disaster, and truly "prevent the unburned"!
The automatic tracking and positioning jet fire extinguishing device has the advantages of long detection distance, large protection area, long injection distance, large injection flow, high sensitivity, fast response speed, high intelligence level, short fire extinguishing time, and the like. There is no blind spot, no blind zone, and the false alarm rate is extremely low. It can greatly eliminate the harm caused by fire and contribute to the protection of people's property and life from fire.
Automatic tracking and positioning jet fire extinguishing device can be widely used in large indoor buildings, such as convention center, airport terminal, railway station waiting hall, exhibition hall, commercial center, stadium, theater, factory, hospital, hotel and other large indoor spaces. building.
The automatic tracking and positioning jet fire extinguishing device aims to utilize the large amount of red ultraviolet radiation emitted by the combustible material during combustion, and uses the device sensitive to the fire radiation to sense its occurrence and existence through a complete set of intelligent electronic control circuits. The automatic fire extinguishing system is constructed. It can perform omnidirectional scanning and tracking in a protected three-dimensional space, and drive the fire extinguishing device to quickly and accurately aim the injection port to the fire source, and then automatically open the valve and start the pump, and spray the fire extinguishing agent to the fire point in time. You can put out the fire of the initial combustion, and ensure that the signs of the fire are extinguished in the initial state, so that it can not become a disaster, and truly "prevent the unburned"!
The automatic tracking and positioning jet fire extinguishing device has the advantages of long detection distance, large protection area, long injection distance, large injection flow, high sensitivity, fast response speed, high intelligence level, short fire extinguishing time, and the like. There is no blind spot, no blind zone, and the false alarm rate is extremely low. It can greatly eliminate the harm caused by fire and contribute to the protection of people's property and life from fire.
Automatic tracking and positioning jet fire extinguishing device can be widely used in large indoor buildings, such as convention center, airport terminal, railway station waiting hall, exhibition hall, commercial center, stadium, theater, factory, hospital, hotel and other large indoor spaces. building.

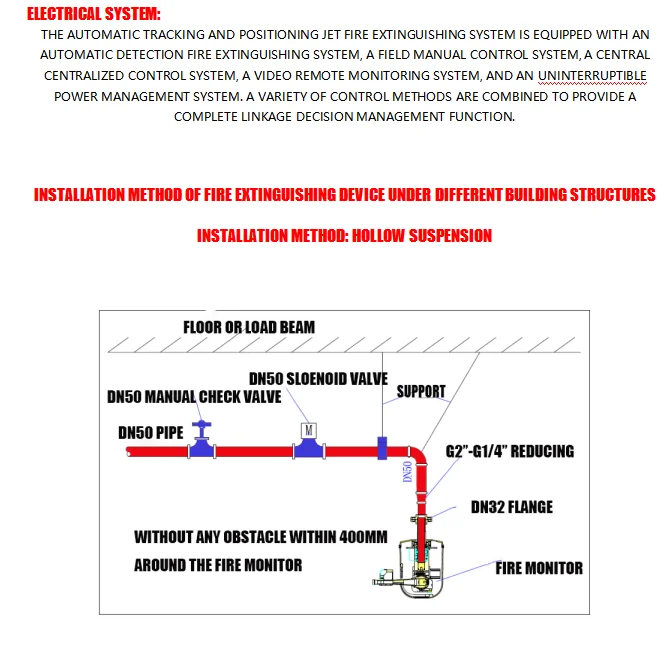

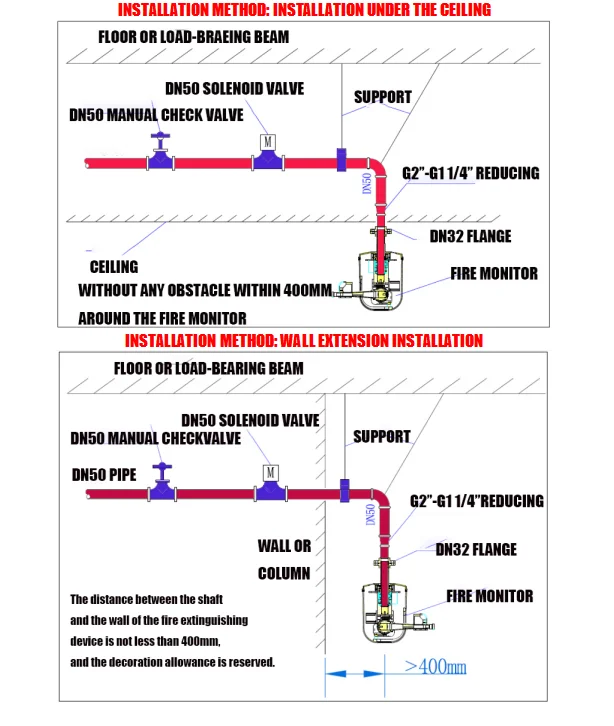

Installation WARNING
(1) The “Code for Construction and Acceptance of Automatic Scanning and Positioning Sprinkler Systems” must be strictly implemented.
(2) The fire extinguishing device and related components shall be installed after the pipeline is installed and flushed and tested. Before installation, it shall be properly kept and appropriate dust, moisture and corrosion prevention measures shall be taken.
(3) There should be no obstacles in the scope of protection to cover the detection, positioning and spraying of the fire extinguishing device.
(4) The fire extinguishing device itself has a certain weight. When installing, it is necessary to consider the bearing capacity of the installation point pipe network and ensure that there is no sloshing when the fire cannon is sprayed, to ensure the injection accuracy, and to strengthen the pipe network bracket if necessary.
(5) Pull gently when installing to prevent impact.

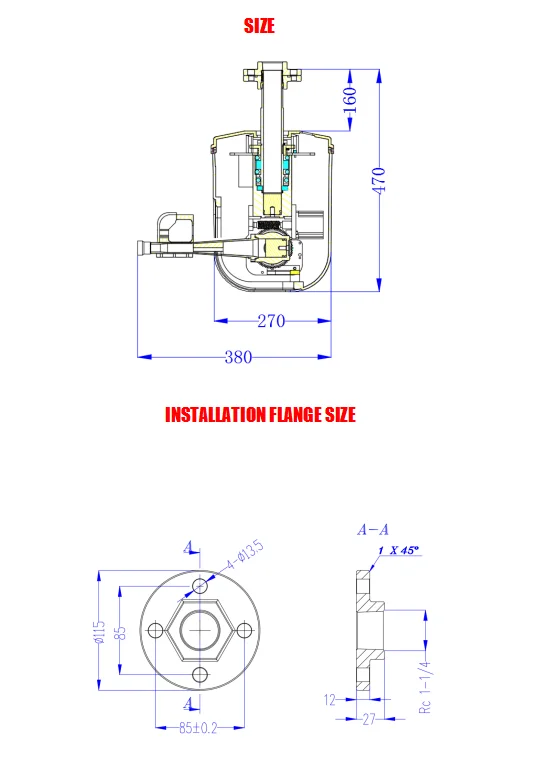

(6) When installing the upper flange of the fire extinguishing device, the end face of the flange is kept horizontal to ensure that the main body of the fire extinguishing device is vertically downward.
(7) The detection component of the fire extinguishing device should be kept clean. Do not directly wipe the light receiving surface of the detecting component by hand.
(8) Be careful not to hit the control components and detection components of the fire-fighting device during installation to avoid breakage of the sensor. The water outlet and sensor slit of the device cannot be plugged.
(9) When the wall is installed, the limit position is marked on the wall surface, and the distance between the fire extinguishing device and the wall surface is ≥400mm.

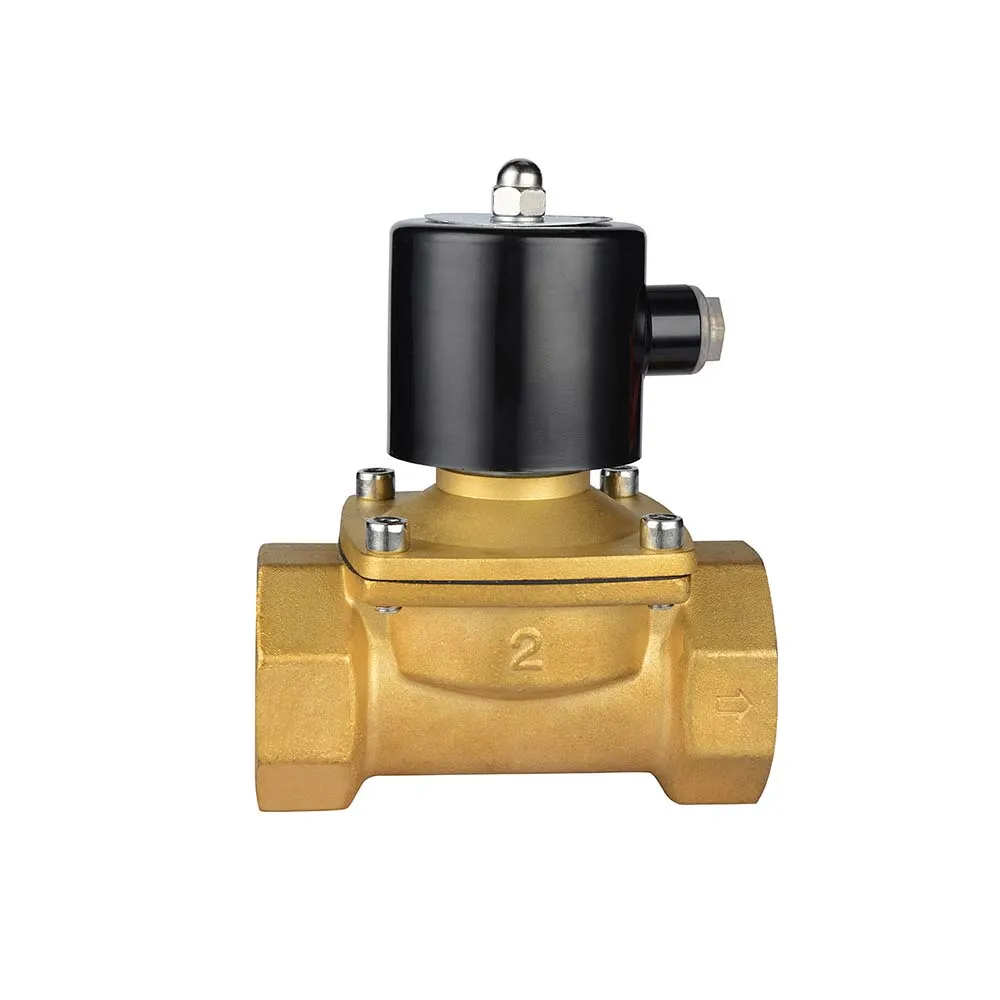

(10) Before installing the solenoid valve, the pipeline must be cleaned to prevent debris from clogging the solenoid valve.
(11) After the fire extinguishing device and its components are installed, pay attention to waterproof, dustproof and anti-collision.
(2) The fire extinguishing device and related components shall be installed after the pipeline is installed and flushed and tested. Before installation, it shall be properly kept and appropriate dust, moisture and corrosion prevention measures shall be taken.
(3) There should be no obstacles in the scope of protection to cover the detection, positioning and spraying of the fire extinguishing device.
(4) The fire extinguishing device itself has a certain weight. When installing, it is necessary to consider the bearing capacity of the installation point pipe network and ensure that there is no sloshing when the fire cannon is sprayed, to ensure the injection accuracy, and to strengthen the pipe network bracket if necessary.
(5) Pull gently when installing to prevent impact.
(6) When installing the upper flange of the fire extinguishing device, the end face of the flange is kept horizontal to ensure that the main body of the fire extinguishing device is vertically downward.
(7) The detection component of the fire extinguishing device should be kept clean. Do not directly wipe the light receiving surface of the detecting component by hand.
(8) Be careful not to hit the control components and detection components of the fire-fighting device during installation to avoid breakage of the sensor. The water outlet and sensor slit of the device cannot be plugged.
(9) When the wall is installed, the limit position is marked on the wall surface, and the distance between the fire extinguishing device and the wall surface is ≥400mm.
(10) Before installing the solenoid valve, the pipeline must be cleaned to prevent debris from clogging the solenoid valve.
(11) After the fire extinguishing device and its components are installed, pay attention to waterproof, dustproof and anti-collision.
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
BAIAN FIRE PROTECTION TECHNOLOGY.,LTD (BAFF FIRE
FIGHTING ) which is a fire fighting equipment export manufacturer .Our head office is in Singapore and have branch in China
welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire
fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and
others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other
country .
We have 34 years experience and advantages in this industry .It is able to quickly develop new design and new products according
to our customer’s specific requirement and pricing .
FIGHTING ) which is a fire fighting equipment export manufacturer .Our head office is in Singapore and have branch in China
welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire
fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and
others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other
country .
We have 34 years experience and advantages in this industry .It is able to quickly develop new design and new products according
to our customer’s specific requirement and pricing .
