LiTech LiFePO4 battery deep cycle 3.2V 12V 24V 36V 48V 100Ah 200Ah 280Ah Rechargeable lithium ion battery pack

Product Overview

Description



LiTech 48V 100Ah battery pack is a LiFePO4 rechargeable Battery Pack with Battery Management System integrated, normal voltage at 48V, rated capacity at 100Ah, with 15cm long 12AWG open wires for charge and discharge (it comes with bare leads in default but connector can be customized accordingly), it is mainly used on electric tools, electric toys, electric bikes, electric scooters, electric boats...



Voltage Range	40V -58.4V
Capacity	Nominal Capacity: 100Ah
	Minimum Capacity:98.5AH
Charge Cut-off Voltage	58.4V
Discharge Cut-off Voltage	40V
Continuous Discharge Current	150 A
Discharge Peak Current	200 A
Charge Current	50 A
Cycle Life	≥ 800 cycles, DOD 100% @ rated current and temp.
Weight	45000g ± 100g
Dimension	TBD
Operation Temp.	Discharge at -20°C ~ 60°C & Charge at 0°C ~ 45°C
Communication Protocol	Independent choice

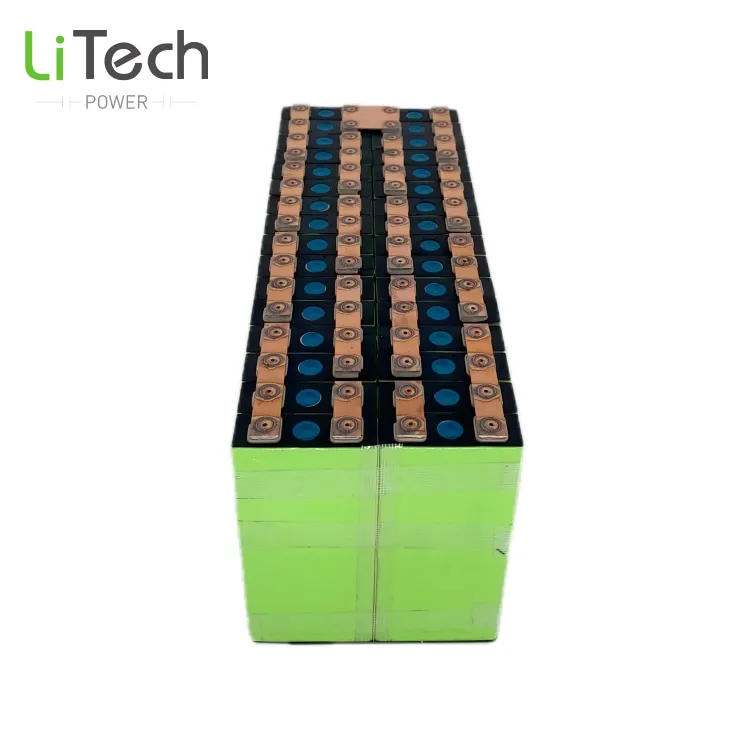

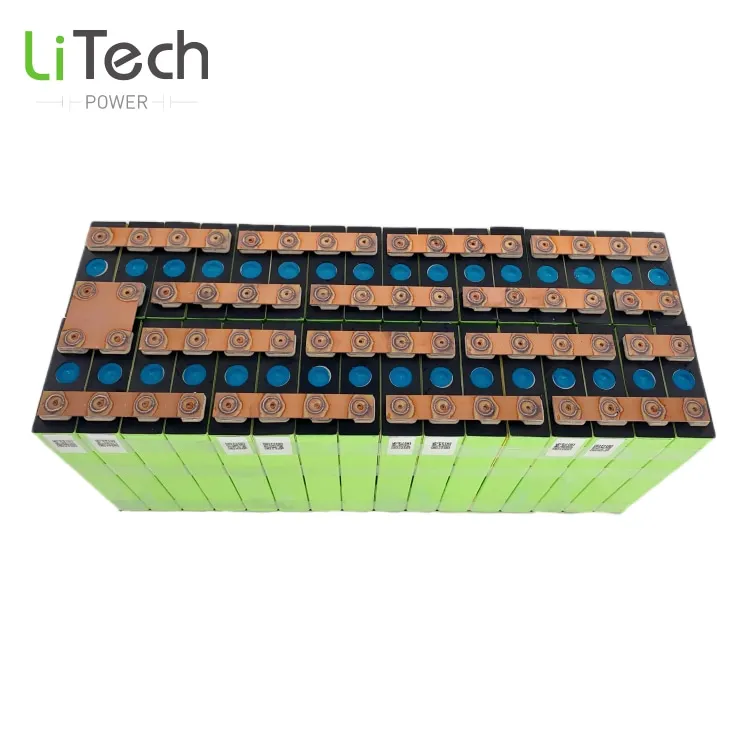

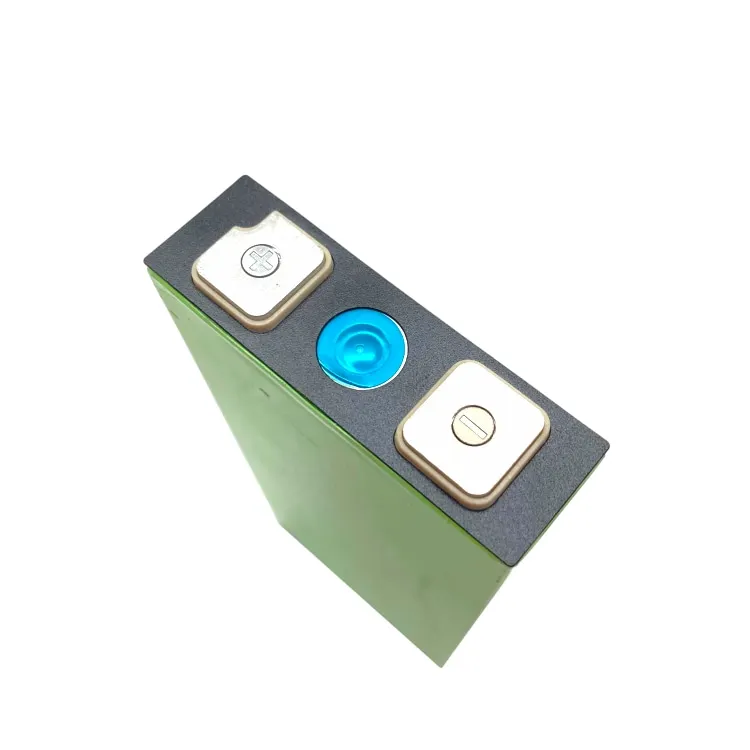

We strictly control each prodcution procedure, closer look at our battery inside



During production, there are more than 20 different testings

 are applied on all the battery packs



Battery is dangerous if you select wrong partner, LiTech will guarantee

 you on safety and reliability, make your products more robust.
