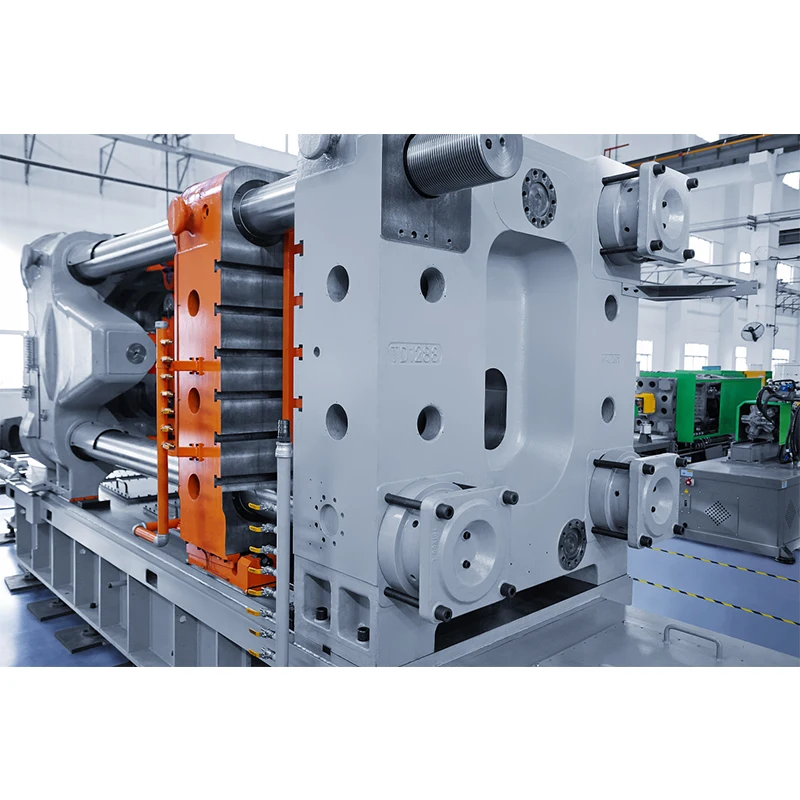

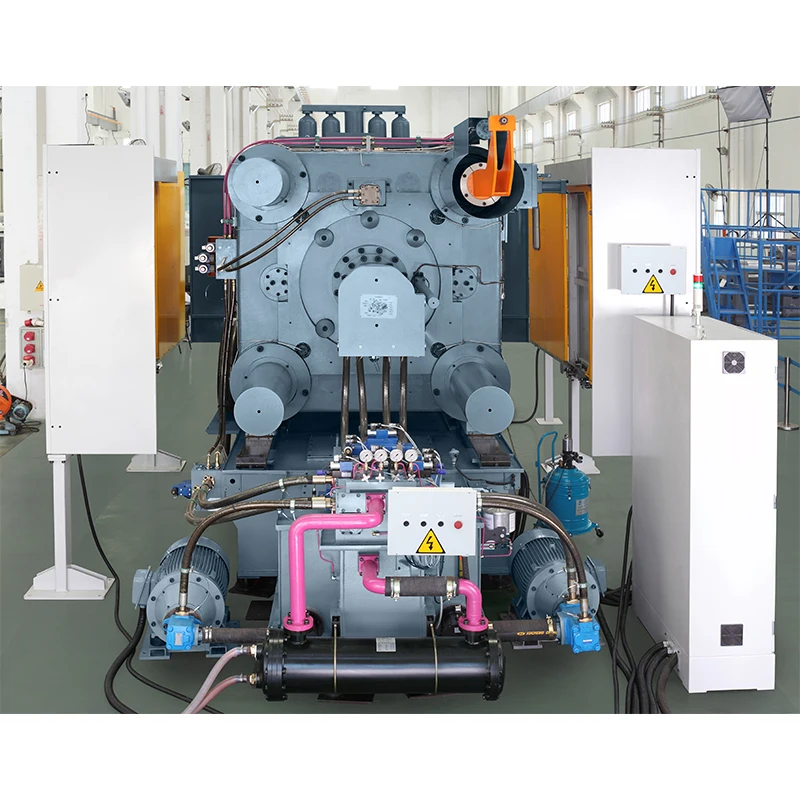

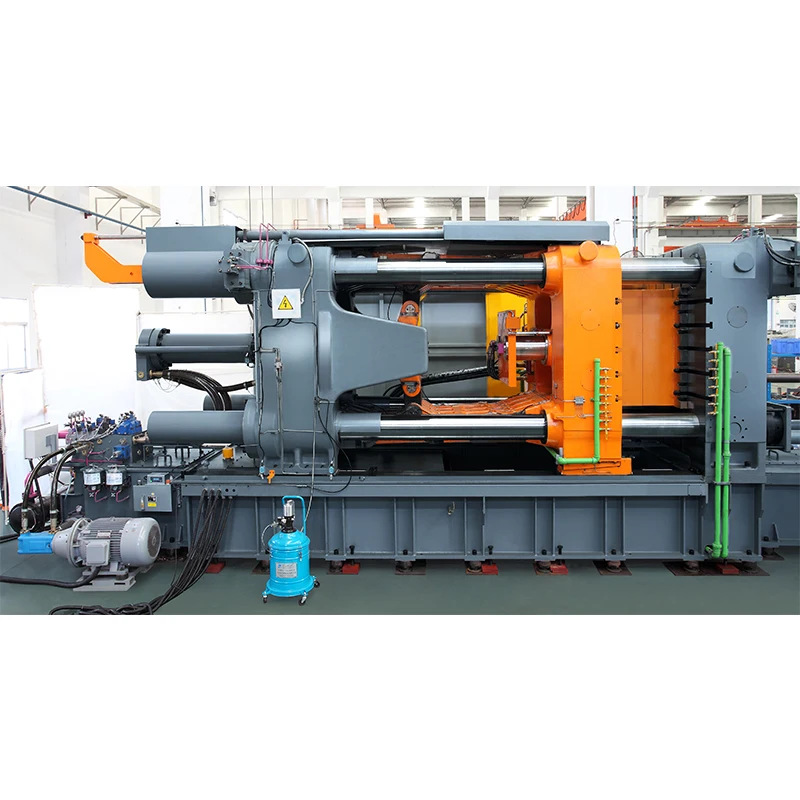

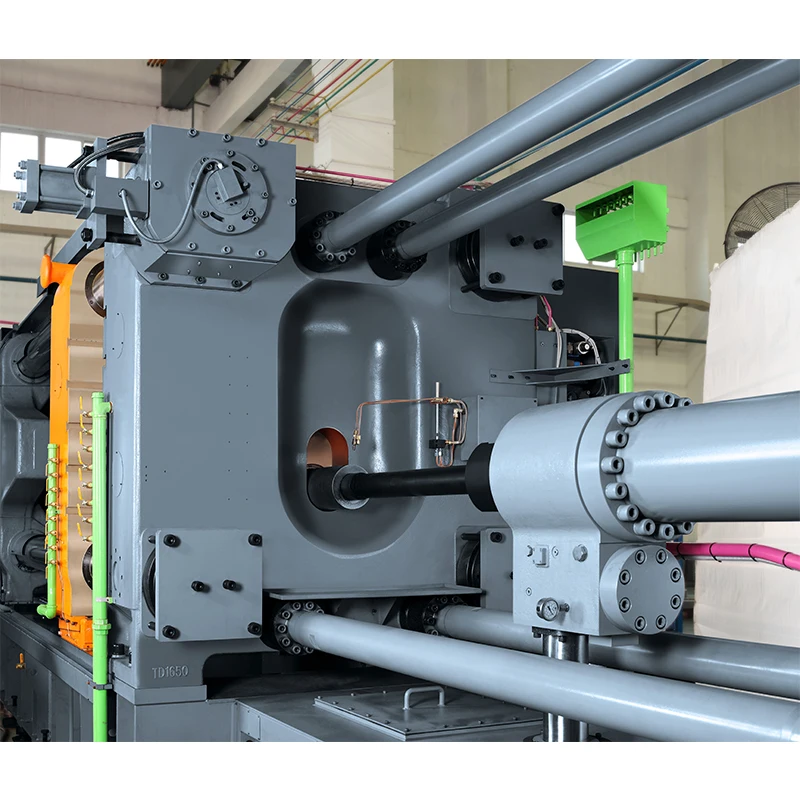

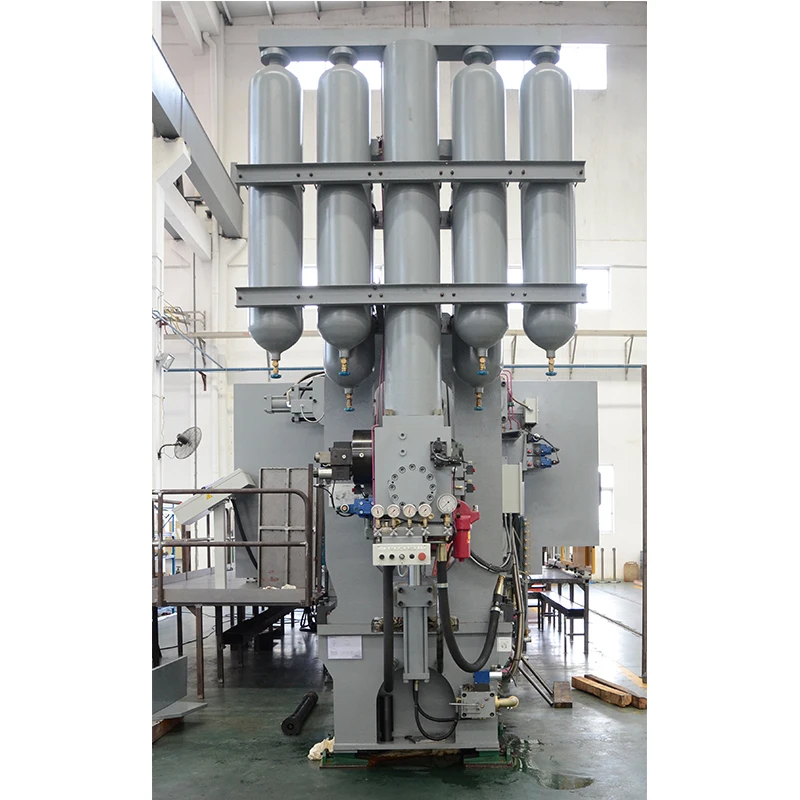

Magnesium die casting machines Energy efficient die casting aluminum machine
- Category: >>>
- Supplier: LANSON PRECISION INTELLIGENCE EQUIPMENT TECHNOLOGY CO. LTD
Share on (1600475954696):
Product Overview
Description
ITEM | unit | LS2000 | ||||
Clamping Force | kN | 20000 | ||||
Clamping Stroke | mm | 1400 | ||||
Die Height (Min.-Max.) | mm | 650-1600 | ||||
Platen Size(HxV) | mm | 2150x2150 | ||||
Space Between Tie Bars | mm | 1350x1350 | ||||
Injection Force(With Intensification) | kN | 1510 | ||||
Injection Stroke | mm | 1050 | ||||
Plunger Diameter | mm | 120-160 | ||||
Injection Weight(Aluminum) | kg | 22.3-39.6 | ||||
Casting Pressure(With Intensification) | MPa | 133-75 | ||||
Casting Area | cm2 | 1500-2660 | ||||
Max.Casting Area(40MPa) | cm2 | 5000 | ||||
Injection Position(Below Center Line) | mm | -175,-350 | ||||
Plunger Penetration | mm | 450 | ||||
Diameter Of Pressure Chamber Flange | mm | 260 | ||||
Height Of Pressure Chamber Flange | mm | 30 | ||||
Ejecting Force | kN | 650 | ||||
Ejecting Stroke | mm | 300 | ||||
Hydraulic Working Pressure | MPa | 16 | ||||
Motor Capacity | kW | 130 | ||||
Hydraulic Oil Tank Capacity | L | 3300 | ||||
Machine Dimensions(LxWxH) | mm | 13000x4700x4700 | ||||
