Product Overview

Description



Parameters


Frame
A21
Bottom Bracket
BB86
Material
Toray T800 carbon fiber
Sizes
48/51/54/56/59cm
Max Tire Size
700C*28mm
Stem Size
100/110/120mm
Headtube
TOP:1-1/2'',DOWN1-1/2"
Handlebar size
400mm/420mm/440mm
Stem size
90/100/110/120mm
Certificate
 SGS/ISO4210-6
Weight
1123±40g
Warranty
3 Years


Description




AERODYNAMIC CONSTRUCTION
The core of the ICAN A21’s aerodynamic construction is its patented airfoil design Technology. Thanks to its new fork design and integrated cable routing the air drag got further minimalized.




INTEGRATION
The new A21 has completely integrated cable routing for both mechanical and electronical shifting. This was achieved by our engineers without any compromise on shifting or braking quality, as well as on the stiffness of the headset. On top of that it will be surprisingly easy for mechanics to change cables and maintain the bike.




NEW FORK
The fork got completely redesigned to allow fully integrated cable routing and to guarantee perfect airflow to reduce the drag even further.




\t

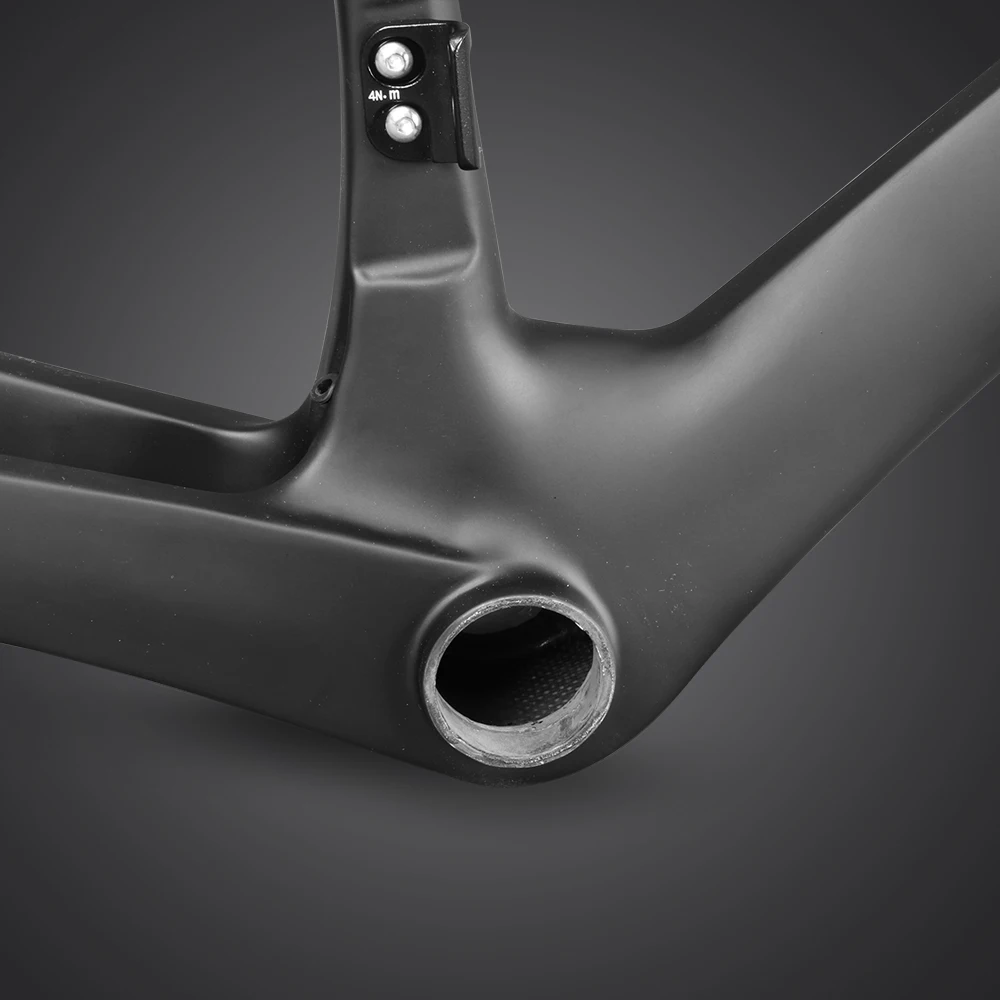

STRONGER BB DESIGN
The frame adopts the press-fit BB86 bottom bracket,can provide higher rigidity,the hidden cable design also can reduce the impact
on BB rigidity.The BB adopts the round shape design,the carbon fiber stack is more smooth and flat, to ensure the maximum
performance of carbon fiber near the BB.




SEAT POST
The A21 features a perfectly integrated seat post clamp and a neat transition between the seat-tube and the seat post to maximize aerodynamic efficiency while maintaining utility. The proprietary seat post follows the aerodynamic tube shapes of the frame.


Geometry




XXS/46
XS/49
S/52
M/54
L/56
XL/58
HTA
Head tube angle
70.8 °
71.0 °
72.0 °
72.5 °
73.0 °
73.3 °
HTL
Head tube length
110 mm
115 mm
130 mm
130 mm
170.0 mm
190.0 mm
TTL
Top tube horizontal
510.6 mm
520.0 mm
535.0 mm
550.0 mm
565.0 mm
580.0 mm
FL
Axle to crown
370.0 mm
370.0 mm
370.0 mm
370.0 mm
370.0 mm
370.0 mm
BBH
BB height
66.0 mm
66.0 mm
66.0 mm
66.0 mm
66.0 mm
66.0 mm
FR
Fork Rake
50.0 mm
50.0 mm
50.0 mm
50.0 mm
50.0 mm
50.0 mm
WB
Wheel base
980.5 mm
988.9 mm
991.0 mm
997.8 mm
1005.1mm
1013.7 mm
FC
Front center
579.6 mm
588.0 mm
590.0 mm
596.8 mm
604.0 mm
612.6 mm
STL
BB center to top
460.0 mm
490.0 mm
520.0 mm
540.0 mm
560.0 mm
580.0 mm
STA
Seat angle
74.5 °
 74.5 °
 74.0 °
73.6 °
73.3 °
 73.0 °
RC
Chainstay
410.0 mm
410.0 mm
410.0 mm
410.0 mm
410.0 mm
410.0 mm
REACH
Reach
371.2 mm
378.9 mm
384.0 mm
388.8 mm
394.5 mm
400.0 mm
STACK
Stack
502.6 mm
509.0 mm
526.7 mm
547.6 mm
568.5 mm
588.7 mm
Frame Weight
1050g
1053g
1093g
1123g
1143g
1163g




Company Information




Certificates and exhibition




Shipping & Payment




Choose our factory,you will choose one of the quality same with famous brand. We are the original producing of them. So we can provide three years warranty for frame，two years for wheels. You can not only buy our bikes with confidence but also sell our bikes with confidence. Welcome to inquiry.
