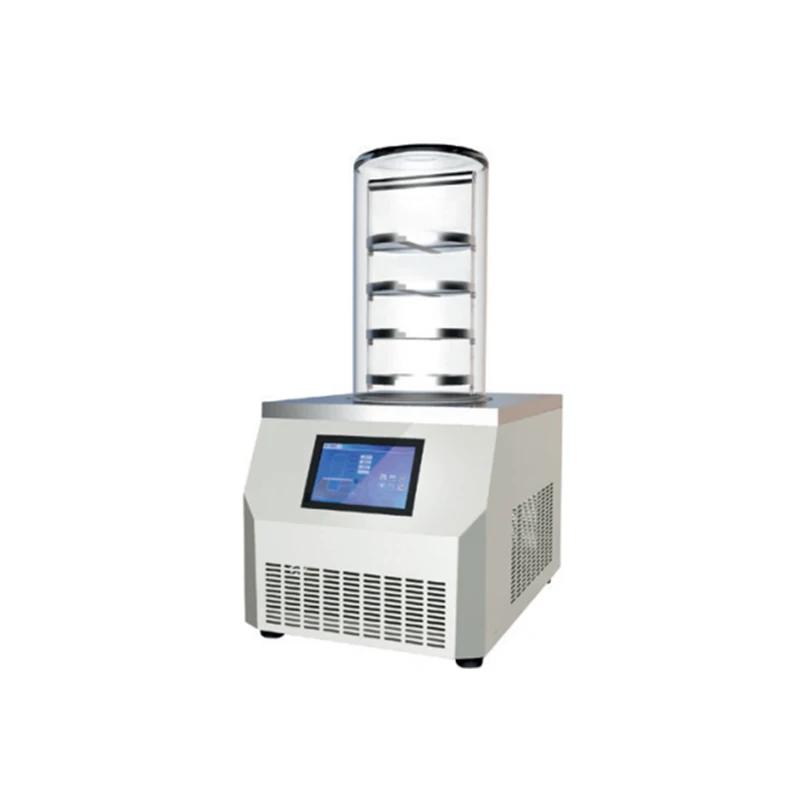

NADE LGJ 10B Transparent Bell Type Drying Chamber Top Press Freeze Dryer Freeze Drying For Sale
- Category: >>>
- Supplier: Zhejiang Nade Scientific Instrument Co. Ltd.
Share on (1600475995144):
Product Overview
Description
■All-in-one structure, small size, no external flange, easy to use, no leakage.
■All materials in contact with the product use inert materials to meet the requiremenls of the GLP.
■The cold trap and cxxisole are made of stainless steel, which is anti-corrosion and easy to dean.
■The cold trap and cxxisole are made of stainless steel, which is anti-corrosion and easy to dean.
■All stainless steel inflated/water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
Model | LGJ-10 | LGJ-12/12S | LGJ-18/18S | |||||||||||
Specificatioon | Unit | Standard | Top-press | Standard | Top-press | Standard | Top-press | |||||||
Freeze-drying area | ㎡ | 0.12 | 0.08 | 0.12 | 0.08 | 0.18 | 0.27 | 0.09 | ||||||
Cold trap temperature | ℃ | <-56(no-loading),option<-80(no-loading | ||||||||||||
Vacuum degree | Pa | ≤-56(no-loading)≤5(no-loading) | ||||||||||||
Water-capture capability | kg/24h | 3-4 | 3-4 | 3-6 | ||||||||||
Tray dimension | mm | Φ200 | Φ180 | Φ200 | Φ180 | Φ240 | Φ240 | Φ200 | ||||||
Trays number | / | 4 | 3 | 4 | 3 | 4 | 6 | 3 | ||||||
Tray spacing | mm | 70 | 70 | 70 | ||||||||||
Power | W | 970 | 970 | 1400 | ||||||||||
Weight | kg | 41 | 62 | 105 | ||||||||||
Dimension(-56℃) | mm | 615x450x370 | 580x500x720 | 630x580x970 | ||||||||||
Dimension(-80℃) | mm | 850x680x405 | 770x550x720 | 810x580x950 | ||||||||||
Drying chamber size | mm | Ф260x430 | Ф260x490 | Ф260x430 | Ф260x490 | Ф300x445 | Ф300x540 | |||||||
Diameter of cold trap | mm | Ф215 | Ф215 | Ф270 | ||||||||||
Cold trap depth | mm | 140 | 240 | 400 | ||||||||||
Bulk capacity (thickness 10mm) | L | 1.2 | 0.8 | 1.2 | 0.8 | 1.8 | 2.7 | 0.9 | ||||||
Vial loading number | / | / | Ф12mm：492 | / | Ф12mm：492 | / | / | Ф12mm：615 | ||||||
/ | Ф16mm：297 | / | Ф16mm：297 | / | / | Ф16mm：345 | ||||||||
/ | Ф22mm：147 | / | Ф22mm：147 | / | / | Ф22mm：183 | ||||||||
Defrosting | / | Natural defrosting (option electric defrosting) | ||||||||||||
Power | / | 1Ph+N+PE220V | ||||||||||||
Pre-frozen function
■With sample pre-frozen function, large cold trap opening, no inner coil, and low temperature refrigerator is needless.
Well-known brand vacuum pump
■Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
World - known brand compressors
■World - known brand compressors, high efficiency, long life, low noise.
■Patented gas diversion technology, and strong ice holding ability.
■Patented gas diversion technology, and strong ice holding ability.
■Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
■SH-10KCQ Cold trap electric，heating defrosting.
■Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
■Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve,vacuum curve.
Model Selection Guide：
It is suitable for freeze-drying bulk (liquid, pasty, solid) conventional materials.

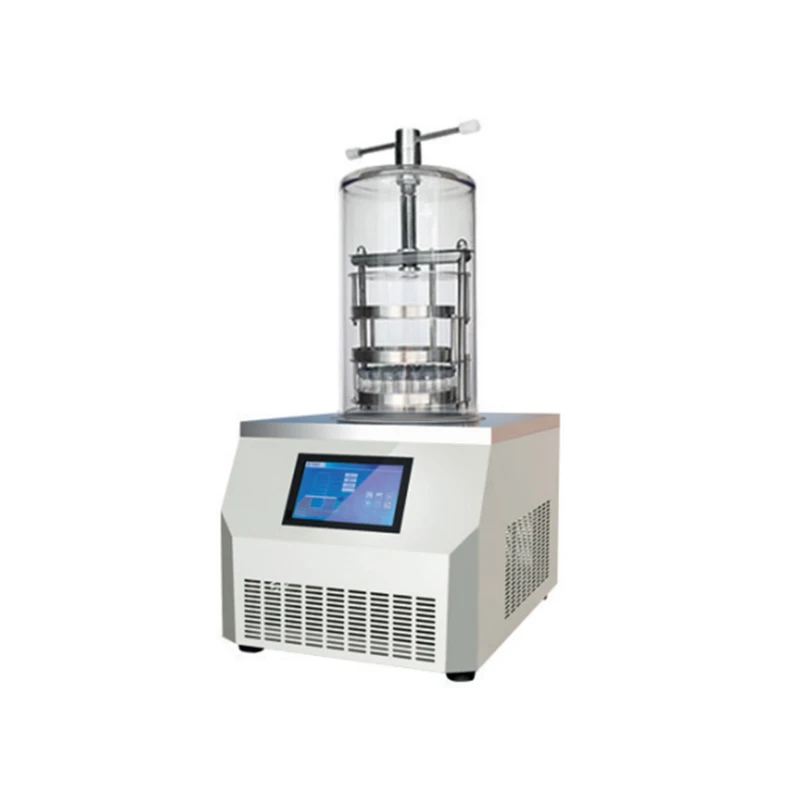

Top-press:
It is not only suitable for freeze-drying of bulk (liquid, pasty, solid) conventional substances, but also suitable for drying of
Vials materials. When preparing for freeze-drying, the materials are separated into Vials according to the need. After floating
the cap, the freeze-drying process start After drying, the capping device is operated to tighten the cap, which can avoid
secondary pollution, re-adsorb water, and is easy to store for a long time.
Vials materials. When preparing for freeze-drying, the materials are separated into Vials according to the need. After floating
the cap, the freeze-drying process start After drying, the capping device is operated to tighten the cap, which can avoid
secondary pollution, re-adsorb water, and is easy to store for a long time.

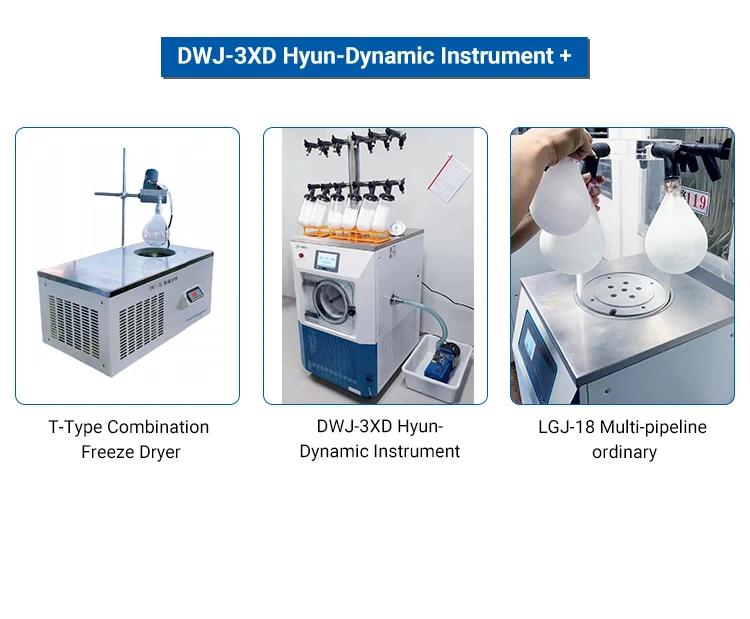

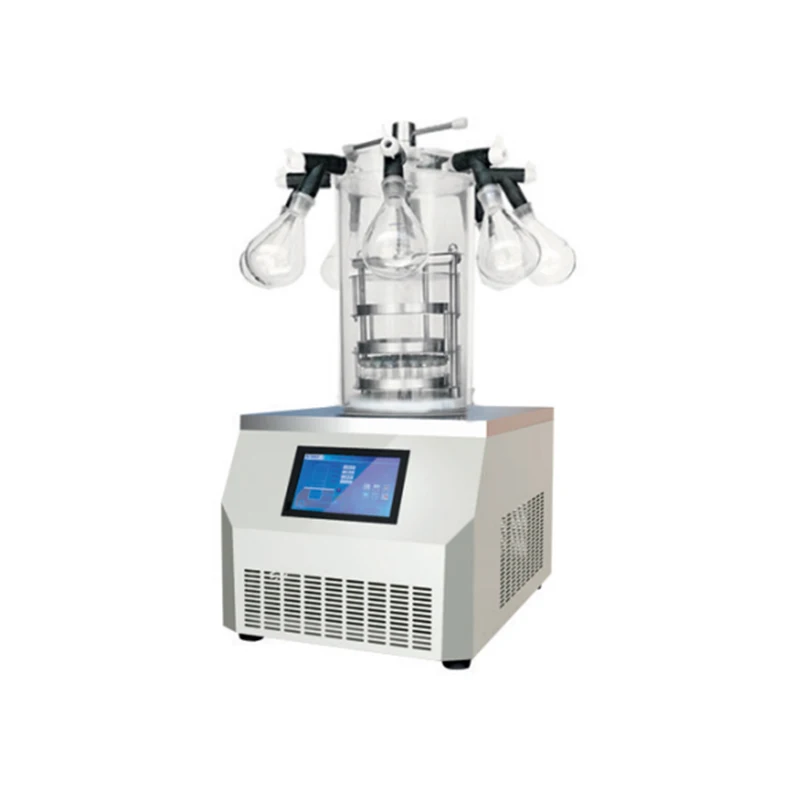

Multi-pipeline ordinary:
It is suitable for the freeze-drying of bulk (liquid, pasty, solid) conventional materials, and can be fitted with flasks outside
the drying chamber to dry the materials rotated inside the bottle wall. At this time, the flask is connected to the manifold
outside the drying chamber as a container. The material in the flask is heated at room temperature. Through the multi-manifold
switch device, the flask can be removed or loaded at any time as needed without stopping the machine.
the drying chamber to dry the materials rotated inside the bottle wall. At this time, the flask is connected to the manifold
outside the drying chamber as a container. The material in the flask is heated at room temperature. Through the multi-manifold
switch device, the flask can be removed or loaded at any time as needed without stopping the machine.
Multi-pipeline top-press:
On the basis of the characteristics of the common type, it combines the characteristics of the cover type and the common type of
multi-weir pipe. Suitable for freeze-drying of bulk (liquid, paste, solid) conventional materials; suitable for drying of vial
materials. In preparation for freeze-drying, divide material into vials as needed. After the lid is floated, the freeze-drying
process begins. After drying, operate the capping device to tighten the cap, which can avoid secondary pollution, re-absorb
moisture, and facilitate long-term storage.
multi-weir pipe. Suitable for freeze-drying of bulk (liquid, paste, solid) conventional materials; suitable for drying of vial
materials. In preparation for freeze-drying, divide material into vials as needed. After the lid is floated, the freeze-drying
process begins. After drying, operate the capping device to tighten the cap, which can avoid secondary pollution, re-absorb
moisture, and facilitate long-term storage.

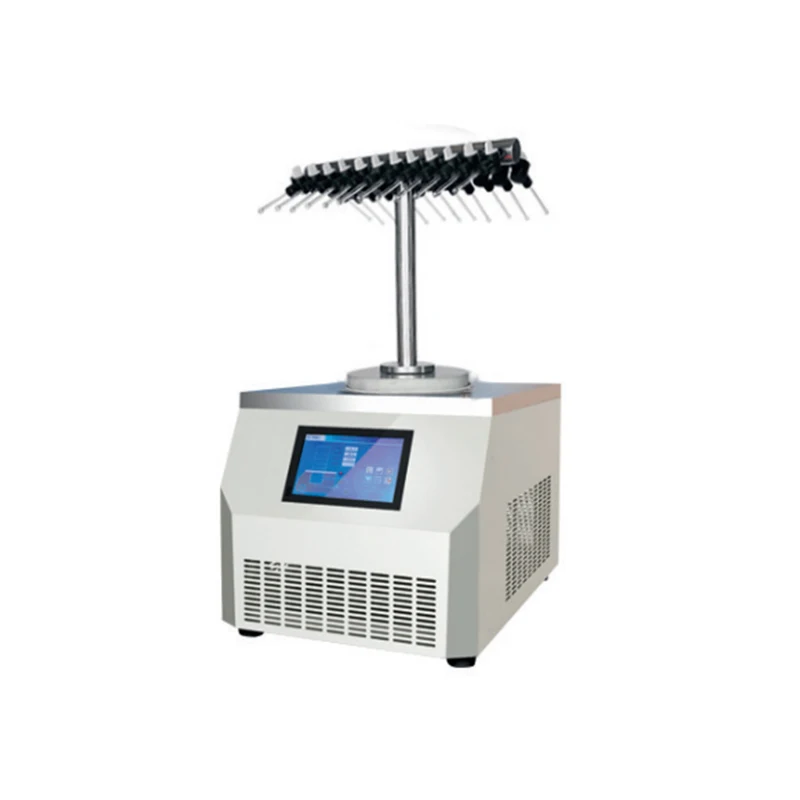

T shelf:
preservation, small variation, easy storage and Widely used.
Q: How long is the delivery time?
A: Just inquire NADE sales to get a schedule.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by NADE ?
A: The after-sales service of NADE is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience,our instruments works well during warranty period.
A: Just inquire NADE sales to get a schedule.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by NADE ?
A: The after-sales service of NADE is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience,our instruments works well during warranty period.
