Solar Energy System Home Hybrid Solar Power Systems 1KW 5KW 10KW 20KW Off Grid Solar Panel System For Home Energy Storge
- Category: Solar Energy Products >>>
- Supplier: Foshan,Snat,Energy,Electrical,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Home solar system | ||
Target facilities | Personal residence | |
Application | Refrigerator, energy-saving lighting, TV, fan, street light | |
Advantage | The system structure is simple; Very suitable for scattered rural areas; Use more accurately because the user is a separate household. | |
Solar panels
- 21% conversion efficiency
- Anti-reflection tempered glass
- Anodic aluminium-alloy frame
- MC4 junction box
IGBT inverter 10KW
- Double CPU intelligent control
- Settable the mains mode
- Controlled by intelligent fan
- Pure sine wave AC output
- LCD display
- Automatic protection
- RS232 communication interface design
- LCD+LED display mode
- Kinds of battery protect data setting
- Complete protect
- History record and password protect function
- Time display function
- Number of PV input array: 6
- Max input pv current each array: 16A
- Max output current: 96A, 600Vdc
- Lighting Protection, it reduces solar cable
IP65
- 12V/200Ah
- 54kg
- Silver-coated copper terminals, brass insert
maintenance-free
Mounting structure
- Pitched Roof, flat roof, tile roof, tin roof,
ground, vertical wall- High Class Anodized Aluminum
- Wind Load: up to 130mph (60m/s)
- Snow Load: up to 30psf (1.4kN/m2)
Connection cable
- Solar panel cables 4mm2
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector
Item | Model | Description |
1 | Solar panel | Mono 300w solar panel |
2 | IGBT solar inverter | 10KW96VDC 220VAC 50HZ |
3 | Solar charge controller | MPPT 96VDC 100A |
4 | Pv combiner box | 6 solar arrays input , 1 arrays output |
5 | Battery | 12V Gel battery |
6 | Solar bracket | Flat ground and roof for optional:one set can mount 3pcs panels |
7 | Solar cables | 4mm 2solar cables, 200mm 2battery cables, 16mm 2electric cable |
8 | Solar connector | MC4 solar connector, rated voltage:1000v |

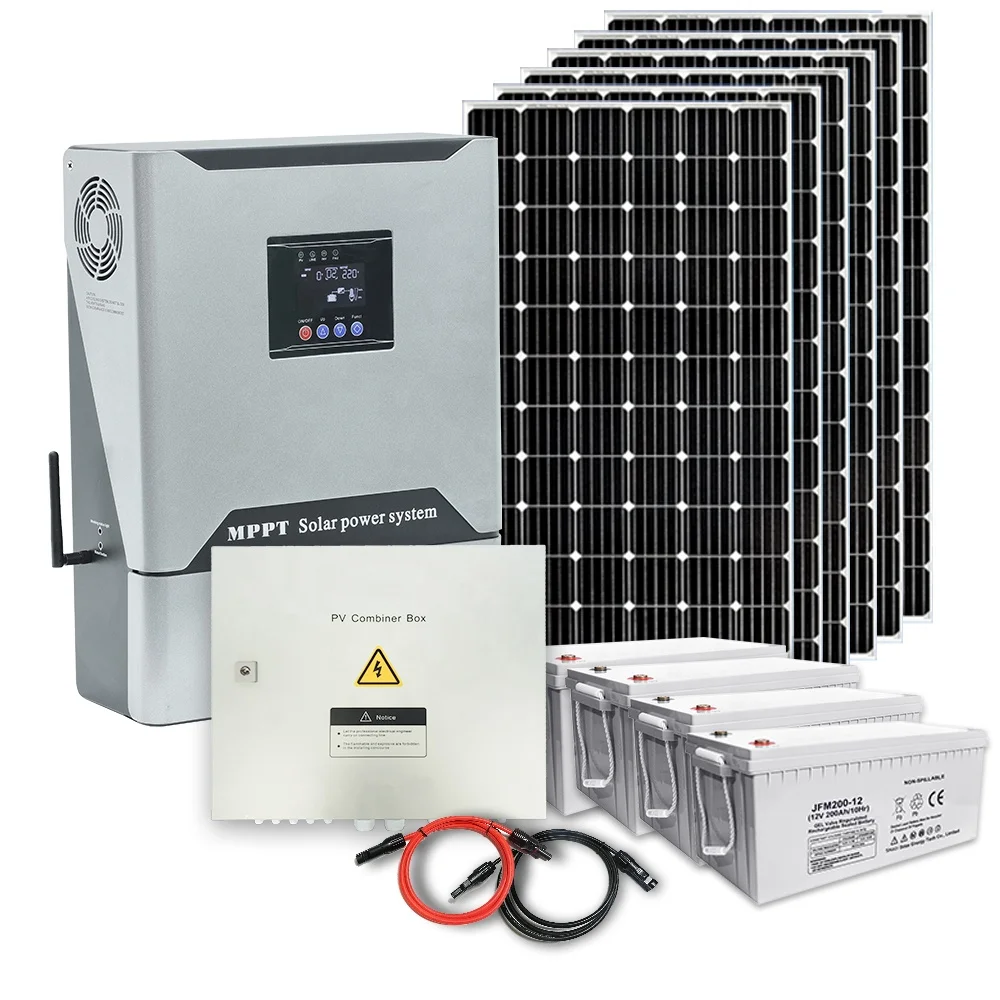

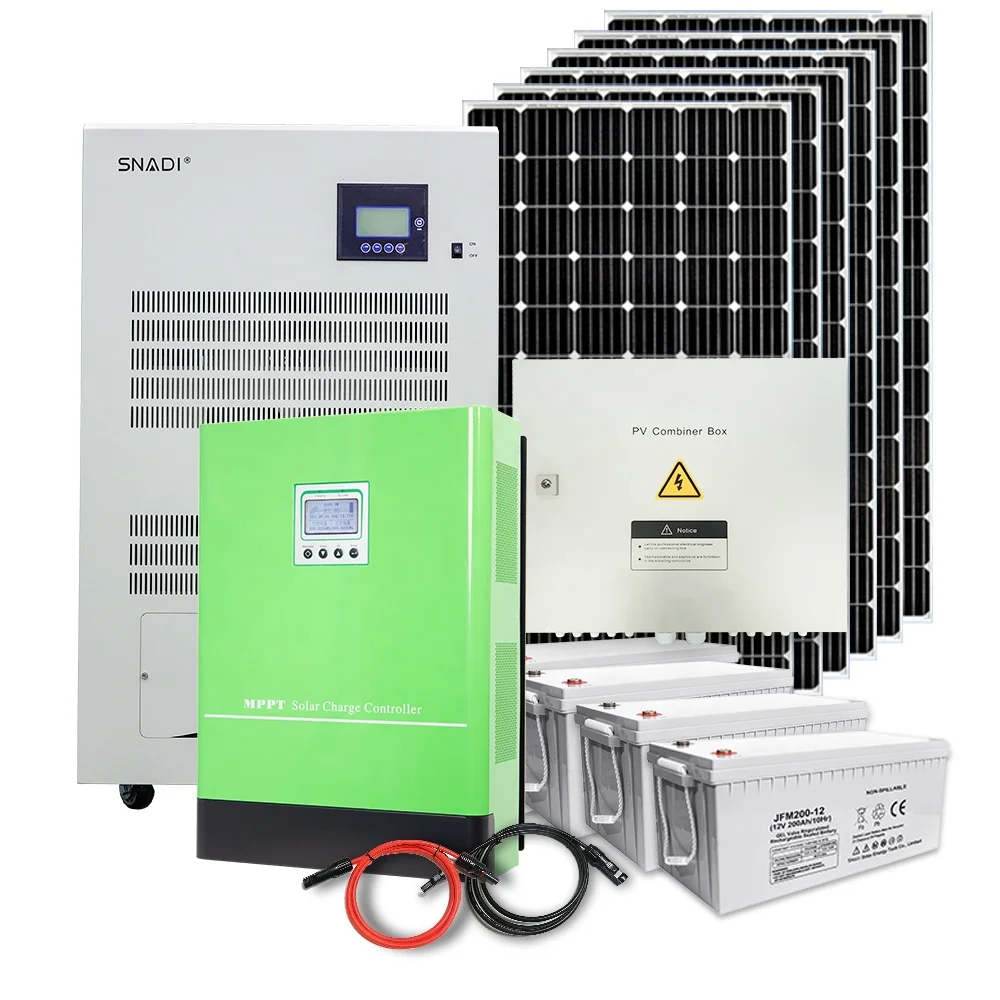

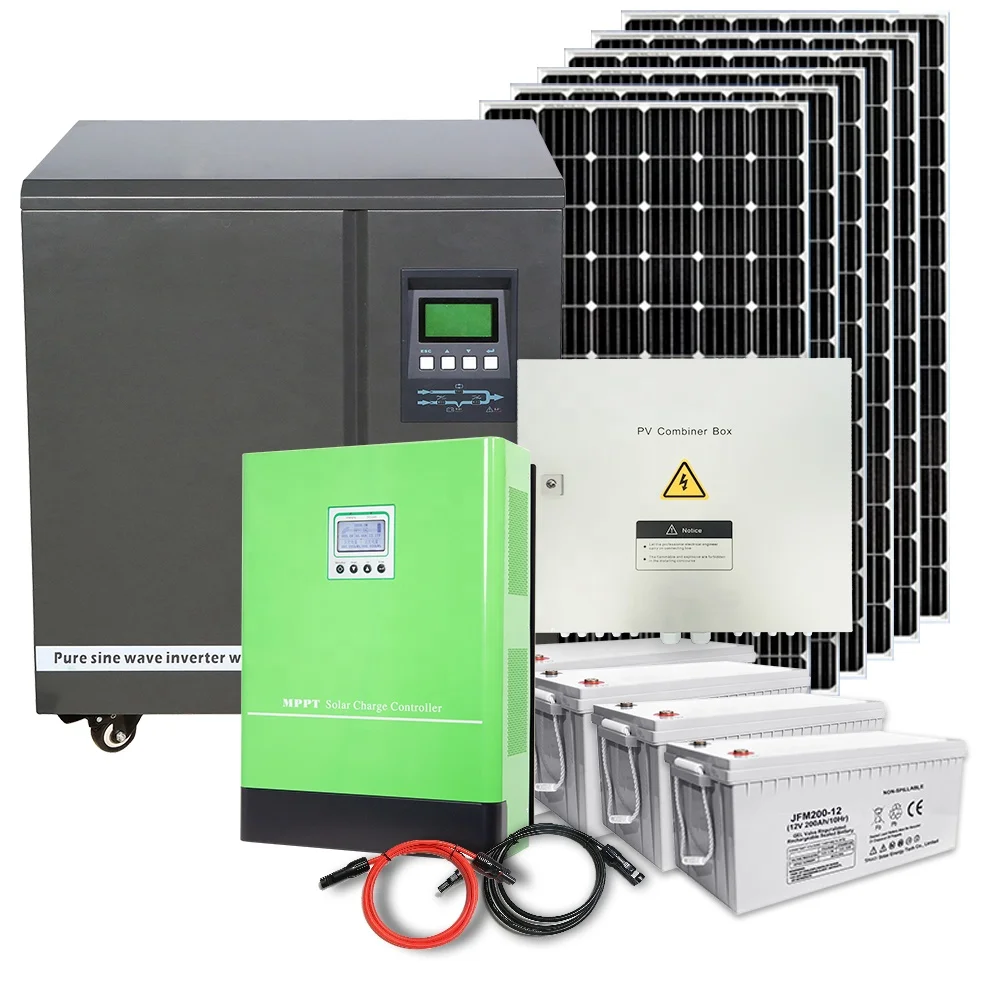

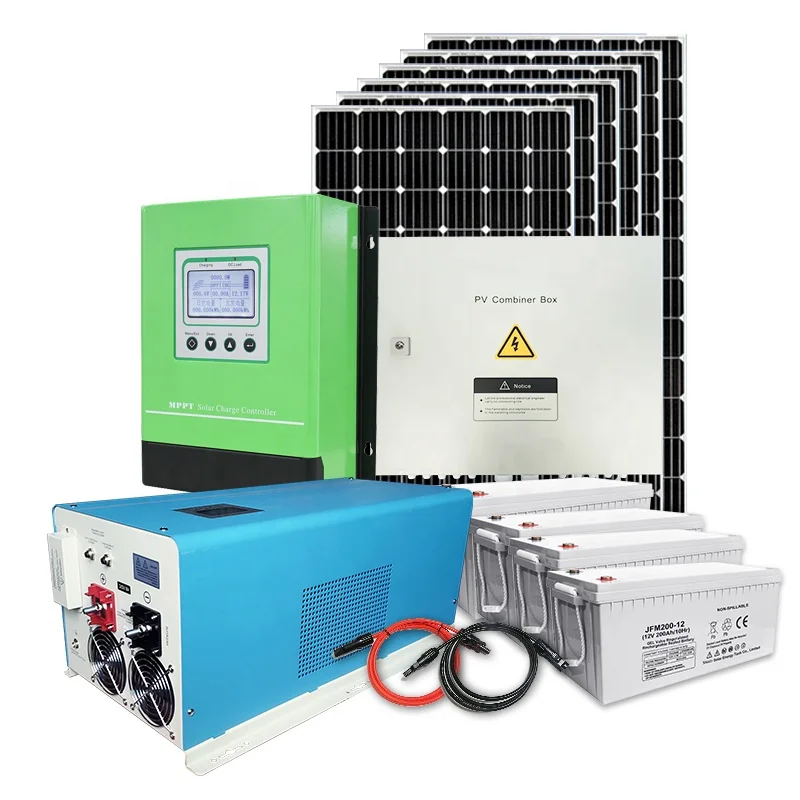

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter. The functions of each part are as follows:
(1) Photovoltaic modules: Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.
(2) Photovoltaic combiner box: The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.
(3) Solar controller: The solar controller provides the functions of the photovoltaic module to charge and discharge the battery, such as overcharge, overdischarge protection, temperature compensation, etc. Other additional functions such as light control switches and time control switches should be optional for the controller.
(4) Inverter: The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.
(5) Battery: Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
(1) Photovoltaic modules: Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.
(2) Photovoltaic combiner box: The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.
(3) Solar controller: The solar controller provides the functions of the photovoltaic module to charge and discharge the battery, such as overcharge, overdischarge protection, temperature compensation, etc. Other additional functions such as light control switches and time control switches should be optional for the controller.
(4) Inverter: The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.
(5) Battery: Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar
power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Within 15 days.
Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
