Product Overview
Description
APPLICATION
The bladder tank , together with ration controllers , form a balanced pressure proportioning system
used to mix water and fire fighting foam together to genetate an effective extinguishing medi to mix water
and fire fighting foam together to genetate an effective extinguishing medium .
The bladder tank technology is a reliable and precise mixing method that is widespread in the fire fighing
industry.This method alllows the water/foam ration to remain stalble by automatically adjustin the variable
flow rates and pressure conditions that may occur during system operation .
This feature makes bladder tank particularly suitable for multiple hazard systems , sprinkler systems and
any other system operationg under variable , non predictable , flow and pressure conditions
used to mix water and fire fighting foam together to genetate an effective extinguishing medi to mix water
and fire fighting foam together to genetate an effective extinguishing medium .
The bladder tank technology is a reliable and precise mixing method that is widespread in the fire fighing
industry.This method alllows the water/foam ration to remain stalble by automatically adjustin the variable
flow rates and pressure conditions that may occur during system operation .
This feature makes bladder tank particularly suitable for multiple hazard systems , sprinkler systems and
any other system operationg under variable , non predictable , flow and pressure conditions
OPTIONS

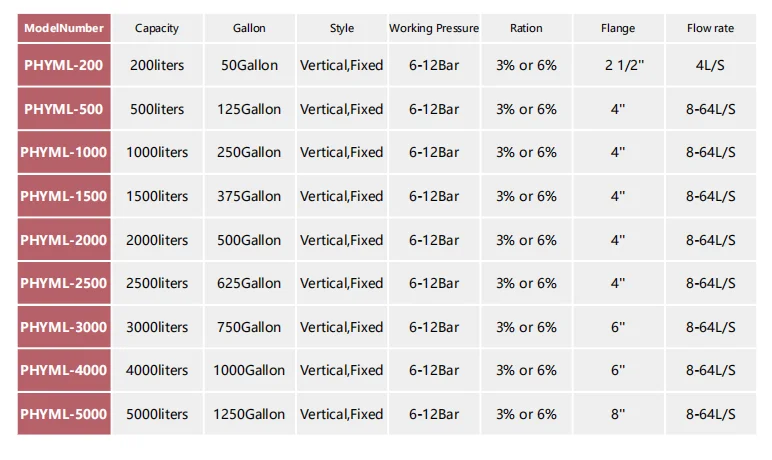

Mixing ration selector 3% and 6% .
Flange size :Acoording to customer requiry from 2 1/2'' inch -8 inch . Flow
rate :According to customer requiryment .

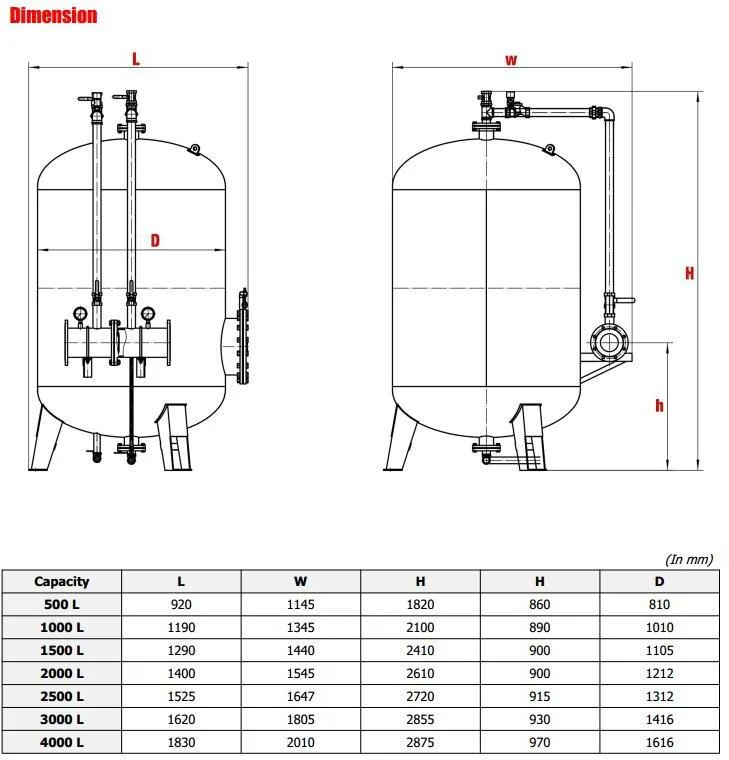

Size : see the attachmen
Flange size :Acoording to customer requiry from 2 1/2'' inch -8 inch . Flow
rate :According to customer requiryment .
Size : see the attachmen
STANDARD DESIGN DATE
Design pressure :175 psi (12 bar )
Test pressure :251 psi (17.3 bar)

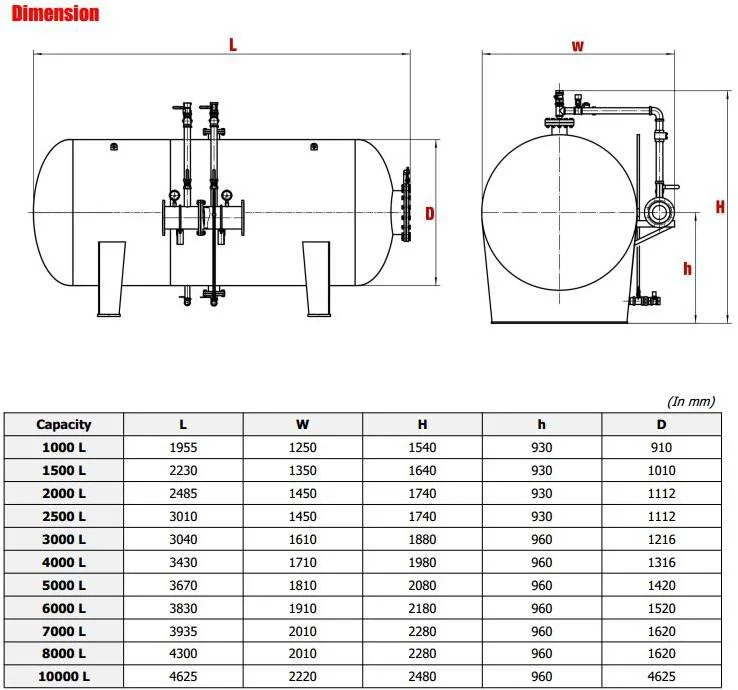

Capacity : see tables
Test pressure :251 psi (17.3 bar)
Capacity : see tables
CONSTRUCTION FEATURES

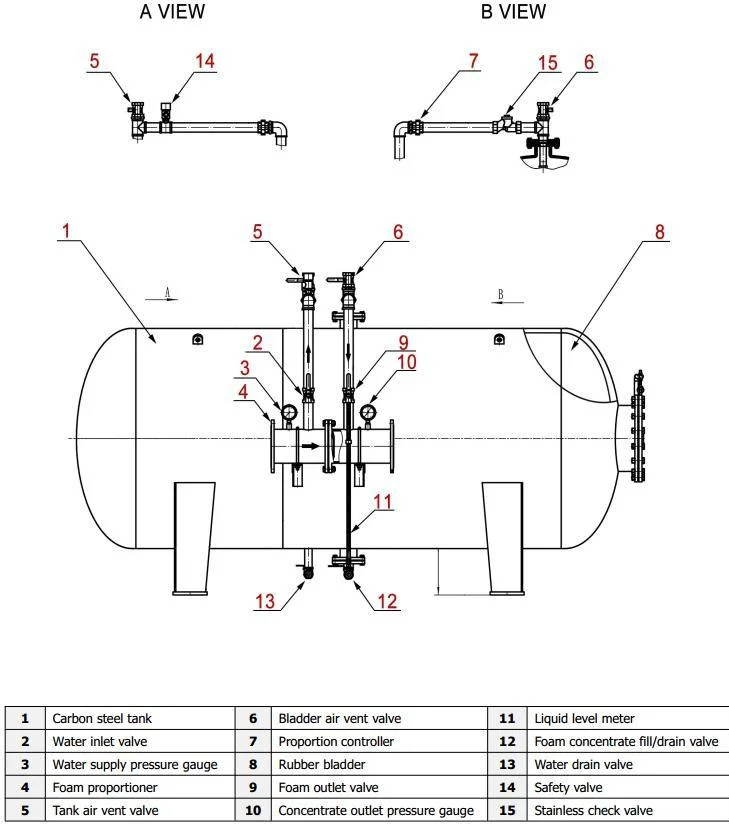

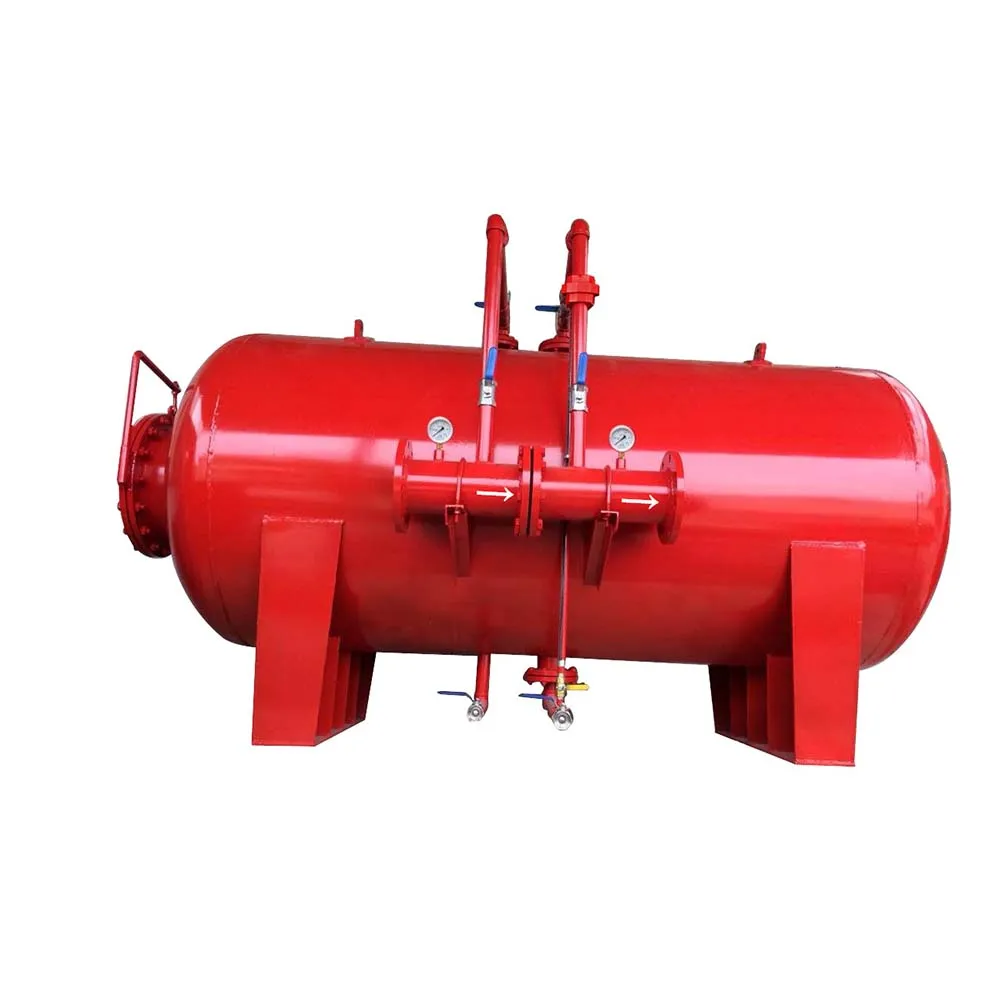

Vertical type on legs or horizontal type on saddles . Legs
and saddles are provided with fixing holes .
Design pressure 175 psi (12 bar ).
100% pressure tested according to the applied design code but not less than 251 psi . Water
and foam piping ( stainless stell as option ) .
Machine welded circuferantial and longitudinal seams for maximum quality and durability .
Welded lifting lugs for easy handling operations .
Thermal relief valve provided on the water side
Tank equipment with inside protection at any opening to ensure no damage to the bladder . Nameplate in
corrosion resistant material .
Nameplate holder to avoid undetected corrosion on the tank's sheel behind the plate .
and saddles are provided with fixing holes .
Design pressure 175 psi (12 bar ).
100% pressure tested according to the applied design code but not less than 251 psi . Water
and foam piping ( stainless stell as option ) .
Machine welded circuferantial and longitudinal seams for maximum quality and durability .
Welded lifting lugs for easy handling operations .
Thermal relief valve provided on the water side
Tank equipment with inside protection at any opening to ensure no damage to the bladder . Nameplate in
corrosion resistant material .
Nameplate holder to avoid undetected corrosion on the tank's sheel behind the plate .

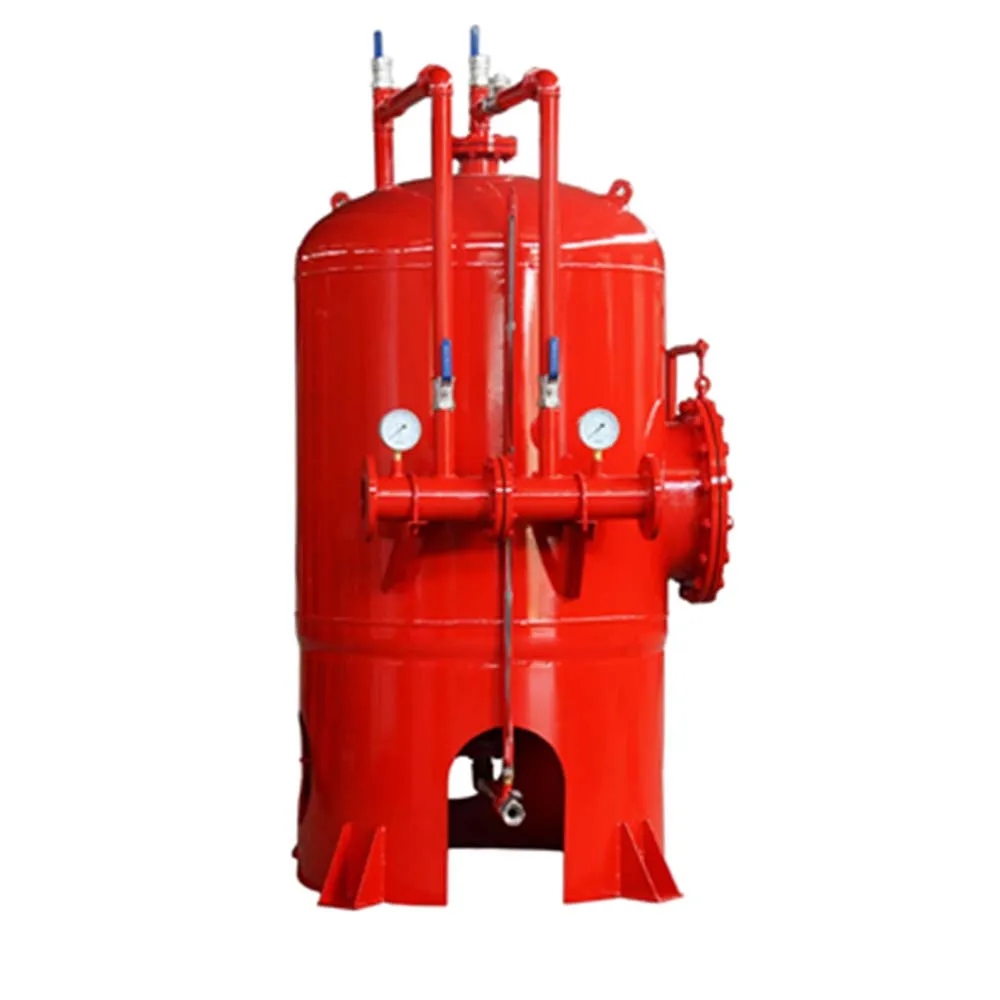

FOAM SYSTEM EQUIPMENT

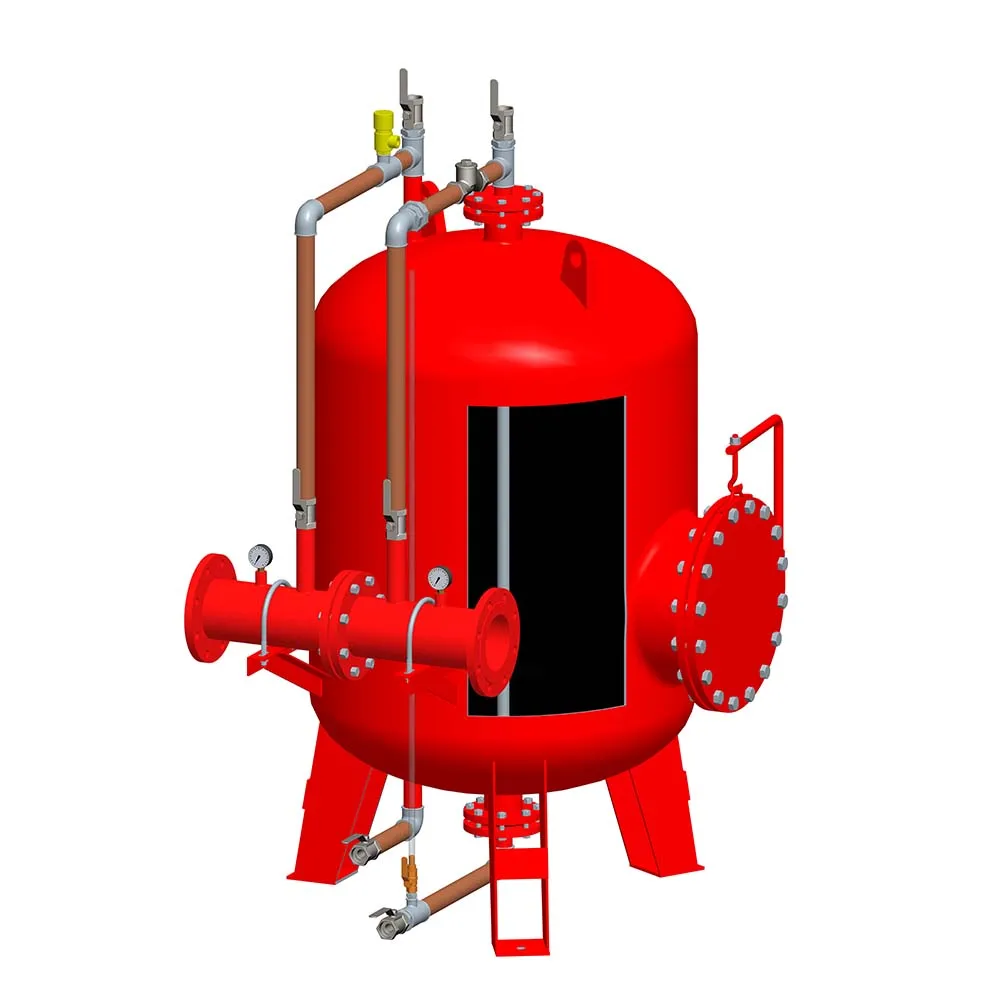

Fixed Foam Bladder Tank

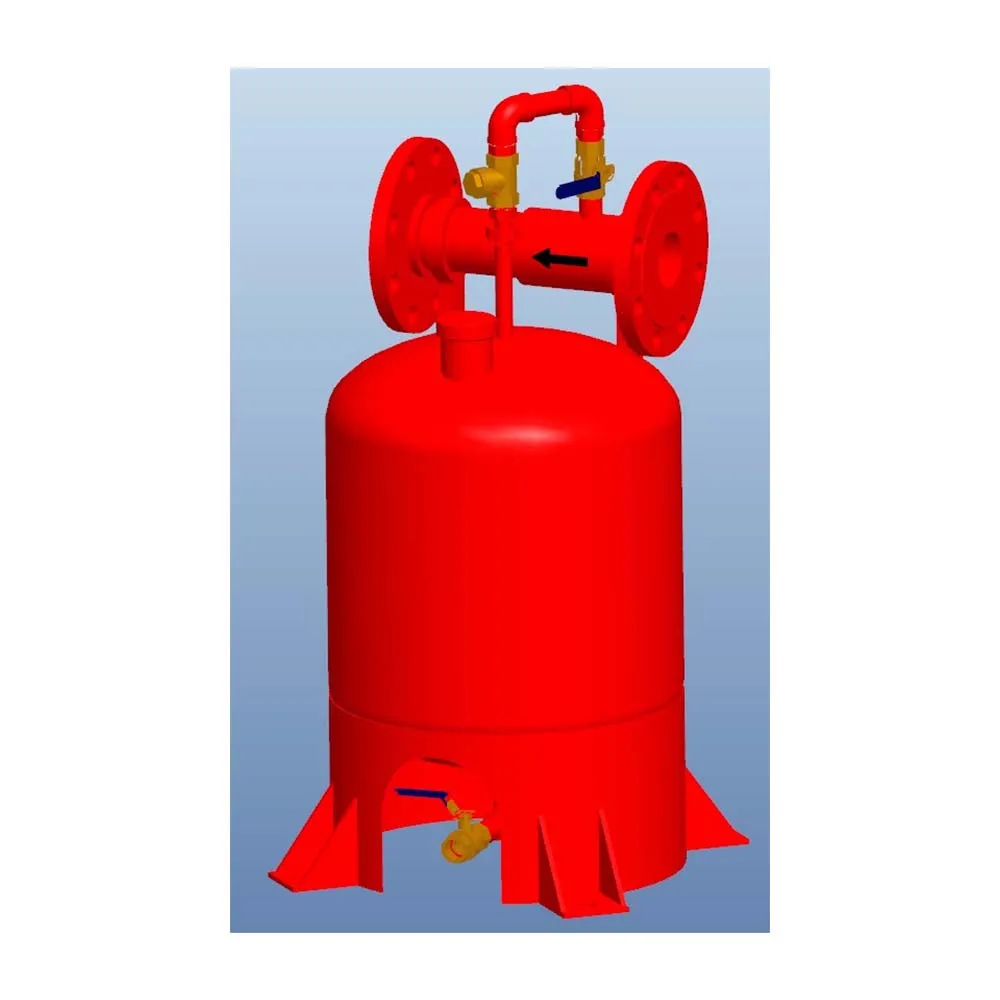

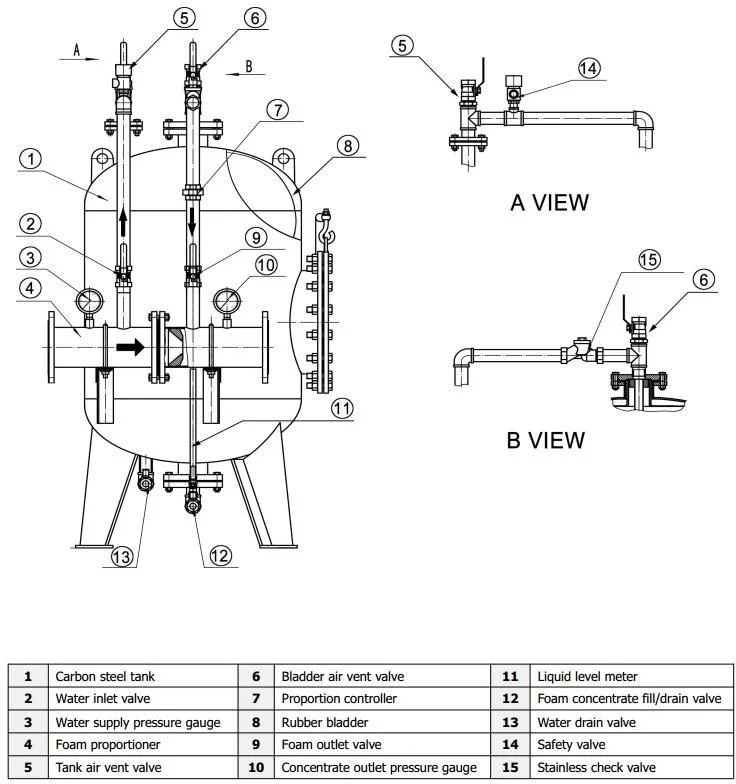

PHYML- Vertical Type-A
Features:
Manual type
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional);
Manual type
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional);
Fixed Foam Bladder Tank
PHYML- Vertical Type-B
Features:

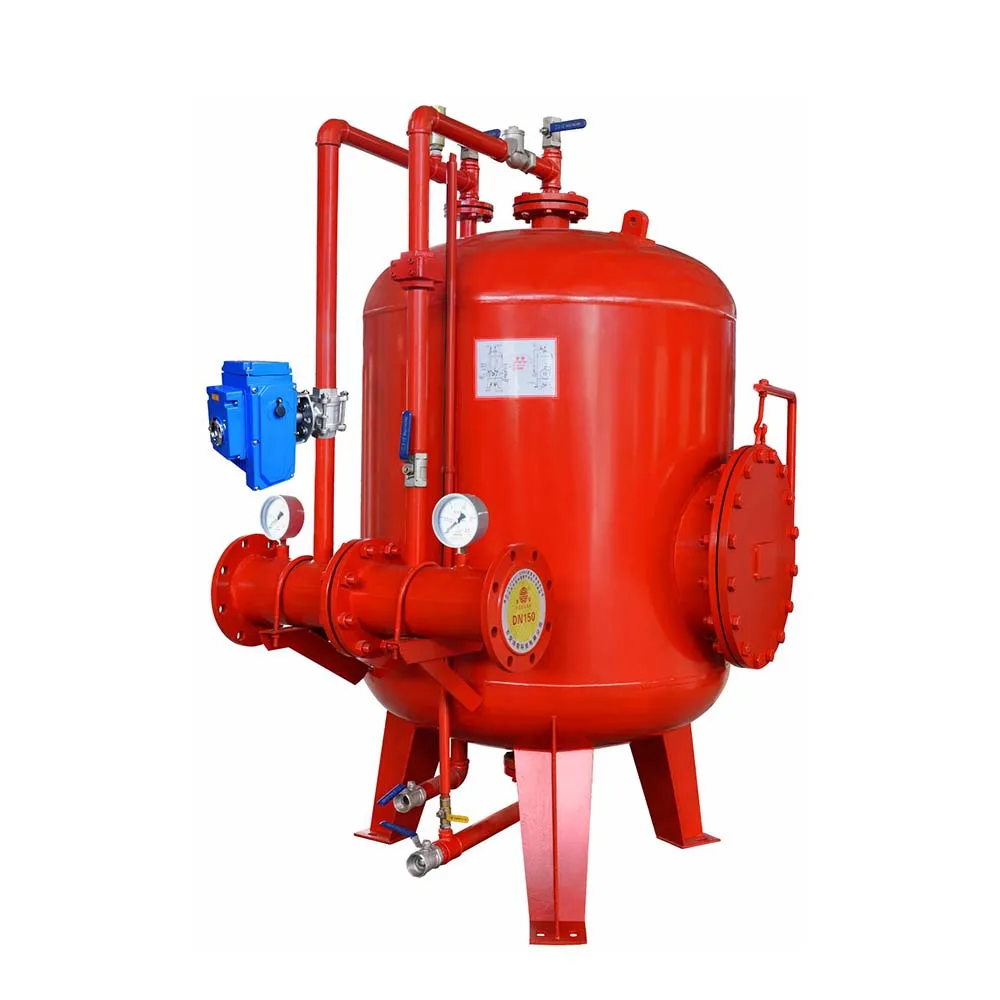

Electronic type with solenoid valve
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional)
Electronic type with solenoid valve
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional)
Fixed Foam Bladder Tank
PHYML- Vertical Type-C
Features:
Manual with Rund fodder
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional)
Manual with Rund fodder
Flange Standard of Proportioner: ANSI / BS4504 / GB;
Body Material: Carbon Steel;
Bladder Material: Rubber;
Proportioner :Carbon Steel is standard (SS304 Stainless Steel Optional);
Ball Valve: Brass is standard (SS304 Stainless Steel Optional);
Safety Valve: Brass is standard (SS304 Stainless Steel Optional);
Piping System: Carbon steel is standard (SS304 Stainless Steel Optional)
