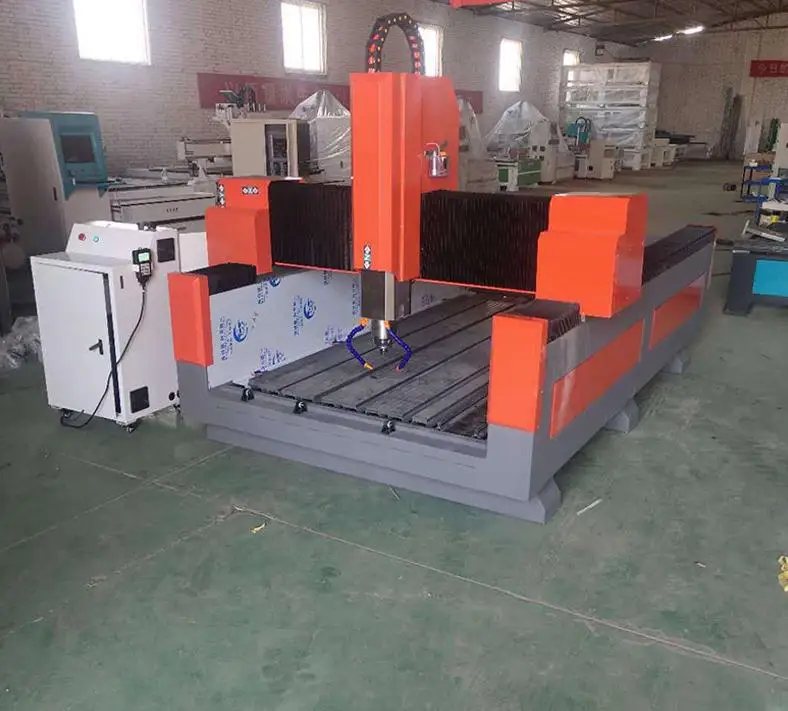

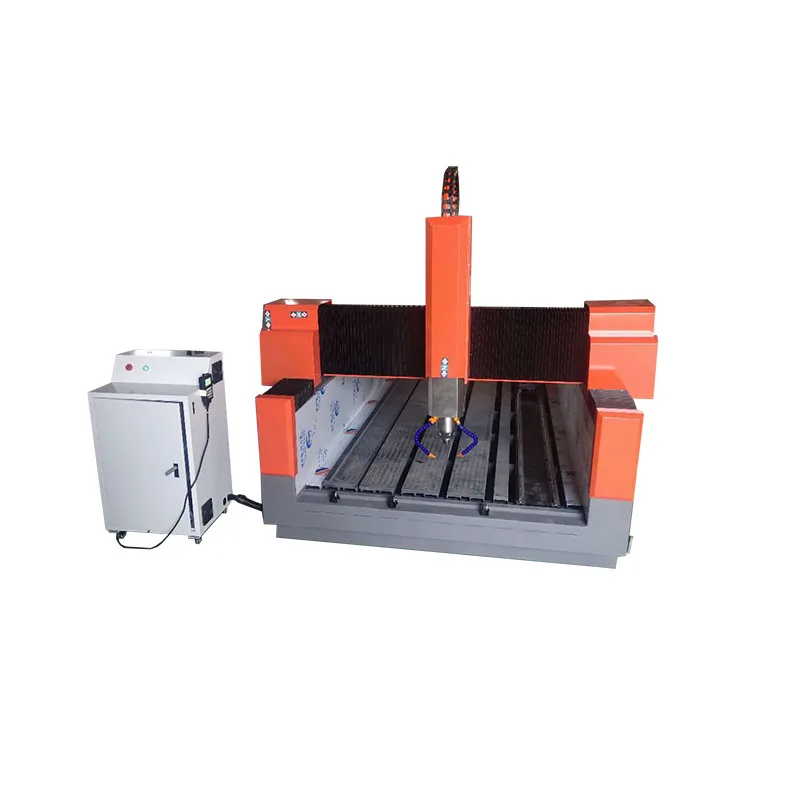

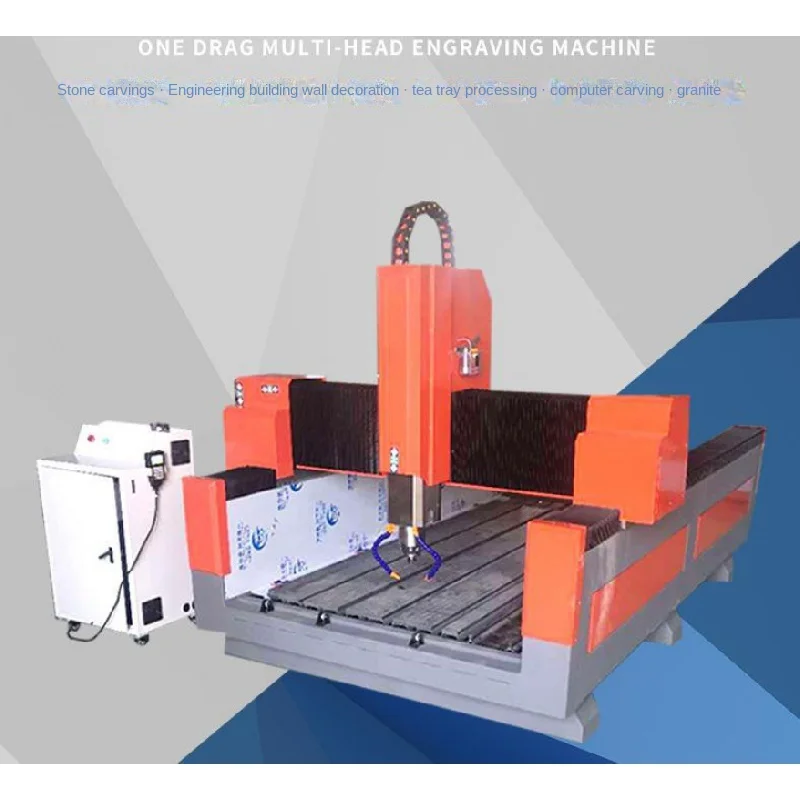

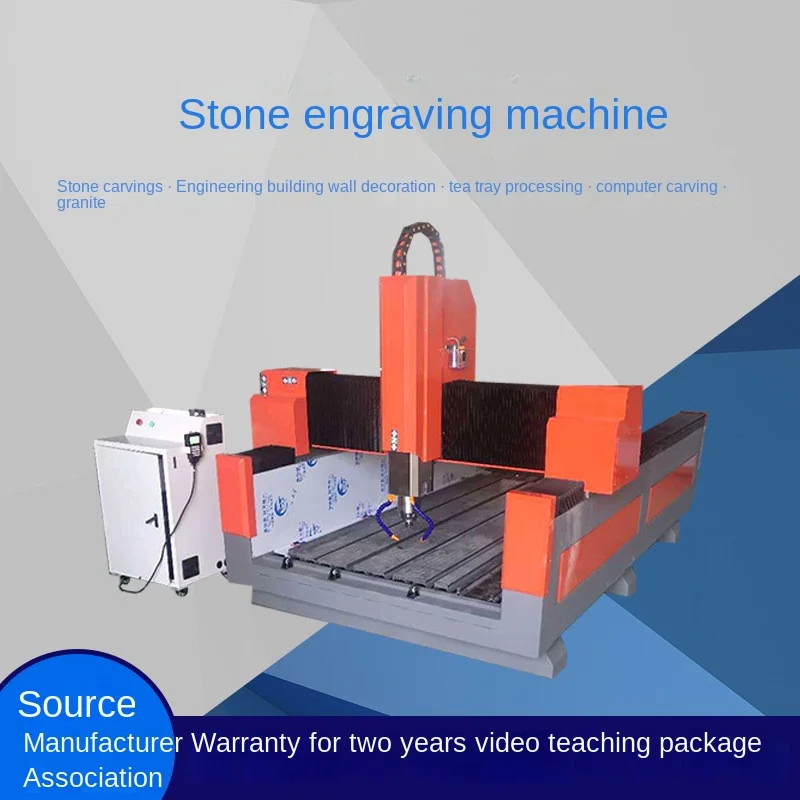

CNC Stone engraving machine
- Category: >>>
- Supplier: Yantai Ruibo Woodworking Machine Co. Ltd
Share on (1600476669844):
Product Overview
Description
Product Description
Specification
model | 1325 Stone engraving machine |
CNC or Not | CNC |
length x width x height | 3000X1300X1700mm |
Spindle motor, (thank you, Changsheng brand) | 3.2KW, 2.2KW, 5.5KW optional, four-bearing spindle {one year warranty} |
Inverter | Best inverter, replace within 3 months, one year warranty |
Stepper Motor Driver | Raise 860H Jemeikang 2DM860 [one year warranty] |
86 type 450 stepper motor | 14 keyway |
Rail slider | Domestic Shangyin 20 twill linear guide |
rack | High precision white grinding rack 1.25 mold |
mesa | 1.2mm wall thickness double-sided alumina profile |
lead screw | Domestic 2510 high precision lead screw |
transformer | 800W pure copper transformer |
electrical device | Delixi, Chint |
bed frame | Thickened, sprayed, six feet with horseshoes |
Longmen | Large gantry, gantry thickness 8mm, feed height 200mm |
Chassis | Built-in chassis, small cabinet, large cabinet, can be customized |
running speed | 12000mm |
engraving instructions | G code |
software running host | XP system with PCI card slot |
Limit | Photoelectric limit |
oiling | Manual oil filling |
Random belt | Software, Wentai, fixture, data cable, trial tool, water pump, small water tank. |
Packing & Delivery
1325 Stone engraving machine
Packaging Details:

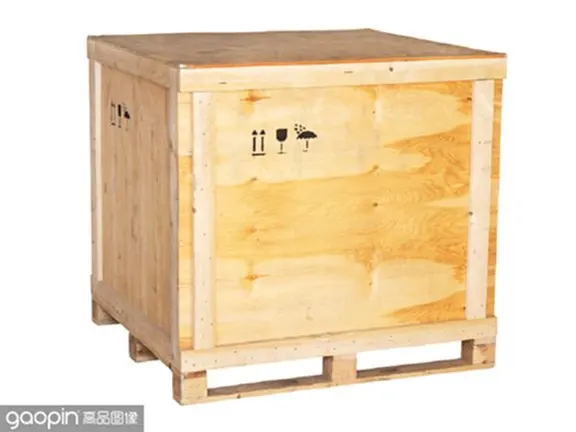

1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Company Profile
Simple to use
1. Spindle motor
The high-power tool change spindle makes it easier to switch tools and more convenient for cutting.
2. Countertops
Strong adsorption force, good bearing capacity, stable performance and stable application.

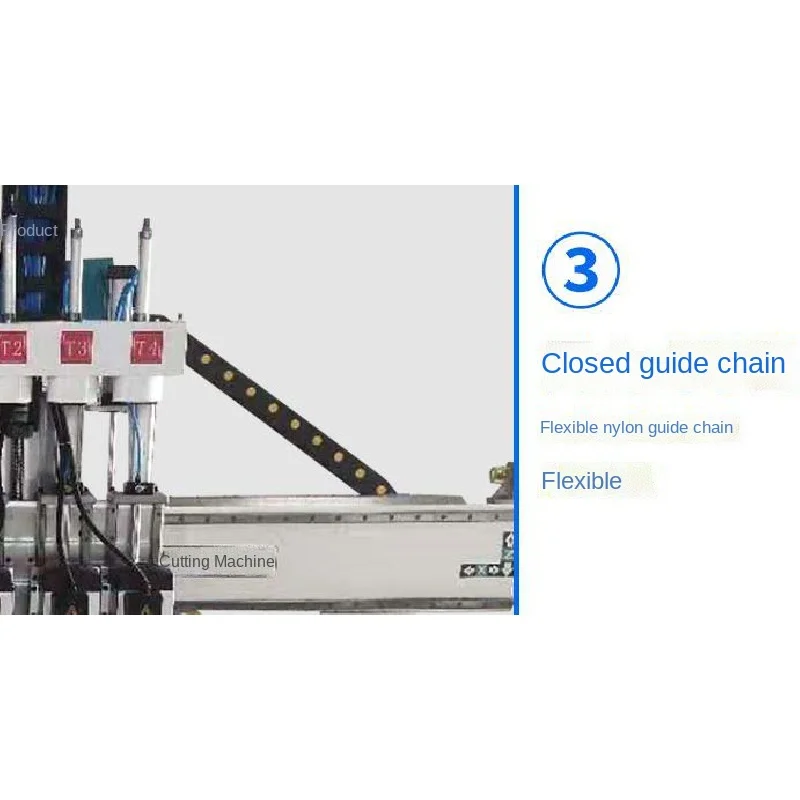

3. Closed chain guide
Soft nylon guide chain, strong flexibility.
4. Vacuuming device
The whole machine is equipped with a vacuuming device, and the working environment is not disturbed by dust.
5. Grinding the rack
The comb teeth are dense and regular, and the machine works smoothly.
6. Oiler
The numerical control electromagnetic oil pump keeps the machine lubricated without the need for cumbersome receiving operations, ensuring the smooth operation of the machine, saving trouble and not wasting oil.
7. CNC system box
The high-power tool change spindle makes it easier to switch tools and more convenient for cutting.
2. Countertops
Strong adsorption force, good bearing capacity, stable performance and stable application.
3. Closed chain guide
Soft nylon guide chain, strong flexibility.
4. Vacuuming device
The whole machine is equipped with a vacuuming device, and the working environment is not disturbed by dust.
5. Grinding the rack
The comb teeth are dense and regular, and the machine works smoothly.
6. Oiler
The numerical control electromagnetic oil pump keeps the machine lubricated without the need for cumbersome receiving operations, ensuring the smooth operation of the machine, saving trouble and not wasting oil.

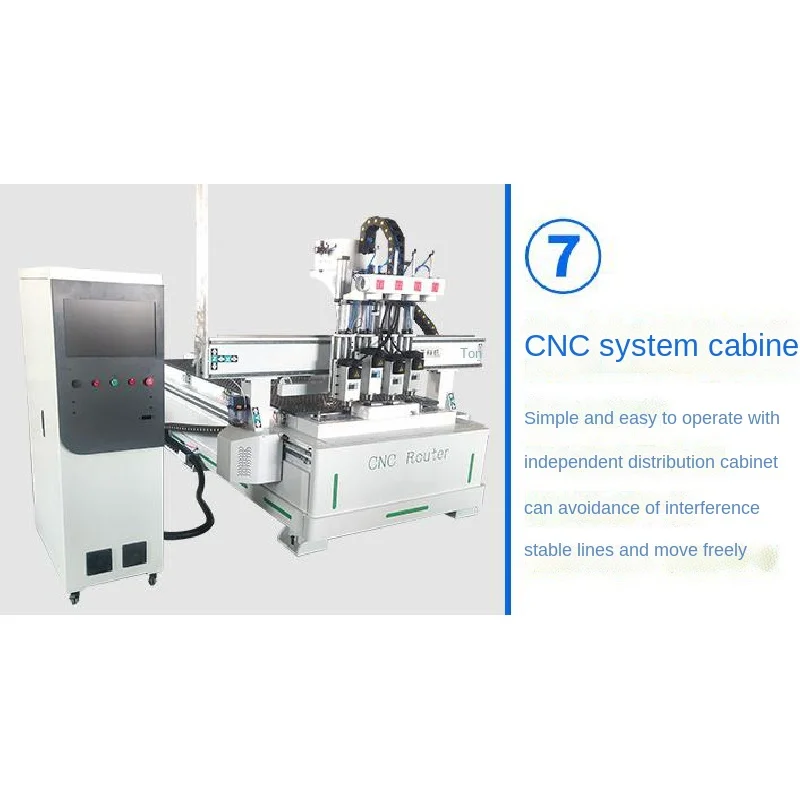

7. CNC system box
Simple and easy to operate, equipped with an independent power distribution cabinet, which can avoid interference, the line is stable, and it can be moved at will.
The following is a detailed introduction of the key functions of the woodworking engraving machine:
1. Start to pause: When the processing file has been loaded, if the system is in an idle state, press this key, the system will pause the processing.
2. Stop: Stop the current operation. If the system is in the processing state, press this key to stop the processing; if the system is in the floating tool setting state, press this key to stop the floating tool setting.
3. Continue at breakpoint: If the system is in the processing pause state, press this key, the system will continue processing at the breakpoint.
4. Continuous: Switch user data input to manual continuous.
5. Spindle switch: If the spindle has been turned off, press this key to turn on the spindle; otherwise, turn off the spindle.
6. Return to origin: press this key, the system executes the command of returning to the origin of the workpiece.
7.X1: Press this key to set the jog step to 0.01mm.
8.X10: Press this key to set the jog step to 0.1mm.
9.X100 Press this key to set the jog step to 1mm.
10.X+: Move the tool to the positive direction of the X axis. For example: in the continuous jog state, jog continuously in the positive direction of the X axis, otherwise, move forward one step in the positive direction of the X axis according to the current step size. Notice:
If it is in continuous jogging state, single press this key, the tool will jog continuously at manual low speed, press and hold the combination key of the shift key and this key (press and hold the shift key and then press this key, at this time the shift key will not
to release), the tool is jogged continuously at high speed manually.
11.X-: Move the tool to the negative direction of X-axis. The moving speed, step size and key combination are the same as those of X+.
12.Y+: Move the tool to the positive direction of the Y axis. The moving speed, step length and key combination are the same as those of X+.
13.Y-: Move the tool to the negative direction of the Y axis. The moving speed, step length and key combination are the same as those of X+.
14. Z+: Move the tool to the positive direction of the Z axis. The moving speed, step size and key combination are the same as those of X+.
15.Z- Move the tool to the negative direction of the Z axis, the moving speed, step length and key combination are the same as those of X+.
16. Shift: Pressing this key alone has no function. Only when this key is pressed in combination with other keys has the corresponding function. Please refer to the description of other keys for the type of combination.
17. Tool setting: the second key from the left of the fifth row of the special keypad, press this key, the system will perform floating tool setting.
18.F-: Press this key to reduce the feed rate.
19.F+: Press this key to increase the feed rate.
1. Start to pause: When the processing file has been loaded, if the system is in an idle state, press this key, the system will pause the processing.
2. Stop: Stop the current operation. If the system is in the processing state, press this key to stop the processing; if the system is in the floating tool setting state, press this key to stop the floating tool setting.
3. Continue at breakpoint: If the system is in the processing pause state, press this key, the system will continue processing at the breakpoint.
4. Continuous: Switch user data input to manual continuous.
5. Spindle switch: If the spindle has been turned off, press this key to turn on the spindle; otherwise, turn off the spindle.
6. Return to origin: press this key, the system executes the command of returning to the origin of the workpiece.
7.X1: Press this key to set the jog step to 0.01mm.
8.X10: Press this key to set the jog step to 0.1mm.
9.X100 Press this key to set the jog step to 1mm.
10.X+: Move the tool to the positive direction of the X axis. For example: in the continuous jog state, jog continuously in the positive direction of the X axis, otherwise, move forward one step in the positive direction of the X axis according to the current step size. Notice:
If it is in continuous jogging state, single press this key, the tool will jog continuously at manual low speed, press and hold the combination key of the shift key and this key (press and hold the shift key and then press this key, at this time the shift key will not
to release), the tool is jogged continuously at high speed manually.
11.X-: Move the tool to the negative direction of X-axis. The moving speed, step size and key combination are the same as those of X+.
12.Y+: Move the tool to the positive direction of the Y axis. The moving speed, step length and key combination are the same as those of X+.
13.Y-: Move the tool to the negative direction of the Y axis. The moving speed, step length and key combination are the same as those of X+.
14. Z+: Move the tool to the positive direction of the Z axis. The moving speed, step size and key combination are the same as those of X+.
15.Z- Move the tool to the negative direction of the Z axis, the moving speed, step length and key combination are the same as those of X+.
16. Shift: Pressing this key alone has no function. Only when this key is pressed in combination with other keys has the corresponding function. Please refer to the description of other keys for the type of combination.
17. Tool setting: the second key from the left of the fifth row of the special keypad, press this key, the system will perform floating tool setting.
18.F-: Press this key to reduce the feed rate.
19.F+: Press this key to increase the feed rate.
