Product Overview
Description
Product Overview

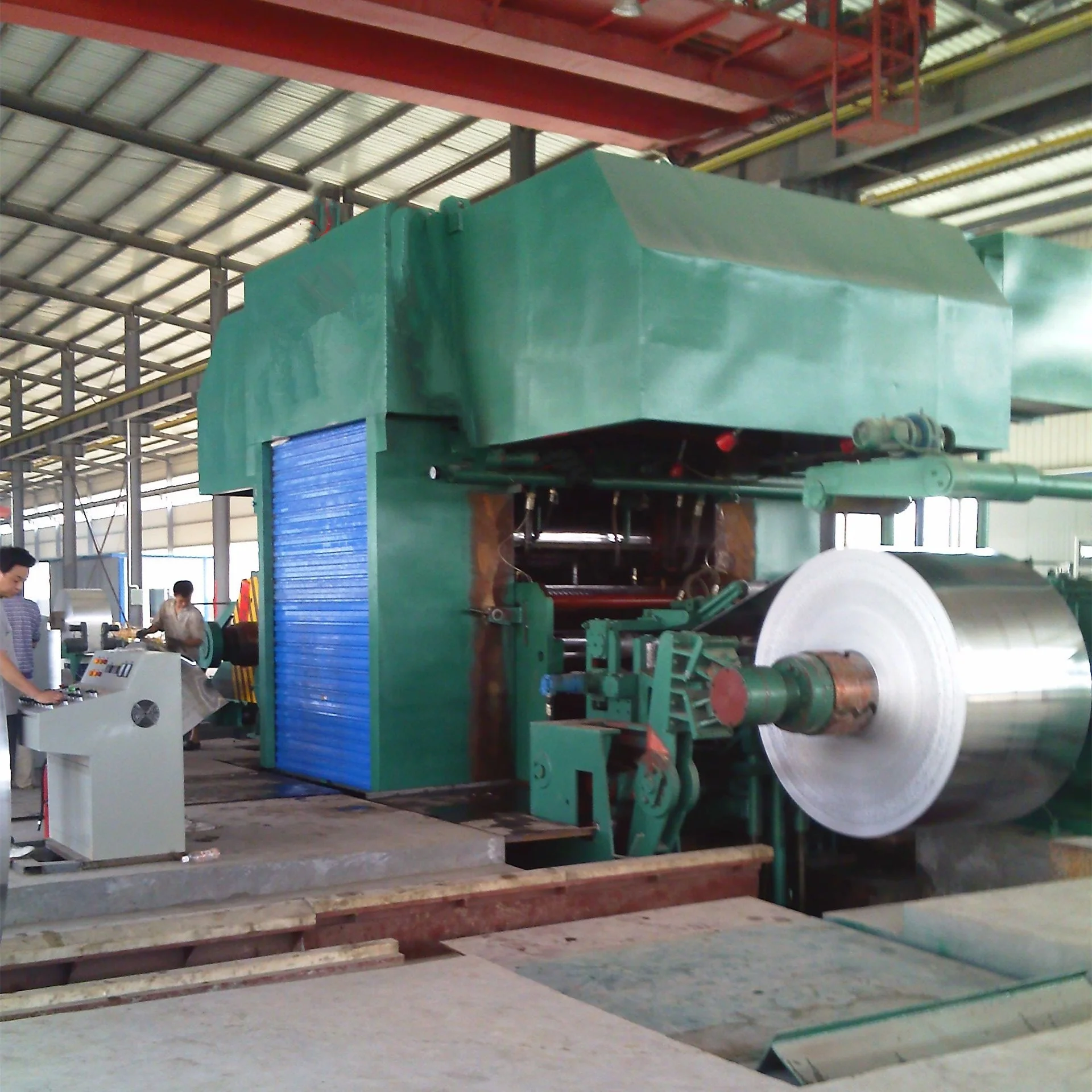

This unit produces the thickness of 2.0 ~ 4.5mm pickling hot-rolled coil, by if the road rolling, rolling into 0.20 to 1.5mm
high-accuracy Cold rolled steel coilsl scale for the production of cold rolled steel volume 22.5 million tons / year production
line of the cold rolling mill, using 6-hi UCM type single stand reversing cold mill, mill work roll is provided with a positive
and negative bending and intermediate roll set is bending roll and tic, supporting a uncoiler, frame and are equipped with tension
coiler, thickness gauge and laser velocimeter, tensiometer measurement etc., can achieve high tension rolling, ensure the thinner
gauge products high and stable production.
high-accuracy Cold rolled steel coilsl scale for the production of cold rolled steel volume 22.5 million tons / year production
line of the cold rolling mill, using 6-hi UCM type single stand reversing cold mill, mill work roll is provided with a positive
and negative bending and intermediate roll set is bending roll and tic, supporting a uncoiler, frame and are equipped with tension
coiler, thickness gauge and laser velocimeter, tensiometer measurement etc., can achieve high tension rolling, ensure the thinner
gauge products high and stable production.
FEATURES AT A GLANCE
Model | Φ140~180/Φ550x600 | Φ150~220/Φ600x800 | |
Rolled Material | Plain Carbon Steel, Alloy Steel, Copper Aluminum and Stainless-Steel Strip Slit | ||
Material Specification (Thickness) × (Width) | 3.5×500mm | 3.5×700mm | |
Finished Product Specification (Thickness) × (Width) | 0.2×500mm | 0.2×700mm | |
Rolling Pressure | 400T | 600T | |
Rolling Speed | 80~150m/Min | 80~150m/Min | |
Transmission Mode | Work Roll Or Backup Roll Drive | ||
Pressing Mode | Hydraulic AGC | ||
Main Motor Power | 361~500KW | 361~500KW | |
Coiling Part | Hydraulic Pyramid | Hydraulic Pyramid | |
Electric Control System | PLC Programming Of Euro 590 Full Digital Control System | ||
Hydraulic (High Pressure) | For Roll Bending System | ||
Other | Hydraulic Hanging Roll Balance and Hydraulic Unloading Roll | ||
