High Temperature Heat Proof Wire Protection Sleeve Fire Resistant Hose Sleeve / Brick Red Insulation Sleeving High Voltage 500C
- Category: >>>
- Supplier: Yantai Libo International Trade Co. Ltd.
Share on (1600476773192):
Product Overview
Description
Product Description

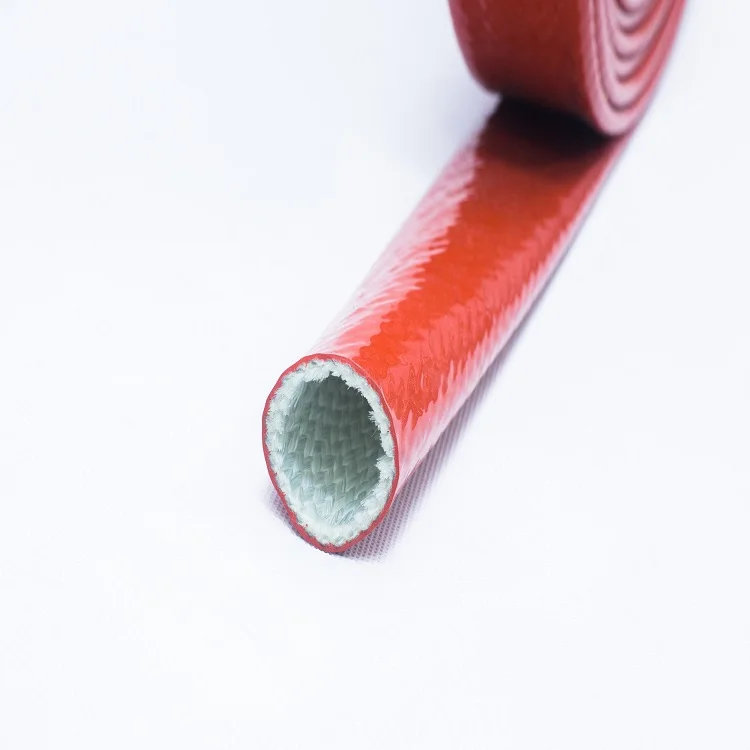

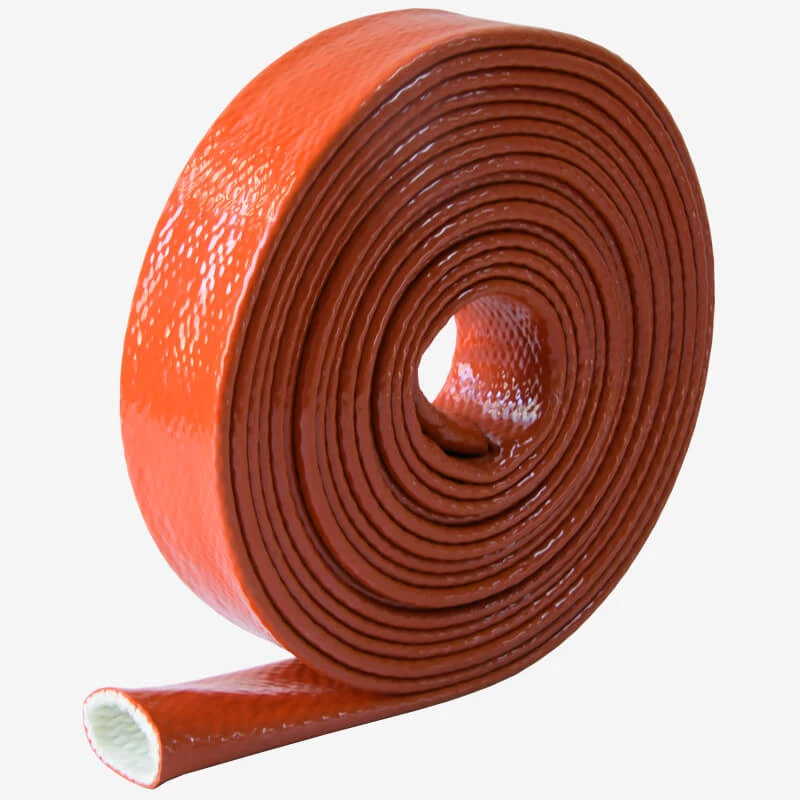

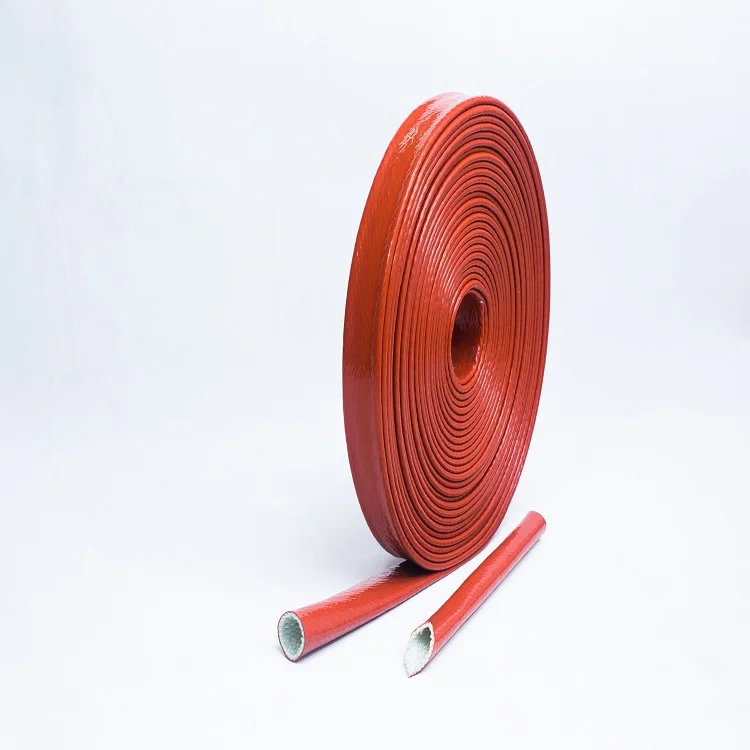

High temperature heat proof wire protection sleeve / Brick red fire resistant hose sleeve is braided with non-alkali fiberglass yarn and then treated with high elongation silicone resin. It possesses good properties of dielectric, heat resistance, self-extinguishing, softness and elasticity etc.
Property
1. Impede heat radiation of flame and sheds molten spatter of metals and glass. 2. Resistant to slag and resin build-up, protects against abrasion, solvents and corrosive chemicals. 3. Protect operator from burning by hot pipe. 4. Moisture-proof, water proof, resistance to oil and pollution. 5. Impede heat lost and favor to saving energy.
Specifications
Inner Diameter(mm) | Wall Thickness(mm) | ||
Nominal | Tolerance | Minimum | Maximum |
0.5 | -0.15~0.15 | 0.35 | 0.65 |
0.8, 1, 1.5, 2, 2.5 | -0.2~0.2 | 0.35 | 0.65 |
3, 3.5, 4, 4.5, 5, 6, 7 | -0.25~0.25 | 0.35 | 0.65 |
8, 9, 10, 12 | -0.3~0.3 | 0.5 | 0.9 |
14, 16, 18, 20 | -0.5~0.5 | 0.4 | 1 |
22, 24, 25 | -0.6~0.6 | 0.5 | 1.5 |
30, 35, 40, 45, 50 | -0.6~0.6 | 1 | 2 |
Package Details
0.5mm ~ 3.0mm, 200 meters/roll;
4.0mm ~ 8.0mm, 100 meters/roll;
10.0mm ~ 14.0mm, 50 meters/roll;
16.0mm ~ 50.0mm, 25 meters/roll.
Carton Package.
Application
These sleevings are widely used in wiring insulation, cable bundles and protection, H grade AC motors, cooking appliances, ovens, furnaces etc.
Company introduction:
Yantai Libo International Trade Co., Ltd, which is located in Longkou city, China.
The company was established in 2006, specialized in providing Electrical Polyester Non-woven Fabric(with product thickness: 0.02 mm-0.23mm, and width: 510mm-1500mm), Insulation Composite Laminated Material(DMD,NMN,NHN,100% saturated DMD,Fish Paper,Diamond dotted paper),Insulation Sleeving(2715PVC resin sleeves,2751Silicon rubber resin sleeves,2740Acrylic resin sleeves,2753Silicon resin sleeves,fire resistant sleeve) ,Mylar film,Electrical PVC tape and other electrical insulating material. They are used in motor,transformer, generator,reactor,etc.Company has five production lines, Also company has a strict quality management system to ensure good quality product. We have gained ISO9001,SGS and material Rohs certificate.
Our products are exported to many countries.like India,Pakistan, Russia, Vietnam and so on.So many suppliers that have a cooperation with you import our products.So our price is better than others.
