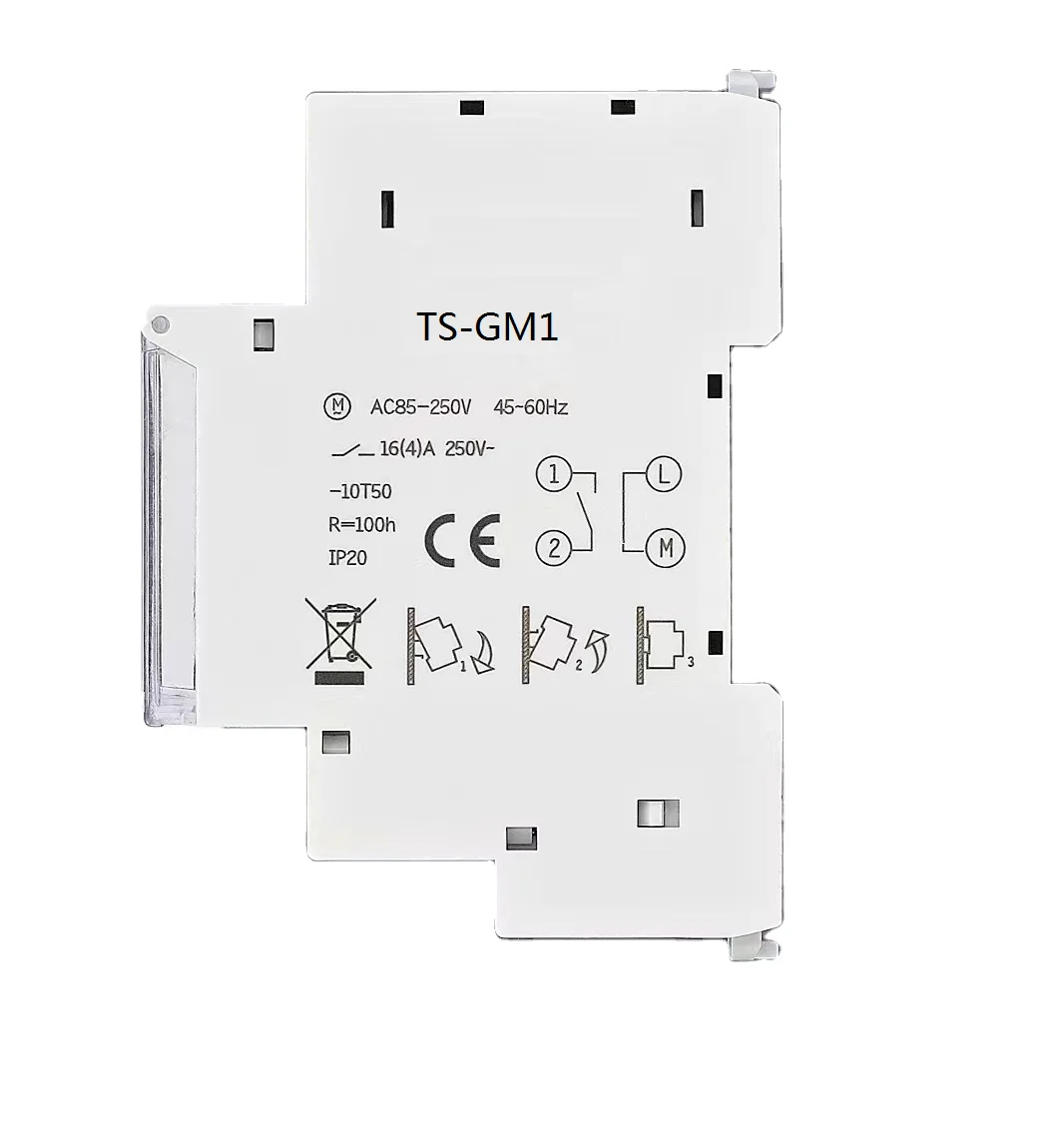

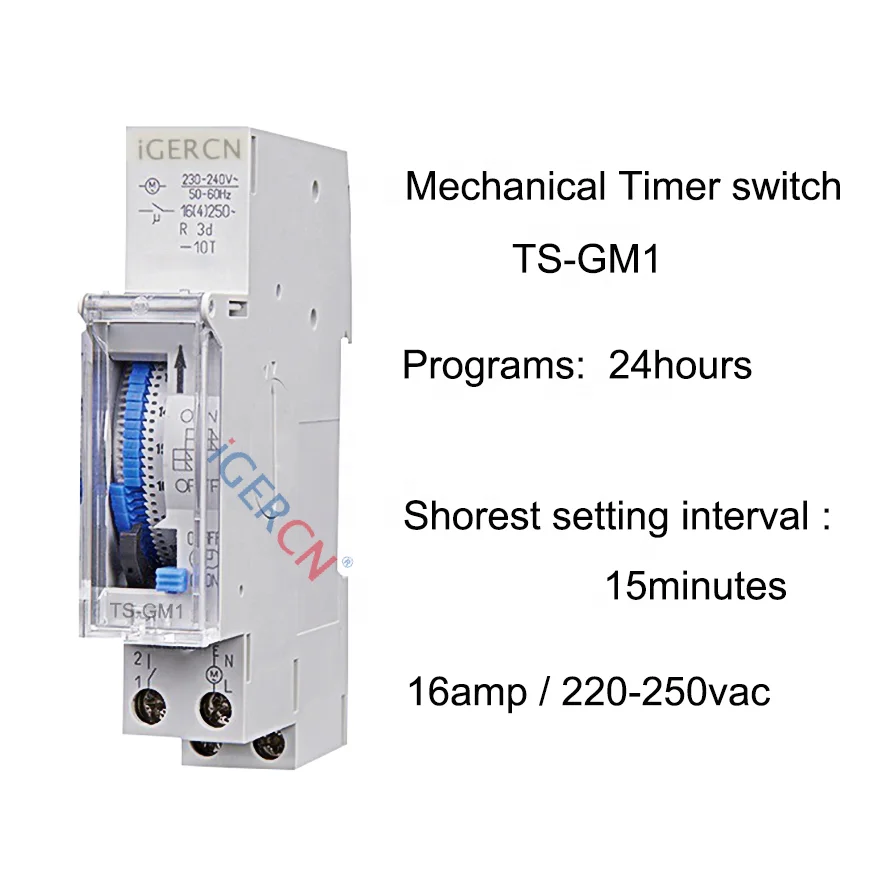

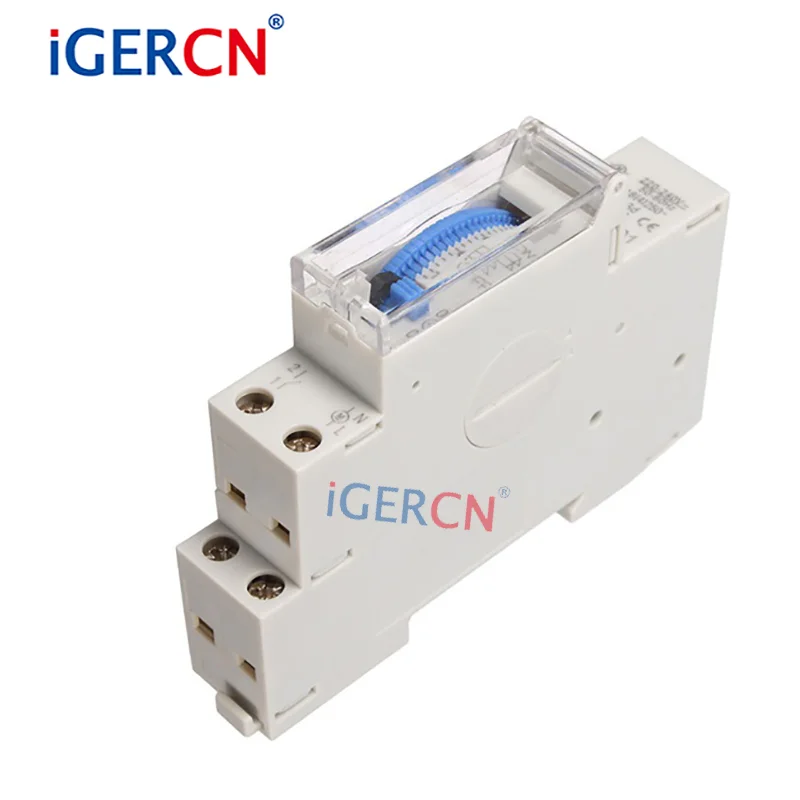

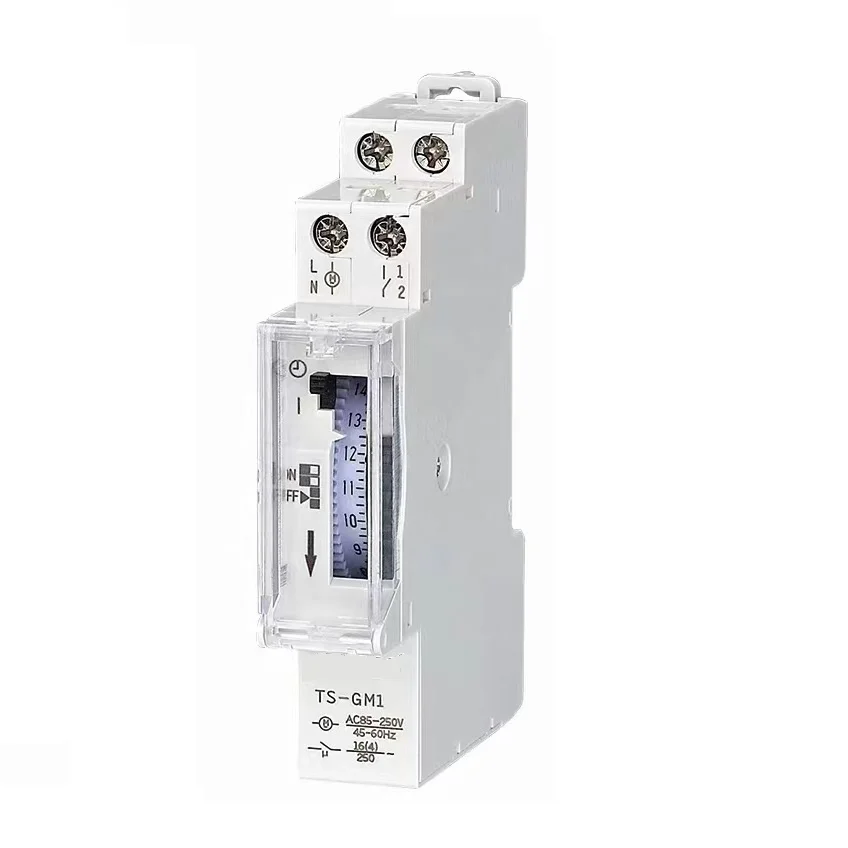

16amp 220 250VAC analog Timer switch TS GM1 ON OFF electrics control 24 Hour 15 minutes Mechanical timer switch
- Category: Timers >>>
- Supplier: Yueqing Iger Electric Co. Ltd.
Share on (1600476807490):
Product Overview
Description
Product Description
The TS-GM1 type, 15minutes mechanical timer switch, is a simple and low cost alternative for applying that do not require more than 16Amp. It is designed for 24-hour control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system.
Description
- Analogue mechanical timer switch
- 1 channel
- Daily program
- Quartz controlled
- Shortest switching time: 15 minutes
- 96 switching segments
- Screw terminals
- Manual switch with 2 positions: Permanent ON/AUTO
Applications
- Billboard or Showcase lighting
- Air-condition
- Pumps/Motor/Geyser/Fan Control
- Boilers / Heater Control
- General Electrical Circuits
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
Technical Data
| Type | Mechanical timer switch TS-GM1 |
| Operating voltage | 220-240 VAC |
| Frequency | 50-60 Hz |
| Number of channels | 1 |
| Width | 1 module |
| Installation type | DIN-rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 100 hours |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1000W |
| Energy saving lamps | 150W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 90W |
| LED lamp > 8 W | 100W |
| Shortest switching time | 15 min |
| Programmable every | 15 min |
| Number of switching segments | 96 |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Type of contact | NO contact |
| Switching output | Potential-free and phase-independent |
| Power consumption | 1 VA |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
