Hvac systems & parts heating control M30 24V thermal actuator
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (1600476830473):
Product Overview
Description
Product Description

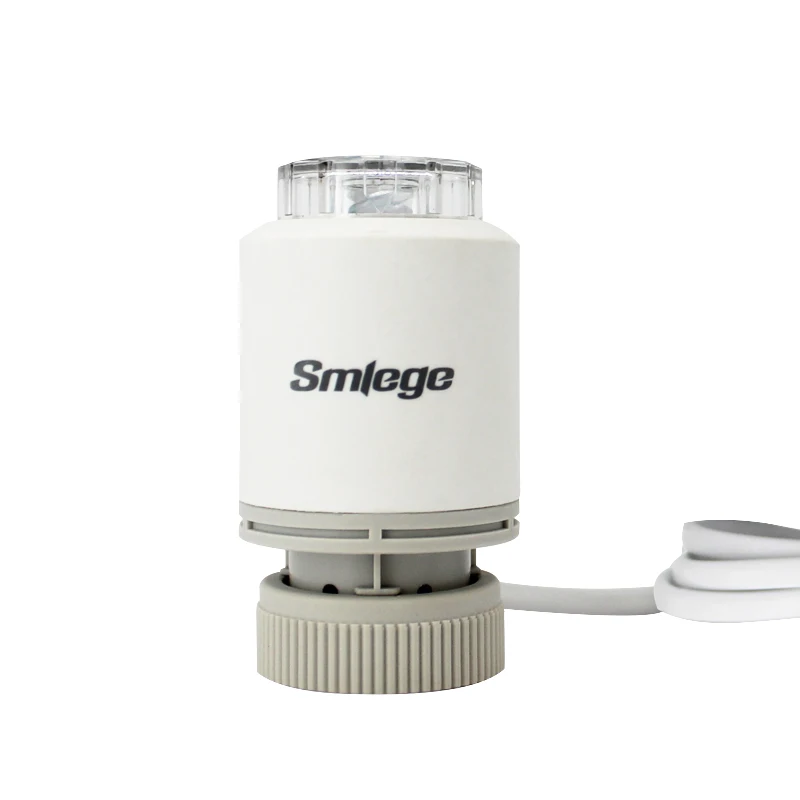

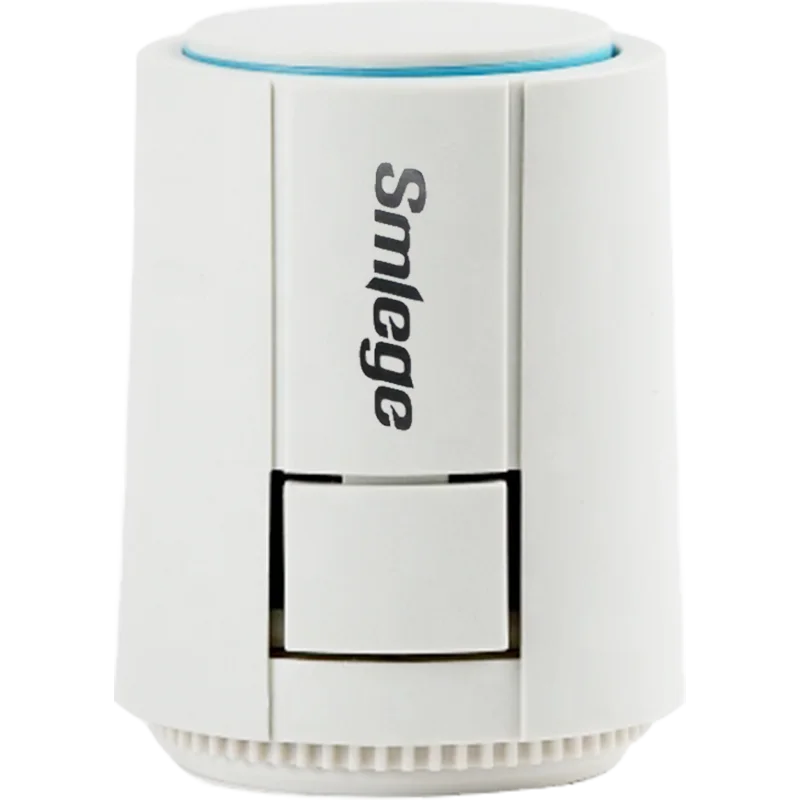

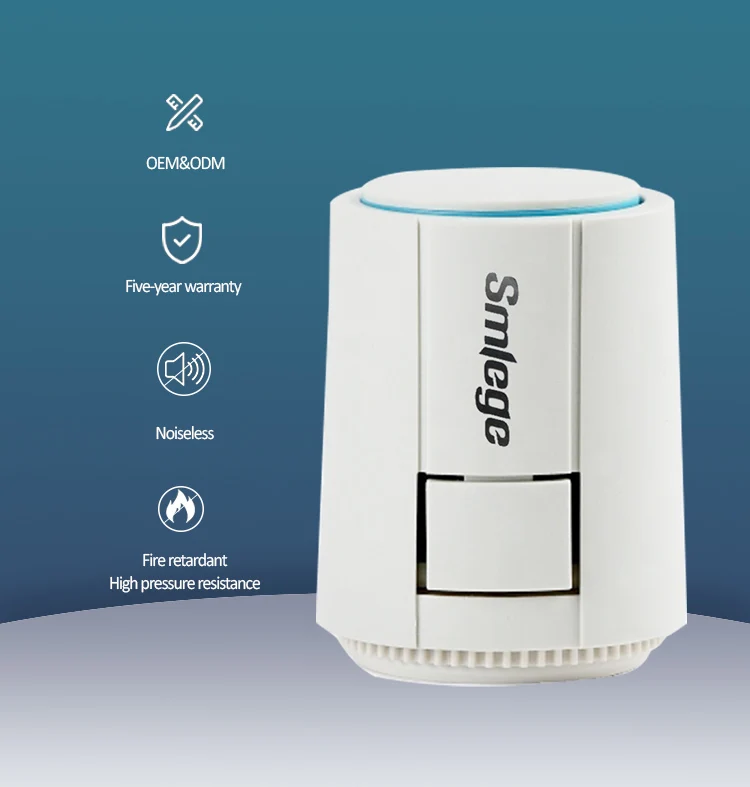

920039PL Thermal actuator

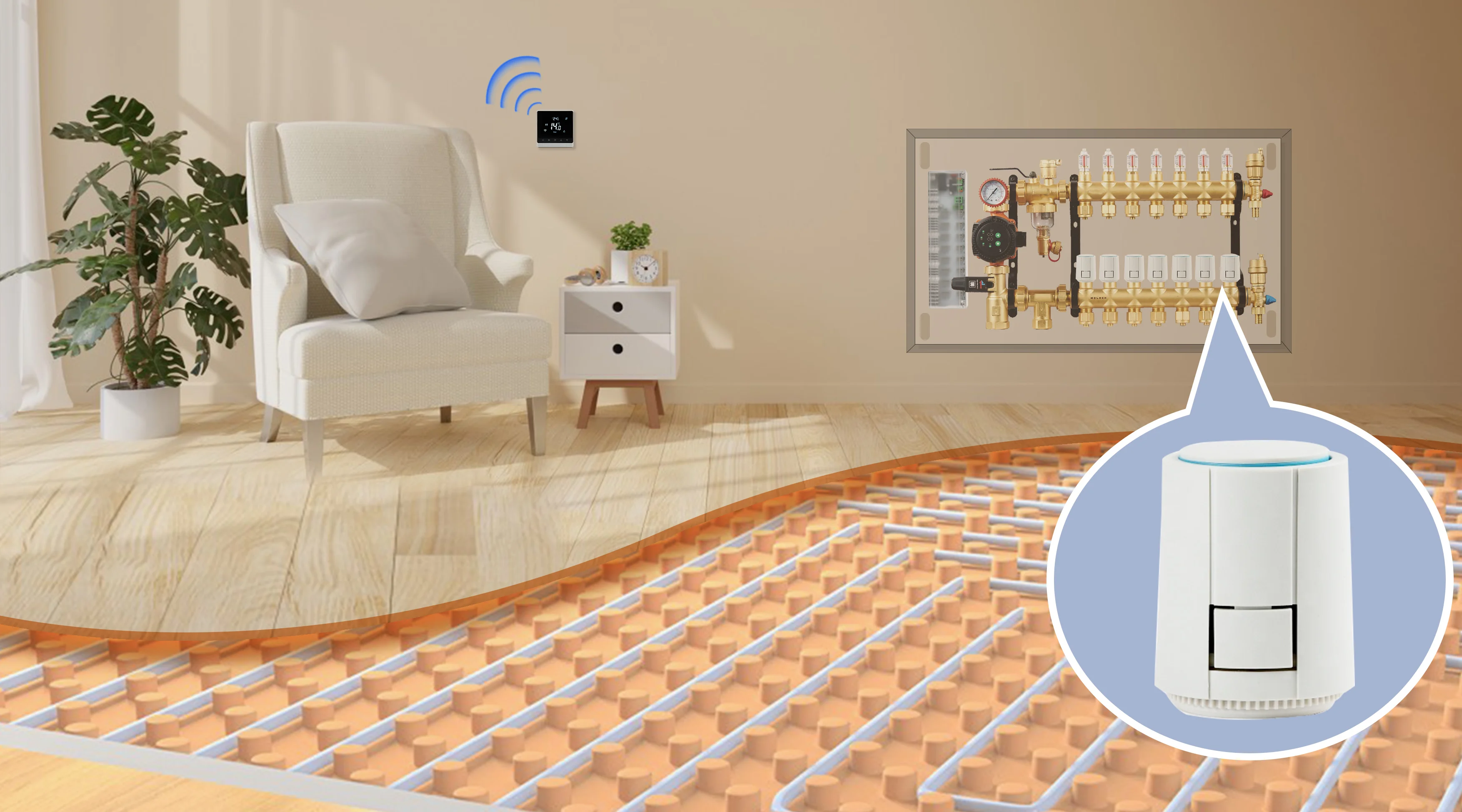

The thermal actuators are mainly used in floor heating systems to control closing and opening of the valves. It is specifically applied to electric drive part of the branch manifold valve, small valve and dynamic balance valve. No noise, low power consumption, 5 years warranty, fast installation and easy disassembly.
Feature
1. Made of high-quality new materials, making the product have a long service life.
2. Compact size & small dimensions, which reduces the cost of product export.3. Low power consumption, effective energy saving.
4. Fast installation/disassembly, easy to operate.
Item | Value |
Warranty | 5 years |
After-sale Service | Online technical support, Onsite Inspection, Free spare parts, Return and Replacement, Other |
Material | Anti-flammable PC +ABS |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others |
Place of Origin | China |
Material | PA66+30%GF |
OEM | YES |
Color | White |
Feature

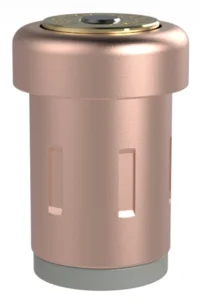

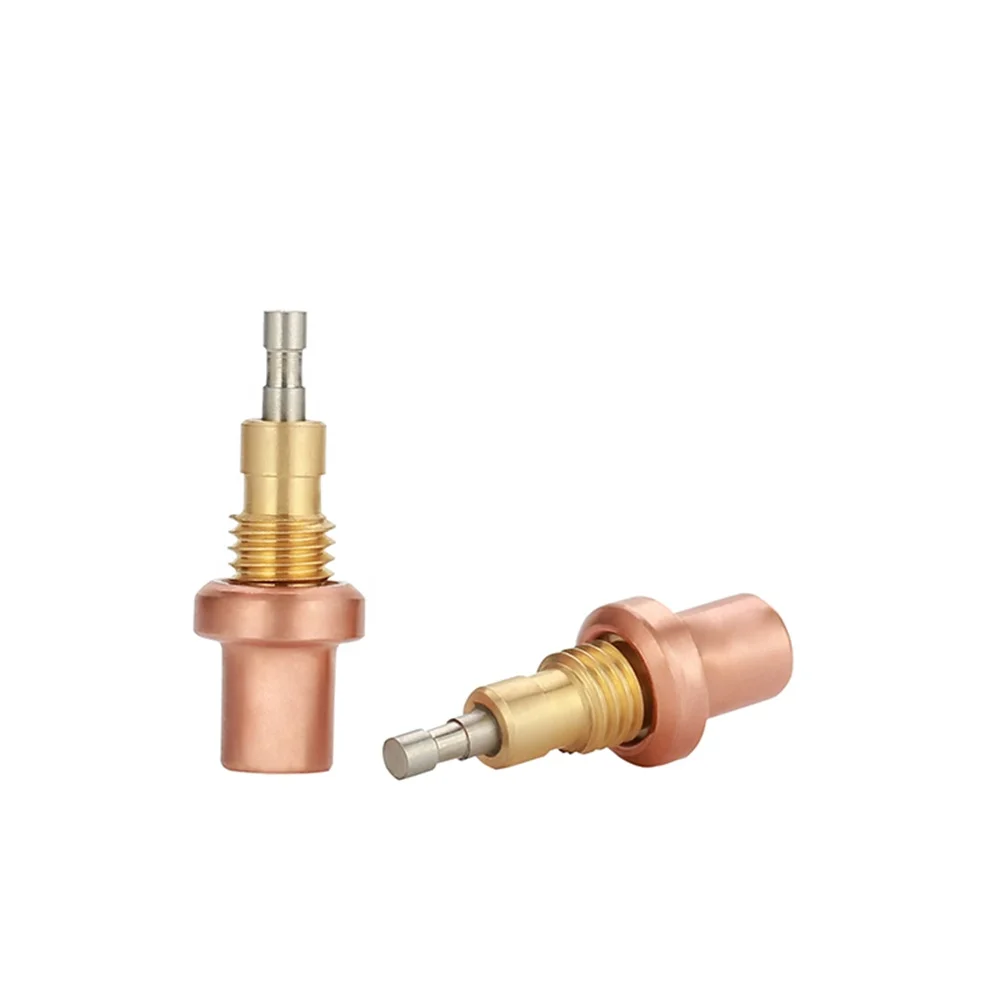

1.The wax thermostatic element produced by the SMLG with its own patented formula is widely recognized, praised and applied in the industry for its sensitivity and accuracy.
2.It has also passed the European experimental institutions product certification (ACS & WRAS).
Product name | Wax thermostatic element | ||||||||||
No | Item | Data | |||||||||
1 | Working Voltage | 230V,24V,12V | |||||||||
2 | Power | 2W-3W | |||||||||
3 | Working Temperature | 62℃-72℃ | |||||||||
4 | Stroke | 5.1mm-6.0mm | |||||||||
5 | Maximum Load | 140N | |||||||||
6 | Minimum Load | 40N，T＜60℃ L=0 | |||||||||
7 | Minimum Load | 100N，at60℃ L=0 | |||||||||
8 | Durability | Power on for 6 minutes + power off for 6 minutes = one cycle, stroke ≥ 3.6mm after 100,000 cycles | |||||||||

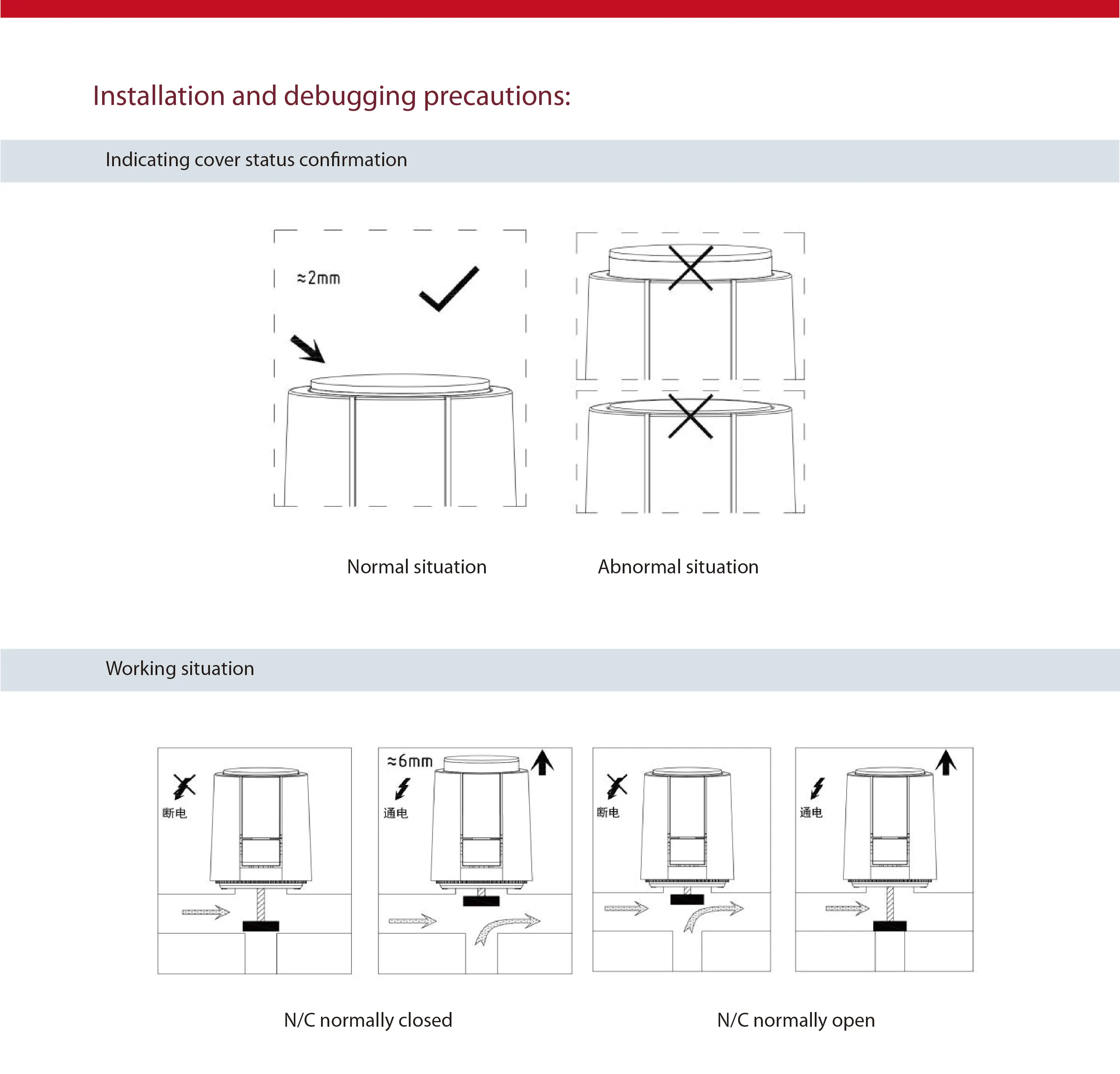

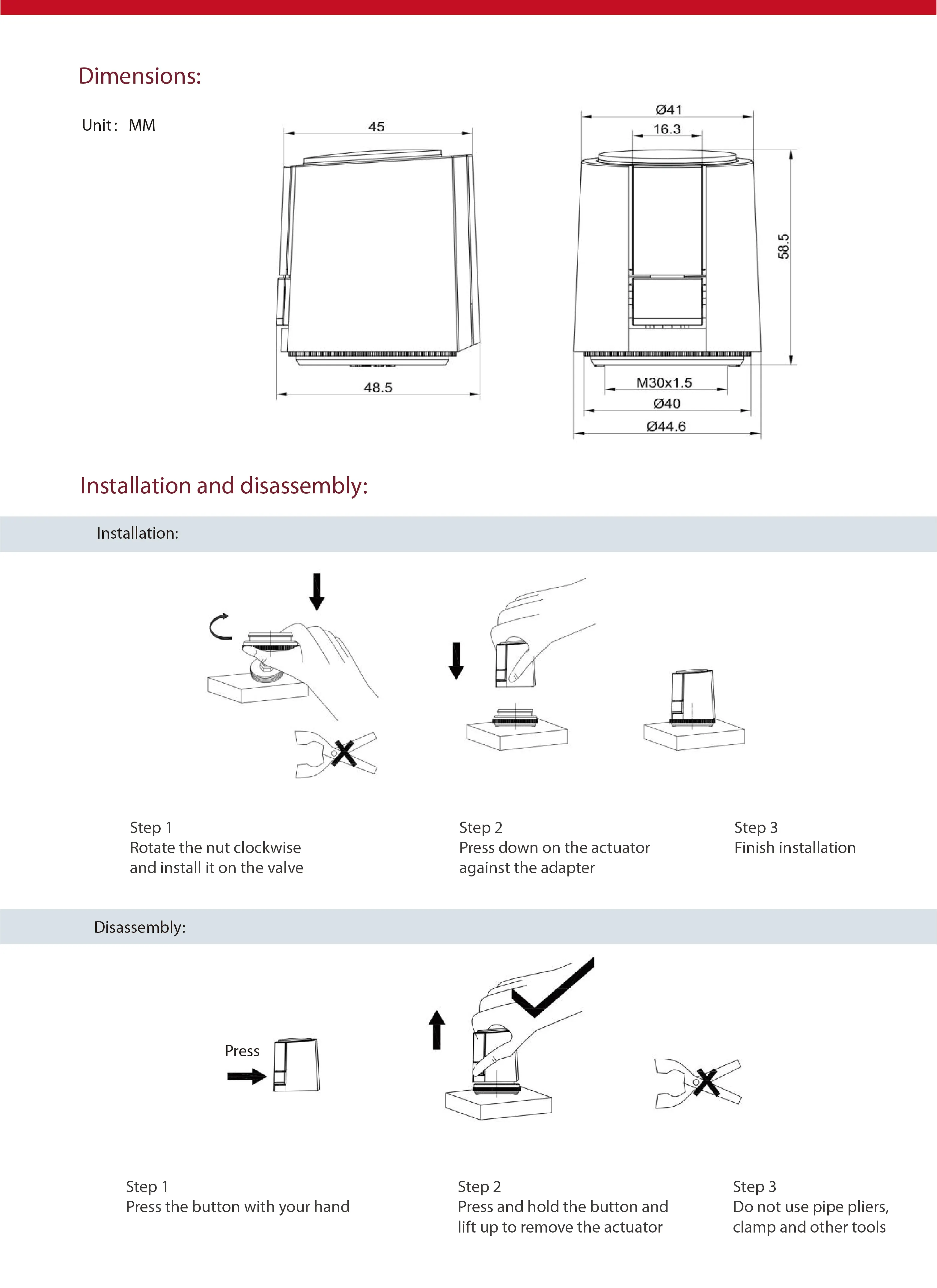

Installation & Disassembly
Certifications
Company Profile

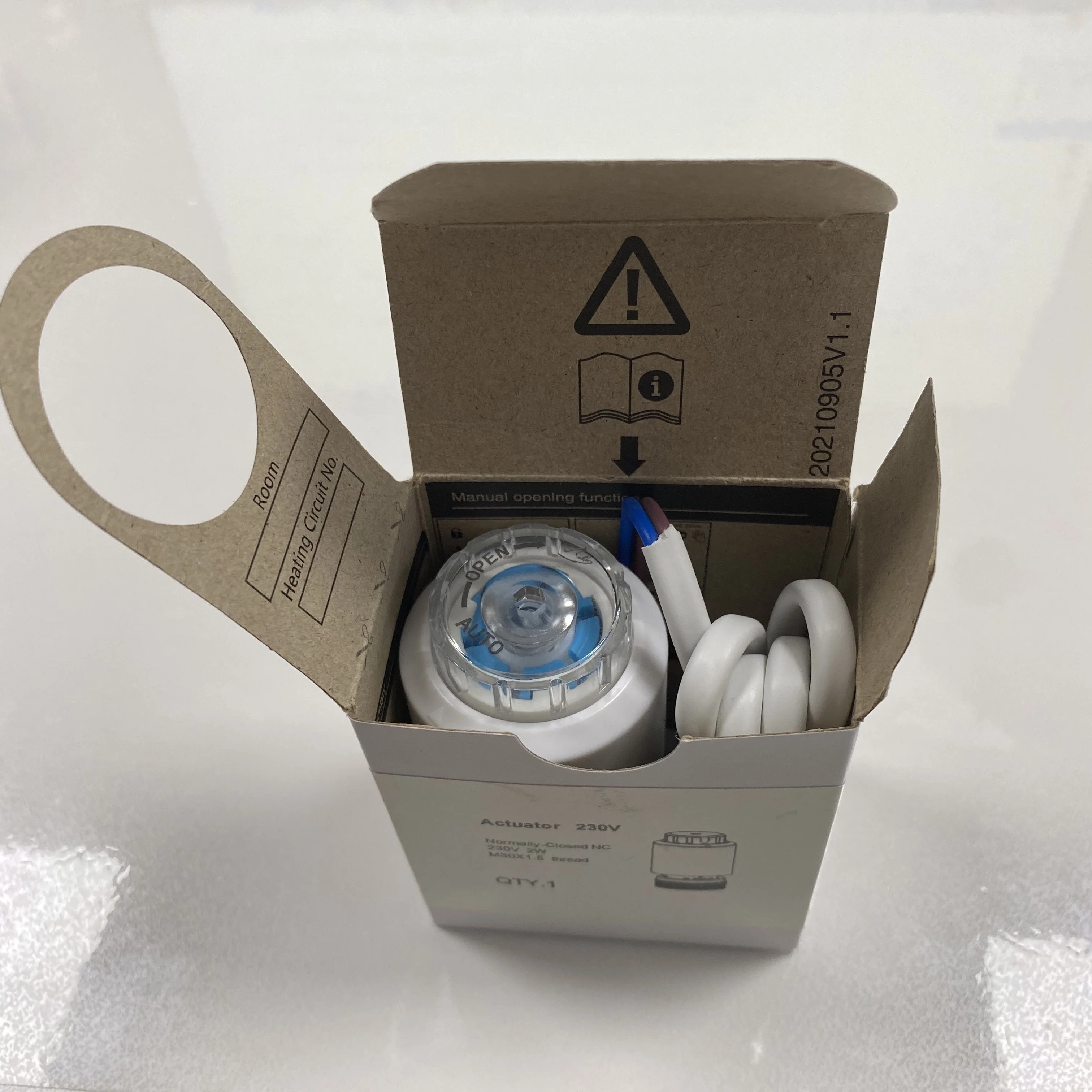

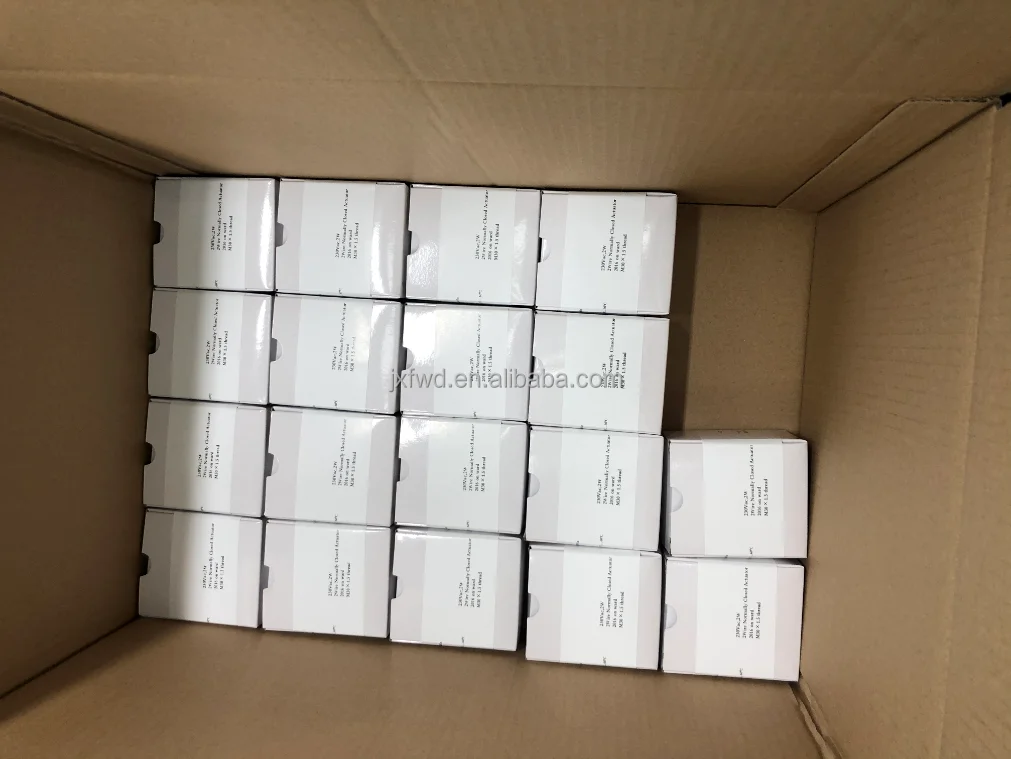

Products Packing

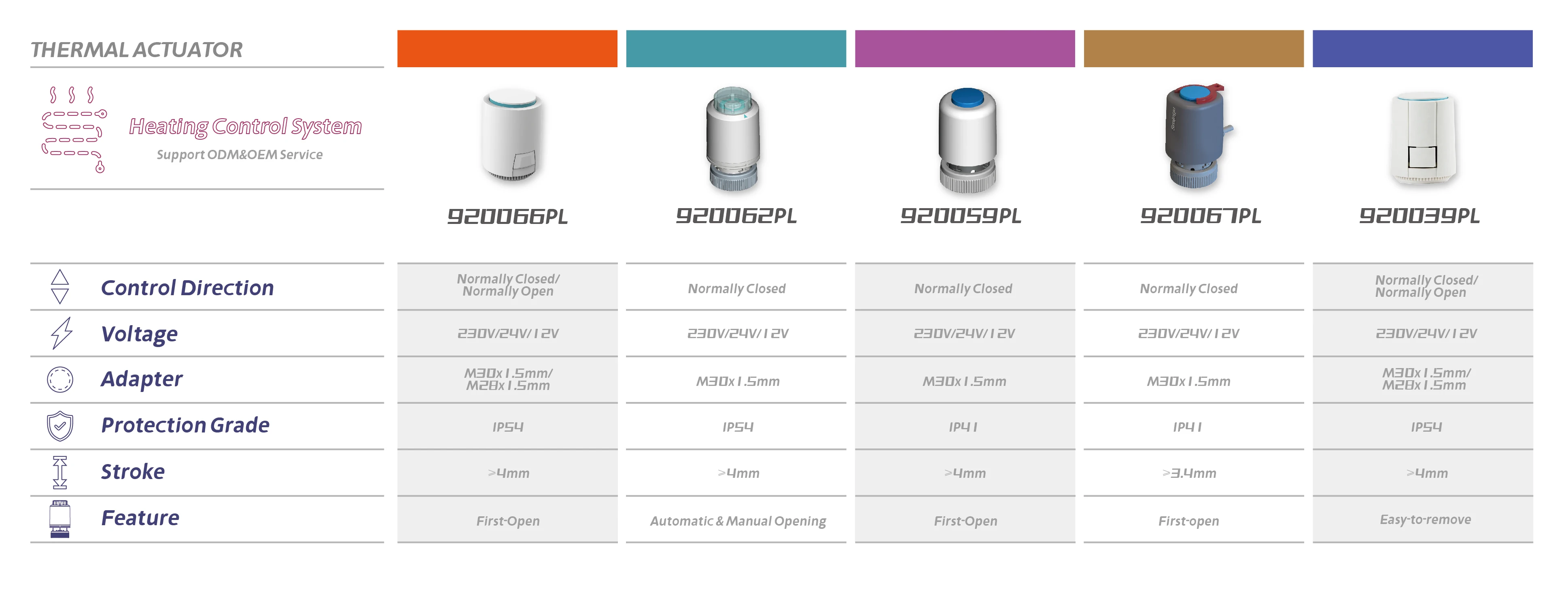

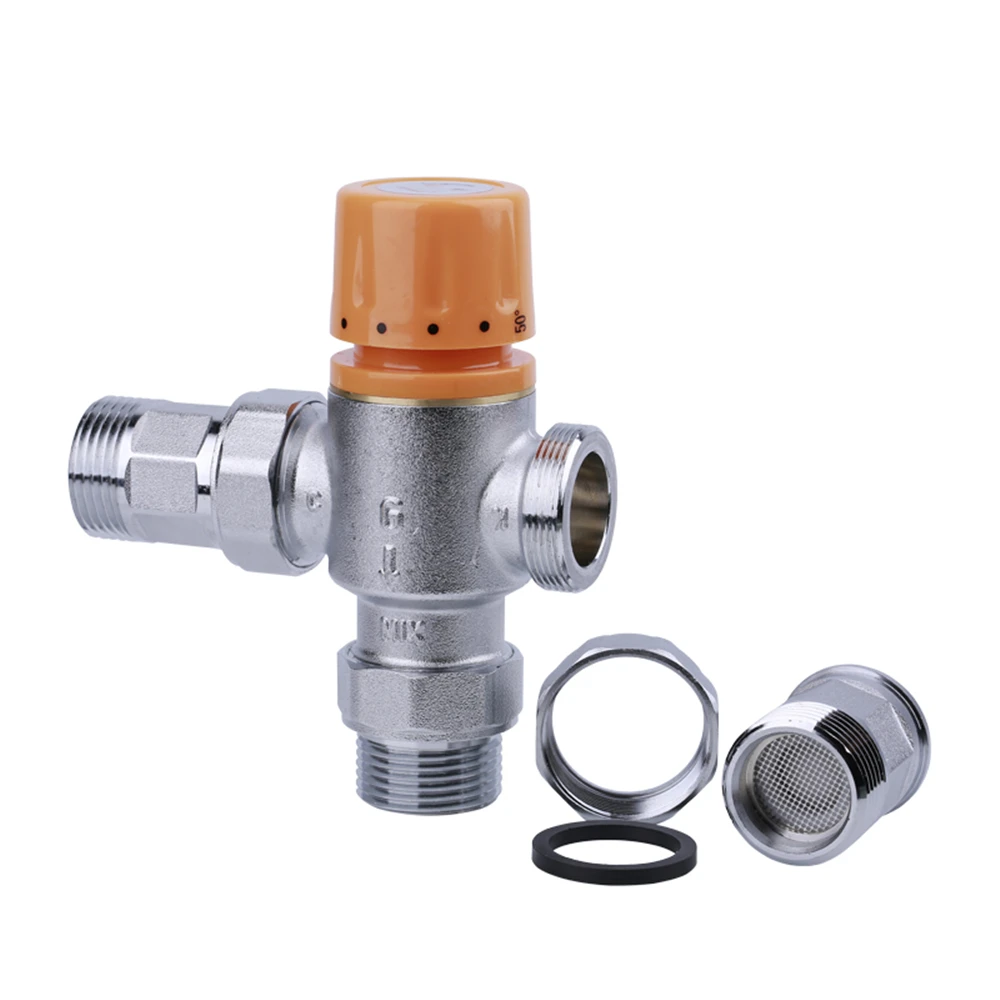

Main Products
FAQ
