CNC electro hydraulic press brake machine with Delem DA53T control 6 1 4000mm capacity
- Category: Machine Tool Equipment >>>
- Supplier: Anhui,Prd,Technology,Co.,Ltd.
Share on:
Product Overview
Description
KECMT MACHINE DETAILS

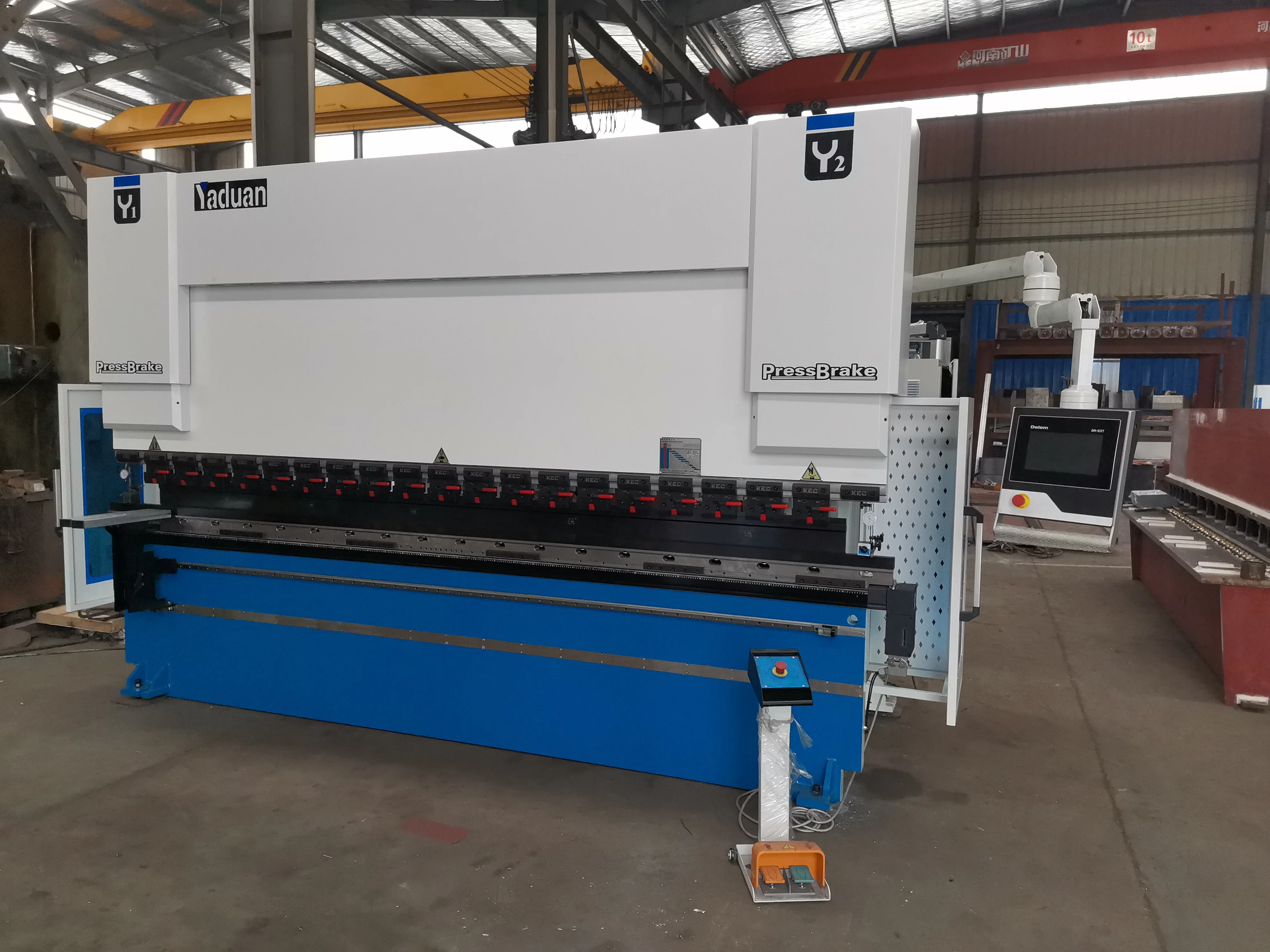

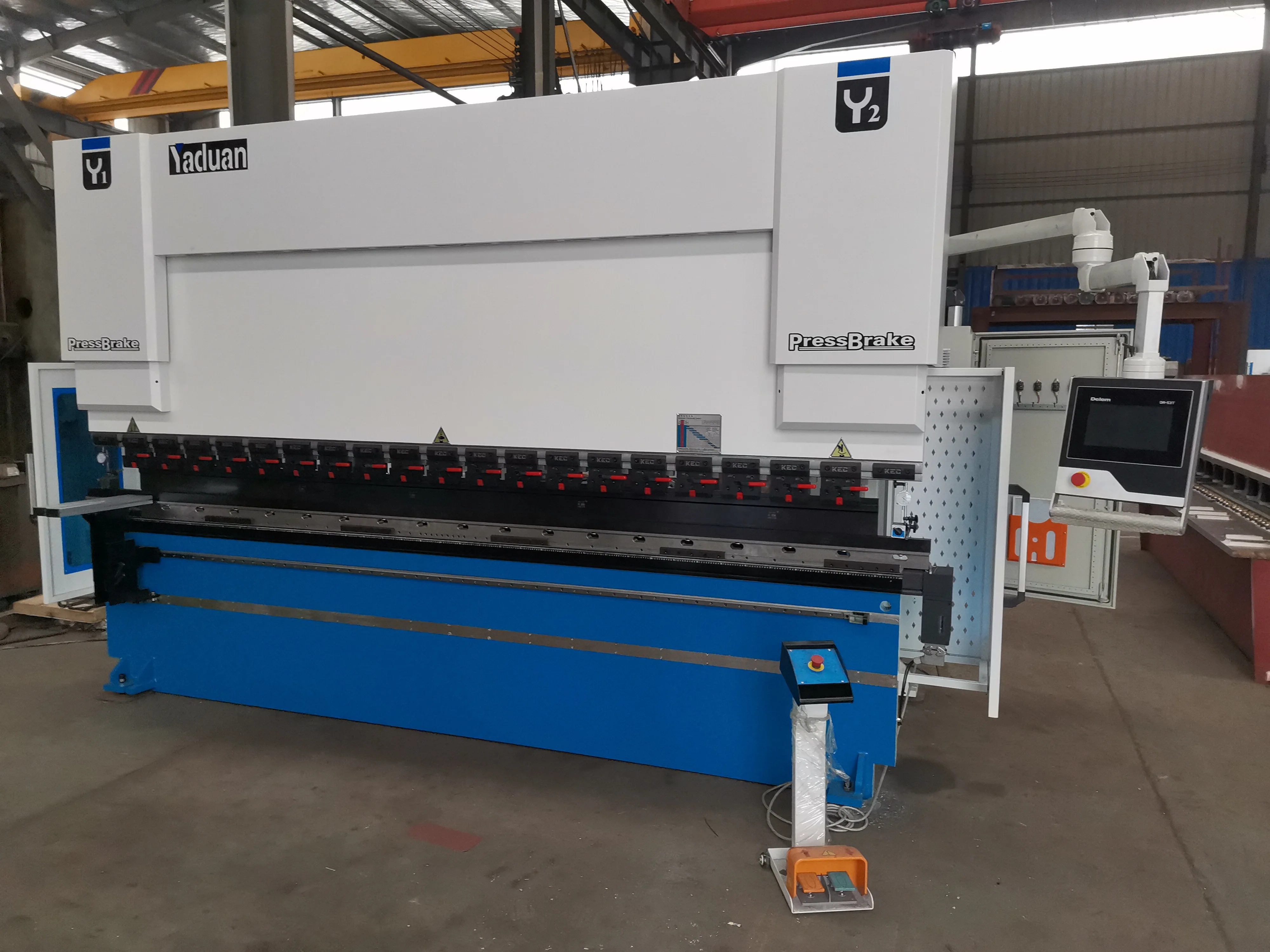

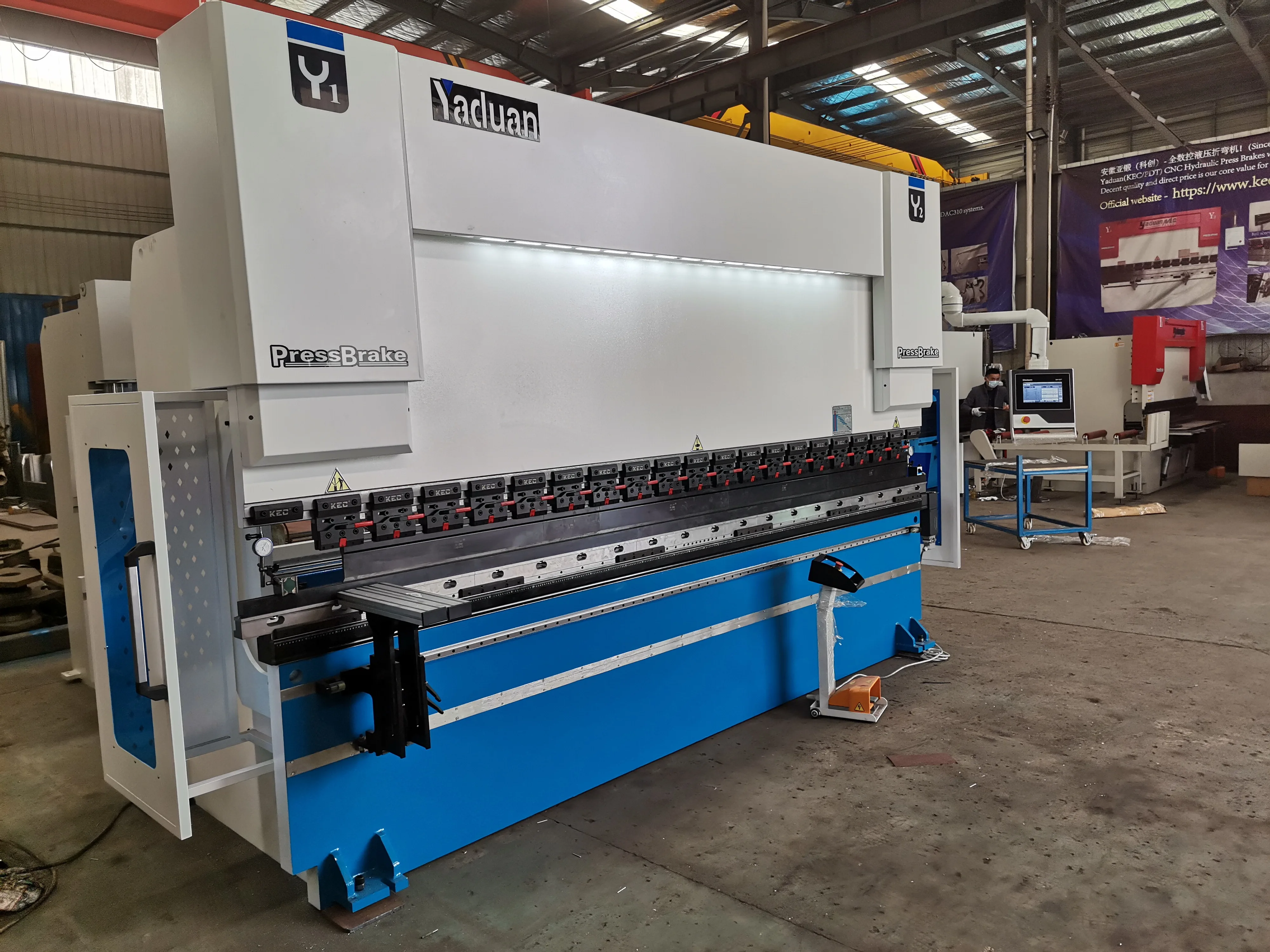

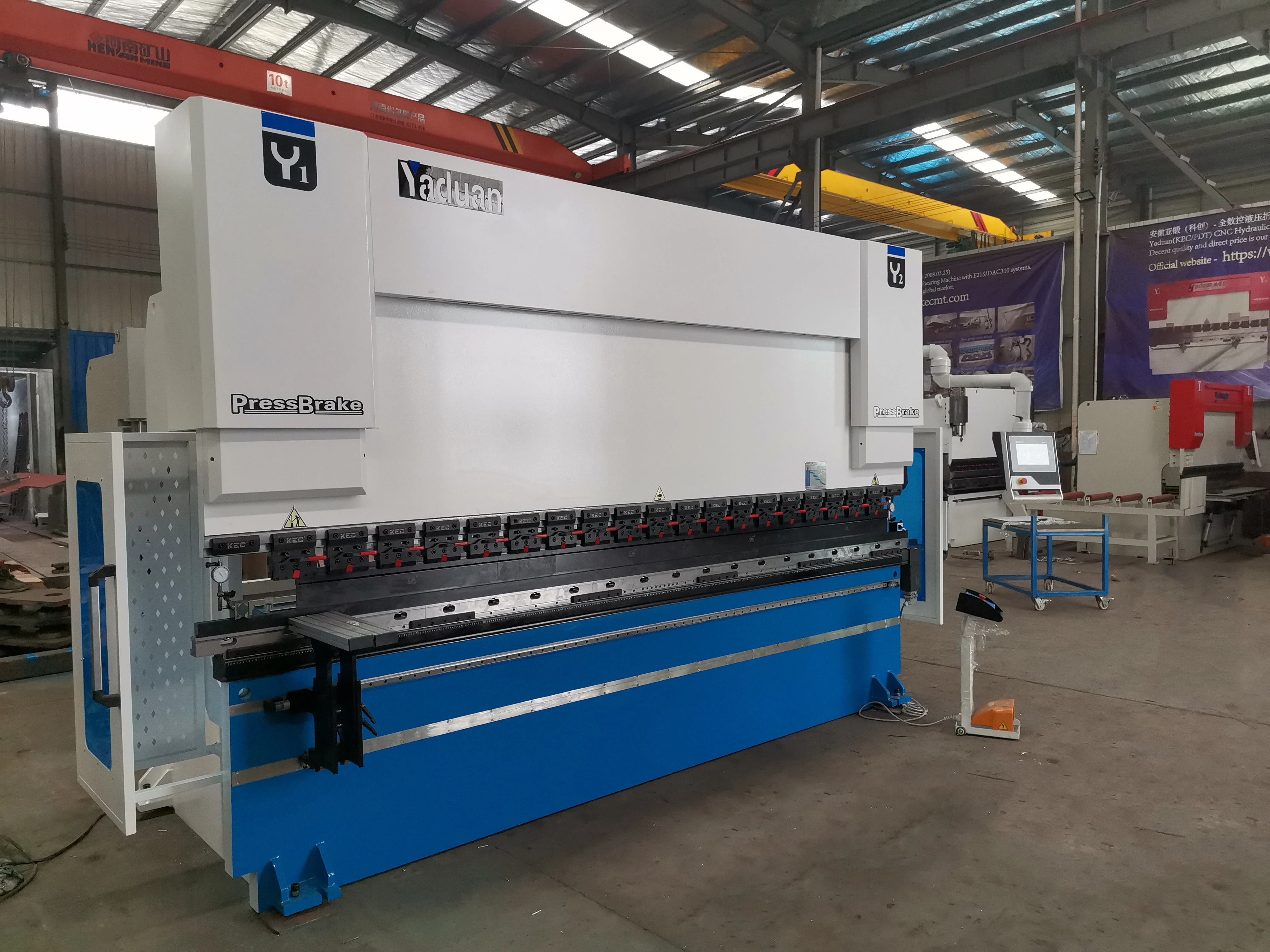

CNC electro hydraulic press brake bending machine with Delem DA53T control
Yaduan CNC hydraulic press brake design innovations are based on years of experience and accumulated skills on sheet metal fabrication filed. Our Hydraulic Press Brakes are designed for faster bending, great durability and fast returning back gauges. We make it possible for your massive prodution effectively.
ELECTRIC HYDRAULIC PRESS BRAKE CNC SERIES
* New EU streamlined design.
* The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress.
* The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment.
* The frame is formed by the imported CNC three-dimensional machining center in one process,
which ensures the parallelism and verticality of each mounting surface.
* The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder)
to ensure the synchronous movement of the ram.
* Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return
(the pressure in the hydraulic system is the closed loop control of the servo main motor).
* The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine.
* New EU streamlined design.
* The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress.
* The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment.
* The frame is formed by the imported CNC three-dimensional machining center in one process,
which ensures the parallelism and verticality of each mounting surface.
* The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder)
to ensure the synchronous movement of the ram.
* Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return
(the pressure in the hydraulic system is the closed loop control of the servo main motor).
* The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine.
DELEM DA53T Control System
"Hot-key” touch navigation10.1" high resolution colour TFT Up to 4 axles (Y1+Y2+X+R+V axles)
Crowning control Tool/ material / product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
Crowning control Tool/ material / product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
Fast change Clamp and die holder
The fast clamp will help you replace the top punch in very short time.
Convenient and time-saving.
Fast intermediate loading and unloading function to improve work efficiency.
The die holer make the dies change smoothly and fast!
Convenient and time-saving.
Fast intermediate loading and unloading function to improve work efficiency.
The die holer make the dies change smoothly and fast!
KECMT MACHINE SPECIFICATIONS
Product name | High Quality Press brake hydraulic press brake NC press brake |
Model | Force | Max. Length | Vertical | Depth | Stroke | Power | L*W*H(mm) | Weight |
WC67K-40t/2200 | 400Kn | 2200mm | 1850mm | 220mm | 100mm | 5.5KW | 2000*1200*1910 | 2750Kg |
WC67K-40t/2500 | 400Kn | 2500mm | 1850mm | 220mm | 100mm | 5.5KW | 2500*1200*1910 | 3000Kg |
WC67K-50t/2200 | 500Kn | 2200mm | 1850mm | 220mm | 100mm | 5.5KW | 2000*1200*1910 | 2950Kg |
WC67K-50t/2500 | 500Kn | 2500mm | 1850mm | 220mm | 100mm | 5.5KW | 2500*1210*2000 | 3400Kg |
WC67K-63t/2500 | 630Kn | 2500mm | 1900mm | 220mm | 120mm | 5.5KW | 2500*1300*2210 | 4000Kg |
WC67K-63t/3200 | 630Kn | 3200mm | 2560mm | 220mm | 120mm | 5.5KW | 3200*1300*2210 | 4800Kg |
WC67K-80t/2500 | 800Kn | 2500mm | 1990mm | 320mm | 120mm | 7.5KW | 2500*1400*2300 | 5700Kg |
WC67K-80t/3200 | 800Kn | 2500mm | 2560mm | 320mm | 120mm | 7.5KW | 3200*1500*2300 | 6020Kg |
WC67K-80t/4000 | 800Kn | 4000mm | 3000mm | 320mm | 120mm | 7.5KW | 4000*1500*2400 | 7000Kg |
WC67K-100t/2500 | 1000Kn | 2500mm | 2020mm | 320mm | 150mm | 7.5KW | 2500*1600*2400 | 6000Kg |
WC67K-100t/3200 | 1000Kn | 3200mm | 2600mm | 320mm | 150mm | 7.5KW | 3200*1600*2600 | 6800Kg |
WC67K-110t/4100 | 1100Kn | 4100mm | 3000mm | 320mm | 150mm | 7.5KW | 4000*1600*2700 | 8400Kg |
WC67K-125t/2500 | 1250Kn | 2500mm | 2020mm | 320mm | 150mm | 11KW | 2500*1600*2400 | 6500Kg |
WC67K-125t/3200 | 1250Kn | 3200mm | 2580mm | 320mm | 150mm | 11KW | 3200*1600*2600 | 7200Kg |
WC67K-125t/4000 | 1250Kn | 4000mm | 3000mm | 320mm | 150mm | 11KW | 4000*1600*2700 | 8800Kg |
WC67K-160t/3200 | 1600Kn | 3200mm | 2600mm | 320mm | 200mm | 11KW | 3200*1700*2700 | 10500Kg |
WC67K-160t/4000 | 1600Kn | 3200mm | 3000mm | 320mm | 200mm | 11KW | 4000*1700*2800 | 11500Kg |
WC67K-160t/5000 | 1600Kn | 4000mm | 4000mm | 320mm | 200mm | 11KW | 5000*1900*3100 | 14000Kg |
WC67K-160t/6000 | 1600Kn | 6000mm | 5000mm | 320mm | 200mm | 11KW | 6300*1900*3200 | 19500Kg |
WC67K-200t/3200 | 2000Kn | 3200mm | 2500mm | 320mm | 200mm | 11KW | 3200*1950*2800 | 12500Kg |
WC67K-200t/4000 | 2000Kn | 4000mm | 3000mm | 320mm | 200mm | 11KW | 4000*1950*2800 | 13600Kg |
WC67K-200t/5000 | 2000Kn | 5000mm | 4000mm | 320mm | 200mm | 11KW | 5000*1950*3100 | 14500Kg |
WC67K-200t/6000 | 2000Kn | 6000mm | 5000mm | 320mm | 200mm | 11KW | 6000*1950*3300 | 21000Kg |
WC67K-250t/3200 | 2500Kn | 3200mm | 2600mm | 400mm | 250mm | 18.5KW | 3250*2000*3200 | 19000Kg |
WC67K-250t/4000 | 2500Kn | 4000mm | 3200mm | 400mm | 250mm | 18.5KW | 4000*2000*3400 | 20200Kg |
WC67K-250t/5000 | 2500Kn | 5000mm | 4000mm | 400mm | 250mm | 18.5KW | 5000*2000*3400 | 23500Kg |
WC67K-250t/6000 | 2500Kn | 6000mm | 5000mm | 400mm | 250mm | 18.5KW | 6000*2000*3400 | 27500Kg |
WC67K-300t/3200 | 3000Kn | 3200mm | 2530mm | 400mm | 250mm | 22KW | 3200*2000*3450 | 20500Kg |
WC67K-300t/4000 | 3000Kn | 4000mm | 3200mm | 400mm | 250mm | 22KW | 4000*2000*3450 | 22500Kg |
WC67K-300t/5000 | 3000Kn | 5000mm | 4000mm | 400mm | 250mm | 22KW | 5000*2000*3450 | 25000Kg |
WC67K-300t/6000 | 3000Kn | 6000mm | 5000mm | 400mm | 250mm | 22KW | 6000*2000*3450 | 30000Kg |
WC67K-400t/4000 | 4000Kn | 4000mm | 3000mm | 400mm | 250mm | 30KW | 4000*2180*3500 | 25000Kg |
WC67K-400t/5000 | 4000Kn | 5000mm | 4000mm | 400mm | 250mm | 30KW | 5000*2180*3500 | 29000Kg |
WC67K-400t/6000 | 4000Kn | 6000mm | 5000mm | 400mm | 250mm | 30KW | 6000*2180*3800 | 35000Kg |
WC67K-500t/4000 | 5000Kn | 4000mm | 3000mm | 400mm | 250mm | 45KW | 4000*2580*3500 | 35000Kg |
WC67K-500t/5000 | 5000Kn | 6000mm | 4000mm | 400mm | 250mm | 45KW | 5050*3500*3700 | 44000Kg |
WC67K-500t/6000 | 5000Kn | 6000mm | 5000mm | 400mm | 320mm | 45KW | 6050*3500*3700 | 55000Kg |
KECMT EXHIBITIONS
KECMT PACKING AND DELIVERY
PACKING FOR PRESS BRAKE TOOLINGS, SHEAR BLADES AND ACCESSORIES

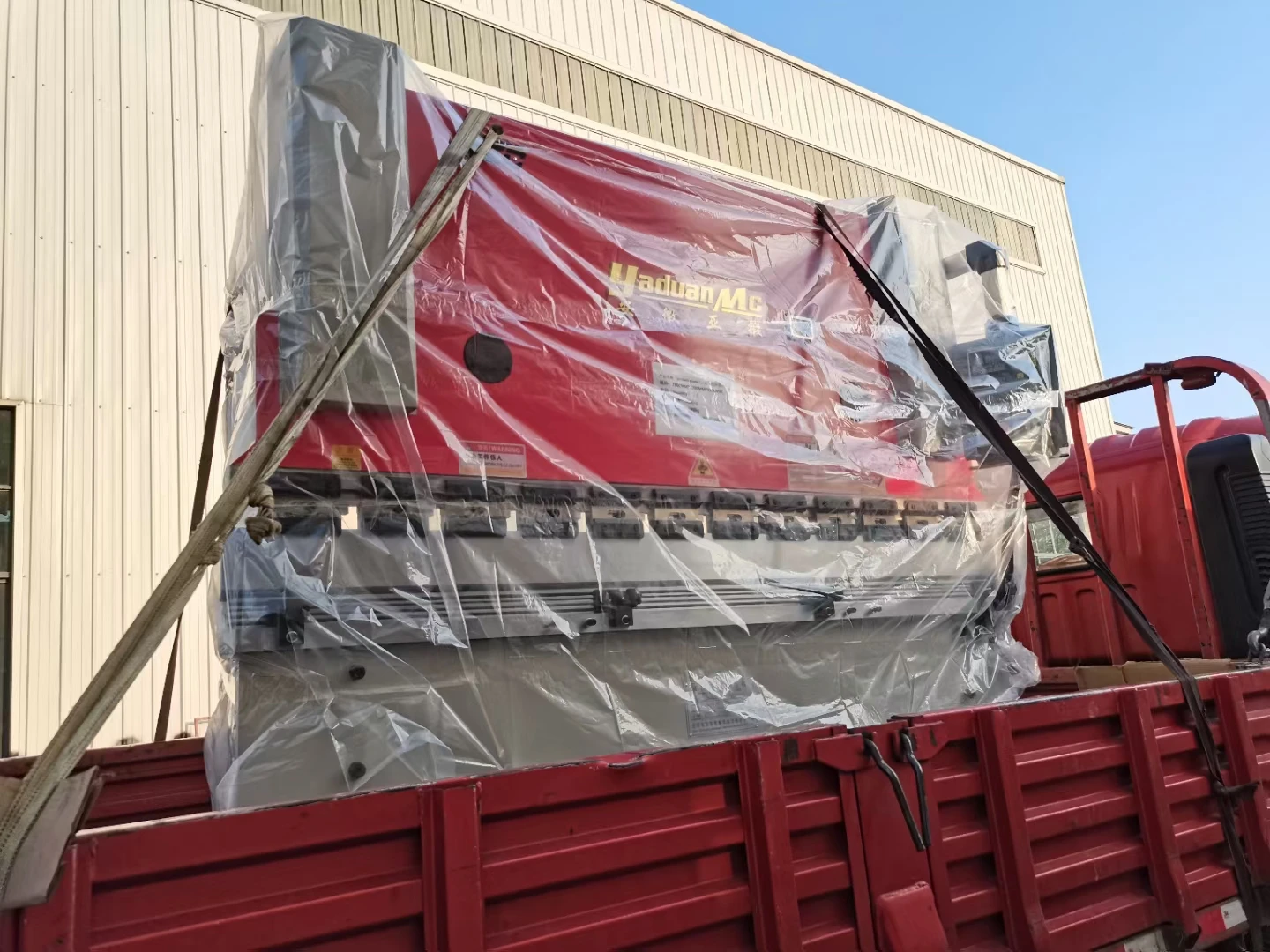

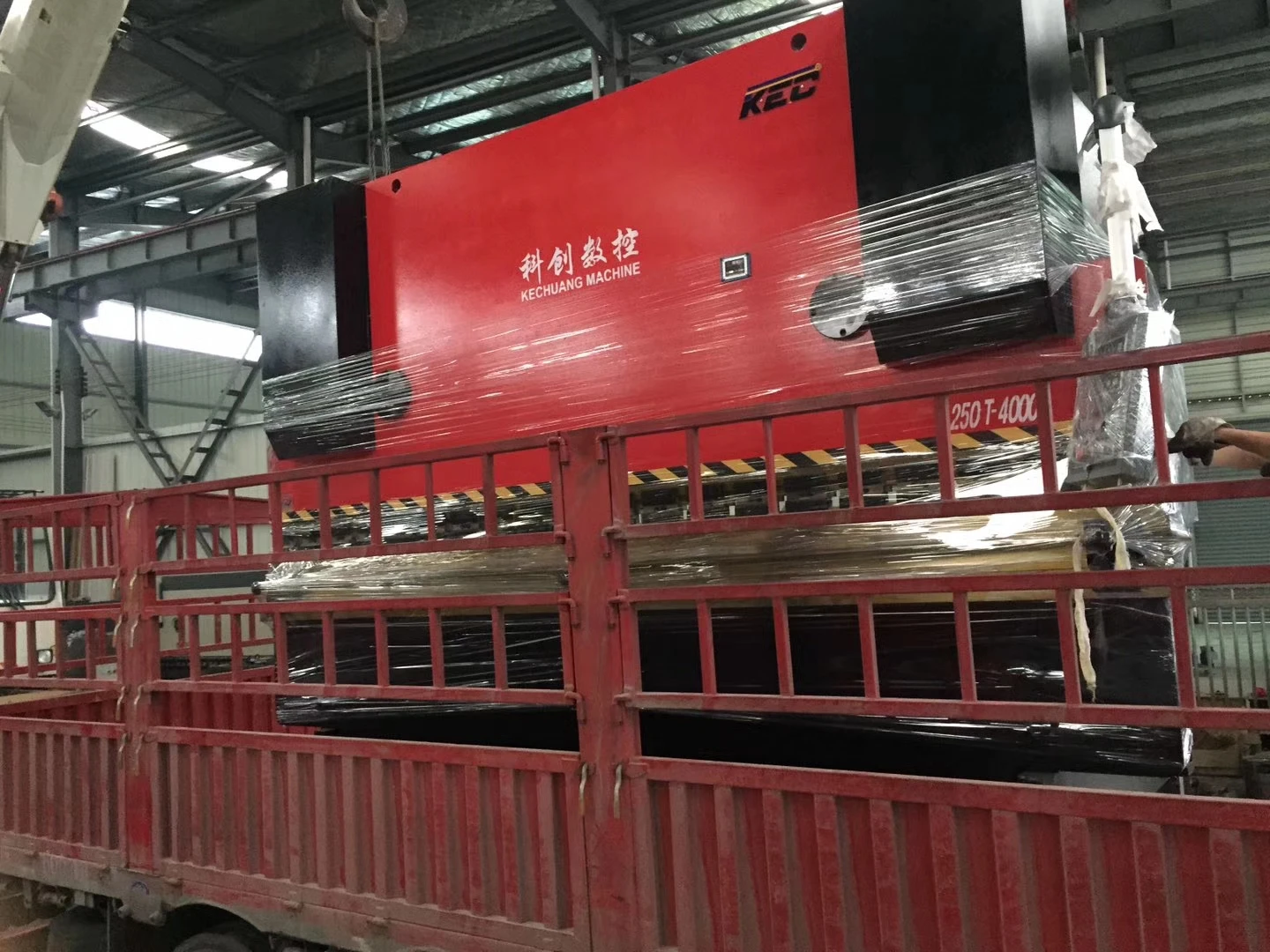

PACKING FOR HYDRAULIC PRESS BRAKE, SHEAR AND OTHER MACHINES
KECMT FACTORY OVERVIEW
Yaduan(KEC/PDT) Machine had been devoted in hydraulic press brakes and shears since 2008.
Decent quality and direct price is our core value for global market.
We offer most competitive prices and services for,
1. CNC/NC hydraulic press brakes from 30Ton to 600Ton,1600mm to 10000mm!
2. CNC/NC hydraulic shearing machine from 4mm*2500mm to 25mm*8000mm!
3. Spare parts (Punch and dies, clamps, fingers, valves, systems and etc.) for all brands like LVD,AMADA,Trumpf...
4. Upgrade solutions changing your NC machines to Servo CNC press brakes/shears. (Suitable for all brands.)
Decent quality and direct price is our core value for global market.
We offer most competitive prices and services for,
1. CNC/NC hydraulic press brakes from 30Ton to 600Ton,1600mm to 10000mm!
2. CNC/NC hydraulic shearing machine from 4mm*2500mm to 25mm*8000mm!
3. Spare parts (Punch and dies, clamps, fingers, valves, systems and etc.) for all brands like LVD,AMADA,Trumpf...
4. Upgrade solutions changing your NC machines to Servo CNC press brakes/shears. (Suitable for all brands.)
KECMT FAQ
1. Q: We see many Chinese brands there in market, are they all manufacturers? What about KEC/yaduan?
A: It is true that among all those Chinese brands, most of them are trading brands.
But KEC/yaduan is the real manufacturer that has been making hydraulic press brakes and shearing machines since 2008.
2. Q: How to get an accurate quotation from KEC ?
A: Simply provide us the details of material , max thickness and max width you would like to work with.
Send email to [email protected] or call directly +86-18355321931.
3. Q: Can you do OEM service ?
A: Sure. your design or other requirements are accepted , your own logo can be effected on the machine.
4. Q: What's the shipping cost from China to your country ?
A:We can send machine to your port or door address by sea.
Please kindly tell us your nearest port or address with postcode.
We work with several reliable shipping agents to arrange global shipping in multiple ways.
5. Q: What is the average lead time?
A:For stocks, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective upon deposit receipt.
If our lead times do not work with your deadline, We could arrange special urgent production so to catch our deadline.
In all cases we will try to accommodate your needs. In most cases we are able to manage quick delivery.
6. Q: Can you supply the relevant shipping documentation?
A:Yes, we can provide most documents including
Bill of lading;
Certificates of Analysis /Conformance;
CE certificate, COC certificate;
Insurance;
Country of Origin;
Commercial invoice;
Packing list
and other export documents whatever required.
7. Q: Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
8. Q: How to operate the machines ordered ?
A:Videos of the machines before shipment in our factory will be sent to you directly.
9. Q: What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
10. Q: What is the product warranty?
A:Normally 3 years.
Our commitment is to your satisfaction with our products.
In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
11. Q: Do you guarantee safe and secure delivery of products?
A:Yes, we always use high quality export packaging.
We also use specialized solid packing for dangerous goods and validated cold storage shippers for temperature sensitive items.
Special packaging and non-standard packing requirements will charge additionally.
A: It is true that among all those Chinese brands, most of them are trading brands.
But KEC/yaduan is the real manufacturer that has been making hydraulic press brakes and shearing machines since 2008.
2. Q: How to get an accurate quotation from KEC ?
A: Simply provide us the details of material , max thickness and max width you would like to work with.
Send email to [email protected] or call directly +86-18355321931.
3. Q: Can you do OEM service ?
A: Sure. your design or other requirements are accepted , your own logo can be effected on the machine.
4. Q: What's the shipping cost from China to your country ?
A:We can send machine to your port or door address by sea.
Please kindly tell us your nearest port or address with postcode.
We work with several reliable shipping agents to arrange global shipping in multiple ways.
5. Q: What is the average lead time?
A:For stocks, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective upon deposit receipt.
If our lead times do not work with your deadline, We could arrange special urgent production so to catch our deadline.
In all cases we will try to accommodate your needs. In most cases we are able to manage quick delivery.
6. Q: Can you supply the relevant shipping documentation?
A:Yes, we can provide most documents including
Bill of lading;
Certificates of Analysis /Conformance;
CE certificate, COC certificate;
Insurance;
Country of Origin;
Commercial invoice;
Packing list
and other export documents whatever required.
7. Q: Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
8. Q: How to operate the machines ordered ?
A:Videos of the machines before shipment in our factory will be sent to you directly.
9. Q: What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
10. Q: What is the product warranty?
A:Normally 3 years.
Our commitment is to your satisfaction with our products.
In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
11. Q: Do you guarantee safe and secure delivery of products?
A:Yes, we always use high quality export packaging.
We also use specialized solid packing for dangerous goods and validated cold storage shippers for temperature sensitive items.
Special packaging and non-standard packing requirements will charge additionally.
