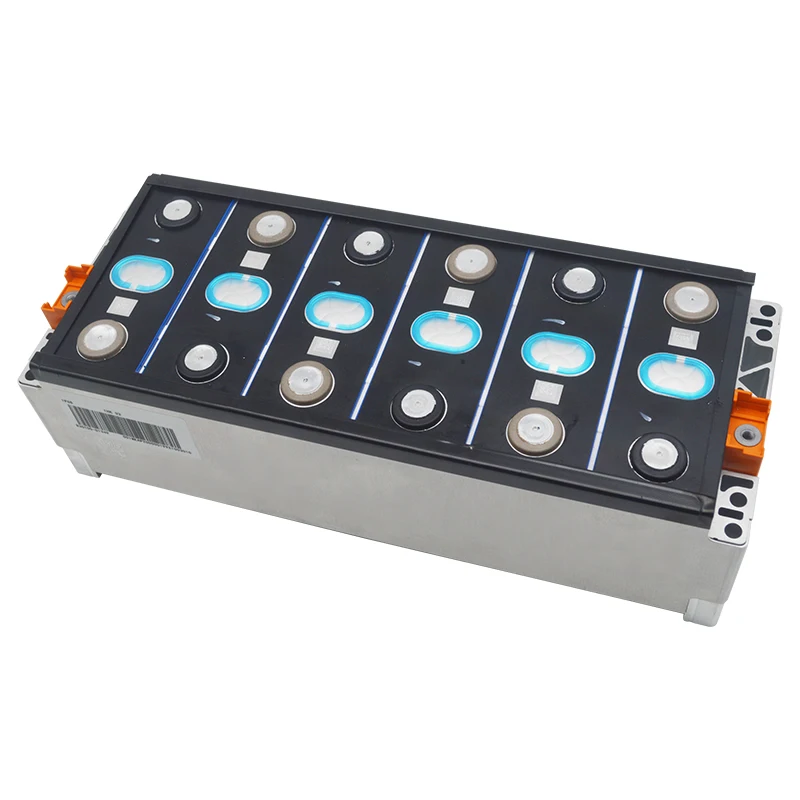

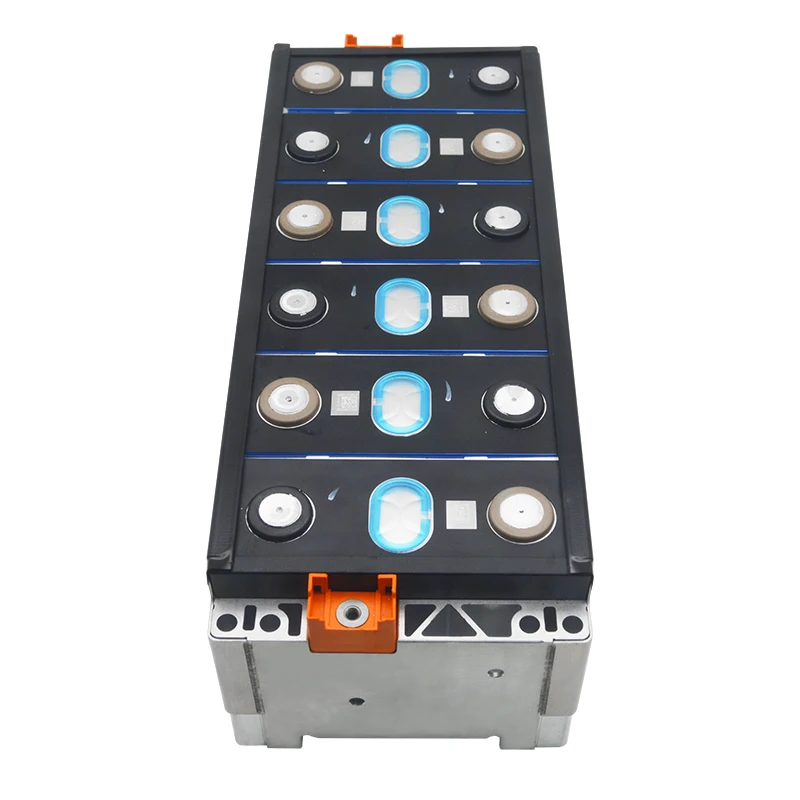

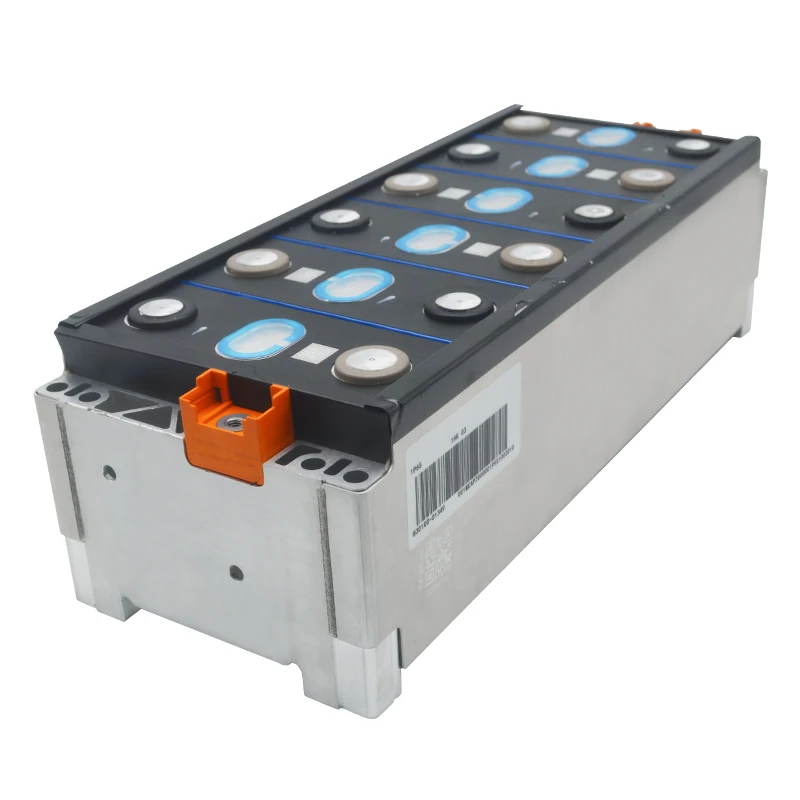

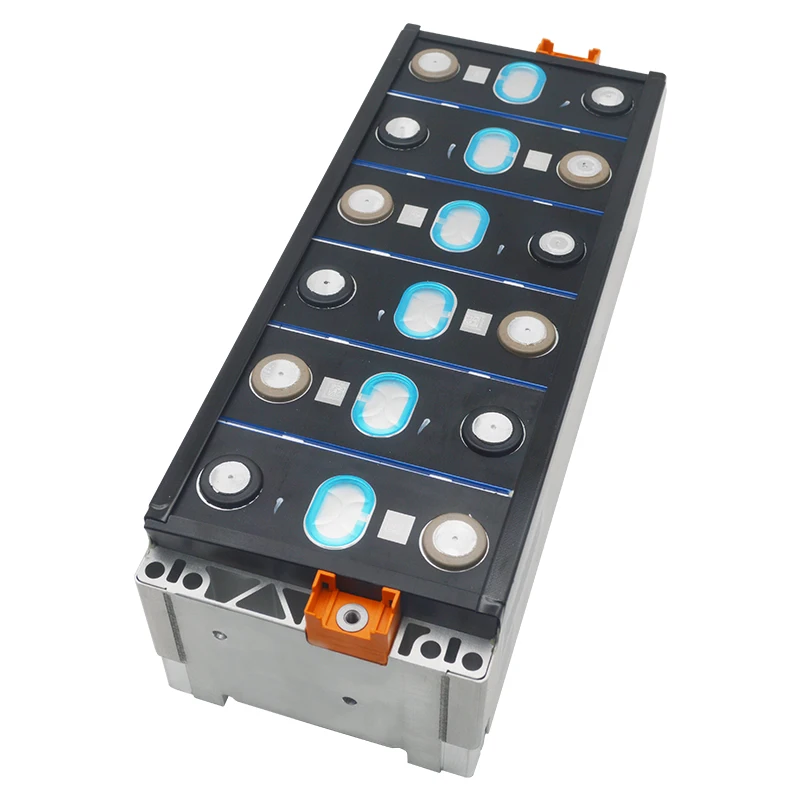

2022 Wholesale Deep Cycle CATL Prismatic battery cell 6S1P 22.2V 135Ah NCM Lithium ion Battery Module for Electric Power Systems
- Category: >>>
- Supplier: Aoyouji Electronics (huizhou) Co. Ltd.
Share on (1600476947002):
Product Overview
Description
2022 Wholesale Deep Cycle CATL Prismatic battery cell 6S1P 22.2V 135Ah NCM Lithium ion Battery Module for Electric Power Systems
Specification
Item | Value |
Battery Type | CATL NCM Battery Module (3.7V 135Ah Cell) |
Nominal Voltage | 22.2V |
Battery Capacity | 135Ah |
The charging ratio | 1C |
The discharge rate | 5C |
Internal Impedance | ≤5mΩ |
Standard Charging Current | 0.5C |
Max Charging Current | 1C |
Standard Discharging Current | 1C |
Max Continuous Discharging Current | 2C |
Max Discharging Current (Peak) | 3C |

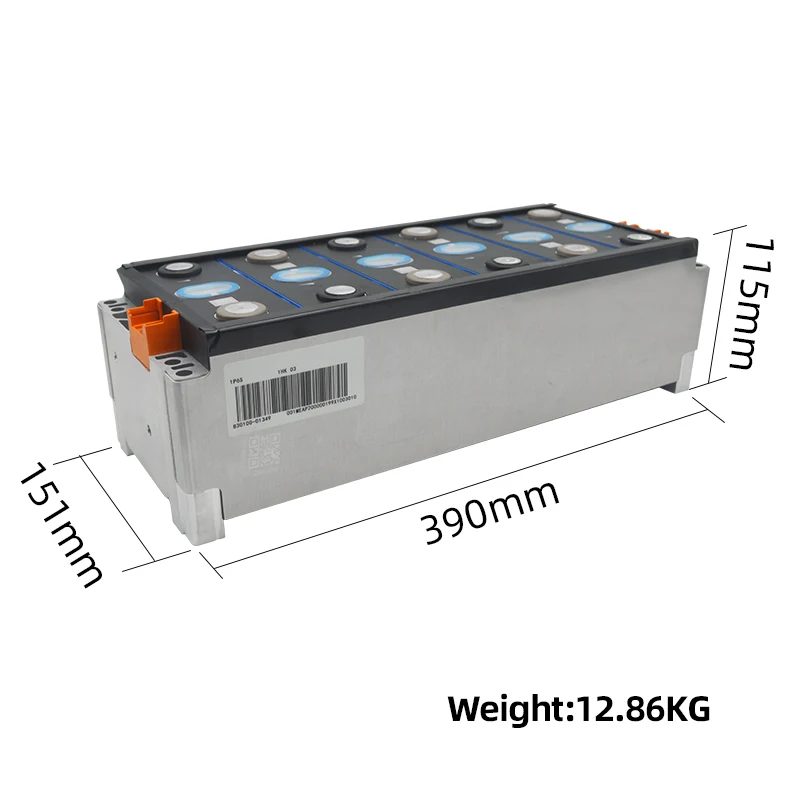

Dimensions | 389*151*115mm |
Weight | 12.86KGs |
Battery Cycle Life | ≥2000times |
Standard Charging Mode | CC/CV |
Application | EV car, Niissan Leaf, Golf Carts, Electric Folklifts/ Trucks/ Vehicles, Solar Storage |
Laser Welding Processing | Available |
OEM | Available |
Product Description
*Genuine Grade A lithium battery cells, brand new
*Light weight and high performance with 270A continuous discharge
*Small internal resistance
*High energy density, low self-discharge
*Pollution free, long cycle life
*No memory effectExisting stock for short delivery time.
*OEM orders are available (battery pack, battery with spot welding ect.)
*Small internal resistance
*High energy density, low self-discharge
*Pollution free, long cycle life
*No memory effectExisting stock for short delivery time.
*OEM orders are available (battery pack, battery with spot welding ect.)
Company Profile
AUG ENERGY ELECTRONICS CO.,LTD was founded in HongKong 2009,Passing 12 years hard-working and growth.AUG has became a leader in the lithium battery fields who concentrate on R&D,Manufacture,Market,Services in one of advanced company.Through these rich experience,AUG not only can provide high-quality standard products but also can make use of our advantages above to provide OEM&ODM services to our clients,thus it will help customers bring their products get to market faster.
By 2020,AUG have passed ISO9001-2008 quality management system for 8 years,AUG have passed CE, ROSH, MSDS, UN38.3,UL1642,IEC62133 etc.. certifications. AUG's lithium battery&battery pack have been trusted by custo mers from more than 40 countries and regions.
At present,AUG's products widely use on "Portable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical
Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
At present,AUG's products widely use on "Portable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical
Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
Packing & Delivery
FAQ
1,Q: What's the main product in AUG?
A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.
A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
