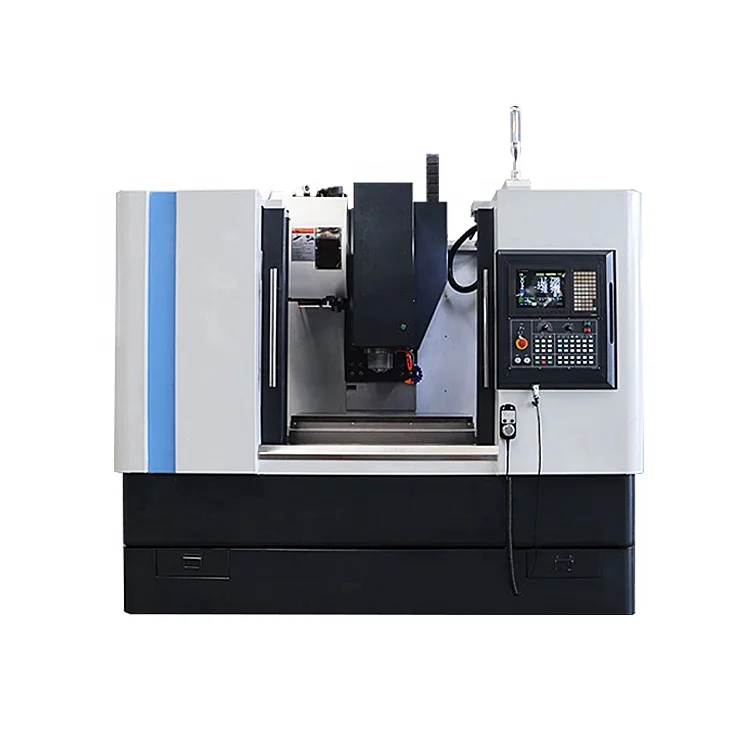

Automatic Vertical Metal Machine Center VMC 4 Axis Cnc Milling Machine
- Category: >>>
- Supplier: Sjr Machinery Co. Ltd.
Share on (1600476959639):
Product Overview
Description
Recommend Products
Products Description
CNC milling machine is a kind of automatic processing equipment developed on the basis of general milling machine. Their processing technology is basically the same, and their structure is also similar. CNC milling machines are divided into two categories: without tool magazine and with tool magazine. The CNC milling machine with tool magazine is also called machining center.
2. It can process parts that can not be processed or difficult to process by common machine tools, such as complex curve parts described by mathematical model and 3D space surface parts;
Product parameter
Main Specifications:
Items | VMC1160 |
CAPACITY | |
X axis travel | 1100mm |
Y axis travel | 600mm |
Z axis travel | 600mm |
GUIDE WAY | |
X guide way span | 45mm/roller/2pcs |
Y guide way span | 45mm/roller/2pcs |
Z guide way span | 45mm/roller/2pcs |
BALL SCREW | |
X ball screw | 40x12mm |
Y ball screw | 40x12mm |
Z ball screw | 40x12mm |
Ball screw class | C3 |
DRIVING MOTOR | |
X motor | 3kW/20Nm |
Y motor | 3kW/20Nm |
Z motor | 3kW/20Nm |
MOTION | |
X axis rapid travel | 36m/min |
Y axis rapid travel | 36m/min |
Z axis rapid travel | 30m/min |
Positioning accuracy X/Y/Z | 0.006mm |
Repeatability X/Y/Z | 0.004mm |
WORK TABLE | |
Table length | 1200mm |
Table width | 600mm |
Table Max. loading weight | 1000kg |
T slot | 18mm |

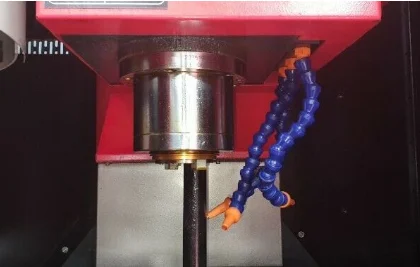

MAIN SPINDLE | |
Spindle nose to table | 120-720mm |
Spindle center to Z axis | 700mm |
Spindle type | BT40 |
Spindle speed | 8000rpm |
Spindle power | 11/15kW |
Spindle torque | 52.5Nm |
ATC | |
Number of tools | 24T |
Tool shank | BT40 |
Tools change time | 2s |
GENERAL | |
Foot print(LxWxH)(with conveyor) | 4700×2450×2700mm |
Machine weight | 6500kg |
