200kw industrial Wind Electricity Generator Horizontal Windmill Windmolen Turbine Generators
- Category: >>>
- Supplier: Wuxi Smaraad New Energy Technology Co. Ltd.
Share on (1600477023213):
Product Overview
Description
Free Energy China factory 50kw 100kw 200kw and 500kw horizontal wind turbine with full system.
Online Customization, Sample available and One-Stop service
The price is just wind turbine, and if you need full system and other watts pls contact us to get the best price
Item | SD-50K | SD-60K | SD-80K | SD-100K | SD-200K | SD-500K | |||||
Rated Power | 50KW | 60KW | 80KW | 100KW | 200KW | 500KW | |||||
Maximum Power | 60KW | 75KW | 100KW | 15K0W | 300KW | 600KW | |||||
Rated Voltage | 220-600V | 220-600V | 220-600V | 220-600V | 220-600V | 220-600V | |||||
Start-up Wind Speed | 4m/s | 4m/s | 4m/s | 4m/s | 4m/s | 4m/s | |||||
Rated Wind Speed | 12m/s | 15m/s | 15m/s | 15m/s | 15m/s | 15m/s | |||||
Product Assembly Weight | 2950kg | 3900kg | 4300kg | 4900kg | 6000kg | 7200kg | |||||
Number of Blades | 3 | ||||||||||
Blades Material | Aviation Aluminum Alloy | ||||||||||
Generator Type | Three Phase Permanent Magnet AC Synchronous Generator | ||||||||||
Magnet Material | NdFeB | ||||||||||
Generator Case | Casting Aluminum Alloy | ||||||||||
Control System | Electromagnet | ||||||||||
Overspeed Protection | Electromagnetic brake | ||||||||||
Working Temperature | -25~+65ºC | ||||||||||
Overload Protection | Electromagnetic Brake And The Unloading Unit | ||||||||||
Item | SD-50K | SD-60K | SD-80K | SD-100K | SD-200K | SD-500K | |||||
Rated Power | 50KW | 60KW | 80KW | 100KW | 200KW | 500KW | |||||
Maximum Power | 60KW | 75KW | 100KW | 15K0W | 300KW | 600KW | |||||
Rated Voltage | 220-600V | 220-600V | 220-600V | 220-600V | 220-600V | 220-600V | |||||
Start-up Wind Speed | 4m/s | 4m/s | 4m/s | 4m/s | 4m/s | 4m/s | |||||
Rated Wind Speed | 12m/s | 15m/s | 15m/s | 15m/s | 15m/s | 15m/s | |||||
Product Assembly Weight | 2950kg | 3900kg | 4300kg | 4900kg | 6000kg | 7200kg | |||||
Number of Blades | 3 | ||||||||||
Blades Material | Aviation Aluminum Alloy | ||||||||||
Generator Type | Three Phase Permanent Magnet AC Synchronous Generator | ||||||||||
Magnet Material | NdFeB | ||||||||||
Generator Case | Casting Aluminum Alloy | ||||||||||
Control System | Electromagnet | ||||||||||
Overspeed Protection | Electromagnetic brake | ||||||||||
Working Temperature | -25~+65ºC | ||||||||||
Overload Protection | Electromagnetic Brake And The Unloading Unit | ||||||||||
20kw 50kw 80kw 100kw 200kw wind turbine
Smaraad 80kw electronically controlled wind turbine adopts horizontal axis layout, three blades, upwind direction, intelligent
brake, automatic yaw, and direct drive permanent magnet synchronous generator design plan for off-grid
brake, automatic yaw, and direct drive permanent magnet synchronous generator design plan for off-grid
50kw wind system for oil station.
sustainable 50kw off grid system.
100kw system for factory.
100kw on grid system.

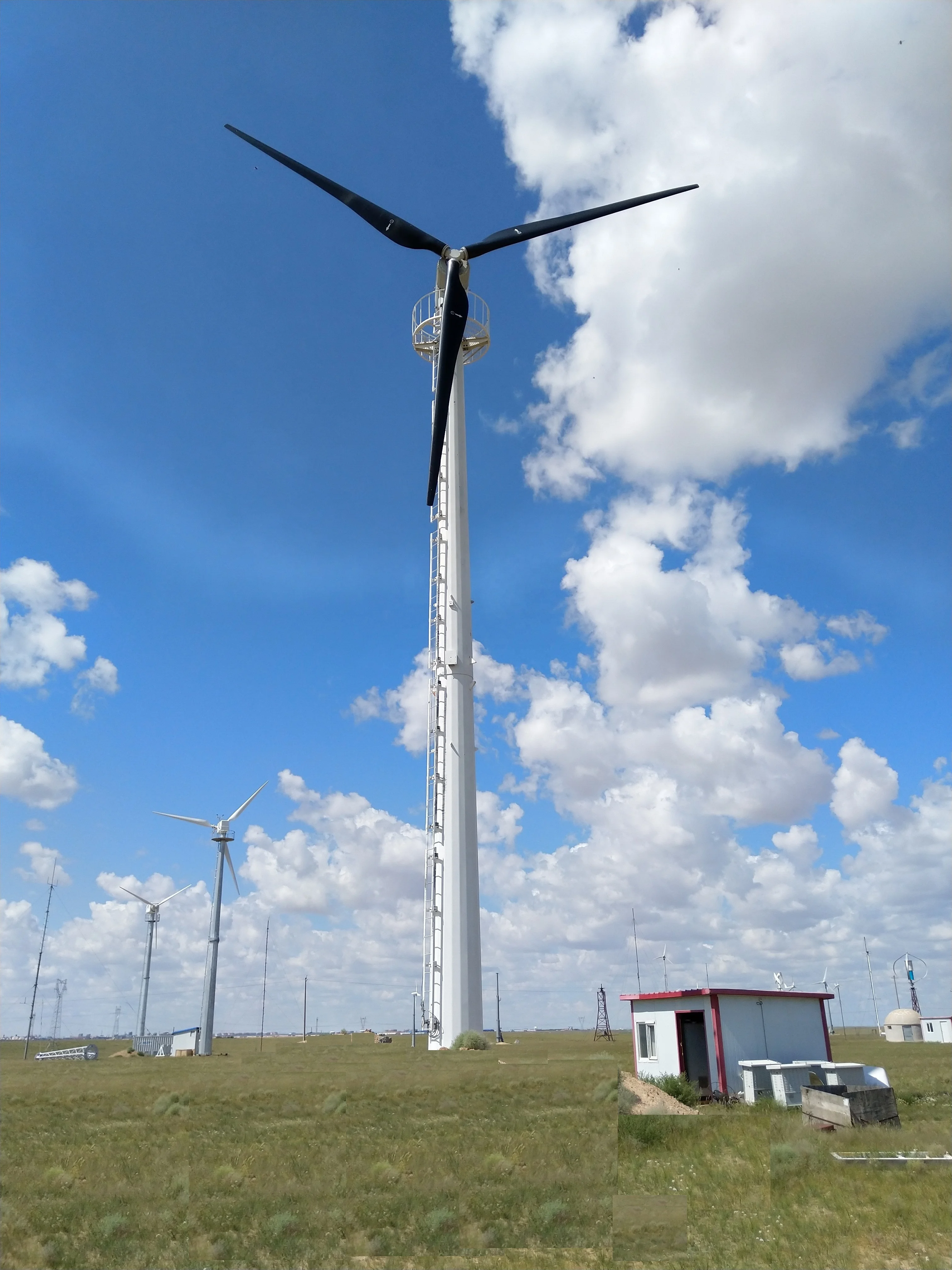

Project in xinjiang
Project in Australia
Project in Russian
High Quality
Application Scenario
Generator Core
1. Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
2.Q: Distance between wind turbine, controller and battery?
A: Noramally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
3.Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better?
A:For same watts at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines. But if your wind speed is very low, we suggest you to use our vertical SS type.If your wind speed is over 8m/s, our vertical wind turbine are also with around 80-90% efficiency. No noise is the most popular points.
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
2.Q: Distance between wind turbine, controller and battery?
A: Noramally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
3.Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better?
A:For same watts at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines. But if your wind speed is very low, we suggest you to use our vertical SS type.If your wind speed is over 8m/s, our vertical wind turbine are also with around 80-90% efficiency. No noise is the most popular points.
4. Q:Does our wind is enough for a wind generator ?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual average wind speed .you could check on google with your exact site
3. What kinds of system do you want ? On-grid or off-grid?
5. Q:Can i buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a technician to install it for you. And most of parts, we have warehouse in Poand, Russian, Spain and USA.
6. Q: If your products have CE certificated?
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
7. Q: The delivery date for each type?
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
8. Q: If we could be your agent or distributor?
A: Pls talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual average wind speed .you could check on google with your exact site
3. What kinds of system do you want ? On-grid or off-grid?
5. Q:Can i buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a technician to install it for you. And most of parts, we have warehouse in Poand, Russian, Spain and USA.
6. Q: If your products have CE certificated?
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
7. Q: The delivery date for each type?
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
8. Q: If we could be your agent or distributor?
A: Pls talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
