Easy to move OEM Hand Held Electric Portable Dot Peen Marking Machine metal engraving machinery on sale
- Category: >>>
- Supplier: Jinan,Minglun,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

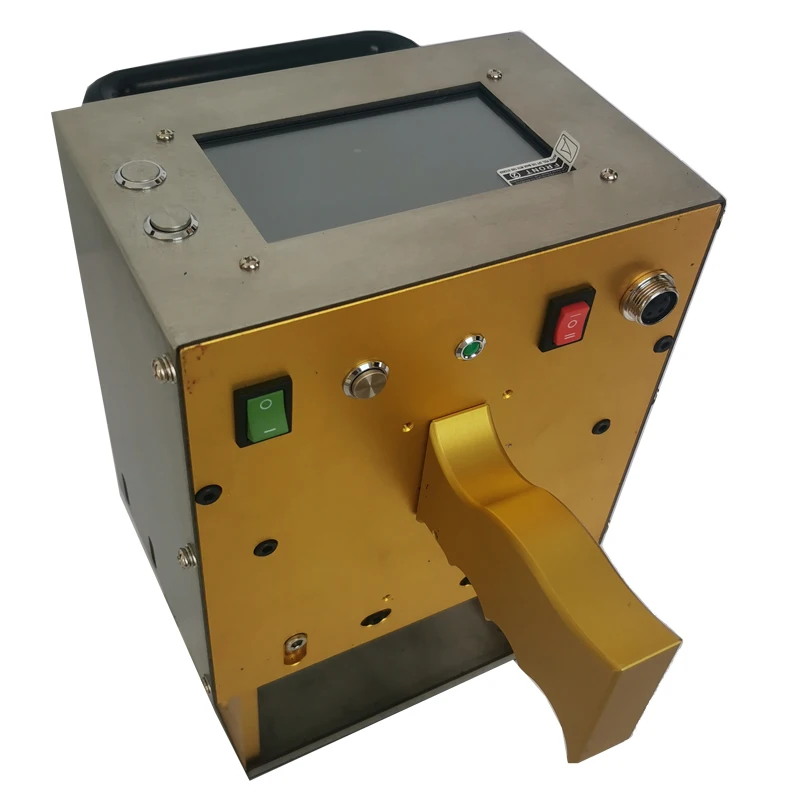

Handheld marking machine
1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch.

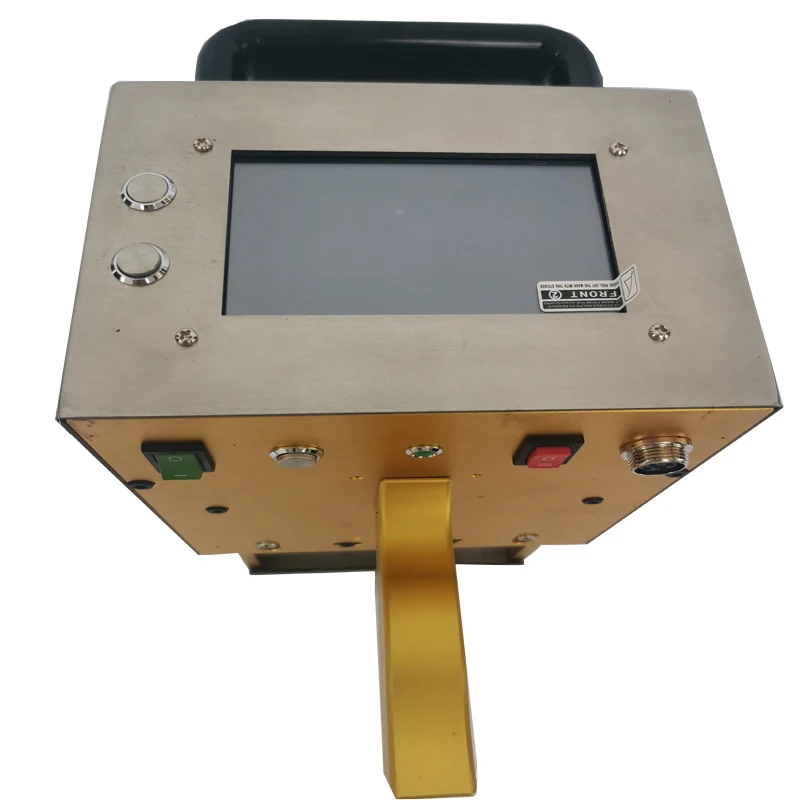

2). Display system: 7-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow, Stepper
5). Motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
6). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.
Product advantages:
1). The whole machine adopts imported industrial grade components with high marking precision and long service life.
2). The controllor adopts industrial control system, which has strong anti-interference ability and strong environmental
adaptability.
3). The marking head adopts double-rail structure, which has long service life and good impact resistance.
4). standard Windows design style, with a good man-machine dialogue function, easy for the operator to quickly grasp.
5). can directly observe the marking effect on the screen, making debugging more convenient and free, can track the mark on the
screen.
6). application range: a variety of shapes, materials.
7). working hours: can work continuously > 24 hours.
2). Display system: 7-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow, Stepper
5). Motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
6). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.
Product advantages:
1). The whole machine adopts imported industrial grade components with high marking precision and long service life.
2). The controllor adopts industrial control system, which has strong anti-interference ability and strong environmental
adaptability.
3). The marking head adopts double-rail structure, which has long service life and good impact resistance.
4). standard Windows design style, with a good man-machine dialogue function, easy for the operator to quickly grasp.
5). can directly observe the marking effect on the screen, making debugging more convenient and free, can track the mark on the
screen.
6). application range: a variety of shapes, materials.
7). working hours: can work continuously > 24 hours.
Model | ML-SC9030B |
Type of Electric Hand Held Dot Peen Marker | Portable Marking & Engraving |
Controller | Built-In Software and Touch Screen |
Marking Area | 90mm x 30mm |
Marking Speed | 1~4 characters/s (5mm height) |
Preciseon Repeatability | 0.001mm |
Marking Depth | 0.1mm~2mm（according to material） |
Power Supply | AC 100V ~ 240V 50HZ/60HZ |
Other Device Request | No need of extra devices such as computer and pneumatic air compressor |
Speical Technology | marking place detect and can mark on uneven surface such as round part |
Optional | standard version needs to be connected to a power source, the customer also can choose the battery version to make it more portable. |
Marking Content | English characters, number, all kinds of graphic outline, logo, dot matrix 2D codes, Barcode, Serial Number, circle Letter and etc. |
Applications
Related Products Display
Lithium-battery operated handheld marking machine's Parameters | ||||||||
Marking range | 90mm × 30mm | |||||||
Marking depth | 0.01-2mm | |||||||
Driving voltage | DC24V | |||||||
Power supply mode | single exchange 110-240V global universal | |||||||
Print content | Any Chinese and English characters and numbers. Graphics | |||||||
Print effect | clear and beautiful | |||||||

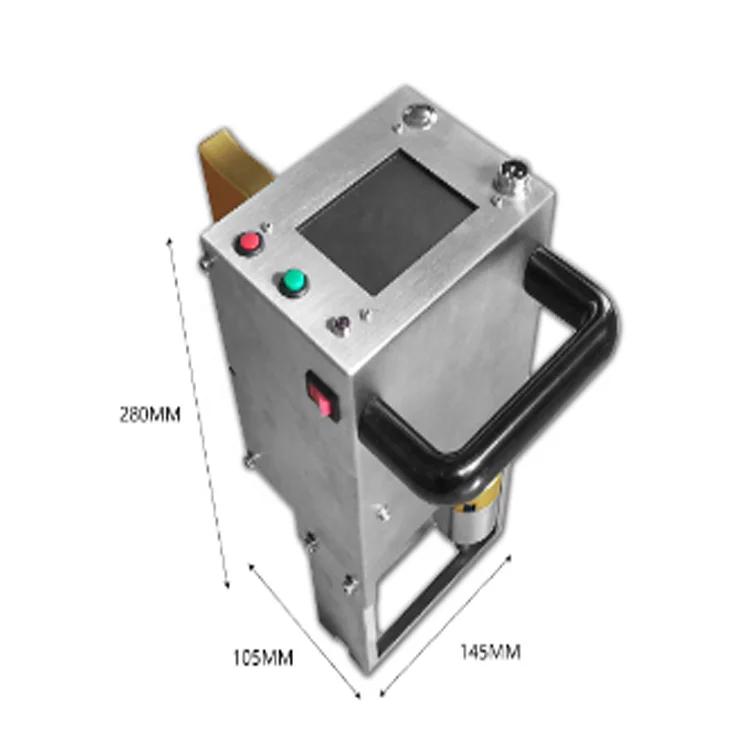

Any graphic that containing in the CAD The machine supports reading data directly from the U disk Machine weight: 4.5kgs, Dimention: 28cm *14.5cm*10.5cm | ||||||||
Packing & Delivery
Exquisite aluminum foil box packaging
No minimum order quantity required, container orders available~
