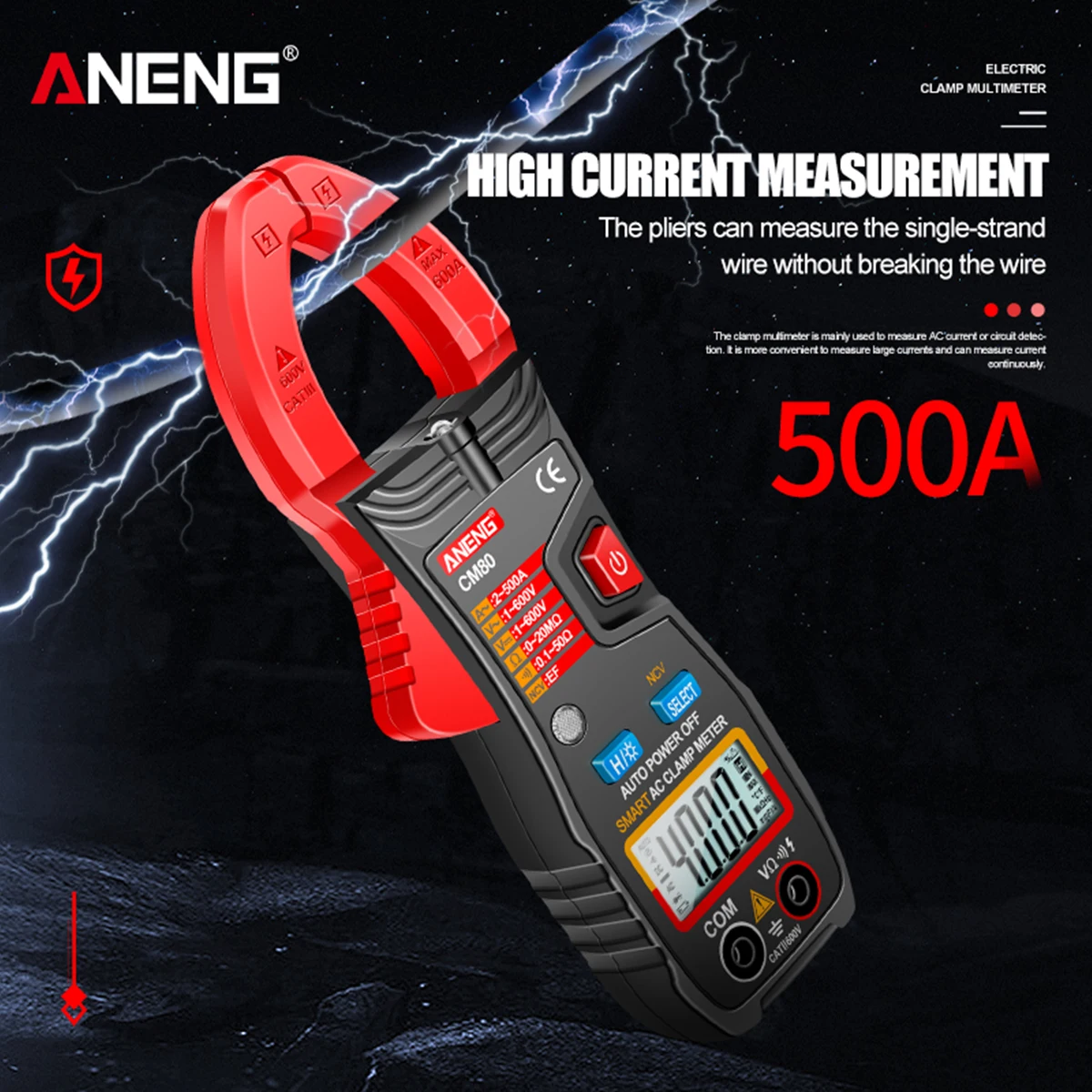

ANENG CM80 Digital clamp meter Ammeter Voltage Car Amp Hz Capacitance NCV Ohm Test multimeter digital profesional tester

Product Overview

Description

Introduction

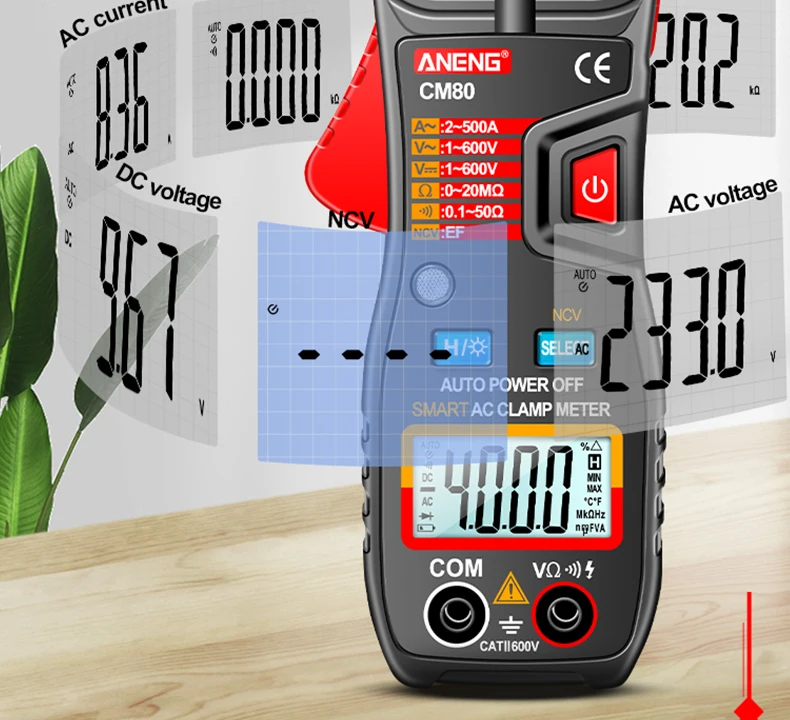

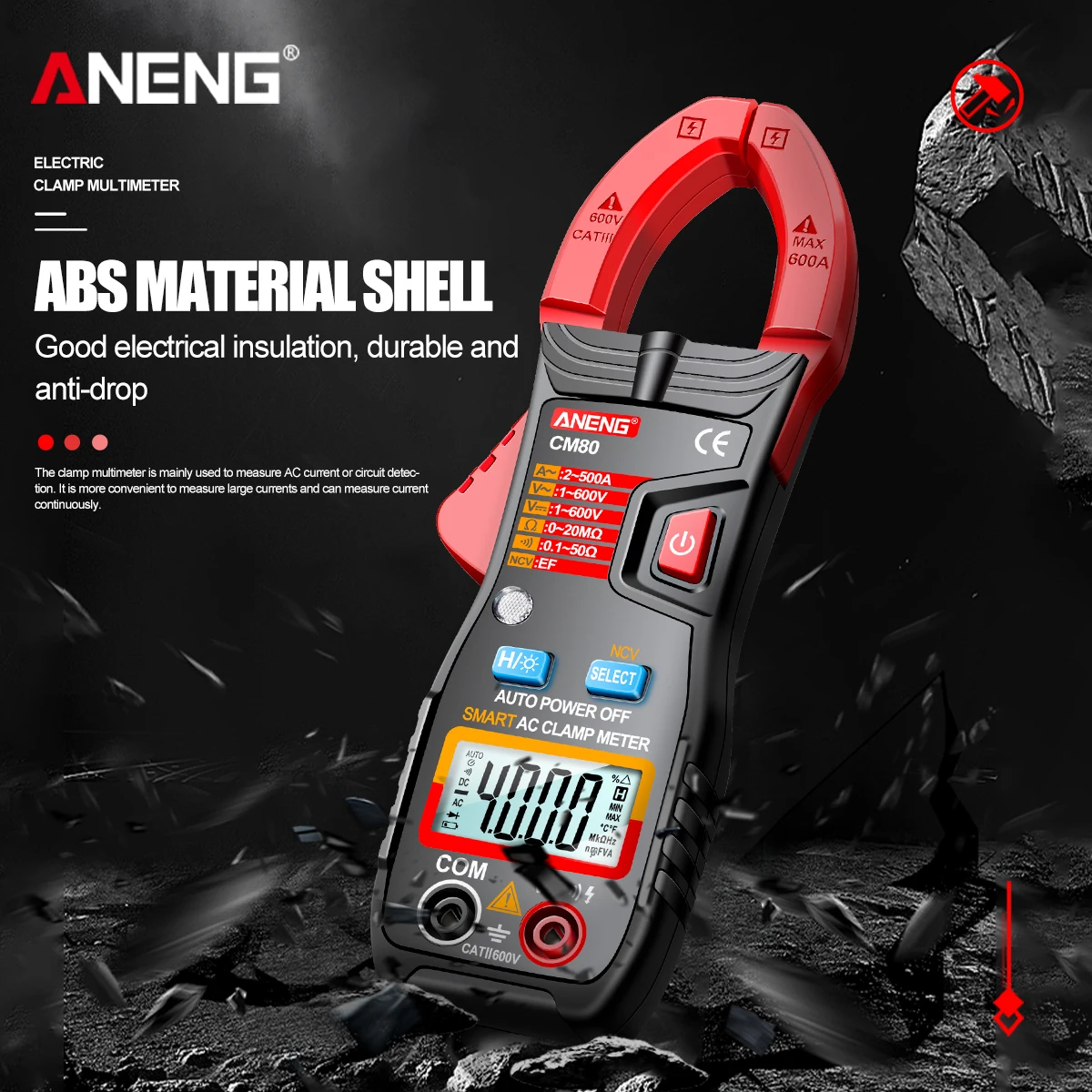

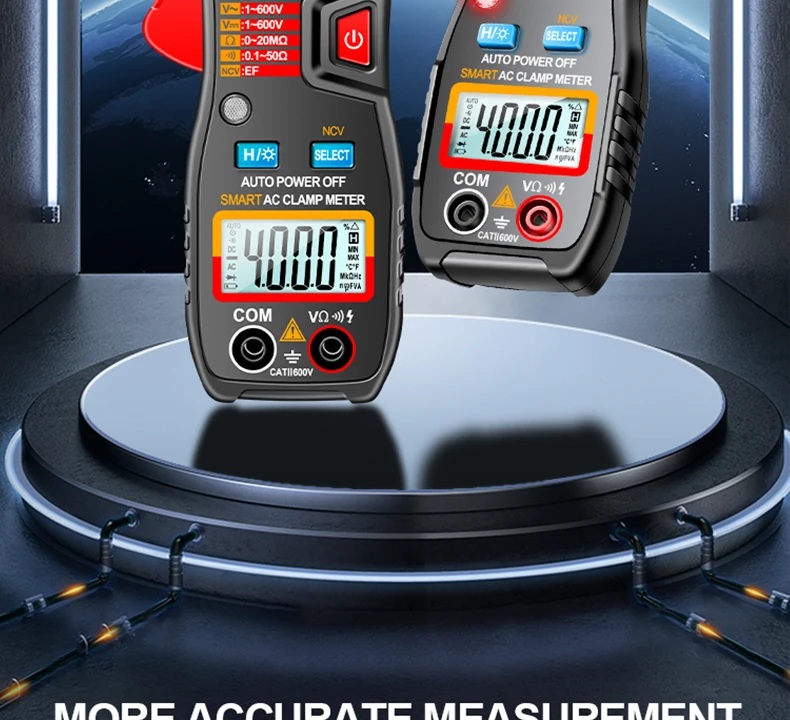

CM80 Digital clamp meter is a battery-powered,auto ranging digital clamp multimeter with a 4000 counts LCD display and a backlight.

Safety  Information
To aviod possible electrical shock,fire,or personal injury, please read all safety infomation before you use the product.
(1)Do Not exceed the max value indicated in the Specification.
(2)Examine the connection of the test leads and the insulation of the product before mea suring voltage higher than 36V or 25V AC.
(3) Disconnect the test lead form the circuit before changing the modle.
(4)Missue of modle or range can lead to hazards,be cautious.OL will be shown on the display when the input is out of range.

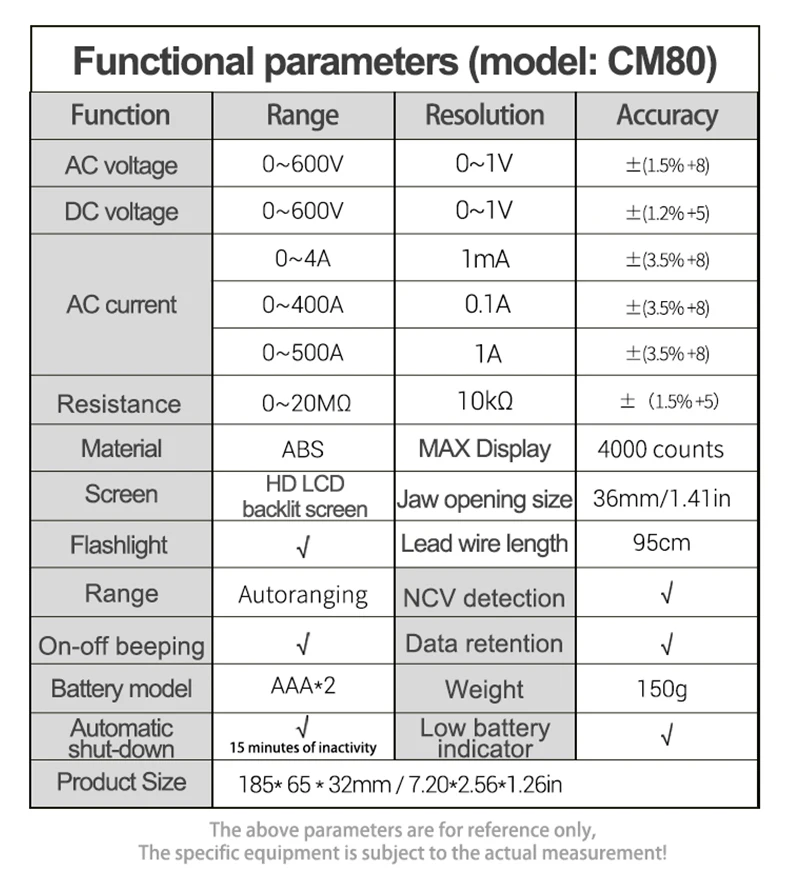

Specifications

Modle	CM80
Function	Range	Resolution	Accuracy	Max

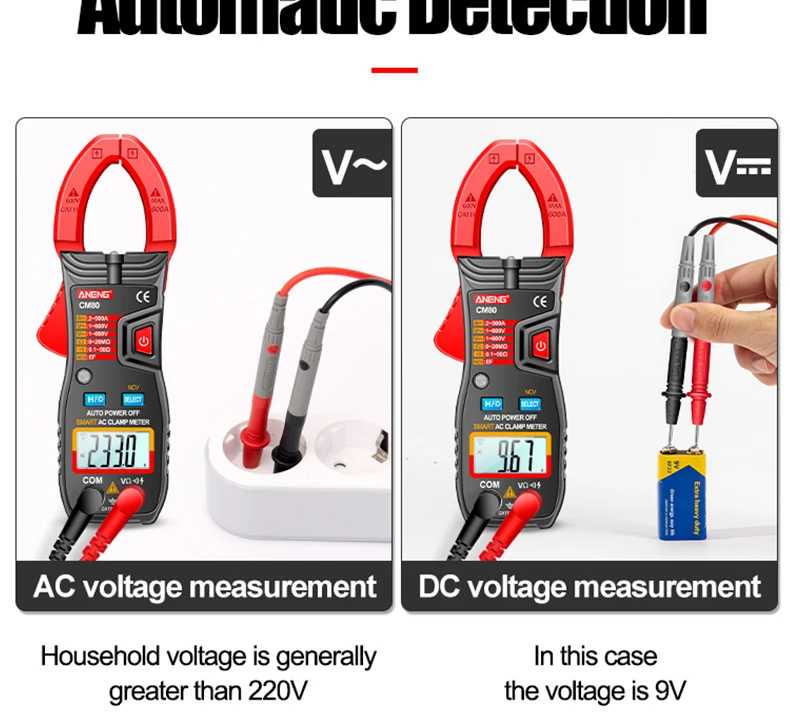

DC Voltage(V)	4V/40V	0.001V/0.01V	±(1.0%+5d)	600V
	400V/600V	0.1V/0.1V	±(1.2%+5d)
AC Voltage(V)	4V/40V	0.001V/0.01V	±(1.3%+5d)	600V
	400V/600V	0.1V/1V	±(1.5%+8d)

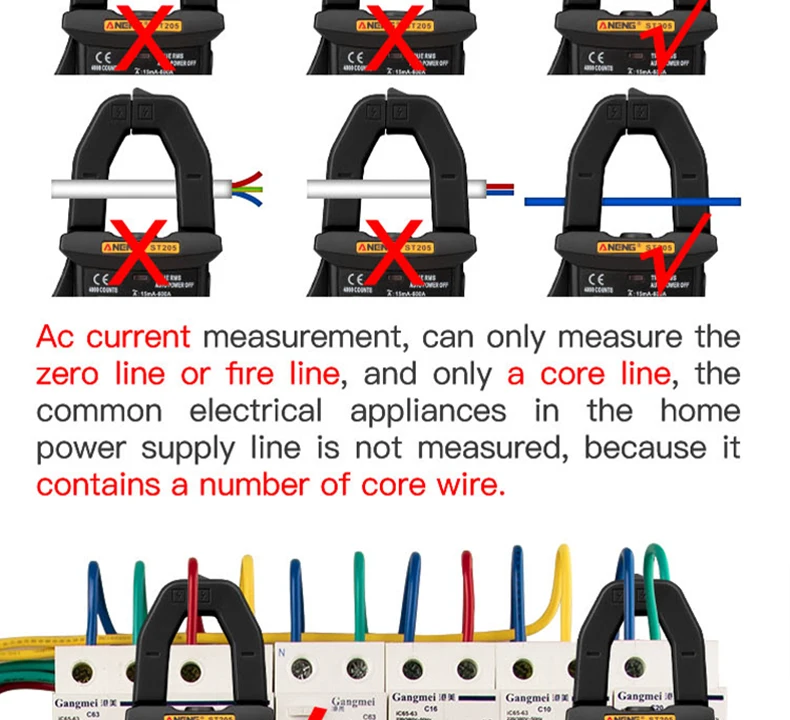

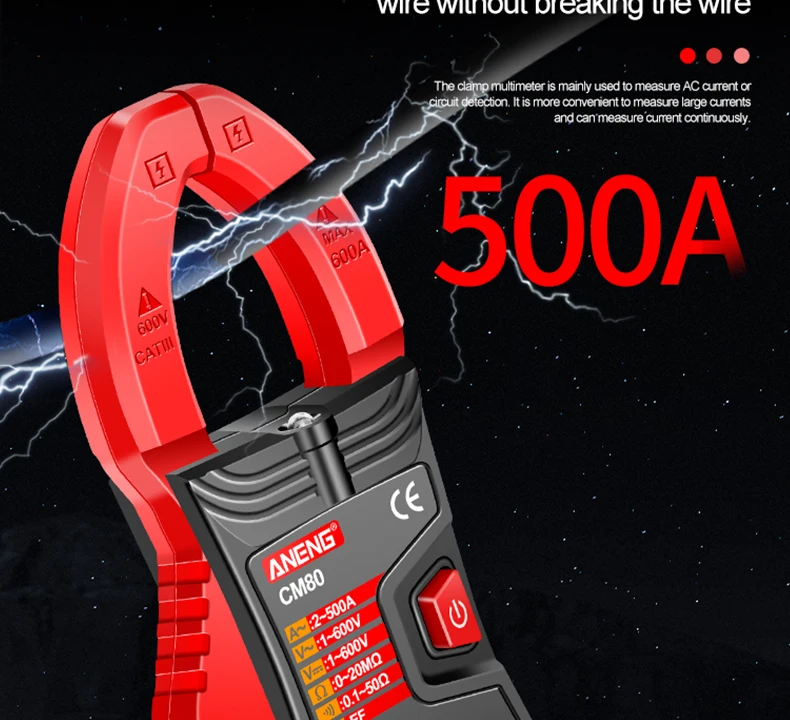

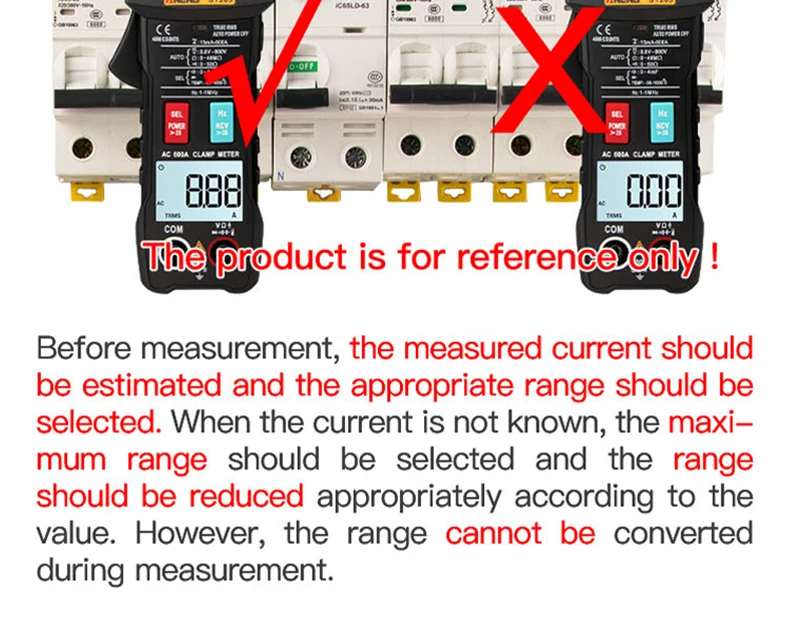

AC Current(A)	4A	0.001A	±(3.5%+8d)	500A
	40A	0.01A	±(3.5%+8d)
	400A/500A	0.1A/1A	±(3.5%+8d)

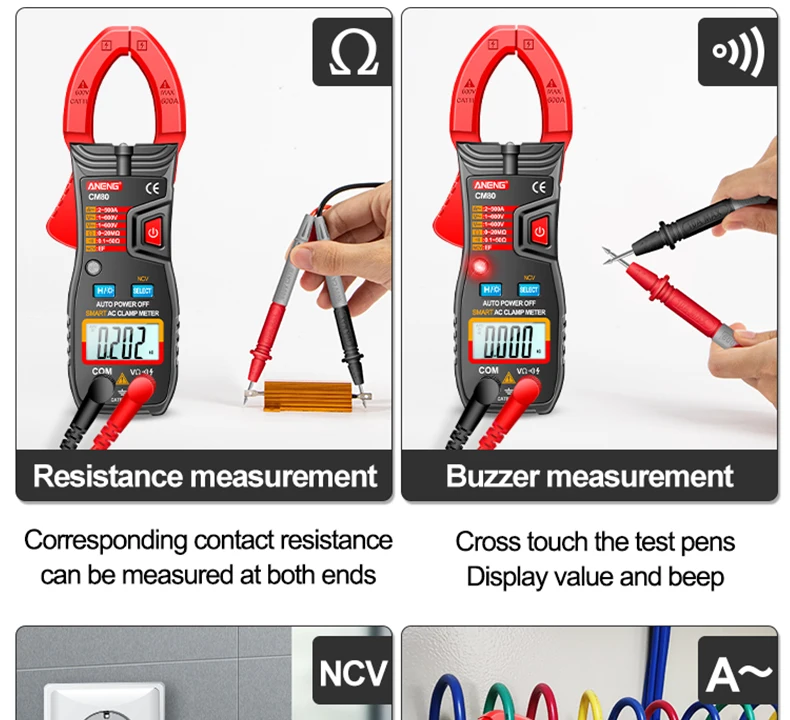

Resistance	4.000kΩ	1Ω	±(1.5%+8d)	20MΩ
	40.00kΩ	10Ω	±(1.0%+5d)
	400.0kΩ	100Ω
	4.000MΩ	1kΩ
	20.00MΩ	10kΩ	±(1.5%+5d)
Display	4000 counts
Update Rate	3/s

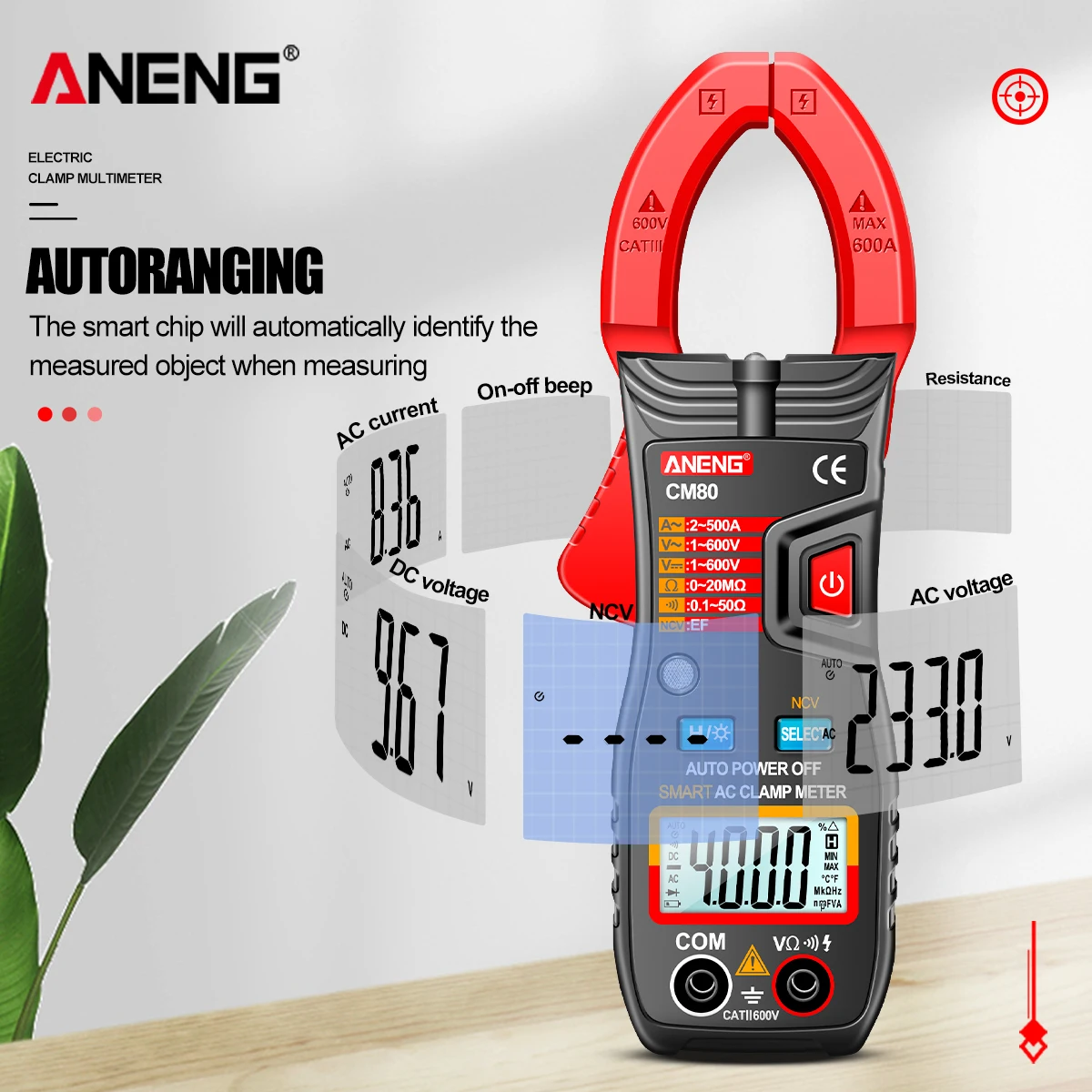

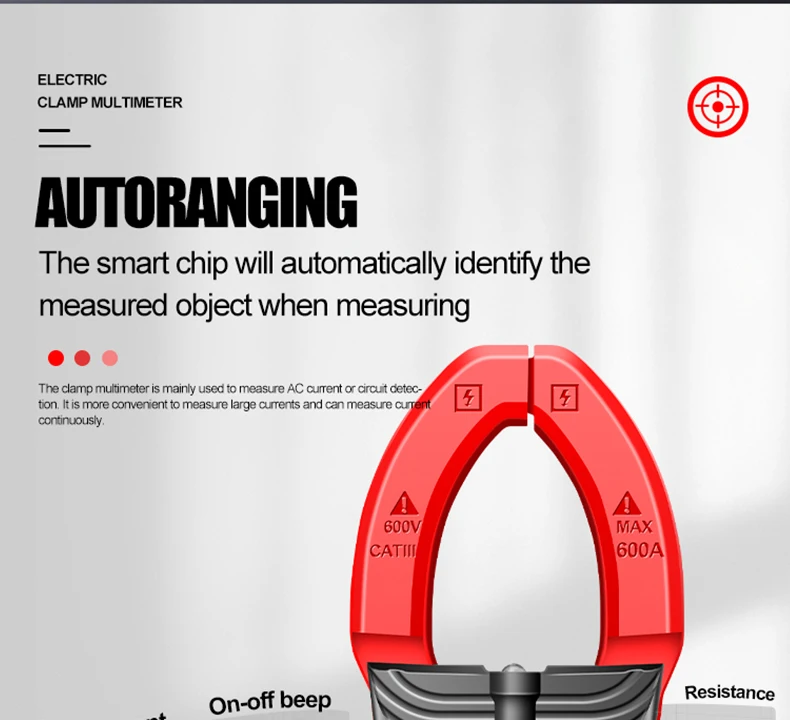

Ranging	Auto
Date Hold	√
Low Battery Alert
Auto Power Off

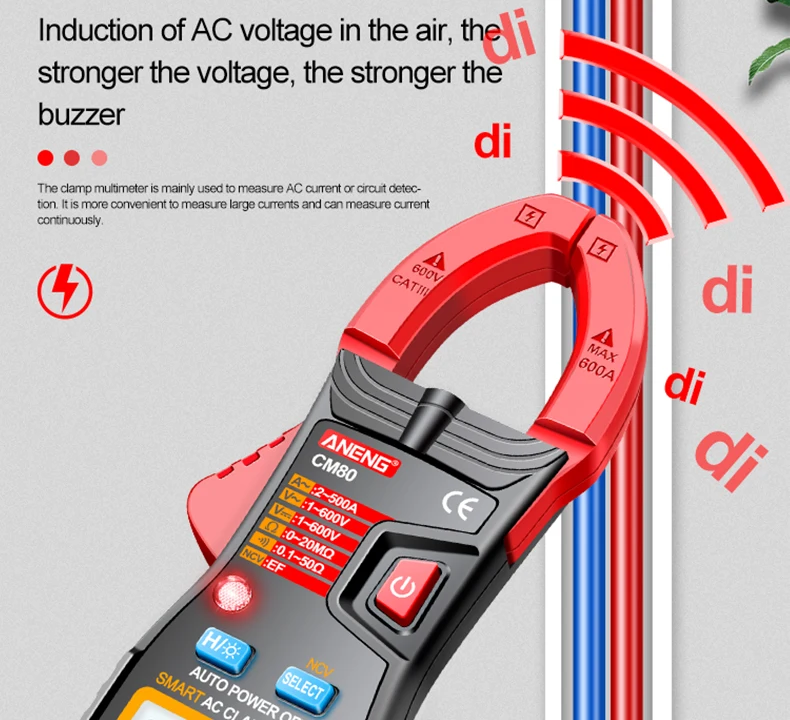

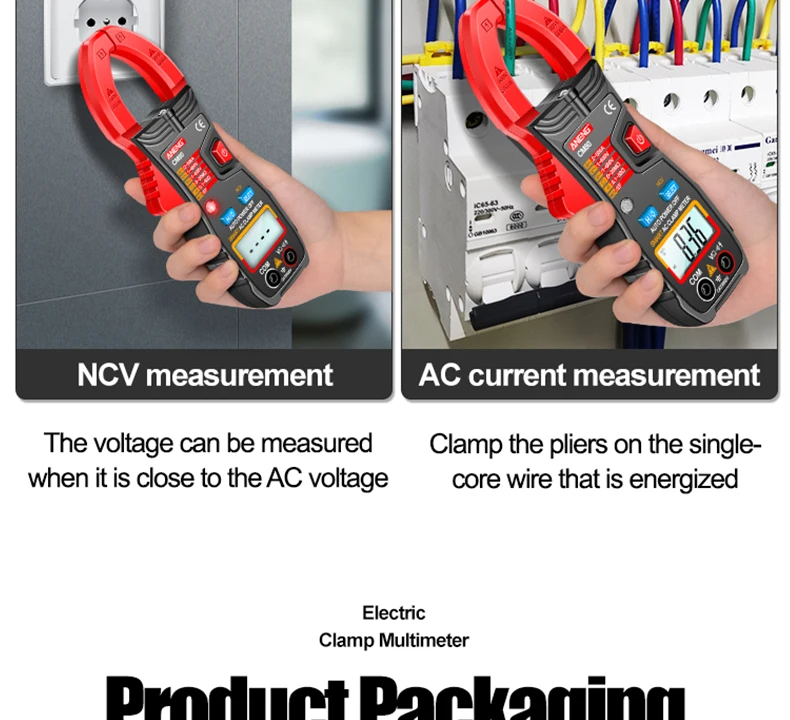

NCV
Operating	0-40℃

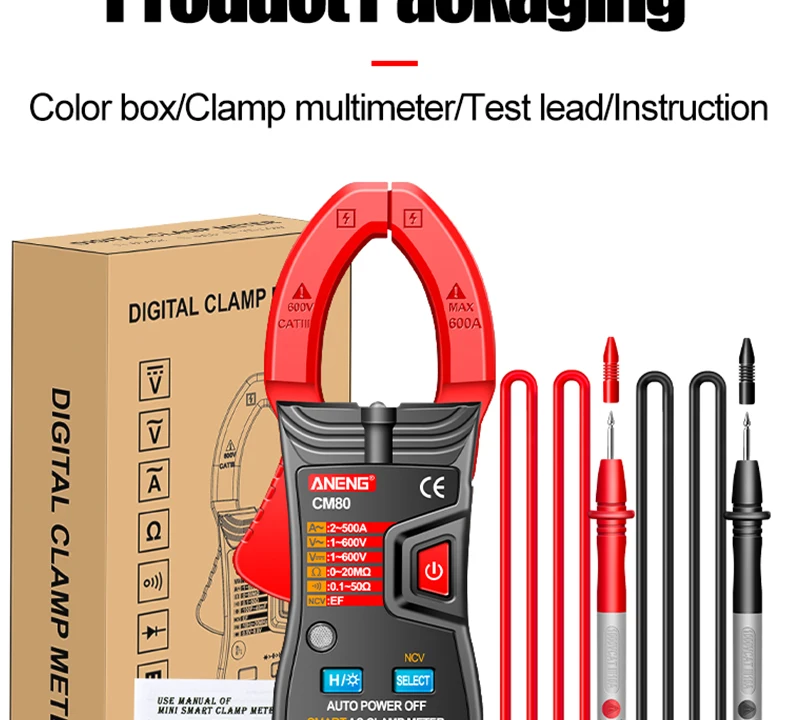

Packing  List
1*digital clamp multimeter
2*Test line
1* Manual of Use Instructions
1 * Packing box
