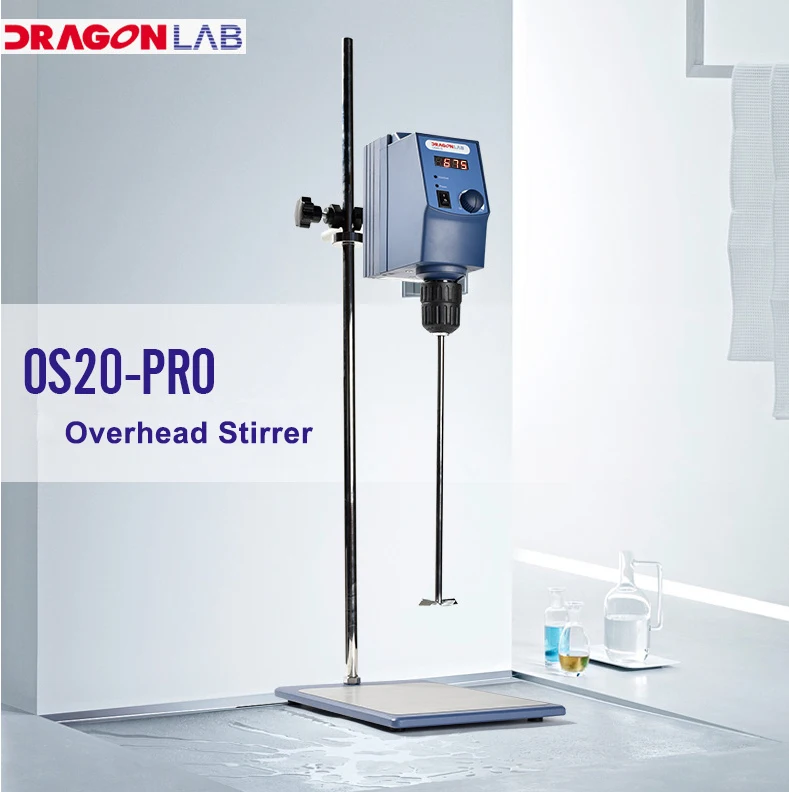

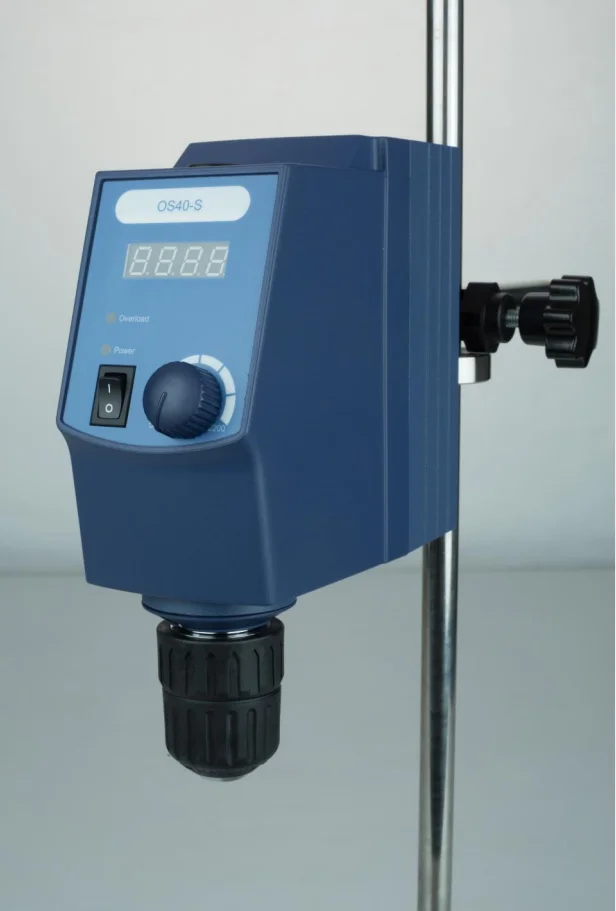

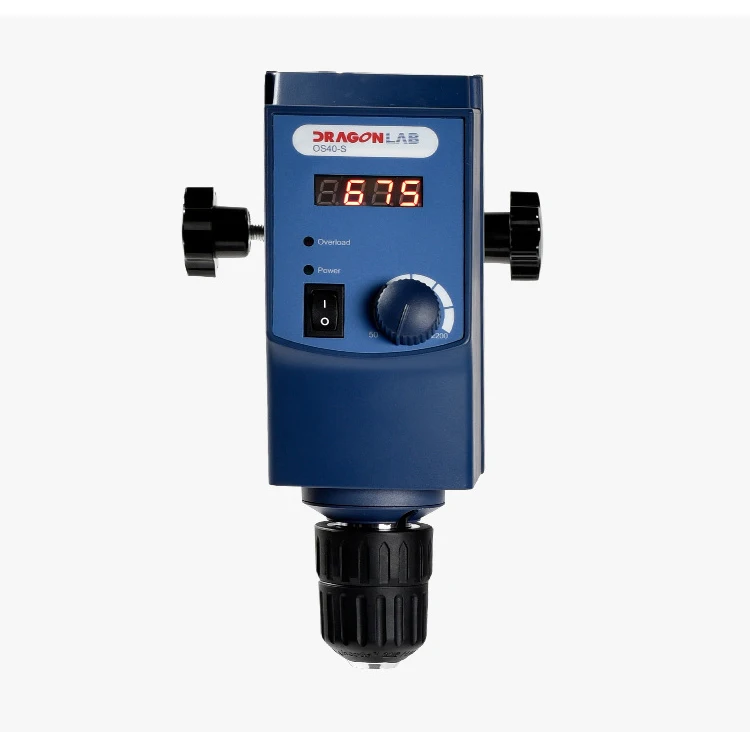

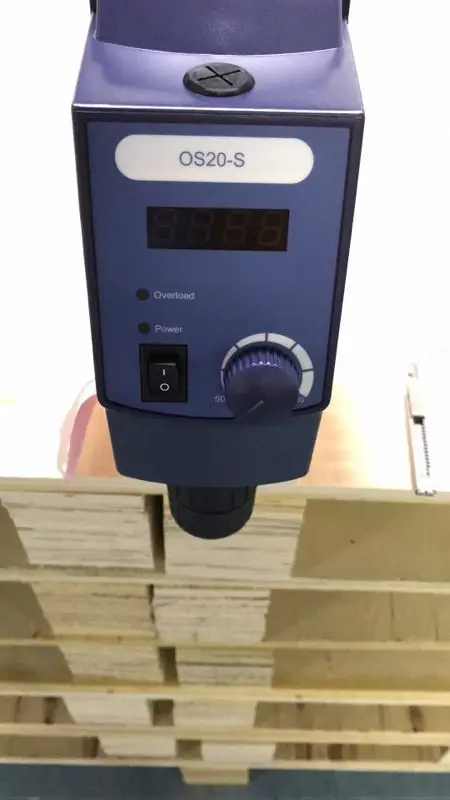

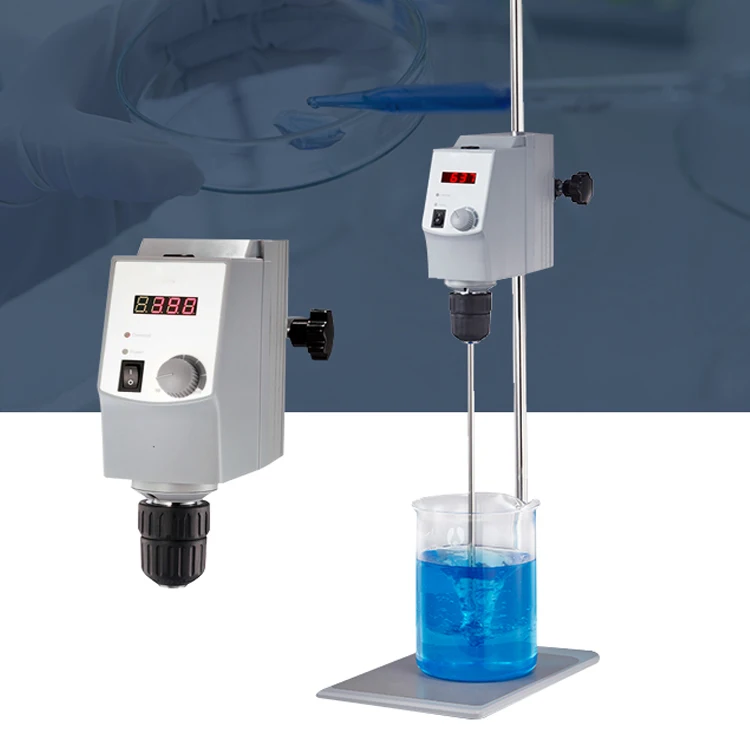

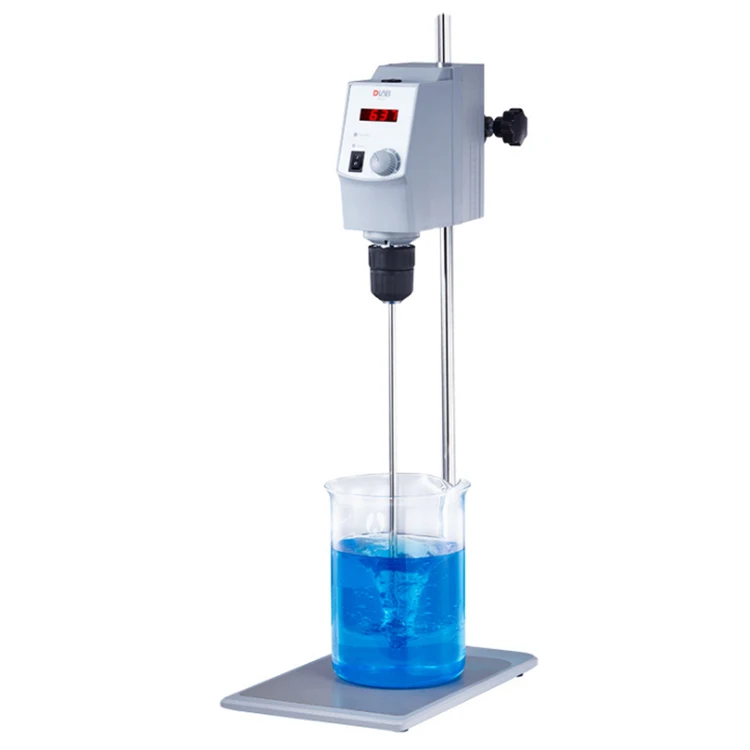

DLAB Laboratory Digital Display Viscosity Lab Electric High Speed Mixer Overhead Stirrer 20L
- Category: >>>
- Supplier: Shanghai Leewen Scientific Instrument Co. Ltd.
Share on (1600477154138):
Product Overview
Description
Products Description

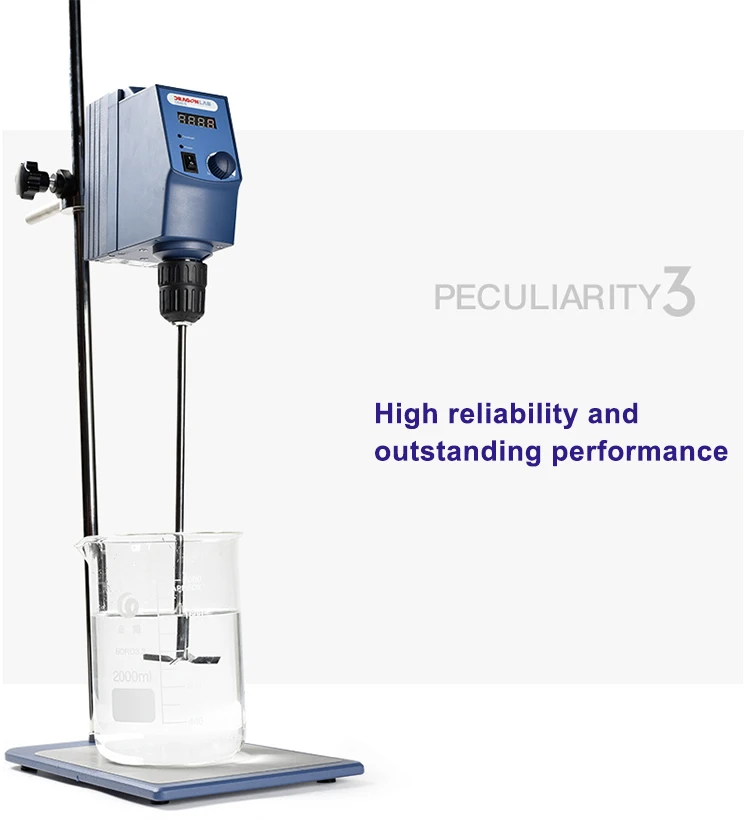

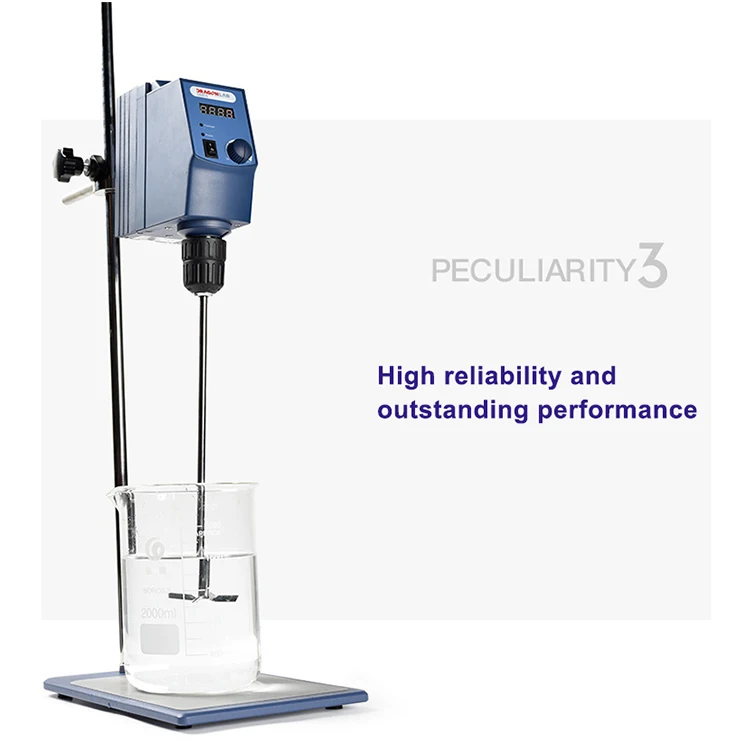

High reliability and outstanding performance.
A wide range of speed from 50 to 2200rpm.

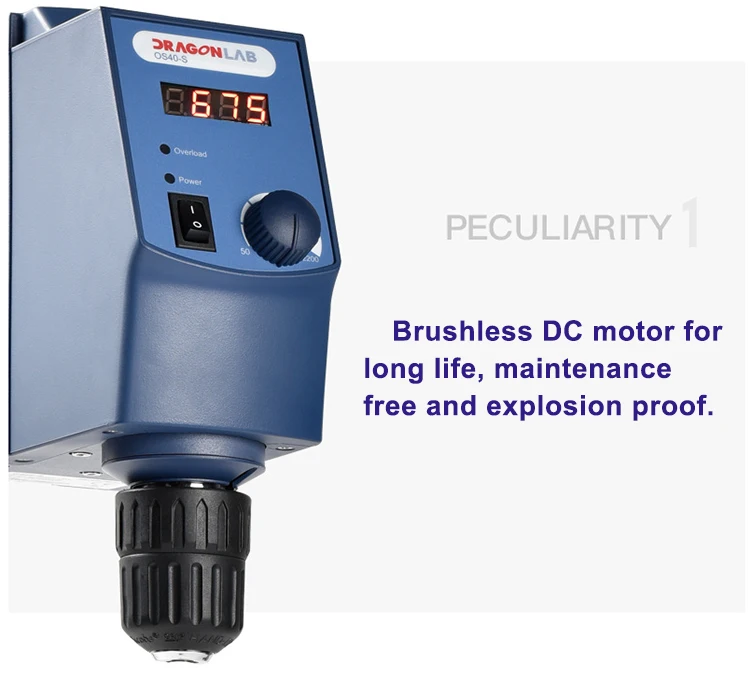

Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.

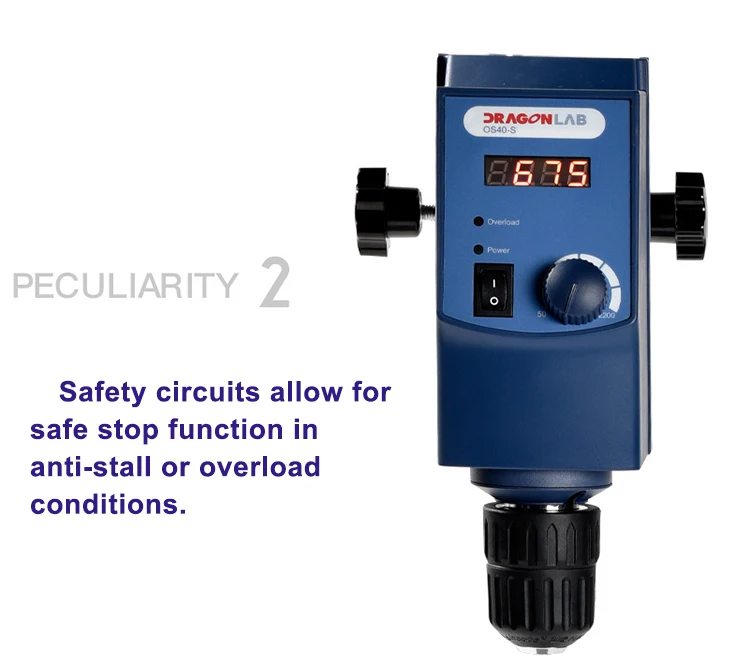

Safety circuits allow for safe stop function in anti-stall or overload conditions.
A wide range of speed from 50 to 2200rpm.
Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.
Safety circuits allow for safe stop function in anti-stall or overload conditions.
Product Paramenters
Model | OS20-S | OS20-Pro | OS40-S | OS40-Pro |
Max. stirring quantity(H2O) | 20L | 20L | 40L | 40L |
Motor type | brushless DC motor | brushless DC motor | brushless DC motor | brushless DC motor |
Motor input power | 60W | 60W | 120W | 120W |
Motor output power | 50W | 50W | 100W | 100W |
Voltage | 100-220V, 50/60 Hz | 100-220V, 50/60 Hz | 100-220V, 50/60 Hz | 100-220V, 50/60 Hz |
Power | 70W | 70W | 130W | 130W |
Speed range | 50-2200rpm | 50-2200rpm | 50-2200rpm | 50-2200rpm |
Speed display accuracy | ±3rpm | ±3rpm | ±3rpm | ±3rpm |
Speed display | LED | LCD | LED | LCD |
Overload protection display | LED lights | LED lights | LED lights | LED lights |
Max. torque | 40Ncm | 40Ncm | 60Ncm | 60Ncm |
Viscosity max. | 10000mPas | 10000mPas | 50000mPas | 50000mPas |
Chuck range diameter | 0.5-10mm | 0.5-10mm | 0.5-10mm | 0.5-10mm |
Dimension[WxHxD] | 83x220x186mm | 83x220x186mm | 83x.220x186mm | 83x220x186mm |
Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg |
Protection class | IP42 | IP21 | IP42 | IP21 |
Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH | 5-40°C 80%RH | 5-40°C, 80%RH |
Data connector | / | RS232 | RS232 |
Accessories | ||
Cat. No. | Descriptions | |
18900258 | Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device Grey | |
18900131 | Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device | |
18900071 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel | |
18900072 | Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel | |
18900073 | Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel | |
18900074 | Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel | |
18900075 | Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated | |
18900076 | Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated | |
18900077 | Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated | |
18900078 | Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated | |
18900330 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel （prevent the liquid spills） | |
Product Details
Company Profile
About Us
Shanghai Leewen Scientific Instrument Co.,Ltd. founded in 2016, mainly produce Lab spray dryers, bursting beads dropping pill machine, ultrasonic homogenizer lab instrument etc.
All employees of the company have 10 years of work experience in the industry, from design to customized production to export, with a complete system. Starting export trade in 2021, it is still a very young company.
Support customized production.
Certifications
Shipping and Delivery
FAQ
Q: Do you offer the OEM service ?
A: Yes, we welcome OEM cooperation and will try our best to meet your special OEM requests.
Q: Can i trade online
A: Yes, I'm glad you can place an order online.
Q: What payment ways do you accept?
A: you can pay us by T/T, paypal and credit card.
Q: What is the MOQ?
A: The MOQ is 1 unit.
Q: What is your delivery time?
A: Shipment will be done 3~5 working days from the payment. if the order Qty ≥10 units, will be around 10 days or case by case.
Q: What is your warranty service?
A: 12 Months, except for special products.
Q: Can we visit your company and factory ?
A: Yes, you are welcomed.
