Brand New Electric Forklift With Low Price 4 Wheel Type Mini Electric Forklift Price
- Category: >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.Shandong Ltd.
Share on (1600477154164):
Product Overview
Description
Details Images

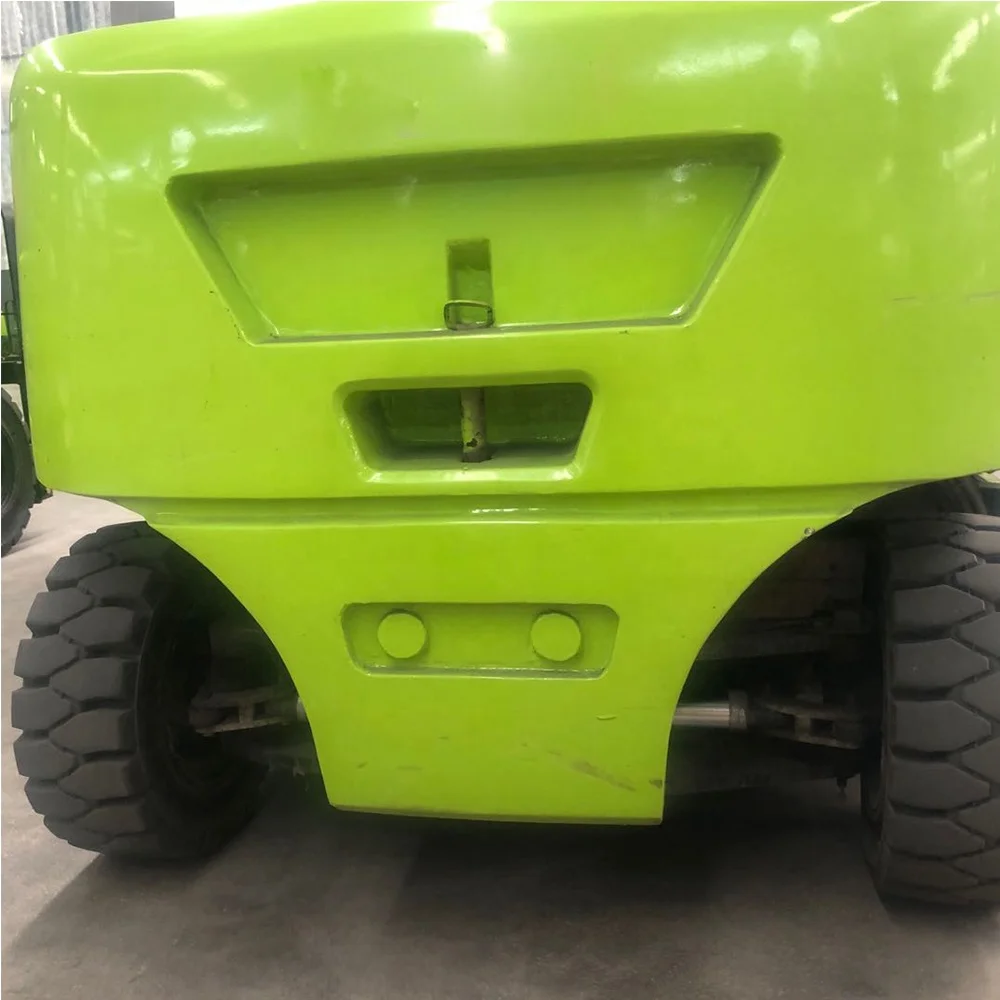

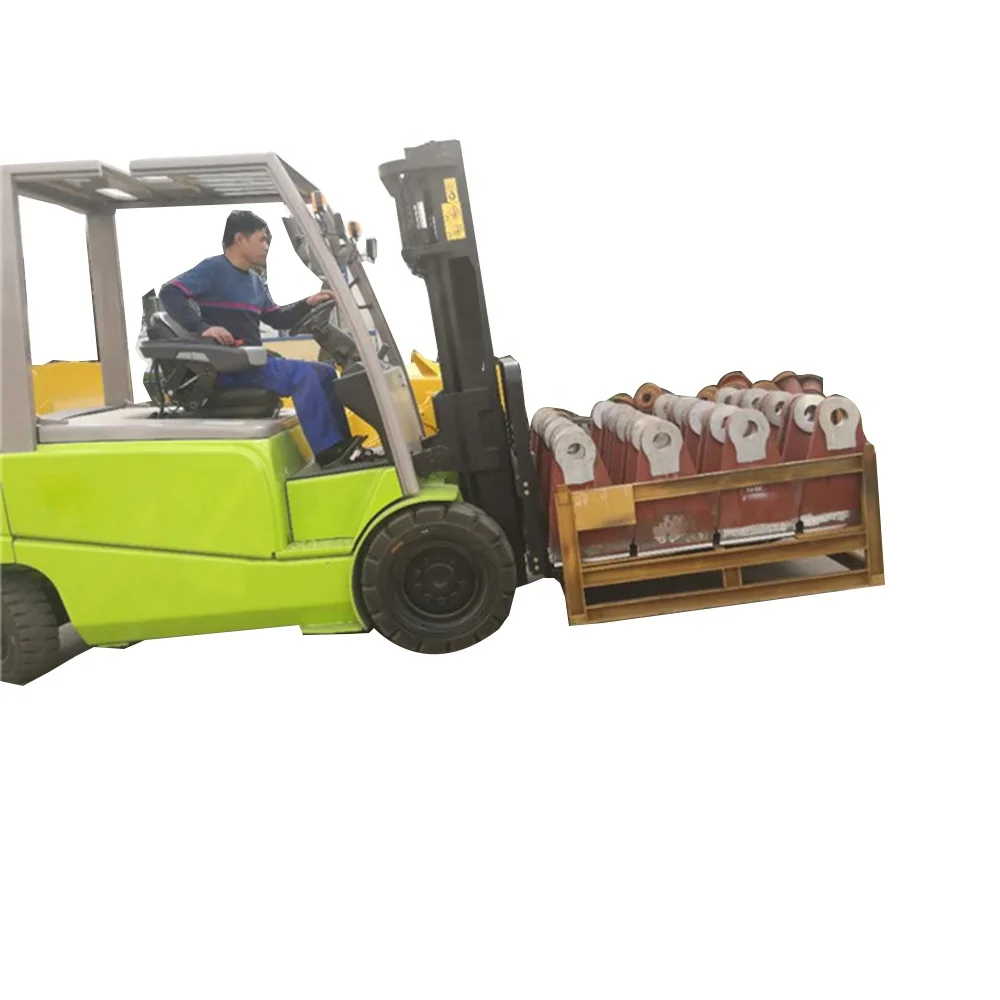

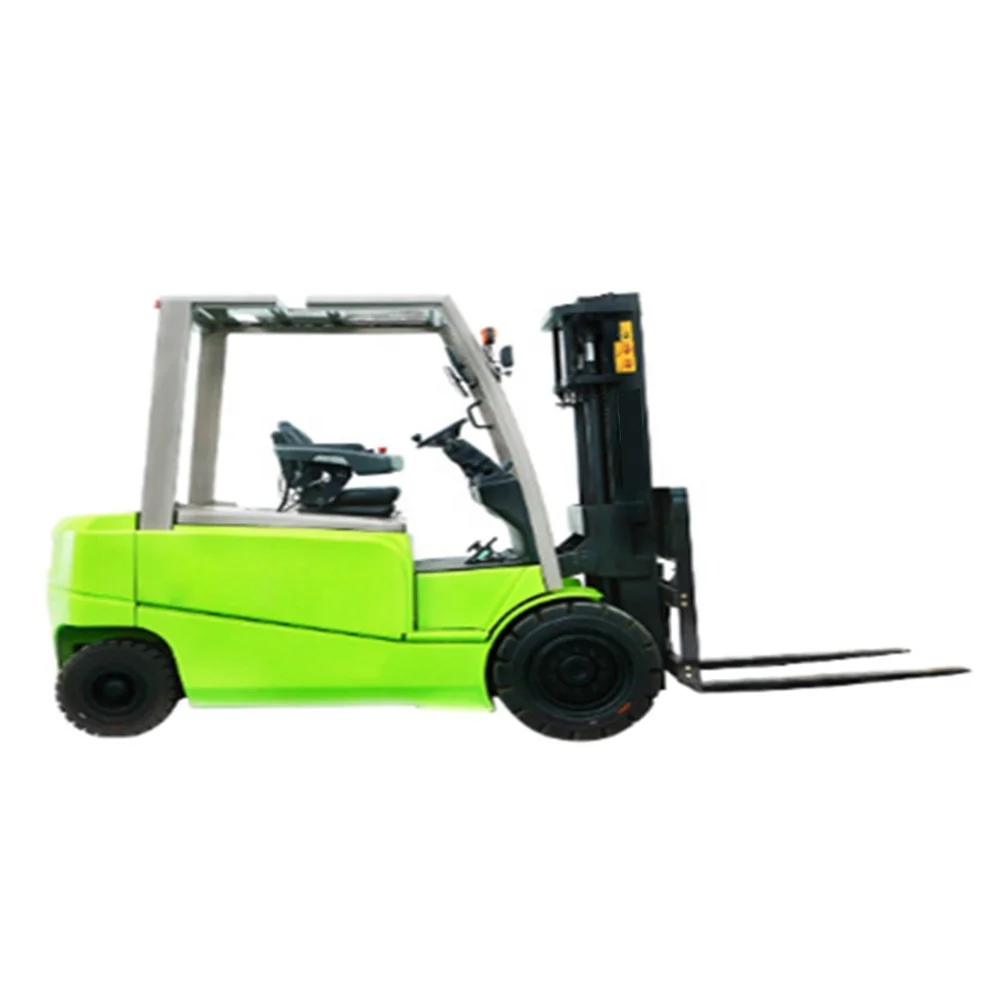

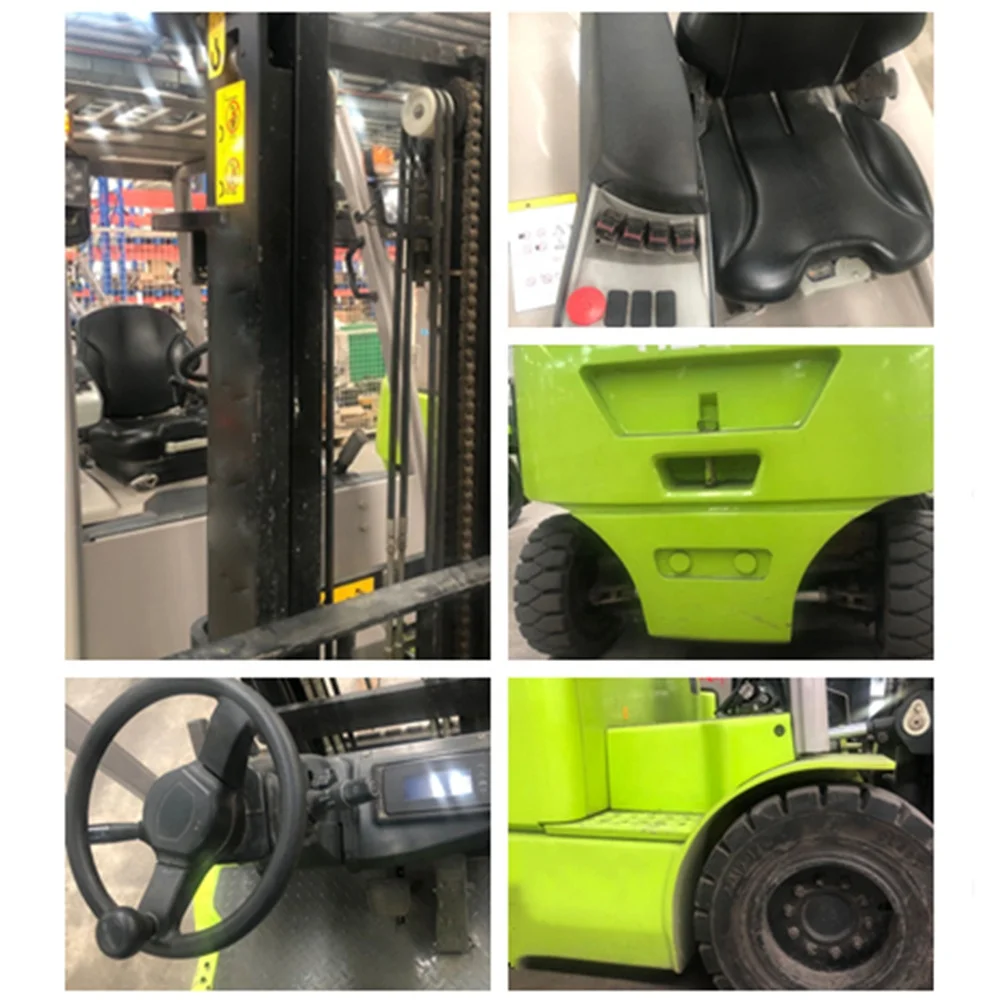

Photos of Brand New Electric Forklift With Low Price 4 Wheel Type Mini Electric Forklift Price
Products Description
Introduction of Brand New Electric Forklift With Low Price 4 Wheel Type Mini Electric Forklift Price
● Improved appearance and driver's vision:
Large-arc roof protection frame and streamlined design, beautiful appearance;
The mast and hose pulleys are more compact, the steering wheel with small diameter and the instrument are placed on the right, which effectively increases the driver’s vision;zmwm02
● Improved operating comfort:
Equipped with mast buffer, rear axle buffer and rear extension valve operation, which greatly improves the driver's operating comfort;

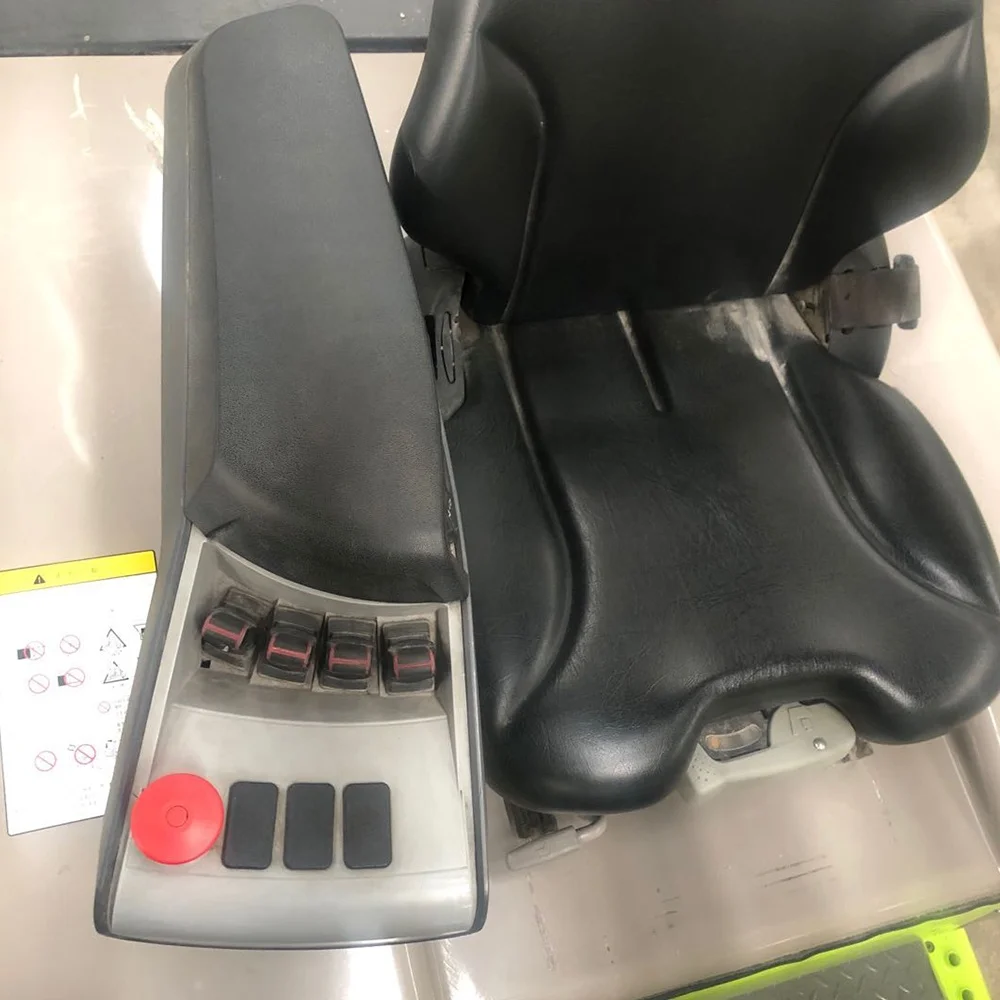

The ratchet hand brake that conforms to the arm movement, the operation is comfortable and easy;
The steering wheel activates the steering power to improve the driver's operating comfort (optional).
● Convenient maintenance:
Equipped with a large-screen LCD display instrument, which can visually display the running status of the vehicle, and has the functions of fault display and misoperation alarm;
The traction motor can be directly removed from the drive axle and lifted from the car body;
For users who need to replace the battery frequently, you can choose the model from the battery side to quickly replace the battery.
Large-arc roof protection frame and streamlined design, beautiful appearance;
The mast and hose pulleys are more compact, the steering wheel with small diameter and the instrument are placed on the right, which effectively increases the driver’s vision;zmwm02
● Improved operating comfort:
Equipped with mast buffer, rear axle buffer and rear extension valve operation, which greatly improves the driver's operating comfort;
The ratchet hand brake that conforms to the arm movement, the operation is comfortable and easy;
The steering wheel activates the steering power to improve the driver's operating comfort (optional).
● Convenient maintenance:
Equipped with a large-screen LCD display instrument, which can visually display the running status of the vehicle, and has the functions of fault display and misoperation alarm;
The traction motor can be directly removed from the drive axle and lifted from the car body;
For users who need to replace the battery frequently, you can choose the model from the battery side to quickly replace the battery.
Product Paramenters
Parameter of Brand New Electric Forklift With Low Price 4 Wheel Type Mini Electric Forklift Price
Characteristic | Rated lifting weight | kg | 1500 | ||
Load center distance | mm | 500 | |||
Overhang | mm | 340 | |||
Front overhang | mm | 434 | |||
Wheelbase | mm | 1400 | |||
total weight (No load With battery) | kg | 3380 | |||
Size | Total length (To vertical surface of fork) | mm | 2174 | ||
Total width | mm | 1080 | |||
Height of overhead guard | mm | 2027 | |||
Standard mast height that does not rise | mm | 1990 | |||
Standard mast Maximum stretch height | mm | 4060 | |||
Standard mast inclination( Leanforward/Reclining) | deg | 6/9 | |||
Ground clearance of frame | mm | 115 | |||
Standard mast Free lifting height | mm | 100 | |||
Turning radius (Smallest outside) | mm | 120 | |||
Mlinimum theoretical width of right-anglechannel | mm | 1900 | |||
Minimum theoretical width of right-anglestacking channel | mm | 3000 | |||
Fork pitch range | mm | 2065 | |||
The smallest x The largest | mm | 100X1040 | |||
Performance | Maximum travel speed (No load) | Km/h | 15 | ||
Lifting speed (fully loaded/No load) | Mm/s | 340/420 | |||
speed of decent(fully loaded/No load) | Mm/s | 500/500 | |||
Largest traction(fully loaded/No load) | N | 10600/11060 | |||
Maximum grade (fully loaded) | % | 15 | |||
Tires | Front wheel | 21x8-9 | |||
Rear whee1 | 16x6-8 | ||||
Power system | battery(1ithium optiona1) | Voltage | V | 48 | |
Capacitance | ah | 300-720 | |||
Rated power of wa1king motor | Kw/rpm | 8 | |||
Rated power of 1ifting motor | Kw/rpm | 11 | |||
Control1er form | AC | ||||
