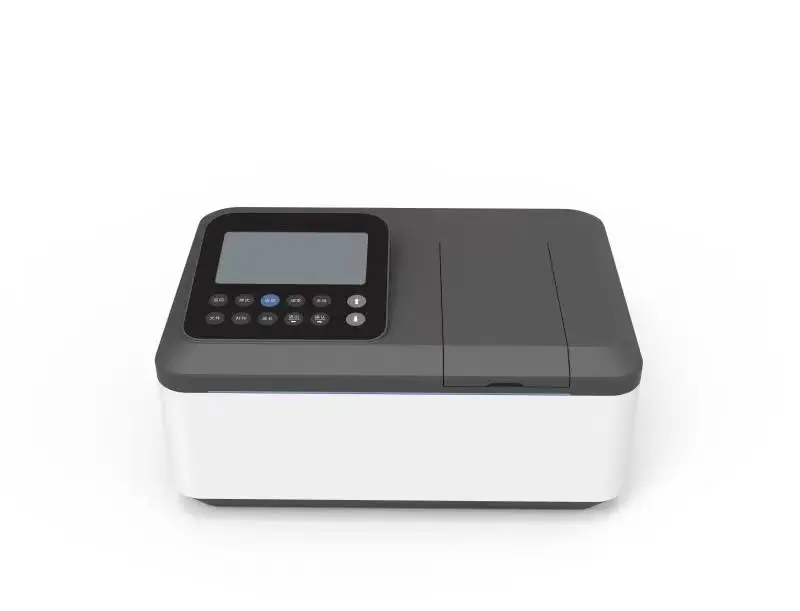

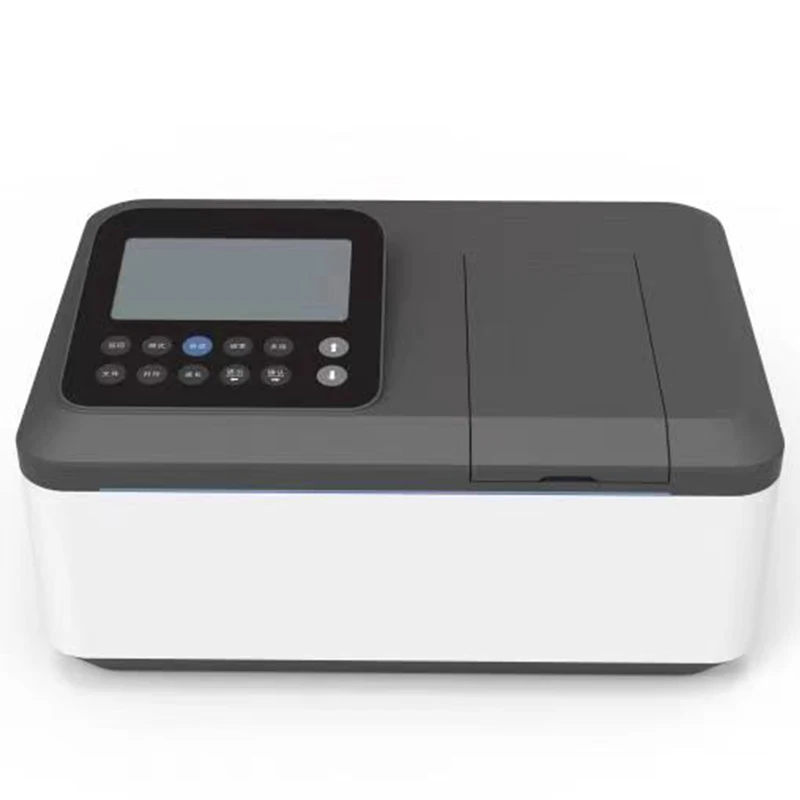

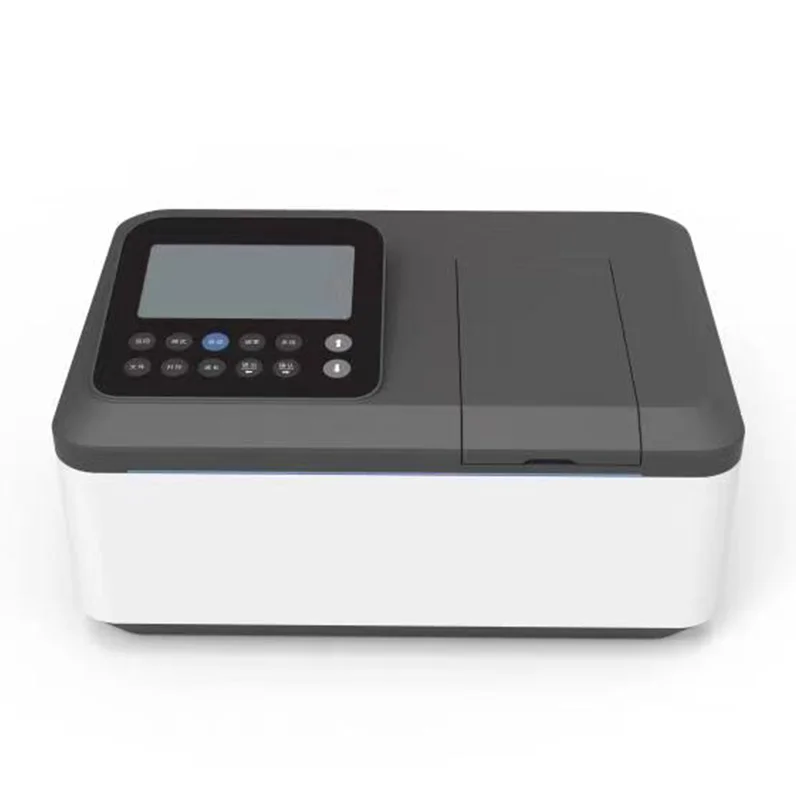

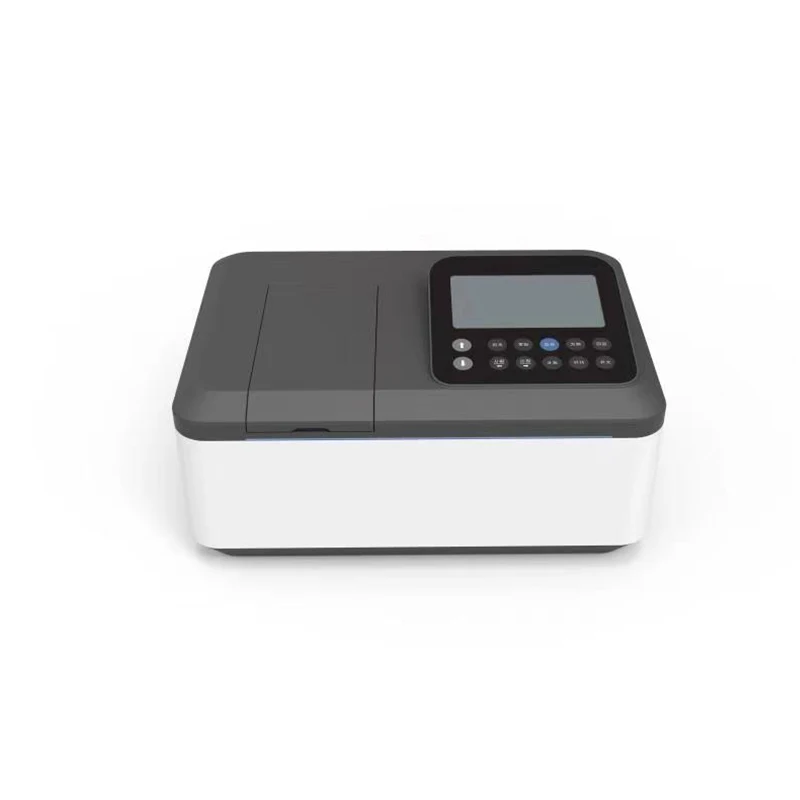

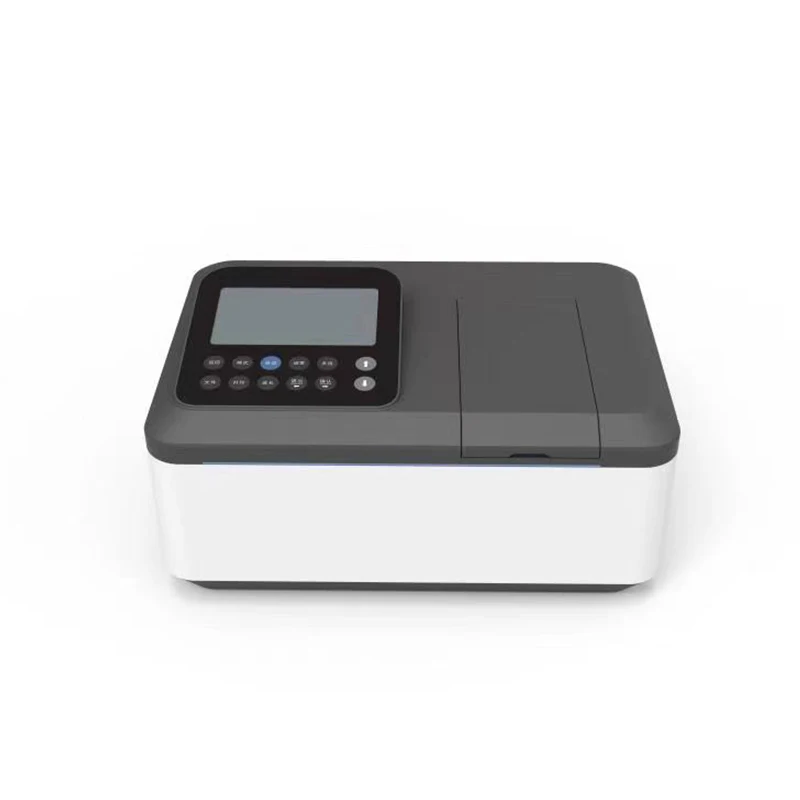

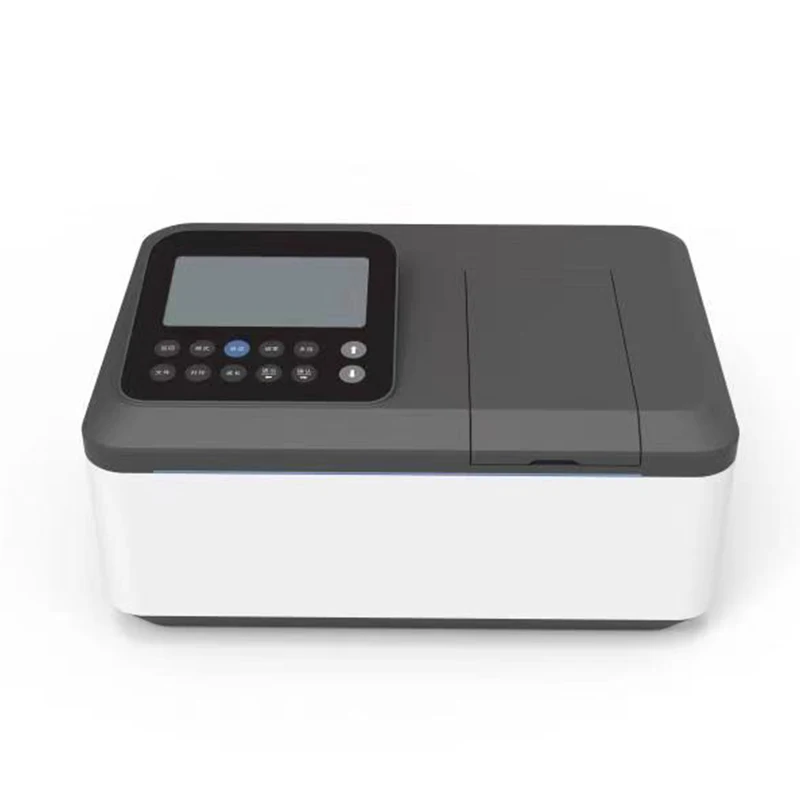

Double Beam UV-Vis Spectrophotometer
UV-VIS Spectrophotometer
The U9 dual-beam UV-Visible spectrophotometer is a high-performance product The product has the
characteristics of high resolution, high stability, flexibility and ease of use, and can meet various needs of daily analysis in
various laboratories and research and analysis in scientific research institutes.
characteristics of high resolution, high stability, flexibility and ease of use, and can meet various needs of daily analysis in
various laboratories and research and analysis in scientific research institutes.
Specification
Optical System | Double beam; 1200 lines/mm imported holographic grating |
Wavelength range(nm) | 190-1100 |
Spectral bandwidth(nm) | 2 |
Wavelength Accuracy (nm) | ±0.5 |
Wavelength repeatability(nm) | ≤0.2 |
Photometry Repeatability | ±0.3 |
Repeatability of transmittance（%T) | ≤0.1 |
Baseline flatness(Abs) | ≤0.001 |
Baseline noise（%T） | ±0.1 |
Stray light(%T) | ≤0.05 |
Luminosity range | 0-200%T，-0.301-4A, 0-9999C(0-9999F) |
Test mode | transmission, reflection, absorbance, concentration, energy |
Light source: | Deuterium lamp + Tungsten lamp |
Display | 7-inch touch screen display (resolution 800*480) |
Data output | U disk, Bluetooth, USB software upload |
Data output format | CSV |
Operation mode | touch screen + buttons |
Sample rack | Four-slot 10-50mm universal adjustable manual sample rack |
Host function | Basic measurement + Quantitative measurement + Qualitative measurement + Time measurement + DNA measurement + multi-Wavelength measurement |
Printer | Optional, support Bluetooth printing |
Power supply | AC90～250V/ 50～60Hz |
Size(L×W×H)mm | 470×330×210mm |
Weight | 14kg |
Feature
High-resolution dual-beam grating optical path structure monochromator, with good stability, reproducibility and accurate
measurement readings. The sample chamber can place reference samples and test samples at the same time, which can eliminate measurement errors between cuvettes .
Advanced ARM microcomputer technology, excellent electronic circuit and signal processing, stable and reliable data, U disk data storage and export, software one-key upgrade, Bluetooth printing and other data output.
Integrated aerospace-grade aluminum alloy substrate and machined reflector base to ensure long-term stability of the optical path.
7-inch color large-screen graphic LCD display, with navigation menu interface design, clear operation commands, with special functions to prevent users from operating errors, users can operate without viewing the manual; touch screen + button dual operation mode, with gloves Can operate.
measurement readings. The sample chamber can place reference samples and test samples at the same time, which can eliminate measurement errors between cuvettes .
Advanced ARM microcomputer technology, excellent electronic circuit and signal processing, stable and reliable data, U disk data storage and export, software one-key upgrade, Bluetooth printing and other data output.
Integrated aerospace-grade aluminum alloy substrate and machined reflector base to ensure long-term stability of the optical path.
7-inch color large-screen graphic LCD display, with navigation menu interface design, clear operation commands, with special functions to prevent users from operating errors, users can operate without viewing the manual; touch screen + button dual operation mode, with gloves Can operate.
Strict manufacturing process and 32 key quality control points, so that each instrument is very durable.
The key components such as deuterium lamp, tungsten lamp, photocell, precision screw rod are selected from well-known and imported brands to ensure the reliable quality of the instrument.
The four-slot 10-50mm universal adjustable manual sample holder is convenient for the test needs of cuvettes of different specifications.
Independently designed deuterium lamp, tungsten lamp replacement window, flange type positioning structure, easy to replace.
The key components such as deuterium lamp, tungsten lamp, photocell, precision screw rod are selected from well-known and imported brands to ensure the reliable quality of the instrument.
The four-slot 10-50mm universal adjustable manual sample holder is convenient for the test needs of cuvettes of different specifications.
Independently designed deuterium lamp, tungsten lamp replacement window, flange type positioning structure, easy to replace.
