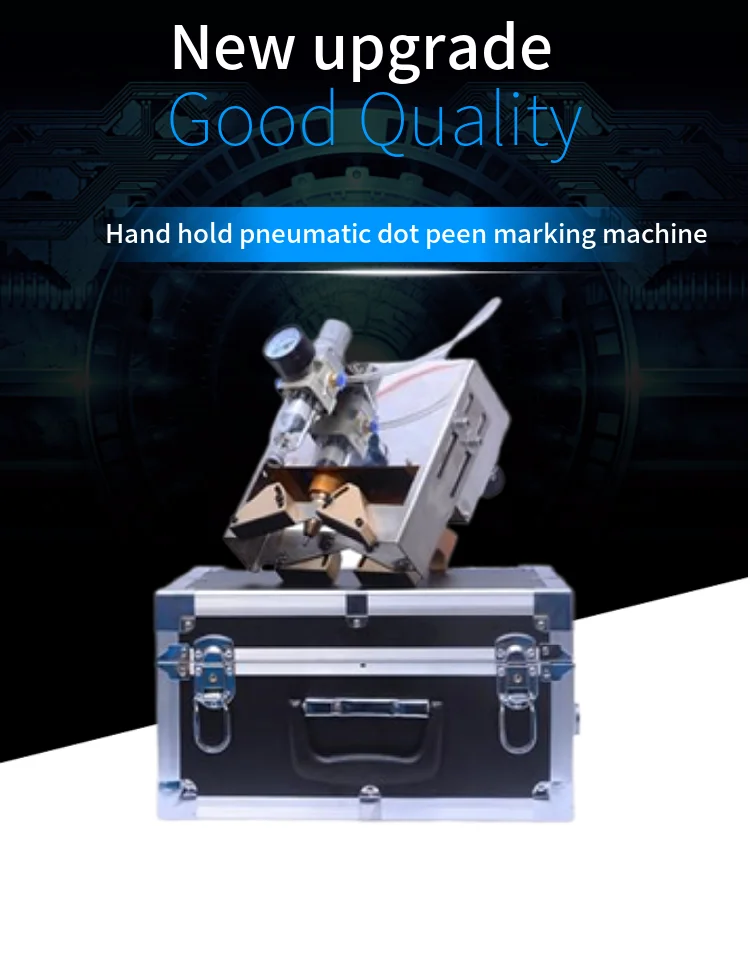

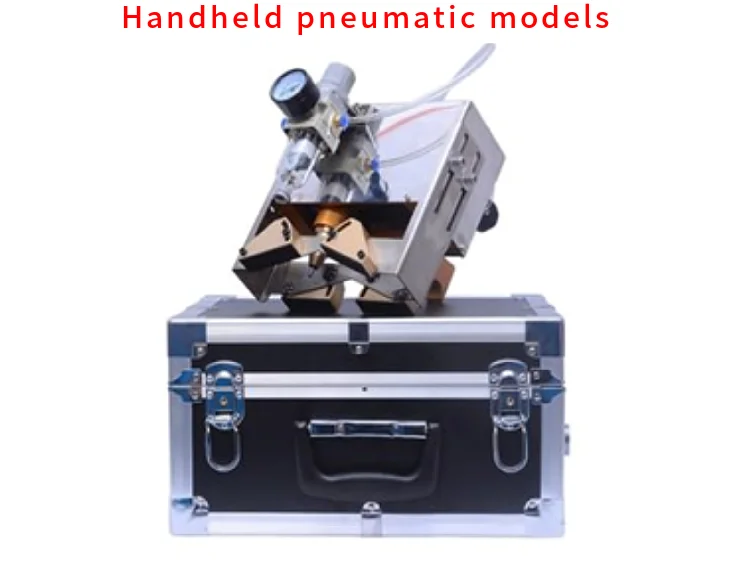

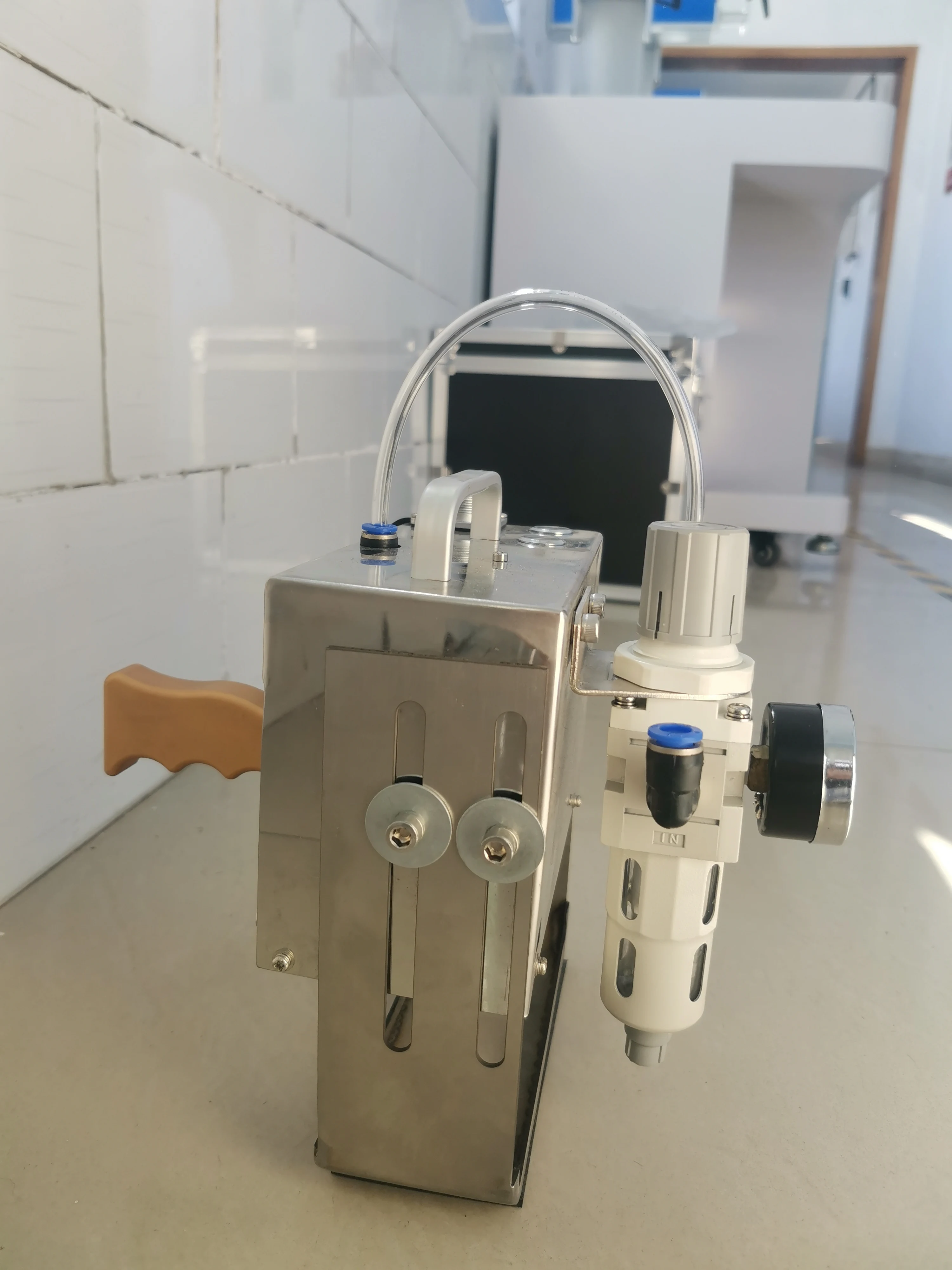

Easy to use handheld portable pneumatic Stamping vehicle chassis dot peen vin number marking machine engraving machine for metal
- Category: Metal Engraving Machinery >>>
- Supplier: Jinan,Minglun,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Brand | Minglun | Printing range | 80mm * 30mm |
Model | ML-SC1530A | Print depth | 0.1-1mm |
Processing customization | yes | Print height | Adjustable height |
Type | Metal coding machine | Air supply pressure | 0.2-0.6Mpa |
Printing direction | Two way printing | Weight | 2.7kg |
Applicable workpiece | All can be | Boundary dimension | 80mm |
Packing type | box, other | Degree of automation | Fully automatic |
after-sale service | Whole machine warranty | Applicable industry | Catering, chemical industry, home textile, gifts, handicrafts, daily chemicals, food, toys, hardware, machinery, tobacco and wine, medicine, others |
Printing speed | 1-3characters/second | Digit | 7 place |
Features
1. Computer editing, controller B (windows system) can be option, small size, light weight, mobile marking.
2. Handheld on-site marking for large equipment, heavy work piece.
3. The controller can automatically increment the serial numbers, trademarks,etc.
4. Permanent marking.
5. Can be easily integrated into industrial production lines.
1. Computer editing, controller B (windows system) can be option, small size, light weight, mobile marking.
2. Handheld on-site marking for large equipment, heavy work piece.
3. The controller can automatically increment the serial numbers, trademarks,etc.
4. Permanent marking.
5. Can be easily integrated into industrial production lines.

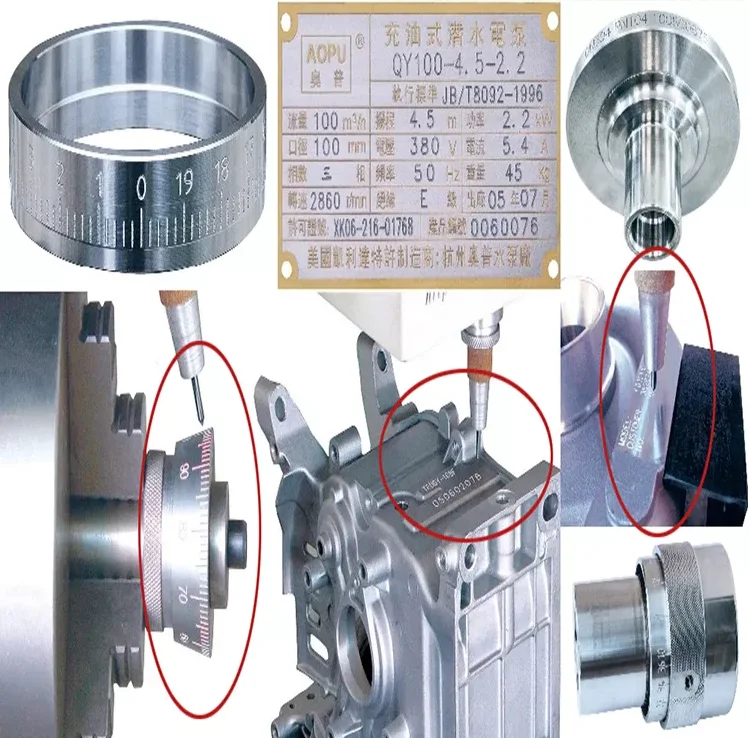

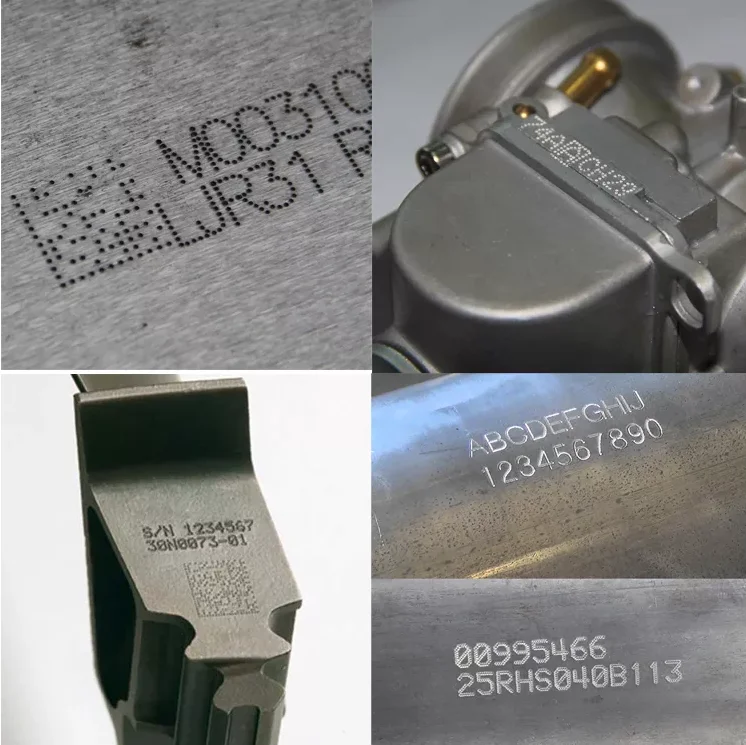

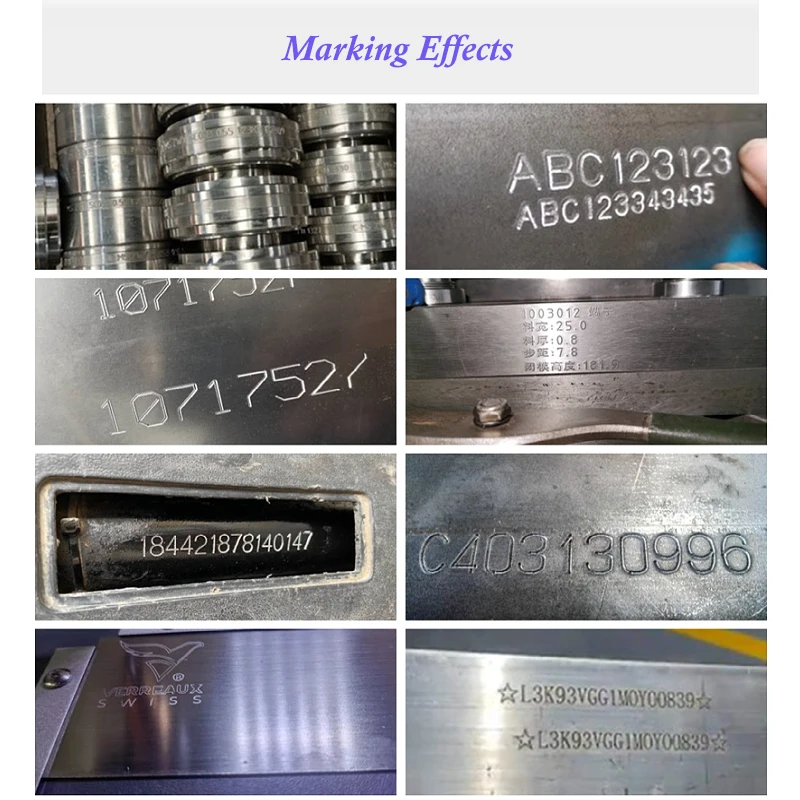

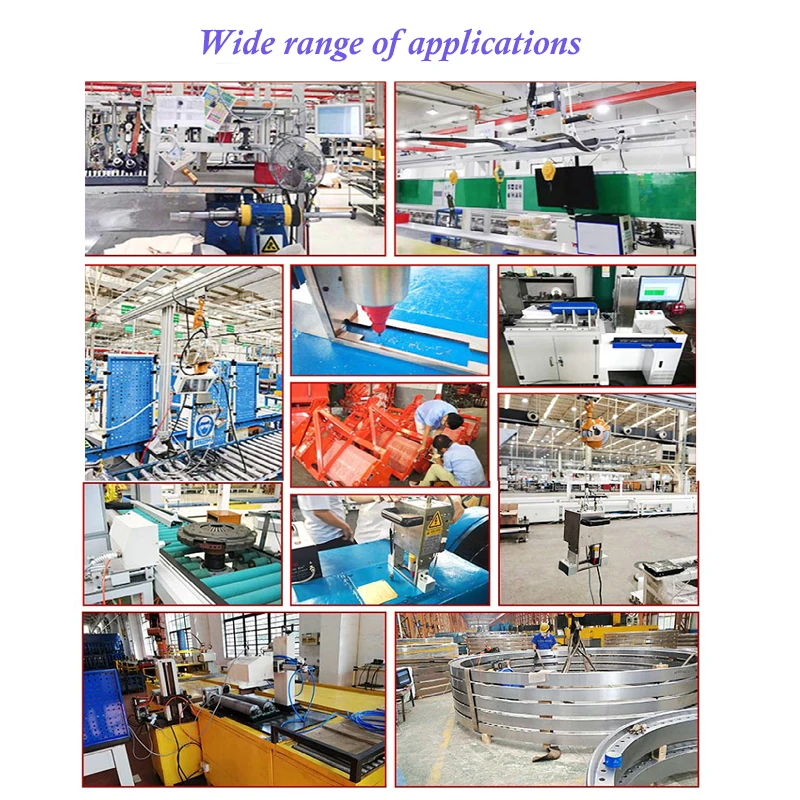

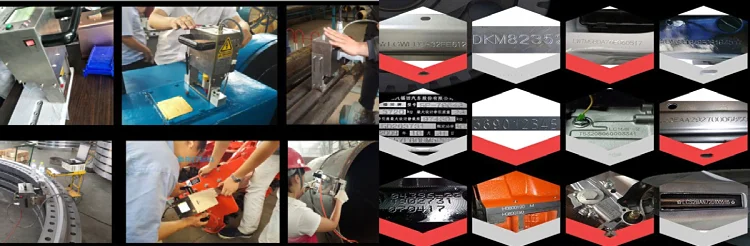

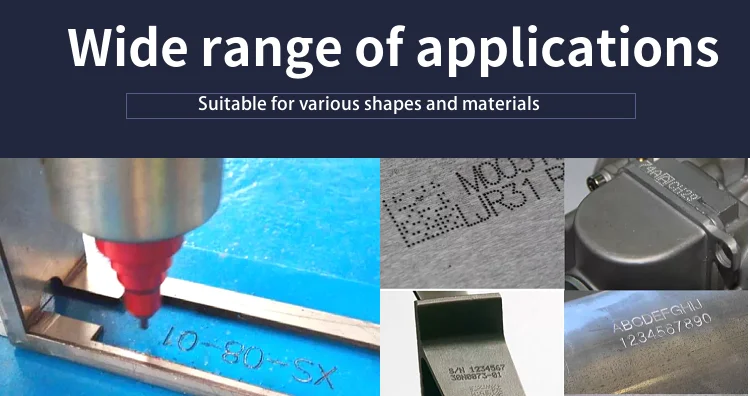

Applications
Related Products Display

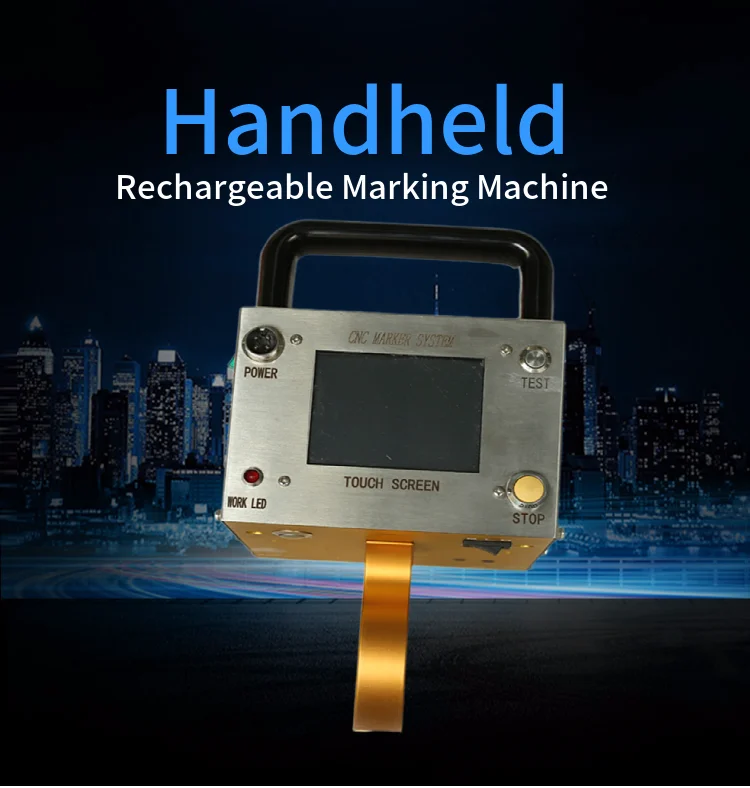

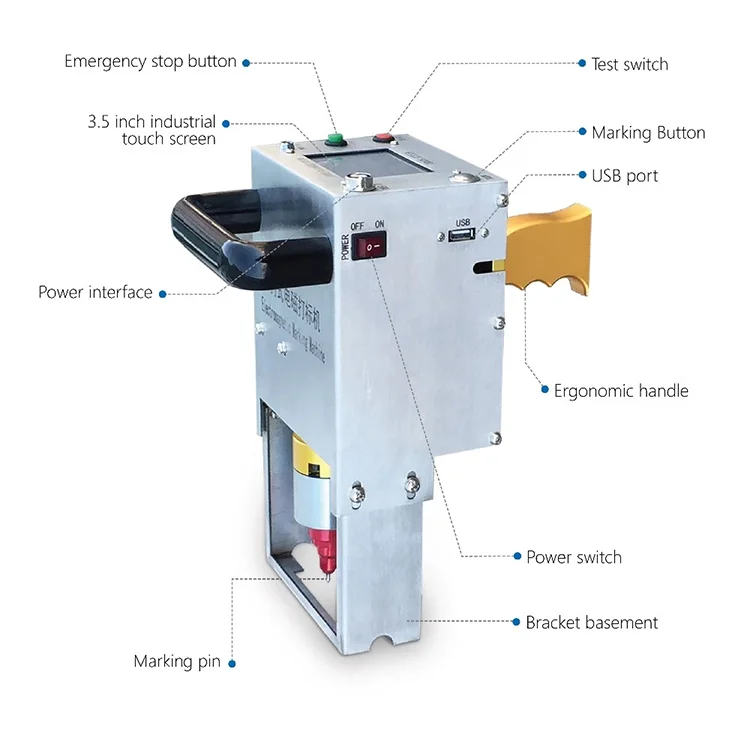

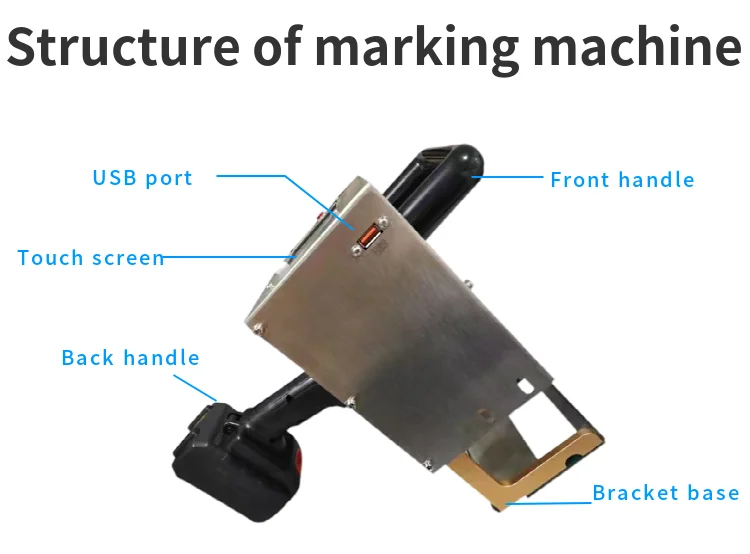

Handheld marking machine
1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch.
2). Display system: 7-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow, Stepper
5). Motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
6). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)

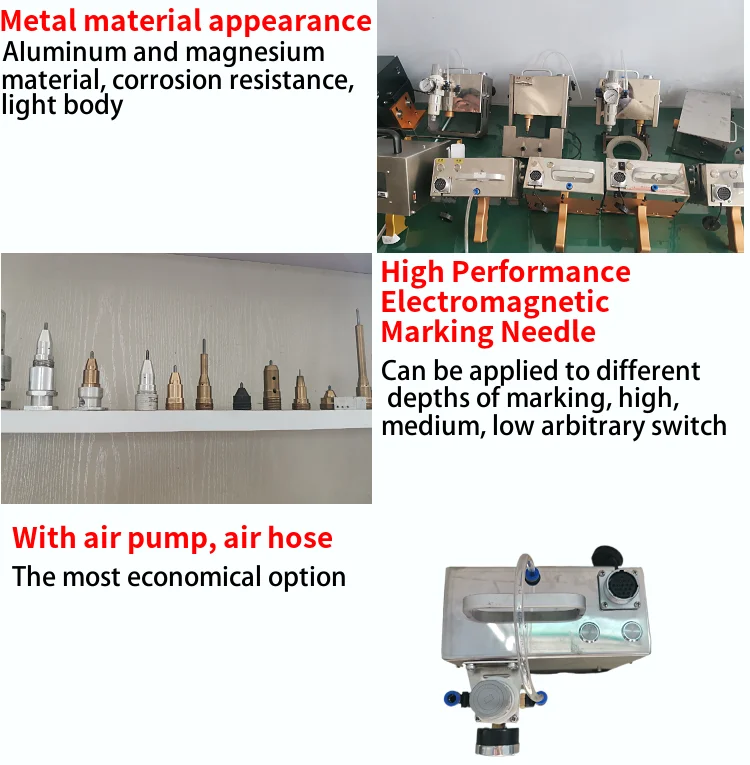

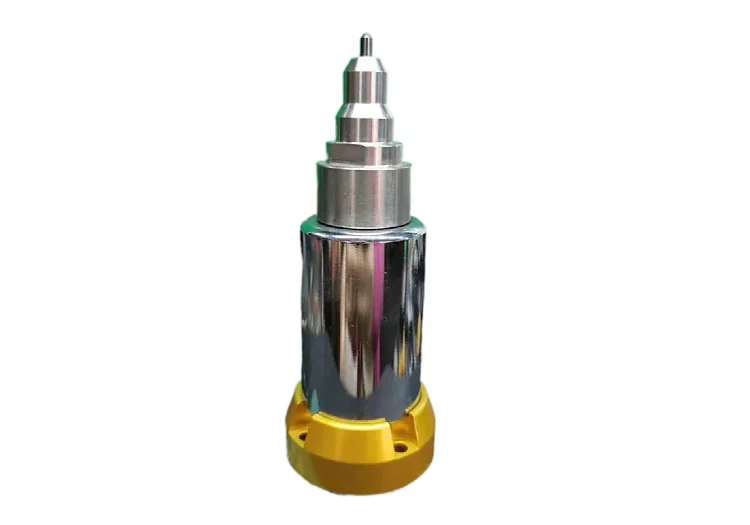

7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.

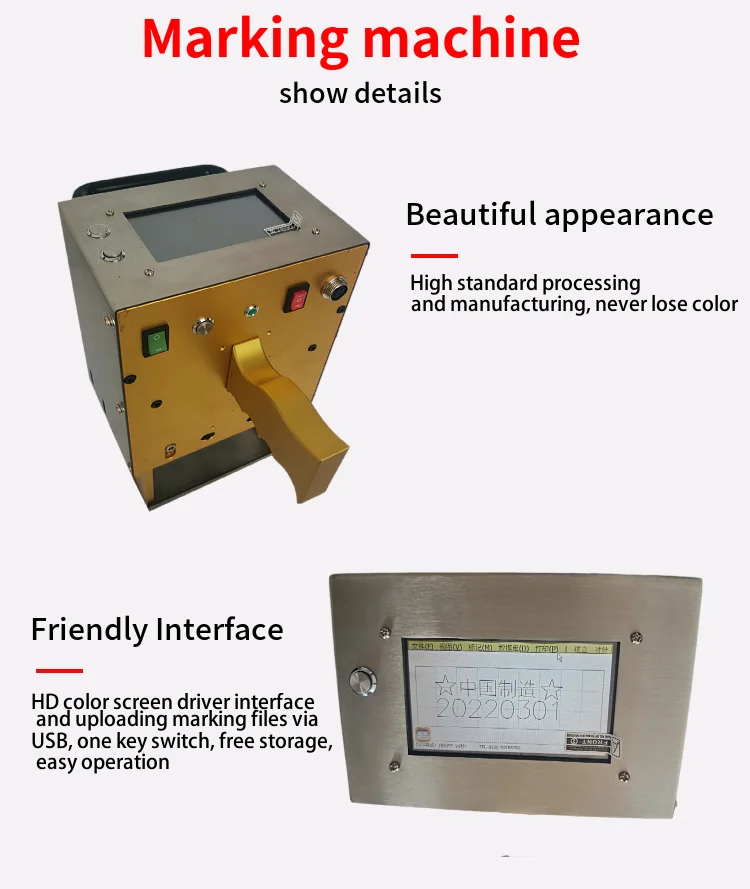

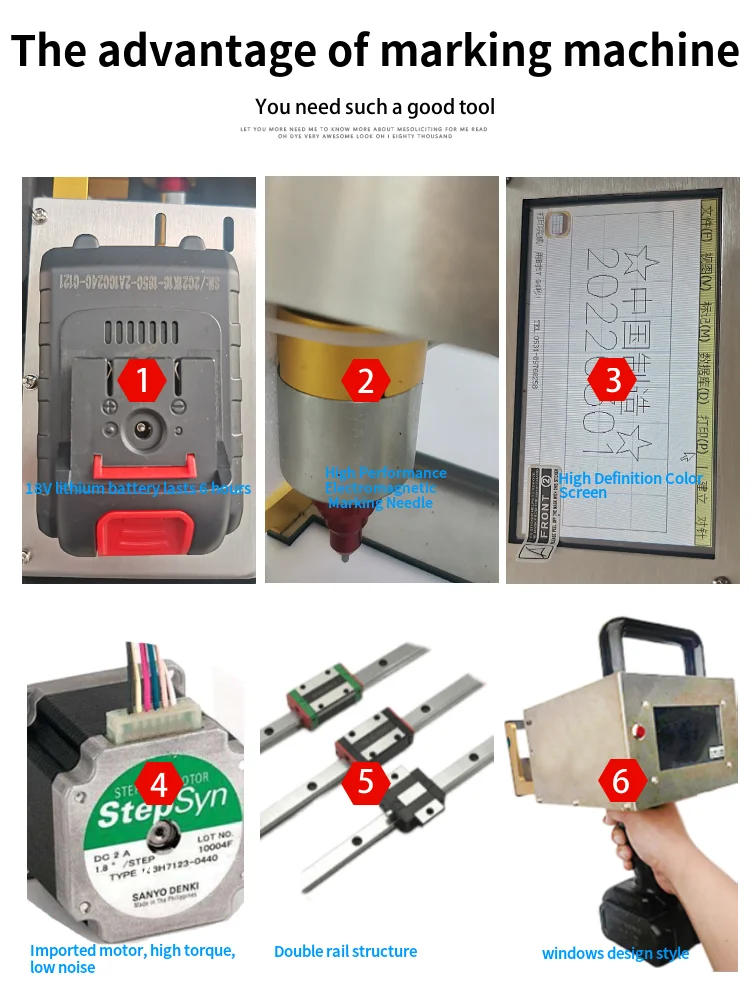

Product advantages:
1). The whole machine adopts imported industrial grade components with high marking precision and long service life.
2). The controllor adopts industrial control system, which has strong anti-interference ability and strong environmental
adaptability.
3). The marking head adopts double-rail structure, which has long service life and good impact resistance.
4). standard Windows design style, with a good man-machine dialogue function, easy for the operator to quickly grasp.
5). can directly observe the marking effect on the screen, making debugging more convenient and free, can track the mark on the
screen.
6). application range: a variety of shapes, materials.
7). working hours: can work continuously > 24 hours.
Model | ML-SC9030B |
Type of Electric Hand Held Dot Peen Marker | Portable Marking & Engraving |
Controller | Built-In Software and Touch Screen |

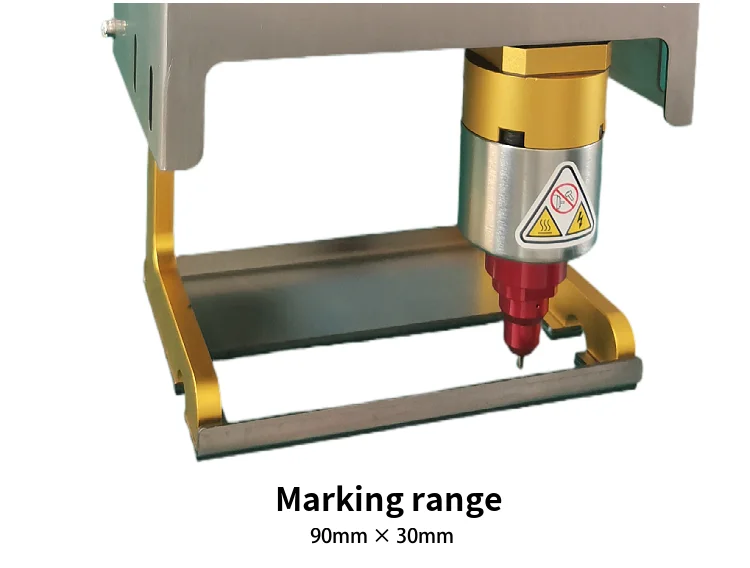

Marking Area | 90mm x 30mm |
Marking Speed | 1~4 characters/s (5mm height) |
Preciseon Repeatability | 0.001mm |
Marking Depth | 0.1mm~2mm（according to material） |
Power Supply | AC 100V ~ 240V 50HZ/60HZ |
Other Device Request | No need of extra devices such as computer and pneumatic air compressor |
Speical Technology | marking place detect and can mark on uneven surface such as round part |
Optional | standard version needs to be connected to a power source, the customer also can choose the battery version to make it more portable. |

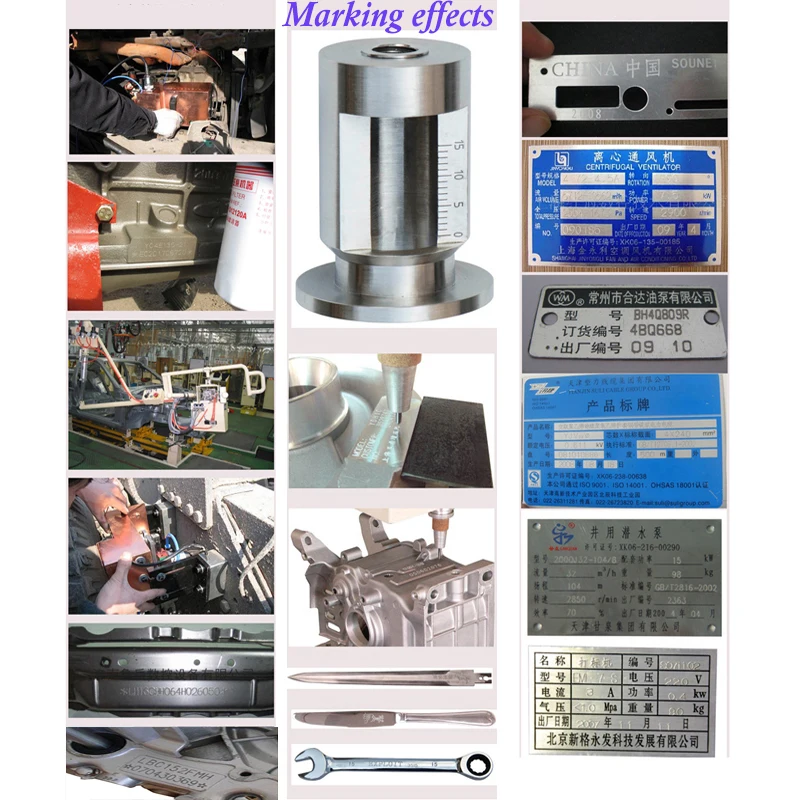

Marking Content | English characters, number, all kinds of graphic outline, logo, dot matrix 2D codes, Barcode, Serial Number, circle Letter and etc. |

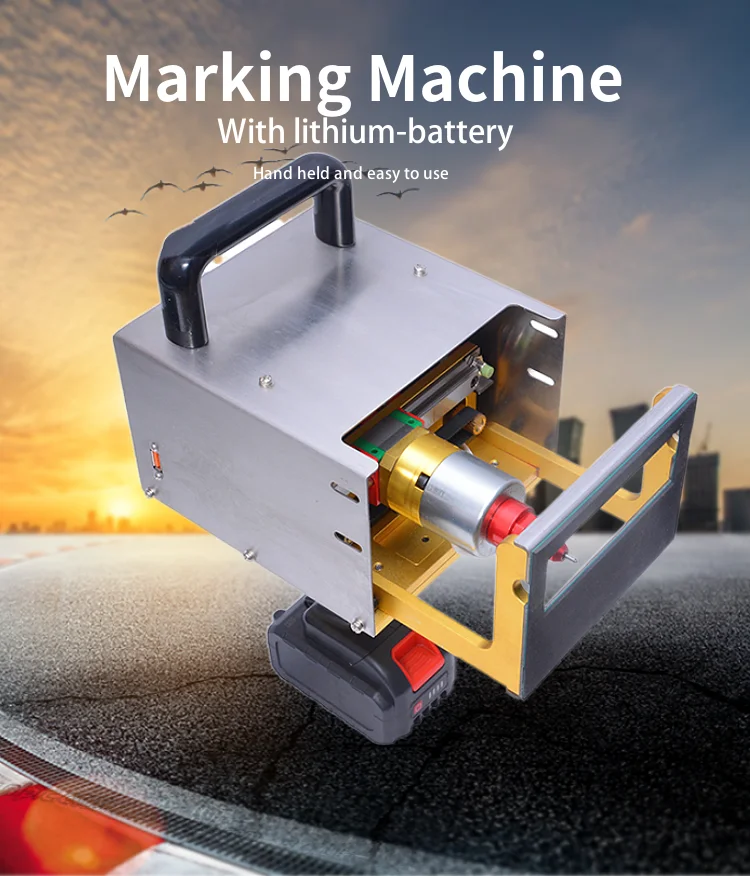

Lithium-battery operated handheld marking machine's Parameters | ||||||||
Marking range | 90mm × 30mm | |||||||
Marking depth | 0.01-2mm | |||||||
Driving voltage | DC24V | |||||||
Power supply mode | single exchange 110-240V global universal | |||||||
Print content | Any Chinese and English characters and numbers. Graphics | |||||||
Print effect | clear and beautiful | |||||||

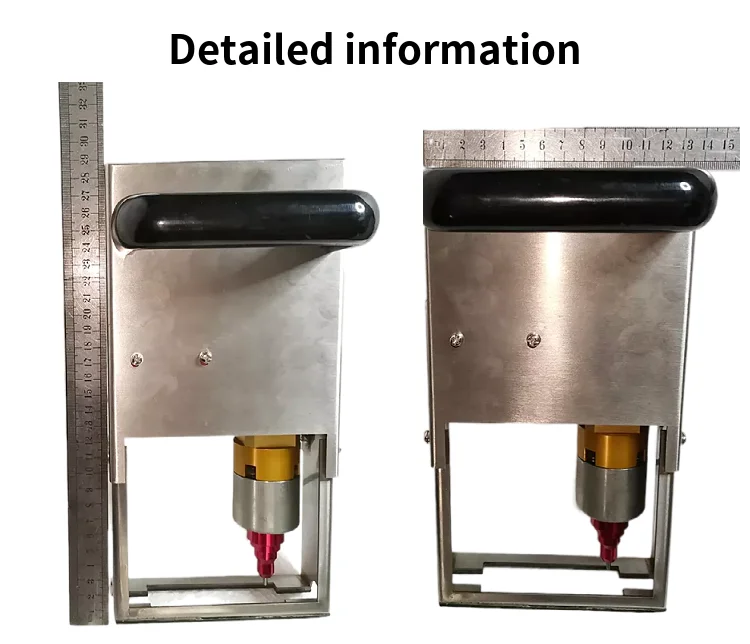

Any graphic that containing in the CAD The machine supports reading data directly from the U disk Machine weight: 4.5kgs, Dimention: 28cm *14.5cm*10.5cm | ||||||||

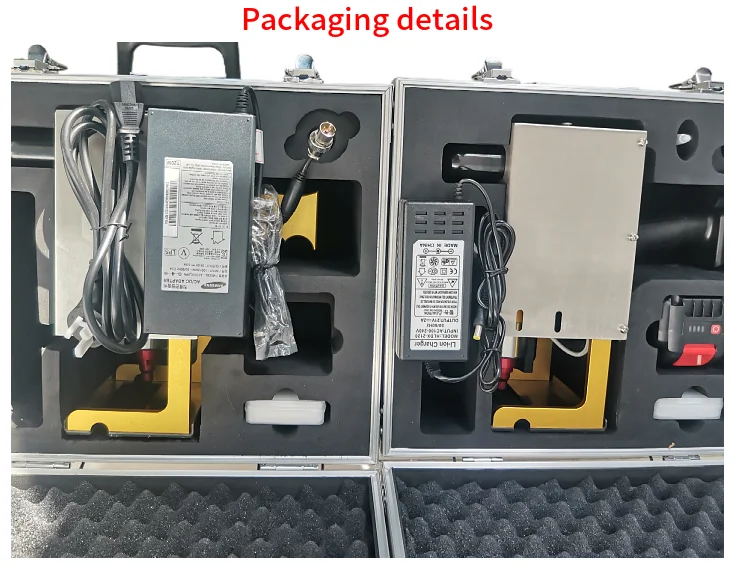

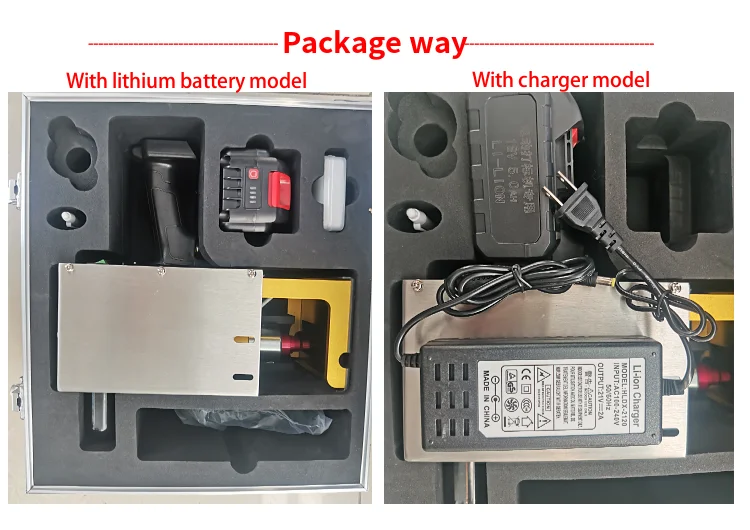

Packing & Delivery
Exquisite aluminum foil box packaging
No minimum order quantity required, container orders available~

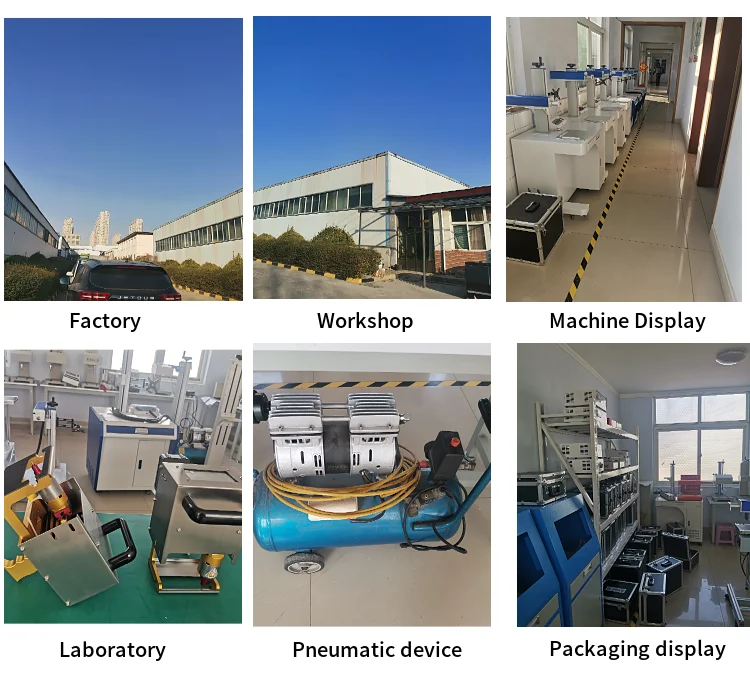

Jinan minglun machinery co., ltd. is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port. Our main product is Industrial machinery.Such as,marking machine,hand pallet truck,electric trolley,electric tricycle,sling,cranes,fog machine,feed pellet machine,feed processing machines,small feed production line,wood pellet stove,wood pellet mill,stainless steel mixer,fiberglass mixer,etc. High quality, standard-tested, long-term foreign buyers such as: Europe and America, Africa, Southeast Asia,and South America etc.We can support OEM at the same time. We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!
FAQ
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Q: Do you have the manual of machine.
A: Yes,we can provide manual,CD software and video to help you operate the machine expertly.
A: Yes,The more you order,the more you save.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Q: Do you have the manual of machine.
A: Yes,we can provide manual,CD software and video to help you operate the machine expertly.
