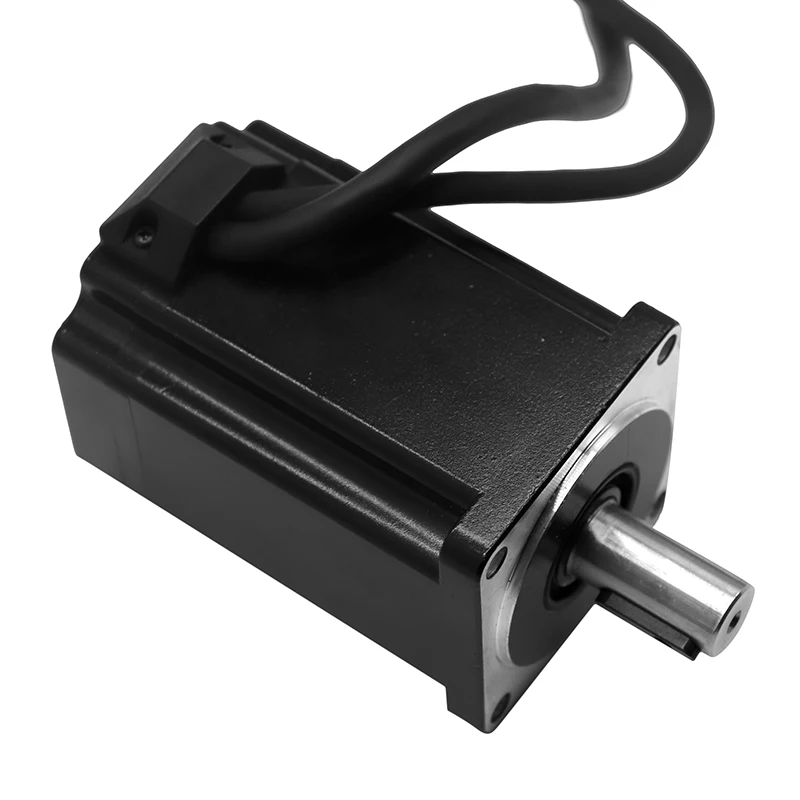

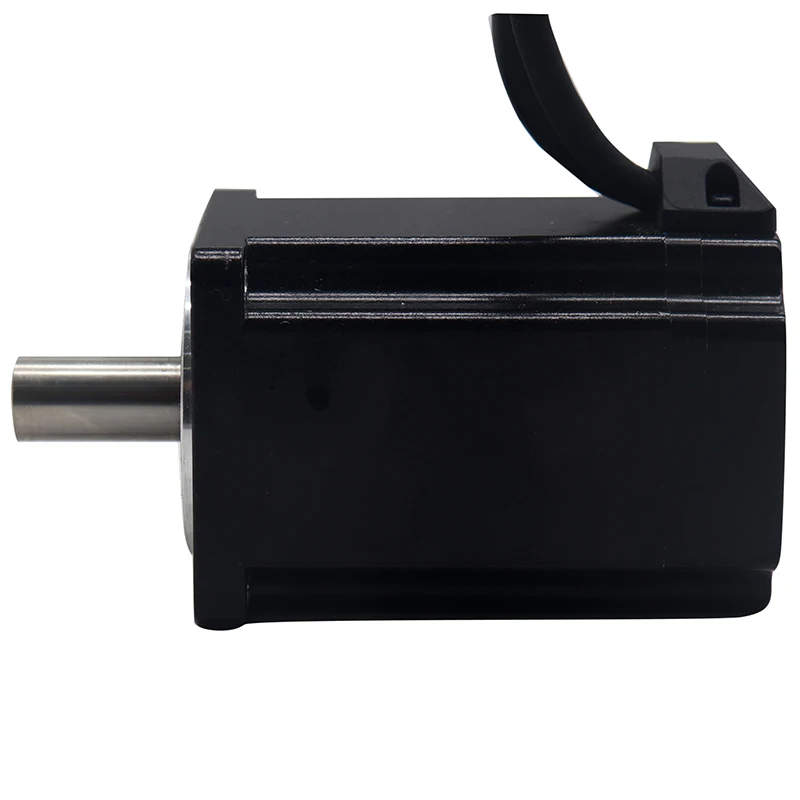

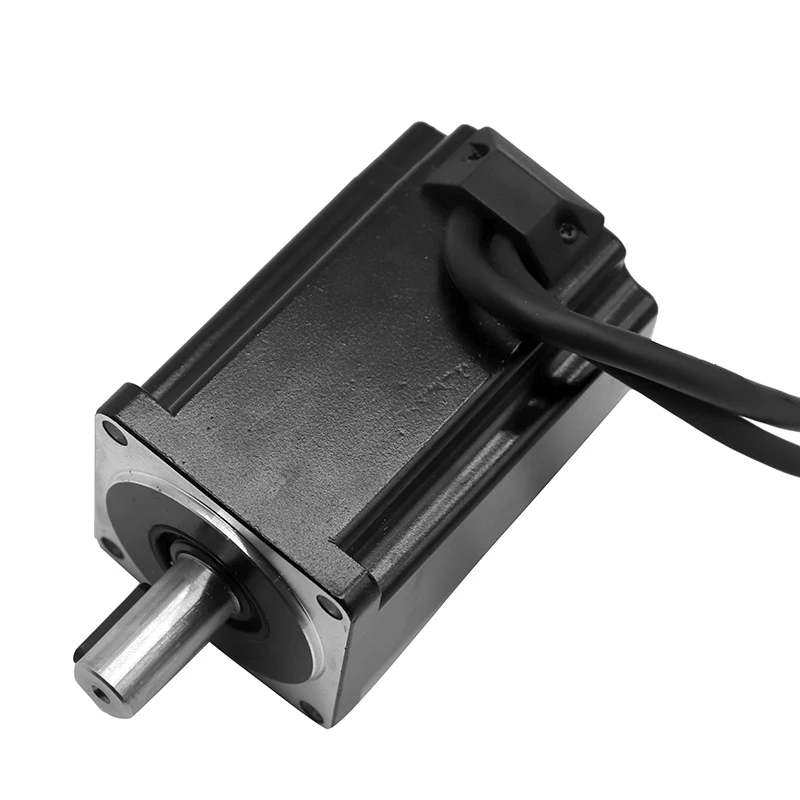

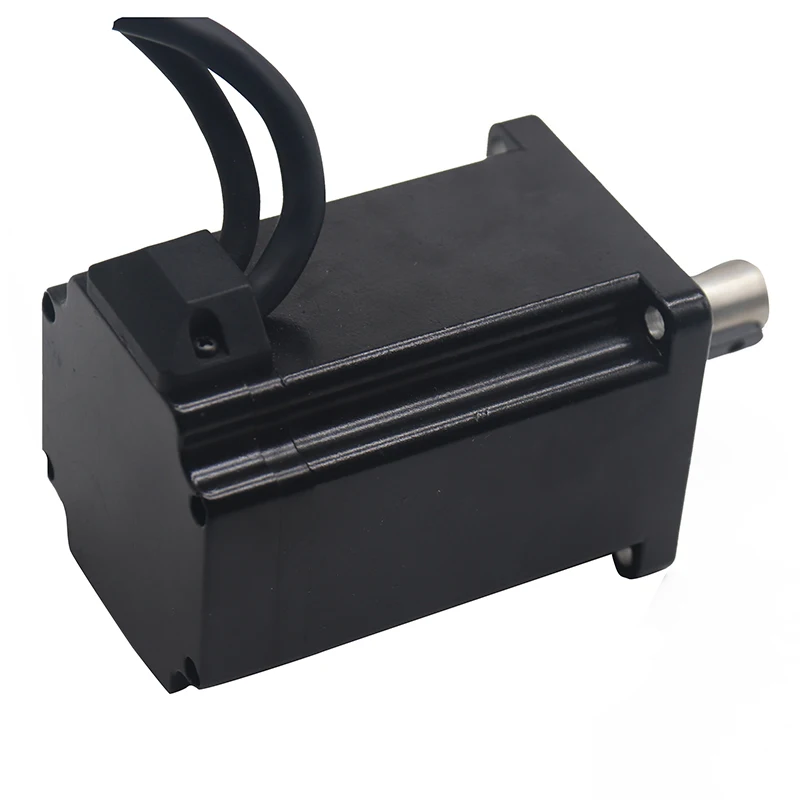

11A DC Robot Servo Motor High Torque 48v 3000 rpm absolutely Encoder Servo Motor with brake
- Category: >>>
- Supplier: Shenzhen Jiayu Mechatronic CO. Ltd
Share on (1600477391027):
Product Overview
Description
Product Description
Product description of robot servo motor
logistics sorting servo motor series Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use are designed to working with servo drive, adopts incremental encoder
2500 lines, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for Logistics sorting, medical instruments, 3C equipment, packaging, etc. with small size and simple wiring, widely used Scenes such as AGV, mobile robots, and collaborative robots.
Products features of robot servo motor
1. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection
4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feed forward parameter configuration to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including over-current, overload, over-voltage, under-voltage,
overheating,over speed, and out of tolerance protection
8. Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle
Advantages of robot servo motor
① The motor winding protects the power supply from short circuit
② Motor winding inter-phase short circuit protection
③ Encoder disconnection protection
④ Over-voltage protection
⑤ Over-current protection
Applications of robot servo motor
* AGV servo motor
* Logistics sorting
* medical instruments
* 3C equipment
logistics sorting servo motor series Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use are designed to working with servo drive, adopts incremental encoder
2500 lines, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for Logistics sorting, medical instruments, 3C equipment, packaging, etc. with small size and simple wiring, widely used Scenes such as AGV, mobile robots, and collaborative robots.
Products features of robot servo motor
1. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection
4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feed forward parameter configuration to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including over-current, overload, over-voltage, under-voltage,
overheating,over speed, and out of tolerance protection
8. Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle
Advantages of robot servo motor
① The motor winding protects the power supply from short circuit
② Motor winding inter-phase short circuit protection
③ Encoder disconnection protection
④ Over-voltage protection
⑤ Over-current protection
Applications of robot servo motor
* AGV servo motor
* Logistics sorting
* medical instruments
* 3C equipment
Specification
Model Number | EBS60F-200C-30DG5Z-BEEL-ST-00 |
Usage | medical equipment |
Type | logistics sorting servo motor |
Torque | 0.64nm |
Construction | Permanent Magnet |
Protect Feature | Drip-proof |
Speed(RPM) | 3000rpm |
Continuous Current(A) | 11A |
Efficiency | Ie 3 |
Rated Speed | 3000RPM |
Rated torque | 0.64nm |
Voltage | 48v |
Diameter | 60mm |
Application | logistics sorting |
Rated Power | 200w |
Rated current | 11A |
Encoder | Absolutely |
Packing & Delivery
standard package

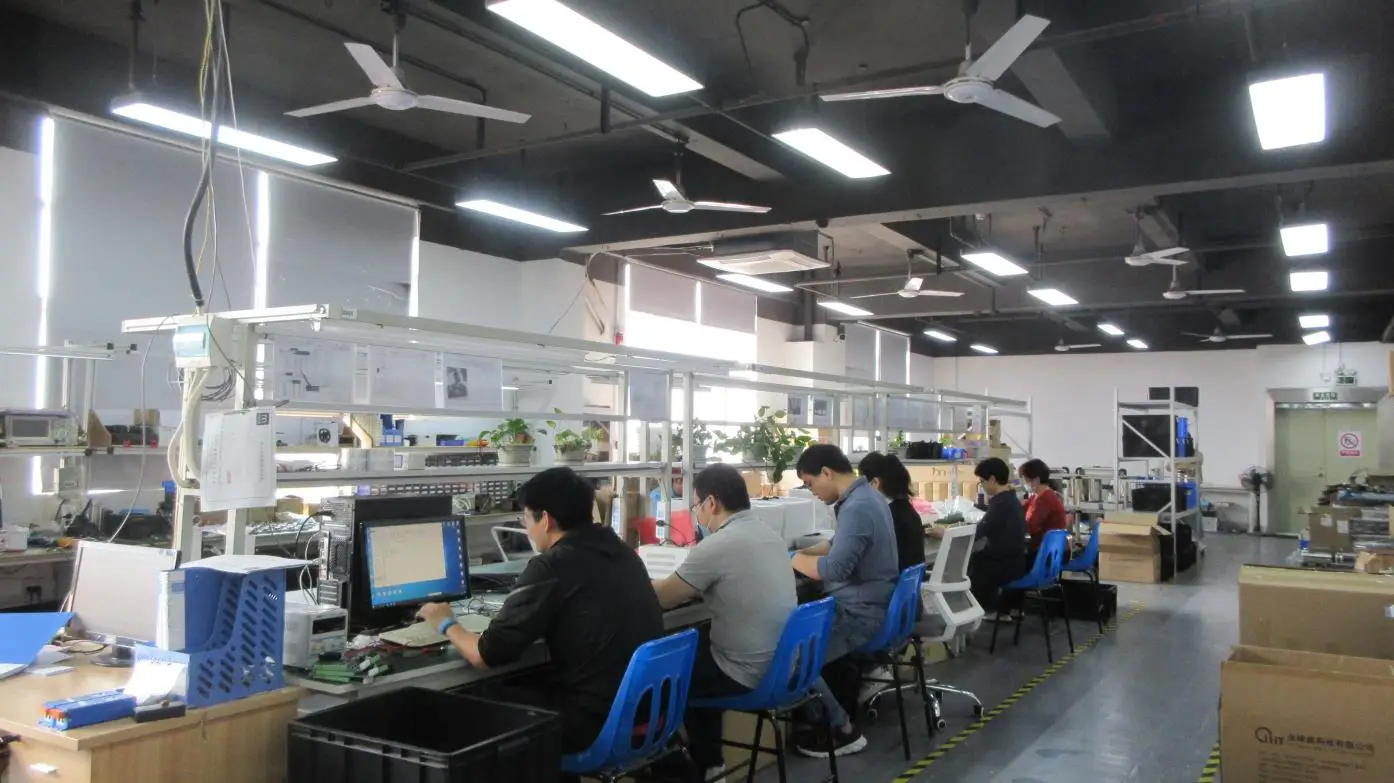

Company Profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.

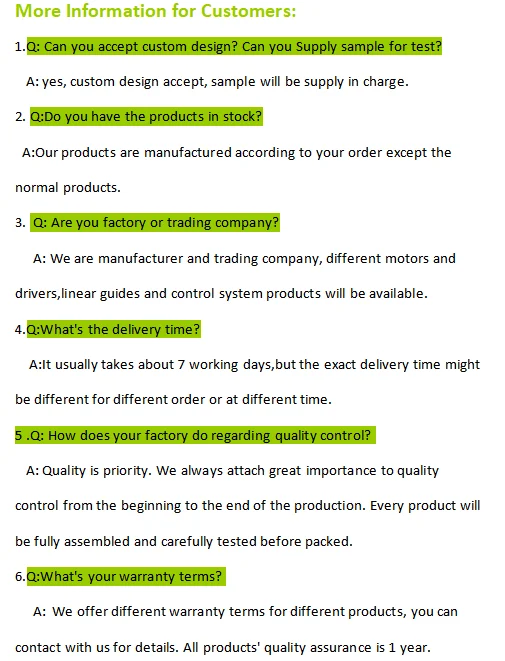

FAQ
