Product Overview
Description
Product Description

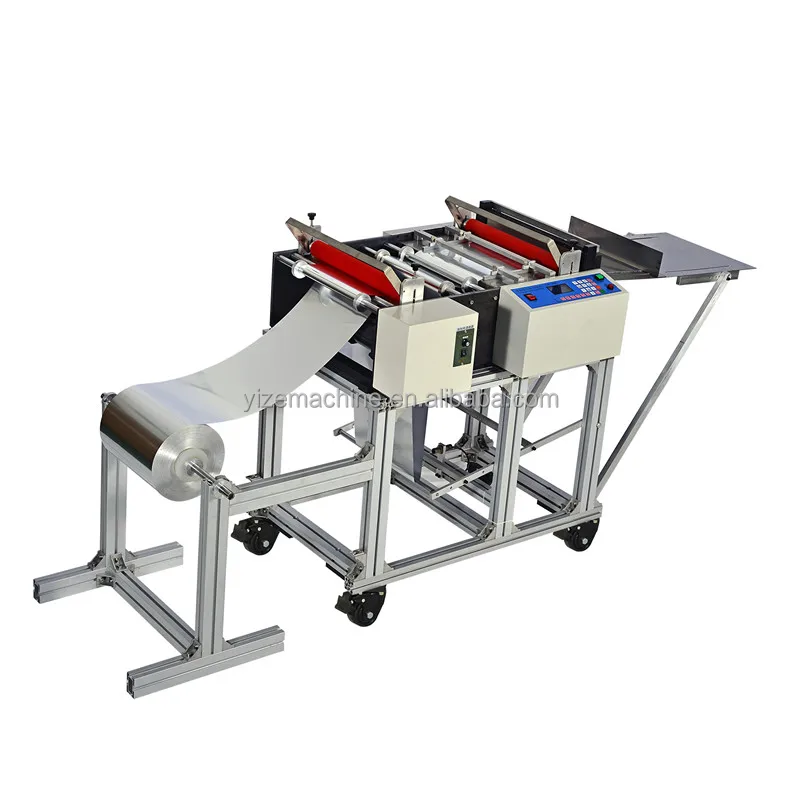

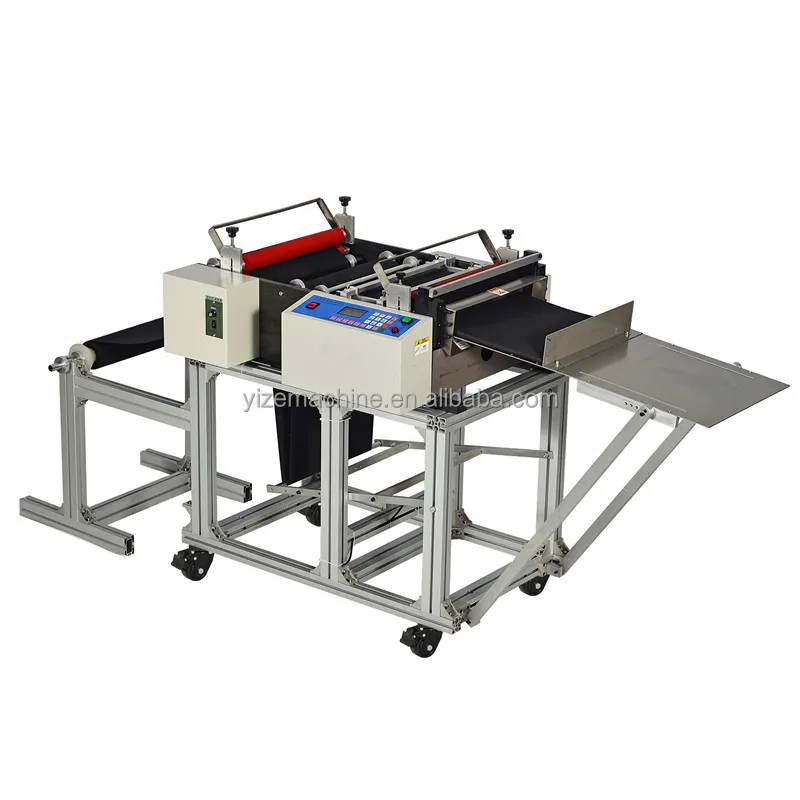

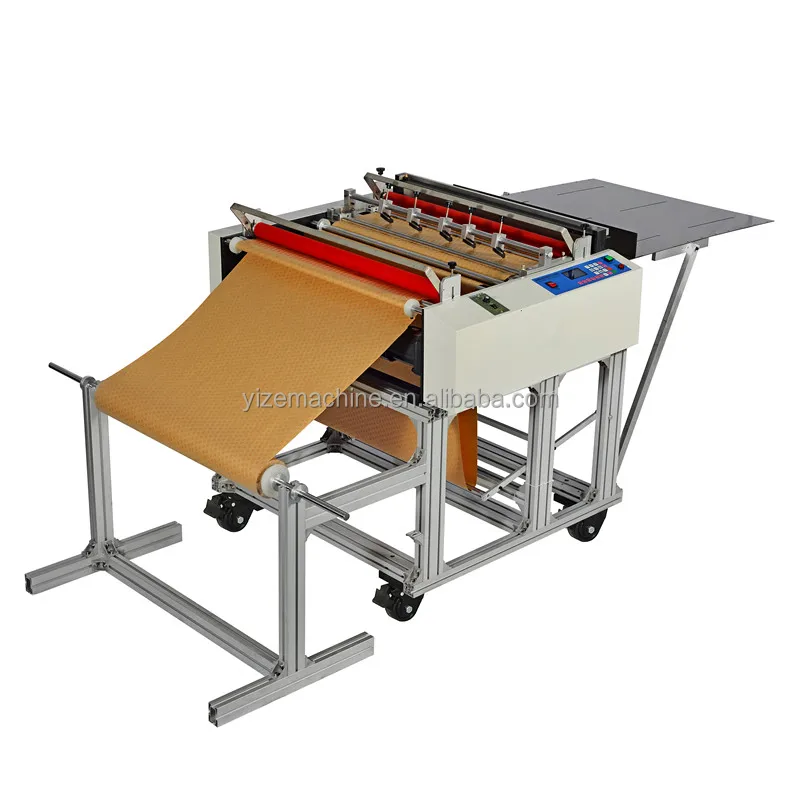

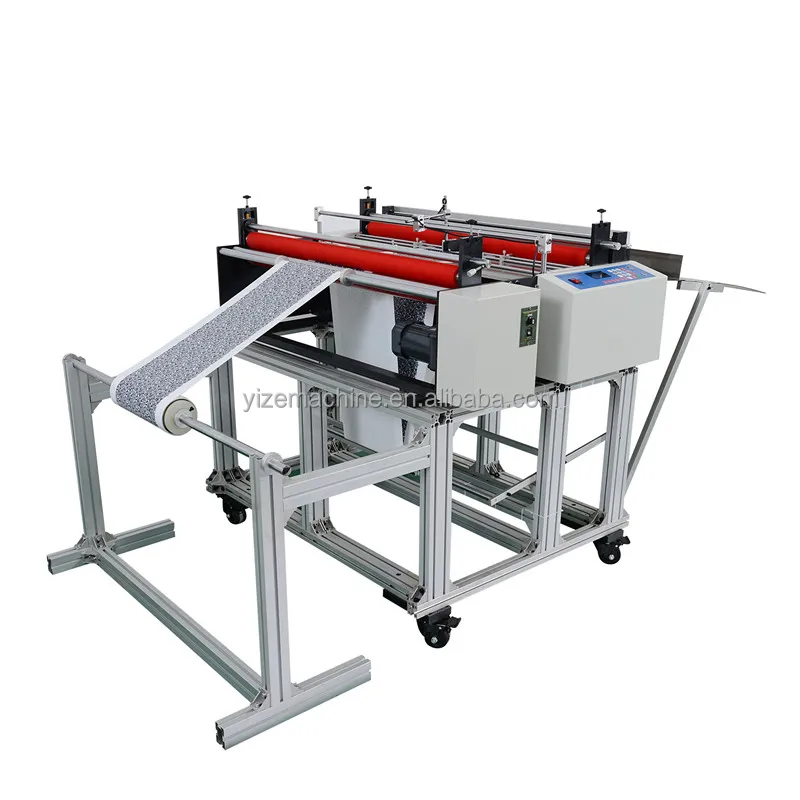

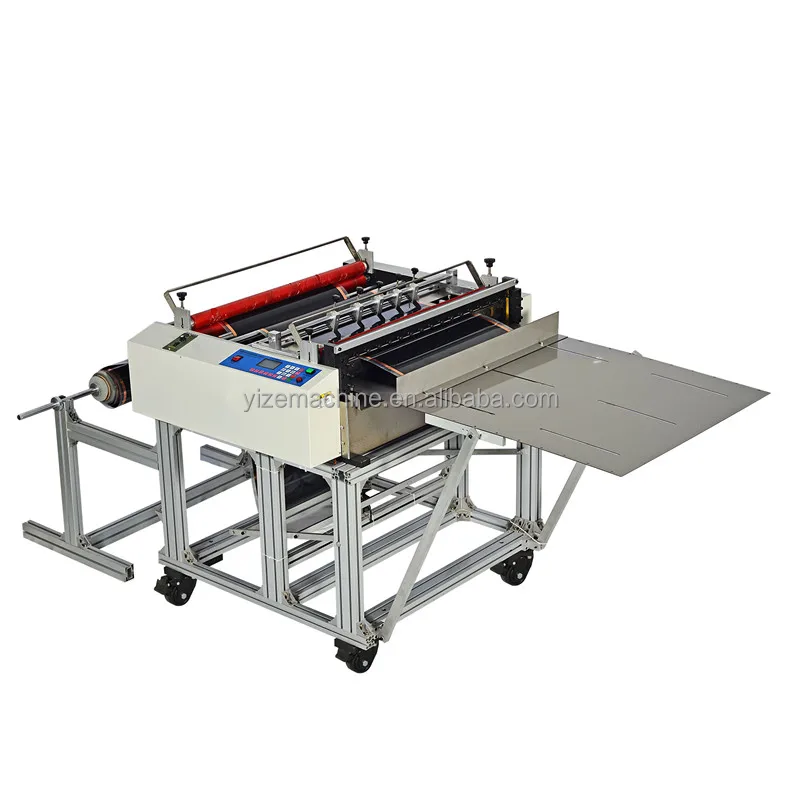

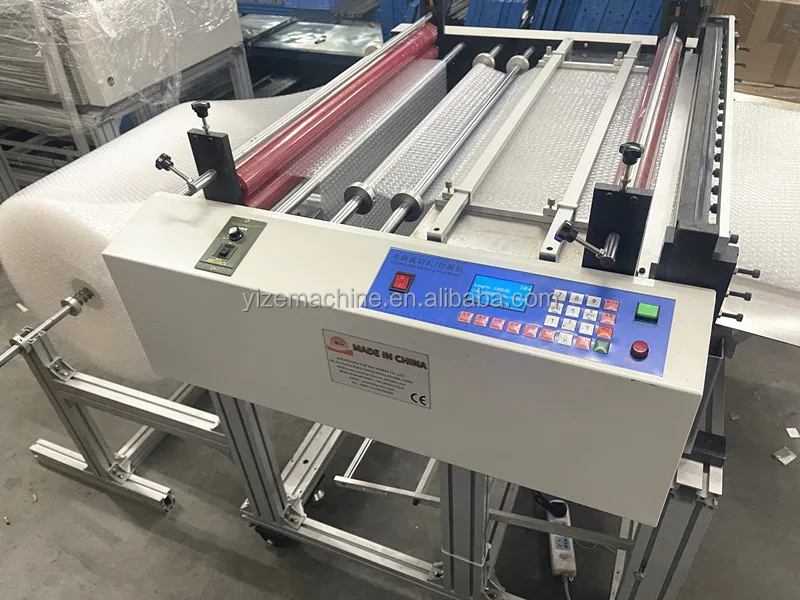

high speed face mask insulation paper non woven cutter PVC film elastic belt air bubble film cutting machine for hot sale
1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.
1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.
Model | YZCQ-300T/400T/500T/ 600T/800T/1000T/1200T/1300T/1500T/1600T/1700T/1800T/2100T |
Max cutting width | 300/400/500/600/800/1000/1200/1300/1500/1600/1700/1800/2100mm |
Cutting length | 0.1-9999mm adjustable |
Cutting precision | 0.1mm |
Cutting speed | 30-120 pcs/min |
cutting blade material | SKD11 high speed steel wear resistant steel |
display mode | English and Chinese interface blue screen 186 * 60 LCD display |
feeding motor | High precision stepper motor |
cutting motor | High power Reducer variable spee |
Voltage | 220V/110V,50/60hz, Ac |
Language | Chinese and English (Spanish is Optional) |
Package | Standard export Wooden case |
Optional | Electronic eye, Knife slitting group, Round blades slitting group, Spring Static Eliminator |
YZCQ-300T: cutting width 315mm
YZCQ-400T: cutting width 415mm
YZCQ-500T: cutting width 515mm
YZCQ-600T: cutting width 615mm
YZCQ-800T: cutting width 815mm
YZCQ-1000T: cutting width 1015mm
YZCQ-1200T: cutting width 1220mm
YZCQ-1500T: cutting width 1520mm
Detailed Images

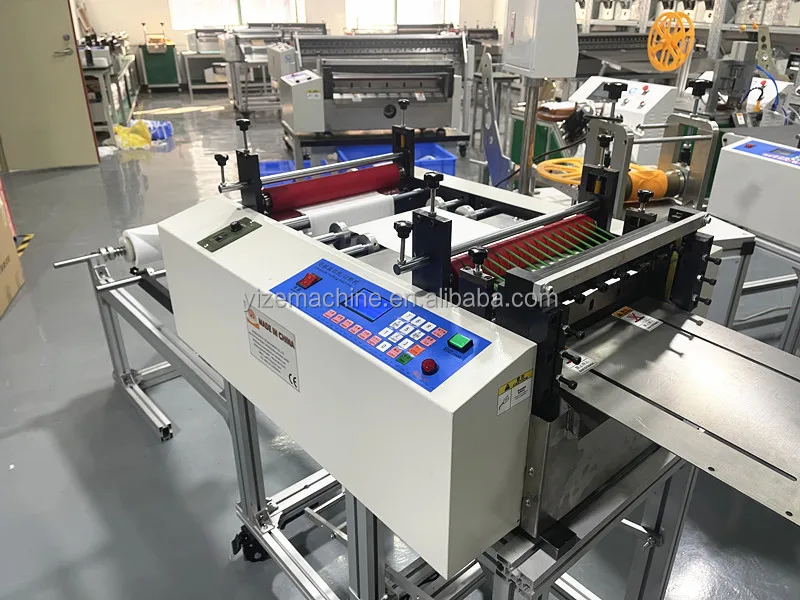

1. Chinese and English operating system: LCD display, one-key conversion between Chinese and English, simple panel, simple operation
2. Vacuum heat-treated steel knife: Use high-quality SKD11 high-speed steel knife with a special mechanical structure, the blade is
sharp, durable, and ensures that the cut surface is flat and free of burrs.
sharp, durable, and ensures that the cut surface is flat and free of burrs.
3. Feeding rubber wheel: wear-resistant, pressure-resistant and high-temperature resistant, equipped with pressure regulating screws at both ends to effectively prevent material from slipping
4.Speed control controller: Knob speed control, speed can be adjusted at any time, simple and convenient, equipped with AC variable speed motor, with photoelectric induction pre-discharging

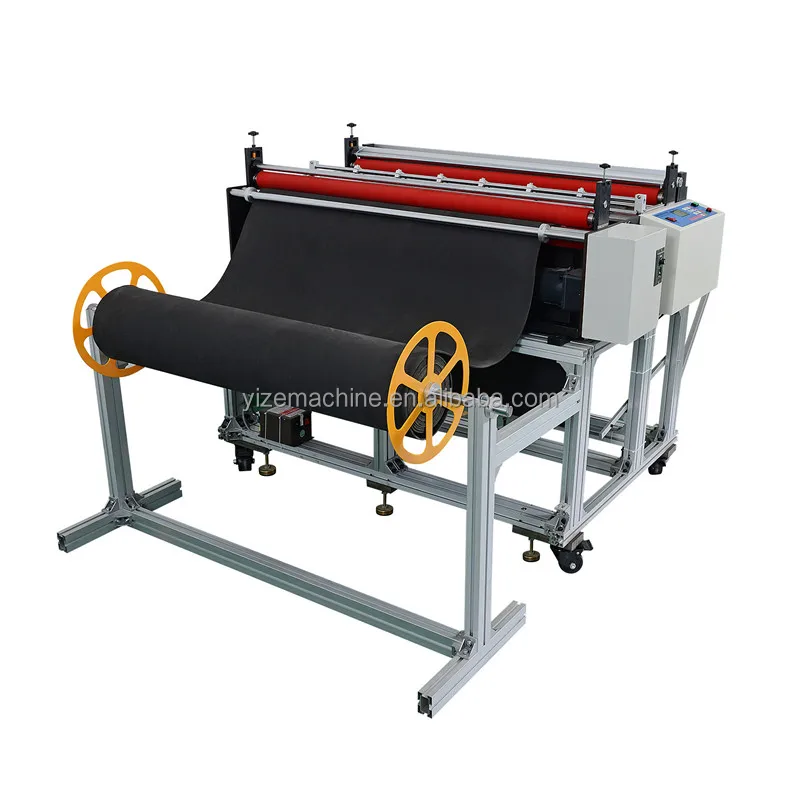

5. Vertical bearing rack: floor-standing design, stable and sturdy, equipped with bearing material cone, labor-saving and durable, and can be used to place various material rolls
6. Multiple sets of super-powered fans for heat dissipation and exhaust, reduce the heat of the machine and ensure that the machine works for a long time
Slitting blades:

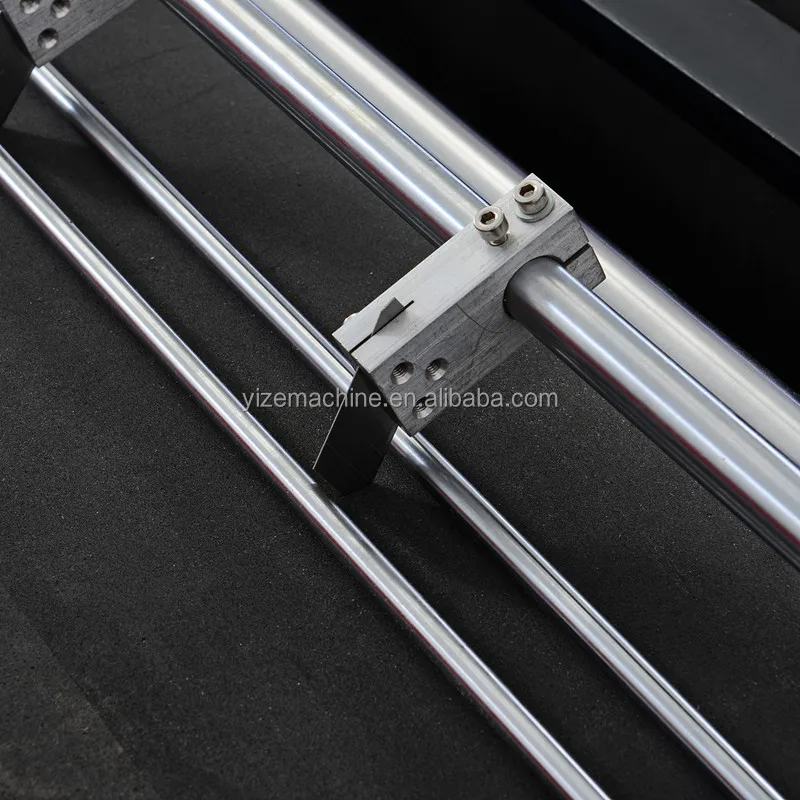

Flat blades: no power, suitable for slit thin material

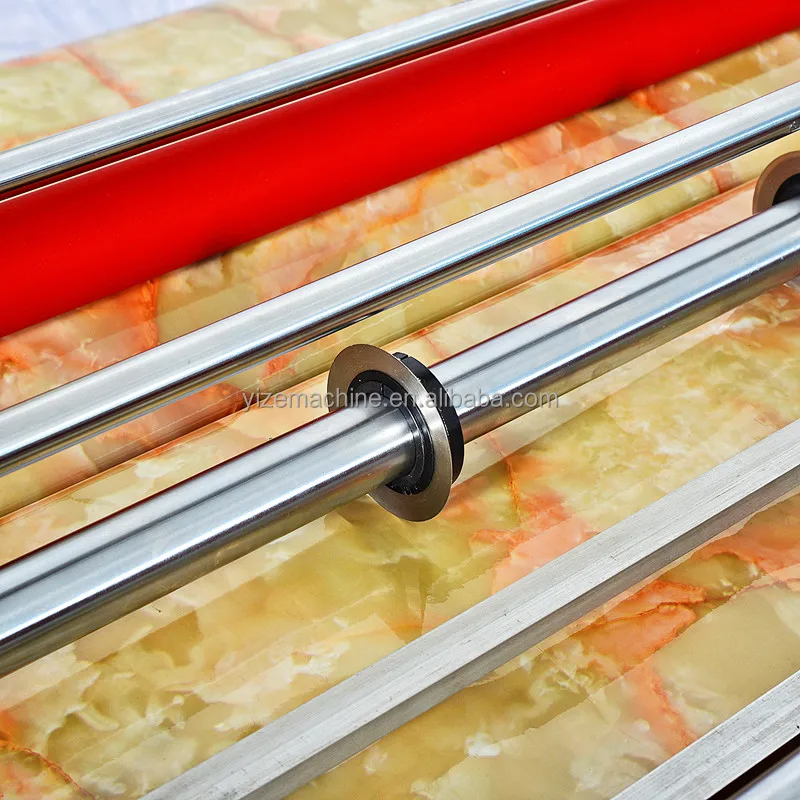

Round blades: matched with motor power, used for slit thick material

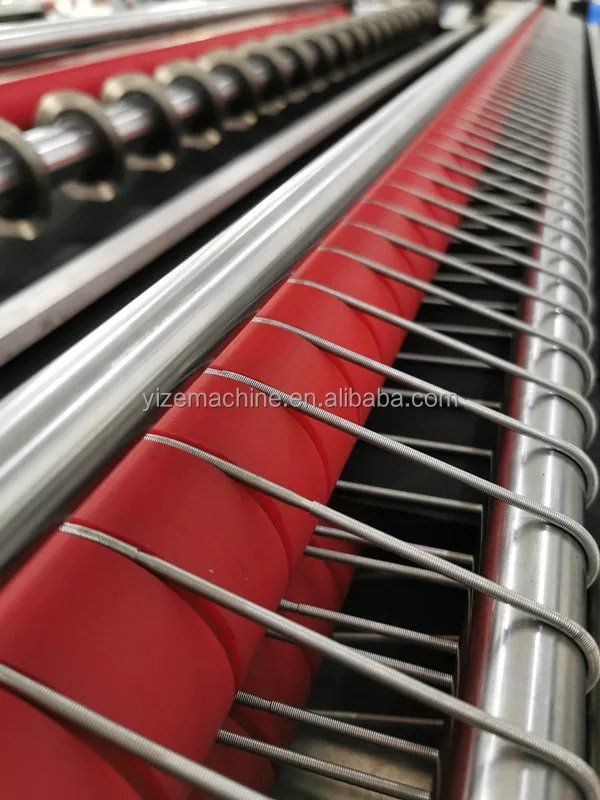

Spring device: can effectively remove static electricity and prevent material from sticking to the blade

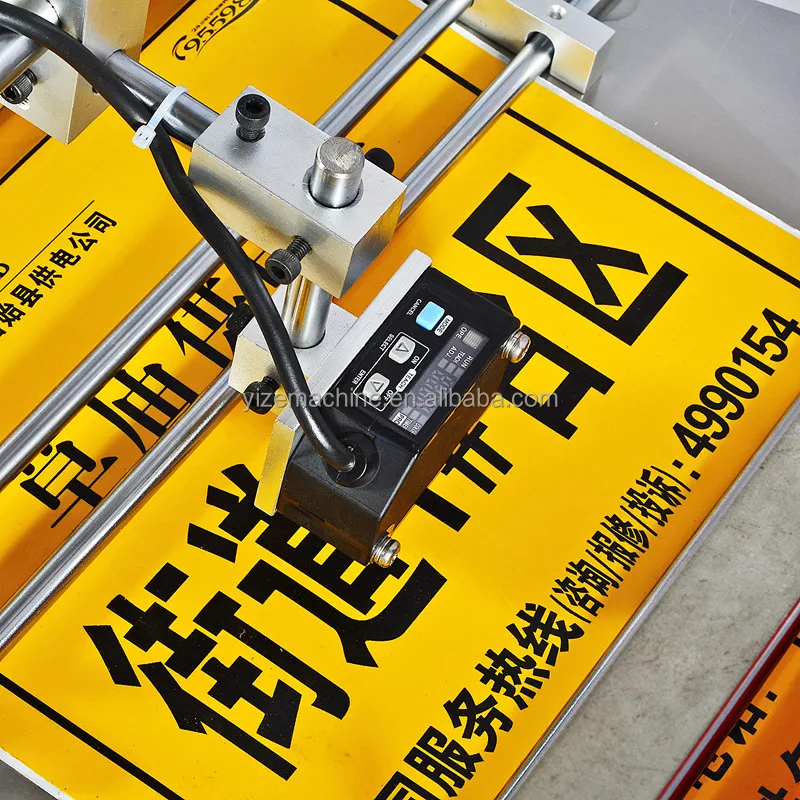

Electric eye tracking and positioning device: Automatically identify colors and characters, follow color positioning, automatically find the specified position for cutting, and correct errors
Many different kind of material can be cut by our machine: face mask non woven fabric, melt-blown fabric, ear loop, nose bridge, paper, air bubble film, aluminum foil, PVC film, thermal shrinkage film, brown paper, metal net and so on. please show us your material, we will recommend you suitable cutting machine.
high speed face mask insulation paper non woven cutter PVC film elastic belt air bubble film cutting machine for hot sale will be packed in standard carton box or export wooden case to keep safe:
