Industry 0 mineral Electro Deionization Units Capacity 1000lph Ro EDI Deionized, Distilled, Demineralised Water Equipment
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600477403256):
Product Overview
Description
InIndustry 0 mineral Electro-Deionization Units Capacity 1000lph Ro+EDI Deionized, Distilled, Demineralised Water Equipment

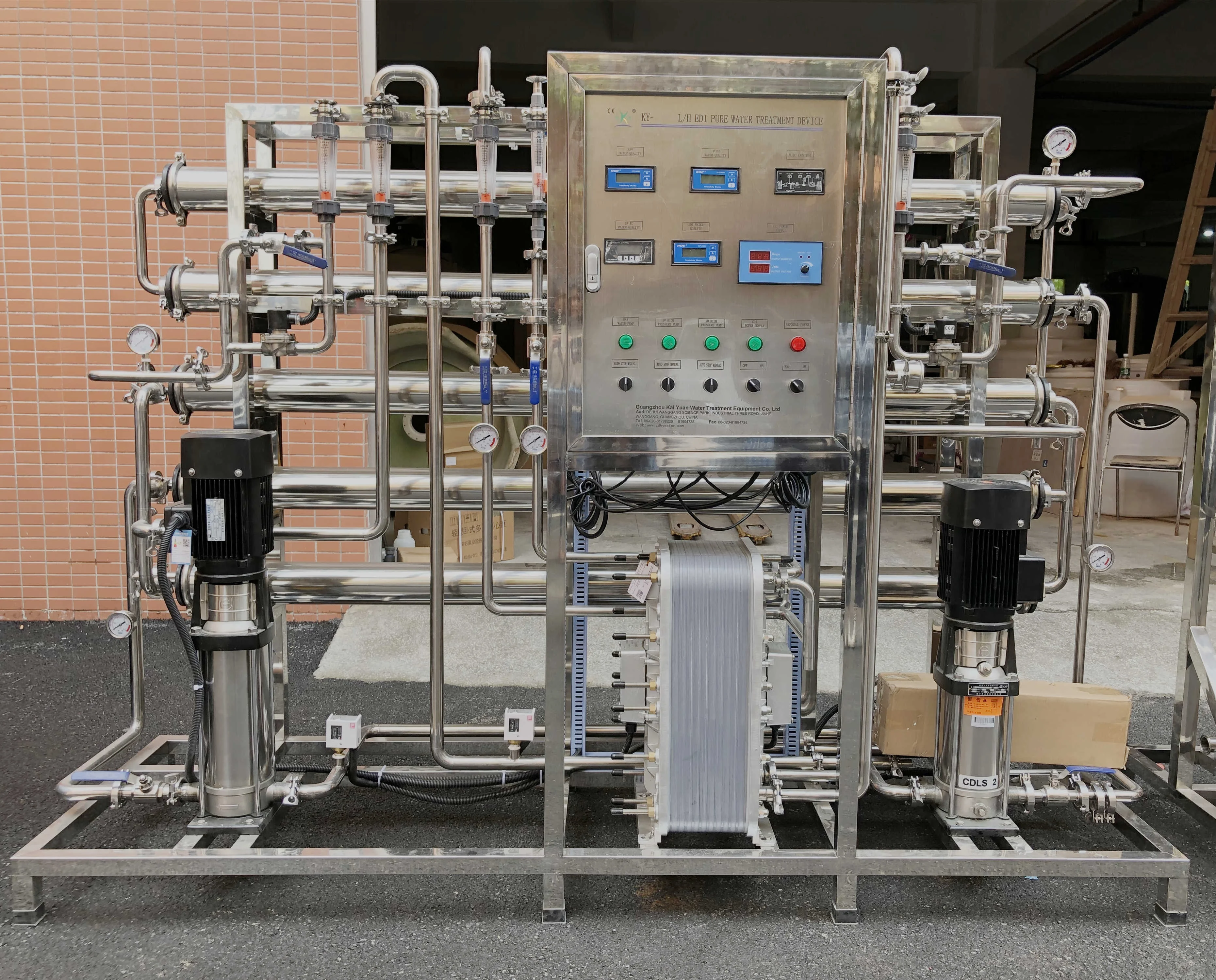

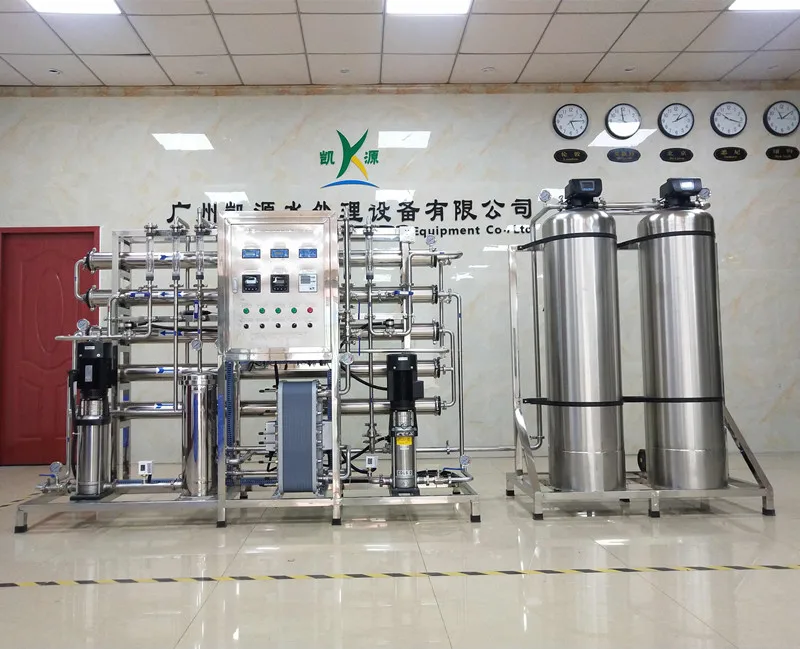

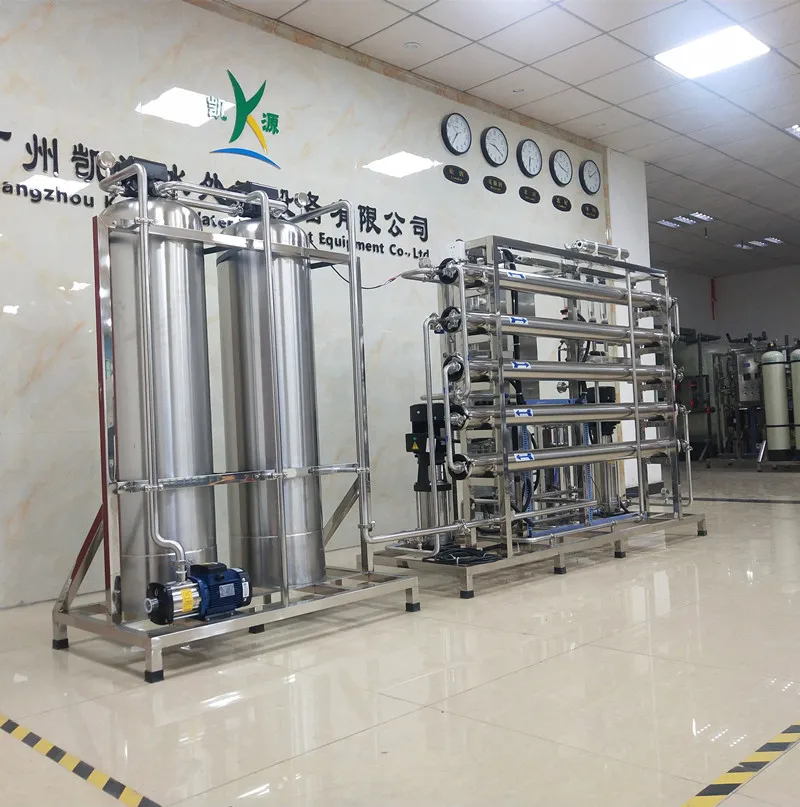

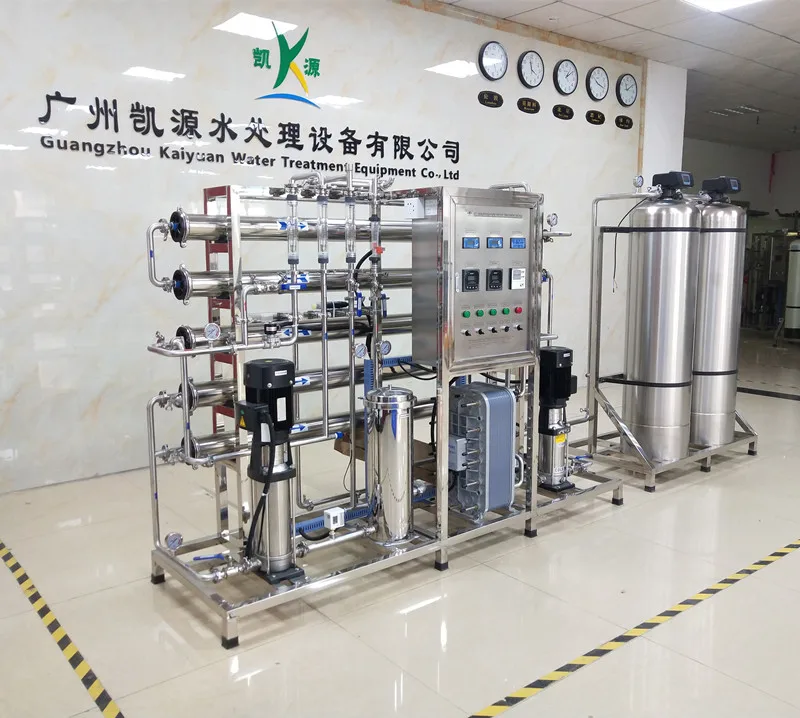

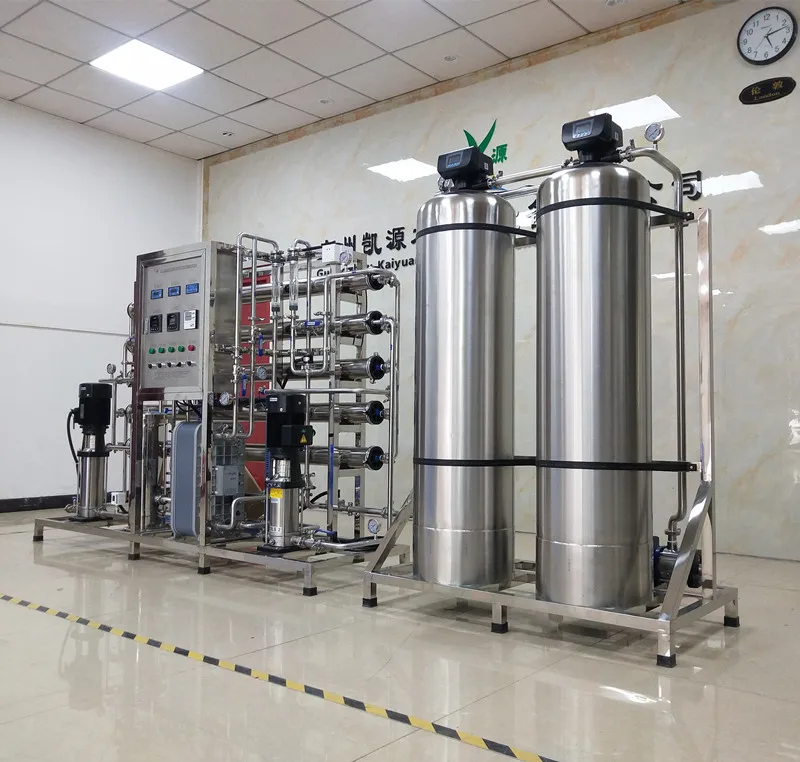

1.System Photos, Brief Introduction
Main and Basis Point for this system:
1.Source water inlet: City tap or river or borehole source water TDS is less than 1000ppm.
2.Capacity: Output Ro pure water is 1000 liters per hour.
3.Ro output pure water application::Industry Ultra-Pure Water, 0-1ppm/us/cm
If your source water or capacity or output water application is not same as above, please kindly send the following details to this supplier for suggesting most suitable quotation.1.Your source water details(city water or well water,river/lake water....?). If well/lake/river water, please kindly send water analysis report.
2.What's the capacity for the RO system you need? (we have experience from 500lph to 180000lph)
3.What's the output water application?(industrial/commercial/agricultural? drinking water? irrigating water? food&beverage company......?
More Technical Points for 1 Stage Ro System | ||||||||
1.Electricity supply: can be 110v-480v, 50hz or 60hz,1 or 3 phases Total power: about 4.7kw Can be customized | ||||||||
2.Membranes Brands:DOW(Dupont) or Toray, Hydraunatics or Vontron, Pumps will adopt CNP or European Brand | ||||||||
3.Pre-treatment includes: Raw water pump, multi-media filter, carbon filter and security filters | ||||||||
4.Main Core Part: High pressure pump, Ro system, Uv sterilizer | ||||||||
5.Membranes Protect system: CIP washing system, SEKO Brand anti-scale dosing system | ||||||||
Main Features for the System Design--Convenient and Low Cost but High Efficiency
1.Can run and produce water continuously, highly automatically.
2.No need chemical to regeneration,easy operation and maintain.3.RO system uses imported USA DOW membrane\t
4.Automatic switch on when lack of water,and switch off when no water or full of water\t
5.RO membrane auto wash and reduce the pollution speed.\t
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.\t
7.Production water conductivity meter and PH monitors water quality online continuously.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

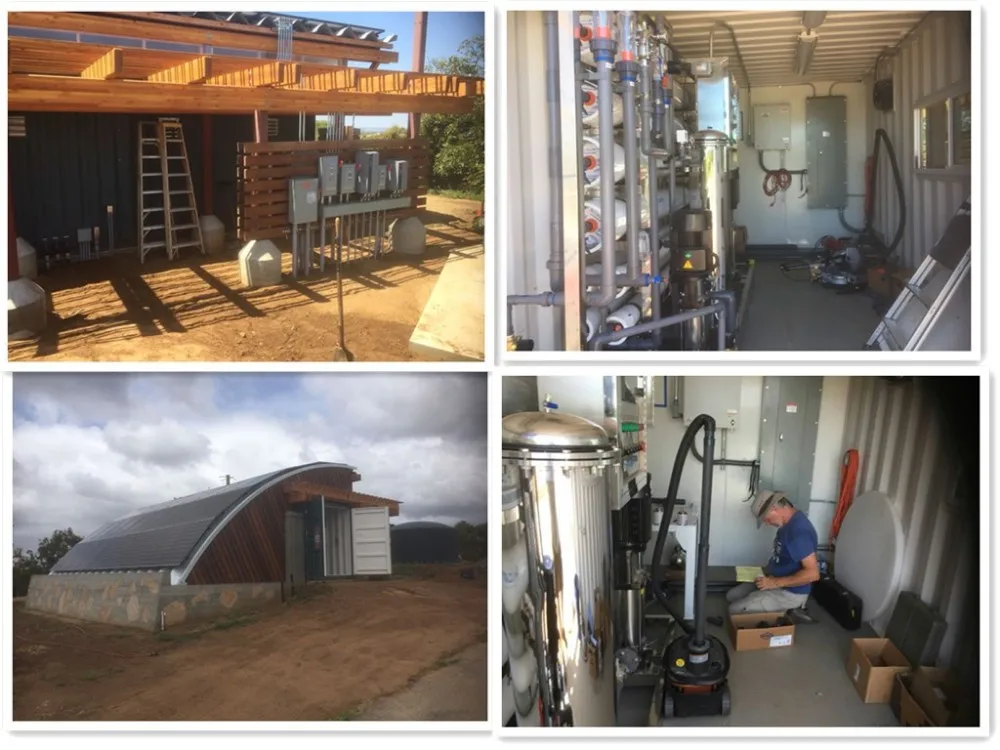

2.Field Installation Photos, Operation Guidance and After service
1.Operation Guidance 2.After Service | 1.We will send printed operation books and videos in hard copy(USB) to our clients for teaching them to install the machine in right place, and operate the machine correctly. Besides this, we will have the maintenance advice for Ro membranes to keep high output water quality and prolong Ro membranes using life span. 2. 1 Year Warranty with free spare parts for any quality problem, whole life online technical support and video guidance. |
3 Details Description for this System

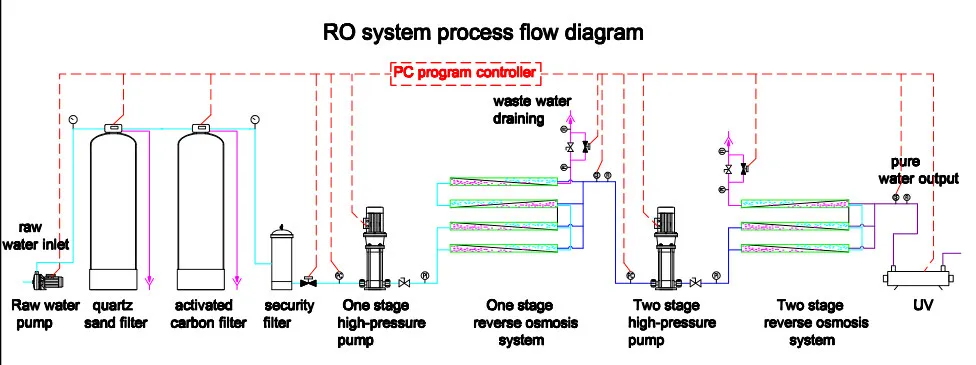

The Whole Ro System Working Process Diagram
Part 1: Water Pumps---Raw Water Pumps, CIP washing pumps and High Pressure Pumps
1.Brand: We can offer standard CNP brand, Grundfos or Danfoss.
2.Material: Can be SUS-304 for fresh water purification, or SUS-316 for salty/brackish water desalination.
3.Name and Function: Raw water pump to provide pressure for pre-treatment part, High pressure pump to provide pressure for Ro membranes, CIP Washing pump for membranes maintenance.
Part 2-1: Pre-treatment Filter Tanks--Multi-media filter, Activated carbon filter and Iron(boron, arsenic) removal
Part2-2: Rinse and Backwash Flushing valves for filter tanks--Manual and automatic one for options.
1.Brand: China Rongxintai tanks, and RUNXIN Valves.
2. Material: Can be fiberglass or SUS-304 or SUS-316

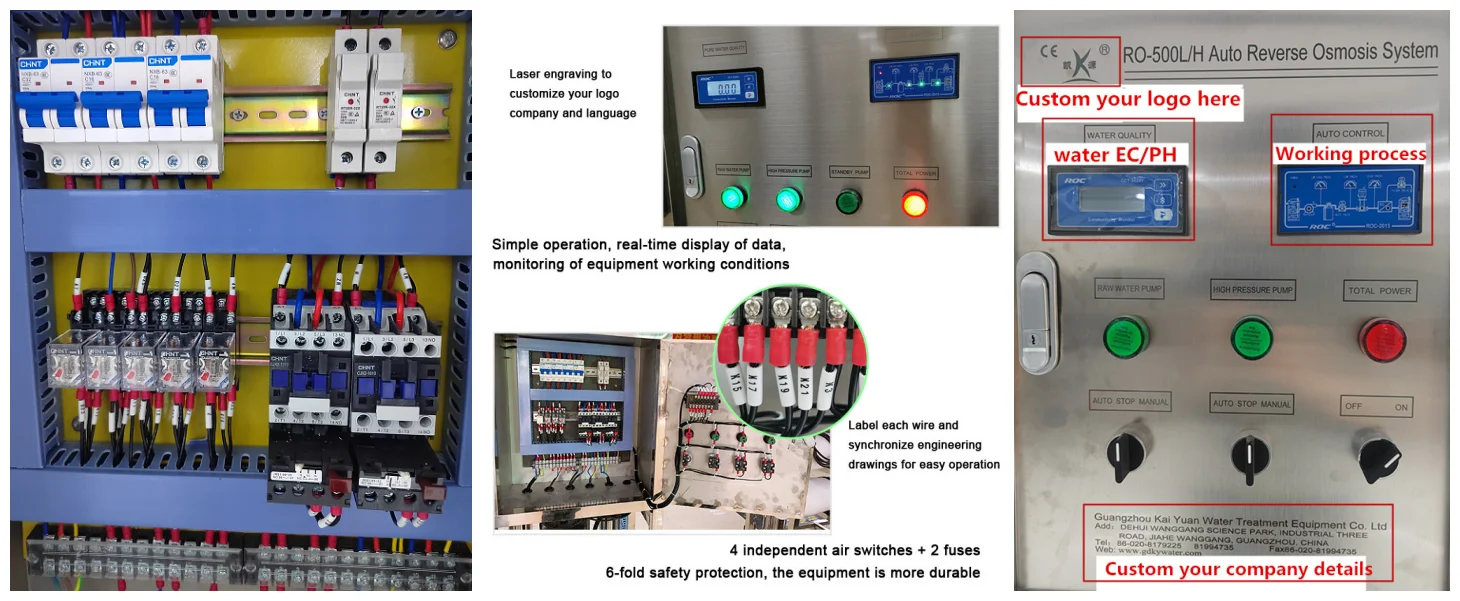

Part 3-1: PC panel--Anti-rusty Steel material control box
For this section, the outside of PC panel, we can see the online conductivity meter and PH online data for raw water and Ro output water. Then you can also see the whole system working process diagram. Besides, we can customize your company logo and other details on the electric box.
The inner electricity side, we have frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc. But if you want PLC control box, please check details as followed.
Part 3-2: PLC panel--The left photo is inductive operating panel,
For this section, we can customize your company logo and other details outside the electric box.
The inner electricity side, we have SIEMENS program control, Frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc.
Part 4: Membrane protection system(Anti-scale dosing) and membrane maintenance system(CIP washing)
1.Anti-scale dosing system(SEKO Italy brand metering pump and yellow PE material tank) to protect the Ro membranes being blocked shortly by using anti-scalant, which will be fully automatically.
2.CIP washing system(CNP washing pump and PE washing tank) to maintain the Ro membranes by adding NaOH and HCL after using about half year, and the membrane are blocked.

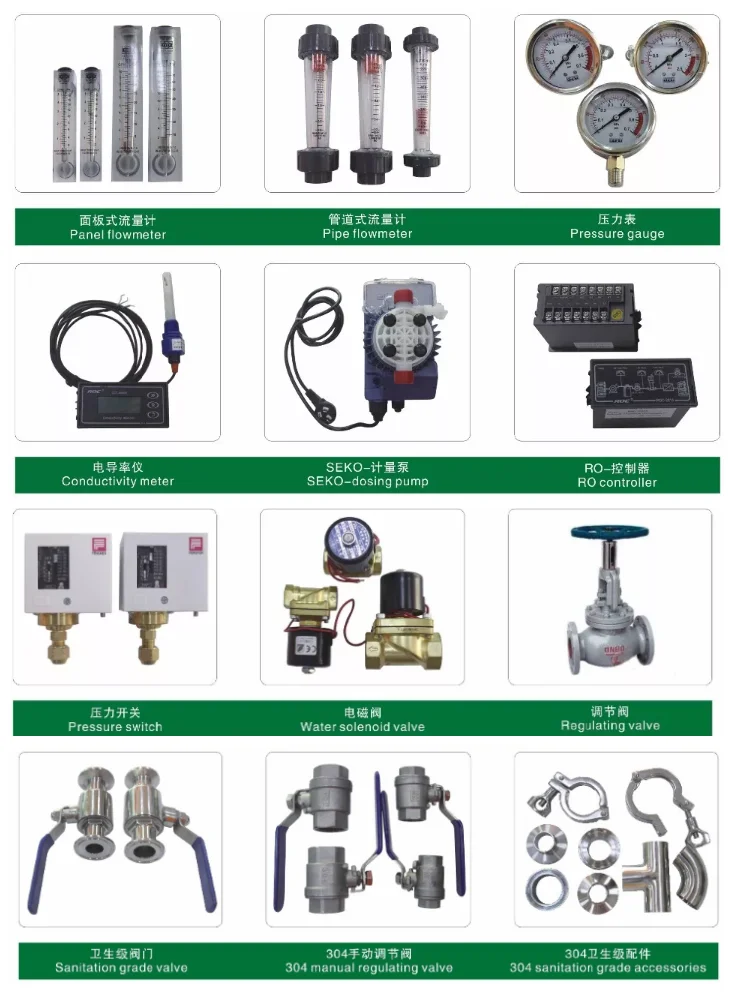

4. Spare Parts and Consumbles Descriptions

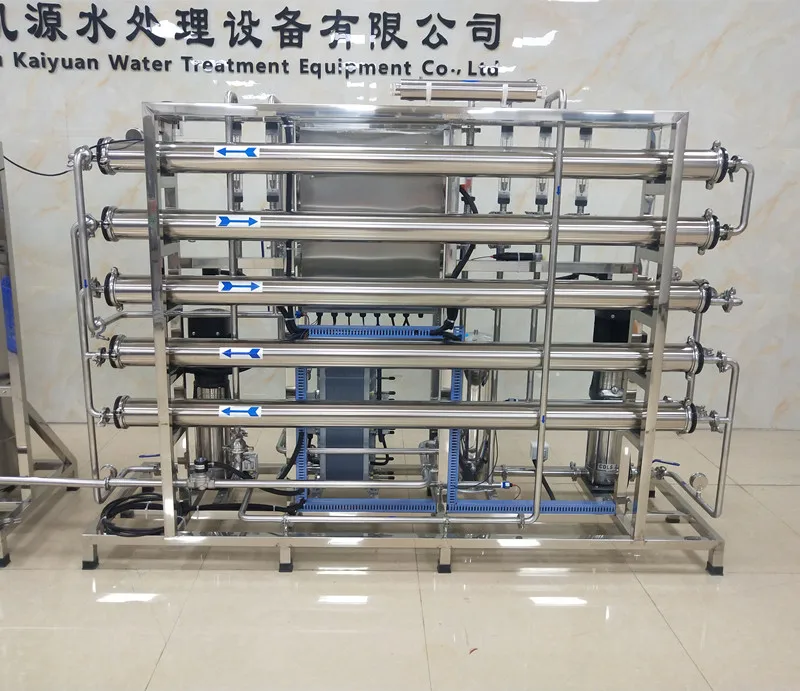

RO membrane housing(vessel) and RO membranes
1.Ro membrane housing(vessel) can be SUS-304 or SUS-316, or FRP, which will suggest according to your requirements or the source water quality.
2.RO membranes: we will have DOW(Dupont) or Toray, Hydraunatics or Vontron brands for clients choosing.
Security Filter(5um Micro filter) housing and pp filter cartridges(wound filter cartridges, PEFT)
1.Security filter housing:Can be U-PVC for 500lph and 1000lph standard system, or FRP, SUS-304, SUS-316, different material for clients' choosing or design based on clients' source water quality.
2.PP filter cartridges(wound filter cartridges and PEFT) with 5um, 2um, 1um, 0.2um ect. put inside the security filter to remove impurities like colloid or small dirty size large than 5um.--replace every 1 to 3 months.
Consumbles--sand, resin, carbon,manganese sand
1.Quart sand(1-4mm): replace about 2 years, to remove large particles.
2.Cation resin: replace about 3 years, to remove hardness.
3.Activated carbon(2-4mm): replace about 2 years, to remove smell,odor,color, residual chlorine ect.
4.Manganese sand (1-4mm): replace about 2 years, to remove irons.
5.Company Profile and our Team with our Clients
Company Profile
Guangzhou Kai Yuan Water Treatment Equipment Company (Alibaba and Make in China Golden Supplier) is leading company for water treatment Equipment design, manufacturer, installation since established in 2007, with CE,ISO,SGS group certificated,which is located in Guangzhou City, China.
We have been devoting to offering reverse osmosis system for sea water desalination, under ground water desalt, city tap water,lake water,river water purification, to make clean and fresh water, or pure water according to our customers requirements. Besides, we will have ultra-filtration/mineral/alkaline filter systems to get mineral drinking water, and the edi system to produce ultra-pure wate. Moreover, we have Uv sterilizer and Ozone Generator for sterilizing, filling systems as well. All in all, we are offering different kind of high-quality water treatment machinery for our customers.
During this decade, we finished lots of items/projects and offered field installation for our customers, like 240T/D seawater desalination plant,and smallest 2000lpd sea water to fresh water system for irrigating or washing and even boat human consumption... Lots of installation experience for middle east customers underground brackish water treatment--like 180000lph,50000lph,400000lph...small capacity like 500lph ect...And hundreds of pure bottled water treatment equipment design, manufacturer and installation.
Our market are not only in China, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia,Brazil, Argentina,Chile, USA, Indonesia, Peru, Iraq, Canada, Philippines,Oman,Senegal,Portugal ect.
Our market are not only in China, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia,Brazil, Argentina,Chile, USA, Indonesia, Peru, Iraq, Canada, Philippines,Oman,Senegal,Portugal ect.
6. More Successful Projects Sharing Since 2007
30tph（30000lph) SUS-304/SUS-316 RO system
40tph（40000lph) Standard Ro system
50T/H(50000LPH) Standard and Brackish Ro system for Foreign Company
Domestic 180T/H(180000LPH) Standard Ro system
7.Source Water and Application for Ro Output Water
Our system produce pure water for drinking or lab, or chemical, beverage ect. industry, and ultra-pure water for medical industry or boiler ect, and also mineral or alkaline water for bottled drinking water stores.
8.Our Certificates and Business Partner
