Factory directly selling chinese power world heat pump sunny to water heat pump
- Category: >>>
- Supplier: Newfair Eco-Energy(Guangdong) Co. Limited
Share on (1600477432822):
Product Overview
Description
PRODUCTS DESCRIPTION

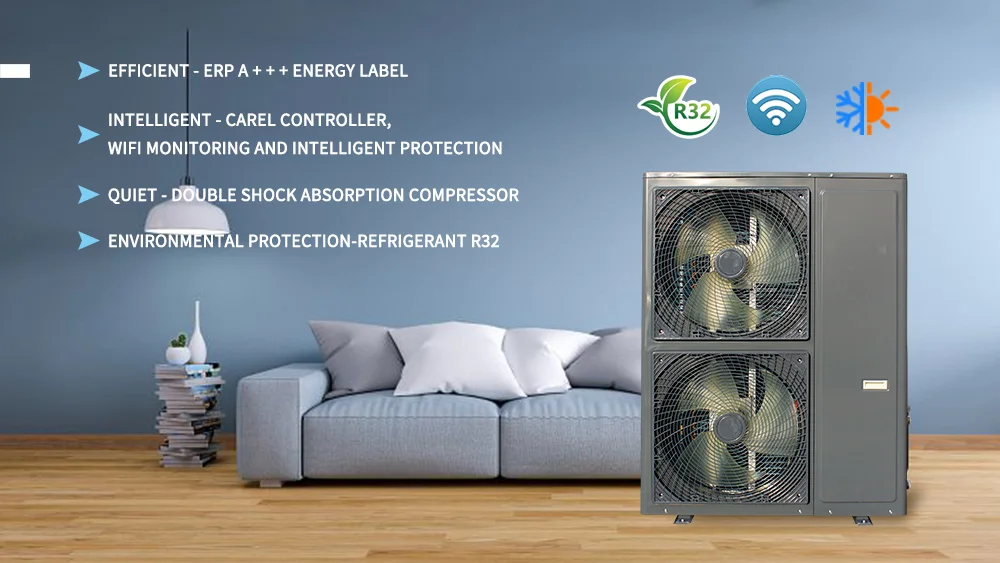

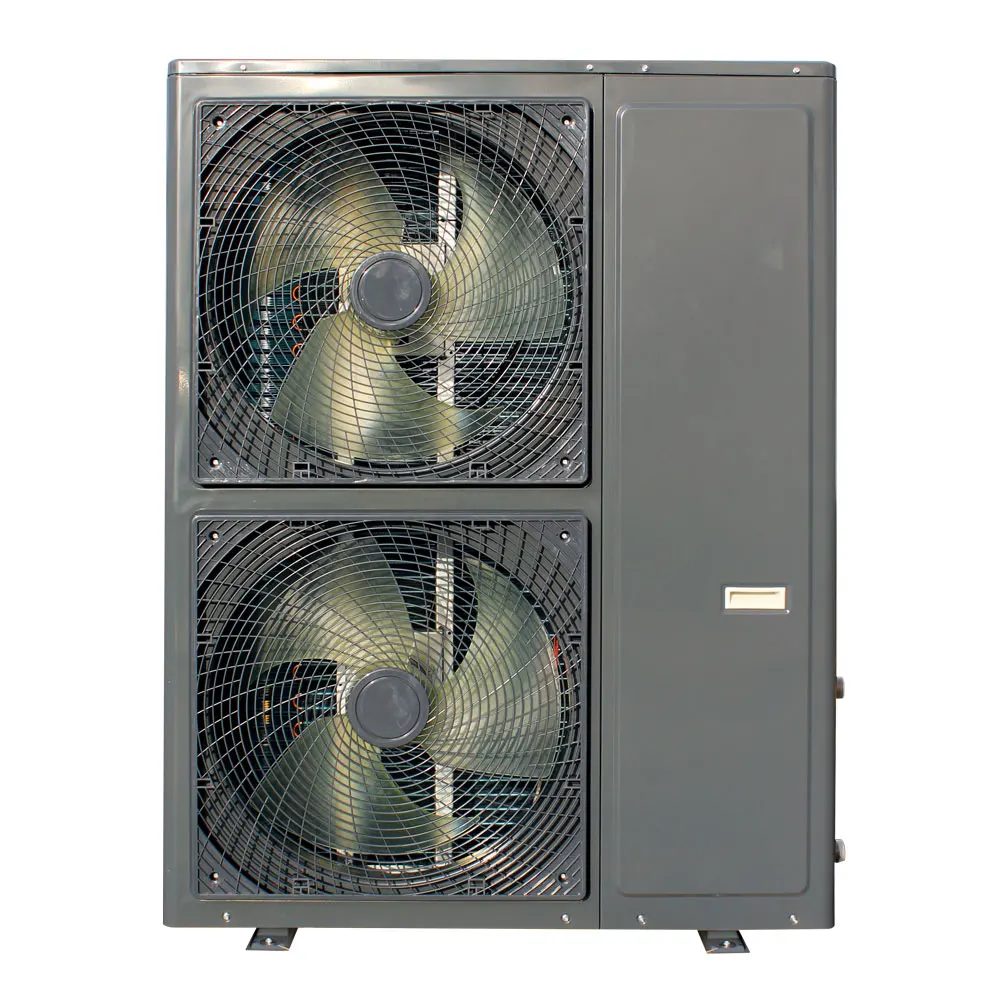

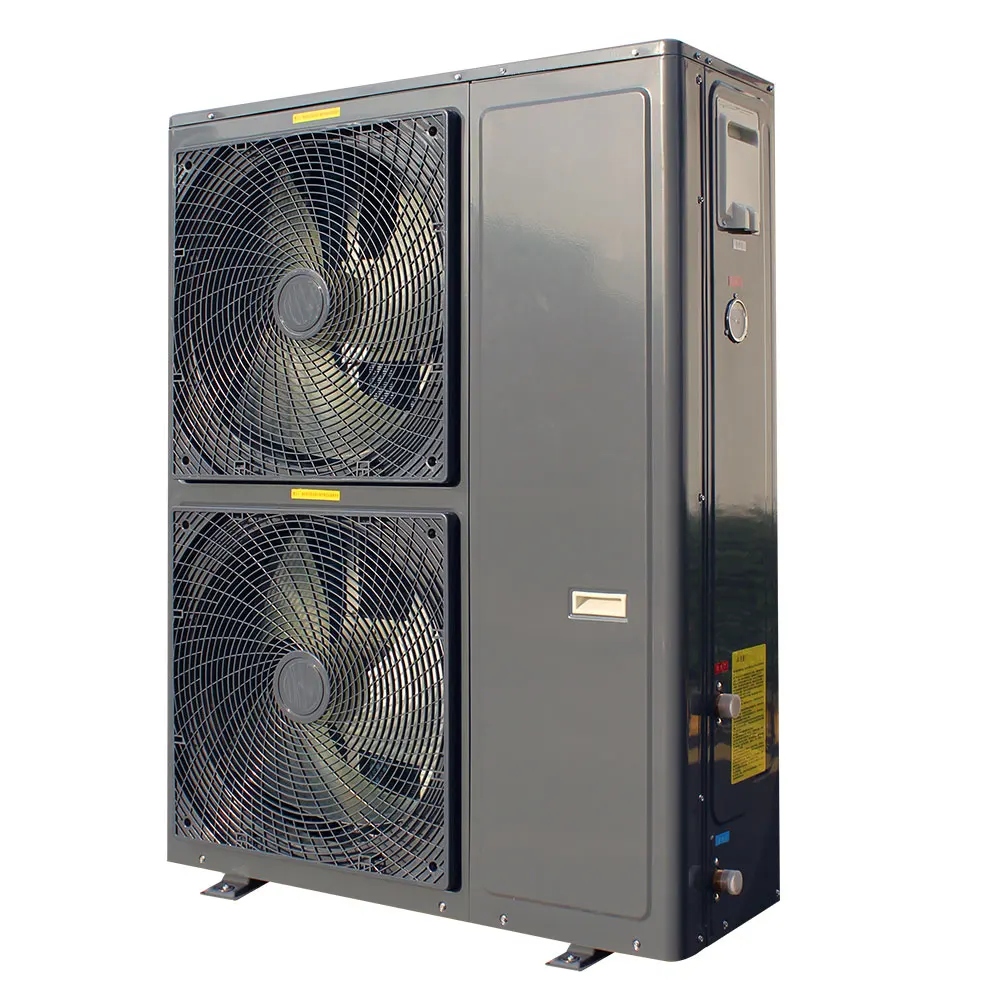

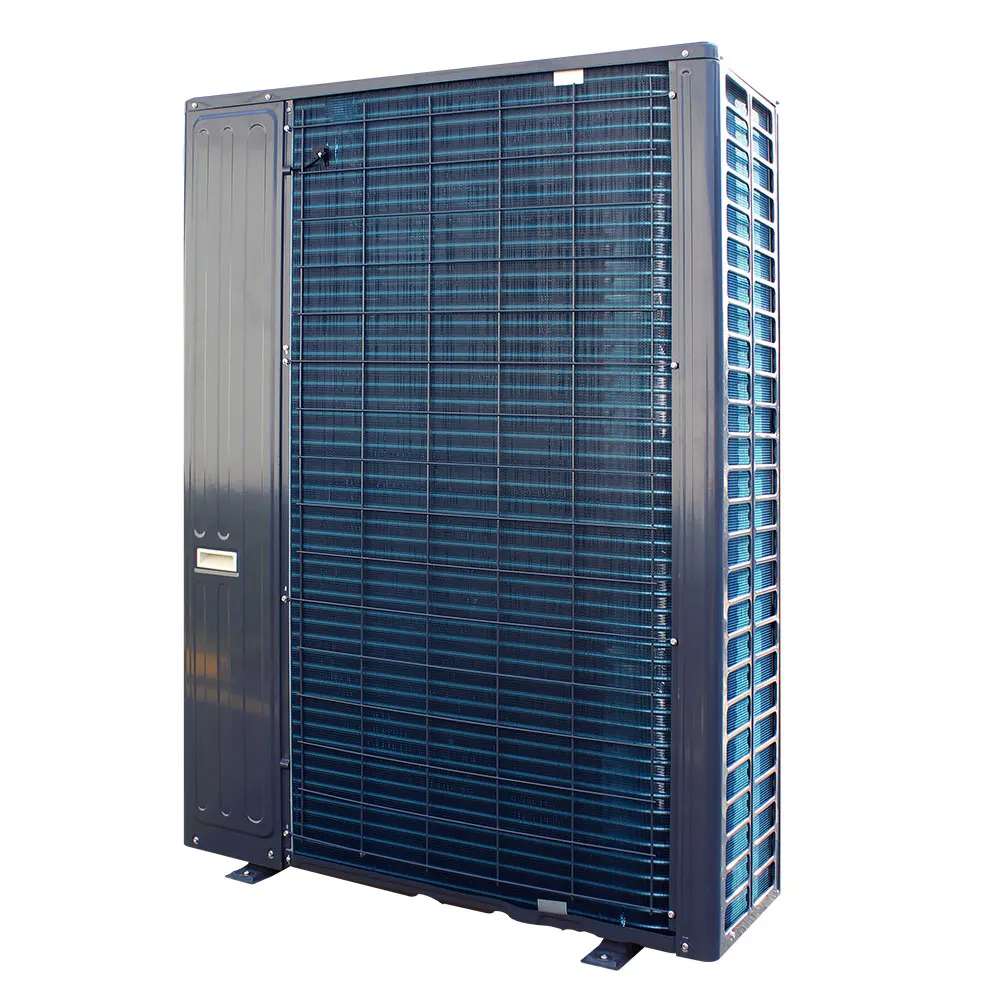

Ultra-Low Temperature Air Source Heat Pump for Home-Use
Ultra-low operating temperature: as low as -30 ℃.

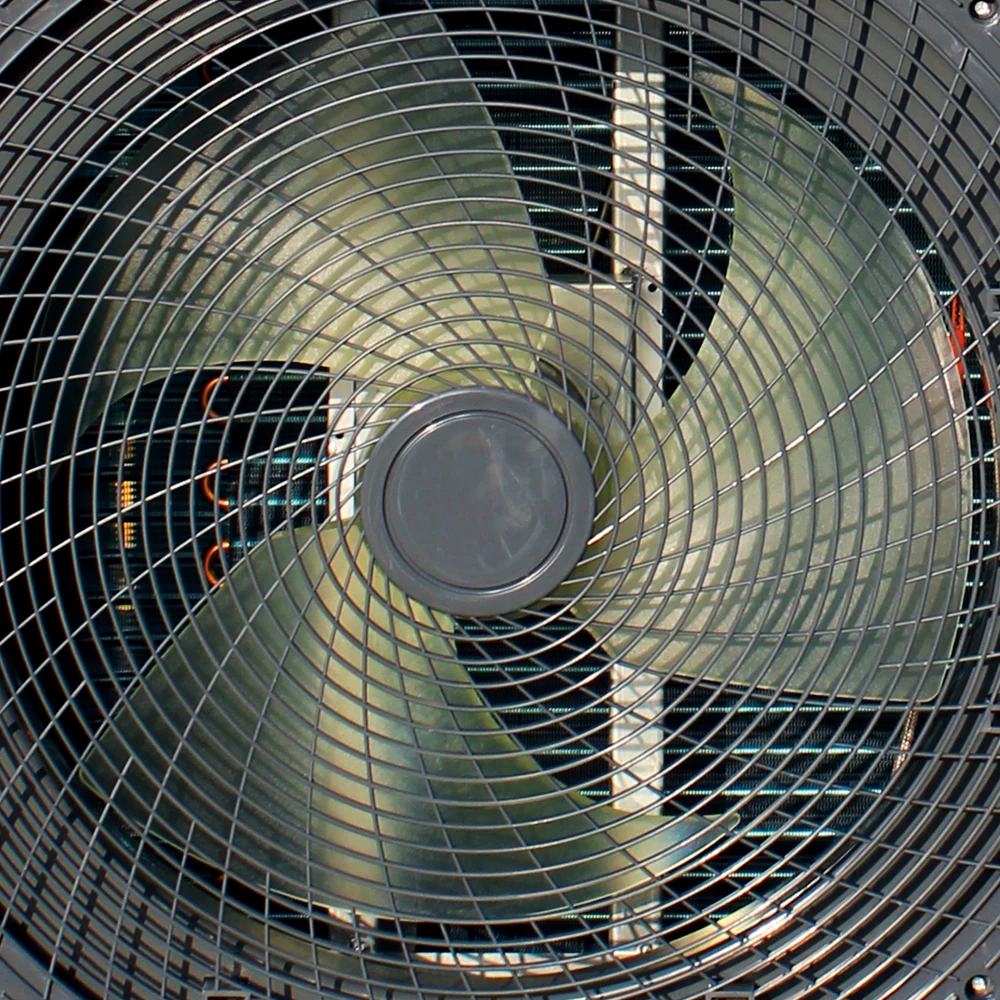

The machine uses double vibration reduction technology, equipped with brushless DC EVI fan and compressor to reduce the noise.
SUPER ENERGY SAVING

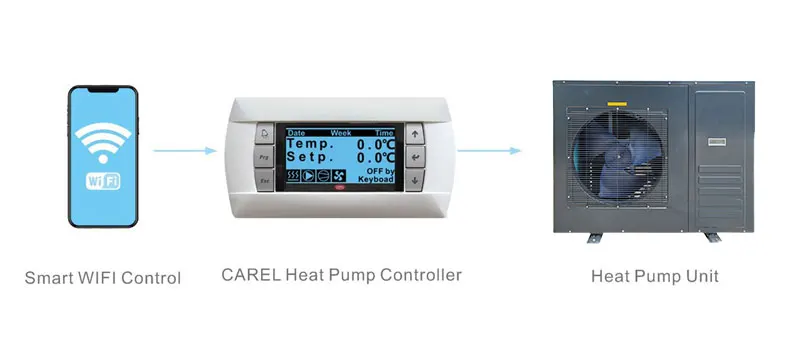

CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
DETAILED SPECIFICATIONS
Model No. | 020H-BPLNDW | 030H-BPLNDW | 050H-BPLNDW | 060H-BPLNDW | 080H-BPLNDW | 100H-BPLNDW | |||||
Max Power（kW） | 3.32 | 3.32 | 5.54 | 6.64 | 8.29 | 11.07 | |||||
Max Electricity（A） | 9.2 | 15.1 | 25.17 | 30.2 | 37.68 | 21.99 | |||||
Water Temp.（℃） | 50 | 50 | 50 | 50 | 50 | 50 | |||||
Max Water Temp.（℃） | 55 | 5 | 6.7 | 8 | 10 | 13 | |||||
Power Supply（V/Hz） | 220V/50Hz | 3N 380V/50Hz | |||||||||
Operating Ambient Temp.(℃) | -30℃-43℃ | ||||||||||
Heat Exchanger | High Efficiency 316 Stainless Steel Plate Heat Exchanger | ||||||||||
Refrigerant | R32 | ||||||||||
Minimum Noise dB(A) | 49 | 52 | 52 | 52 | 58 | 65 | |||||
Water Pressure of inlet and outlet unit （kPa） | 40 | 2.2 | 3.1 | 3.48 | 4.16 | 5.4 | |||||
Circulating Water Volume（5℃ temp. difference） （m³/h） | 1.1 | 1.55 | 2.63 | 3.07 | 4.09 | 5.12 | |||||
IP Level | IPX4/I | ||||||||||
Tube Size（mm） | DN25 | DN32 | |||||||||
Weight（kg） | 100 | 106 | 140 | 155 | 180 | 230 | |||||
Dimensions（mm） | 1050*370*14001160*420*860 | 1160*420*860 | 1050*370*1400 | 1050*370*1400 | 1050*370*1400 | 1050*420*1560 | |||||
Installation Dimensions（mm） | 800*430 | 800*430 | 800*380 | 800*380 | 800*380 | 800*430 | |||||

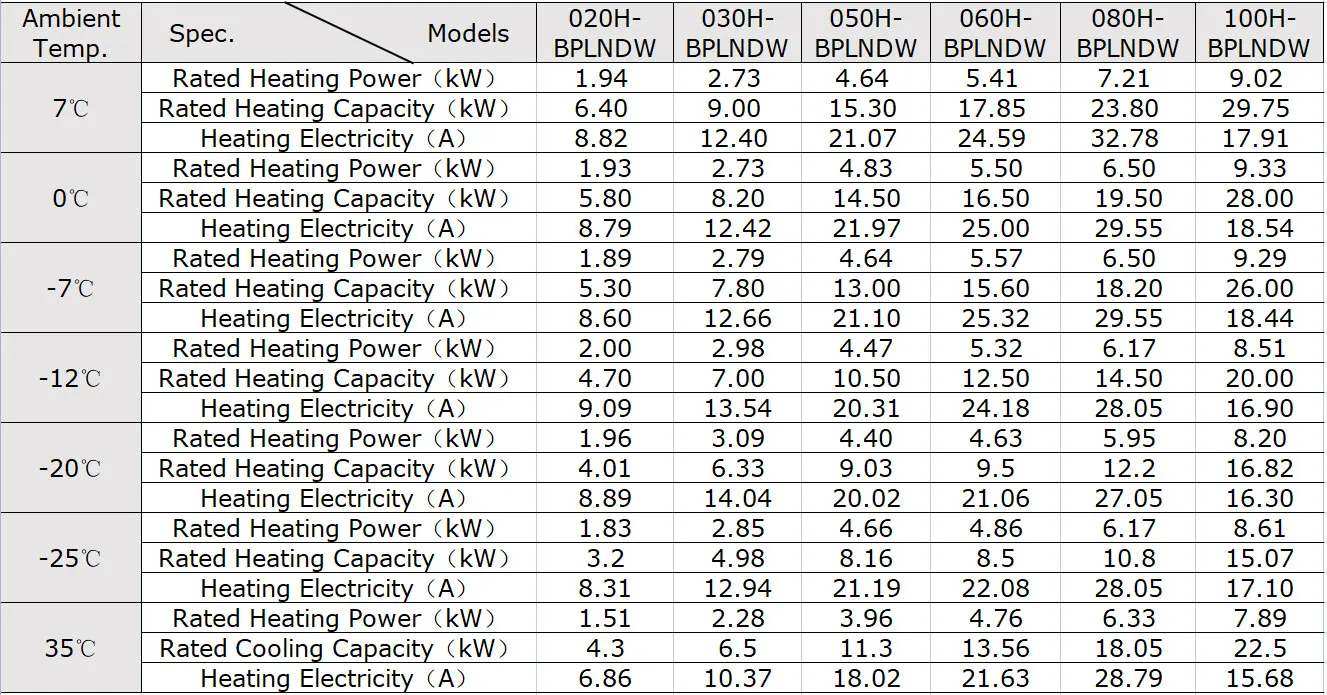

References Based on Different Ambient Temperature
DETAILED IMAGES

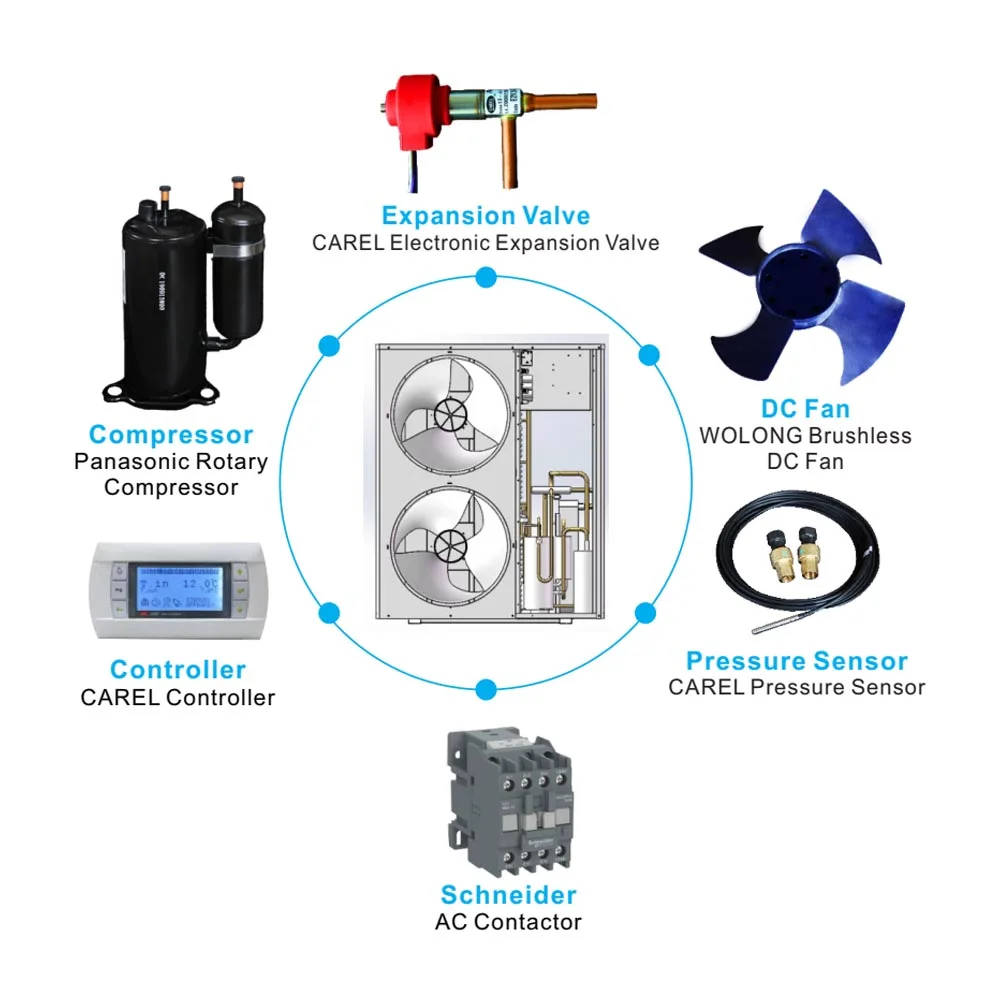

Carefully Selected Core Parts
Carel remote Wifi controller
Copeland Scroll compressor

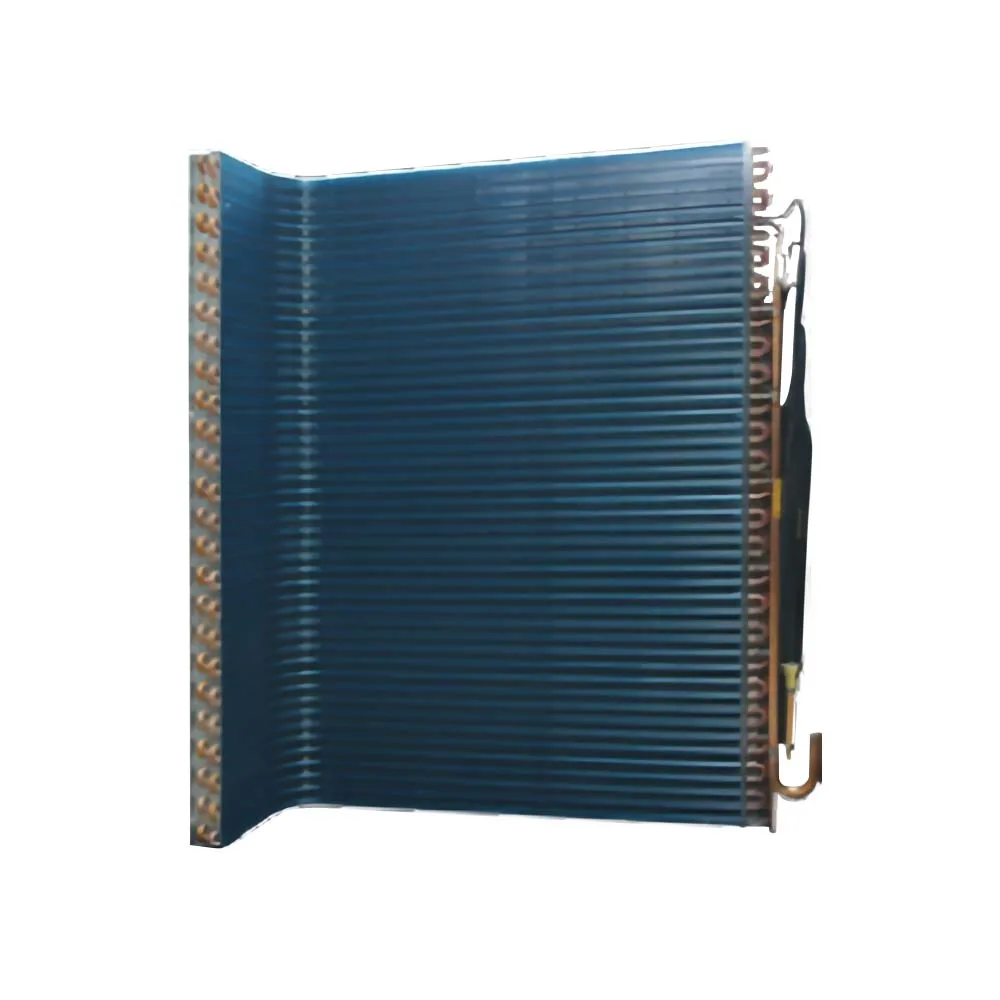

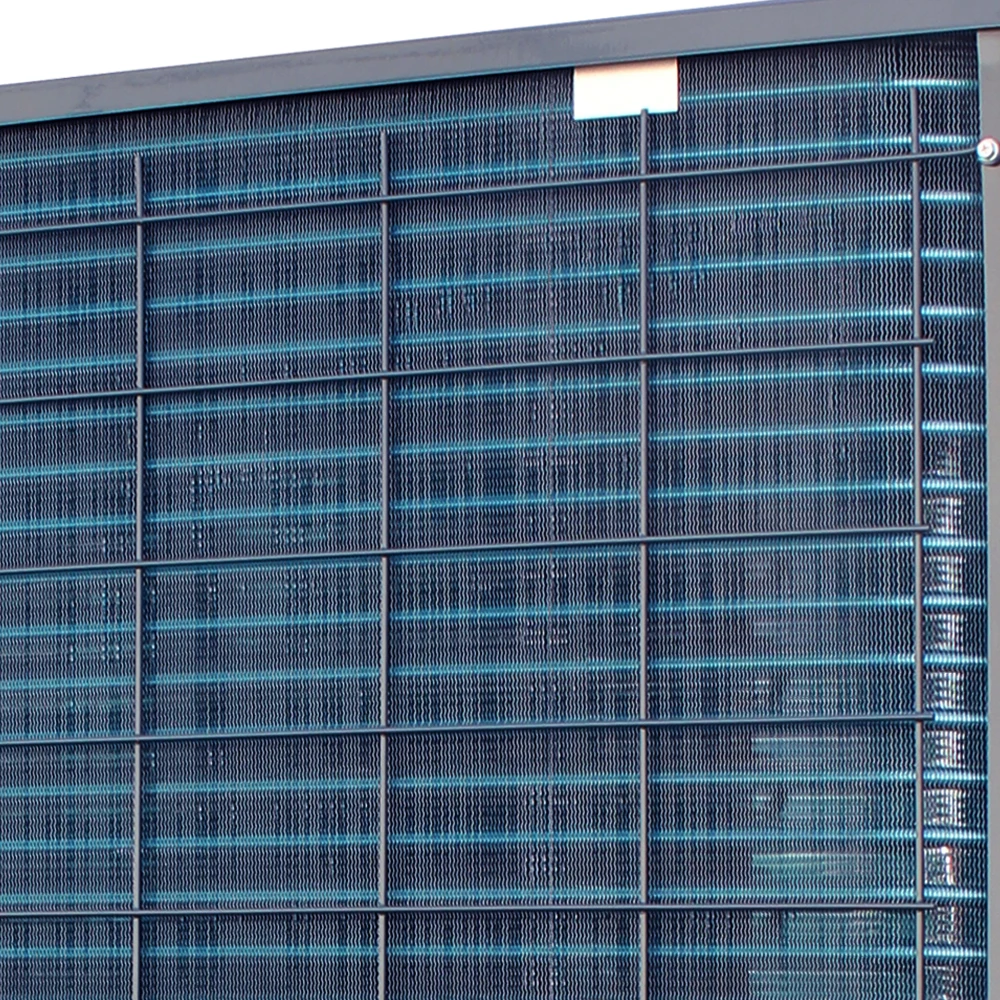

U-shaped corrugated fin evaporator
Vertical heat exchanger
4 ways reversing valve

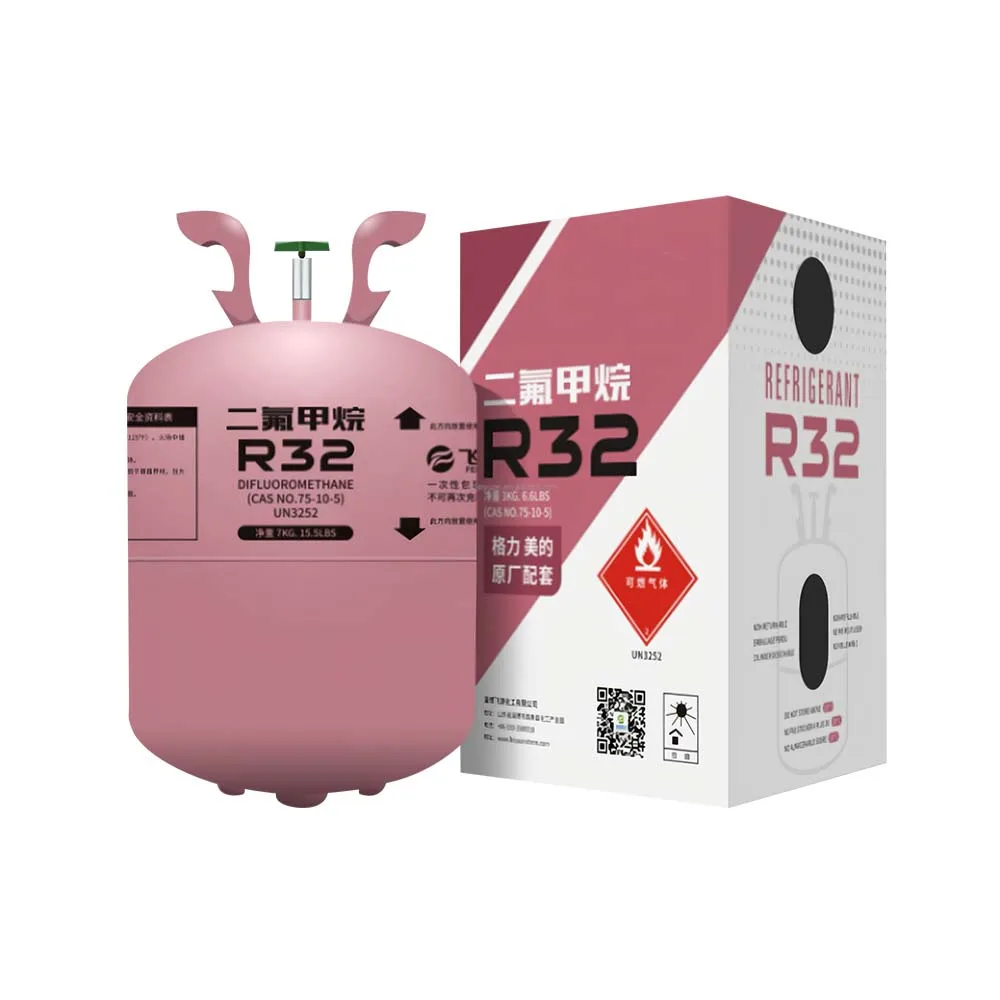

R32 refrigerant
ABOUT US
An Energy Saving Researcher and Manufacturer Since 1998
Founded in 1998, NewFair Eco-Energy(Guangdong) Co.,Limited is one of the oldest manufacturer of :Swimming Pool Heat Pumps, House Heating Heat Pumps and Heat Pump Water Heaters in China. We focus on air source products continuously and obtained over 82 product patents and a series of industry certificates and awards, we also invested the industry’s first ultra-low temperature(as low as -35℃) testing laboratory in 2007, our 6 fully automated assembly lines are equipped with advanced temperature controllers from Siemens Germany. Our service team includes: 122 senior electrical HVAC
engineers, 48 PLC/controlling APP programmers, which provides professionally refined, critically acclaimed service to OEM/ODM customers.
An Award Winning Company
From 2008, we obtained 82 product patents and a series of industry certificates including: CE,TUV,KETI, China National Industrial Production License, ISO9001, ISO45001, CRAA, “Environmental Engineering Construction Qualification Level 3”. We’re also an award winning company, including: ‘China Hot Spring SPA Annual Conference Influential Brand in 2019’, in 2018 we were awarded with: ‘China Refrigeration and Air Conditioning Equipment Industry Alliance Manufacturer’, ‘Premier Supplier of EverGrande(China’s Biggest Real Estate Developer)’ and ‘Liansheng Cup" Hot Spring Pool Annual Conference Industry Recommending Brand’ Prior to this we were awarded with ‘Heat Pump Industry Recommended Brand in 2017’.
We Care About Details
Every products are 100% tested before delivery including 5 steps: Function Designs QC-Materials QC-Piping Grafts QC-Assembling QC-Performance Testing QC
The Ultra-Low Temp Testing Lab
The Assembling Line
Our Service Team
Why Choose Us
1. We have over 23 years producing experience.
2. We have 122 senior electrical HVAC engineers, 48 PLC/controlling APP programmers.
3. We have 6 fully automated assembly lines, core parts coming from Copeland Scroll, Panasonic, Mitsubishi, and Siemens.
