  • PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A

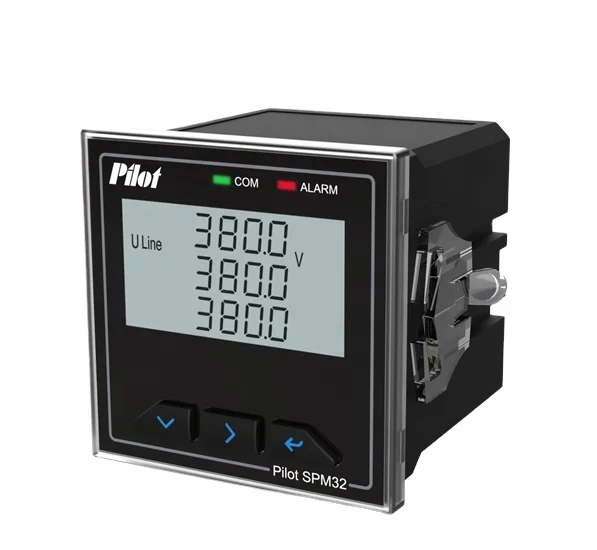

PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A
PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A
PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A
PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A
PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A
PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A

PILOT SPM32 72*72mm digital multifunction power meter panel meter Rated contact capacity: AC 250V/5A or DC 30V/5A

Share on (1600477693201):


Price:$55.00 - $70.00

Quantity:


Product Overview

Description



Product Description

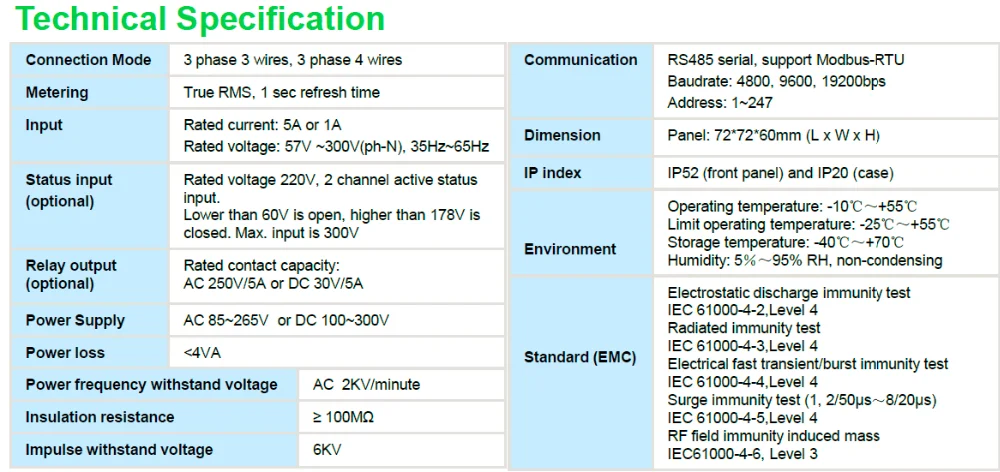

Specification


item
value
Place of Origin
China
Guangdong
Brand Name
PILOT
Model Number
SPM32
Measuring Current Range
5A or 1A (via CT)
Measuring Voltage Range
10V~500V (PT secondary side)
Accuracy Class
0.5s
Operating Temperature
-10℃~+55℃

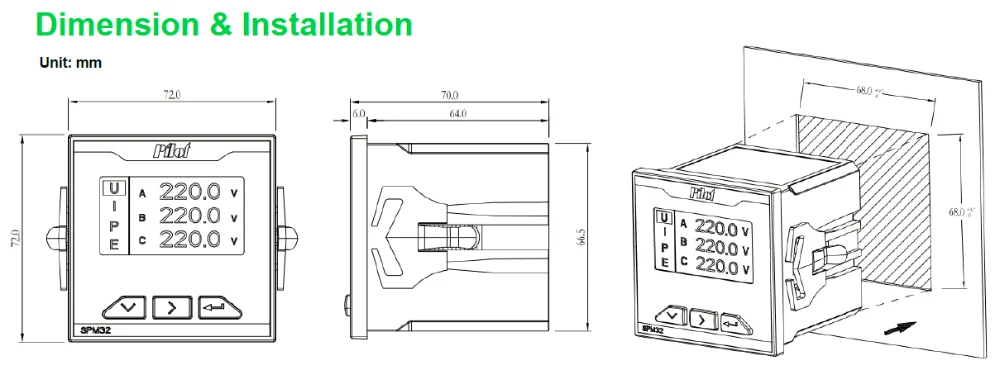

Dimensions
72*72mm
Connection Mode
3 phase 3 wires, 3 phase 4 wires
Rated current: Input
Rated current: 5Aor 1A
Rated voltage Input
57V ~300V(ph-N), 35Hz~65Hz
Status input
2 channel active status input.
Relay output
Rated contact capacity: AC 250V/5A or DC 30V/5A
Powerloss
<4VA
Communication
RS485 serial, support Modbus-RTU
Baudrate
4800, 9600, 19200bps
IP index
IP52 (front panel) and IP20 (case)
name
72*72mm digital multifunction power meter panel meter


Packing & Delivery


8pcs in one carton


Company Profile








Zhuhai Pilot Technology Co., Ltd. was established in 2000 and has two modern technology industrial parks,
After more than 20 years of development, the company has formed a rich product line. The main products include smart power meters, power quality analyzers, smart gateways, wireless transparent transmission modules, communication management machines and other communication equipment, electrical equipment protection devices such as motors, transformers, and lines, electric vehicle charging piles, air-conditioning energy-saving management equipment, and A software system supporting the hardware.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2000,sell to Domestic Market(80.00%),Southeast Asia(10.00%),South America(3.00%),Mid East(2.00%),North America(00.00%),Eastern Europe(00.00%),Oceania(00.00%),Western Europe(00.00%),Southern Europe(00.00%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Power Meters,Power Quality Analyzer,Smart Gateway,Motor Protection and Control Devices,EV Charger

4. why should you buy from us not from other suppliers?
Pilot is an over 20 years history company owned 600 employees and turnover 70 millions USD. We have more than 100 R&D engineers, support customization for special project. Total solution for Power Distribution, electric device protection, EV chargers...

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian,Korean
