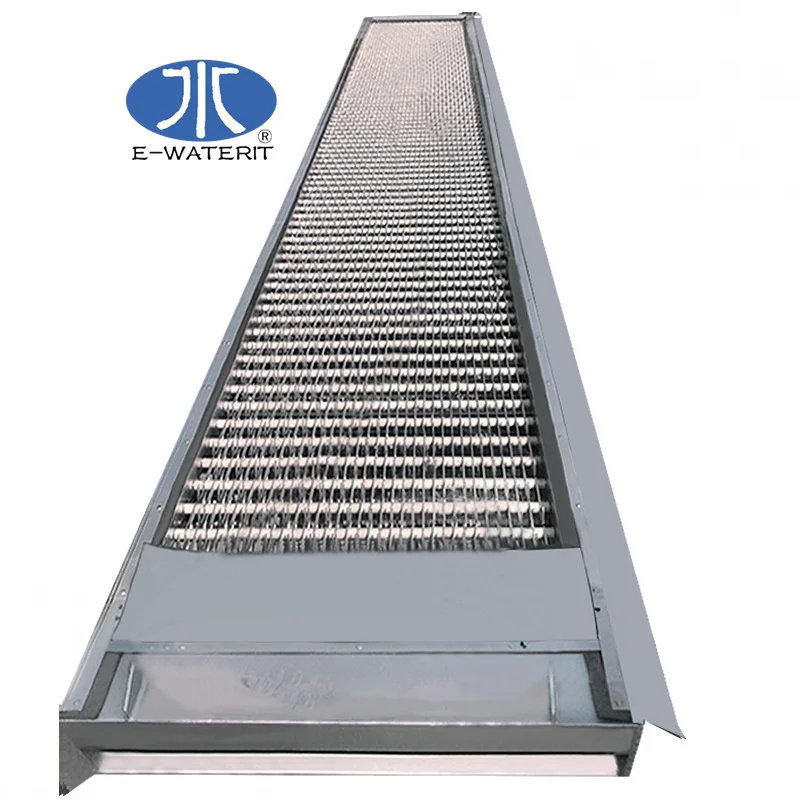

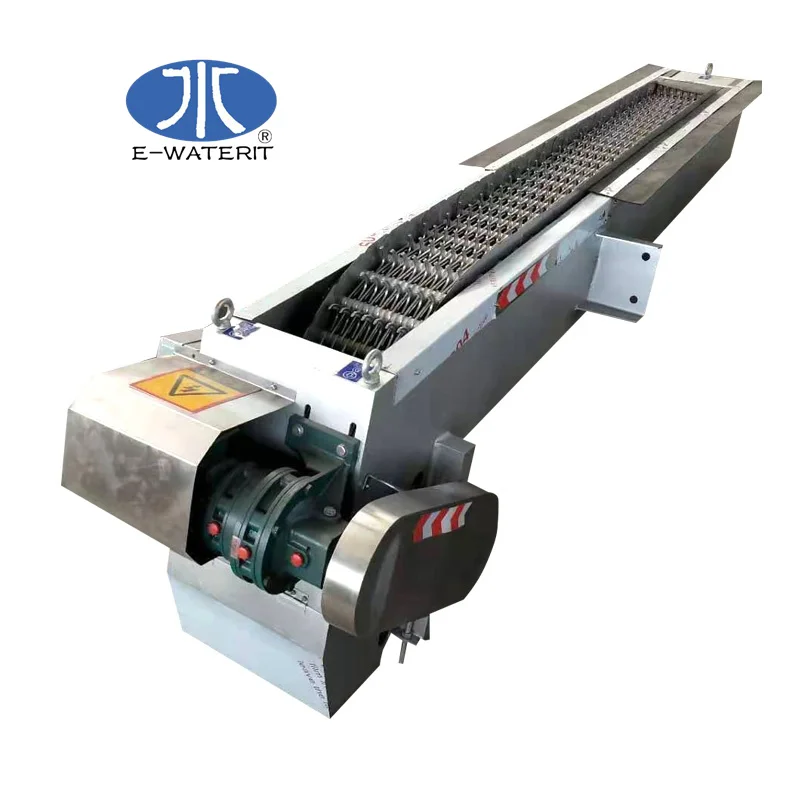

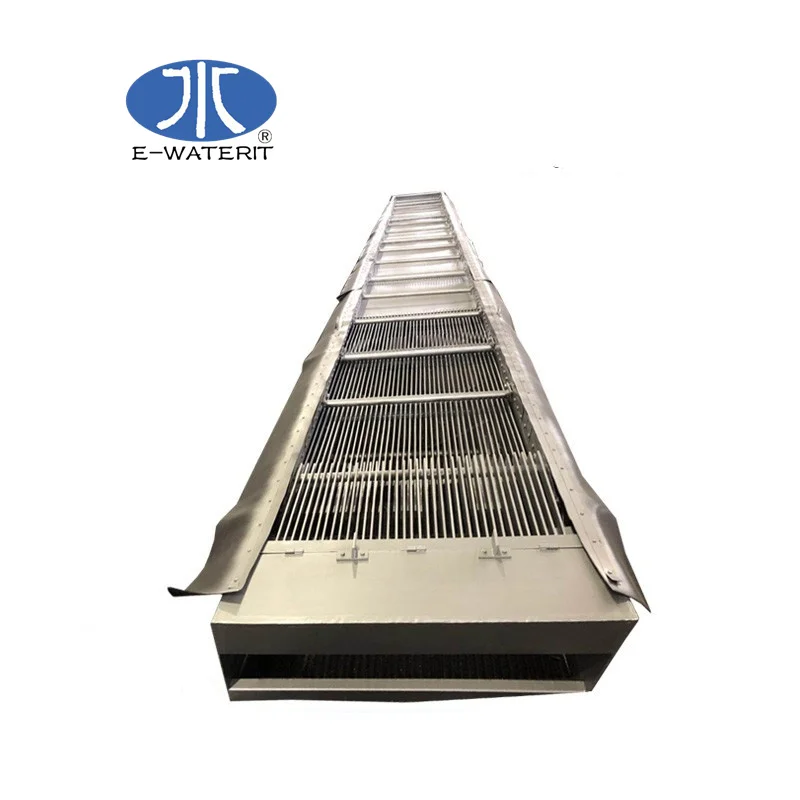

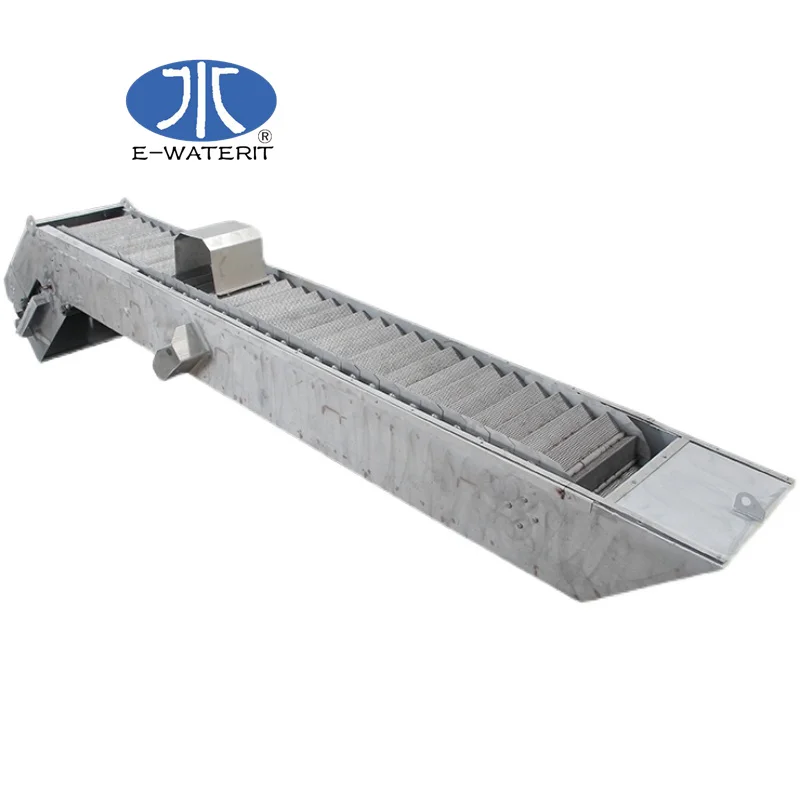

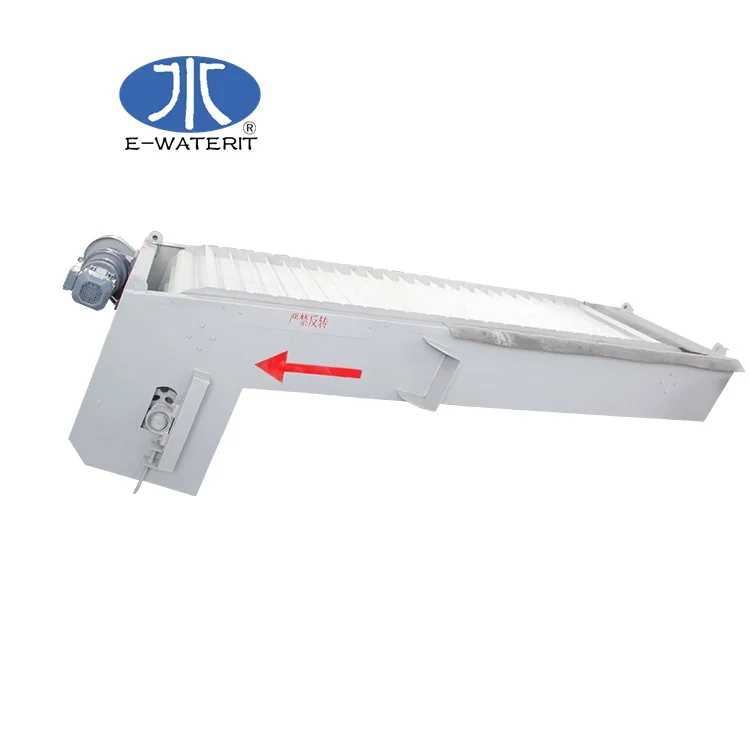

Automatic solid liquid separation rotary bar screen for waste water
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1600477698654):
Product Overview
Description
Product Description
Mechanical Bar Screen Step Screen Wastewater Screen With Good Price
Mechanical Bar Screen decontaminator is one of the important dirt pretreated and blocked equipment in the wastewater treatment. It can be applied for drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.

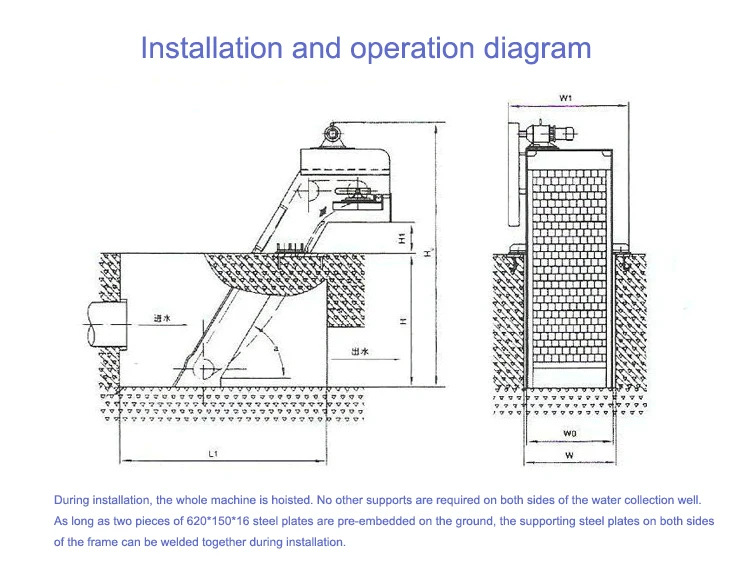

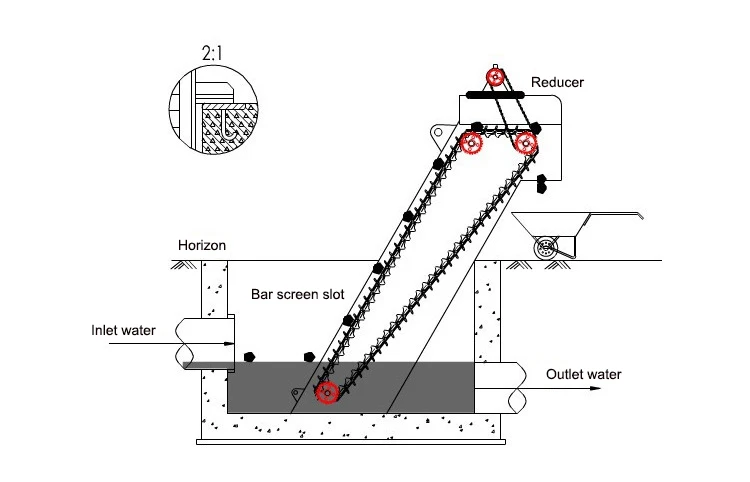

Structure And Working Principles
This device is provided with several special-shaped teeth which are assembled on the teeth axis based on certain ordering, forming the sealed teeth chain. The lower part is installed in the water inlet. If the chain wheel rotates directionally with even speed, the whole rake chain will move accordingly. Under such circumstance, the solid sundries attached on the tooth will be separated from liquid and the fluid will flow away through the gap. When rake chain arrives at its upper end, each group of rakes will carry on self cleaning by dropping out most of the solid material under gravity and guideline rail, while the rest of the solid will be tidied clean by back running brush. The whole process is carried out continuously and automatically so as to achieve the goal of solid-liquid separation.
Specification
Installation Angle | 90° | Overcurrent speed | ＜0.6m/s |
Screen Width | 1000mm | Filter walking speed | 3-5m/min |
Screen pitch | 200mm | Reducer power | 0.55-1.5kw |
Channel depth | 1-5m | Total Power | 1.5-4kw |
Mesh size | 1-6mm | Flushing water pressure | ＞0.6Mpa |
Processing rate | 80-90% | Processing capacity | 40000-150000tons/day |

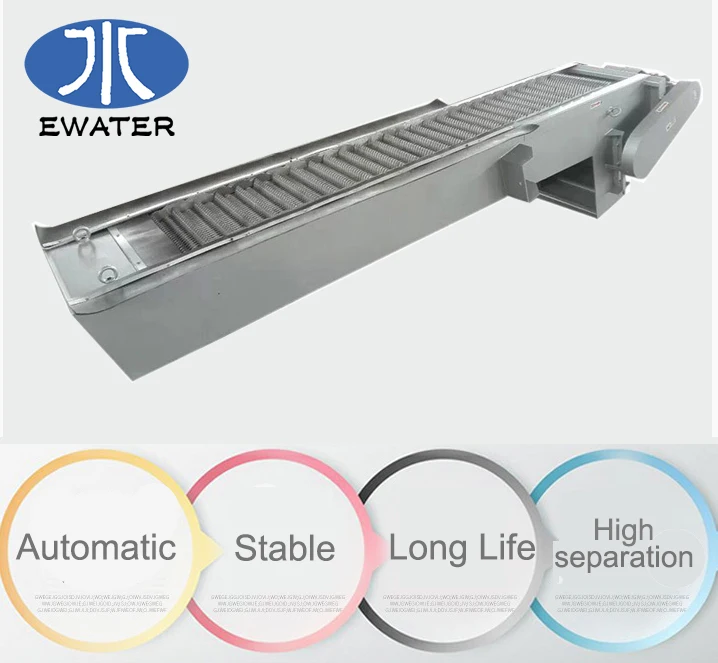

Advantages
1.Good slag removal effect
2.Long lasting
3.High degree of automation
4.The whole machine is debugged out of the factory, easy to install

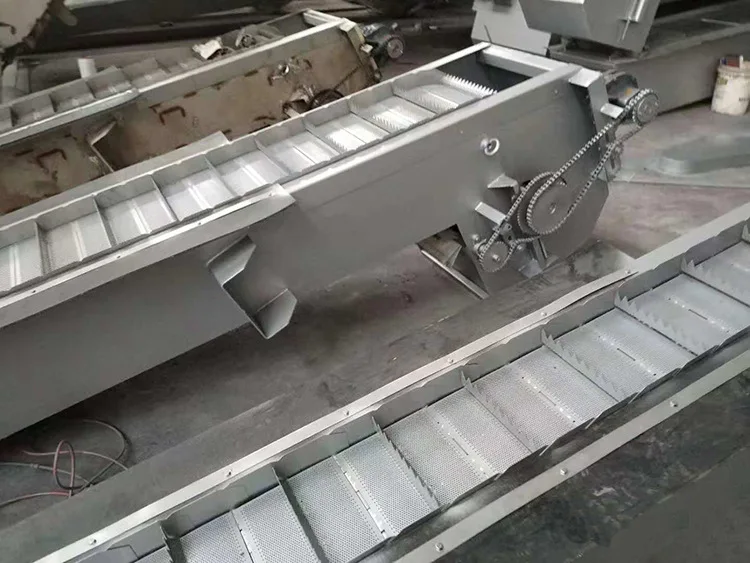

Customer Photos
