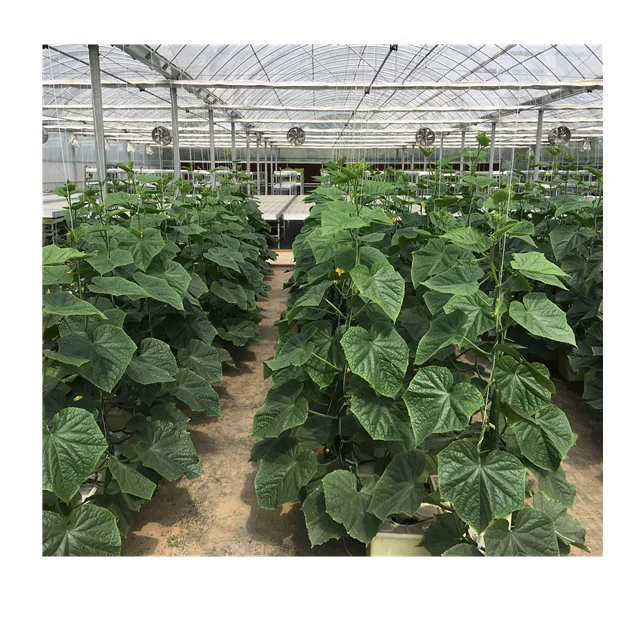

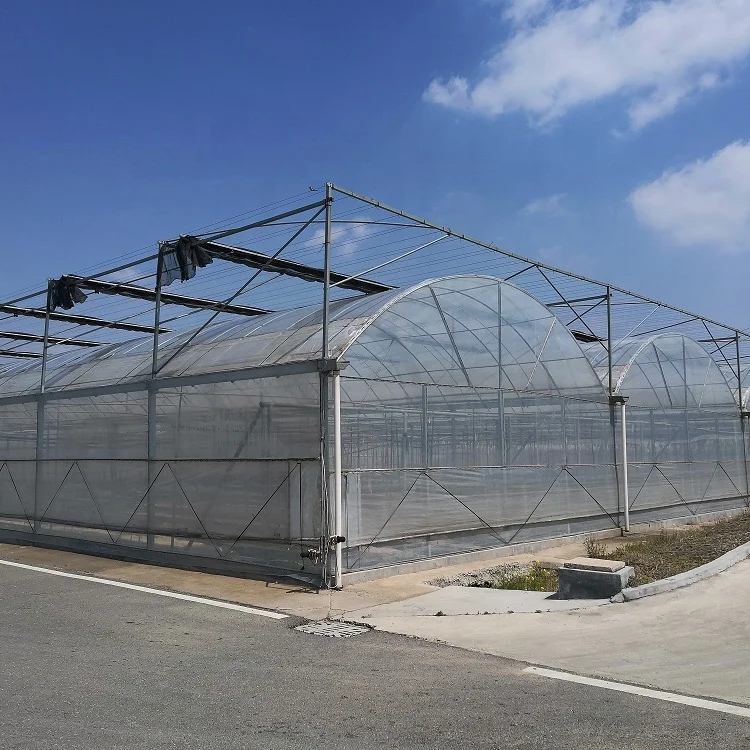

Chinese Greenhouse with Greenhouse Cooling System and Dutch Bucket
- Category: >>>
- Supplier: Qingzhou Rainbow Modern Agriculture Development Co. Ltd.
Share on (1600477708289):
Product Overview
Description
Product Description

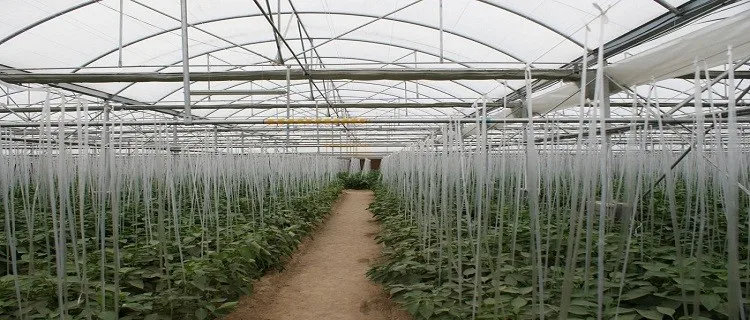

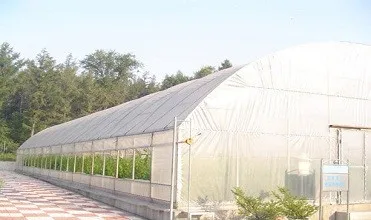

Agricultural Plastic Multi-span Film Greenhouse
We can provide one-stop service from designing, production, installation, testing and after-sale service. All the greenhouses can be made by customers' demand and can be advised by our professional experience. Each greenhouse structure is hot-dip galvanized steel pipe to against strong wind and bad weather.
Merits of Multi-Span Film Greenhouse
1) Larger usable area, many big agriculture machine can work in side.
2) Cost effective due to arch structure, less hot-dip galvanized steel pipes are used.
3) Long service time because galvanizing can increase the corrosion resistance of steel pipes.
2) Cost effective due to arch structure, less hot-dip galvanized steel pipes are used.
3) Long service time because galvanizing can increase the corrosion resistance of steel pipes.
Specifications
Item | Specification |
Cover | Three layers co-extrusion pep film: drop layer,insulation layer and anti-age layer |
Thickness | 0.12mm/0.15mm/0.20mm |
Framework | Hot dip galvanized steel |
Size | Large |
Span | 6.8m/8.0m/9.6m/10.8m |
Length | 12m,16m,20m,24m,28m,32m(customized) |
Height | 2.5m--8m(customized) |
Wind load | 0.45KN/m2 |
Snow load | 0.35KN/m2 |
Greenhouse Systems
Outside shading system
Name: Round wire shading net
Material: HDPE
Color: Black
Method: Knit
Shading rate: ＞85%
Function: Shading, cooling, keeping warm
Service life: ＞8 years

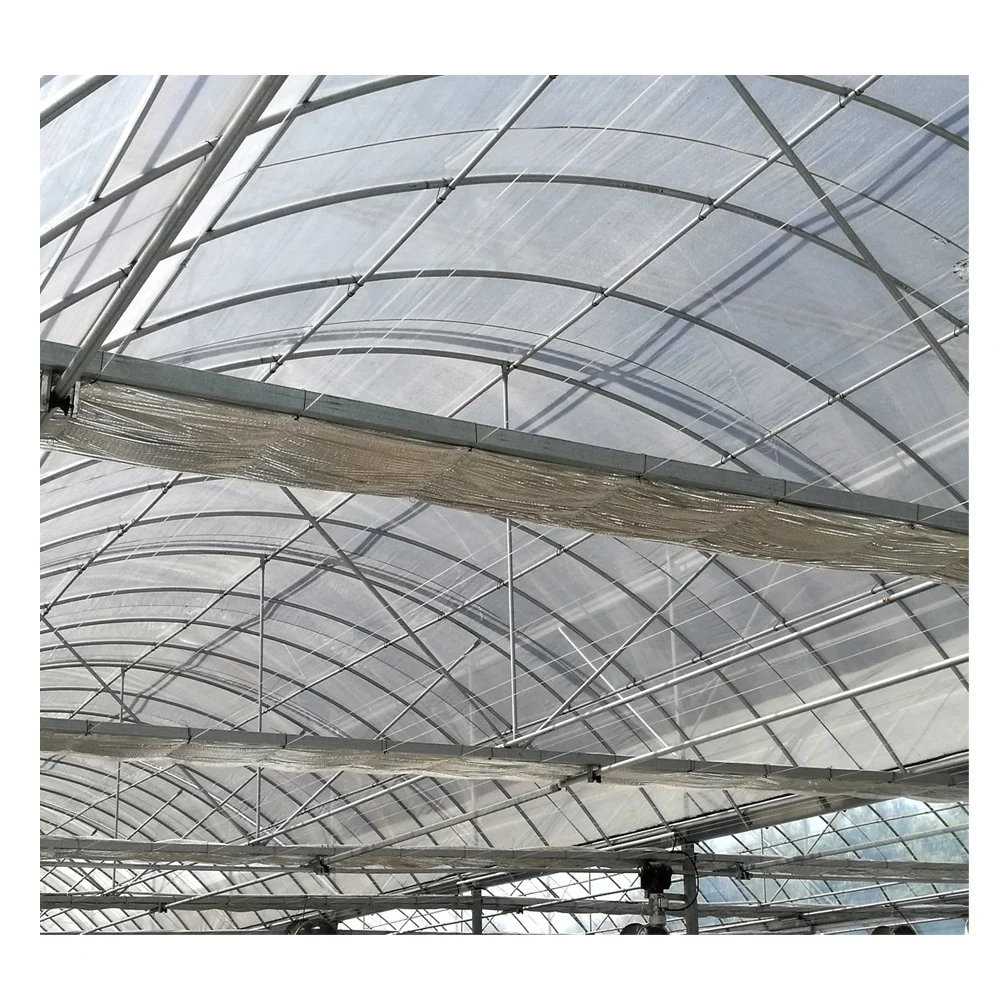

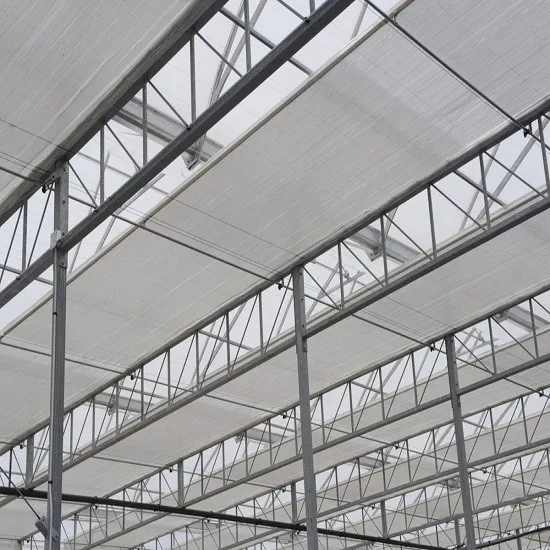

Inside shading system
Name: Aluminum foil shading net
Material: HDPE + aluminum foil
Color: Black, white
Shading rate: ＞85%
Function: Shading, cooling, keeping warm
Service life: ＞5 years
Cooling system-1

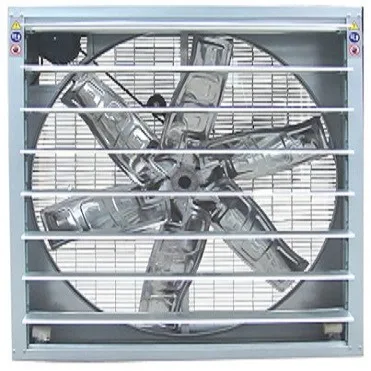

Name: Negative-pressure cooling fan
Material: Galvanized sheet, aluminium alloy
Feature: Low noise
Voltage: 220, 380

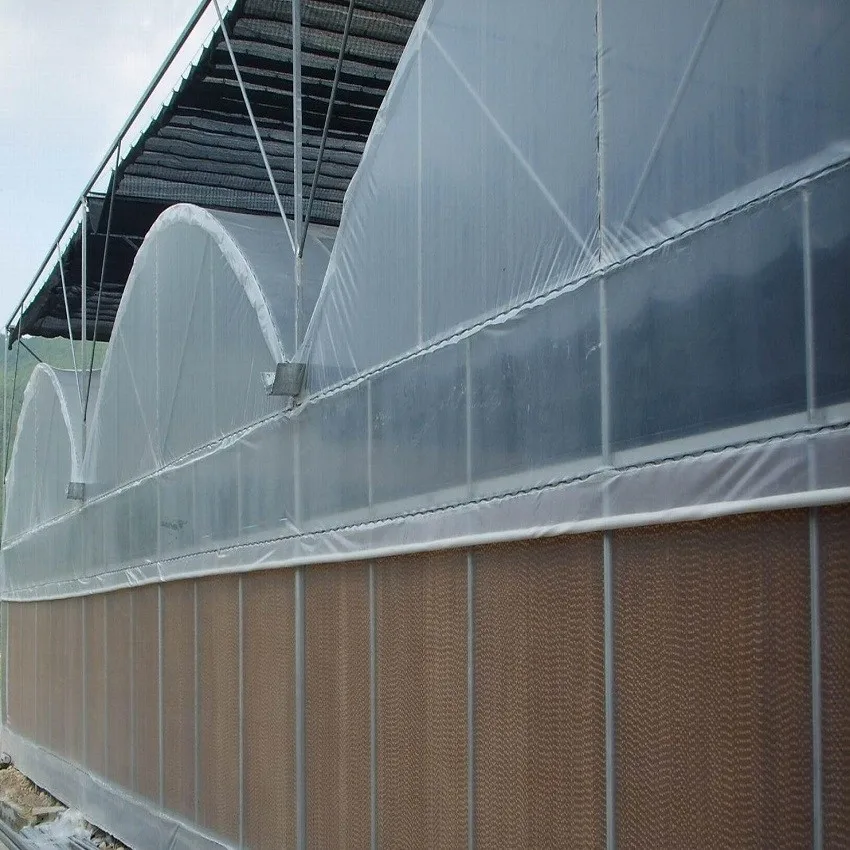

Cooling system-2

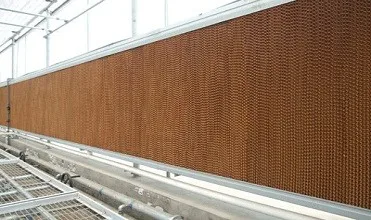

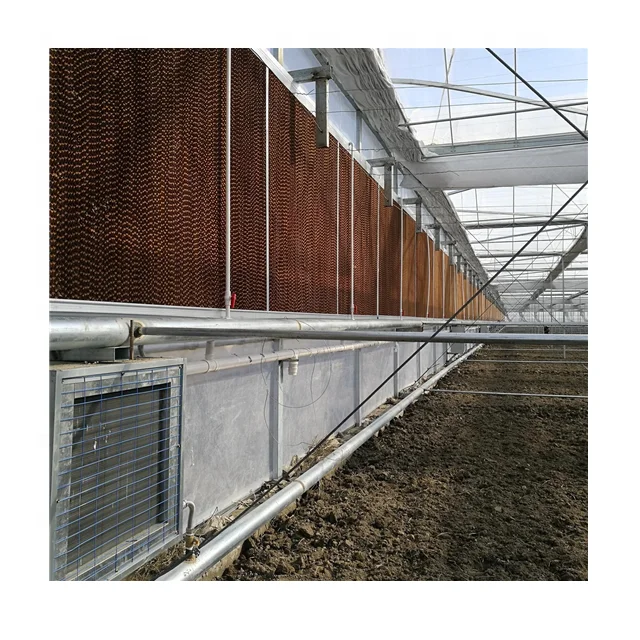

Name: Cooling pad
Material: Paper, PVC
Feature: Stainless steel/aluminum alloy frame
Type: 7090, 6090, 5090

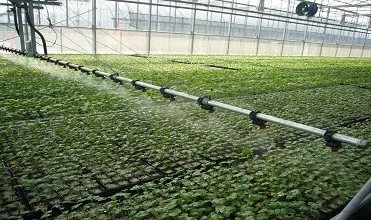

Irrigation system
Name: Irrigation pipe
Material: PVC, PE
Color: Black
Feature: Evenly dripping, saving water

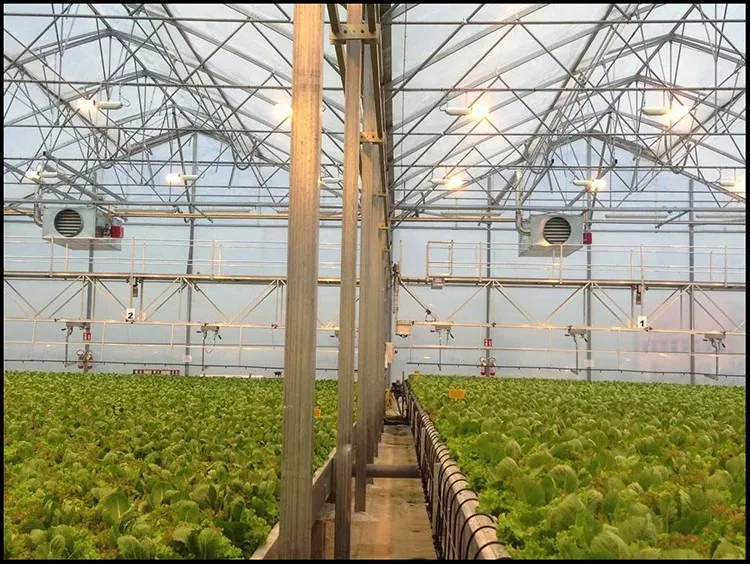

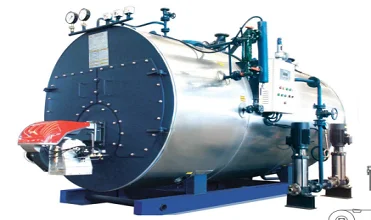

Heating system
Name: Gas boiler
Other products: Radiating pipe, heating coil fan, gardening heater fan

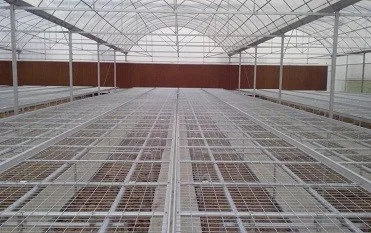

Bench system
Name: Seedbed
Material: Hot dip galvanized, aluminum alloy, steel wire
Feature: Easy install
Type: Fixed, mobile, tidal bed
Ventilation system
Type: Top ventilation, side ventilation
Accessories: Roll film machine, insect net, etc

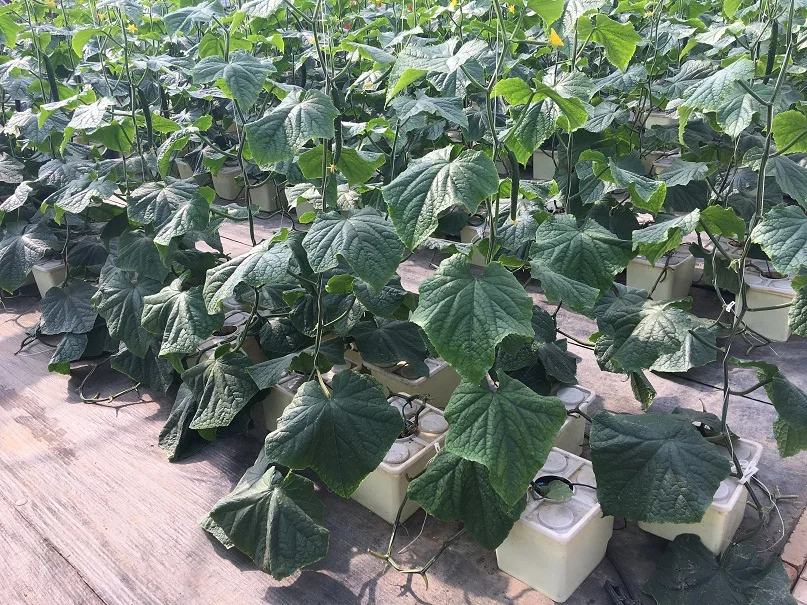

Soilless culture system
Type: Substrate culture, non-substrate culture
Substrate culture: Cocopeat straw planting, peatmoss culture, rock-wool culture
Non-substrate culture: Hydroponics, mist culture
Our Service
Related Products
FAQ
* Q: Do you offer customized greenhouse?
A: Yes. We will offer design program and quotation to you as long as you offer details of local climate and requirements of the greenhouse you want.
* Q: How long is your delivery time?
A: Generally it is 20-30 days after order.
* Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample when we are doing activities but do not pay the cost of freight.
* Q: How to install the greenhouse? Do you provide installation service?
A: We will provide paper or video building manual, or if needed we will send engineer to do installation guidance.
