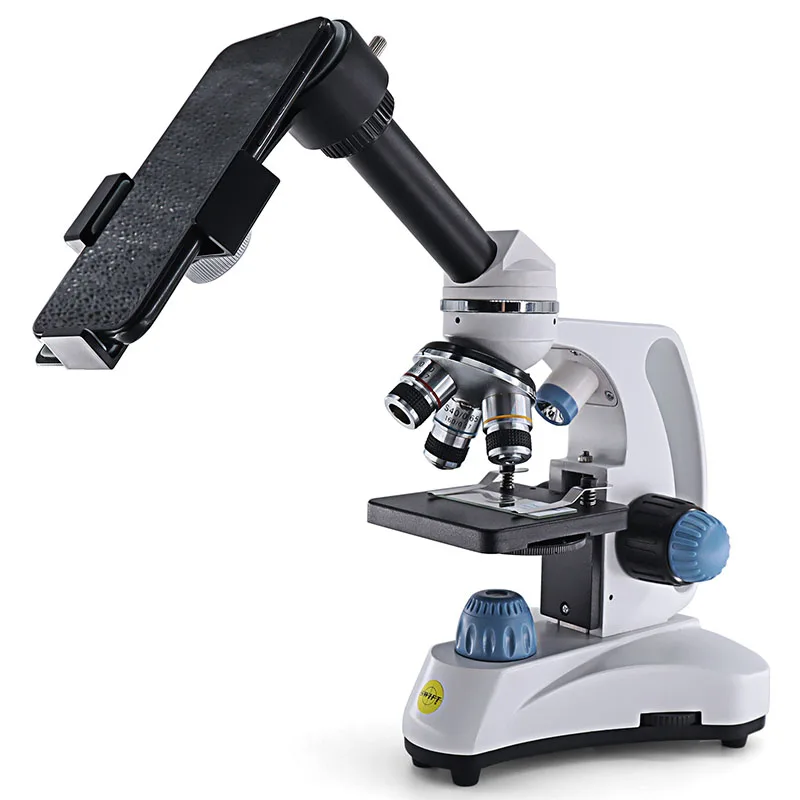

SWIFT SW150 Rotatable Professional Microscope 1000x Monocular Microscope for Kids Biological Microscope
- Category: >>>
- Supplier: M Tec (Xiamen) Co. Ltd.
Share on (1600477876585):
Product Overview
Description
Product Description
SWIFT OPTICAL INSTRUMENTS
For ninety five years, Swift Optical Instruments has been a trusted global producer of quality microscopes and microscope accessories. During that time, we've partnered with K-12 teachers and university educators across the United States to provide them with innovative solutions to meet the increasingly complex STEM teaching needs of the 21st century. Our microscopes are complemented by a full line up of accessories and upgrade possibilities, including digital cameras with software powered by Swift, slide kits, illumination options, and more.
SWIFT Line is designed to meet ever-increasing and challenging needs of teachers and students, through innovation, design and workmanship. Designed for young scientists and beginner hobbyists, the Swift SW150 Student Microscope offers all the user-friendly features of our SW100 model, with an upgraded optical objectives system and a sleek triangular base. The SW150 provides an affordable, easy-to-use introduction to microscopy for elementary and middle school students and casual hobbyists.

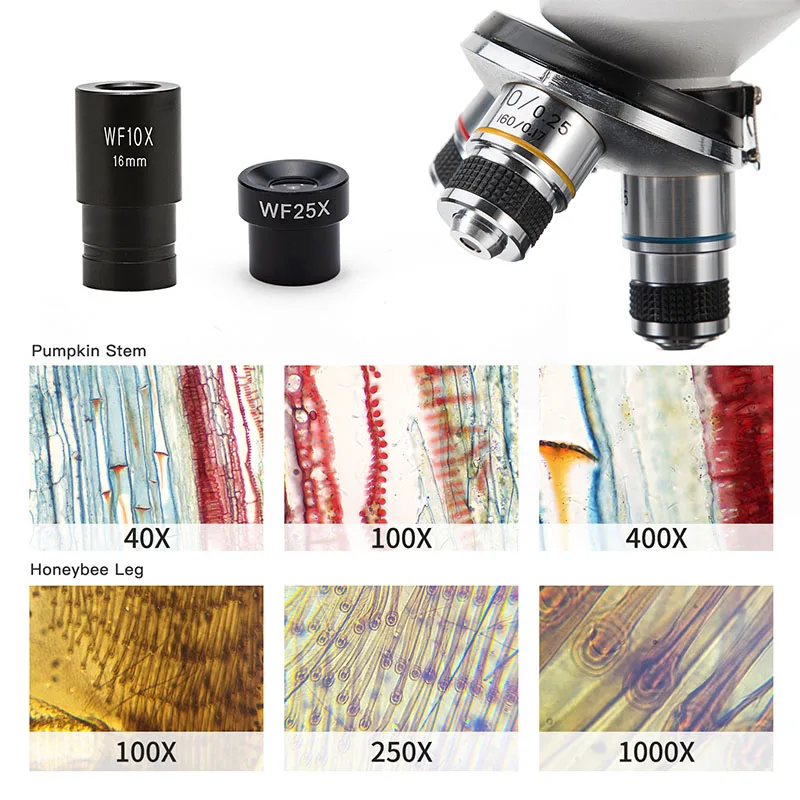

Three aberration-correcting glass objective lenses (4X, 10X, and 40X) paired with two wide-field glass eyepieces (10X and 25X) offer sharp images at magnification ranges between 40X to 1000X without edge blur. The monocular head is fixed at an ergonomic 30 degree angle to prevent neck-strain and fully rotates to enable sharing between multiple users, ideal for classroom or one-on-one instruction. The LED bulb provides cool, dimmable illumination from below the stage for transparent slide specimens, and an additional built-in light on the arm illuminates from above for viewing the surface of solid objects like flowers, coins, or hair at low-magnification settings.
The SW150 also features a sleek, triangular metal base and stain-resistant enamel finish. This durable construction paired with the metal carrying handle in the arm (sized to accommodate smaller hands) and the option for cordless power make the microscope perfectly suited for experiments beyond the lab bench.
Components
* 45 degree inclined, 360 degree rotating monocular head
* Plain plastic stage, 95x95mm
* Pair of metal stage clips
* Rack stop
* Coaxial coarse and fine focusing knobs
* Transmitted LED illumination
Warranty Information
* Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
* One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords.
* All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
* Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
* One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords.
* All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
Structure&viewer | Upright&monocular |
Material | Metal base and body |
Observation tube | Monocular 360 degree rotatable |
Inclination | 30° inclined |
Specialized features | Brightfield |
Optical system | Finite optical system, 160mm |
Eyepieces | Wide-field glass eyepieces: 1*10X/16mm with pointer, 1*25X/8mm without pointer |
Nosepiece | Triple revolving |
3 objective lenses | 4X/0.10 (WD 27.2mm), 10X/0.25 (WD 7.4mm), 40X/0.65 (WD 0.6mm, spring) |
Magnification levels | 40X, 100X, 250X, 400X, 1000X |
Objective mounting thread | W 4/5''x1/36'' (RMS standard) |
Stage | Plain stage with slide clips |
Stage size | 90mmx90mm |
Upper limit stop | Preset but adjustable |
Condenser | Single lens condenser with 6-hole disc diaphragm |
Focus mechanism | Coaxial coarse and fine, fine is graduated |
Fine focus precision | 2.9mm/circle |
Z-Axis movement | 8.5mm |
Handle | Built-in arm handle |
Clips | Pair of metal stage clips |
Power supply | 100-240V, 50/60Hz; auto-switching, AC adapter or 3 AA batteries included |
Illumination | Transmitted and incident LED illuminations |
Transformer | External adapter, output 5V 1000MA (plug type should be chosen according to different regions) |
Individual package weight | 1.95kg |

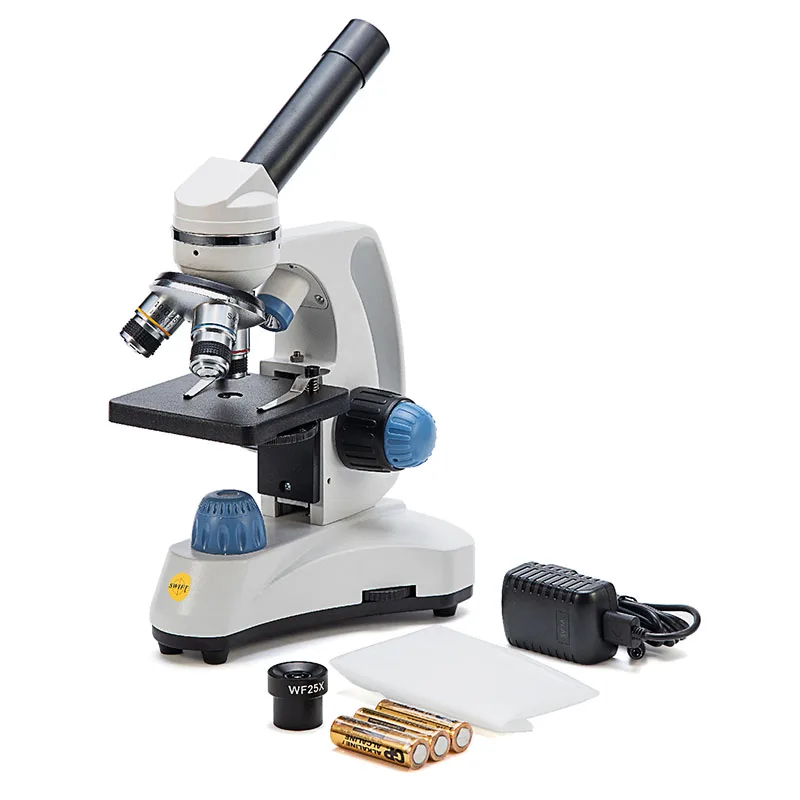

PRODUCT LINES
1*WF10X eyepiece
1*WF25X eyepiece
1*Power adapter
3*AA batteries (un-chargeable)
1*Dust cover
1*User manual
1*User manual
We rigorously test and inspect every single unit before shipping to ensure that each microscope reaches our standards for excellence.
OUR TIPS
Not Include In Our Box

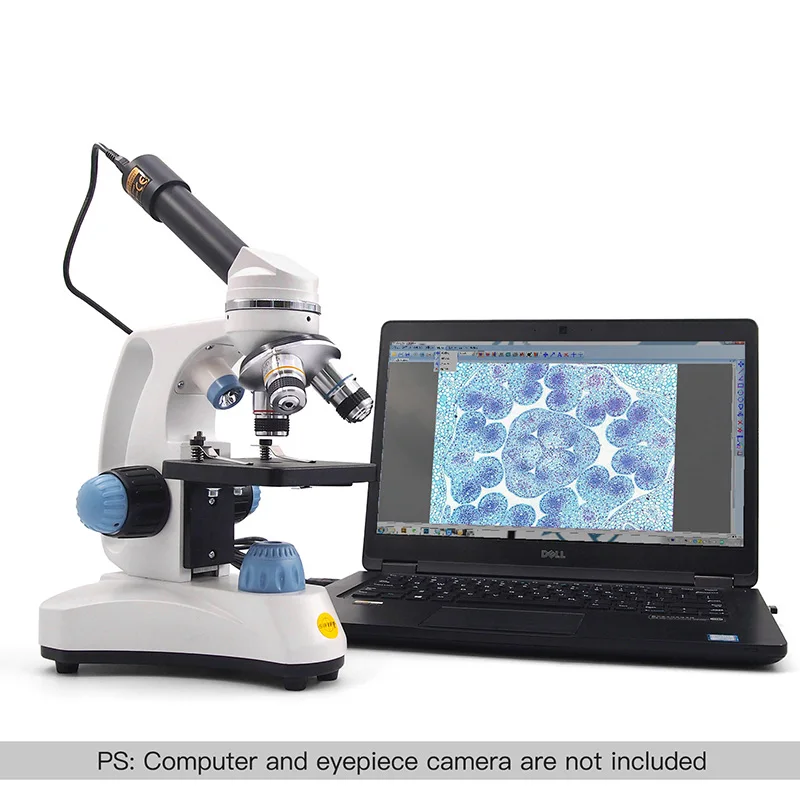

Computer and USB eyepiece camera... sold separately
Application
Junior to high school education, popular science, science exploration, hobby, gift, etc
Anywhere you want to use our SW150
Multifunctional
Observe cells, insects, bacteria, animal, hair, feather, plant specimens, rice grains, leaves, flower, plankton, etc
Detailed Images

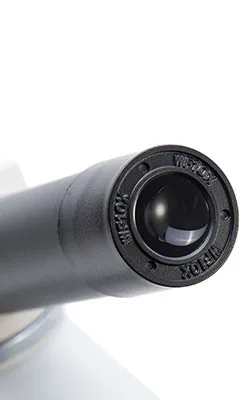

Wide-field glass eyepieces: 1*10X and 1*25X, making microworld extremely clear and funny

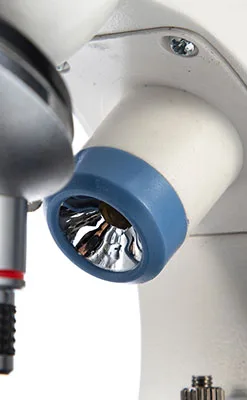

Upper LED illumination, applicable to marco observation of opaque specimens under 4x, 10x objectives, such as plants and animals

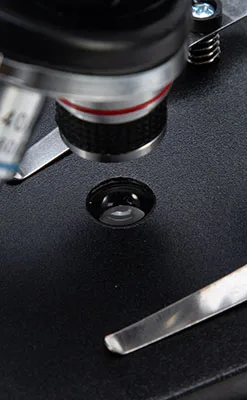

Bottom LED illumination, applicable to micro observation of slide under 4x, 10x, 40x objectives

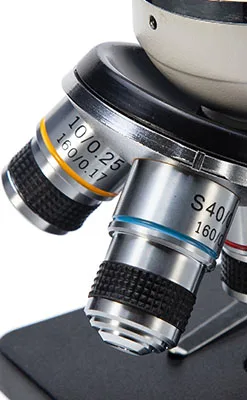

Achromatic objectives: 4X, 10X, 40X
90mm*90mm plain plastic stage

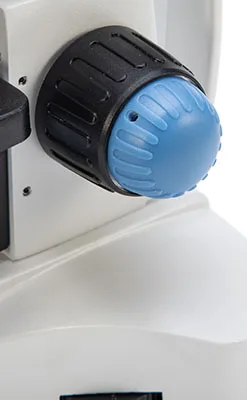

Coarse adjust: the specimen comes into broad focus; fine adjust: the specimen comes into sharp focus

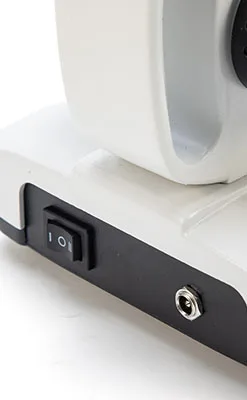

100-240V power supply, plug in use
Environmental friendly material with ISO certification, especially designed for children, safe to use

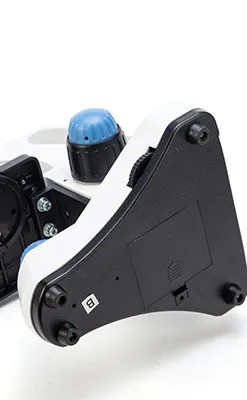

Or use 3 AA batteries for light, convenient to use when power failure or outdoors, wherever you are
