Official manufacturer 215HP mining Motor Grader GR215 for road construction project
Products Description
Road Graders Series:
GR series Road graders cover a wide range of models, including small type,conventional type,mining type,type for cold zone,
desert and plateau as well as CE certified series. There are mainly models of GR165/GR180/GR200/GR215/GR230.
Applicable working scope of Road Graders GR215:
GR215 road graders are mainly used for large-area ground leveling, trenching, scraping, bulldozing, and soil loosening operations
on highways, airports, and farmland. Road graders GR215 is a necessary engineering machinery for national defense
engineering, mine construction and other building construction, water conservancy construction, and farmland improvement.
Highlight of Road Graders GR215:
1. This machine is equipped with turbocharged diesel engine. Large output torque and power reserve coefficient and low oil
consumption.
2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise
of the cab.
3. The double circuit hydraulic brake system is applied to realize more reliable and stable braking.
4.The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system
stability and reliability.
5. The special enhanced working device is applied.
6. The blade body adopts adjustable large slide slot and double slide-way mechanism and the blade plates are made of
wear-resistant high strength materials.
7.The multiple optional parts expand the performance and working scope of machine.
GR series Road graders cover a wide range of models, including small type,conventional type,mining type,type for cold zone,
desert and plateau as well as CE certified series. There are mainly models of GR165/GR180/GR200/GR215/GR230.
Applicable working scope of Road Graders GR215:
GR215 road graders are mainly used for large-area ground leveling, trenching, scraping, bulldozing, and soil loosening operations
on highways, airports, and farmland. Road graders GR215 is a necessary engineering machinery for national defense
engineering, mine construction and other building construction, water conservancy construction, and farmland improvement.
Highlight of Road Graders GR215:
1. This machine is equipped with turbocharged diesel engine. Large output torque and power reserve coefficient and low oil
consumption.
2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise
of the cab.
3. The double circuit hydraulic brake system is applied to realize more reliable and stable braking.
4.The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system
stability and reliability.
5. The special enhanced working device is applied.
6. The blade body adopts adjustable large slide slot and double slide-way mechanism and the blade plates are made of
wear-resistant high strength materials.
7.The multiple optional parts expand the performance and working scope of machine.
Specification
tem | GR215 | ||||
Basic parameters | Engine model | Cumins 6CTA8.3-C215 | |||
Rated power/speed | 160kW/2200rpm | ||||
Overall dimension (standard) | 8970x2625x3420 | ||||
Total weight (standard) | 16500 kg | ||||
Tire specification | 17.5-25 | ||||
Ground clearance (front axle) | 430mm | ||||
Space of front and rear axles | 6219 mm | ||||
Space of middle and rear wheels | 1538 mm | ||||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |||
Reverse speed | 5,11,23km/h | ||||
Tractive effort f=0.75 | 87 kN | ||||
Maximum gradeability | 20% | ||||
Tire inflation pressure | 260kPa | ||||
Working system pressure | 16MPa | ||||
Transmission pressure | 1.3—1.8Mpa | ||||
Working parameters | Maximum steering angle of front wheel | ±50° | |||
Maximum slant angle of front wheel | ±17° | ||||
Maximum oscillating angle of front axle | ±15° | ||||
Maximum oscillating angle of equilibrium box | forwards15°, Reverse15° | ||||
Maximum steering angle of frame | ±27° | ||||
Minimum turning radius | 7.3m | ||||
Scrape knife | Maximum lift height | 450mm | |||
Maximum cutting depth | 500mm | ||||
Maximum tilt angle | 90° | ||||
Cutting angle | 28°—70° | ||||
Angle of revolution | 360° | ||||
Length & chord height | 4270x610mm | ||||
Oil filling amount | Coolant | 50L | |||
Fuel tank | 280L | ||||
Engine | 24L | ||||
Transmission | 38L | ||||
Equilibrium box | 46L | ||||
Coolant | 28L | ||||
Hydraulic oil | 110L | ||||

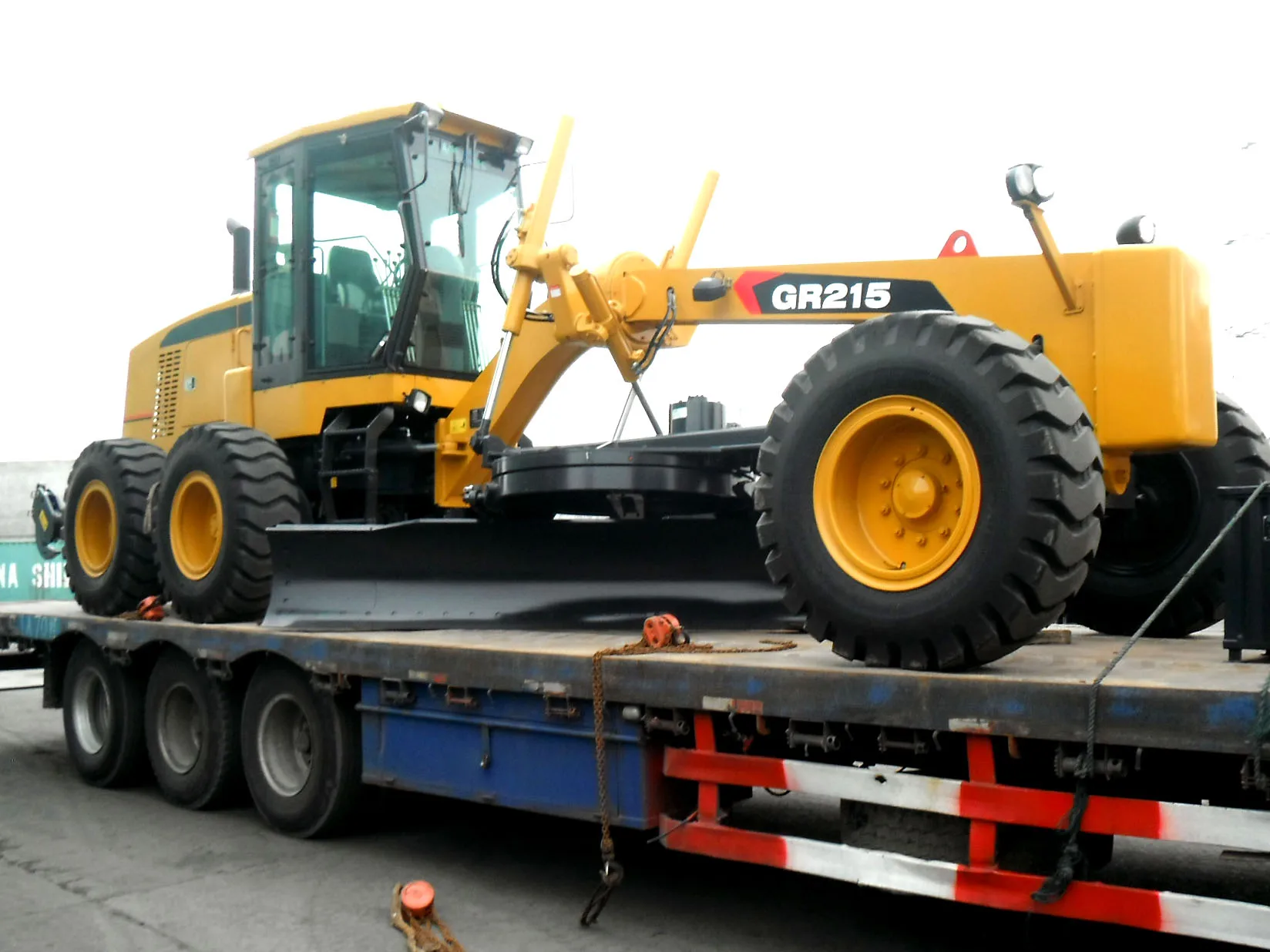

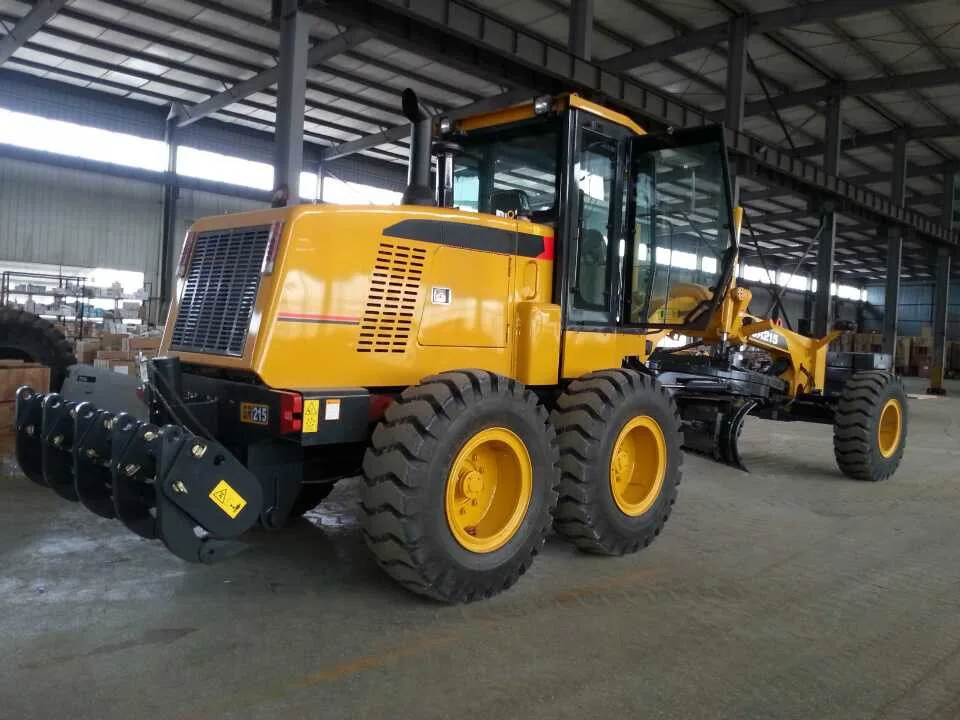

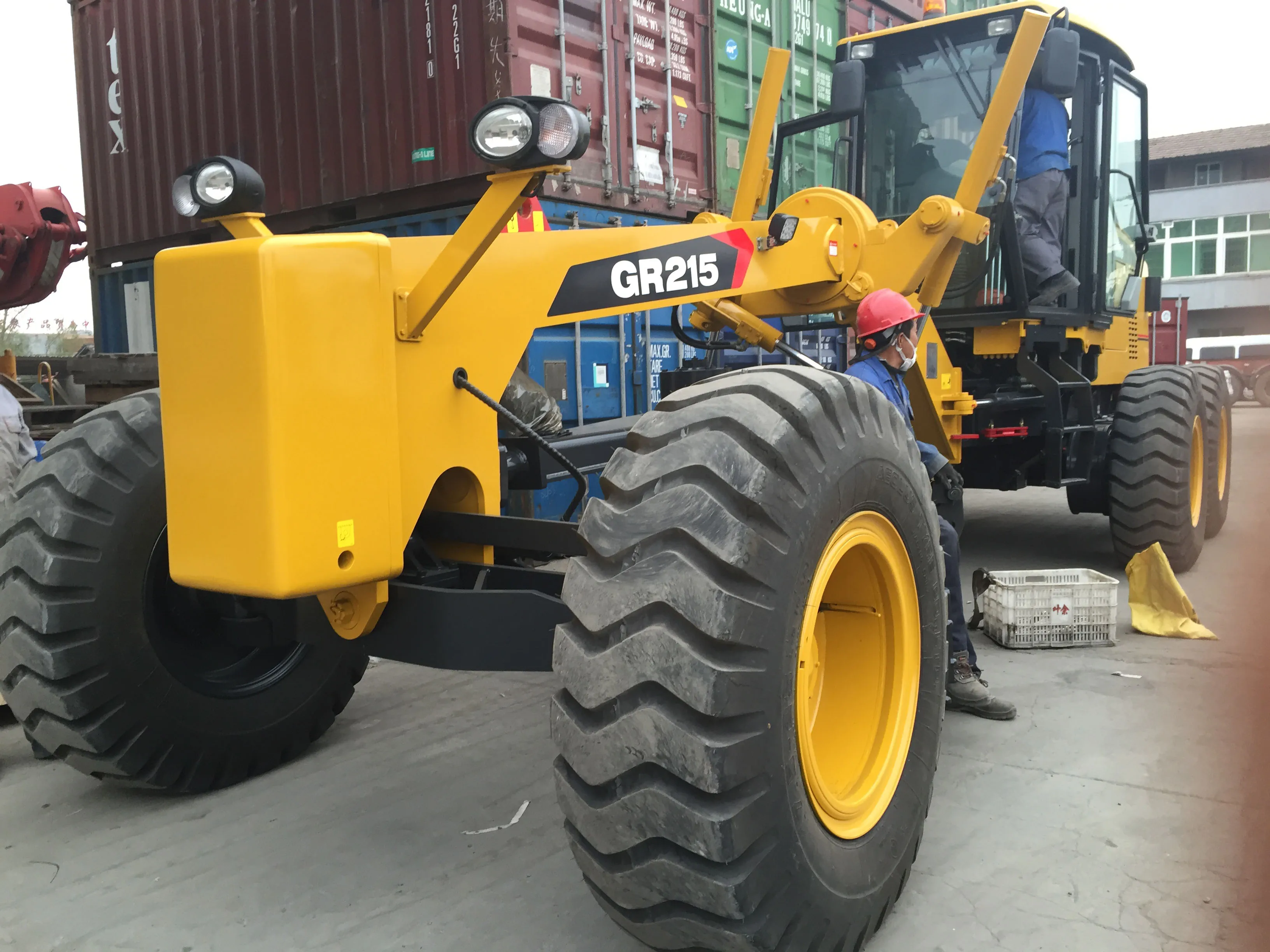

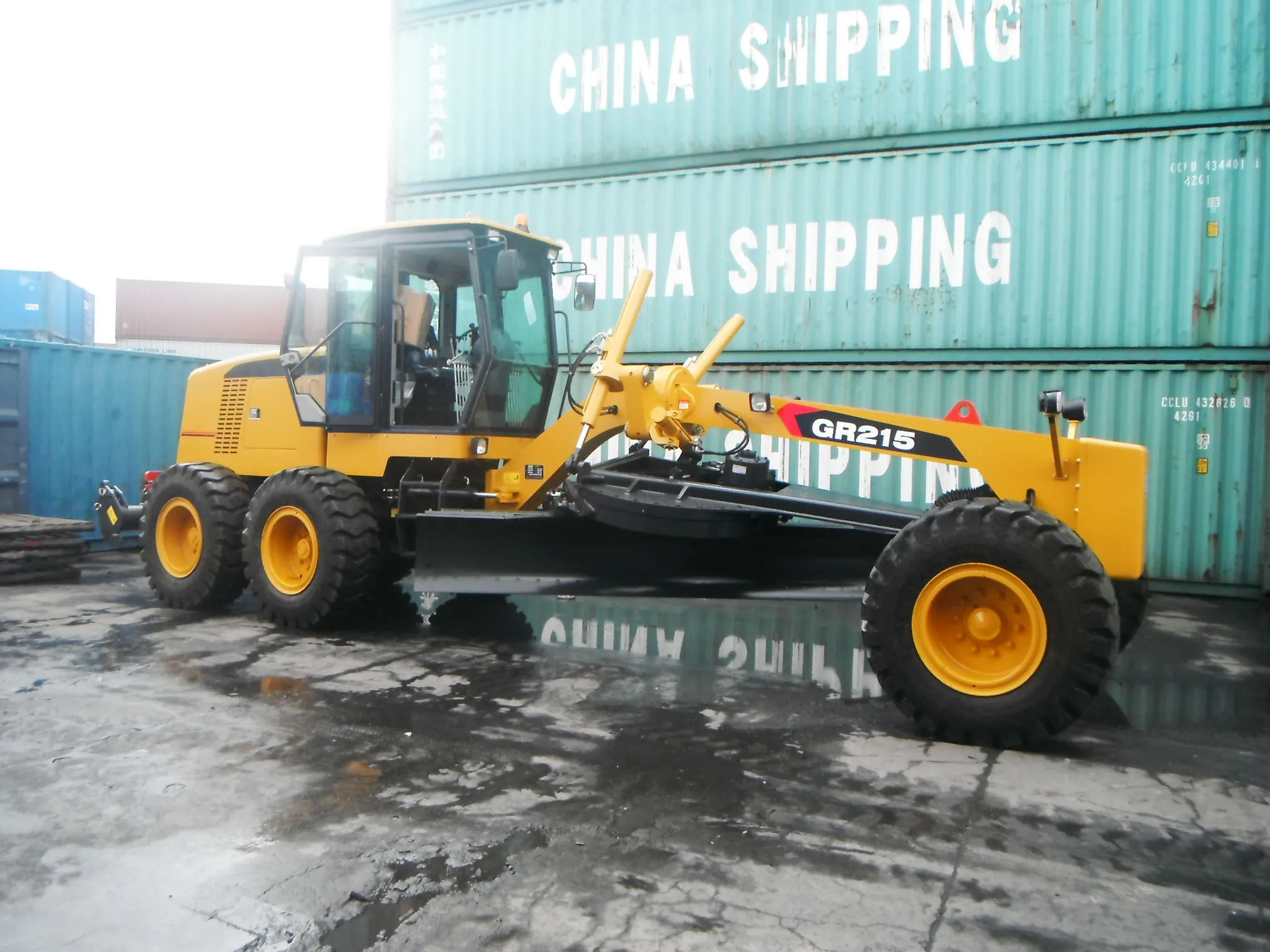

Details Images
