ISO Standard Quality Rubber Conveyor Belt for Coal EP Construction Works Energy & Mining 0.4kw 22kw 100 3000 1 YEAR
- Category: Rubber Belts >>>
- Supplier: Zhejiang,Zhongtianneng,Rubber,Co.,Ltd.
Share on:
Product Overview
Description

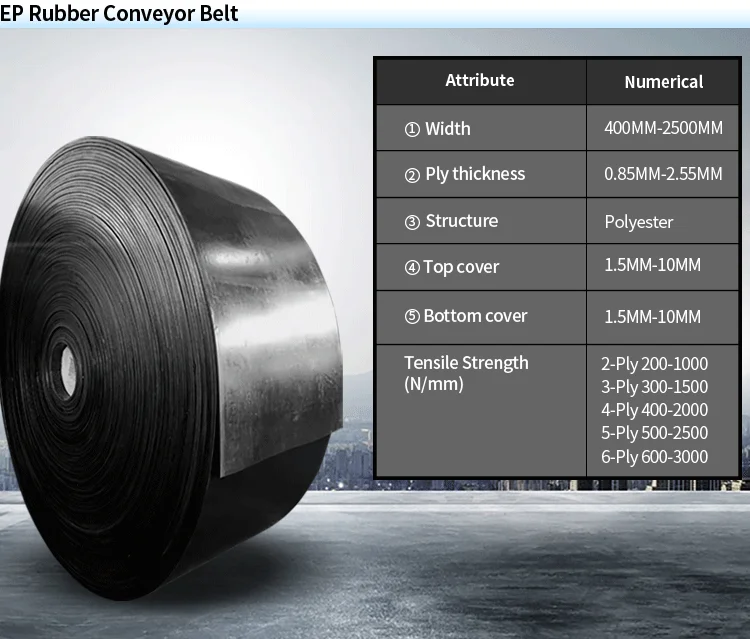

Products Description
Fabric Type | Structure | Type | Ply Thickness | Tensile Strength(N/mm) | ||||||||||
Warp | Weft | (mm/p) | 2-ply | 3-ply | 4-ply | 5-ply | 6-ply | |||||||
EP | Polyester | Polymide | EP100 | 0.85 | 200 | 300 | 400 | 500 | 600 | |||||
EP125 | 0.9 | 250 | 375 | 500 | 625 | 750 | ||||||||
EP150 | 0.9 | 300 | 450 | 600 | 750 | 900 | ||||||||
EP200 | 1.1 | 400 | 600 | 800 | 1000 | 1200 | ||||||||
EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
EP300 | 1.45 | 600 | 900 | 1200 | 1500 | 1800 | ||||||||
EP350 | 1.65 | 700 | 1050 | 1400 | 1750 | 2100 | ||||||||
EP400 | 1.75 | 800 | 1200 | 1600 | 2000 | 2400 | ||||||||
EP500 | 2.55 | 1000 | 1500 | 2000 | 2500 | 3000 | ||||||||
Fabric Type | Structure | Type | Ply Thickness | Tensile Strength(N/mm) | ||||||||||
Warp | Weft | (mm/p) | 2-ply | 3-ply | 4-ply | 5-ply | 6-ply | |||||||
Nylon (NN) | Polyester | Polymide | NN100 | 0.75 | 200 | 300 | 400 | 500 | 600 | |||||
NN125 | 0.8 | 250 | 375 | 500 | 625 | 750 | ||||||||
NN150 | 0.9 | 300 | 450 | 600 | 750 | 900 | ||||||||
NN200 | 0.95 | 400 | 600 | 800 | 1000 | 1200 | ||||||||
NN250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
NN300 | 1.3 | 600 | 900 | 1200 | 1500 | 1800 | ||||||||
NN350 | 1.6 | 700 | 1050 | 1400 | 1750 | 2100 | ||||||||
NN400 | 1.8 | 800 | 1200 | 1600 | 2000 | 2400 | ||||||||
NN500 | 2.2 | 1000 | 1500 | 2000 | 2500 | 3000 | ||||||||
Fabric Type | Cover thickness(mm) | Width(mm） | Length（m) | ||
Top Cover | Bottom Cover | ||||
Nylon | 2.0-30 | 1.5-20 | 400-2500 | ≤300 | |
Polyester | 2.0-30 | 1.5-20 | 400-2500 | ≤300 | |
Zhejiang Zhongtianneng Rubber Co., Ltd.
The company is a professional manufacturer of ordinary rubber conveyor belts, steel cord conveyor belts, anti-tear conveyor belts, special purpose conveyor belts,transmission belts, V-belts and other rubber products. The company is deeplyinvolved in the conveyor industry, adopts advanced product testing equipments and world-class technical with strong technical force, and continuously improves the quality of products and services. The products are well sold in domestic markets and are exported to Southeast Asia, the Middle East, Europe, America,Africa and other countries. The products are widely used in steel, coal, cement, power, ports, mining, building materials and other industries.
The company is a professional manufacturer of ordinary rubber conveyor belts, steel cord conveyor belts, anti-tear conveyor belts, special purpose conveyor belts,transmission belts, V-belts and other rubber products. The company is deeplyinvolved in the conveyor industry, adopts advanced product testing equipments and world-class technical with strong technical force, and continuously improves the quality of products and services. The products are well sold in domestic markets and are exported to Southeast Asia, the Middle East, Europe, America,Africa and other countries. The products are widely used in steel, coal, cement, power, ports, mining, building materials and other industries.

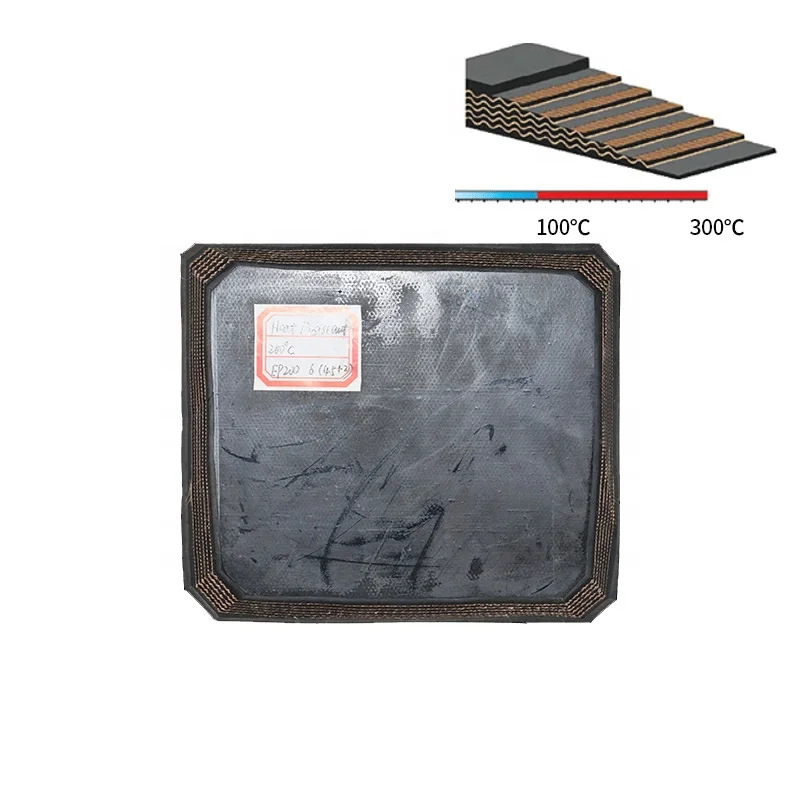

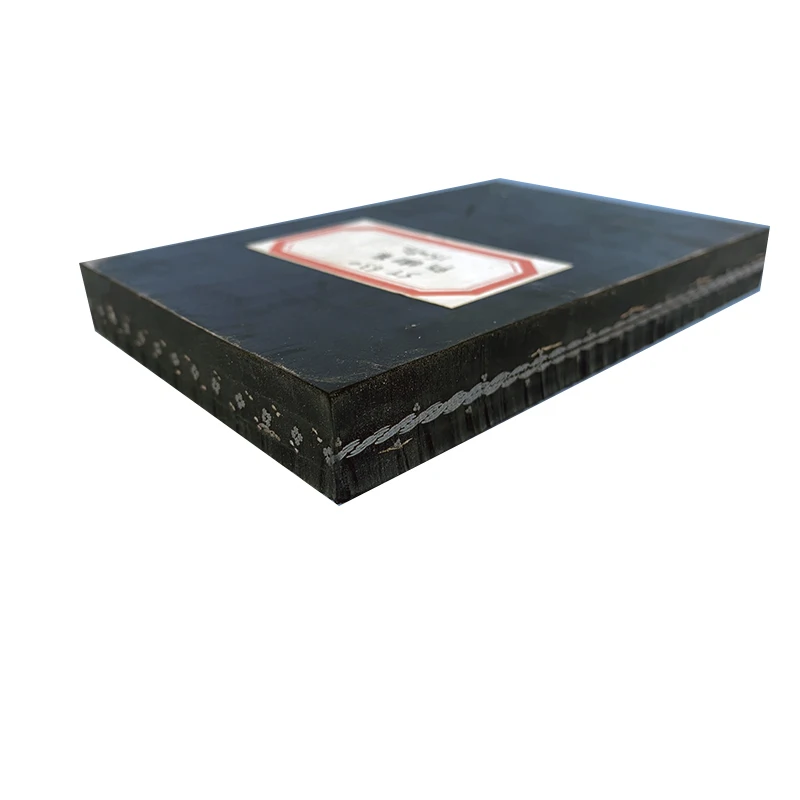

Details Images
Exhibition

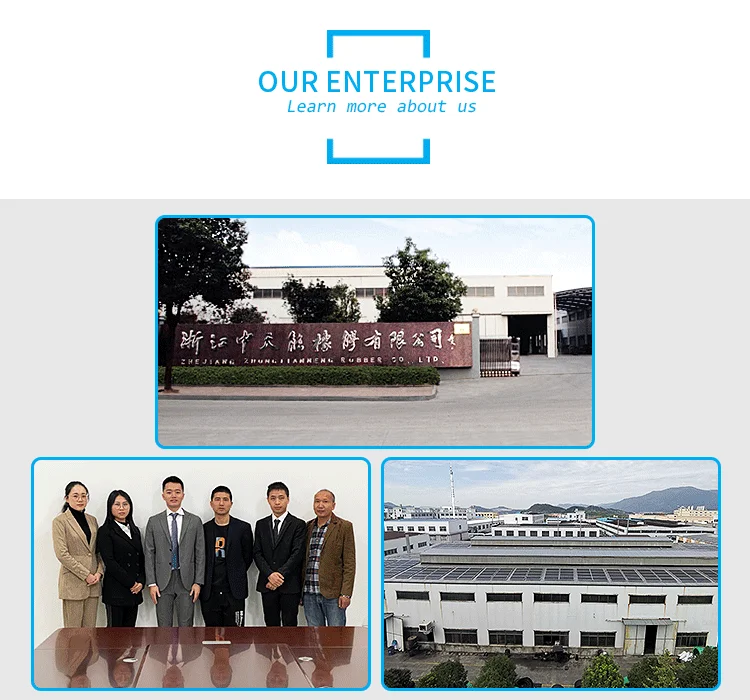

Zhejiang Zhongtianneng Rubber Co., Ltd. is an advanced conveyor manufacturer integrating the design, R&D, manufacturing, sales and service. The company is founded in 1994 with a registered capital of 120 million RMB and an area of more than 40 acres. The scale of production reaches 10 million ㎡per year. The company is located in China Rubber Industry City- Tiantai, Zhejiang province enjoying great location for both domestic and international transportation. The company owns registered trademarks "Zhongtianneng" and "Dongyou"; and has passed the ISO9001:2015 quality management system certification. It has been awarded “National high-tech enterprises"，"Zhejiang Famous Technology Products" and "Top 100 Industrial Private Enterprises", "Contract and Trustworthy Unit" and other honorary titles.
The company is a professional manufacturer of ordinary rubber conveyor belts, steel cord conveyor belts, anti-tear conveyor belts, special purpose conveyor belts, transmission belts, V-belts and other rubber products. The company is deeply involved in the conveyor industry, adopts advanced product testing equipments and world-class technical with strong technical force, and continuously improves the quality of products and services. The products are well sold in domestic markets and are exported to Southeast Asia, the Middle East, Europe, America, Africa and other countries. The products are widely used in steel, coal, cement, power, ports, mining, building materials and other industries.
