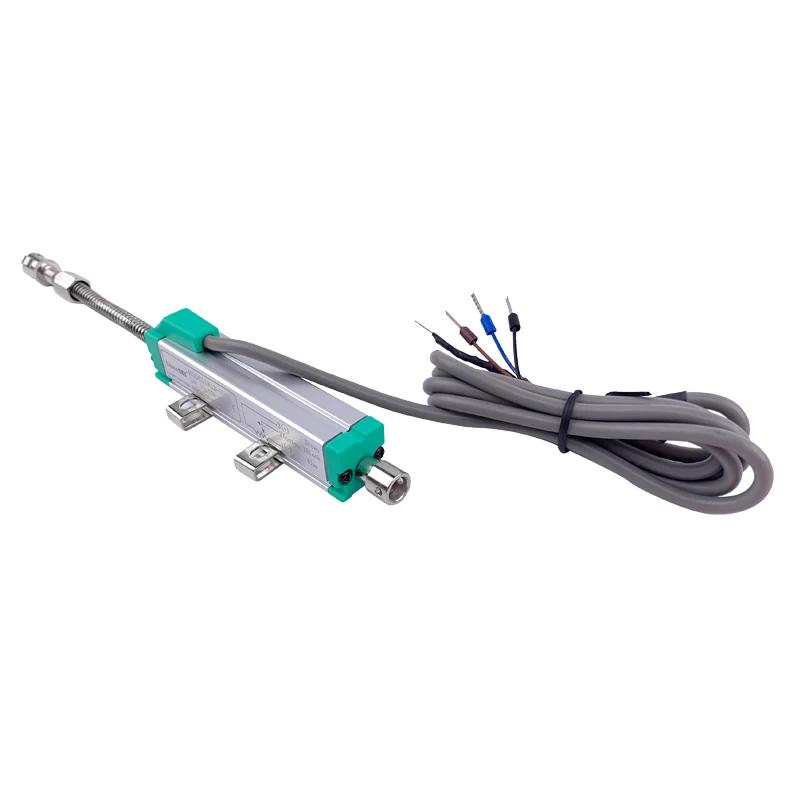

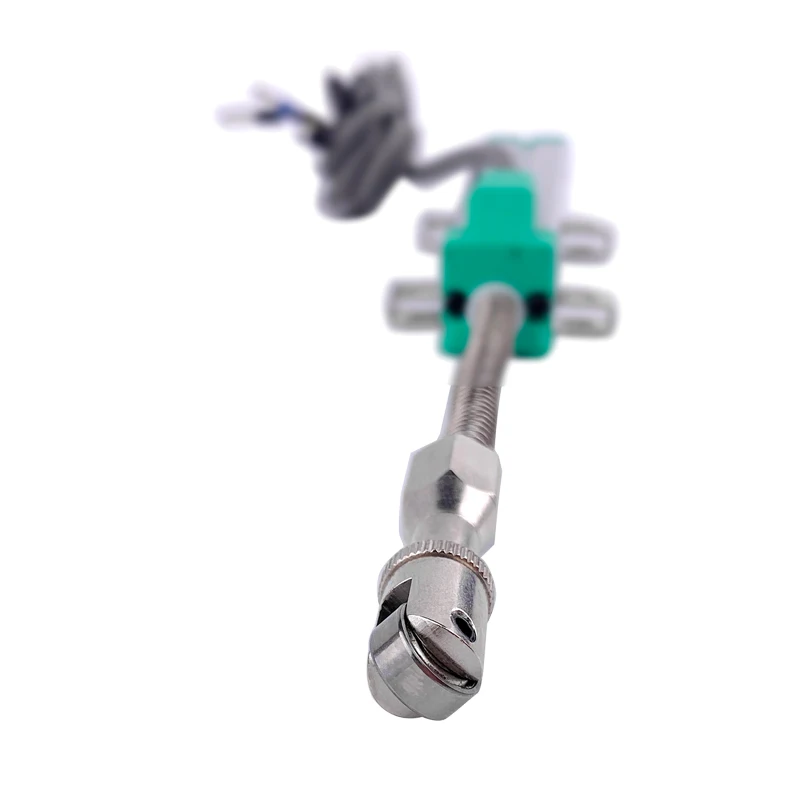

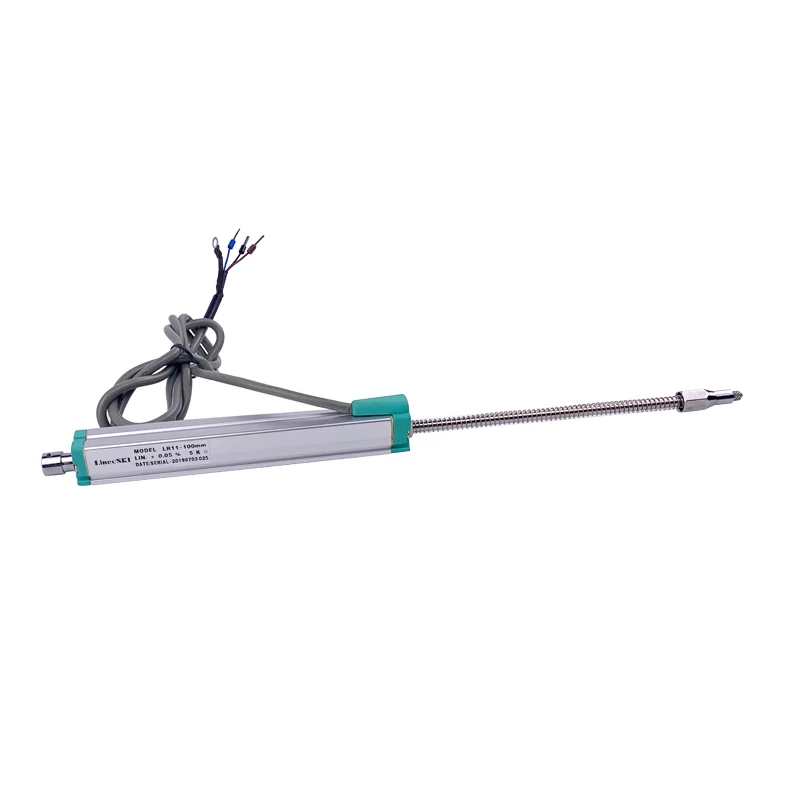

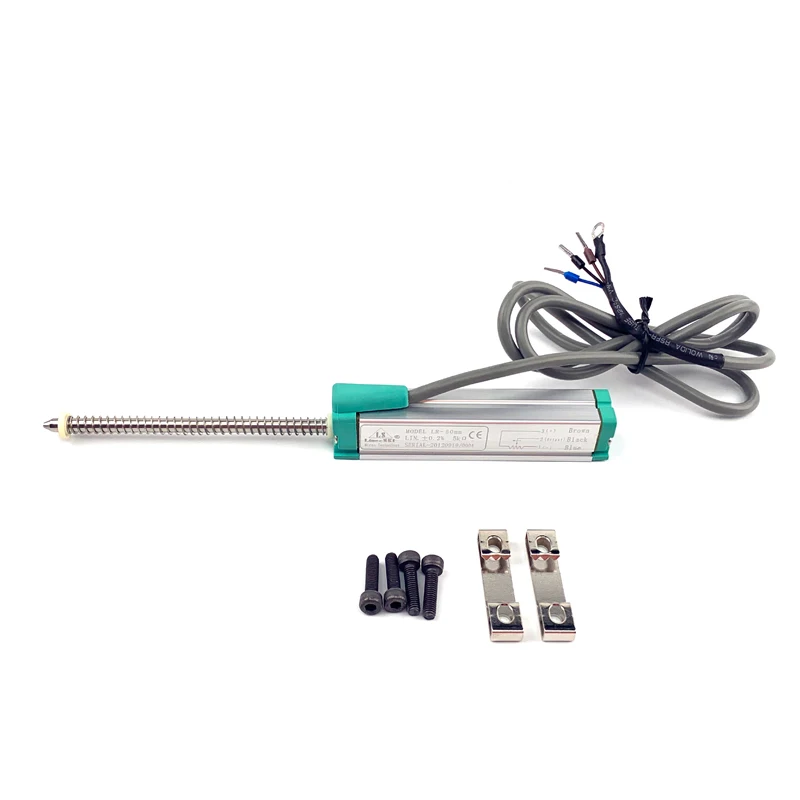

Spring Self return type Linear displacement sensor LR2 10MM easy installment high precise
- Category: >>>
- Supplier: Hubei Miran Technology C. Ltd
Share on (1600478447489):
Product Overview
Description
Product Desription
LR11/LR12/LR2 Series are Spring Self-return type Linear displacement sensor The side connection creates a through-rod structure with double rod support, guaranteeing greater overall strength of the transducer
Main Feature
1.miniature self return type linear displacement transducer,simple installation.
2. Adopting advanced components in electric parts and operation parts.
3. High linear precision output, repeatability precision.
4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485
5. It suitable for varies application especially when the rod can’t be attached to the moving object .
Main Feature
1.miniature self return type linear displacement transducer,simple installation.
2. Adopting advanced components in electric parts and operation parts.
3. High linear precision output, repeatability precision.
4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485
5. It suitable for varies application especially when the rod can’t be attached to the moving object .
Applications
LR is a minitype, Spring Self-return type Linear displacement sensor, suitable for small rooms, such like: bottle blowing machines, tension adjuster, speed ajuster, robots, printing machines, packing machines and so on.
LR is a minitype, Spring Self-return type Linear displacement sensor, suitable for small rooms, such like: bottle blowing machines, tension adjuster, speed ajuster, robots, printing machines, packing machines and so on.
LR Spring Self-return type Linear displacement sensor | 10mm | 15mm | 25mm | 50~150mm | 175~300mm | |||||
Linear Precision (±%FS) | ±0.1% | |||||||||
Resistance (±10%) | 2ΚΩ | 5ΚΩ | ||||||||
Mechanical stroke | range+3mm | |||||||||
Resolution | Infinite | |||||||||
Repeatability Precision | 0.01mm | |||||||||
Max Speed | 5m/S | |||||||||
Recommended Temperature | 0℃-80℃ ;-20℃~+100℃ | |||||||||
Output signal | standard: 0~100% × input voltage (change with the movement of the rod) | |||||||||
optional: 0-5V/0-10V/4-20mA/RS485 output need an extra module | ||||||||||
Sensitivity | 1 | |||||||||
Temperature Drift | infinitesimal | |||||||||
Material for transducer case | Anodised aluminium | |||||||||
Material for pull shaft | Stainless steel | |||||||||
Protection level | IP65 | |||||||||

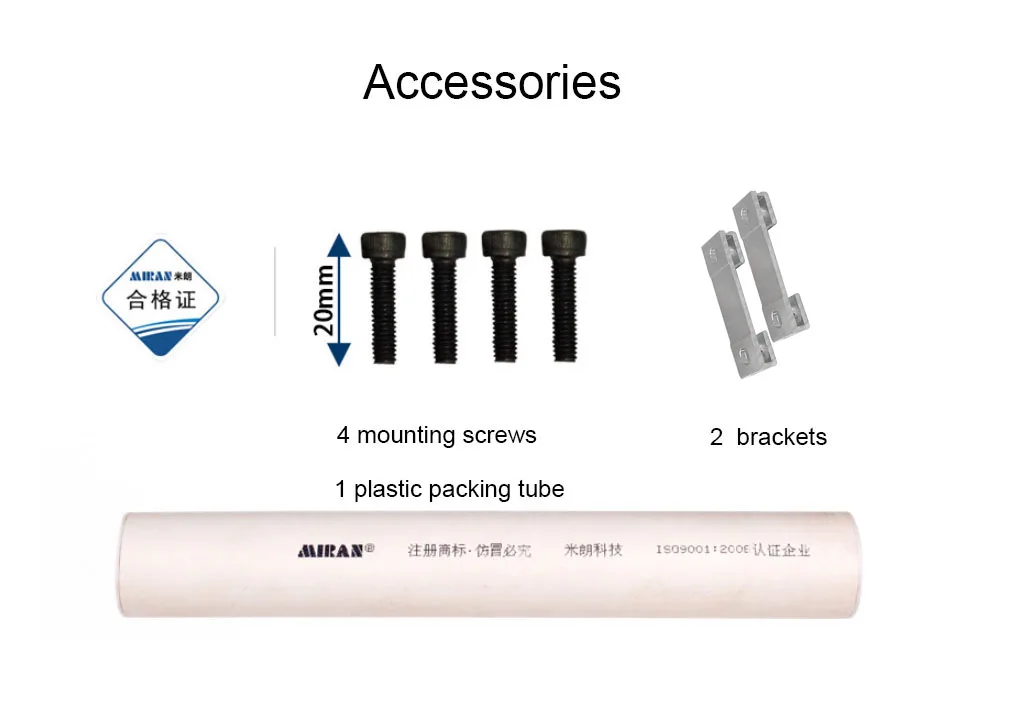

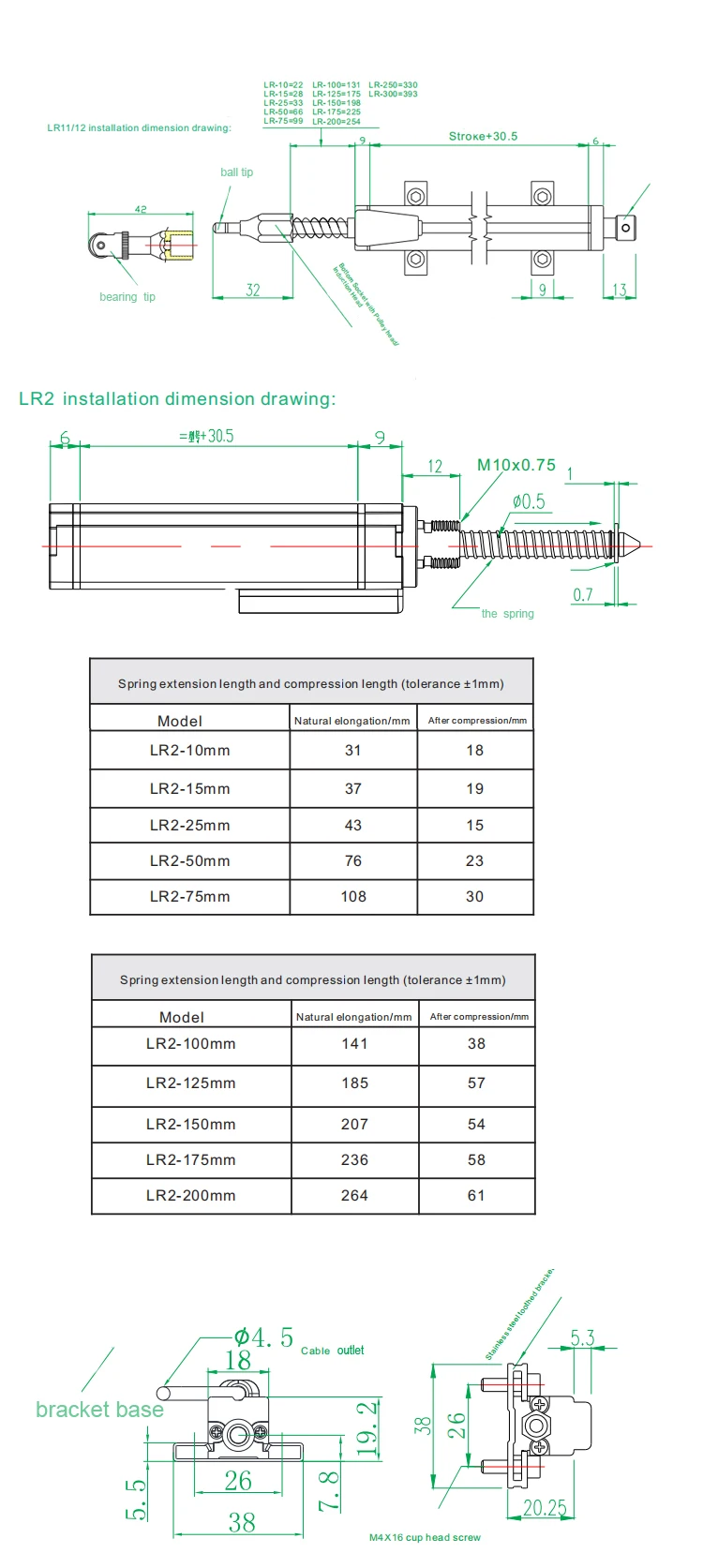

Mounting | brackets with adjustable distance between centers | |||||||||
Useful electrical stroke(mm) | 10 15 25 40 50 75 100 125 150 175 200 | |||||||||

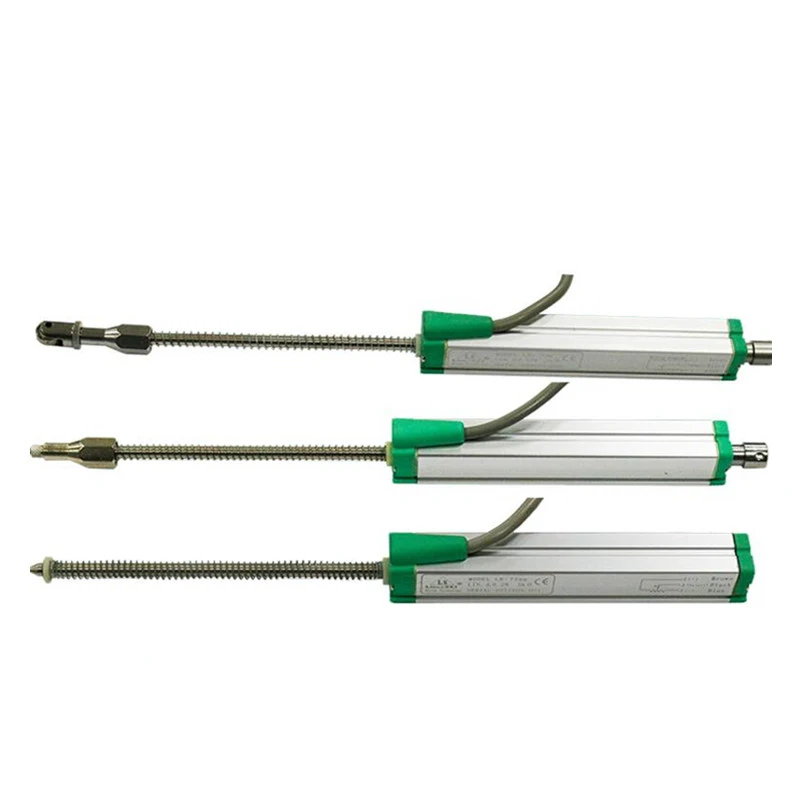

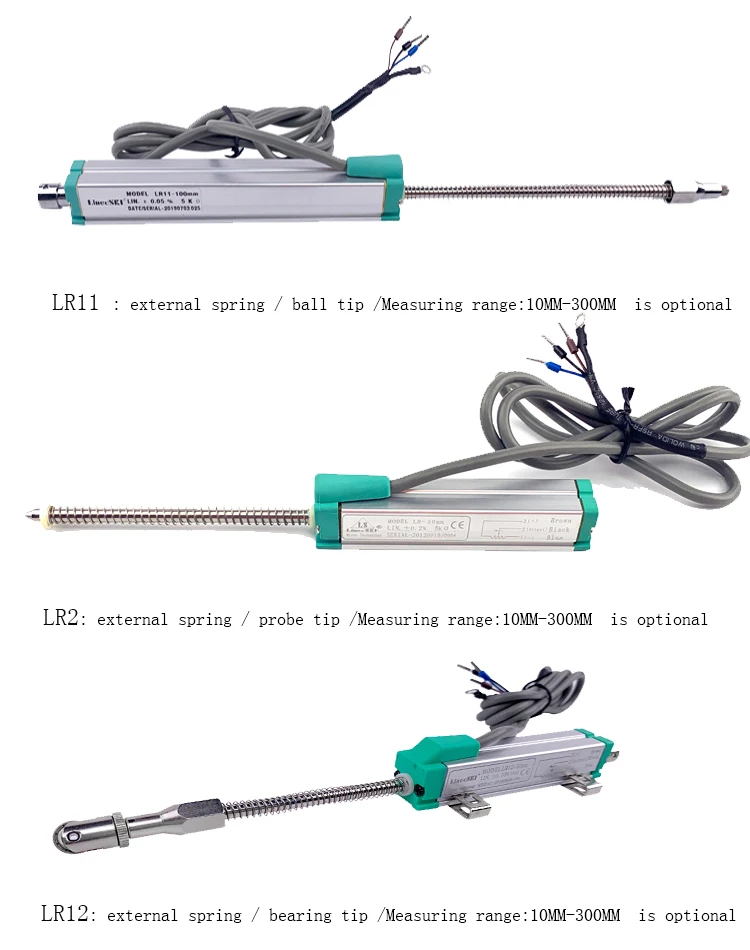

Note:There are three different types.The difference is the detection head. LR11--External spring / ball tip (customized largest stroke 300mm) LR12--External spring / Bearing tip (customized largest stroke 300mm) LR2---External spring / The rod end is the probe tip (customized largest stroke 300mm | ||||||||||
