Текстильная непрерывная инфракрасная машина для термической обработки постельного белья
- Category: Textile Finishing Machines >>>
- Supplier: Ldc.International,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

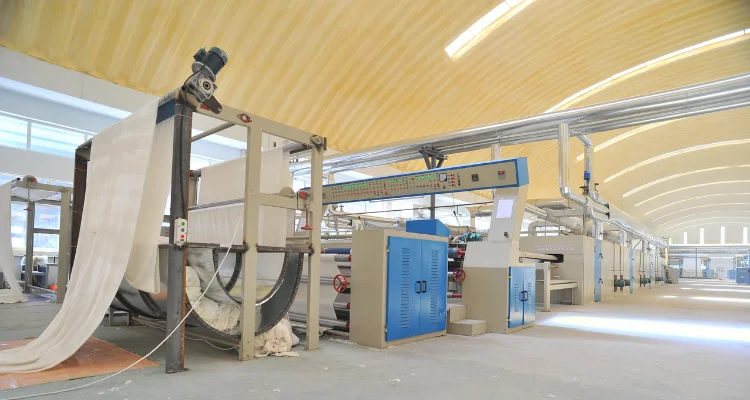

Stenter Machine
Application:
This Machine is Suitable for Impregnating, Stretching, Drying and Shaping of Cotton, Polyester, Polyester, Acrylic and Their
Blended Fabrics.
Application:
This Machine is Suitable for Impregnating, Stretching, Drying and Shaping of Cotton, Polyester, Polyester, Acrylic and Their
Blended Fabrics.
Product parameters
Technical characteristics 1. Working width: 1800-3600mm. 2. Working speed: 20-120m/min. 3. Form: dual pincers running horizontally. 4. Drying room: horizontal drying room, 6 chambers, 7 chambers, 8 chambers, 9 chambers and so on, building block combination. 5. Evaporation temperature: the highest temperature 220℃, can be set independently. 6. Heat source: steam, heat conduction oil, electric heating, natural gas. 7. Drying room adopts multi-wing circulating fan, rolled aluminum fin radiator, high thermal efficiency, uniform temperature in drying room. 8. The frame adopts standard profile, welded into a separate circulation cavity, the top is equipped with anti-drip oil device. 9. Transmission mode: AC frequency conversion multi-unit synchronous speed regulation. | ||||||||
