Mini Bored Piling Machine Drilling Mud Desilter Mud Desander
US $3000-$20000
Factory Manufacture Excavator Auger Post Hole Digger Drilling Machine Hydraulic Earth Auger for Sale
- Category: Engineering & Construction Machinery >>>
- Supplier: Changzhou,Raymond,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
RAY ATTACHMENTS Earth Auger is a kind of digging hole machine. It can be mounted to all common hydraulic excavators as well as mini excavator and other carrier like skid steer loader, backhoe loader, telescopic handler, wheel loader and other machinery.Our auger drive can installed with earth drill, stump planner, mixer bowl for different uses.
Description

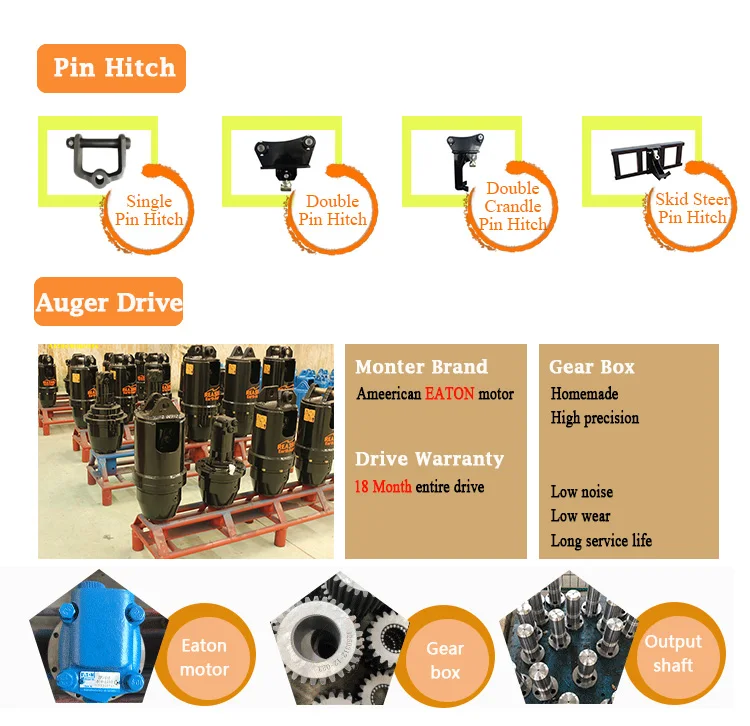

Auger Drive:
Auger Drive is the heart of earth auger. We adopt imported motor to ensure its quality. It is divided into two major parts, Motor and gear. The motor from American Eaton, brand quality assurance. And we ensure the quality of the auger drive of 18 months warranty.
1.Forged hoods ears: Deal with the heavy strain of daily use.Contact surface wider and safer.
2.Eaton Motor: Developing the most reliable attachments.
3.ERICYLIC gearbox: Unique planetary gearbox.Multiplied output torque.
Extreme efficiency
4.NON-dislodgement shaft: Assembled top down locked into earth drill house.Never fall out.Provided a safer environment.
Pay attention: We have independently developed a tungsten tooth and have a patent (patent no: 201520425163.4) .
1.Forged hoods ears: Deal with the heavy strain of daily use.Contact surface wider and safer.
2.Eaton Motor: Developing the most reliable attachments.
3.ERICYLIC gearbox: Unique planetary gearbox.Multiplied output torque.
Extreme efficiency
4.NON-dislodgement shaft: Assembled top down locked into earth drill house.Never fall out.Provided a safer environment.
Pay attention: We have independently developed a tungsten tooth and have a patent (patent no: 201520425163.4) .
Screw drill classification:
1.Auger drill can be flexibly selected, S4, S5, S6,PA,four types are available.
2.Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer
requirements (size within a certain range).
3.Rock auger drill: It fit to rock, pitch or a lot of gravel land. Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily. Sharp auger drill: It fit to rock, concrete, cement, asphalt and so on.
2.Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer
requirements (size within a certain range).
3.Rock auger drill: It fit to rock, pitch or a lot of gravel land. Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily. Sharp auger drill: It fit to rock, concrete, cement, asphalt and so on.

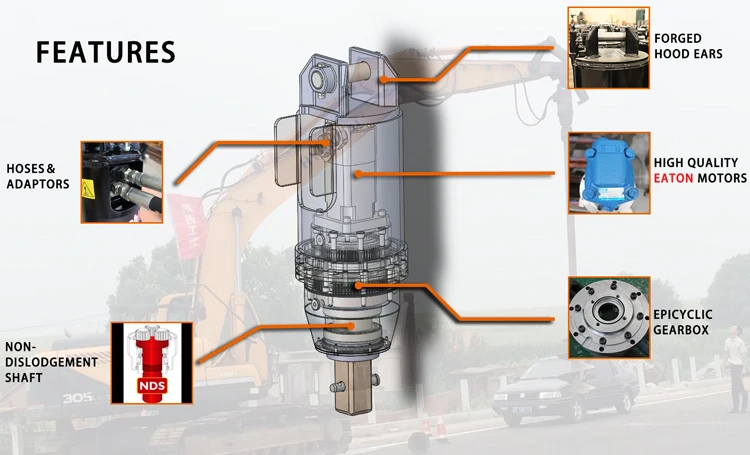

·FORGED HOOD EARS
Standard with all Auger Drives in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch
·HIGH QUALITY HYDRAULIC MOTORS
EATON Motor provide stable and high torque power output. The failure rate is only 0.2%
·EPICYCLIC GEARBOX
Torque is amplified by using the unique planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
·NON-DISLODGEMENT SHAFT
The Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.
· HOSES AND ADAPTORS
All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).
Specification

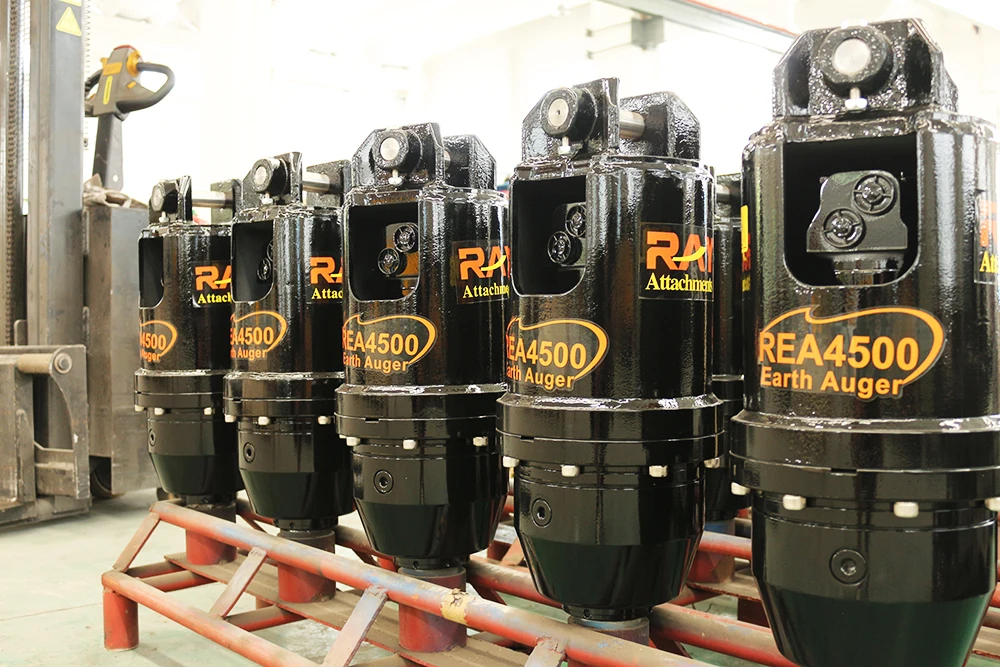

Model | REA2000 | REA2500 | REA3000 | REA3500 | REA4500 |
Adaptive Weight (T) | 1-2.5 | 1.5-3 | 2-3.5 | 2.5-4.5 | 4.5-7 |
Oil Pressure Range (Bar） | 205 | 205 | 240 | 240 | 240 |
Torque Range (N.m) | 1871 | 2432 | 2877 | 3614 | 4218 |
Oil Flow Range (L/min) | 23-53 | 30-61 | 30-61 | 30-68 | 38-76 |
Speed Range (rmp) | 40-92 | 40-82 | 40-81 | 32-72 | 32-64 |
Hub Option | 65mm round 2'' hex | 65mm round 2'' hex | 65mm round 2'' hex | 65mm round 2'' hex | 65mm round 2'' hex |
Height (mm) | 595 | 595 | 700 | 700 | 700 |
Hitch Options | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch | Single Pin Hitch Double Pin Hitch Cradle Pin Hitch |
Auger Range | S4 | S4 | S4 | S4 | S4 |
Rec. Drilling Diameter Range | 100-400mm | 100-500mm | 100-600mm | 100-750mm | 100-900mm |
Available Auger Bit
Tungsten Auger
Rock Auger
Sharp Auger

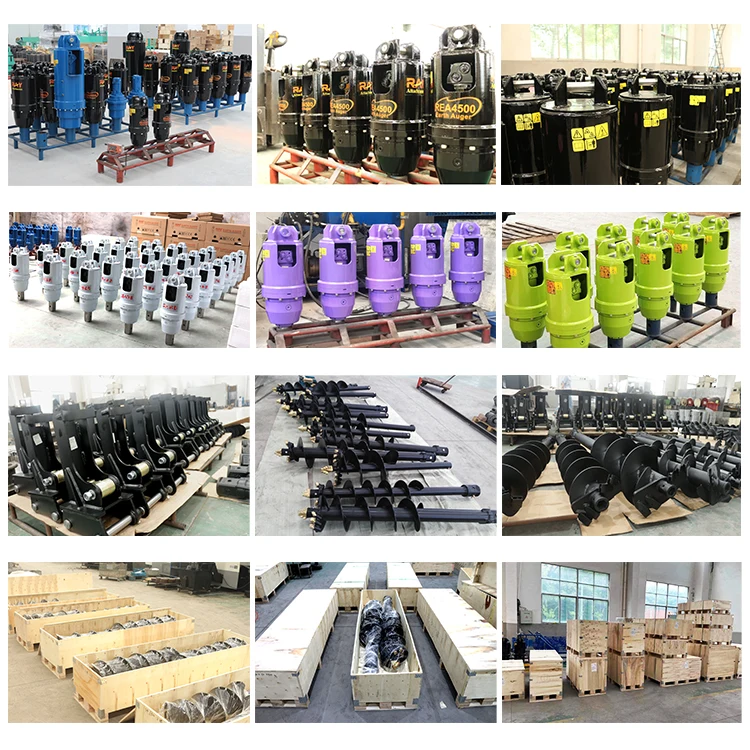

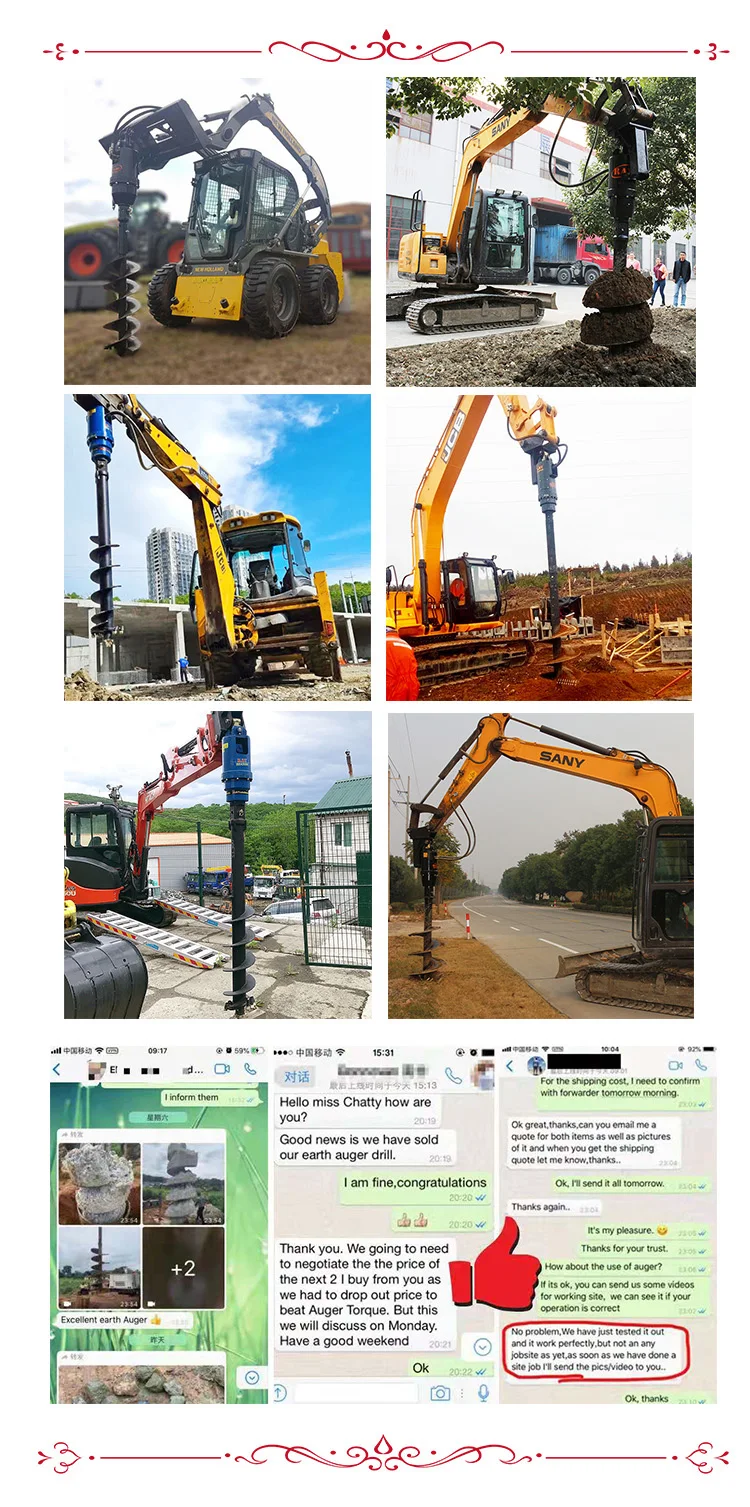

Customer Photos
RAY Earth Auger can be mounted on Excavator, Skid steer loader, Crane, Backhoe loader, Tractor, Telehandlers.

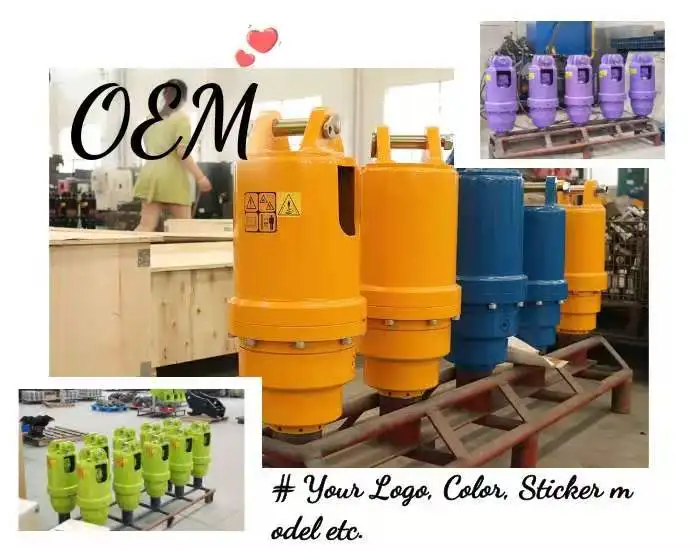

OEM Service

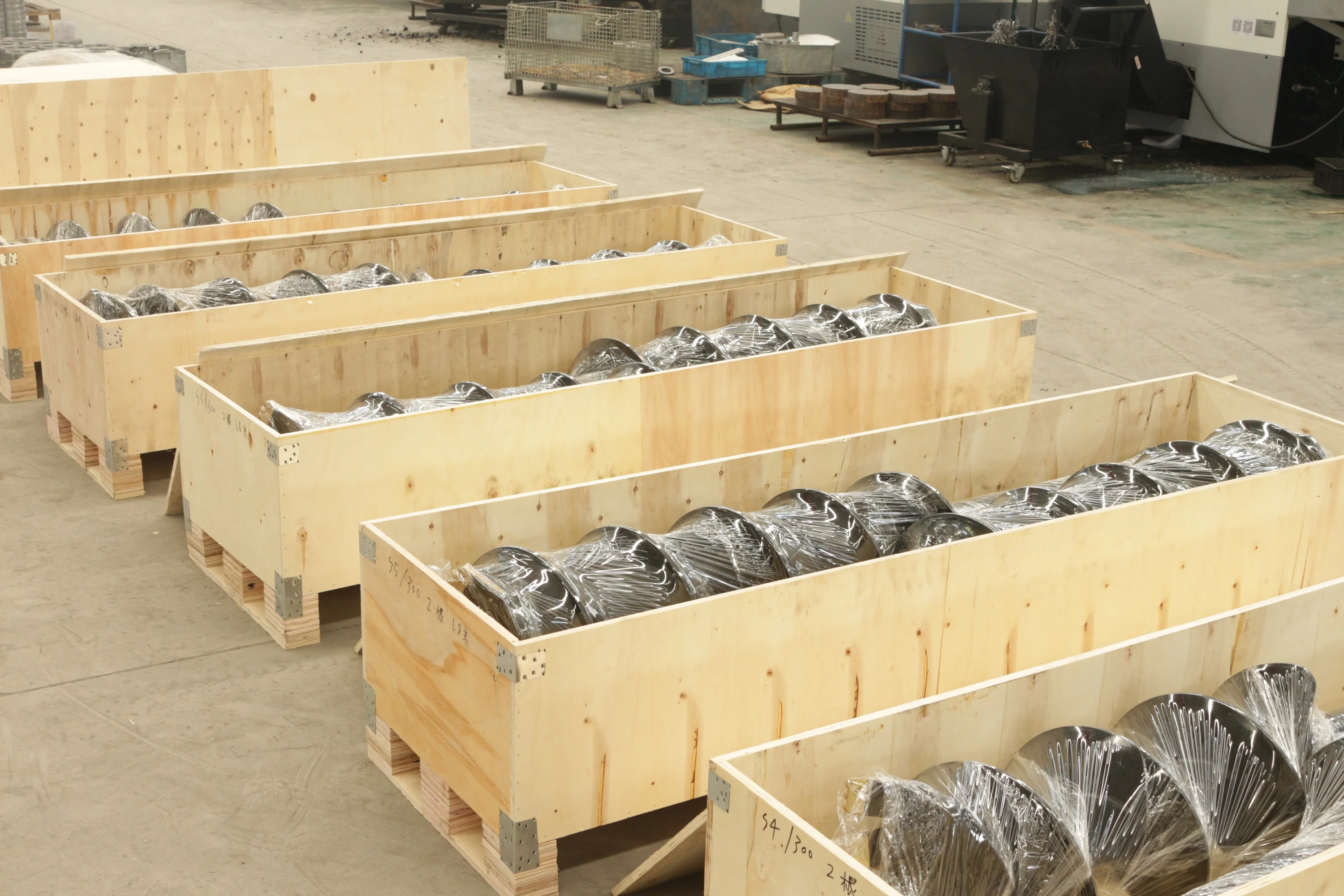

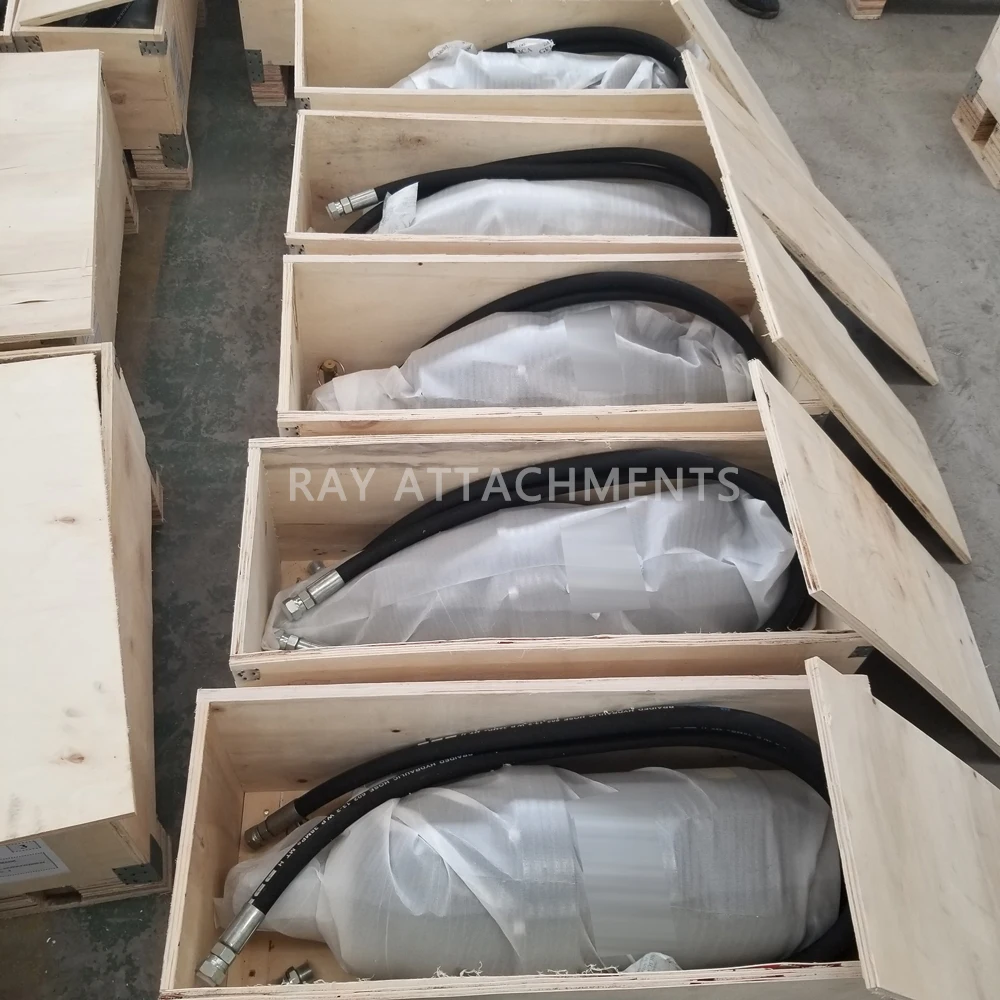

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

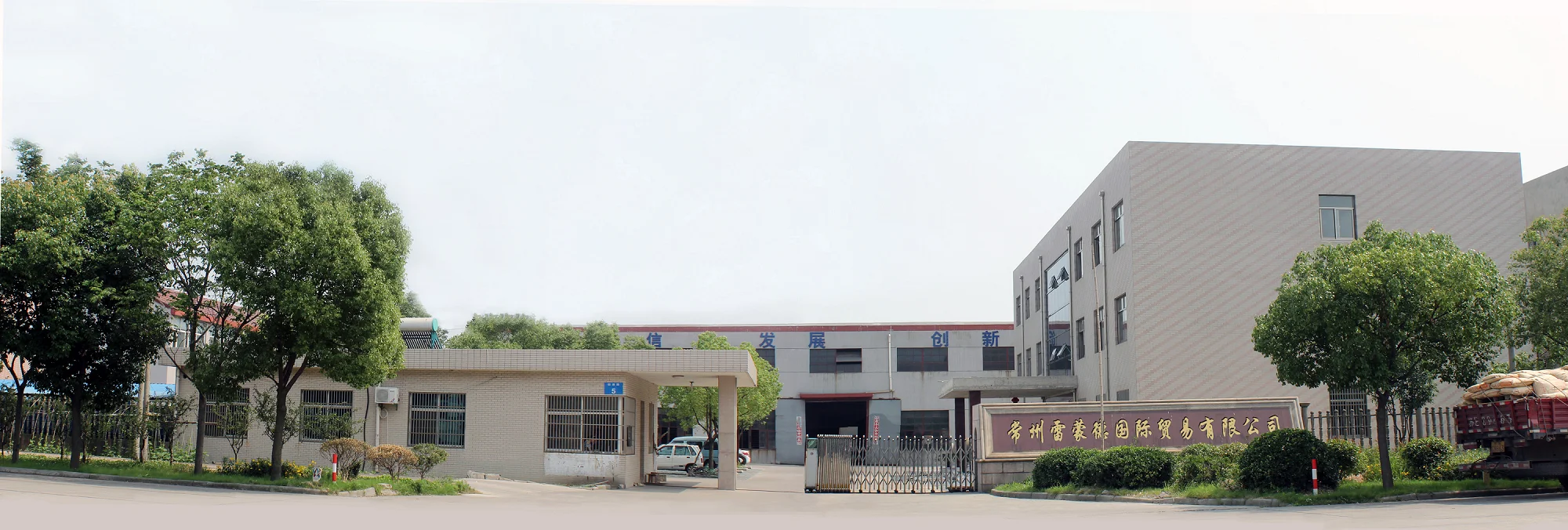

Company Profile
RAYMOND is a factory with authorized Imp. & Exp. right which including two companies, Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City, Jiangsu Province, China, Factory building areas cover around 20,000 square meters. Raymond Precision Machinery Co.,Ltd was established in 2002, committed to focus on the development, production and sales of construction machinery and their spare parts.
EVERYBODY LOVES RAYMOND
Exhibition
FAQ
1. Your price is higher than others?
Can I know which brand did you cooperated now and How manuy units did you sell per year?
2. Does you copy Auger Torque?
1.As you know, the auger torque is very famous brand, it means: their design and working priniciple is good, so our working
principle is similar and we updated our gear box with higher precision, less noisy and span life is longer than Auger Torque. Because we produced high precision seamless steel tube at the begining, so we have much experience for precision.Normally our precision is around0.1mm-0.3mm
Can I know which brand did you cooperated now and How manuy units did you sell per year?
2. Does you copy Auger Torque?
1.As you know, the auger torque is very famous brand, it means: their design and working priniciple is good, so our working
principle is similar and we updated our gear box with higher precision, less noisy and span life is longer than Auger Torque. Because we produced high precision seamless steel tube at the begining, so we have much experience for precision.Normally our precision is around0.1mm-0.3mm
2. Except some part updated, each part of our auger with their own serial code, it help us to control quality stable and checking when the part produce and where does it go and who take care of it before, all these information to help us manage production process and easy to find what's happend of this part. 3. For seller or user, for similar product with better price and good after sales service, which one do you prefer? For your competitors, they don't have what you
are in hand, except the whole set auger, we can provide OEM drill to match all auger drive in your market, it's the growth point of your sales.
3.If auger torque with patent, how can I sell in marketing?
1. According to our customer's feedback, auger torque with patent for their tungsten teeth , we have new design for it and also we have our own patent, so it won't affect your sell, something, even your customer use auger torque auger drive, you also can sell spare parts and drill to them diretly.
are in hand, except the whole set auger, we can provide OEM drill to match all auger drive in your market, it's the growth point of your sales.
3.If auger torque with patent, how can I sell in marketing?
1. According to our customer's feedback, auger torque with patent for their tungsten teeth , we have new design for it and also we have our own patent, so it won't affect your sell, something, even your customer use auger torque auger drive, you also can sell spare parts and drill to them diretly.
2.Few customer focus on the patent , they focus on the cost and how long the goods can work. For you, the most important is your marketing share is higher and earn money and the company get a good reputation .
3. If you still worried about it, it's better to confirm with your goverment and ask if there are more patent for auger, then we can to check and give solution and won't affect your selling. How is your opinion?
4. What brand drive you have?
We have our own RAY brand. But if you want to sell under your own brand, we can provide OEM service
5. The hydraulic motors is yours?
No, We don't produce motor. Our motor is EATON brand with stable quality.
6.Do you put in carton box or wooden box?
Generally small models will be packed in cartons. Larger models will be packed in wooden boxes. If it ship by sea, we recommend
using wooden boxes. This will prevent damage to the packaging during transportation.
7.Do we need to have any repair seal kit if any leaks? Please tell me what I need to have to fix your auger
Yes, Not only this. You can prepare extra motor, teeth and pilot, when your customer meet any problem, you can send the replaced
parts immediately.
8.How about payment terms? I don’t want to pay 100% in advance. Is there any other option?
You can pay by bank transfer or credit card. You can pay 50% in advance, and pay the rest before delivery.
4. What brand drive you have?
We have our own RAY brand. But if you want to sell under your own brand, we can provide OEM service
5. The hydraulic motors is yours?
No, We don't produce motor. Our motor is EATON brand with stable quality.
6.Do you put in carton box or wooden box?
Generally small models will be packed in cartons. Larger models will be packed in wooden boxes. If it ship by sea, we recommend
using wooden boxes. This will prevent damage to the packaging during transportation.
7.Do we need to have any repair seal kit if any leaks? Please tell me what I need to have to fix your auger
Yes, Not only this. You can prepare extra motor, teeth and pilot, when your customer meet any problem, you can send the replaced
parts immediately.
8.How about payment terms? I don’t want to pay 100% in advance. Is there any other option?
You can pay by bank transfer or credit card. You can pay 50% in advance, and pay the rest before delivery.
