Metal Lathe Low Cost Cnc Lathe Machine CK61100 Lathe
- Category: >>>
- Supplier: Tengzhou Datong Machine Tool Co. Ltd.
Share on (1600478636282):
Product Overview
Description
DTMC
Product Description
Specification
PARAMETERS | Unit | CK61100 |
Maximum turning diameter of lathe bed | mm | Φ1000 |
Maximum turning diameter of drag plate | mm | Φ680 |
Maximum machining length | mm | 1500/2000/3000 |
Spindle drive form | Fourth gear | |
Spindle speed series | No pole in gear | |
Spindle speed range | r/min | 30-84/53-150/125-350/300-835 |

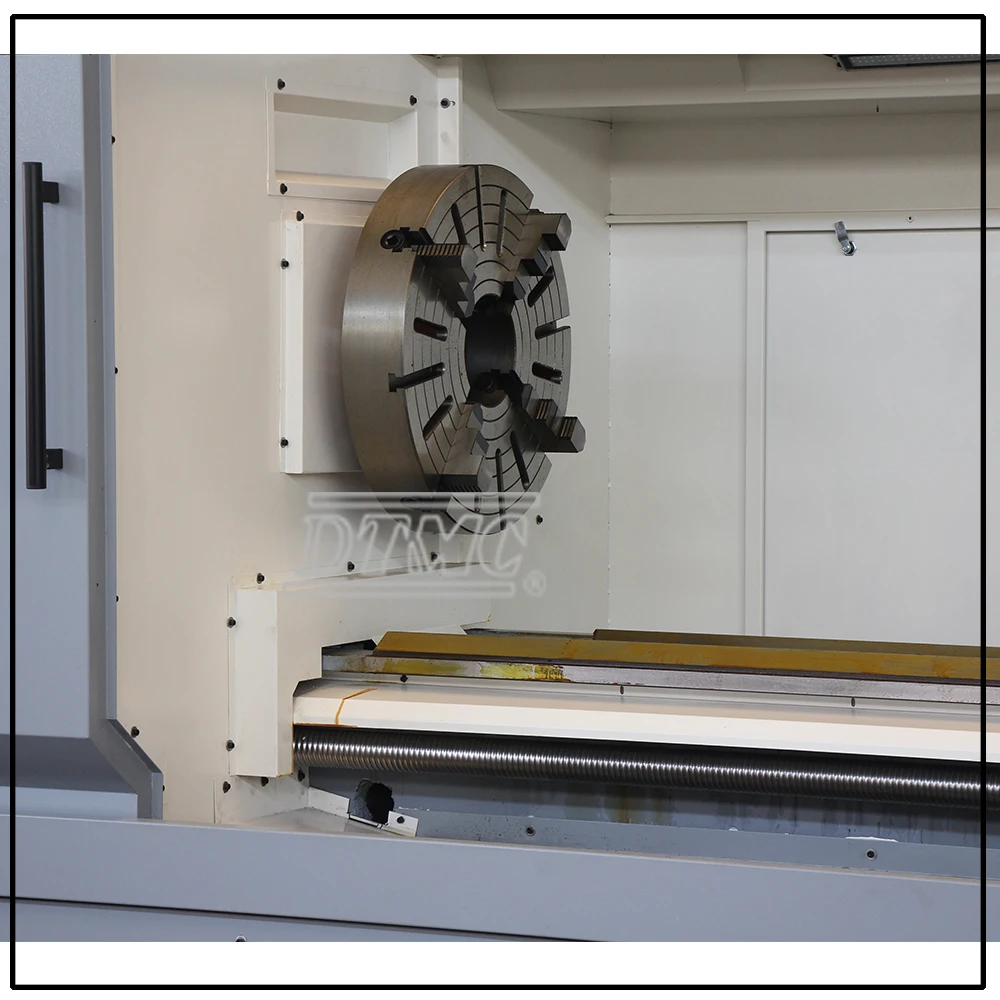

Main spindle head form | D11 | |
Taper at front end of spindle hole | Metric system120 1：20 | |
Diameter of spindle through hole | mm | 105 |
Spindle motor power | kw | 11 |
Positioning accuracy (X/Z) | mm | 0.025/0.03 |
Accuracy of repeated positioning (X/Z) | mm | 0.01/0.015 |
Workpiece machining accuracy | IT6/IT7 | |
Workpiece surface roughness | Ral.6 | |
X fast moving speed | mm/min | 4000 |
Z fast moving speed | mm/min | 6000 |

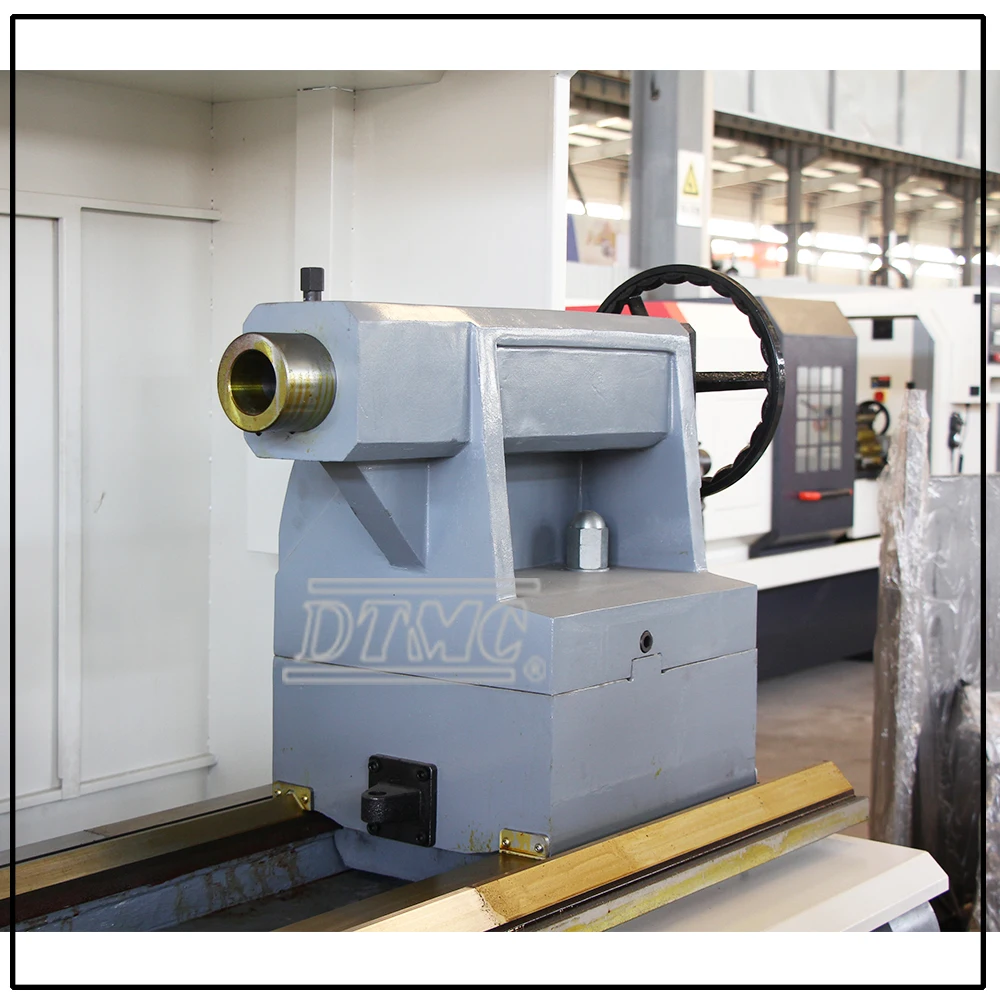

Tailstock sleeve diameter | mm | 100 |
Taper of inner hole of tailstock sleeve | MT6# | |
Movement of tailstock sleeve | mm | 250 |

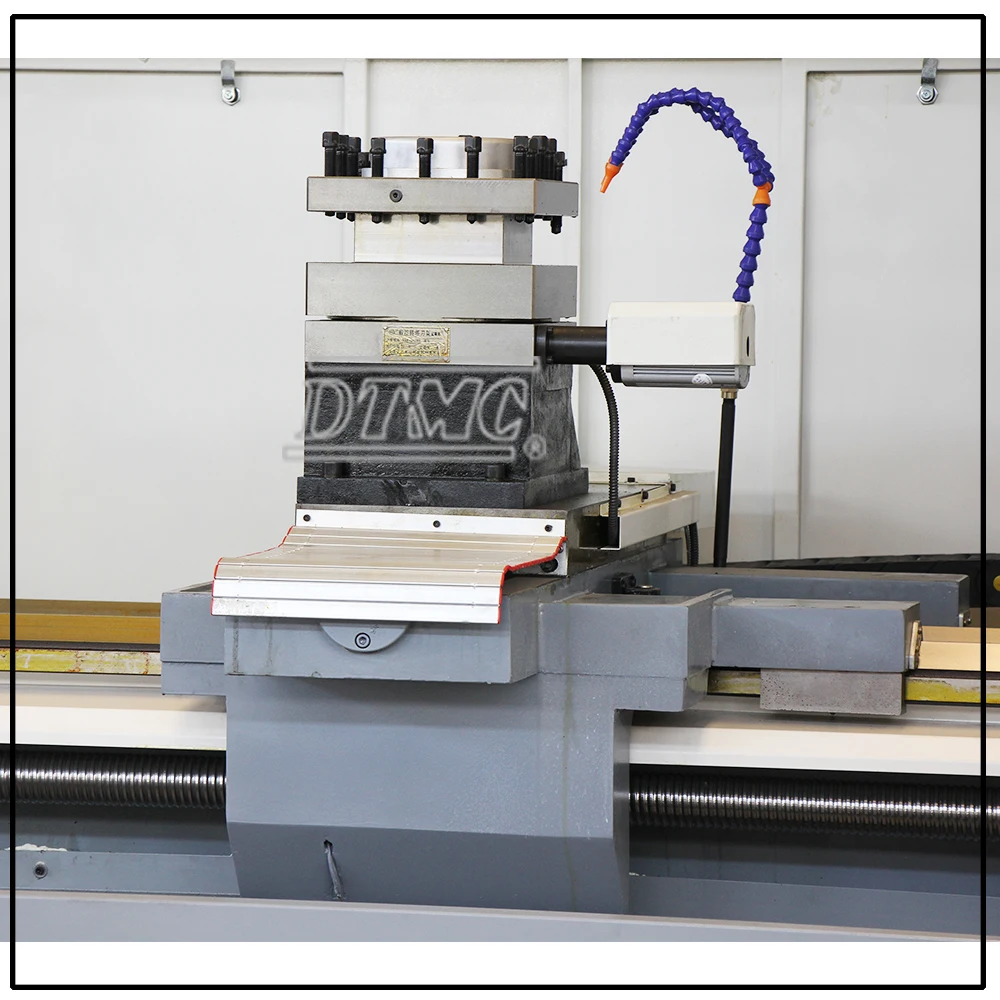

Tool holder form | 4-position vertical electric tool rest | |
Ball screw diameter * pitch | mm | X:30*06 Z:50*10 |
Knife size | mm | 40×40 |
Machine dimensions | mm | 3600/4100/4600/5600×1950×2000 |
machine weight(about) | kg | 4400/4800/5600/6700 |
